S-5! VersaGard Snow System for Metal Roofs

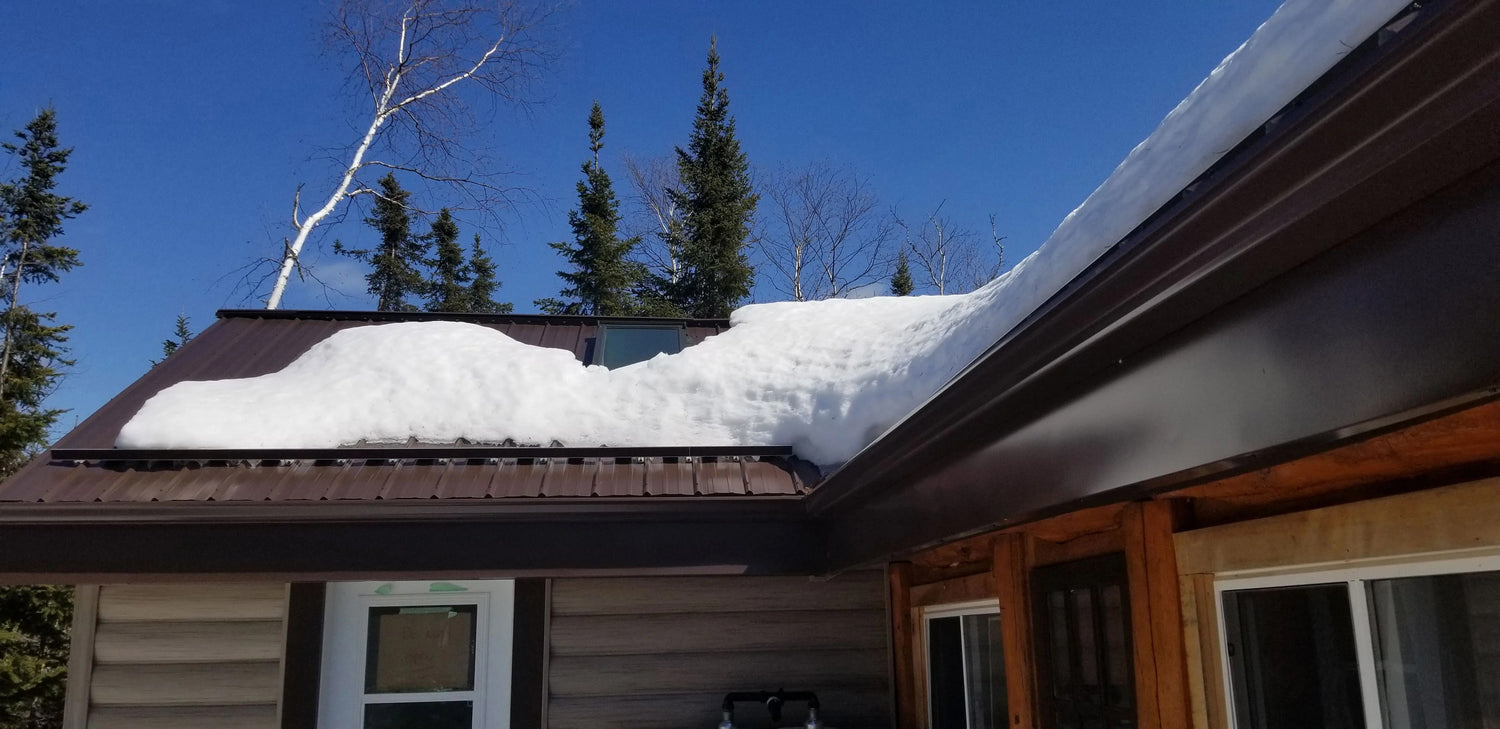

VersaGard snow retention systems are a versatile and economical two-pipe snow retention system designed to be attached to exposed-fastened or face-fastened metal roofs. VersaGard features a unique “well” built into its base with a factory applied self adhesive butyl sealant for leak-free attachment that will not crack or split. Upon removal of the protective seal, the bracket is also fastened with gasketed fasteners for a lifetime of worry-free performance. Simple installation makes this a popular choice.
-
Heavy-Duty & High Capacity
- Proprietary NEX® 2” octagonal pipe provides superior beam strength and prevents pipe rotation
- Double-clamp design delivers unprecedented holding strength for standing seam metal roofs
- Spans up to 4' between brackets and cantilevers up to 20" past the last clamp
-
Versatile & Compatible
- Non-penetrating design preserves roof warranties
- Ideal for use on insulated metal panel (IMP) roofs with 36"–48" seam spacing
- Compatible with standard S-5! clamps and X-Clip for added snow migration control
- Can be used as a one- or two-pipe system depending on project needs
-
Installer-Friendly & Durable
- Easily retrofitted to existing roofs or integrated into new construction
- Precision-machined, aircraft-grade aluminum components with stainless steel hardware
- 7' 8" nominal pipe length simplifies shipping, handling, and installation
- Can be painted, powder-coated, or anodized for aesthetic flexibility
-
