SKU: 50202100 | Brand:
NVELOPE NV3-3000 Horizontal Rails
Regular price
$35.27
Regular price
Sale price
$35.27
Unit price
per
Couldn't load pickup availability
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Shipping Information
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Description
Features
- NV3 is the NVELOPE system for concealed fastening/mechanically attached applications—vertical cladding applications.
- Secured using hangers and undercut stud anchors or screws to provide a concealed attachment.

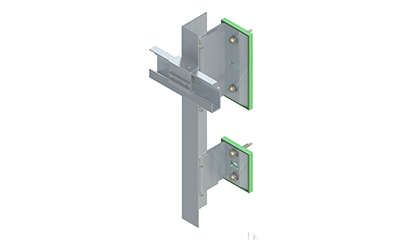

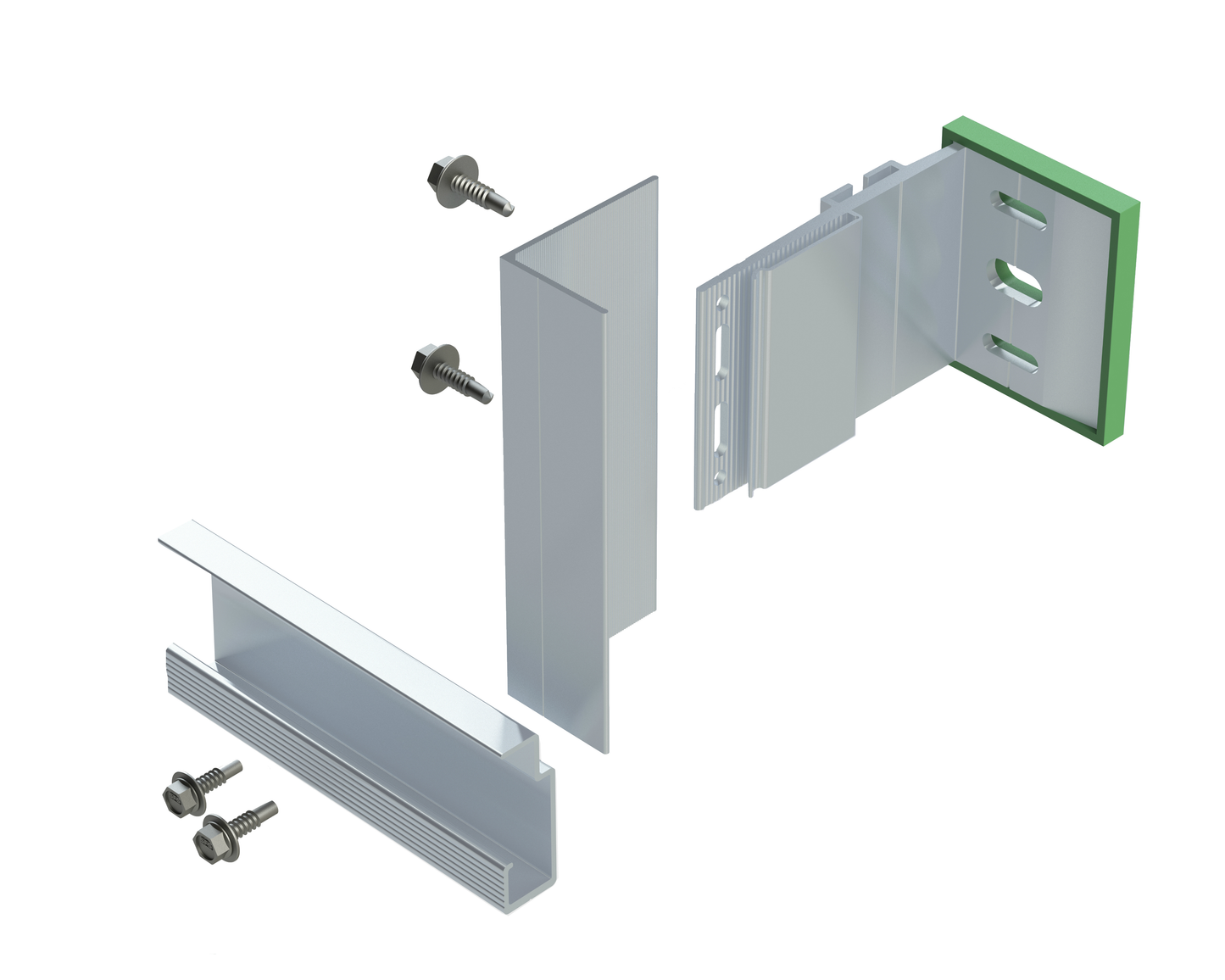

- Horizontal NVELOPE channel profiles are secured to the vertical profiles. Rainscreen panels are hung from and secured to the horizontal profiles with hangers and adjustable hangers.
- NVELOPE 'T' and 'L' profiles are secured using NVELOPE support brackets, attached through a series of fixed and flexible points.
- NVELOPE fixed point brackets absorb both vertical dead loads.
- NVELOPE bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, and local wind loads.
- NVELOPE flexible point brackets absorb wind loading and allow for expansion and contraction.
Material
- Manufactured from extruded aluminum alloy 6005A-T6.
Approvals
- British Board of Agrément (BBA) - 09/4678.
- Meets the compliance requirements of ASHRAE 90.1 and NFPA 285.
Options
- NVELOPE brackets: allows adjustment between the face of the primary support to outer face of vertical profile.
- Thermal isolators: hard PVC isolator assembled as standard (located between the NVELOPE bracket and the primary structural support system).
Hangers for NV3 rails
Our NV3 systems are designed to accommodate the SFS TUF-S hanger, as well as hangers supplied by other manufacturers.
