SKU: 54000030 | Brand: S-5!

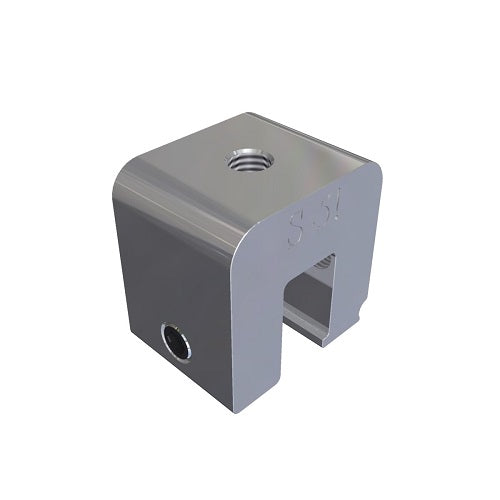

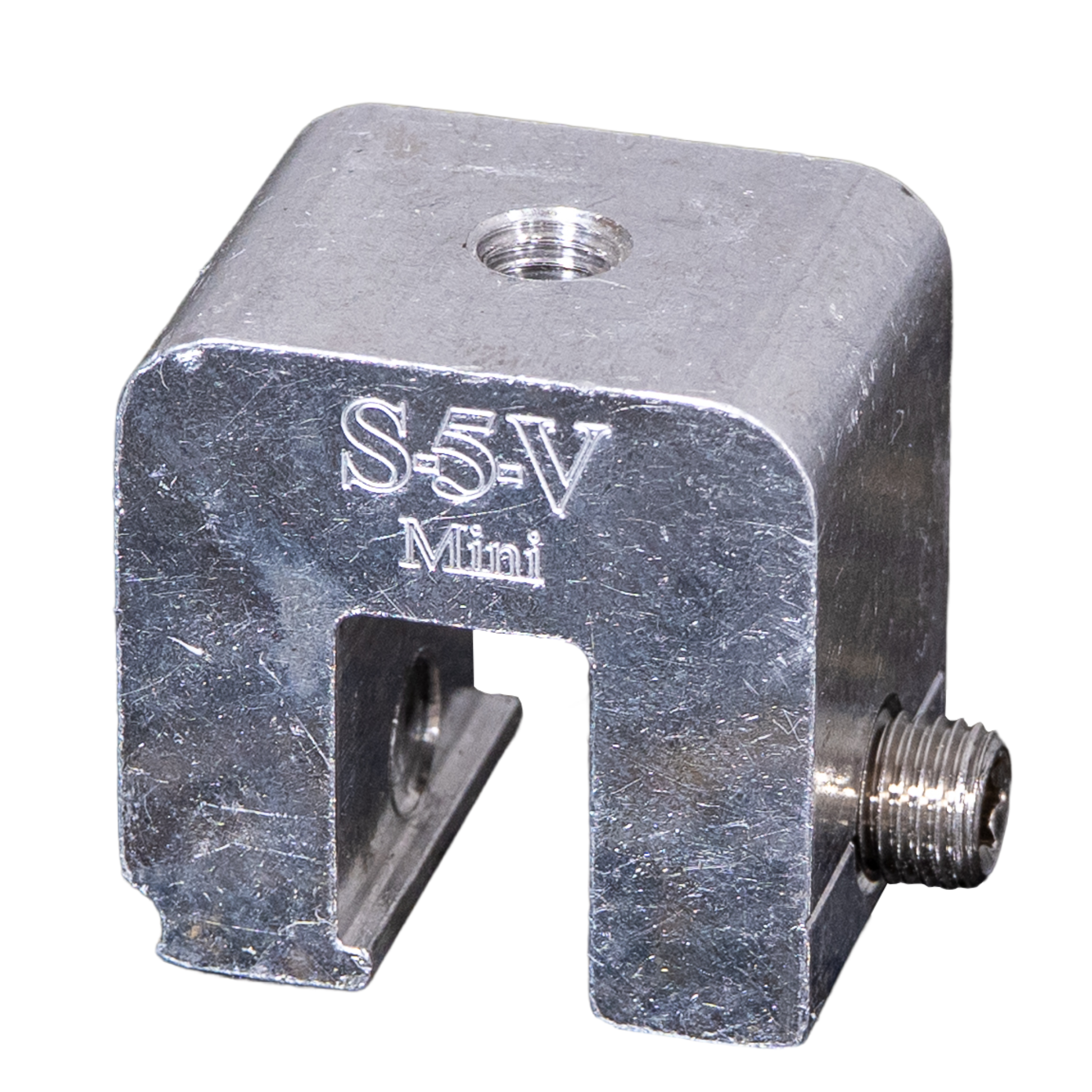

S-5-V Mini Seam Clamp
S-5-V Mini Seam Clamp
Couldn't load pickup availability
View full details
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Shipping Information
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Find the Correct S-5! Clamp
Find the Right S-5! Clamp for Your Roof
Choosing the right S-5! clamp is essential for secure and reliable attachment to your metal roof. Whether you know your roof manufacturer and panel type or need to match a clamp to your seam profile, we’ve got you covered.
-
By Manufacturer & Panel Type
Search by ManufacturerIf you know your roof manufacturer and specific panel type, this option allows you to quickly find compatible clamps based on tested configurations.
-
By Seam Profile
Search by Seam ProfileNot sure of your roof manufacturer? No problem! Identify your roof’s seam profile and explore clamps designed for that seam profile.
Description

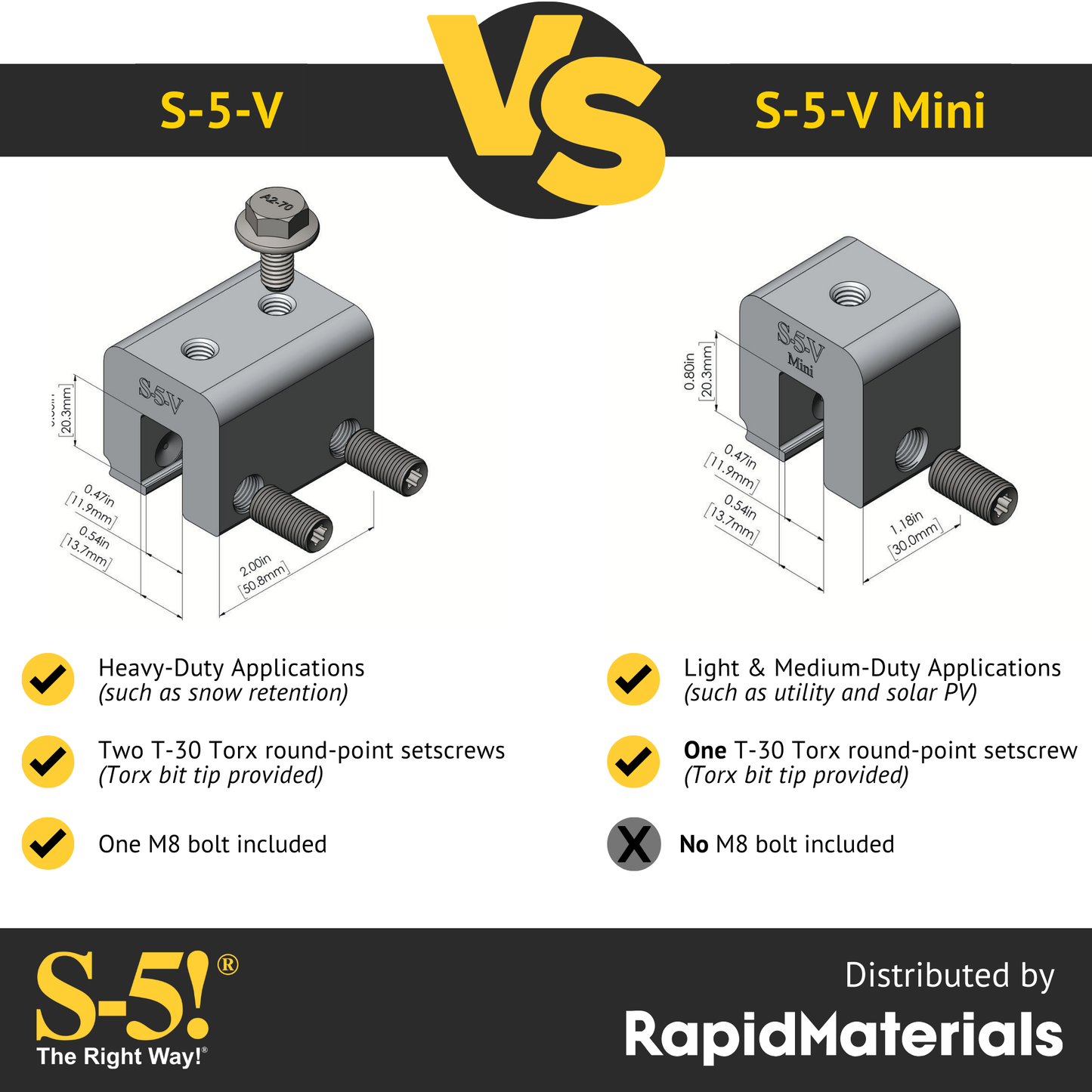

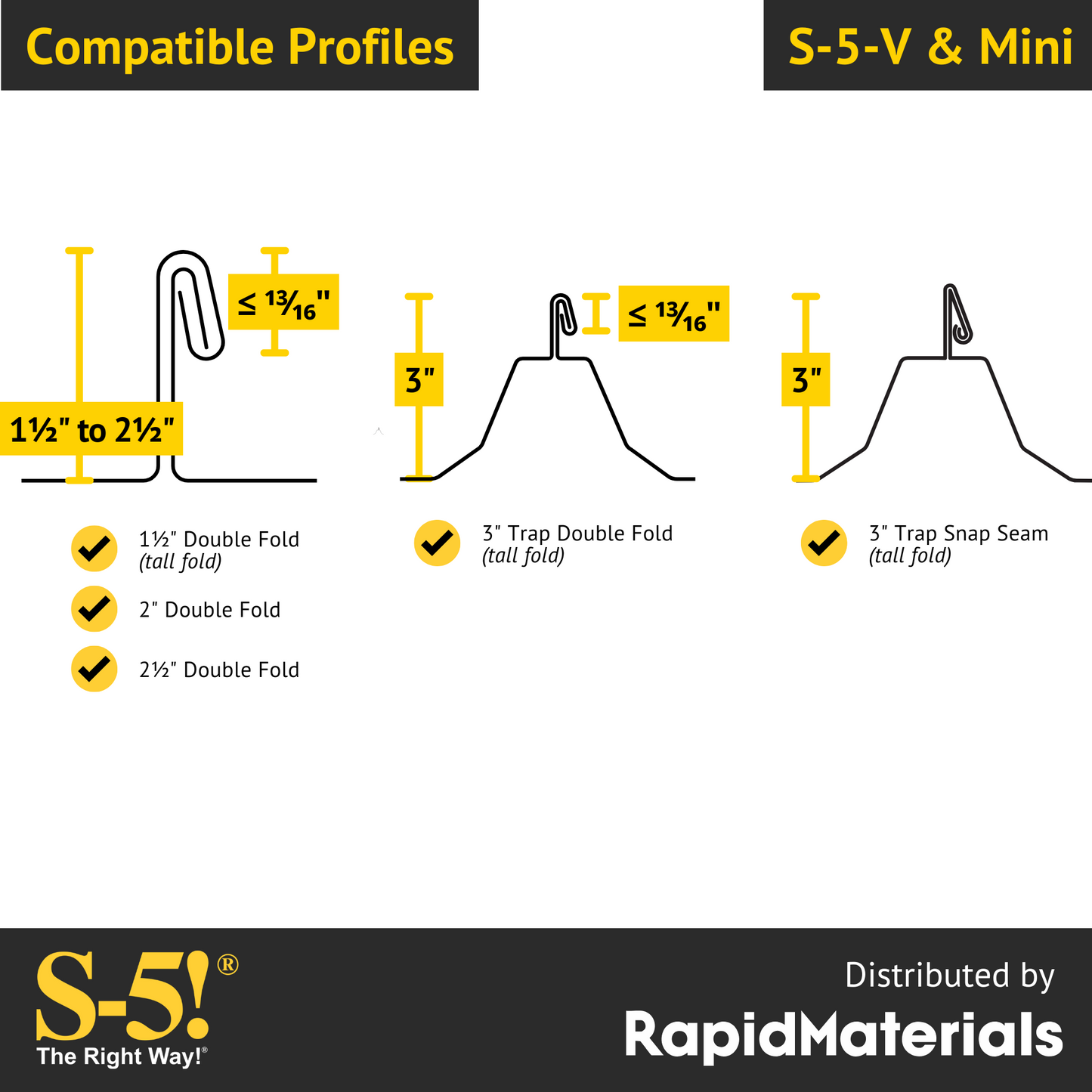

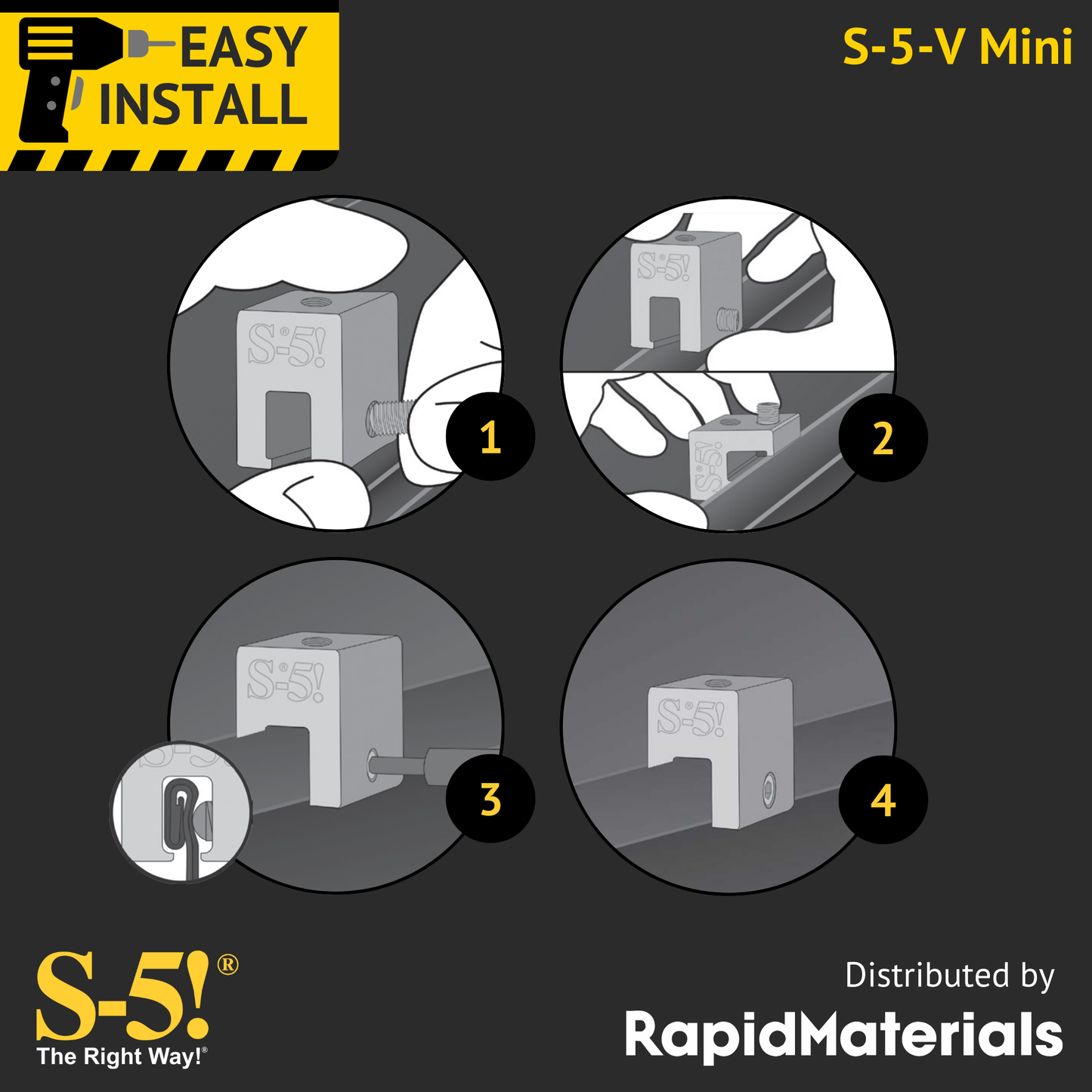

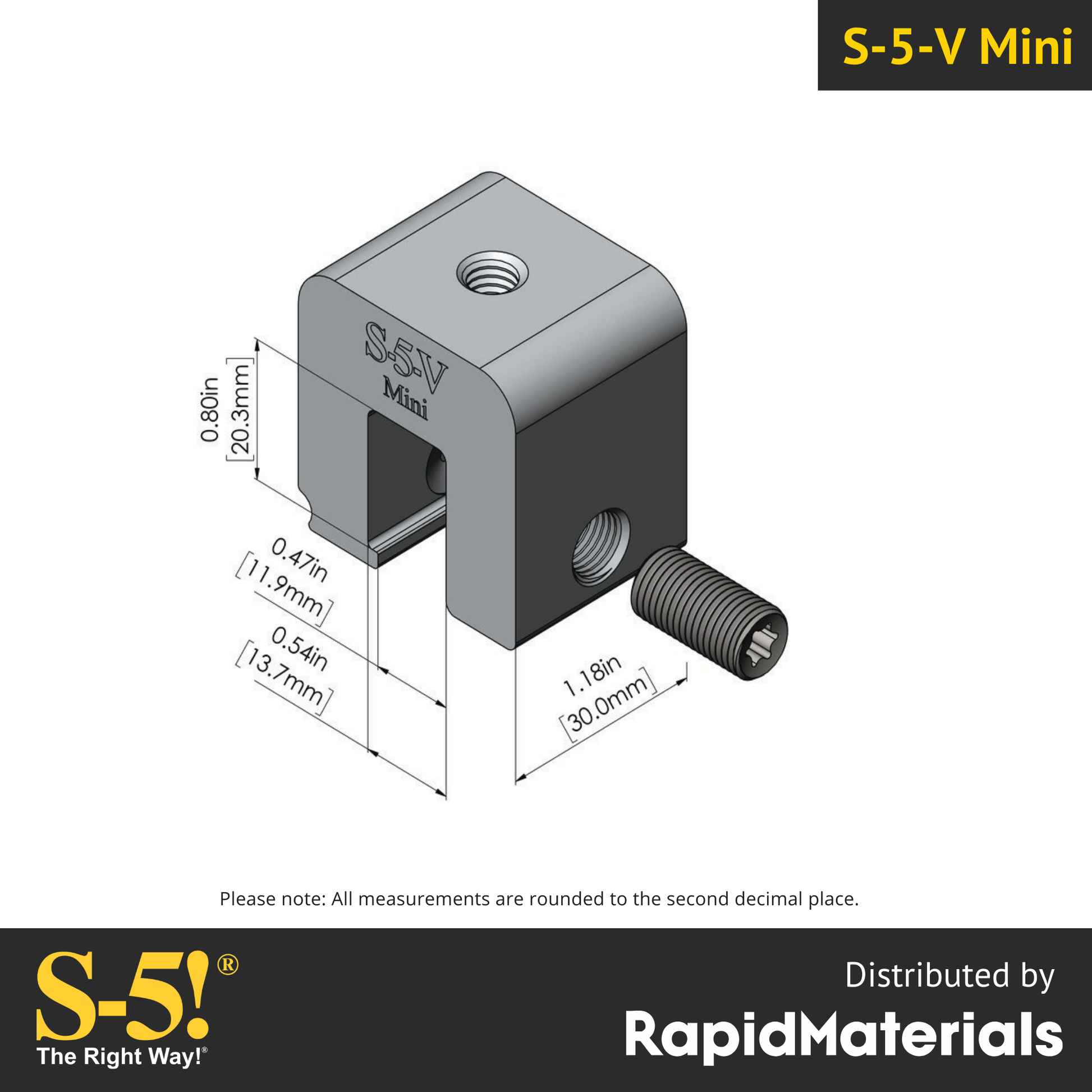

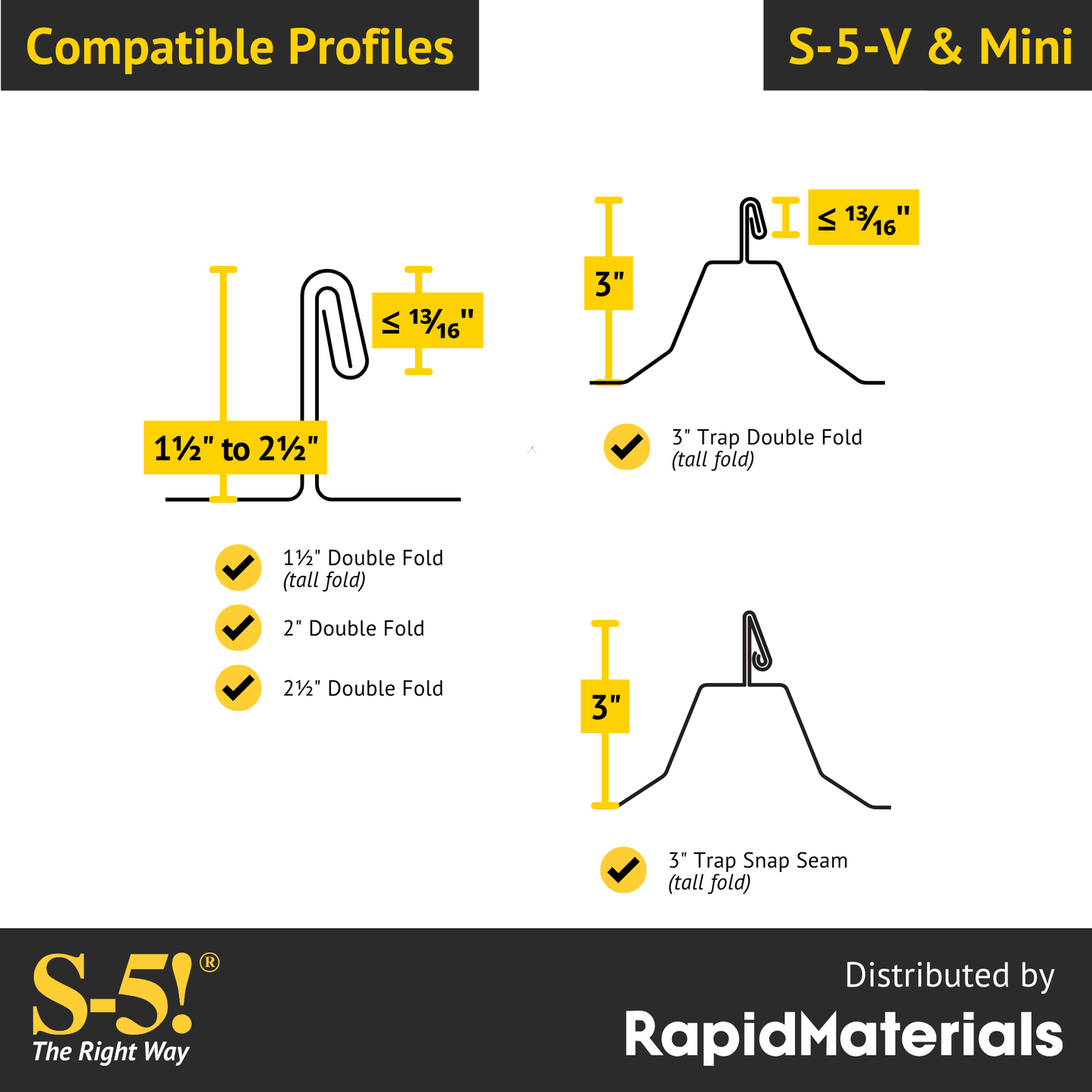

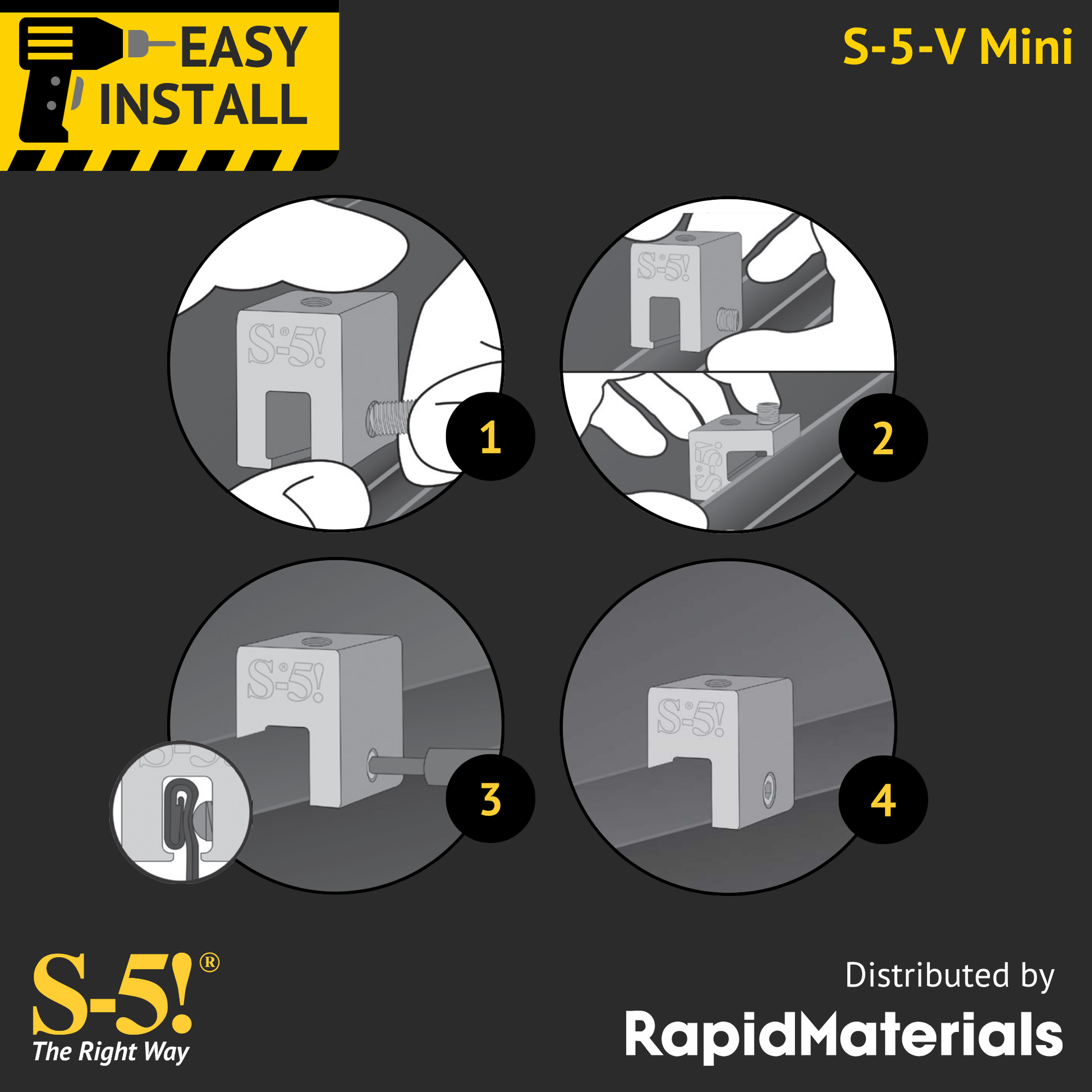

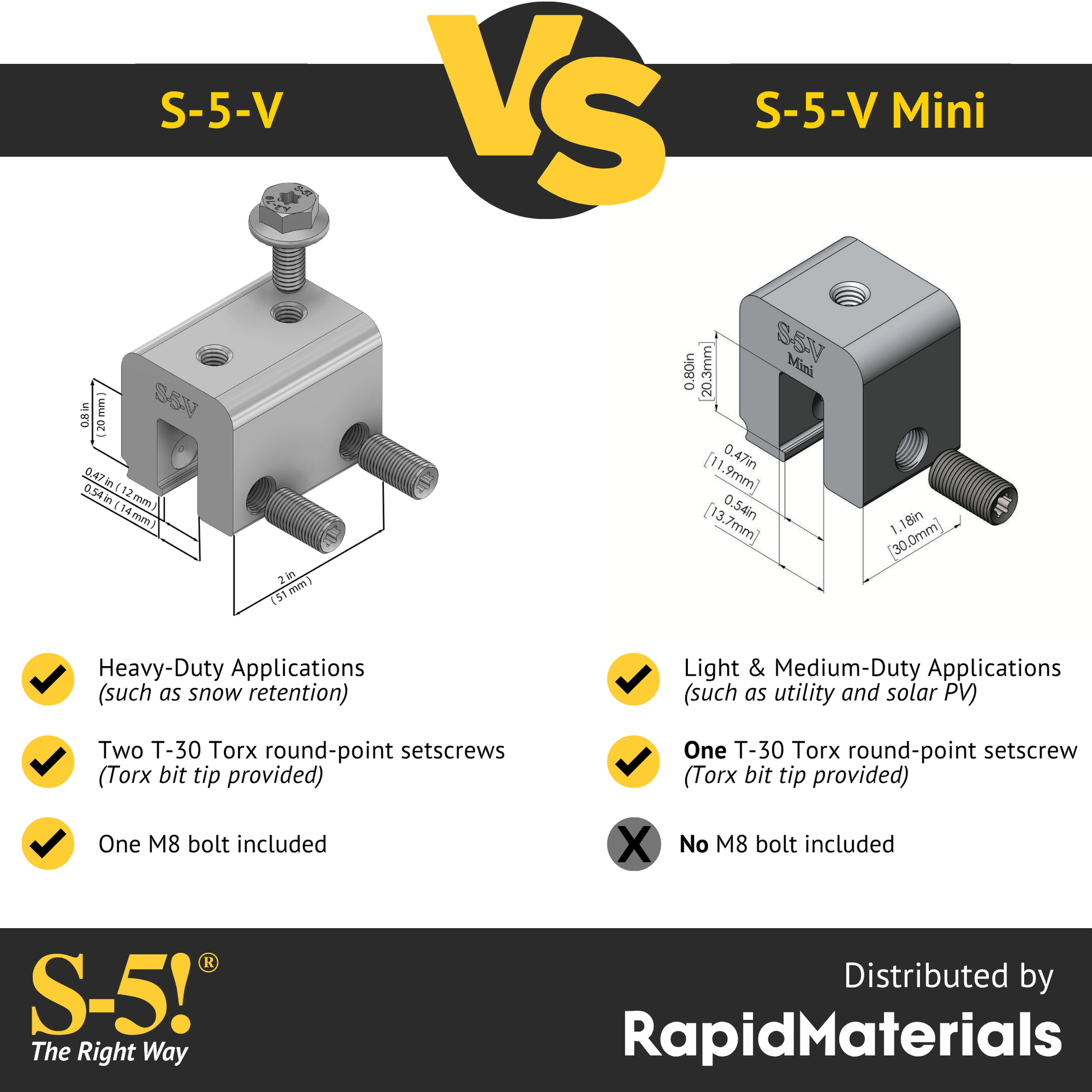

Shorter than the regular S-5-V, the S-5-V mini clamp is a versatile clamp that fits vertical-folded seam profiles manufactured in North America including most structural and architectural profiles. The S-5-V Mini is a medium-duty, non-penetrating seam clamp. It is a bit shorter than the S-5-V and has one setscrew rather than two. The S-5-V Mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment just about anything! *S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail /SnoFence or ColorGard® snow retention systems. If you are using ColorGard, make sure to use the regular S-5-V seam clamp. Installation is as simple as setting the patented round point setscrews into the clamp, placing the clamp on the seam, and tightening them to the specified tension. Then, affix ancillary items using the stainless steel bolt provided with the product. The S-5-V mini clamp comes complete with one [1] 3/8″x 24 x 0.80″ round nose set screw. All hardware is stainless steel. The Hex bolt is no longer standard with S-5! mini clamps.
- No bolt
- 17mm (11/16″) M8-1.25 Flanged Bolt
- 20mm (7/8″) M8-1.25 Flanged Bolt
- 40mm (1-9/16″) M8-1.25 Flanged Bolt
