Description

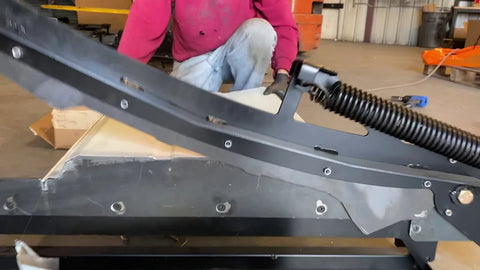

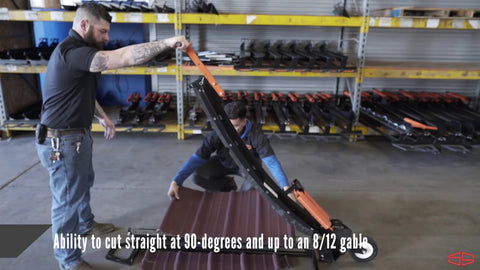

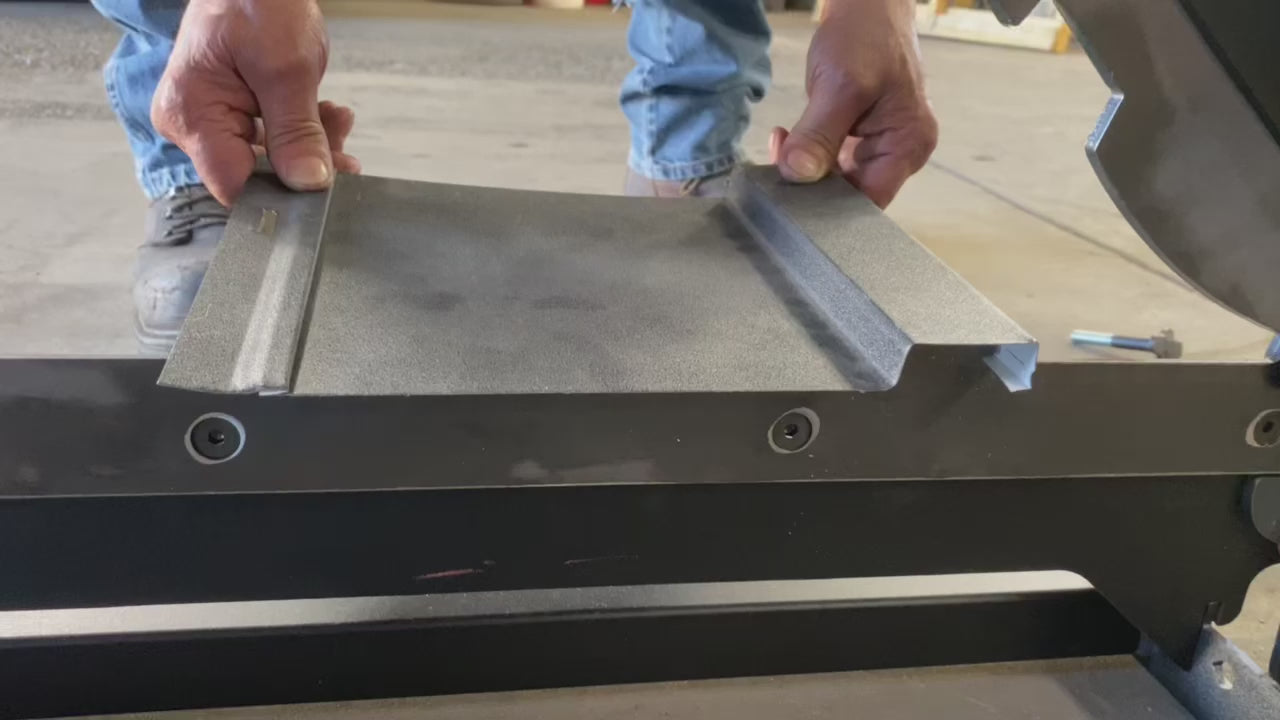

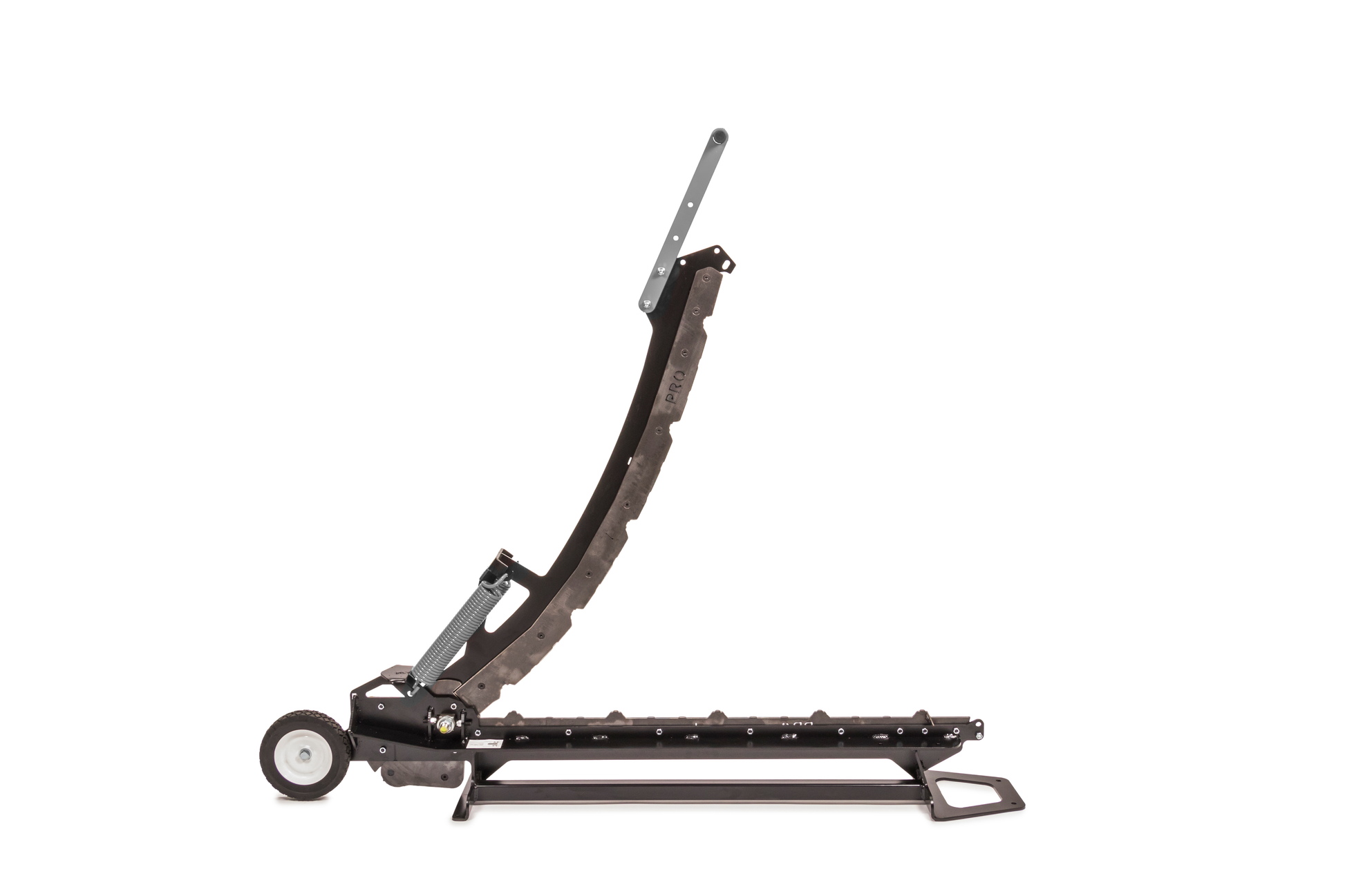

The Model 48 Heavy Duty Pivot Shear by Swenson Shear with its 48″ blade is ideal for shearing heavy gauge exposed-fastener panels, with the ability to shear straight at 90° and up to a 8:12 gable. The custom blades match any panel profile, providing a clean cut, eliminating burred edges and flying metal. The shear is transportable and weighs around 140 lbs.
The Model 48 Shear features an interchangeable blade to accommodate any manufacturer’s panel profile. Separate blades will be needed for each blade profile or to achieve various gable angles. The recommended maximum gauge thickness is 24. Shearing panels thicker than 24ga may increase wearing of blades.
*In order to achieve and angled cut (gable) or accommodate multiple panel profiles, the purchase of an additional blade set is required.
Common Blades:
- Straight Blade: Will shear straight at 90 degrees and up to 2:12 gable
- 4:12 Gable: Achieve between 3:12 – 5:12 gable cuts
- 7:12 Gable: Achieve between 6:12 – 8:12 gable cuts
Specifications
- Recommended Maximum Panel Thickness: 24 gauge
- Blade Length: 48 inches
- Ideal For: Light gauge exposed fastener panels, shear to length and Gable Ends, suggested maximum panel thickness, 24 gauge.
Need to cut longer valleys and hips? Consider the Model 64 with its longer 64″ blade.
Current Lead Time for Swenson Shear Machines is 7-10 days from DATE OF ORDER.Swenson custom cuts blades for every machine ordered.
-
