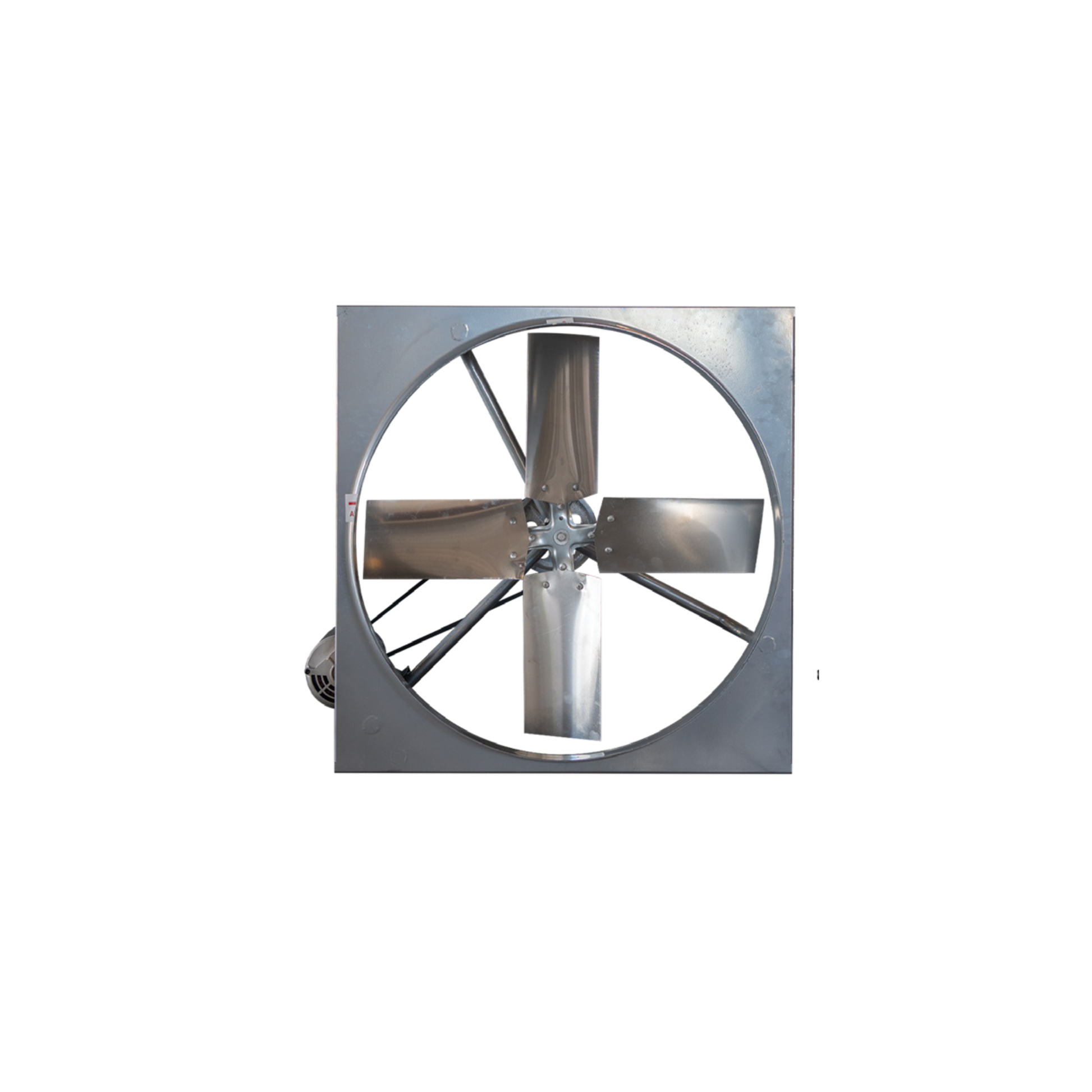

24" Wall Mount Panel Exhaust Fan – 1/4 HP Belt Drive (6,800 CFM)
24" Wall Mount Panel Exhaust Fan – 1/4 HP Belt Drive (6,800 CFM)
Couldn't load pickup availability
-
American Made
Built Right Here
-
Ships in 2-4 Days
Standard in-stock turnaround time
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Please note: Some products may require additional handling time and will take longer than 24 hours to ship. For specific shipping details or lead times, refer to the individual product page or contact us directly—we’re here to help.
-
Description
The 24-inch Wall Mount Panel Exhaust Fan provides dependable airflow for small to mid-sized commercial and industrial spaces requiring direct wall-mounted ventilation. Designed with an aluminum blade and aluminum shutter assembly, this belt-driven unit delivers efficient air movement with smooth, reliable performance.
Powered by a 1/4 HP UL-listed motor, this fan produces 6,800 CFM of airflow and ships fully assembled for streamlined installation. All units are pre-wired for 115V operation and can be converted to 230V depending on your electrical requirements.
Specifications
- Blade Size: 24"
- Airflow: 6,800 CFM
- Motor: 1/4 HP (UL Listed)
- Drive Type: Belt Drive
- Voltage: 115V (Convertible to 230V)
- Amps: 4.8A @ 115V / 1.6A @ 230V
- Weight: 38 lbs

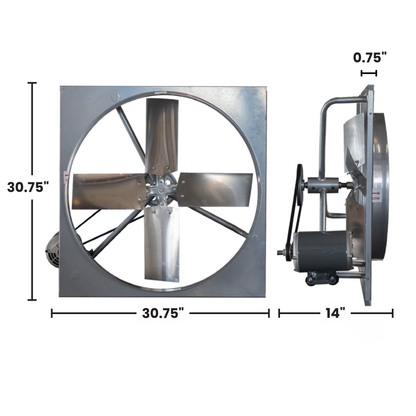

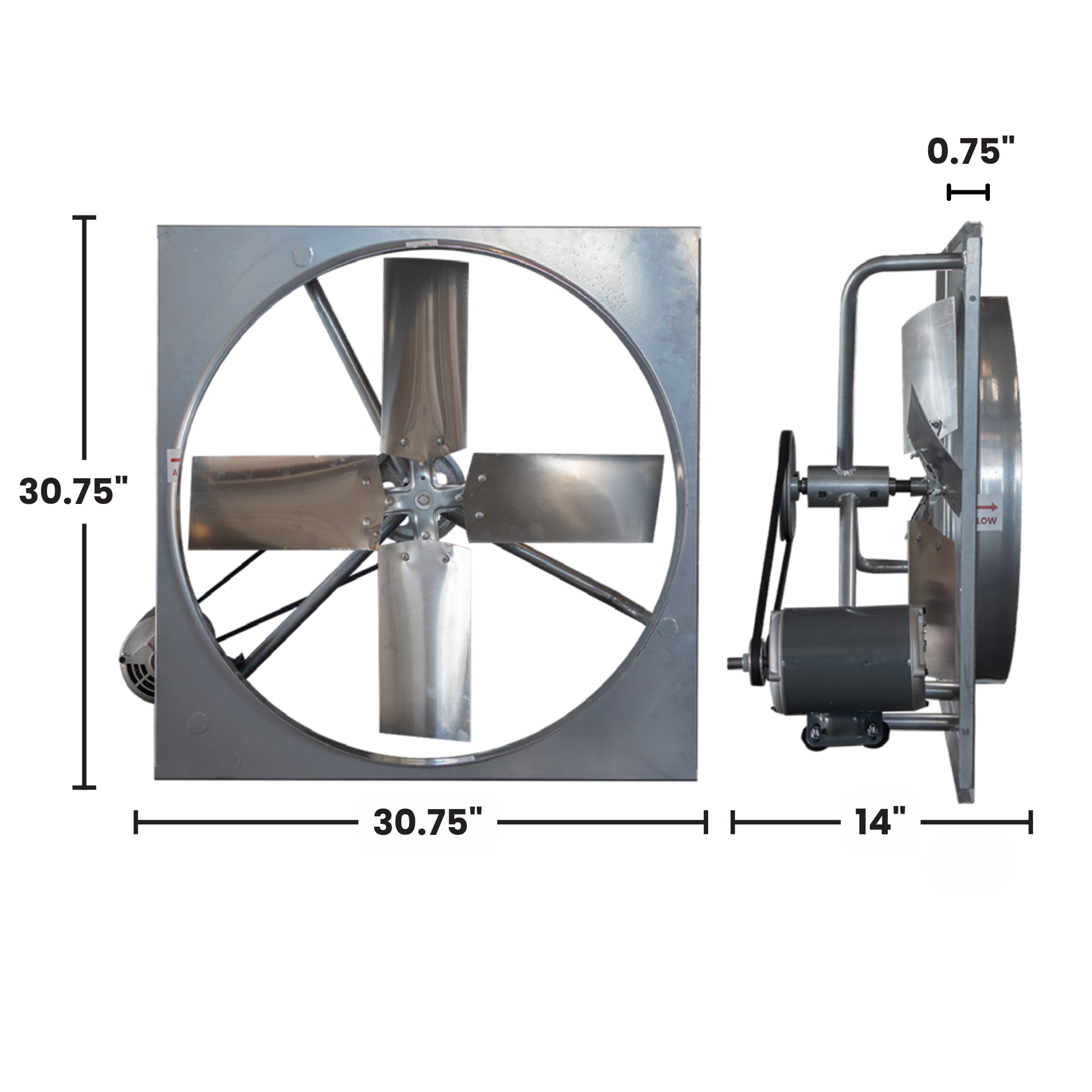

- Dimensions: 30" x 30" x 16" x .75"
Key Features
- UL Listed Motor – Certified for safe, reliable operation.
- Aluminum Blade Construction – Corrosion-resistant and lightweight for efficient airflow.
- Aluminum Shutter Assembly – Automatic shutter closure when unit is off.
- Permanently Lubricated Bearings – Reduced maintenance on blade drive shaft.
- Belt-Driven Operation – Smooth performance with reduced vibration.
- Ships Fully Assembled – Fan is fully assembled. No additional hardware or fasteners included.
- Pre-Wired for 115V – Convertible to 230V as needed.
Typical Applications
- Warehouses
- Agricultural Buildings
- Manufacturing Facilities
- Workshops & Fabrication Areas
- Garages
- General Wall-Mounted Ventilation
-
