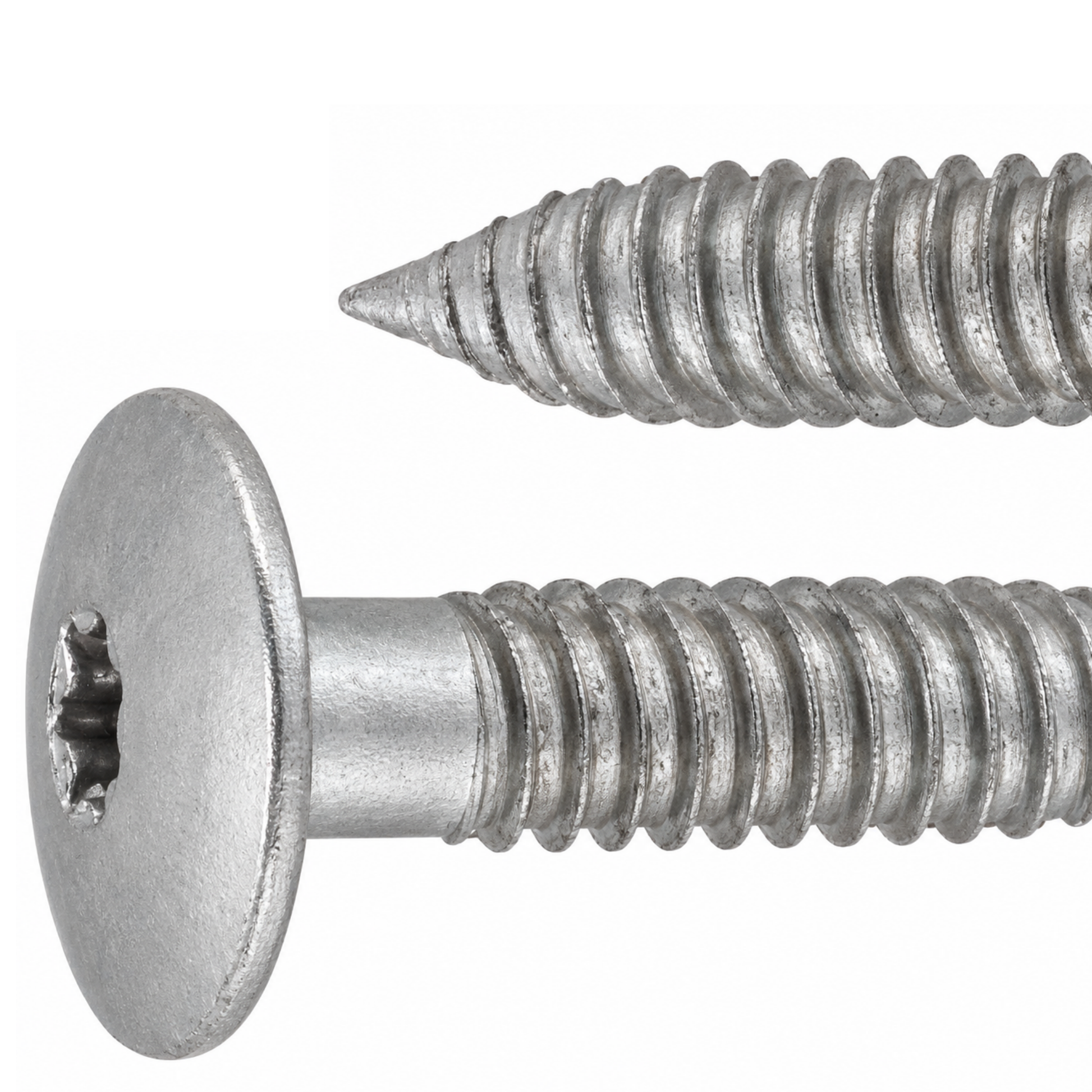

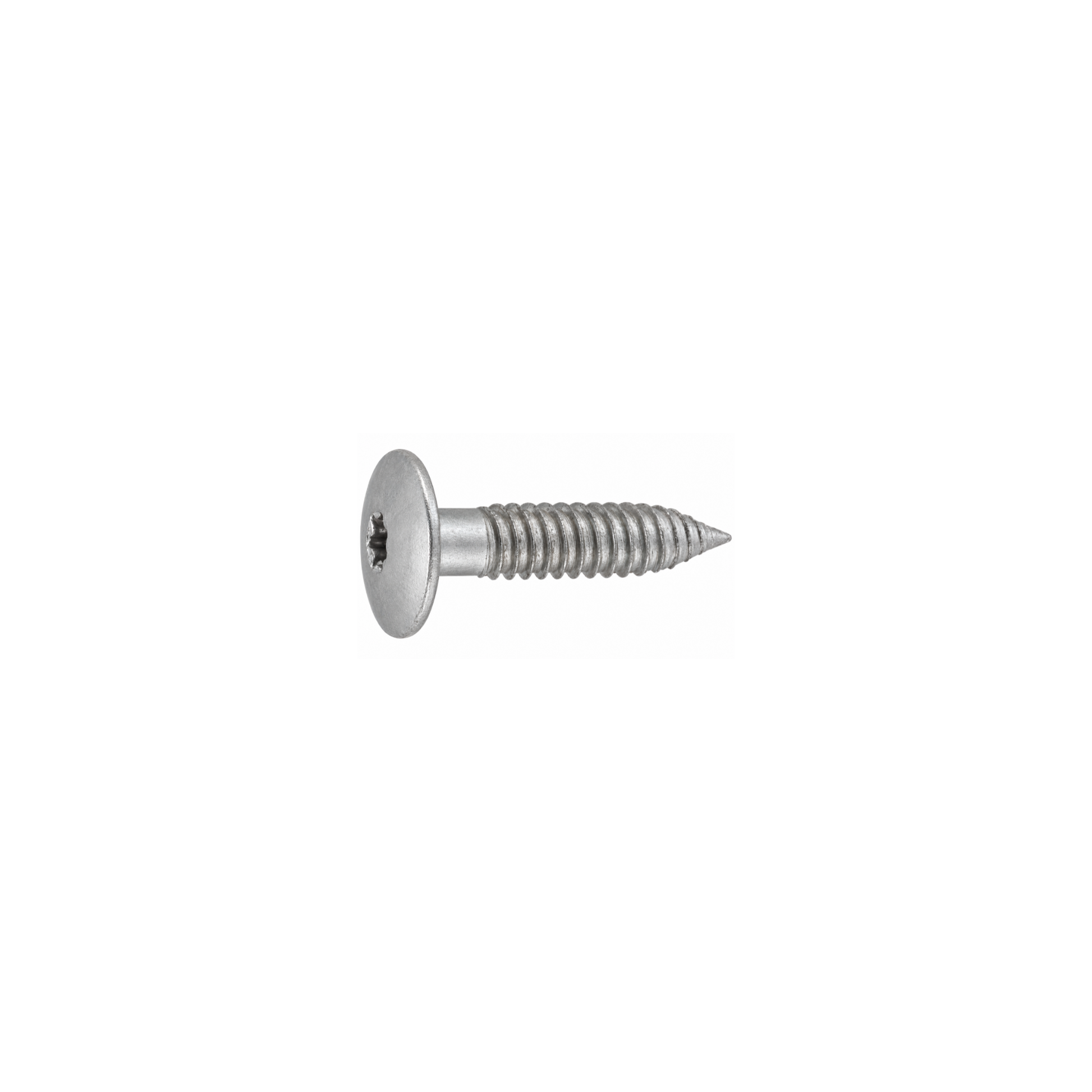

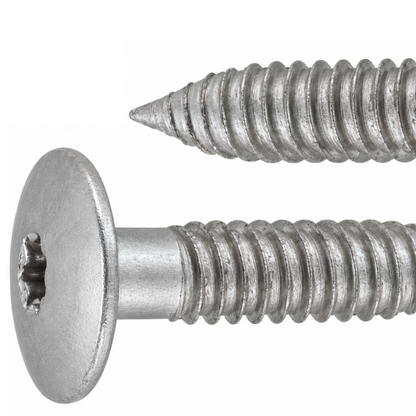

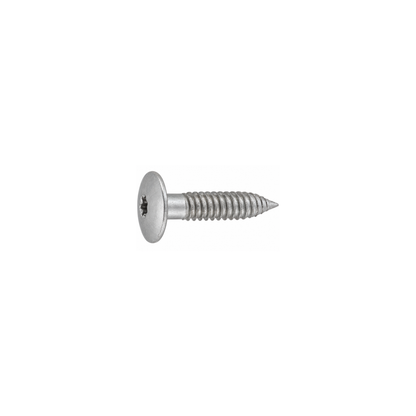

SFS TDA-S-D16 Metal Self-Drilling Screw Bi-Met, Dome Head, 304 Stainless - #12 x 1" (250 Pack)

The SFS TDA-S-D16 is a premium full 304 stainless steel facade panel screw engineered for attaching fiber cement, HPL, composite, and other cladding panels to aluminum and steel substructures. Its dual-thread design delivers strong fastening performance across a wide range of substrate thicknesses while providing long-term corrosion resistance.

Featuring a low-profile 16 mm dome head with a T25W drive, the TDA-S-D16 provides a clean architectural appearance for exposed fastener applications. The larger dome head increases bearing surface for improved panel support, while color-matched Vista® spray finishes are available to coordinate with facade panel colors.

Key Features

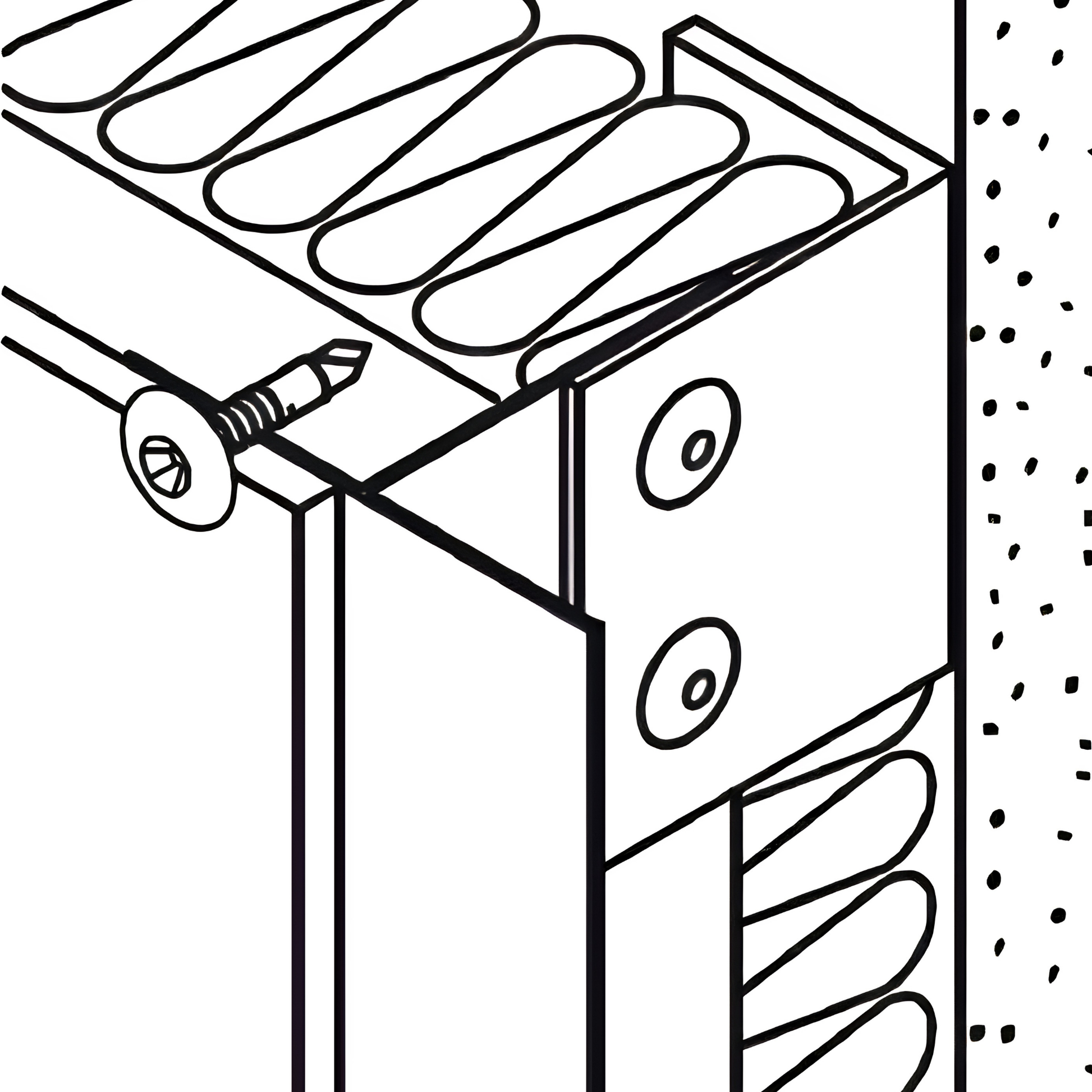

• Designed for attaching facade and cladding panels to aluminum and steel substructures
• 304 stainless steel construction for excellent corrosion resistance
• Dual-thread design for strong fastening performance
• Wide application range for light and medium steel, plus aluminum substrates
• 16 mm low-profile dome head provides increased bearing surface
• Color-matched Vista® spray finish available
• T25W drive for secure installation
• Compatible with fiber cement, HPL, composite, and other facade panel systems

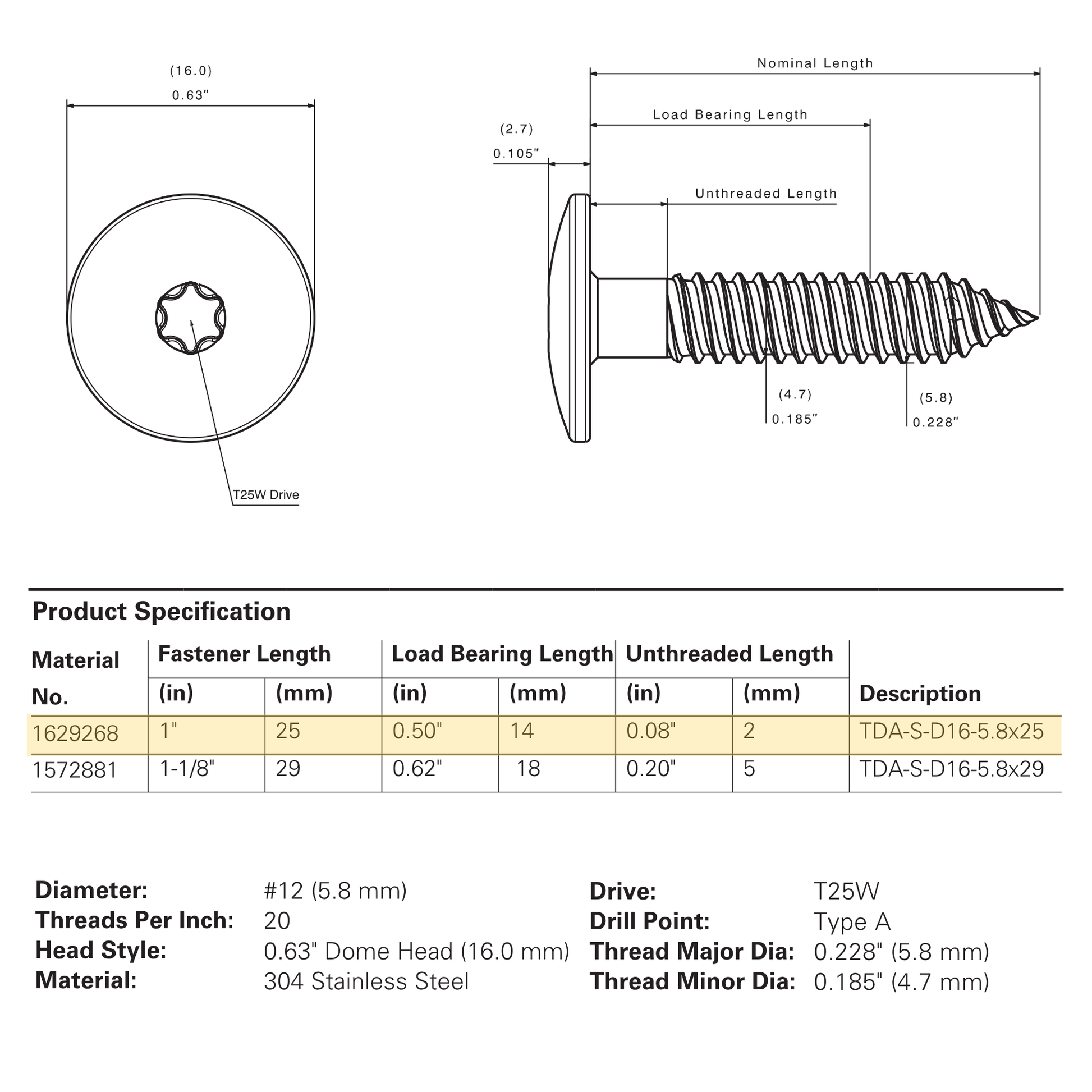

• Available sizes: #12 x 1", #12 x 1-1/8"
