Description

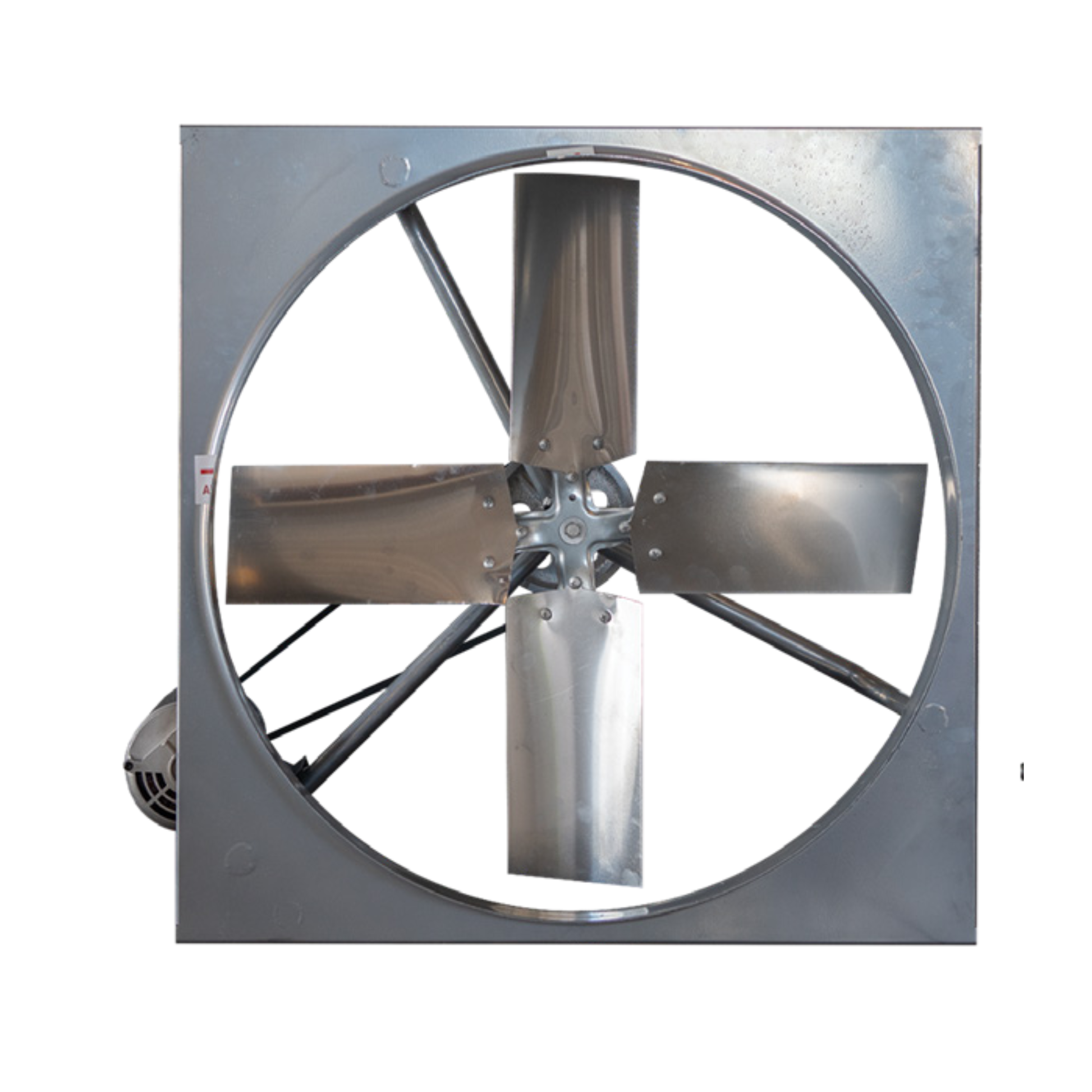

The 42-inch Wall Mount Panel Exhaust Fan delivers high-capacity airflow for commercial and industrial spaces requiring direct wall-mounted ventilation. Designed with an aluminum blade and aluminum shutter assembly, this belt-driven unit provides strong, efficient air movement with smooth, reliable performance.
Powered by a 3/4 HP UL-listed motor, this fan produces 17,500 CFM of airflow and ships fully assembled for streamlined installation. All units are pre-wired for 115V operation and can be converted to 230V depending on your electrical requirements.
Specifications
- Blade Size: 42"
- Airflow: 17,500 CFM
- Motor: 3/4 HP (UL Listed)
- Drive Type: Belt Drive
- Voltage: 115V (Convertible to 230V)
- Amps: 11A @ 115V / 3.3A @ 230V
- Weight: 75 lbs

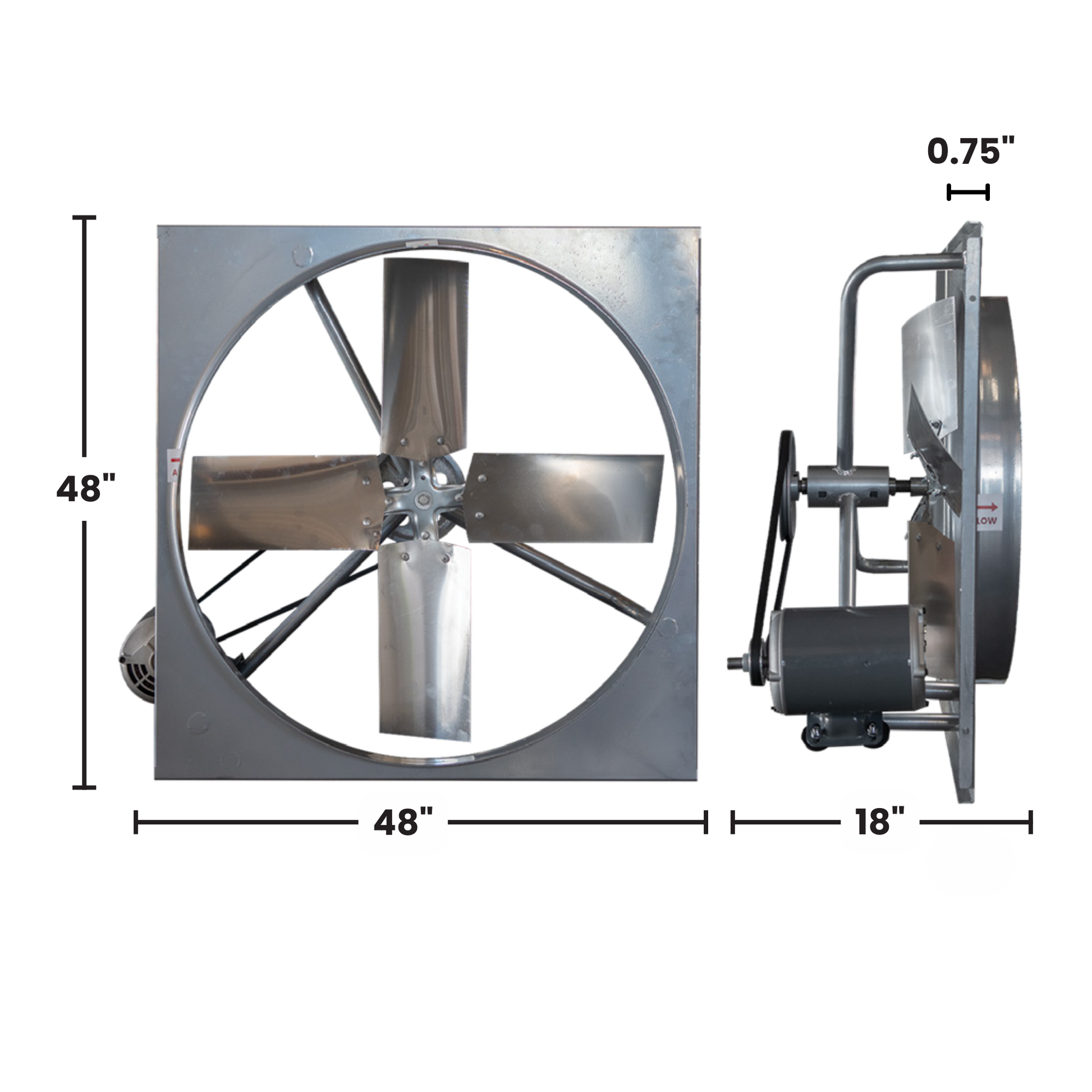

- Dimensions: 48" x 48" x 18" x .75"
Key Features
- UL Listed Motor – Certified for safe, reliable operation.
- Aluminum Blade Construction – Corrosion-resistant and lightweight for efficient airflow.
- Aluminum Shutter Assembly – Automatic shutter closure when unit is off.
- Permanently Lubricated Bearings – Reduced maintenance on blade drive shaft.
- Belt-Driven Operation – Smooth performance with reduced vibration.
- Ships Fully Assembled – Fan is fully assembled. No additional hardware or fasteners included.
- Pre-Wired for 115V – Convertible to 230V as needed.
Typical Applications
- Warehouses
- Agricultural Buildings
- Manufacturing Facilities
- Workshops & Fabrication Areas
- Large Garages
- General Wall-Mounted Ventilation
-
