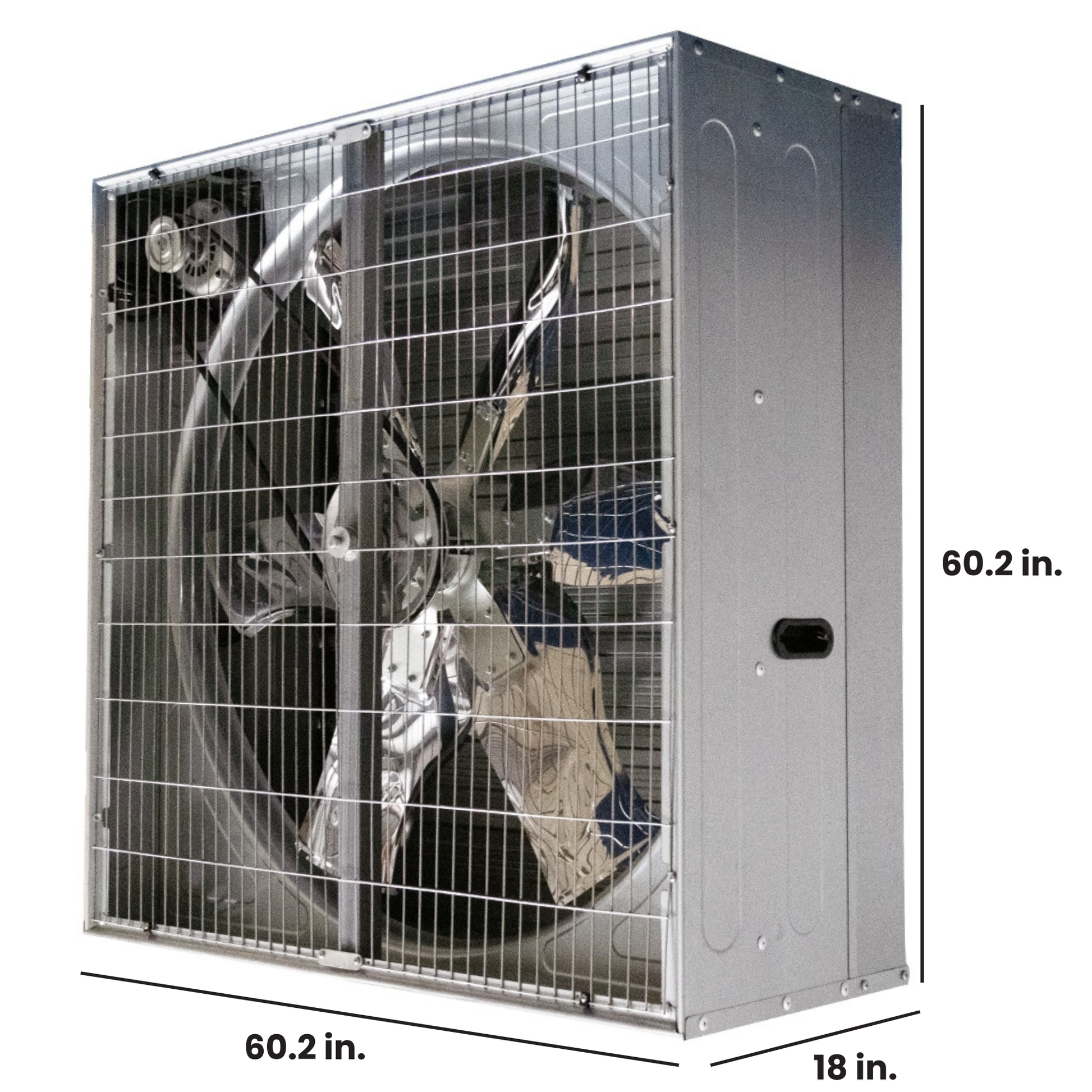

The 60-inch cabinet exhaust fan is a high-capacity ventilation solution built for large industrial and commercial spaces that require maximum airflow. Constructed with a heavy-duty steel cabinet and belt-driven design, this unit delivers powerful, consistent exhaust performance with smooth operation and reduced vibration.

Powered by a 2.0 HP motor operating at 1725 RPM, this model produces 28,200 CFM of airflow, making it ideal for large warehouses, manufacturing facilities, agricultural operations, and high-heat environments where rapid air exchange is critical. Dual-voltage capability (115/230V) provides flexibility for a range of electrical setups.

Specifications

• Blade Size: 60"
• Motor: 2.0 HP
• Airflow: 28,200 CFM
• RPM: 1725
• Voltage: 115/230V
• Dimensions: 60.2" H x 17.7" D x 60.2" W
• Weight: 189.6 lbs

Key Features

• Heavy-Duty Steel Cabinet – Built for demanding industrial ventilation applications.
• Belt-Driven System – Smooth, reduced-vibration operation and extended motor life.
• Maximum Airflow Output – 28,200 CFM supports rapid air exchange in very large interior spaces.
• 2.0 HP Continuous-Duty Motor – Designed for reliable, high-volume ventilation performance.
• Dual Voltage Compatibility – Operates on 115V or 230V electrical systems.
• Service-Friendly Design – Accessible components simplify inspection and routine maintenance.

Typical Applications

• Large Warehouses
• Manufacturing & Production Facilities
• Agricultural Buildings
• High-Heat Exhaust Applications
• Equipment & Mechanical Rooms
• Industrial Ventilation Systems
