SKU: 54000147 | Brand: S-5!

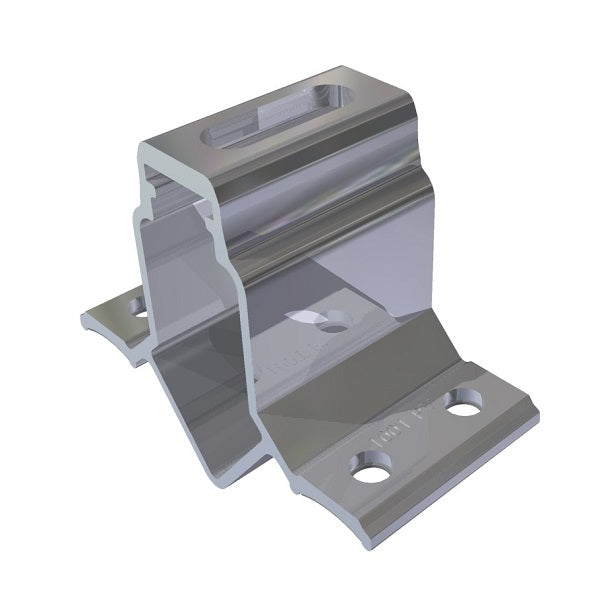

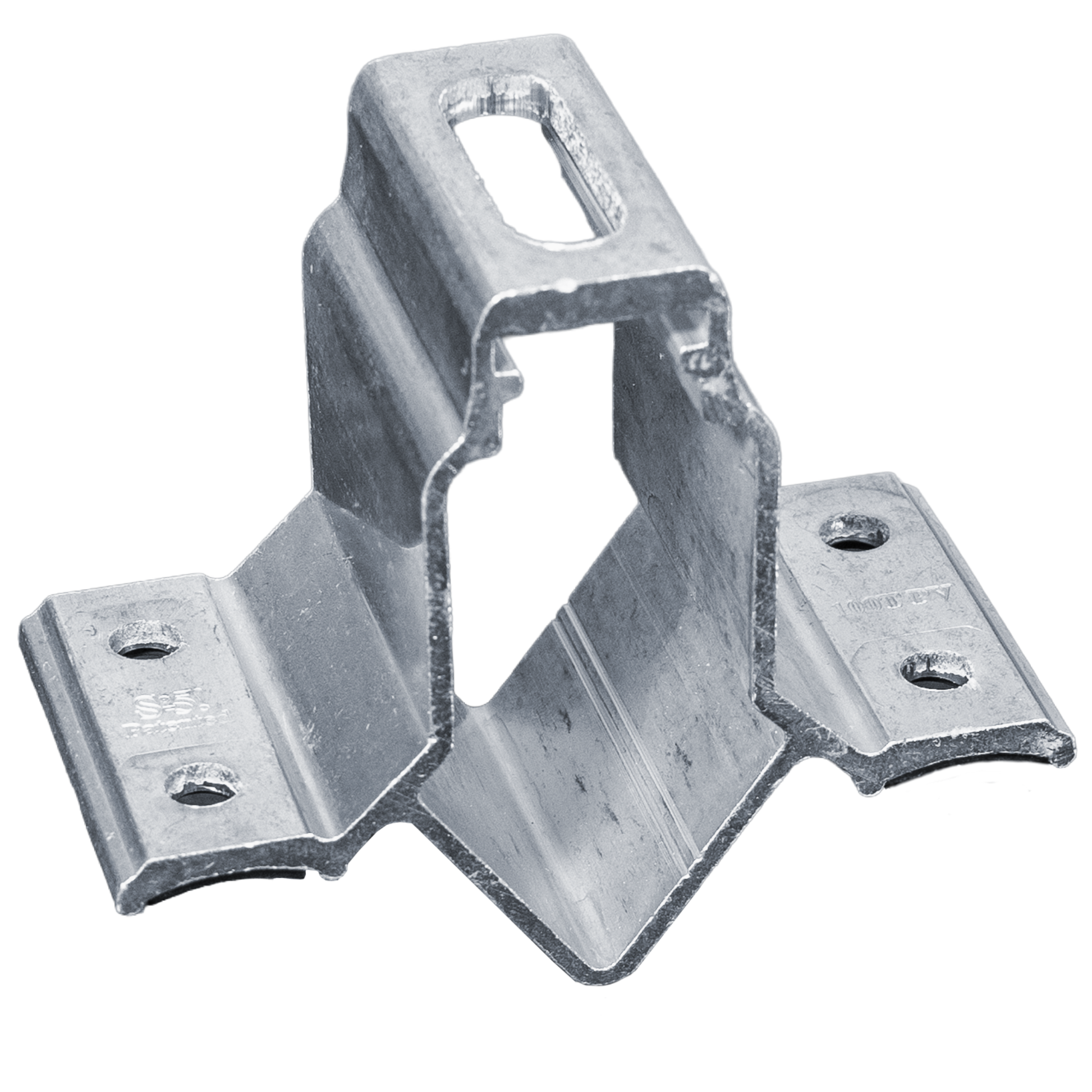

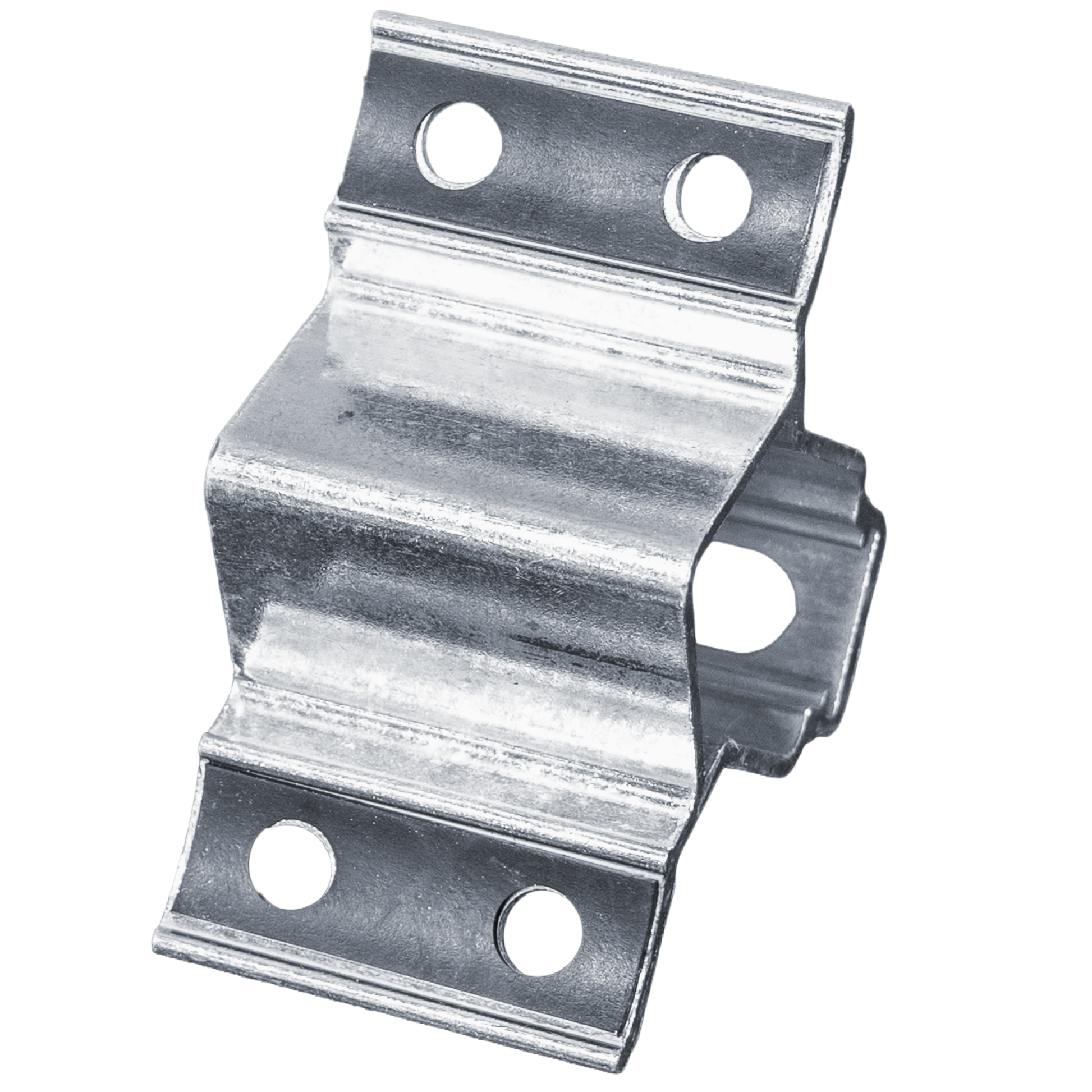

CorruBracket 100T PV
CorruBracket 100T PV
Couldn't load pickup availability
View full details
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Shipping Information
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Find the Correct S-5! Clamp
Find the Right S-5! Clamp for Your Roof
Choosing the right S-5! clamp is essential for secure and reliable attachment to your metal roof. Whether you know your roof manufacturer and panel type or need to match a clamp to your seam profile, we’ve got you covered.
-
By Manufacturer & Panel Type
Search by ManufacturerIf you know your roof manufacturer and specific panel type, this option allows you to quickly find compatible clamps based on tested configurations.
-
By Seam Profile
Search by Seam ProfileNot sure of your roof manufacturer? No problem! Identify your roof’s seam profile and explore clamps designed for that seam profile.
Description

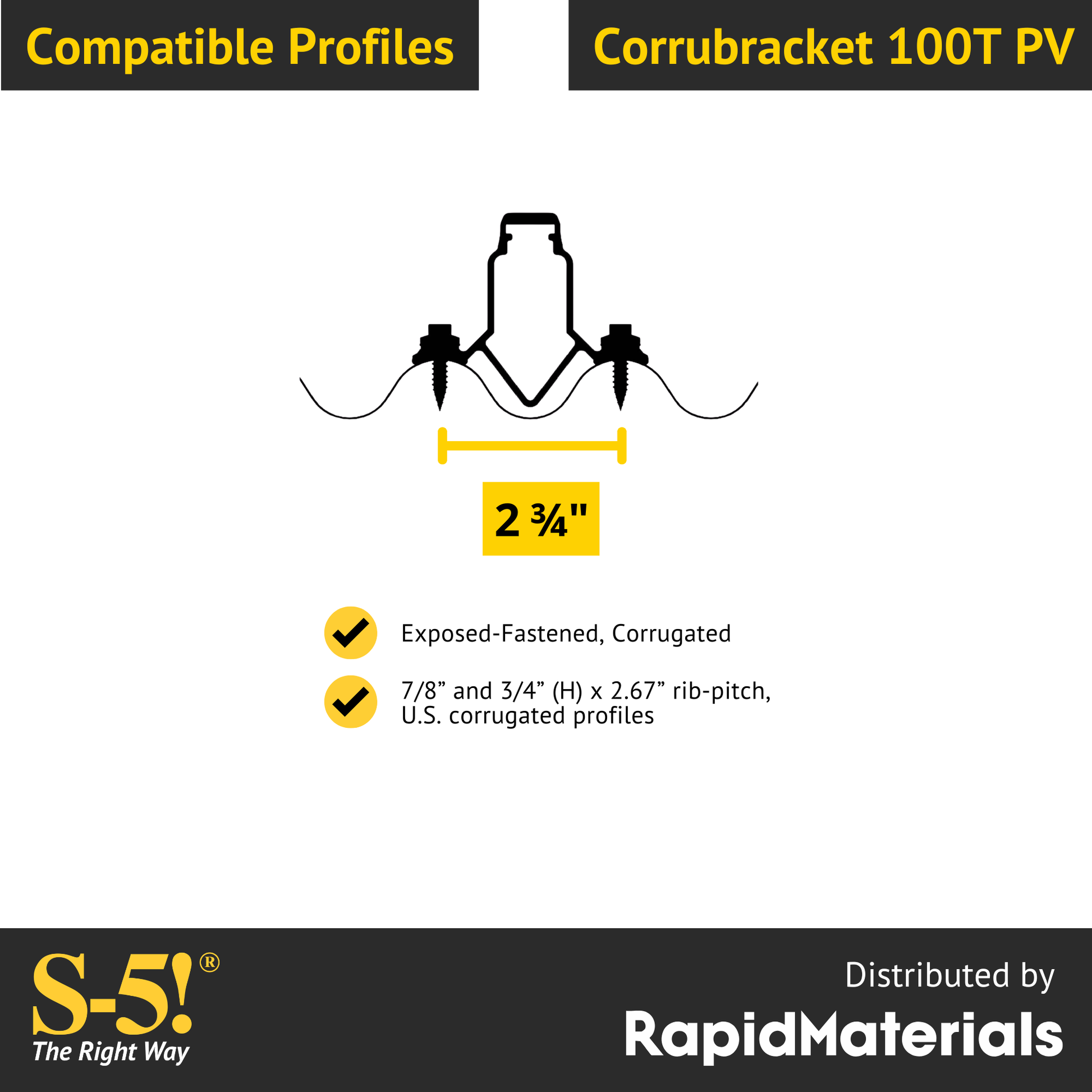

CorruBracket 100T PV is your solar solution for corrugated roofing profiles common in North America and is compatible with 7/8″ and 3/4″ corrugated roofing profiles that measure 2.67″ from crest to crest. Faster Installation When Used With PVKIT 2.0 Dimension from the bottom of the roof panel to the module glass is 4″+ providing ample height for solar panel attachment. The CorruBracket 100T PV seamlessly integrates with both the PVKIT 2.0 MidGrab and PVKIT 2.0 EdgeGrab to accommodate a rail-less PV attachment. Attachment Flexibility Affixed to the crest of the corrugation, CorruBracket 100T PV leaves the drainage plane free of holes to prevent against leaks. This bracket can be directly attached to the roof sheeting (screws are provided), accommodating attachment anywhere along the corrugation making module layout a snap. EPDM Base Gasket With no messy sealants to apply, CorruBracket 100T PV comes with a EPDM rubber gasket seal factory pre-applied to the base for reliable weathertightness. The S-5! patented “V” configuration of the bracket prevents over-compression of the roof panel ribs under load and the foot “reservoirs” conceal the EPDM gasket from exposure, preventing UV degradation. FEATURES & BENEFITS
- Open channel for wire containment & management
- Bracket allows glass to sit 4″+ above the valley of the corrugation

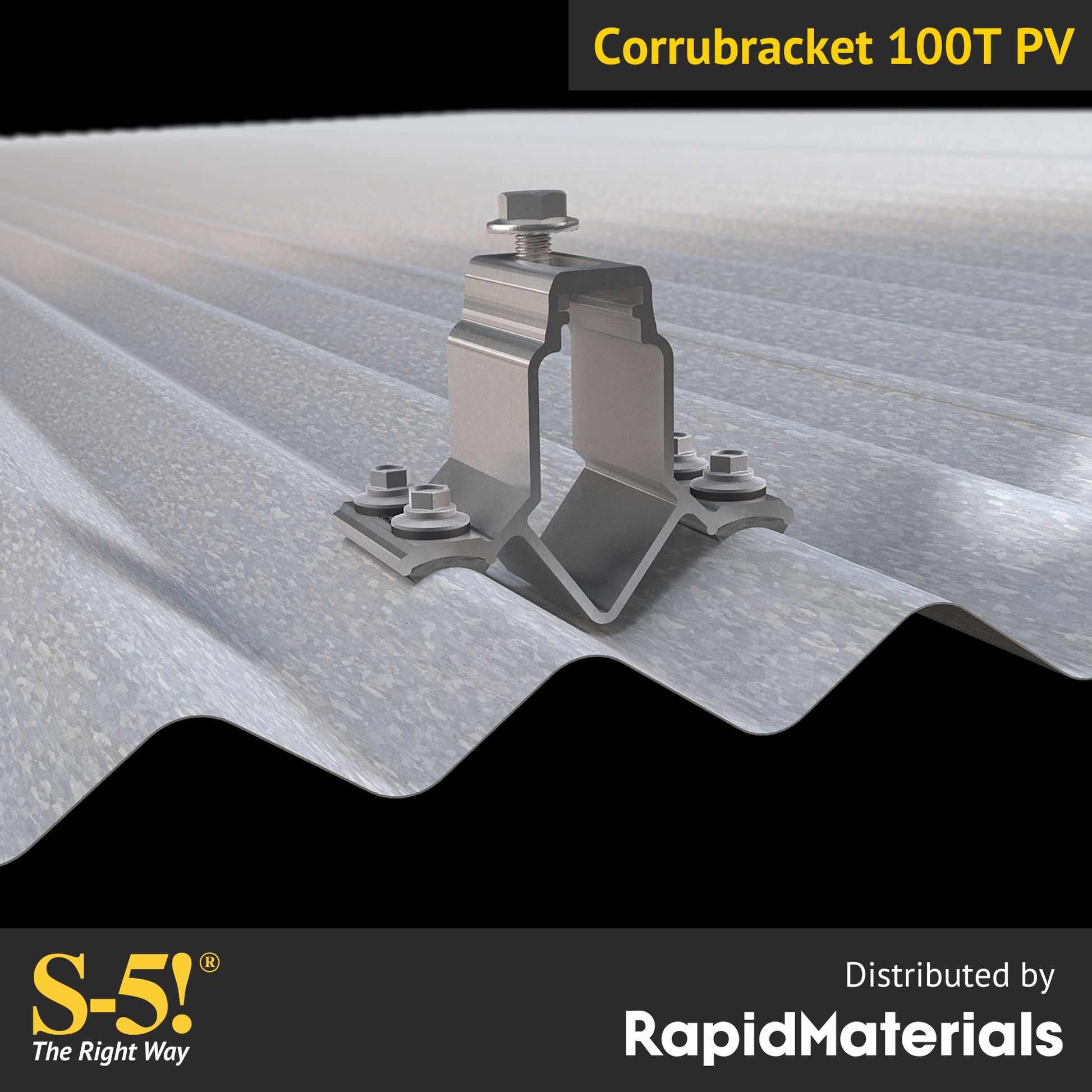

- Bracket can be fixed into sheeting only, allowing module placement anywhere on the roof

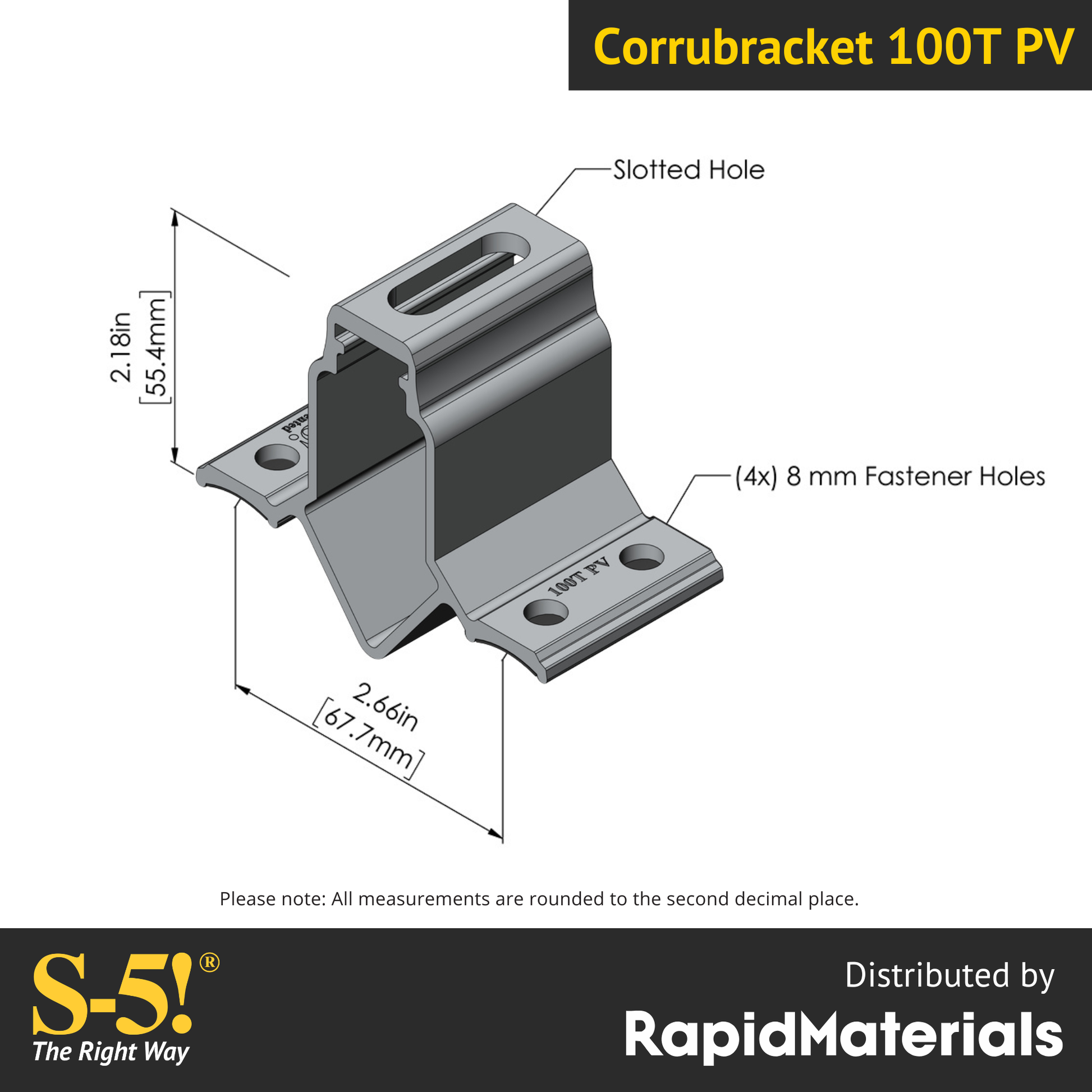

- Slotted top hole offers more than 1″ of adjustability
- 6000 Series aluminum with 300 Series stainless steel hardware
- Factory applied EPDM rubber gasket for no-mess waterproofing
- Allows for attachment of micro inverters and optimizers
Includes four (4) self-piercing gasket head screws and one (1) M8 nut
