SKU: 70003400 |  ESE Machines Inc

ESE First Stage Top-Closing Hand Seamer (Multiple Sizes Available)

ESE First Stage Top-Closing Hand Seamer (Multiple Sizes Available)

Regular price $175.50
Regular price Sale price $175.50
Sale Sold out
Shipping calculated at checkout.

View full details
  • Description

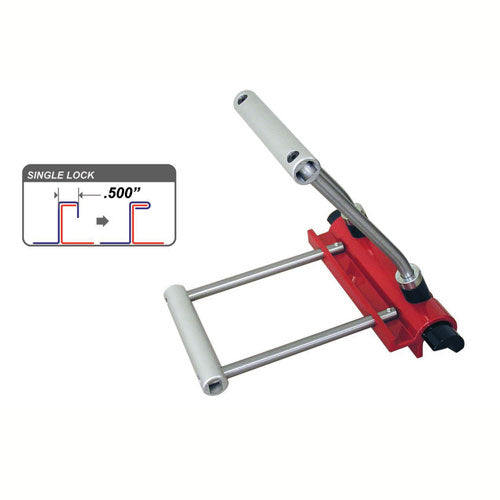

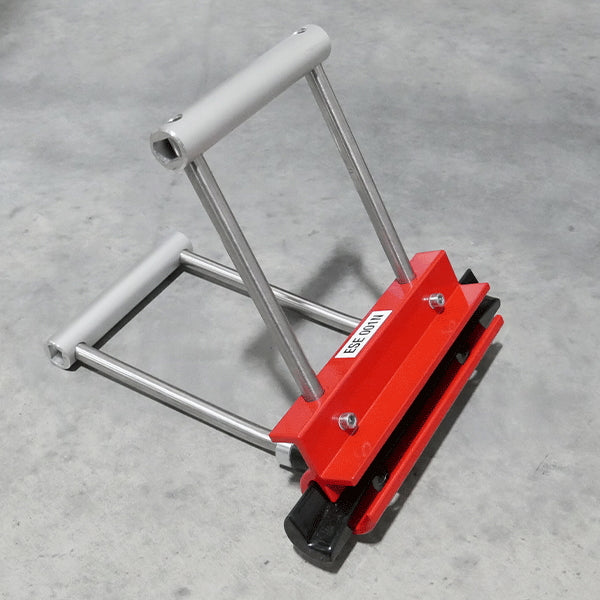

    Top First Stage Hand Seamer by ESE Machines

    Details

    • single lock hand seamer
    • forms the first stage 90 degree bend
    • for hard to reach places
    • use to start, finish or seam the entire roof
    • unique leverage design
    • lightweight and easy to use
    • will not scratch or peel paint
    • features brass jaws, with steel handles

    Maximum Bending Gauges:

    • steel: 24 ga
    • aluminum: 0.032"
    • copper: 20 oz

    Dimensions

    • weight: 5.5 lbs
    • length (unfolded):
      • 23.5" for 001-
      • 19" for 1/2" 001
      • 22" for 1/2" 001C
    • width: 10"

    Sizes:

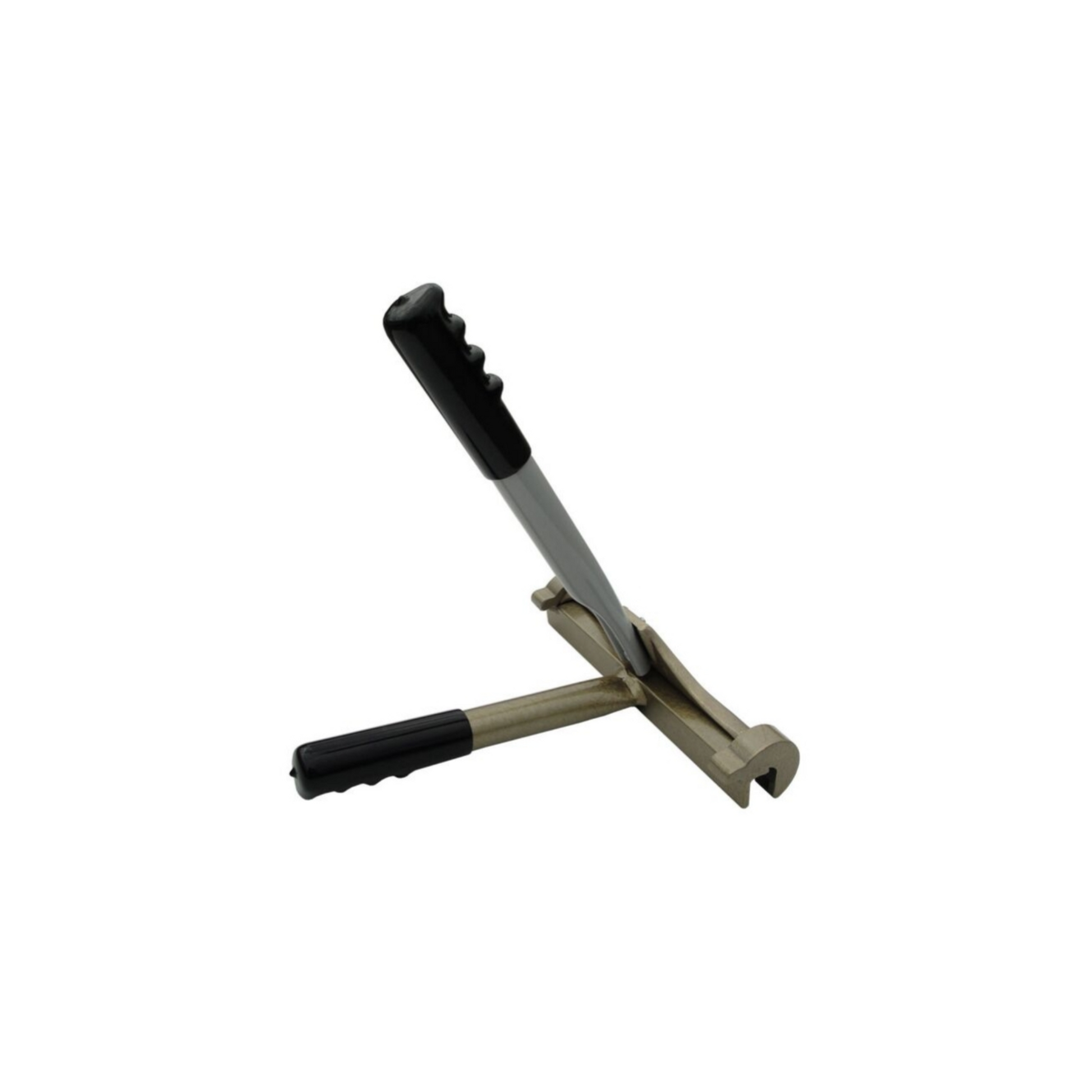

    • ESE 001-625 5/8" Top First Stage Hand Seamer
    • ESE 001-700 11/16" Top First Stage Hand Seamer
    • ESE 001-750 3/4" Top First Stage Hand Seamer
    • ESE 001-812 13/16" Top First Stage Hand Seamer
    • ESE 001 1/2" Top First Stage Hand Seamer

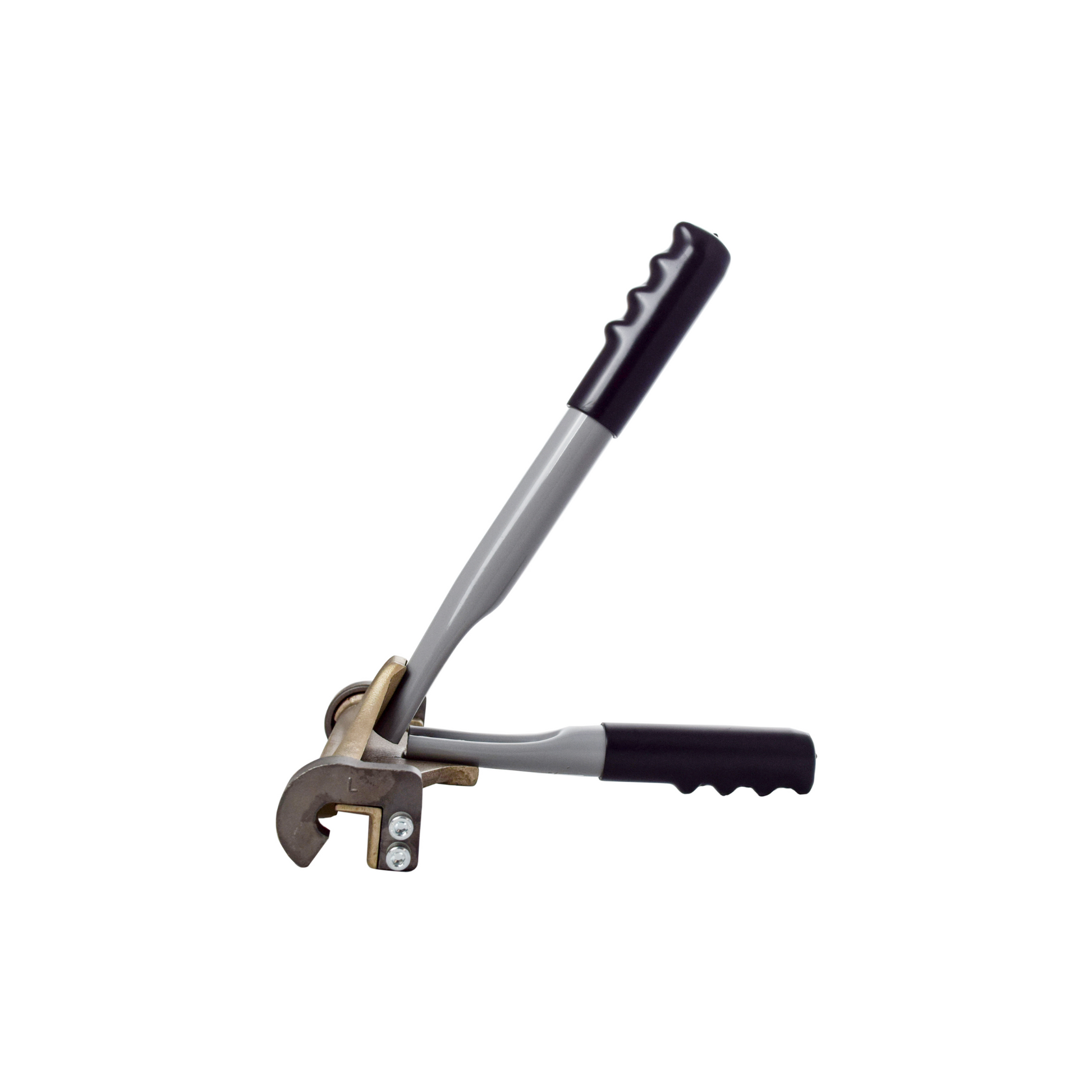

    • ESE 001C 1/2" Top First Stage Hand Seamer

ESE First Stage Top-Closing Hand Seamer (Multiple Sizes Available)

Frequently Asked Questions

What does a first-stage hand seamer do?

A first-stage hand seamer bends the top leg of a standing seam panel to approximately 90°, preparing it for the second-stage seam or final closing. It’s the first step in double-lock or mechanically seamed roof installations.

How do I choose the correct size?

Select the seamer size that matches the seam width of your metal roofing panel. Measure the width of the male leg (top of the seam) to ensure a proper fit. Common sizes include 1/2", 5/8", 3/4", and more.

What’s the difference between ESE 001 and ESE 001C?

Both are 1/2" seamers, but the 001C version is designed for use on curved panels, such as radius or arched metal roofing. The 001 is for straight panel runs.

Can this tool be used on painted panels?

Yes. The ESE hand seamers are designed with care to minimize scratching or marring painted metal panels. However, always ensure the tool is clean and used correctly to avoid damage.

Is this compatible with all standing seam panels?

These seamers are compatible with most single- or double-lock standing seam panels that match the selected seam size. Check your panel profile and seam width before ordering.
