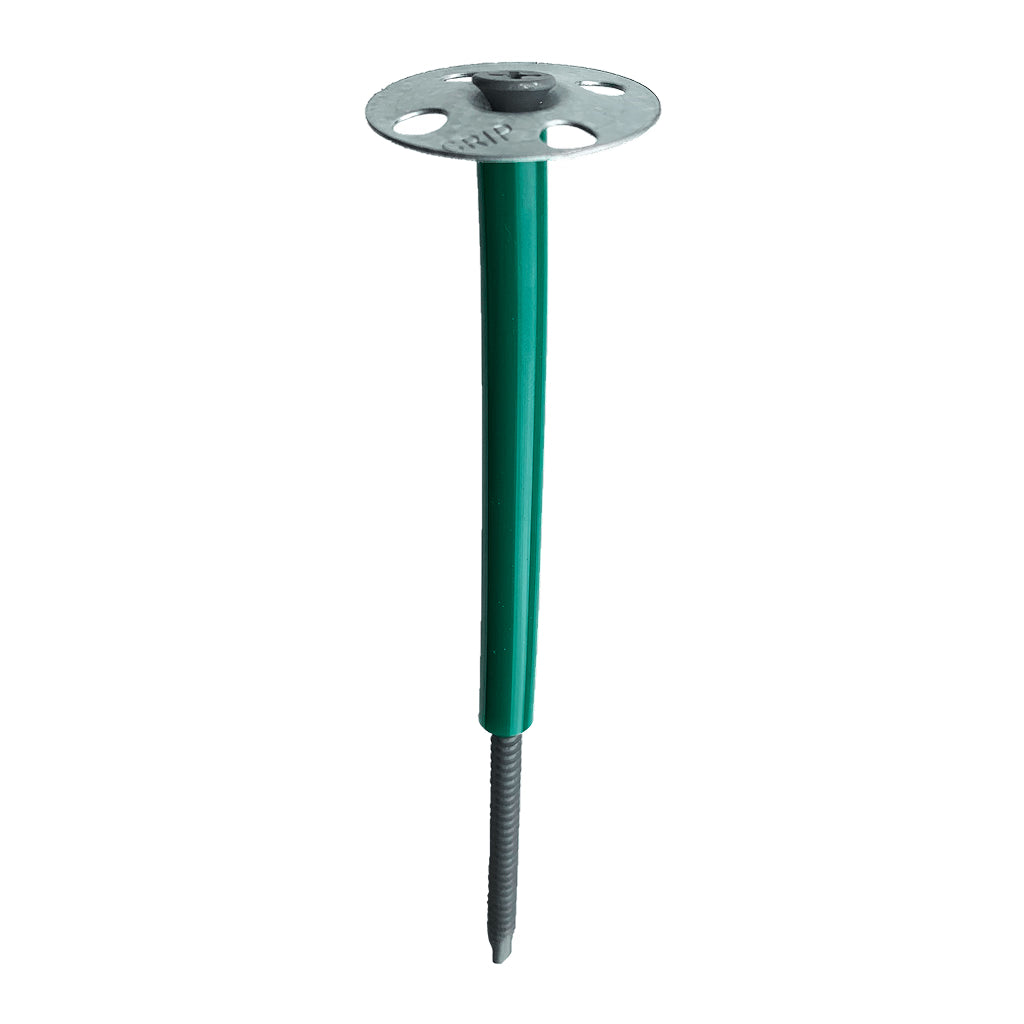

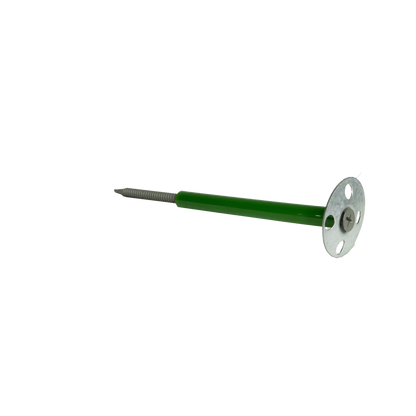

Grip-Plate TubeSeal with Self-Drilling Screw
Grip-Plate TubeSeal with Self-Drilling Screw
Couldn't load pickup availability
-
Ships in 2-4 Days
Standard in-stock turnaround time
-
American Made
Built Right Here
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Please note: Some products may require additional handling time and will take longer than 24 hours to ship. For specific shipping details or lead times, refer to the individual product page or contact us directly—we’re here to help.
-
Description

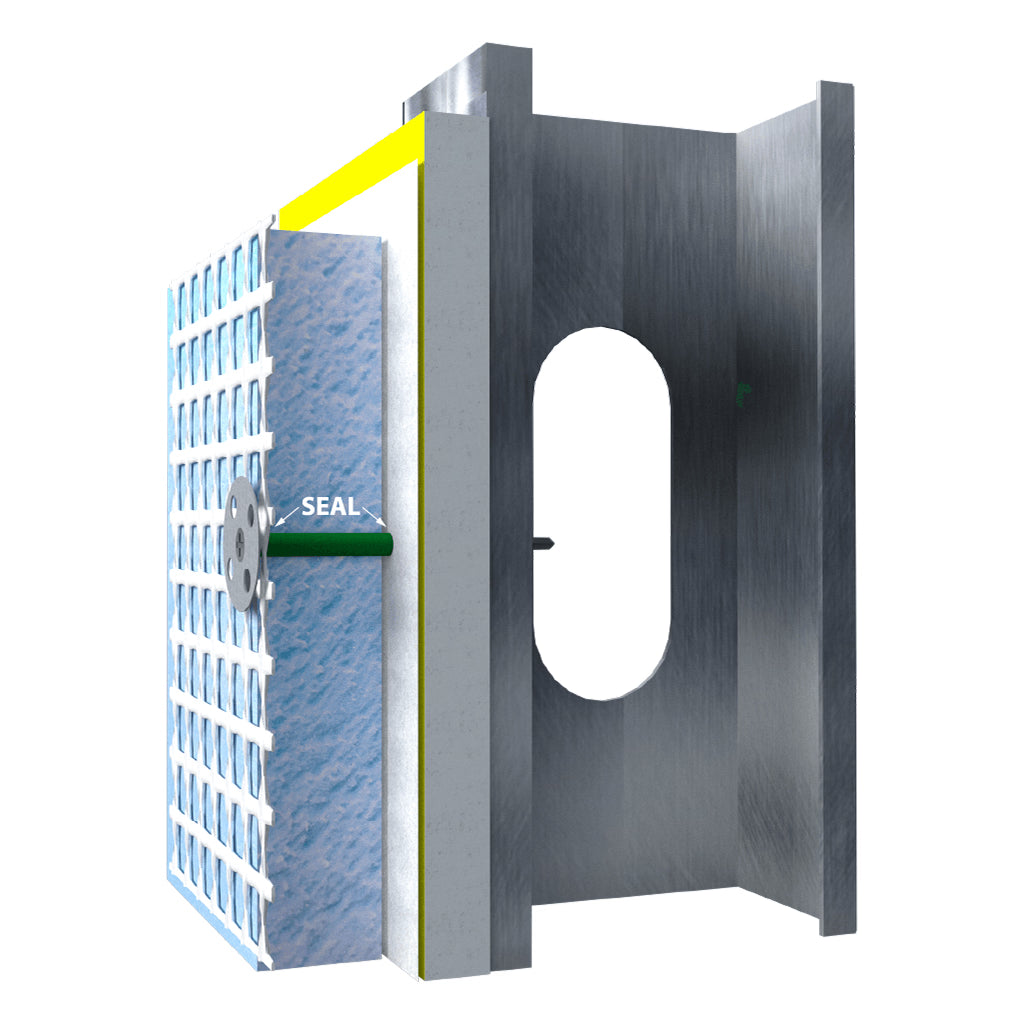

TRUFAST®’s Grip-Plate TubeSeal™ fastener is designed to help seal blind fastener penetrations of your WRB and air-barrier when mechanically attaching lath over continuous insulation. Lath must be mechanically attached, and often over continuous insulation and a WRB or air-barrier. With the Grip-Plate TubeSeal, installation enables sealing on the facer of the WRB or air-barrier sandwiched between the substrate and the layer of continuous insulation.
- Grip-Plate TubeSeal products are designed to seal blind fastener penetrations of a WRB or air-barrier.
- The Grip-Plate TubeSeal product is available in multiple lengths for insulation nominal thickness of 1", 1.5", 2", 2.5", 3", 3.5", and 4".
- UV resistant ether-based polyurethane tube is suitable for all weather climates.
- Made in USA
- Patented and/or patent pending.
Code Approvals & Listings:
ASTM E331*, ASTM E1186, ASTM E2357, ASTM C-1063
Material:
Washer - Galvanized Steel
TubeSeal - Polyurethane
Screw - Carbon steel with proprietary exterior grade coating
Coating:
Exterior Grade Coating - Grip-Plate TubeSeal products are designed to seal blind fastener penetrations of a WRB or air-barrier.
-
