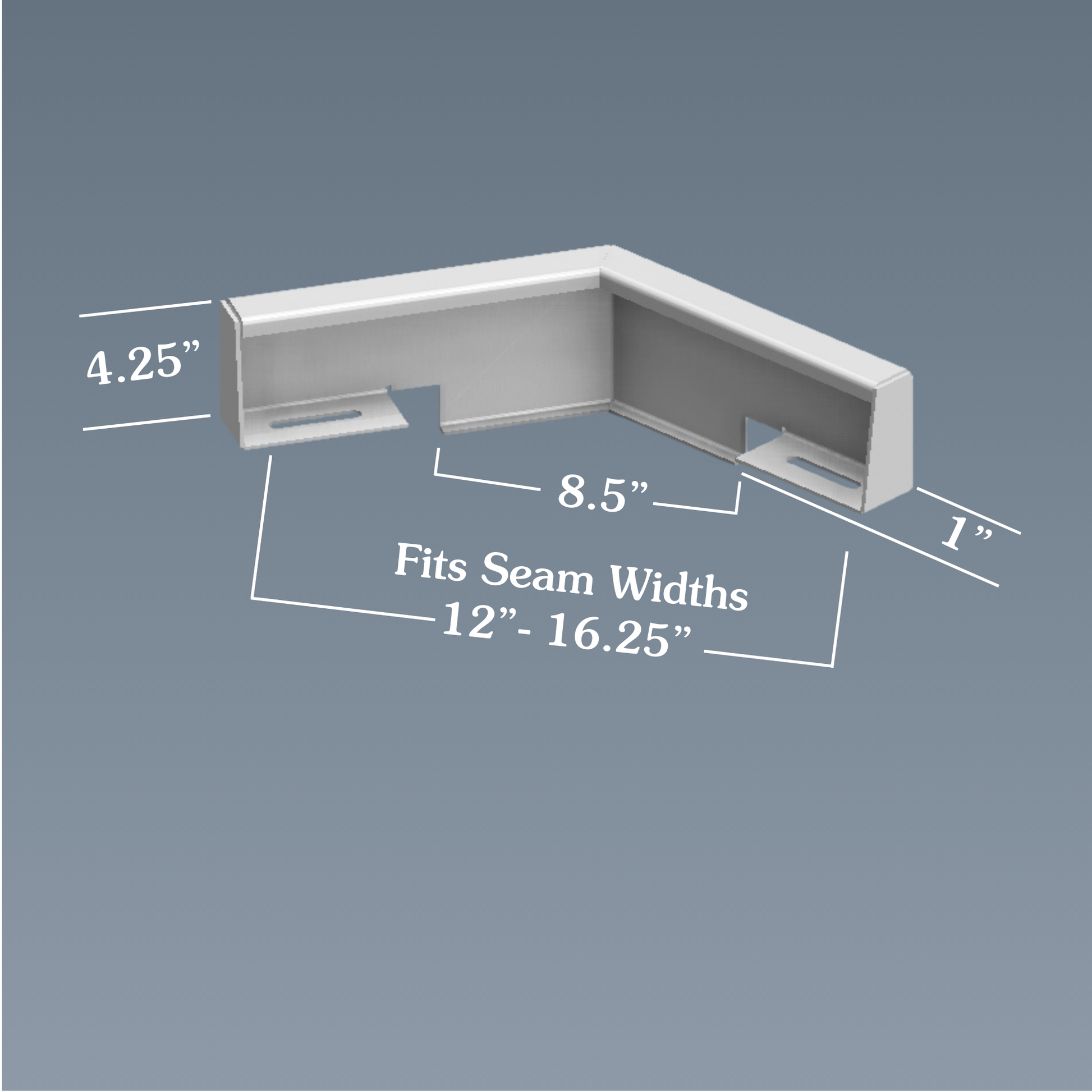

The LMCurbs Snow Diverter SD-12"-16" is engineered to protect standing seam metal roofs from damaging snow and ice slides. Installed without roof penetrations using S-5!® seam clamps, it safely redirects snow and ice around vents, flue stacks, and other rooftop obstructions, helping prevent crushed penetrations, torn flashings, and costly repairs.

Constructed from .125” thick 3003 aluminum and fully welded for long-term durability, the LMCurbs Snow Diverter is built for heavy snow conditions. Units are available in mill finish aluminum or factory color-coated to match your roof. Contact info@rapidmaterials.com for color-coated or custom options.

Non-Penetrating S-5!® Clamp Attachment

The Snow Diverter mounts directly to standing seam panels using S-5!® clamps, eliminating the need for drilling or fasteners through the roof surface.

• Extruded aluminum clamps with stainless steel hardware
• Bullet-nosed stainless steel setscrews
• Dimple the seam without penetrating it
• Compatible with a wide range of standing seam profiles
• 2 Clamps sold per diverter; install per S-5!® guidelines

Snow & Ice Deflection Design

Installed upslope of the penetration being protected, the Snow Diverter’s uphill-facing apex diverts snow and ice into adjacent roof pans, reducing impact damage and excessive load on roof penetrations.

Key Benefits

• No roof penetrations required
• Fully welded, heavy-gauge aluminum construction
• Protects vents, flues, and rooftop equipment
• Standard and custom configurations available
• Clean architectural appearance
• Proudly designed and manufactured in the USA

Available Models & Applications

• Standing seam, corrugated, and insulated panel roofs
• Heavy snow accumulation areas
• Commercial, industrial, and residential metal roofing
