The Malco FS1DS Small 1-Station Disc Bender is designed for forming precise 90°–180° bends in straight or curved panels directly on the jobsite. With a bend depth range of 5/16″ to 1-1/8″ (8–30 mm), this model is ideal for forming hems, fascia details, ridge caps, and other interlocking roofing features.

Unlike larger multi-station tools, the 1-station disc design excels at short bends and curves. Three sets of bearing guides glide smoothly along the material to follow the initial bend, delivering controlled and consistent forming across a wide variety of metals.

Roofing contractors can use the FS1DS to create open hems and detail edges without returning panels to the shop. HVAC professionals can field-form ductwork and create open hems to prepare for drives.

Constructed from premium CNC aluminum and stainless-steel components, the FS1DS delivers stability, corrosion resistance, and repeatable precision in a lightweight, portable design.

Key Features

• Forms 90°–180° bends in straight or curved panels
• Bend depth range: 5/16″–1-1/8″ (8–30 mm)
• Designed for short bends, curves, and hem forming
• Material capacity: 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, 1 mm zinc
• Bend radius: .059″ (1.5 mm)
• Three sets of bearing guides glide smoothly along material
• Removable disc allows for quick disassembly and mid-panel tool removal
• Pair with optional Disc Handle (FSH1) to create cross breaks and start bends on flat panels
• Lightweight, compact, and highly portable
• Premium CNC aluminum and stainless-steel construction for durability and precision

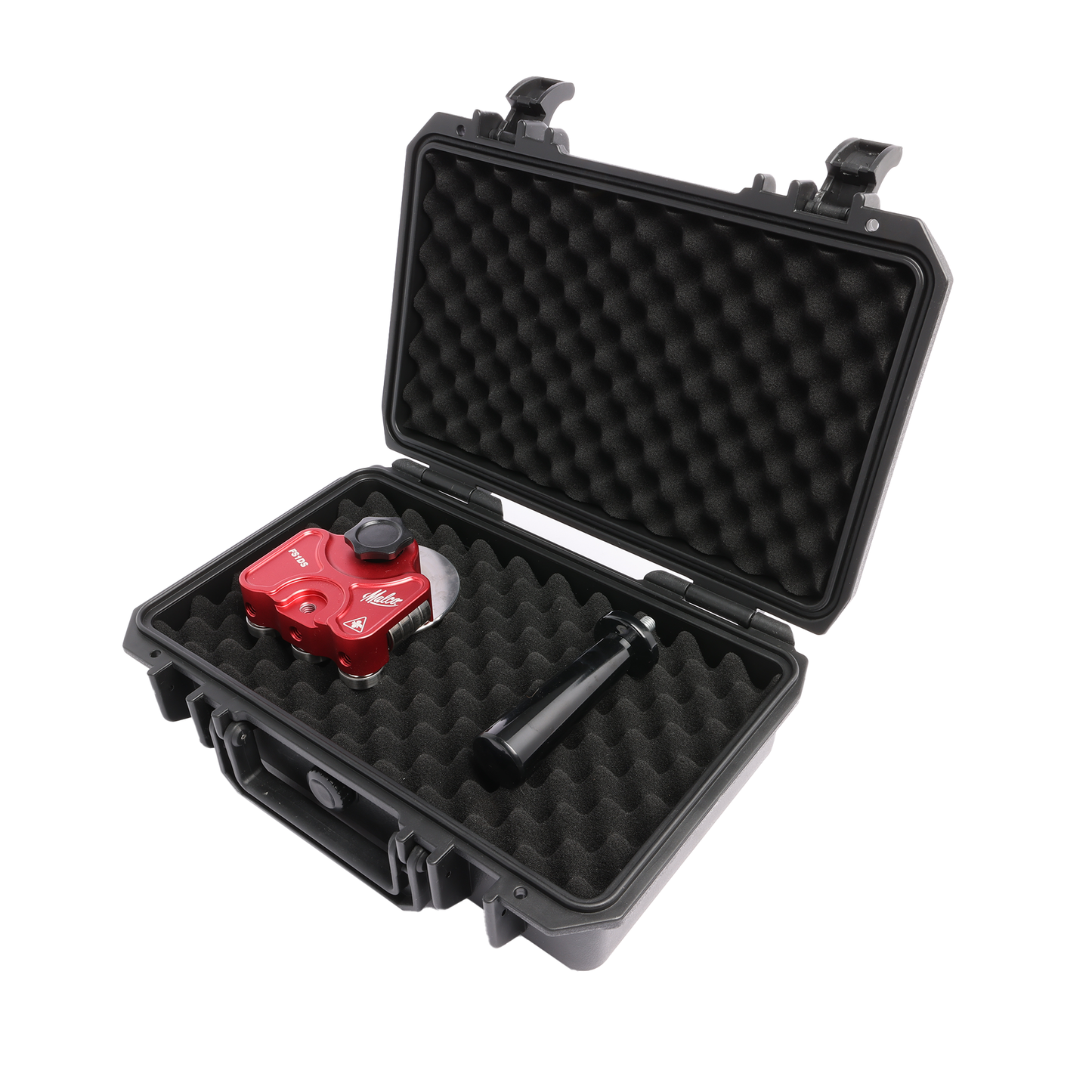

• Includes IP67-rated waterproof hard case for protection and transport
