SKU: 70000937 |  Malco

Malco FSP1 Progressive Profiling Bender Set – 1.5″ Mechanical Lock Standing Seam

Malco FSP1 Progressive Profiling Bender Set – 1.5″ Mechanical Lock Standing Seam

$2,565.64
$2,599.00 $2,565.64
Sale Sold out
Shipping calculated at checkout.

View full details
  • Same Day Shipping

    Same Day Shipping

    Order by 1PM ET

  • American Made

    American Made

    Built Right Here

  • Limited Lifetime Warranty

    Limited Lifetime Warranty

  • Description

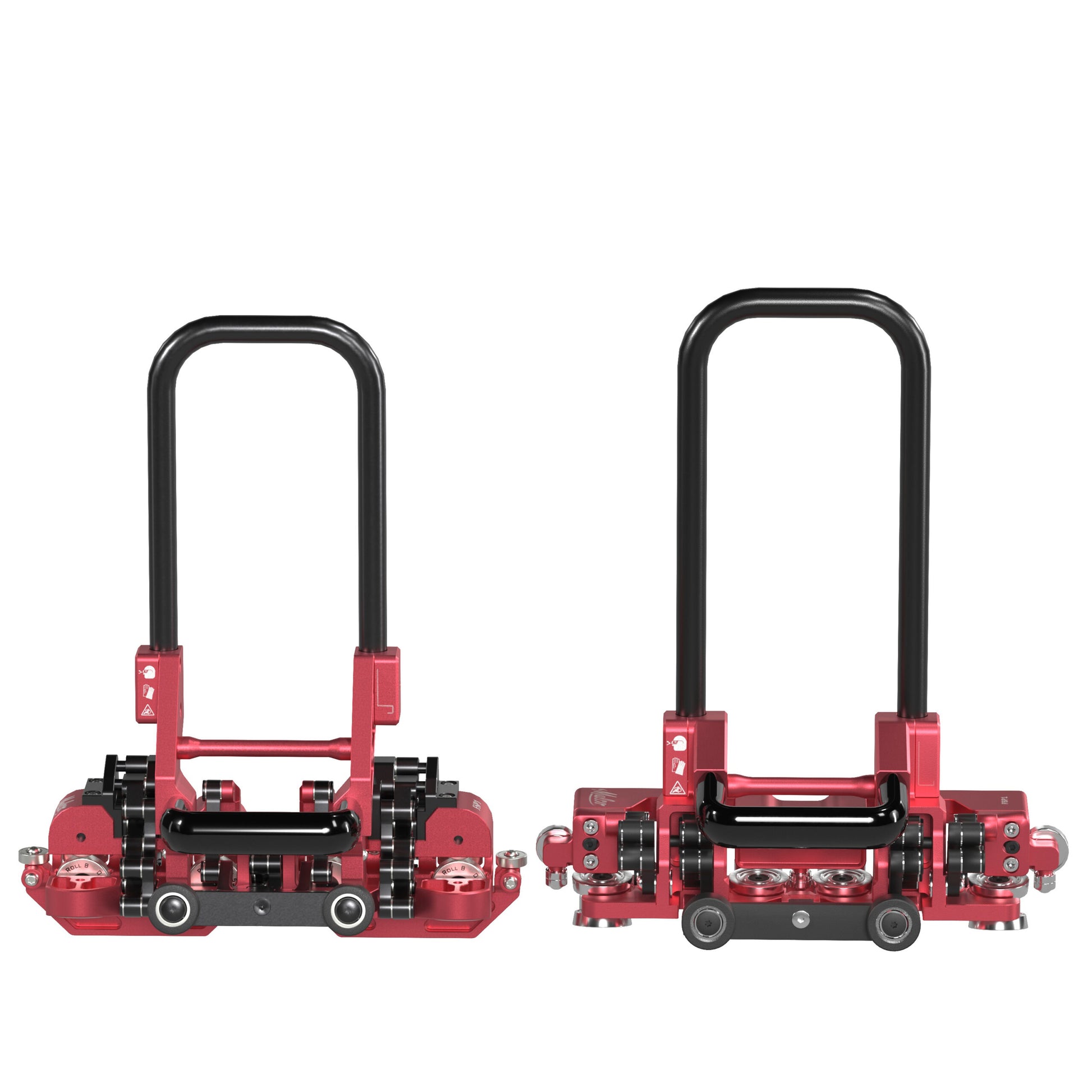

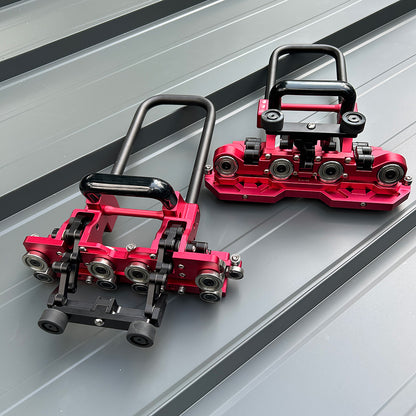

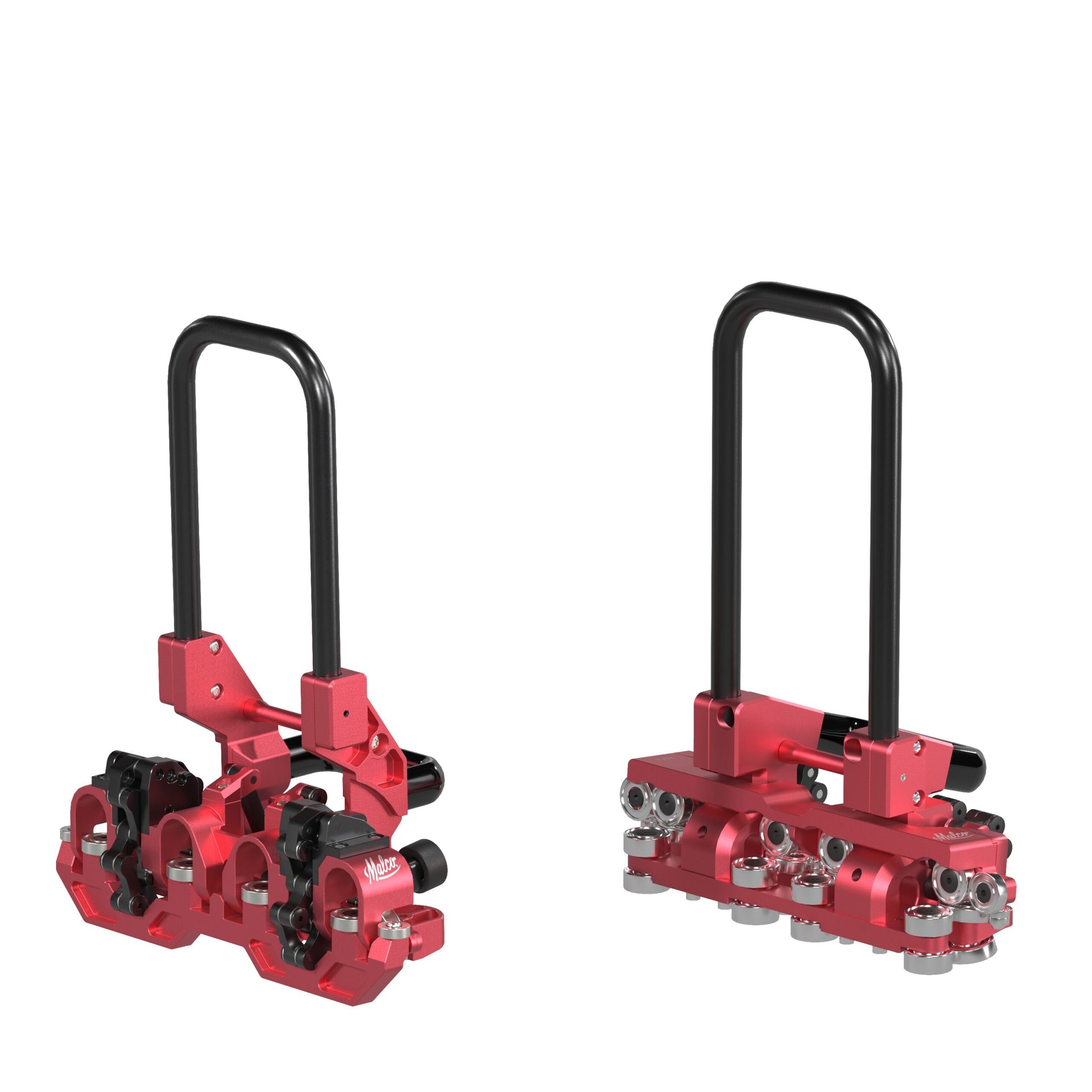

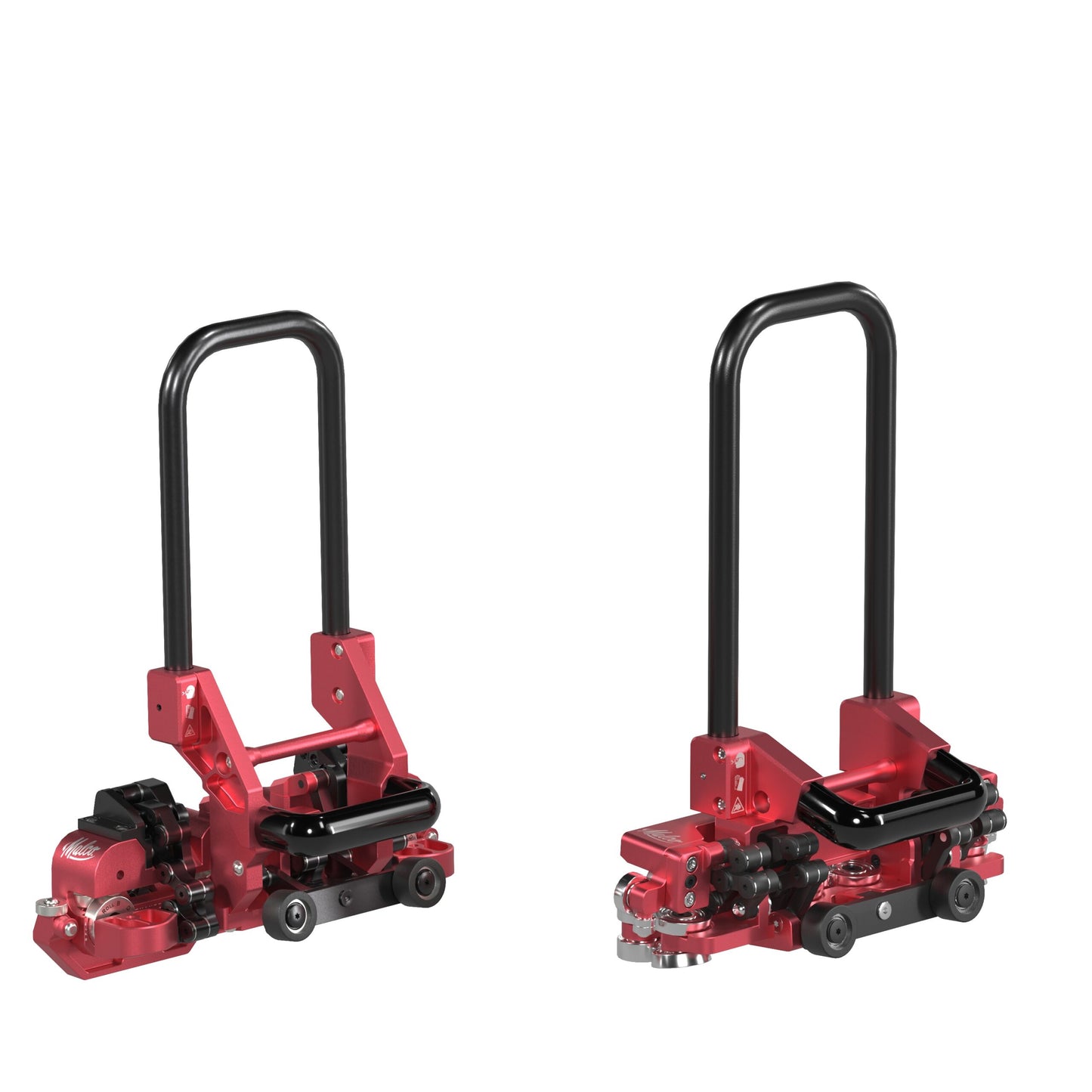

    The Malco FSP1 Progressive Profiling Bender Set is a field-forming solution designed specifically for 1.5″ mechanical lock standing seam roof systems. This innovative tool set allows trade professionals to form both male and female seam profiles directly on the jobsite—eliminating the need for heavy, rental-based profiling equipment.

    The progressive roller design forms multiple bends in sequence, creating accurate 1.5″ seam profiles with precision and consistency. Adjustable rollers allow the tool to accommodate different material thicknesses, ensuring clean formation in steel, aluminum, copper, stainless steel, and zinc.

    Built for speed and repeatability, the FSP1 significantly reduces setup time while maintaining tight profile tolerances for proper seam engagement. For contractors installing mechanical lock standing seam systems, this tool provides a practical and portable alternative to larger profiling machinery.

    Key Features

    • Forms 1.5″ mechanical lock standing seam male and female profiles
    • Progressive roller design creates multiple bends in one pass
    • Adjustable rollers accommodate varying material thicknesses
    • Rated for 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, and 1 mm zinc
    • Eliminates need for large, rental-based profiling machines
    • Precision forming ensures consistent seam engagement
    • Portable jobsite solution for mechanical lock standing seam systems

  • Brand

    Malco
    Malco Tools manufactures high-quality tools for roofing and sheet metal work, trusted since 1950 for precision, durability, and job-site performance.
    Shop more from Malco →

    Specs

    • SKU: 70000937
    • UPC: 686046557274

    Resources

Malco FSP1 Progressive Profiling Bender Set – 1.5″ Mechanical Lock Standing Seam

Frequently Asked Questions

What is the FSP1 Progressive Profile Bender used for?

The FSP1 is designed to form both male and female profiles for 1.5″ mechanical lock standing seam roof systems directly on the jobsite. It progressively forms the seam shape through multiple rollers, eliminating the need for large rental profiling equipment.

Does this replace a mechanical seam closer?

No. The FSP1 forms the profile shape of the panel (male and female legs). It does not replace a mechanical seamer or seam closer, which is used later to mechanically lock the seam after panels are installed.

Think of it as a profile forming tool, not a seam closing tool.

Does this replace a roll former?

The FSP1 does not replace a full roll forming machine. However, it allows contractors to field-form 1.5″ mechanical lock profiles without transporting heavy equipment or renting dedicated profiling machines.

It is ideal for:

  • Small projects
  • Repairs
  • Retrofit work
  • Jobsite modifications

What materials can the FSP1 form?

The Progressive Profiling Bender Set is rated for:

  • 24 gauge steel
  • 26 gauge stainless steel
  • .040″ aluminum (1 mm)
  • 20 oz copper
  • 1 mm zinc

Always confirm material thickness before forming to ensure it falls within rated capacity.

Can it form both male and female seam profiles?

Yes. The FSP1 is specifically designed to create both sides of a 1.5″ mechanical lock standing seam system, ensuring consistent engagement between panels.

Is this tool compatible with snap-lock standing seam panels?

No. The FSP1 is built for mechanical lock standing seam systems, not snap-lock profiles.

How portable is the FSP1 compared to rental profiling equipment?

The FSP1 weighs approximately 23.76 lbs (10.8 kg) and measures:

  • 27.75″ long
  • 18.75″ wide
  • 7″ high

It is significantly more portable than large profiling machines and designed specifically for jobsite use.
