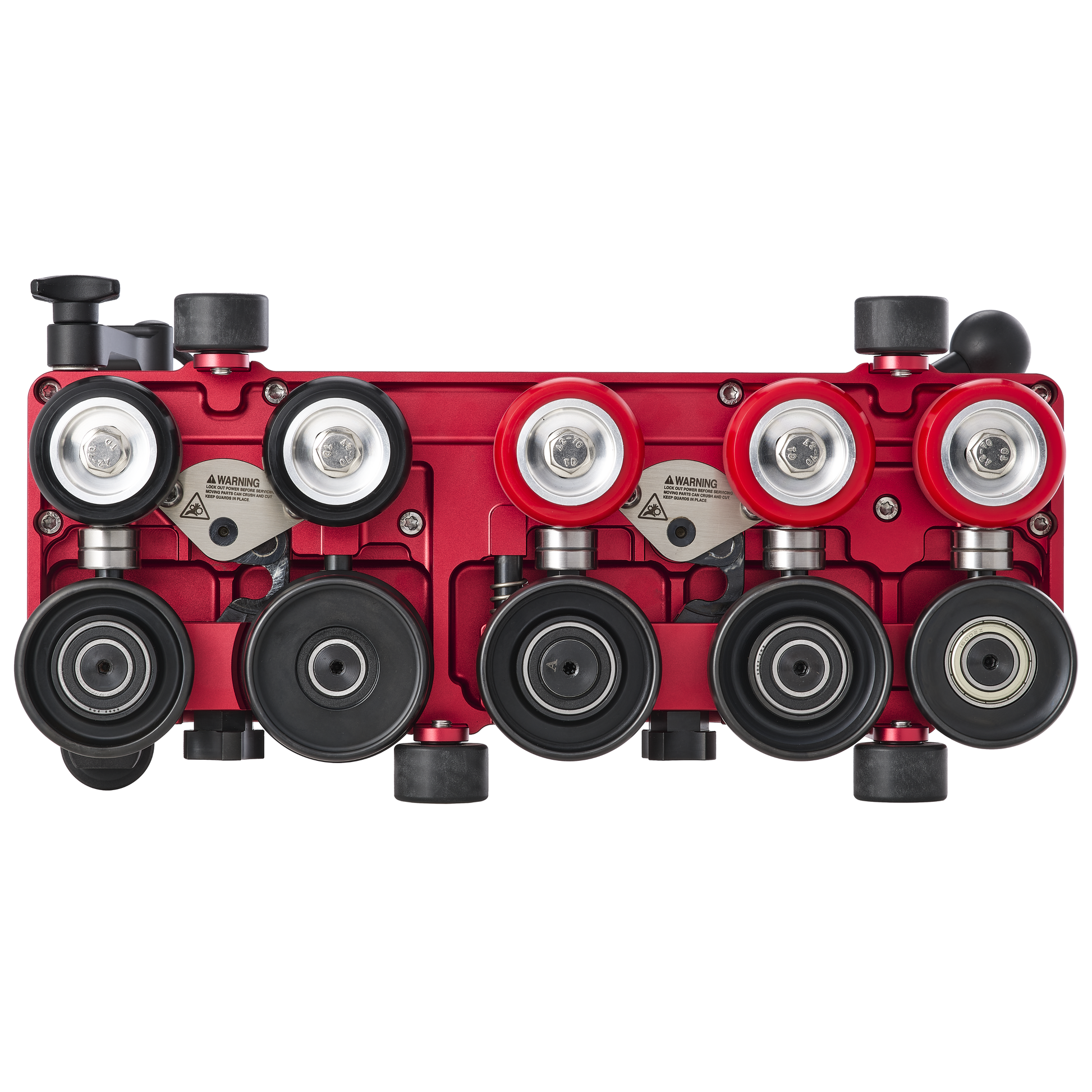

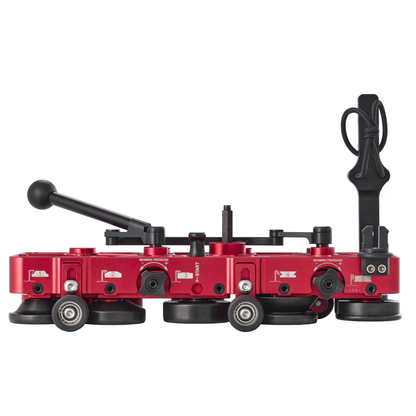

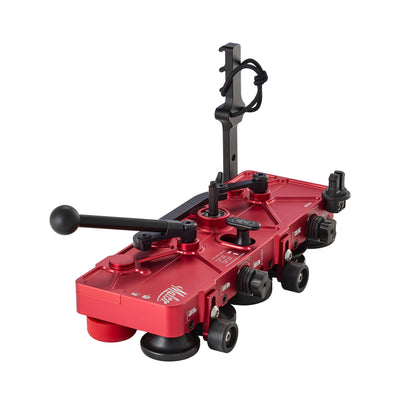

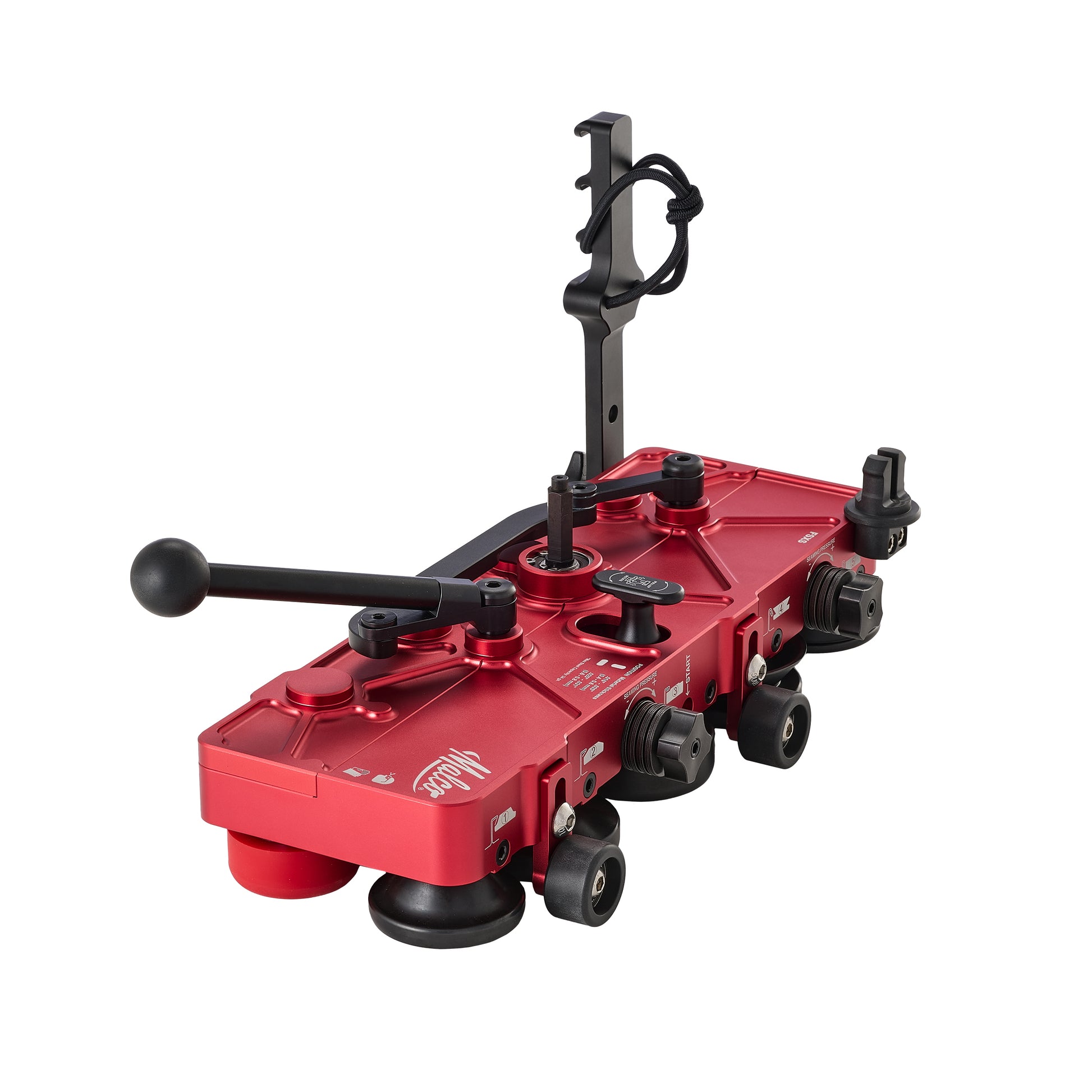

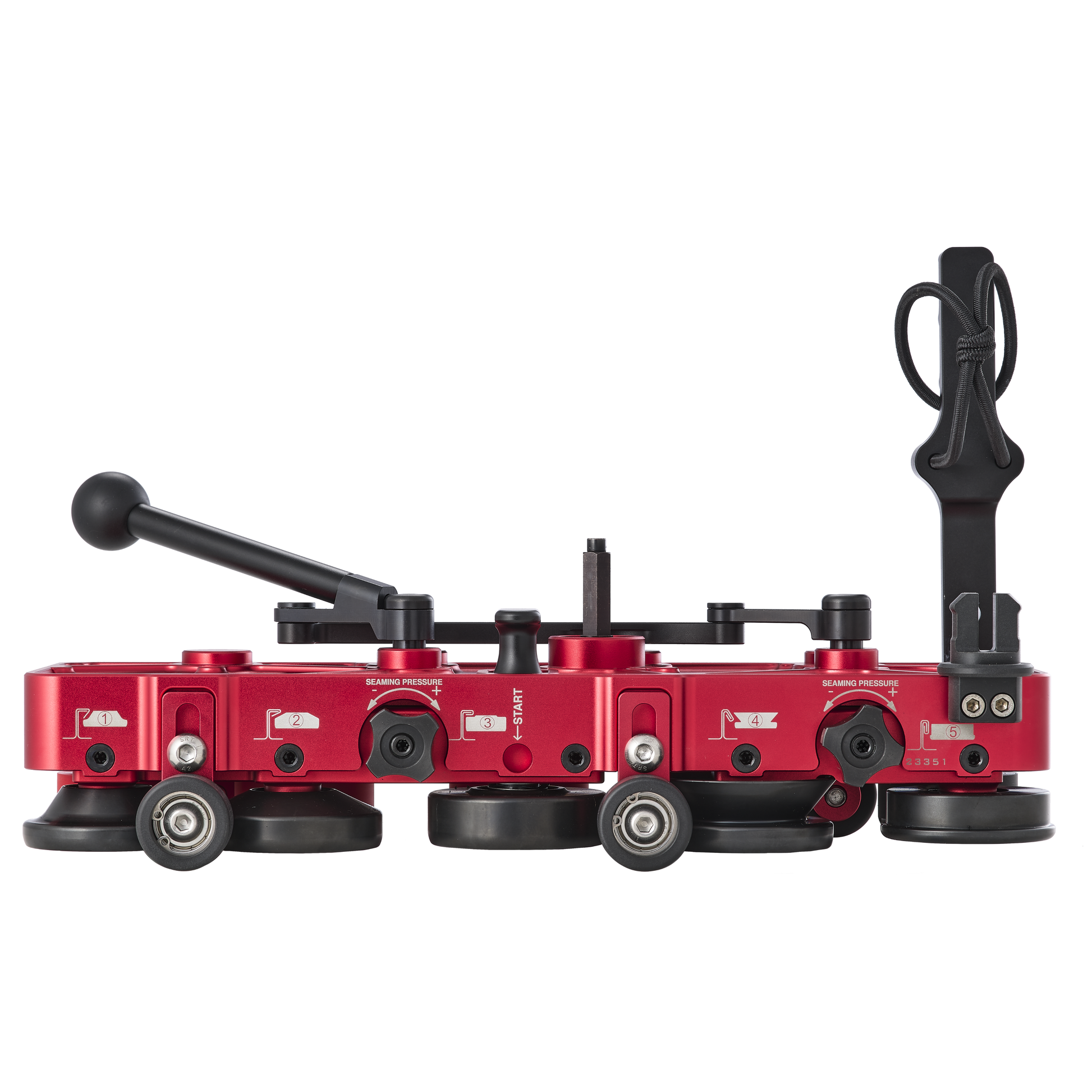

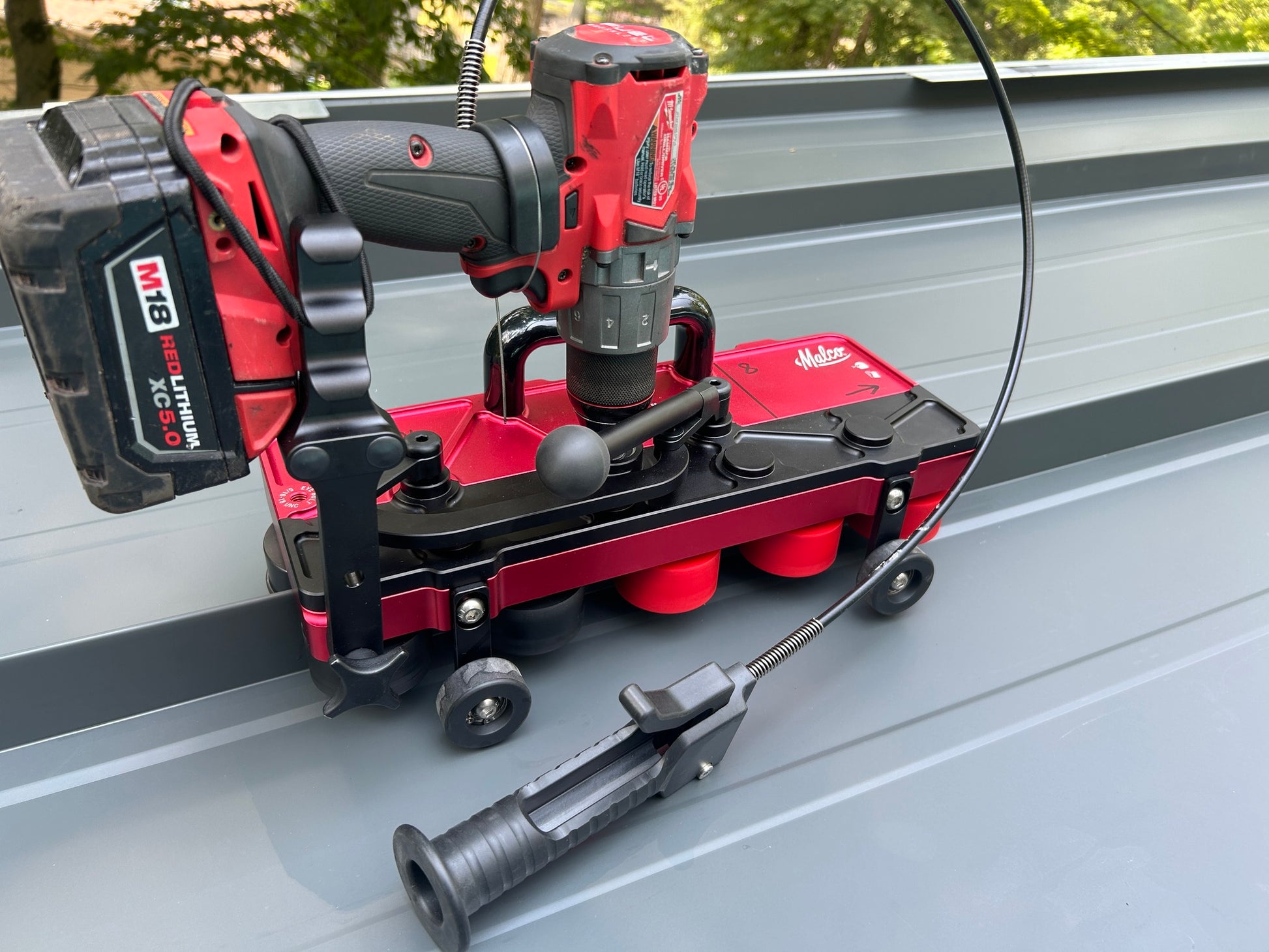

The Malco FSXS Power-Assisted Standing Seam Seamer locks 1″ and 1.5″ mechanical lock panels quickly and consistently using your cordless drill. Designed to seam both single-stage (90°) and double-stage (180°) locks in one efficient pass, this tool eliminates the need for hand seamers and dramatically reduces installation time.

With speeds up to 98 feet per minute, the FSXS allows crews to seam large roof sections with precision and uniform pressure from start to finish. It is engineered to begin seaming at the start of the panel profile without pre-closing by hand, improving workflow and reducing fatigue on the jobsite.

Built for professional metal roofing installers, the FSXS handles steel, stainless steel, aluminum, copper, and zinc panels. The adjustable pressure system allows fine-tuning based on material thickness and panel profile to ensure clean, tight seams without deformation.

Each unit ships in a rugged IP67-rated waterproof hard case with custom foam inserts to protect your investment between jobs.

If you’re installing 1″ or 1.5″ mechanical lock panels regularly, this is the fastest and most consistent way to close seams in the field.

Key Features

• Seams 1″ and 1.5″ mechanical lock panels (single or double stage)
• Designed to start seaming at the beginning of the panel — no hand seamer required
• Maximum operating speed up to 98 ft/min (30 m/min)

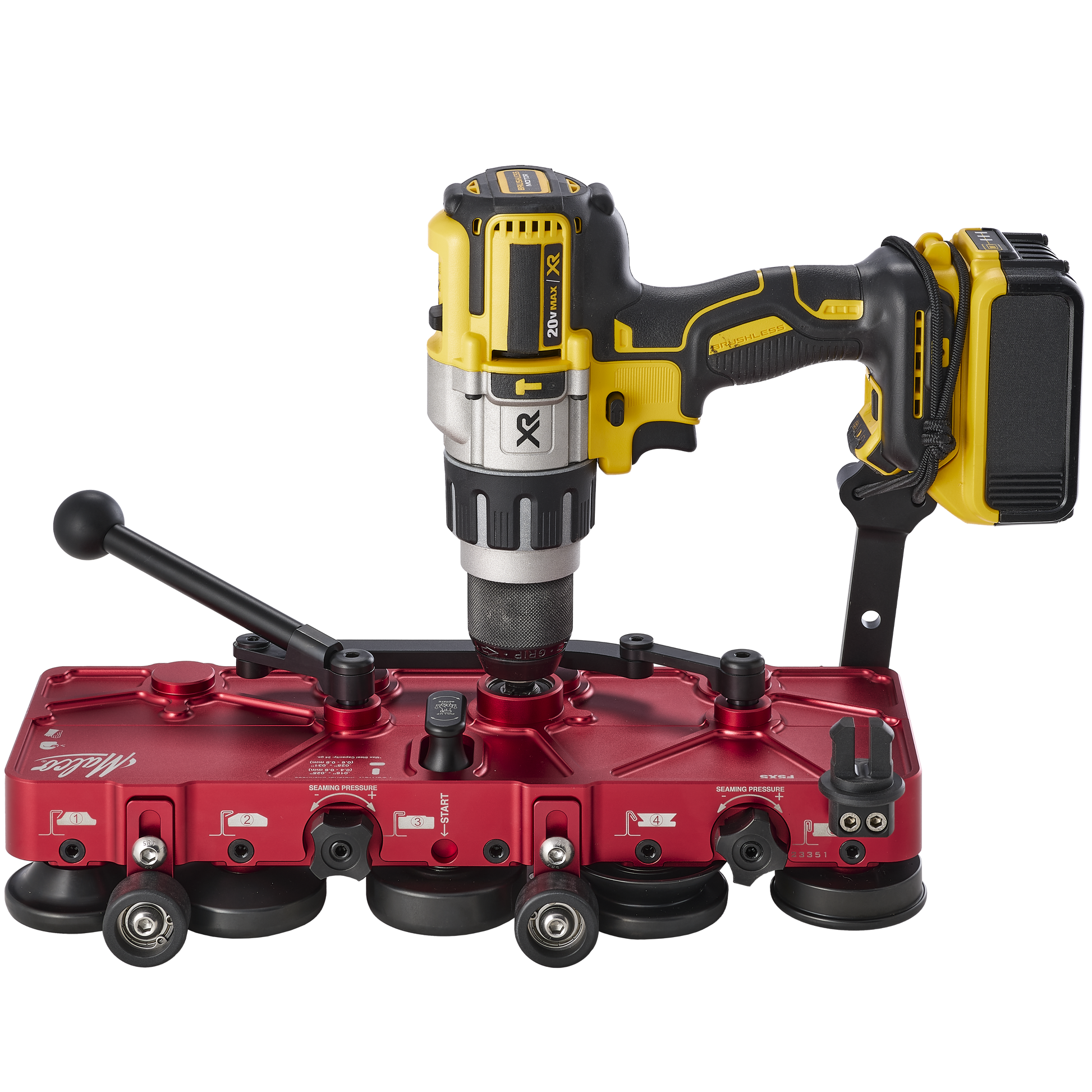

• Driven by contractor-grade cordless drill — no cords to manage
• Adjustable pressure system for proper seam formation across material types
• Seaming capacity: 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, 1 mm zinc
• Produces consistent, uniform seams with reduced installer fatigue

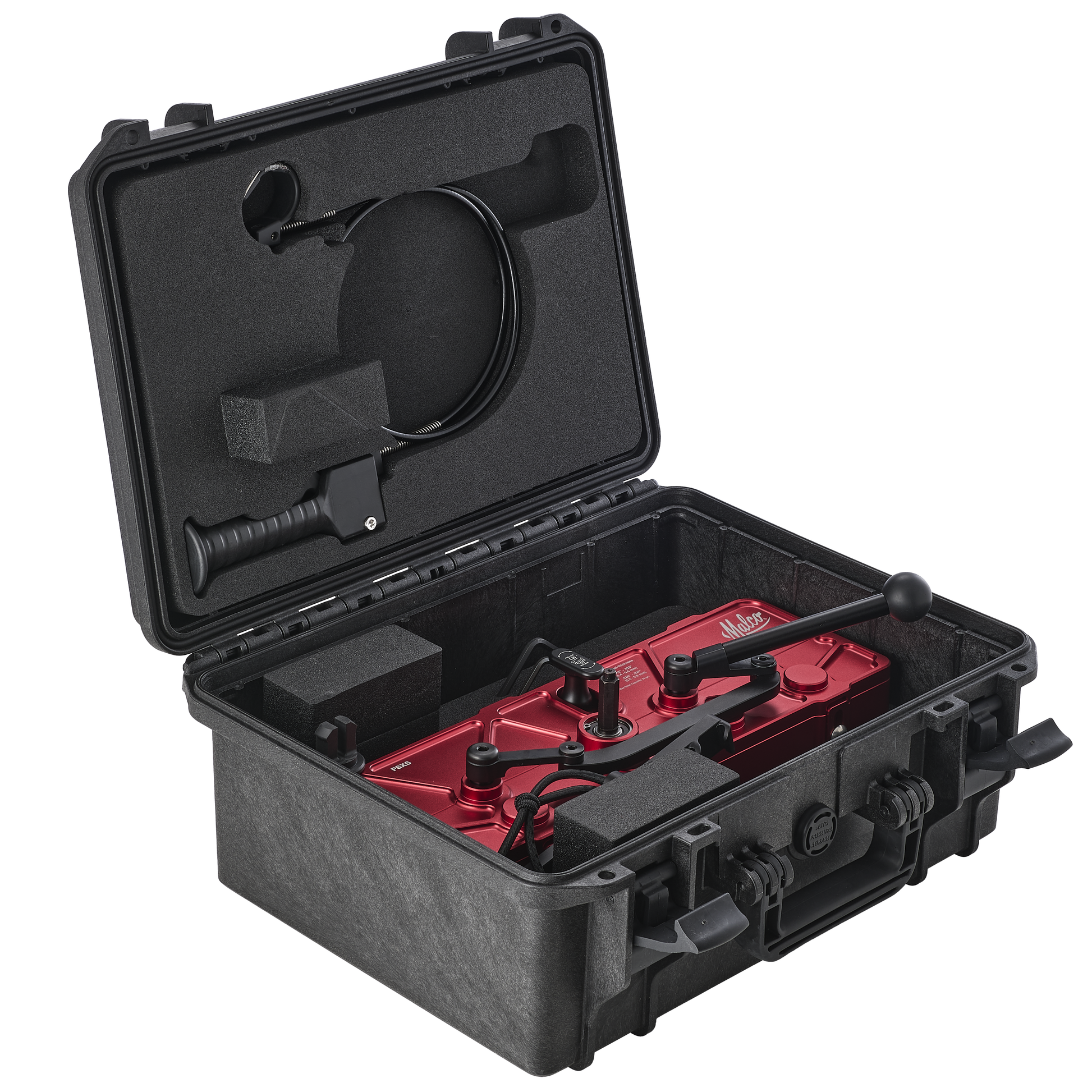

• Includes IP67-rated waterproof hard case with custom foam insert
• Built for professional mechanical lock standing seam installation
