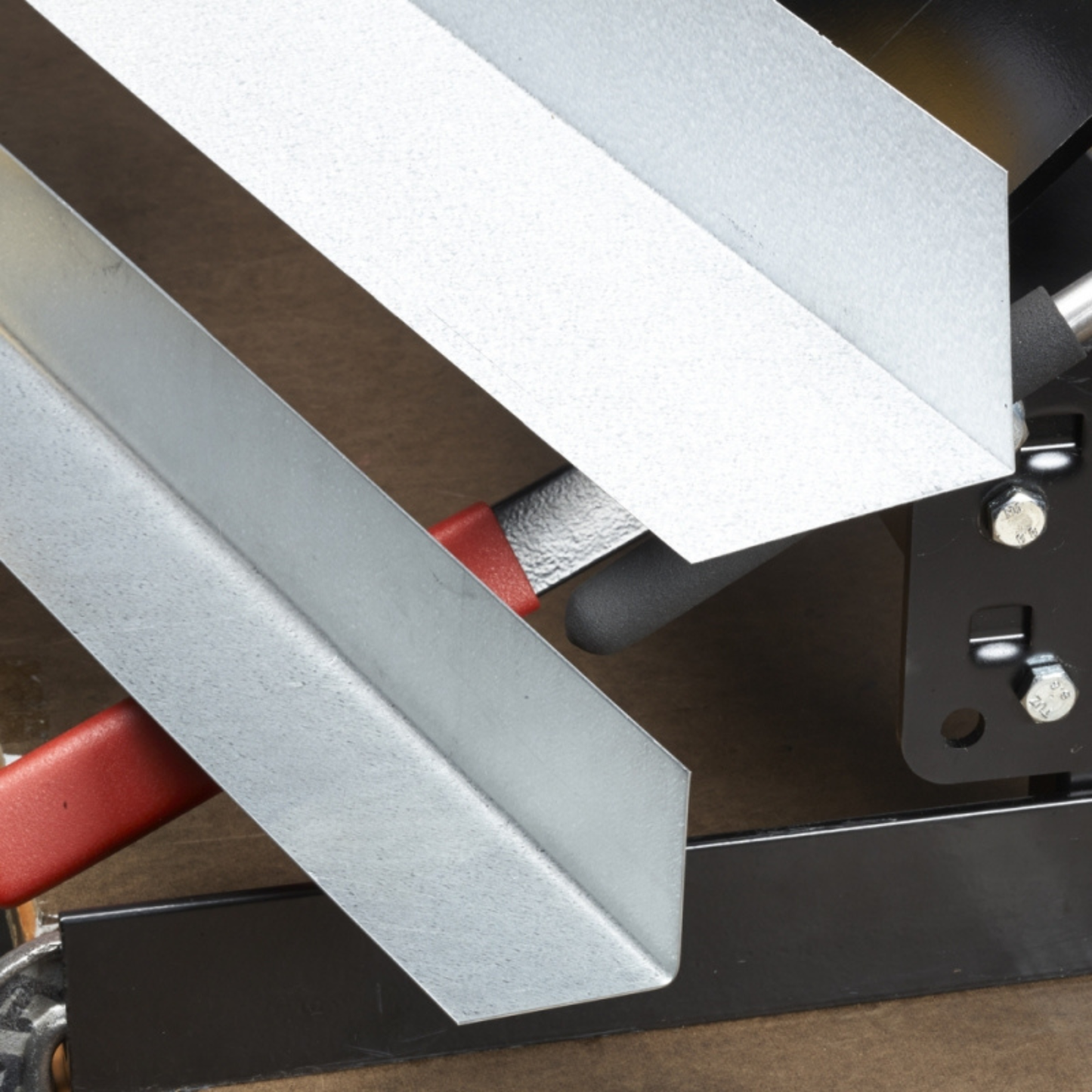

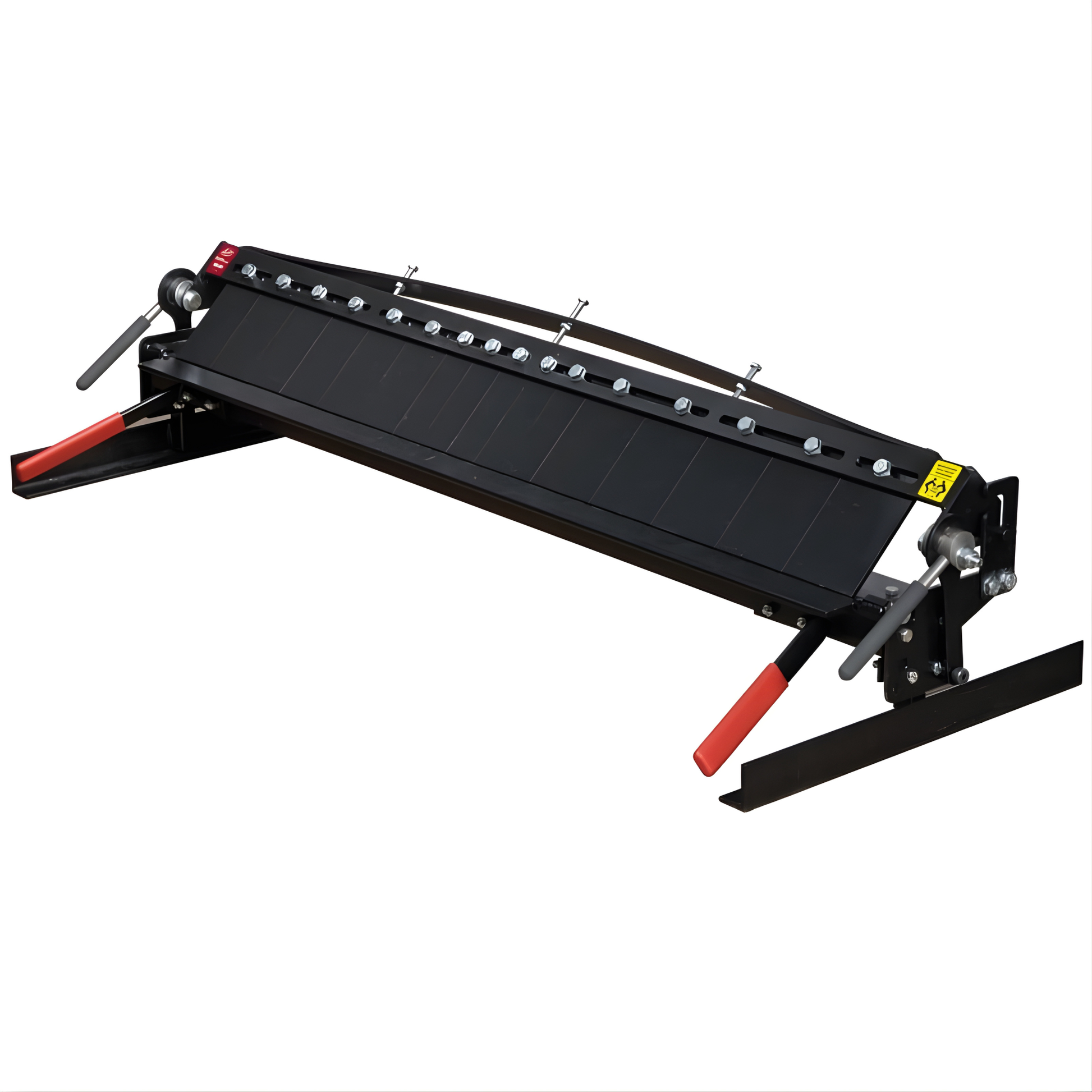

The Malco MB48B Pan Style Mini-Brake is designed for fabricating drip pans, register boxes, flashing corners, fascia details, and ductwork components directly in the field. With 16 removable plate-steel fingers and a full 48″ bending width, this portable brake delivers true box-and-pan capability without hauling a full-size shop brake.

The MB48B produces bends up to 135° in 22-gauge galvanized steel and other common sheet metals. Its 5/16″ plate-steel table apron and reinforced anvil frame provide consistent, uniform bends across the full width.

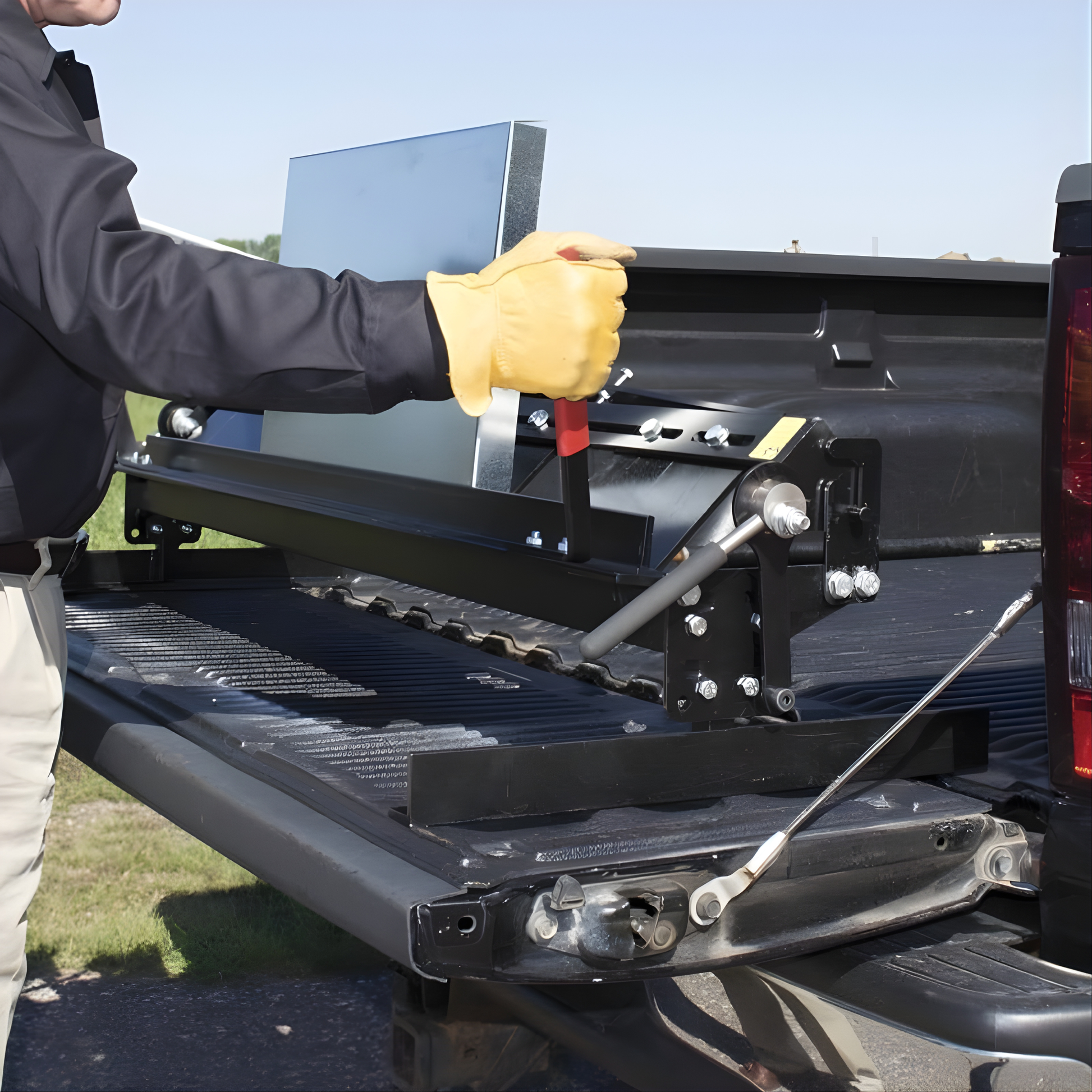

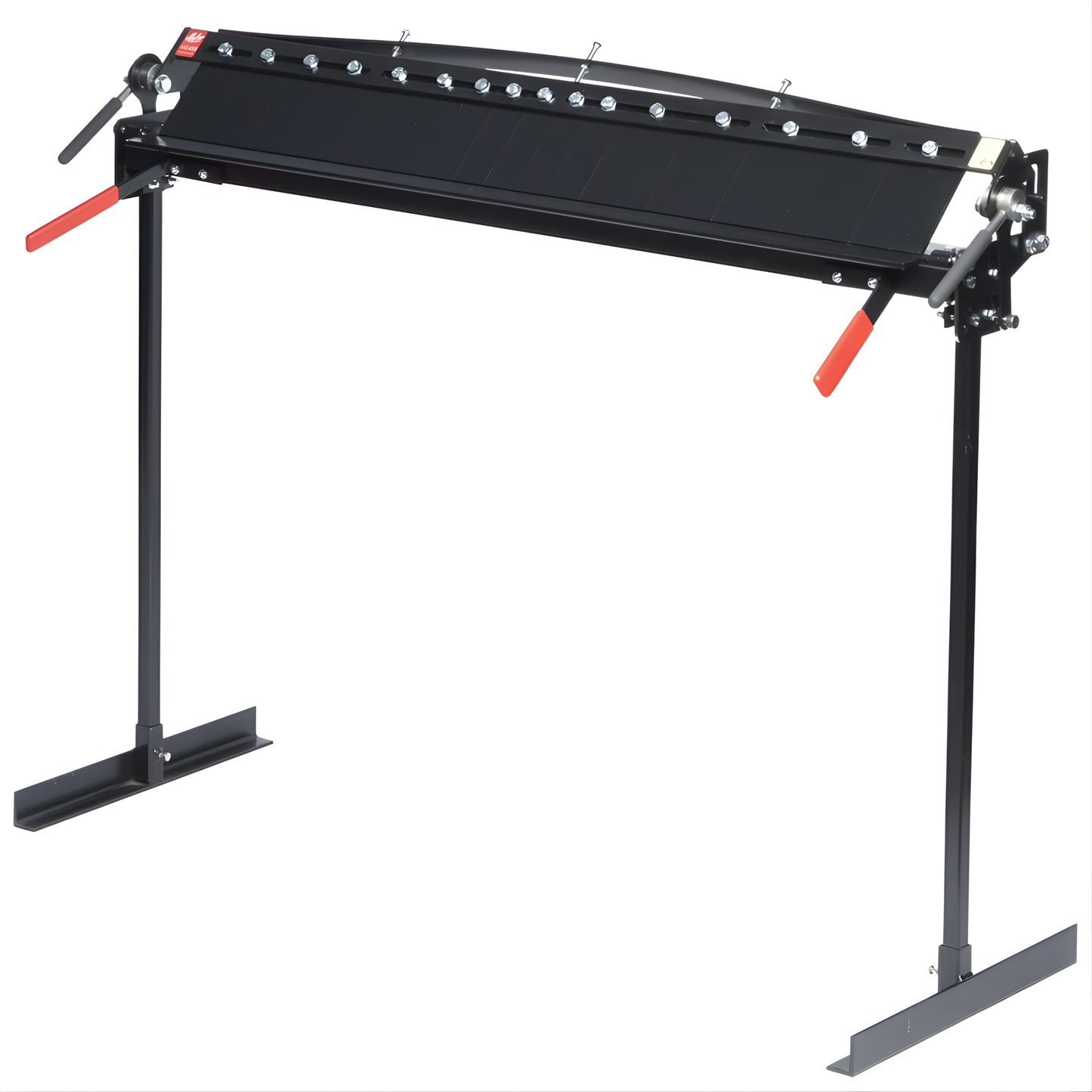

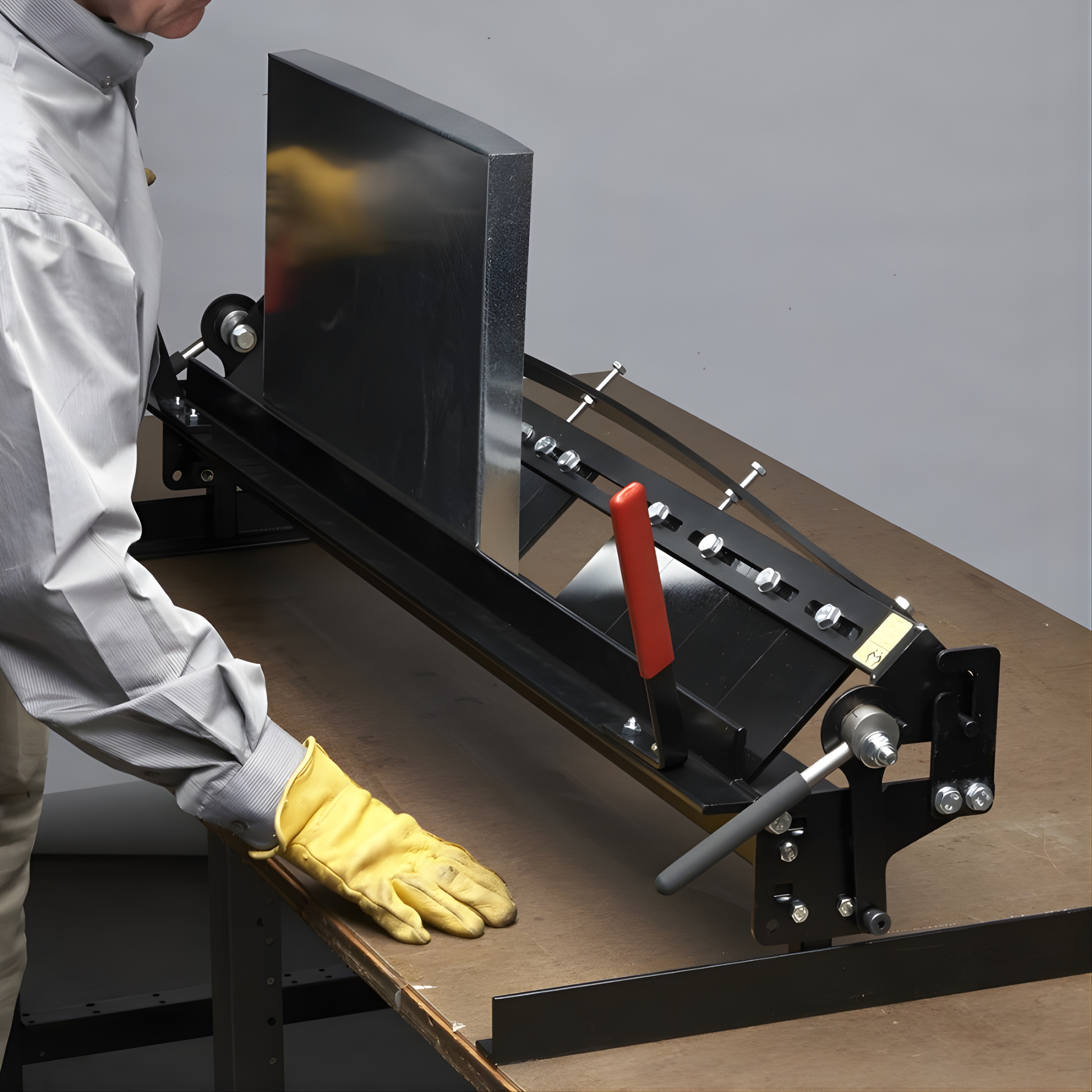

Weighing just under 100 lbs., the brake separates into table and anvil sections for easier transport. It can be used on a workbench, truck tailgate, or with optional legs for standing operation.

Adjustable setback and tension controls allow fine tuning for material thickness and temper, making it suitable for aluminum, copper, zinc, and coated steels.

Key Features

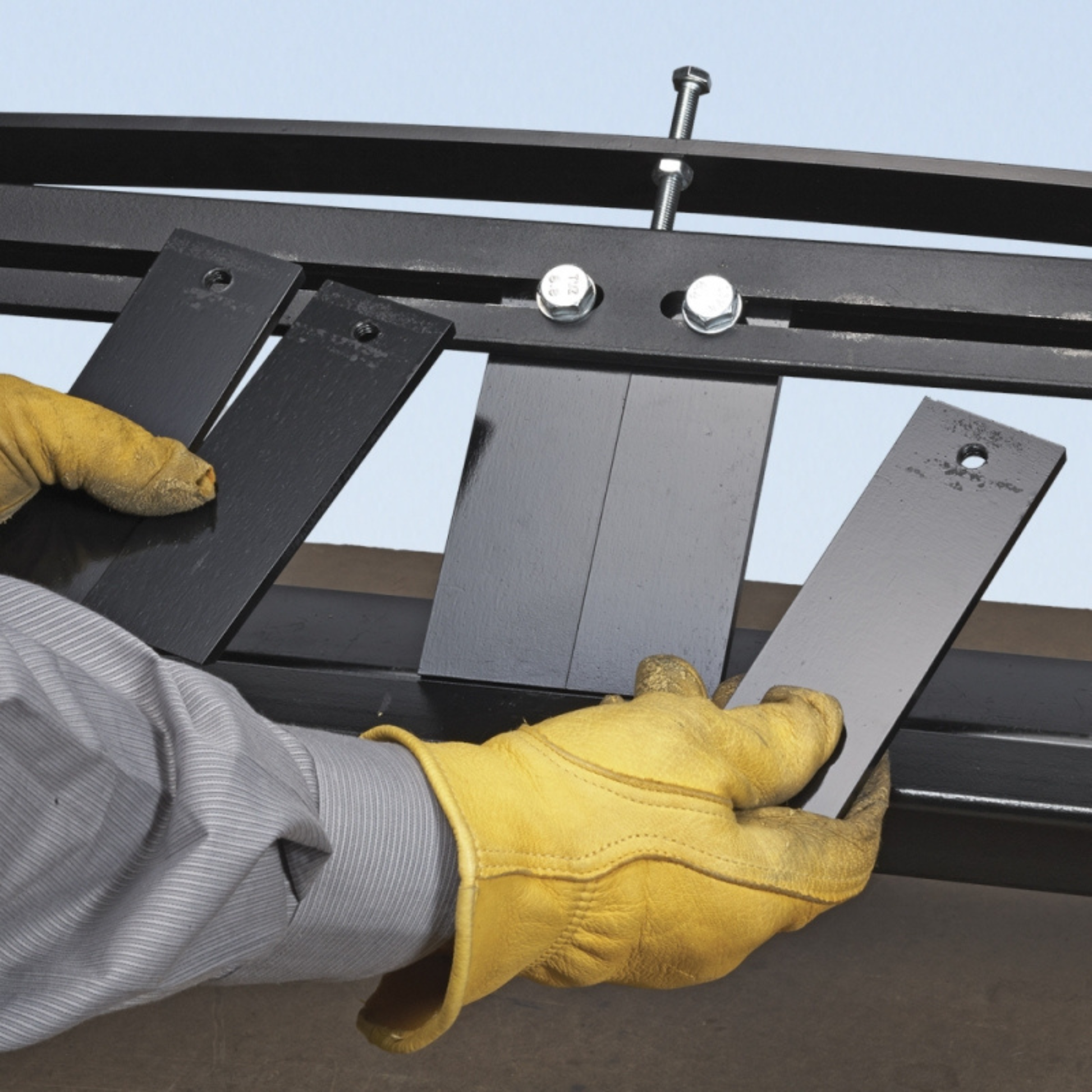

• True box-and-pan design with 16 removable steel fingers
• Full 48″ bending width
• Produces bends up to 135°
• Handles up to 22-gauge galvanized steel
• 5/16″ plate-steel table apron and reinforced anvil frame
• Adjustable setback for sharper or softer bends
• Flange height range: 1/2″ to 3″
• Cam-over-center clamps for secure, safe operation

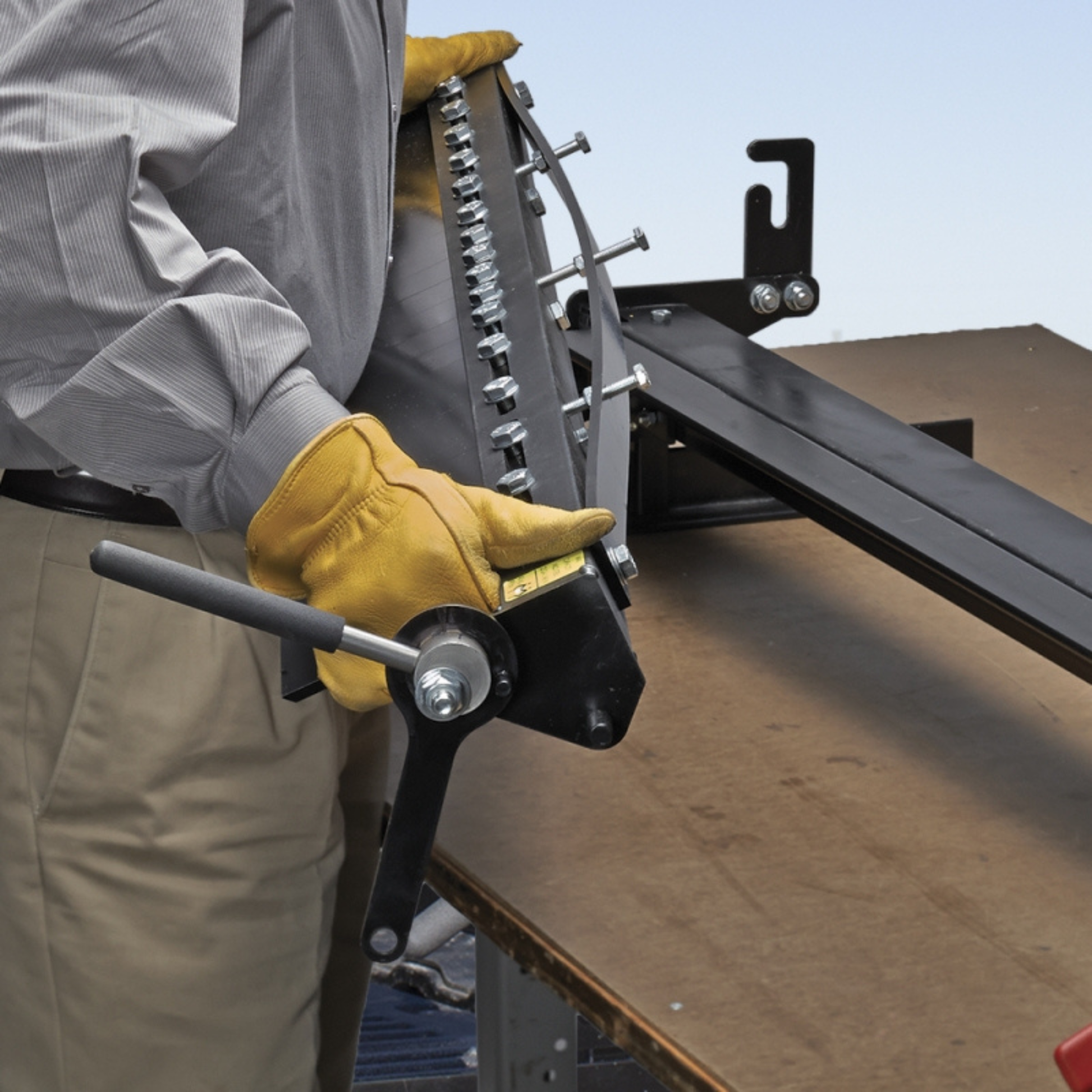

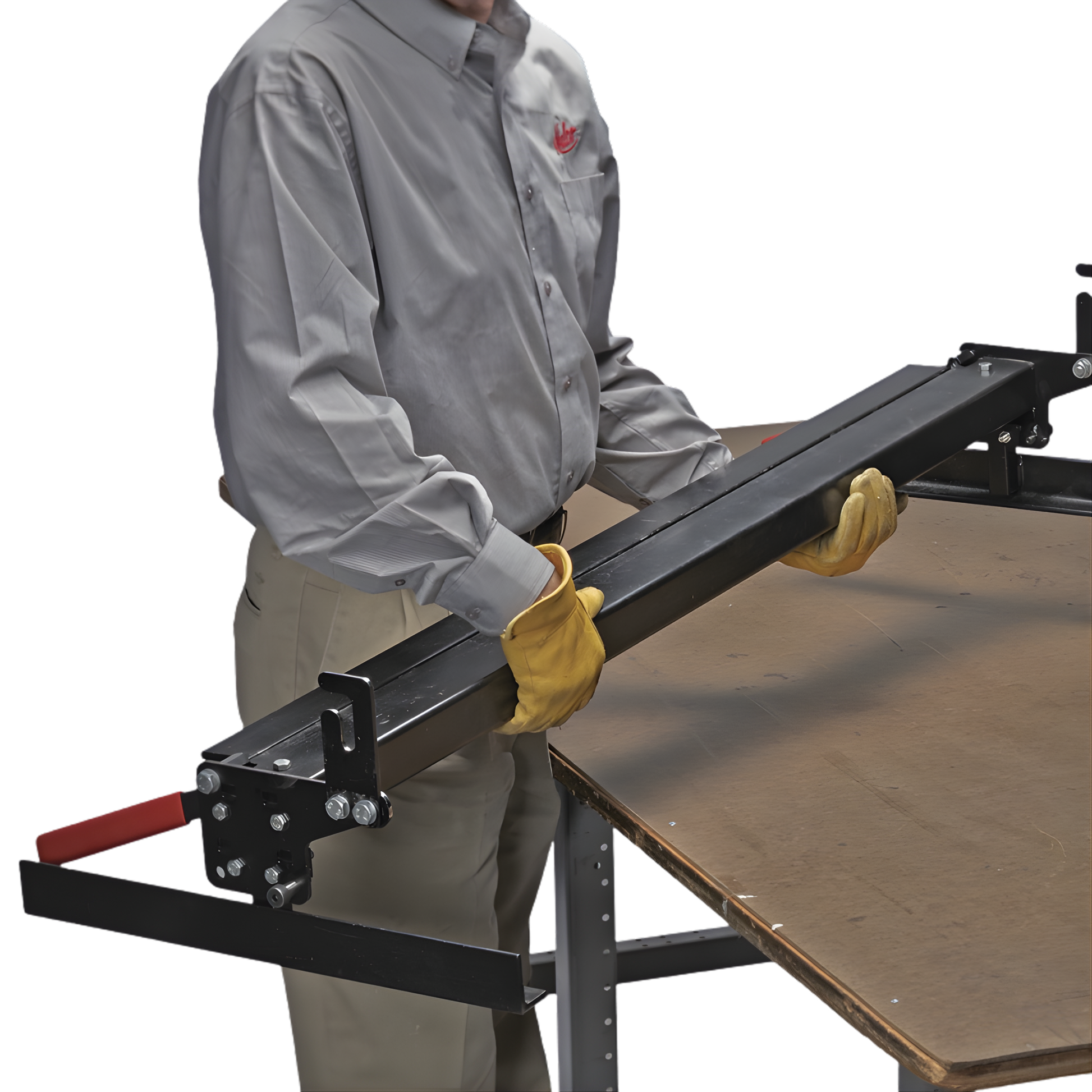

• Separates into two sections for easier transport
• No fixed throat depth — bend stock in virtually any length

Material Capacities

• Galvanized Steel: 22 gauge (.034″)
• 55% Al-Zn Mild Steel: 22 gauge (.030″)
• Aluminum: .040″ (1.02 mm)
• Soft Copper: .040″ (1.02 mm)
• Zinc: .040″ (1.02 mm)
