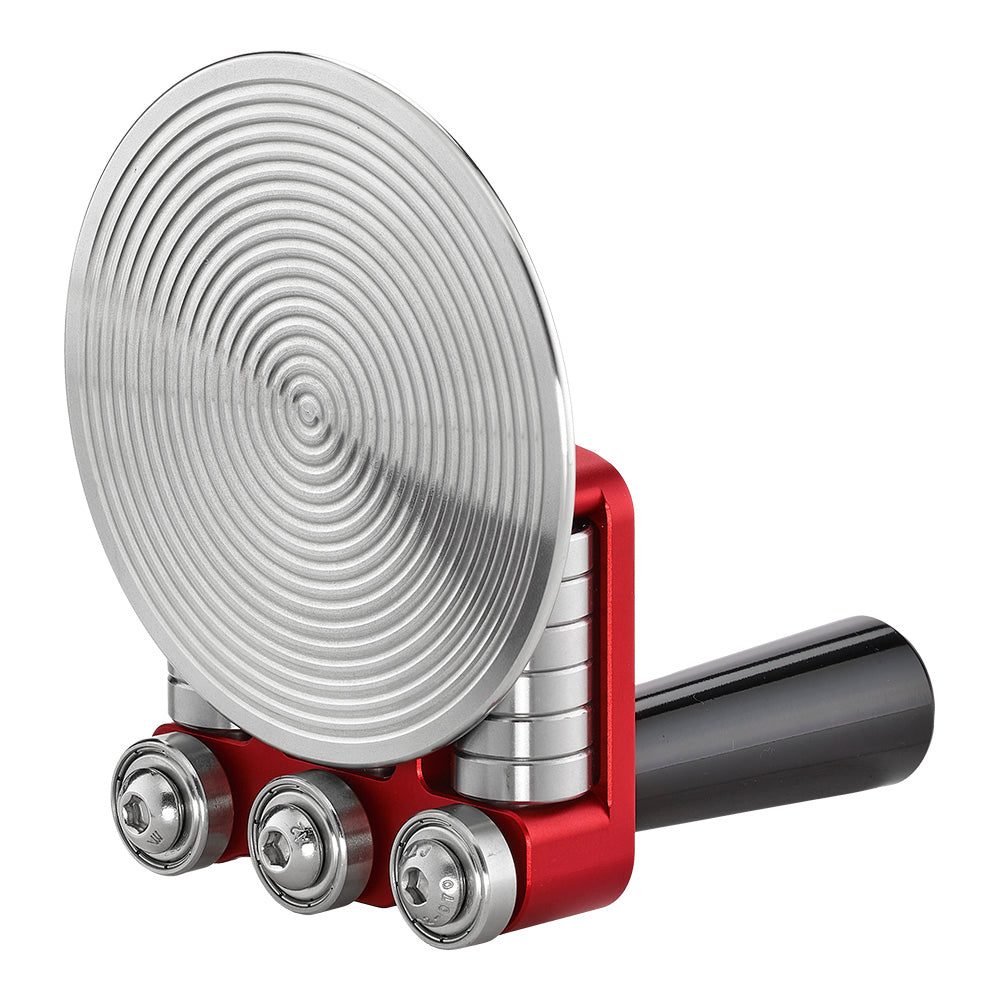

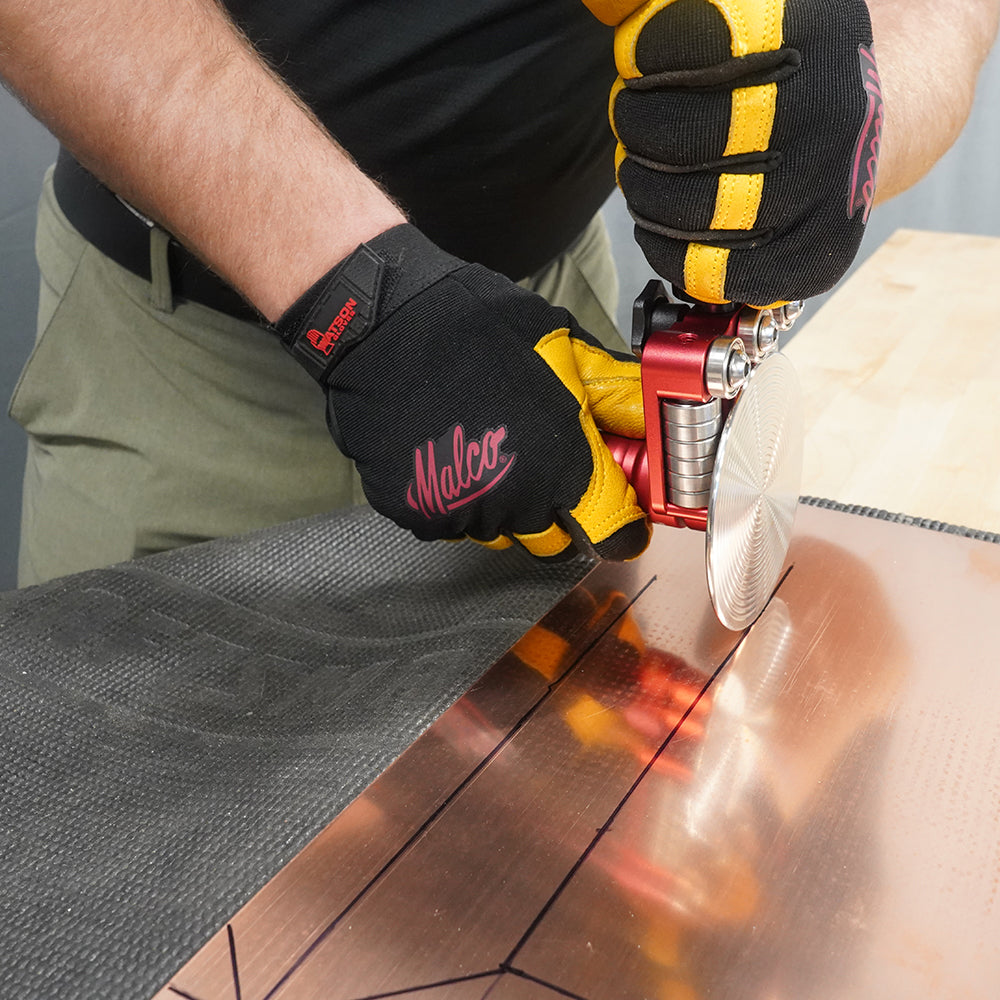

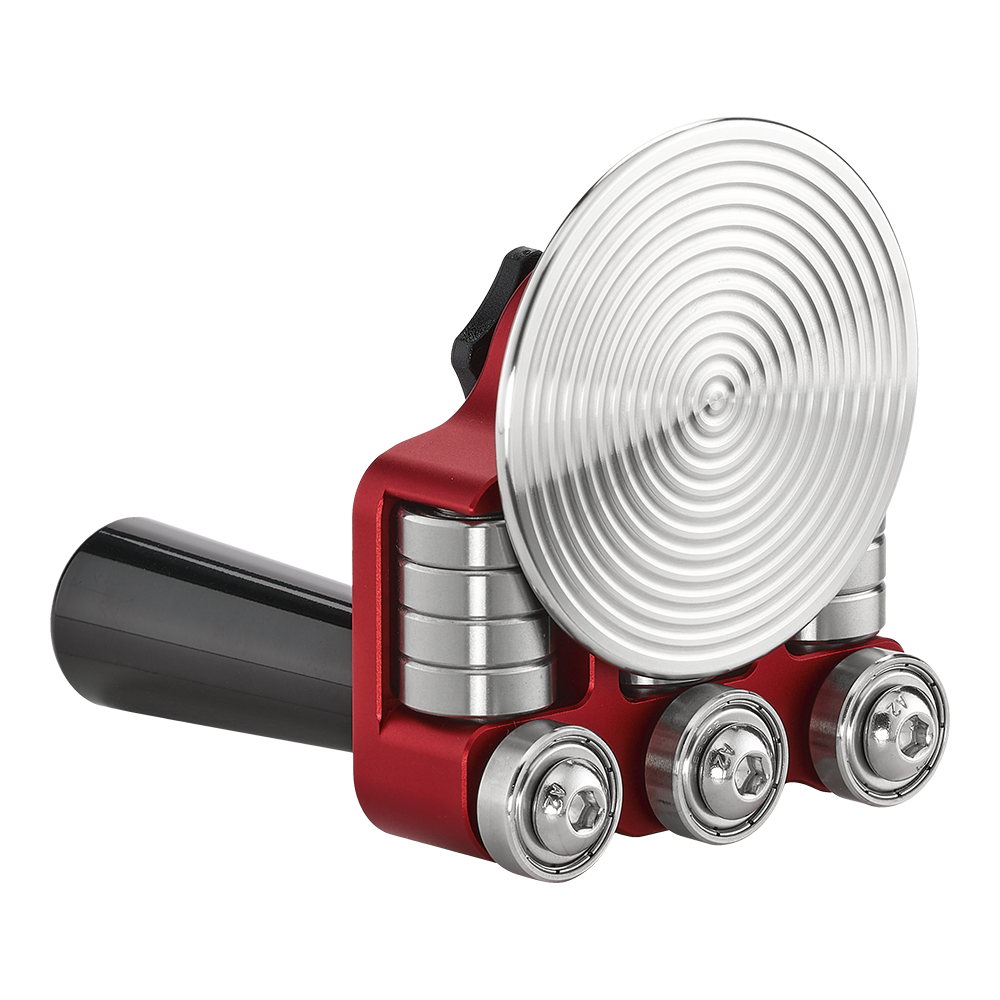

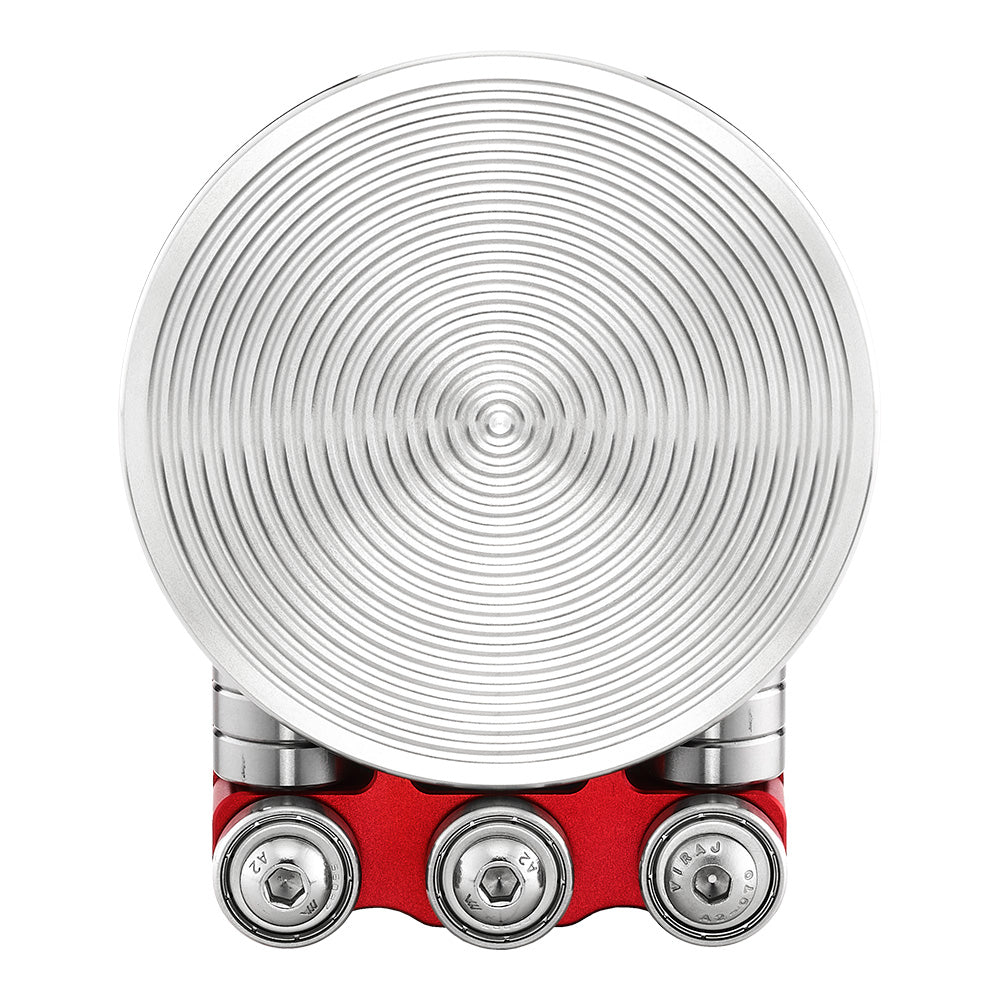

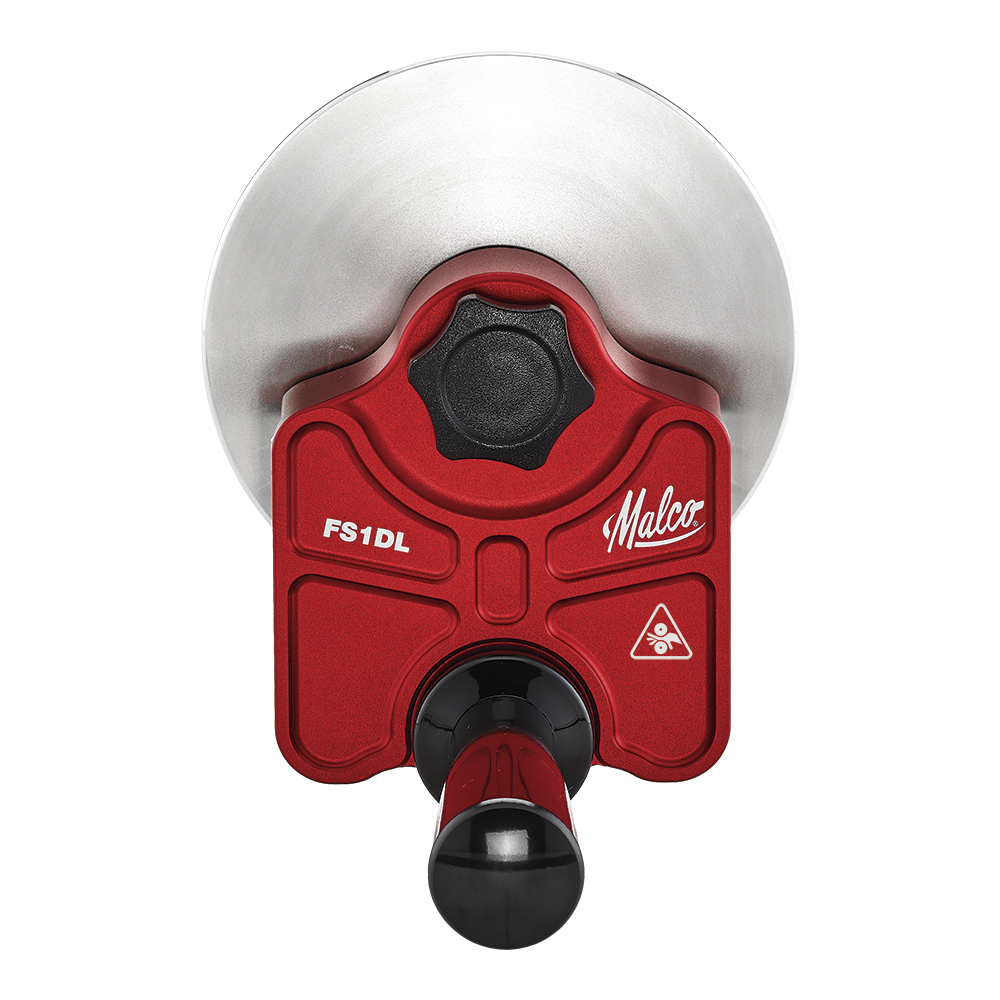

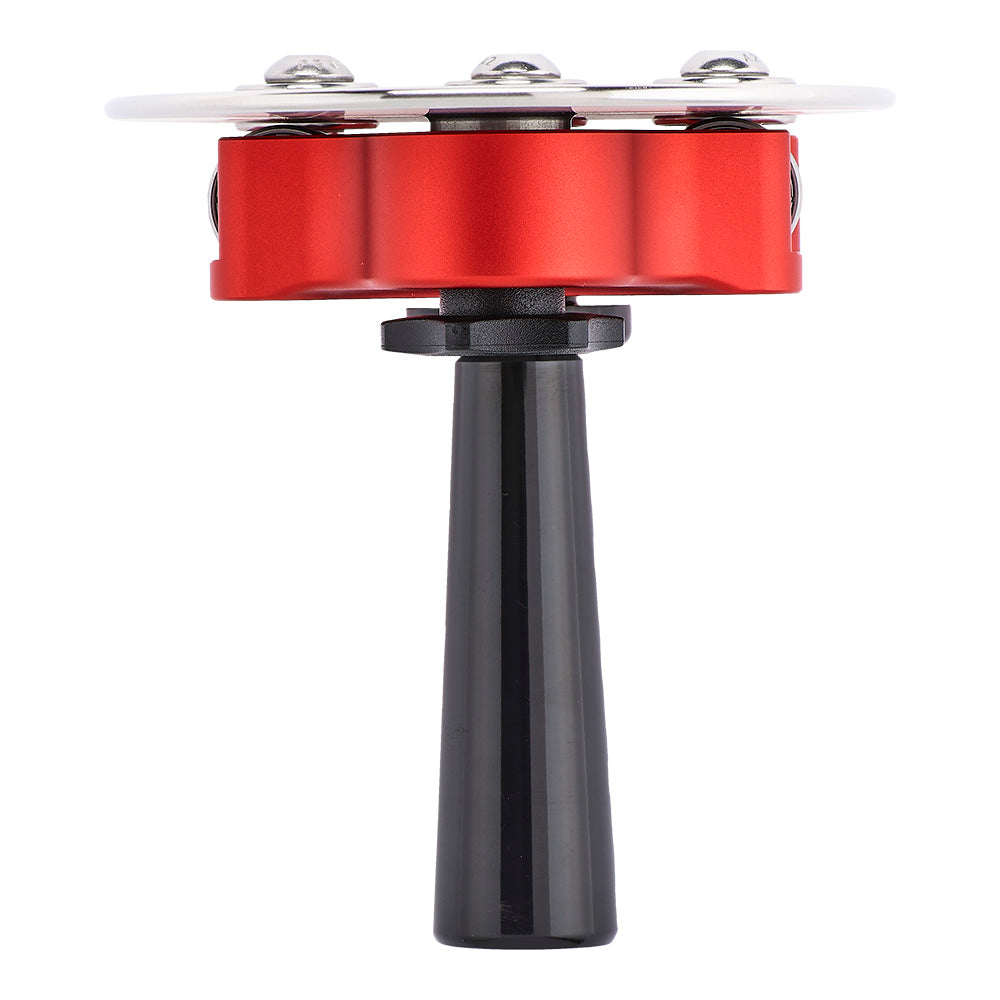

The Malco FS1DL Large 1-Station Disc Bender is designed for forming precise 90°–180° bends in straight or curved panels directly on the jobsite. With a bend depth range of 5/16″ to 1-3/4″ (8–45 mm), this model offers expanded capacity for deeper hems and larger interlocking features.

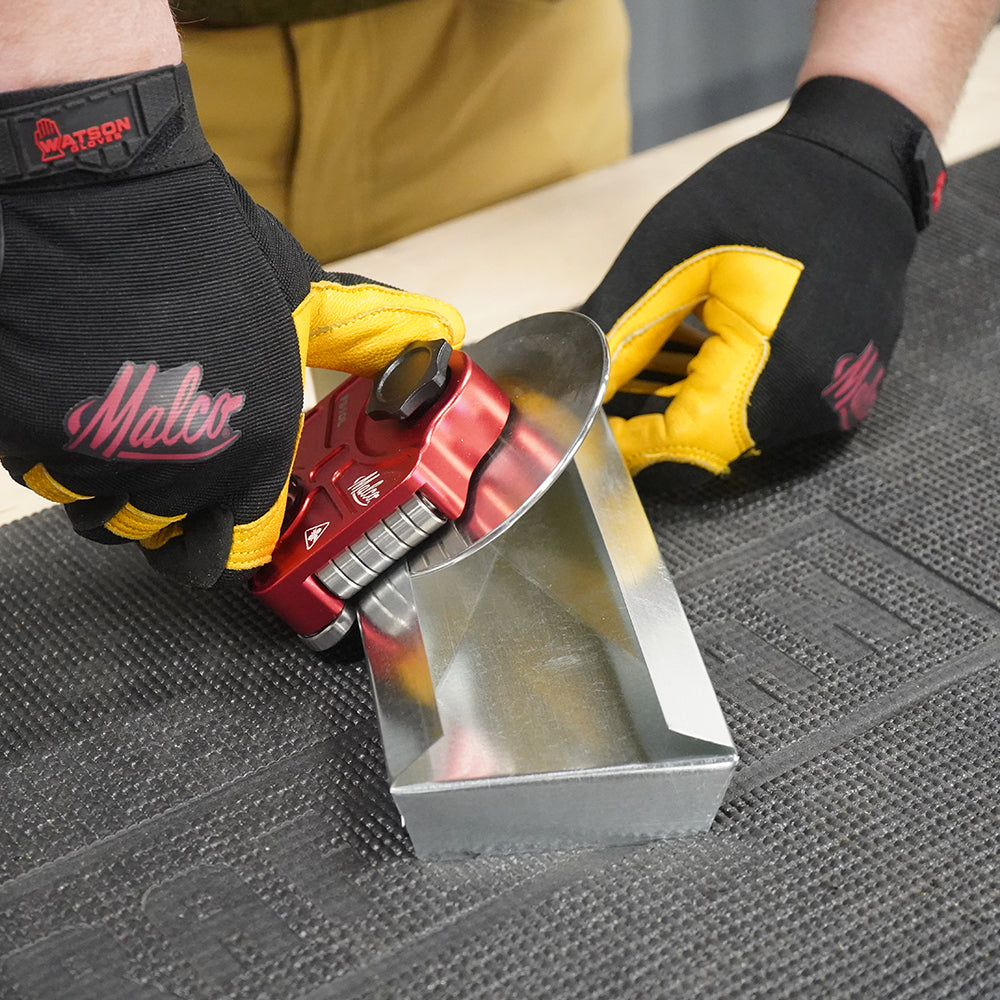

1-station disc benders are ideal for short bends and curved forming applications. The FS1DL excels at creating open hems for fascia details, ridge caps, and custom metal roofing components without waiting on roll formers. HVAC professionals can also use it to field-form ductwork and create open hems for drive connections.

Three sets of bearing guides glide smoothly along the material to follow the initial bend, ensuring controlled, consistent forming across a wide range of metals. The removable disc allows for quick disassembly and mid-panel tool removal when needed.

Constructed from premium CNC aluminum and stainless-steel components, the FS1DL delivers durability, corrosion resistance, and precise bending performance in a compact, portable design.

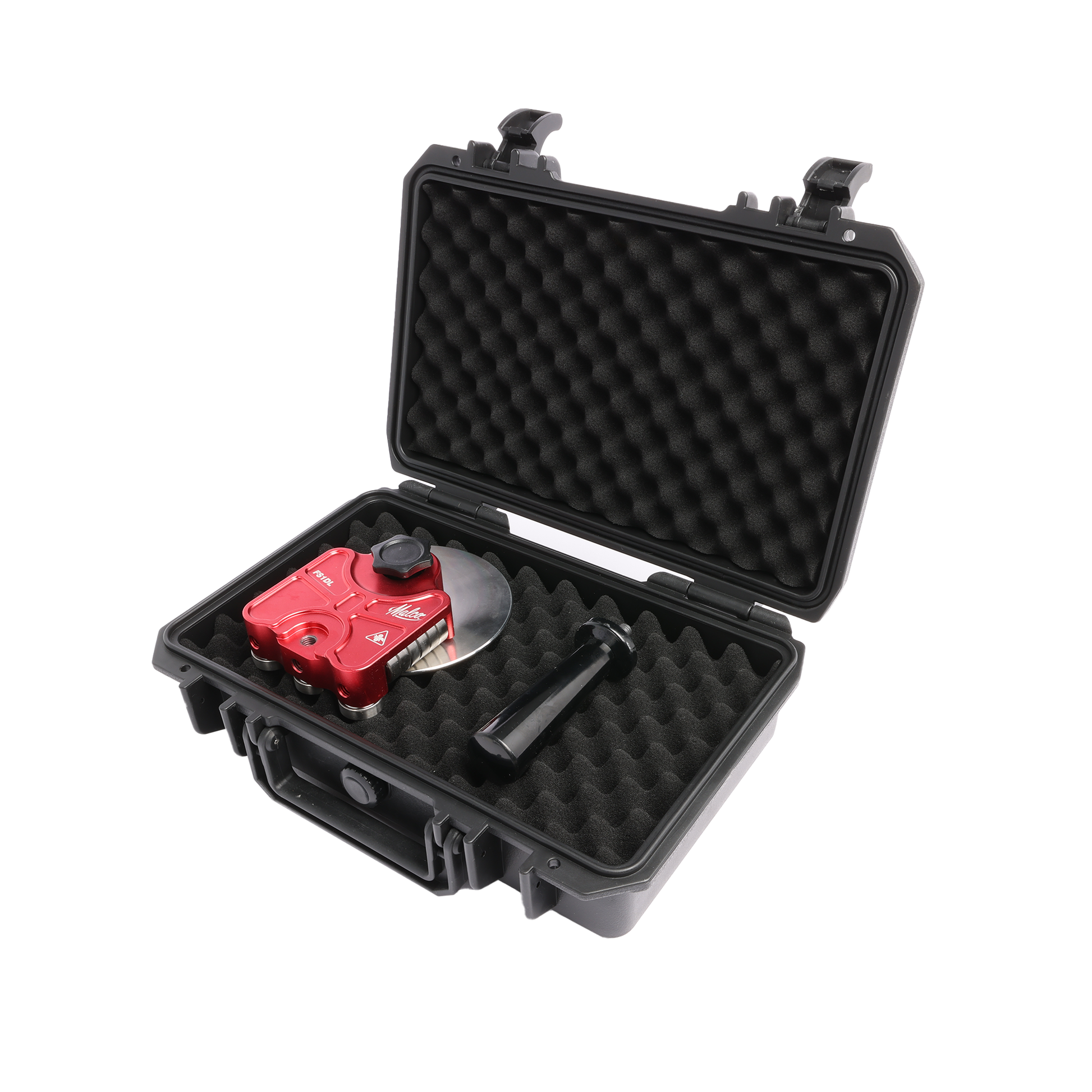

Each unit ships in a rugged IP67-rated waterproof hard case to protect your tool on and off the jobsite.

Key Features

• Forms 90°–180° bends in straight or curved panels
• Bend depth range: 5/16″–1-3/4″ (8–45 mm)
• Designed for short bends, curves, and deeper hem forming
• Material capacity: 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, 1 mm zinc
• Bend radius: .059″ (1.5 mm)
• Three sets of bearing guides glide smoothly along material
• Removable disc allows for quick disassembly and mid-panel tool removal
• Pair with optional Disc Handle (FSH1) to create cross breaks and start bends on flat panels
• Lightweight, compact, and highly portable
• Premium CNC aluminum and stainless-steel construction for durability and precision
• Includes IP67-rated waterproof hard case for protection and transport
