Fast, clean cutting for steel studs and runners.

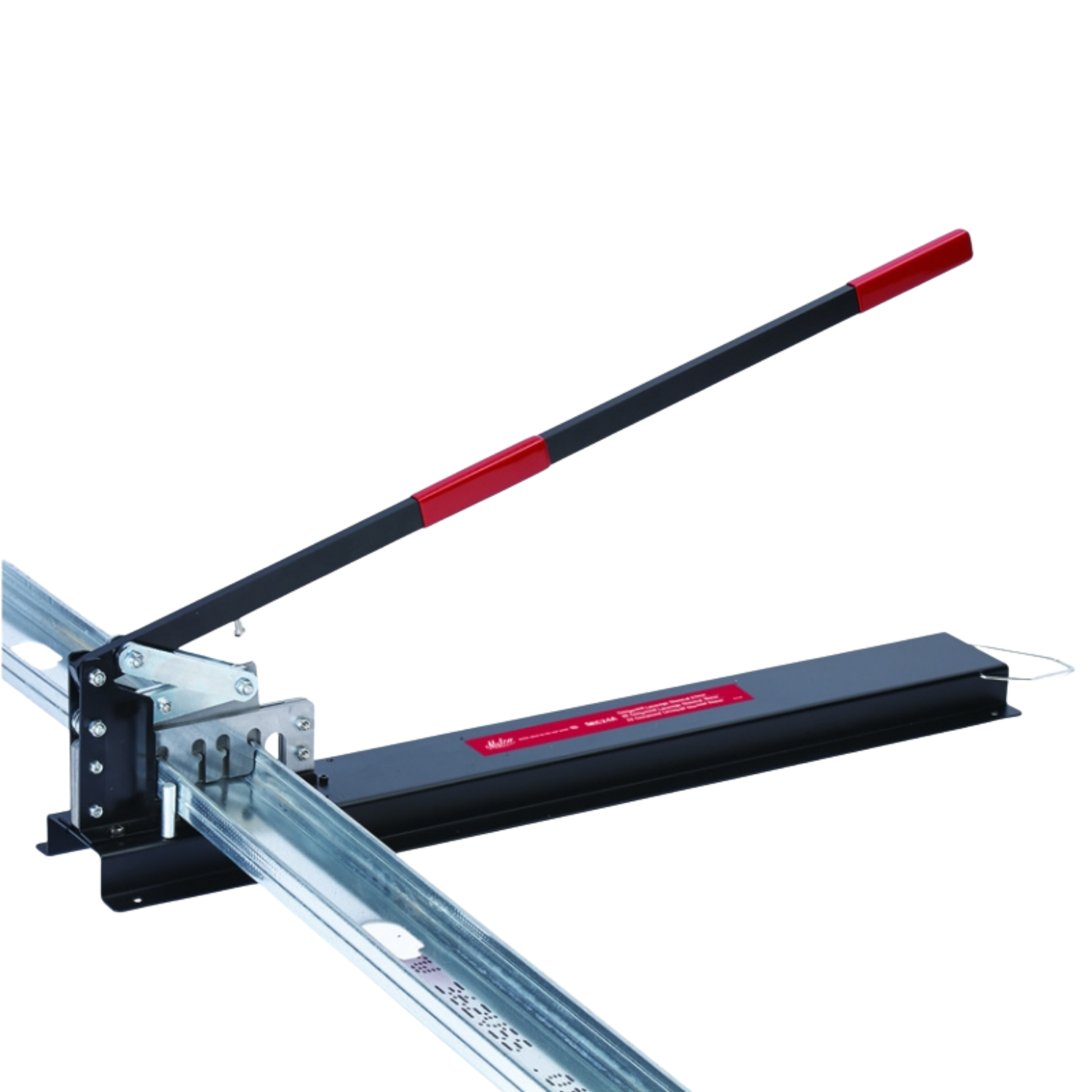

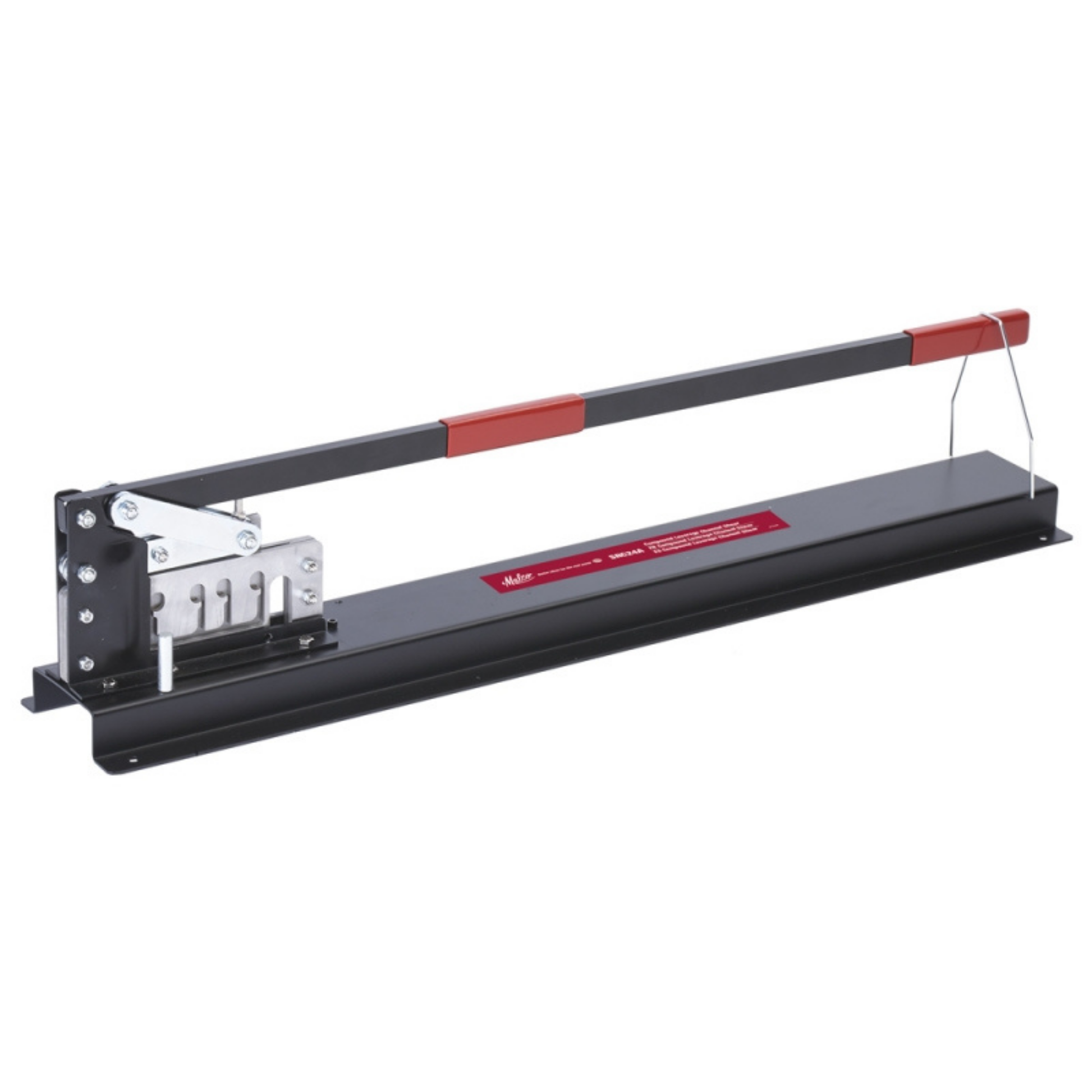

The Malco SRC24A Compound Leverage Channel Shear is built to cut 20-gauge metal studs and runners in a single smooth stroke — without crushing, twisting, or deforming the channel. Designed for commercial framing and drywall applications, this shear delivers clean, precise cuts with less effort than abrasive saws or chop saws.

The compound leverage mechanism and 36″ handle generate powerful cutting force while keeping operation controlled and efficient. A precision die assembly guides the cut for accuracy, while hardened hollow-ground steel blades can be resharpened or replaced to extend tool life.

Lightweight and portable, the SRC24A moves easily around the jobsite and features rugged all-steel bolt construction with comfortable vinyl grips for daily use.

Key Features

• Cuts 20-gauge metal studs and runners in one smooth stroke
• Compatible with 1-5/8″, 2-1/2″, and 3-5/8″ stud and track sizes
• Compound leverage design reduces cutting effort
• 36″ handle provides added mechanical advantage

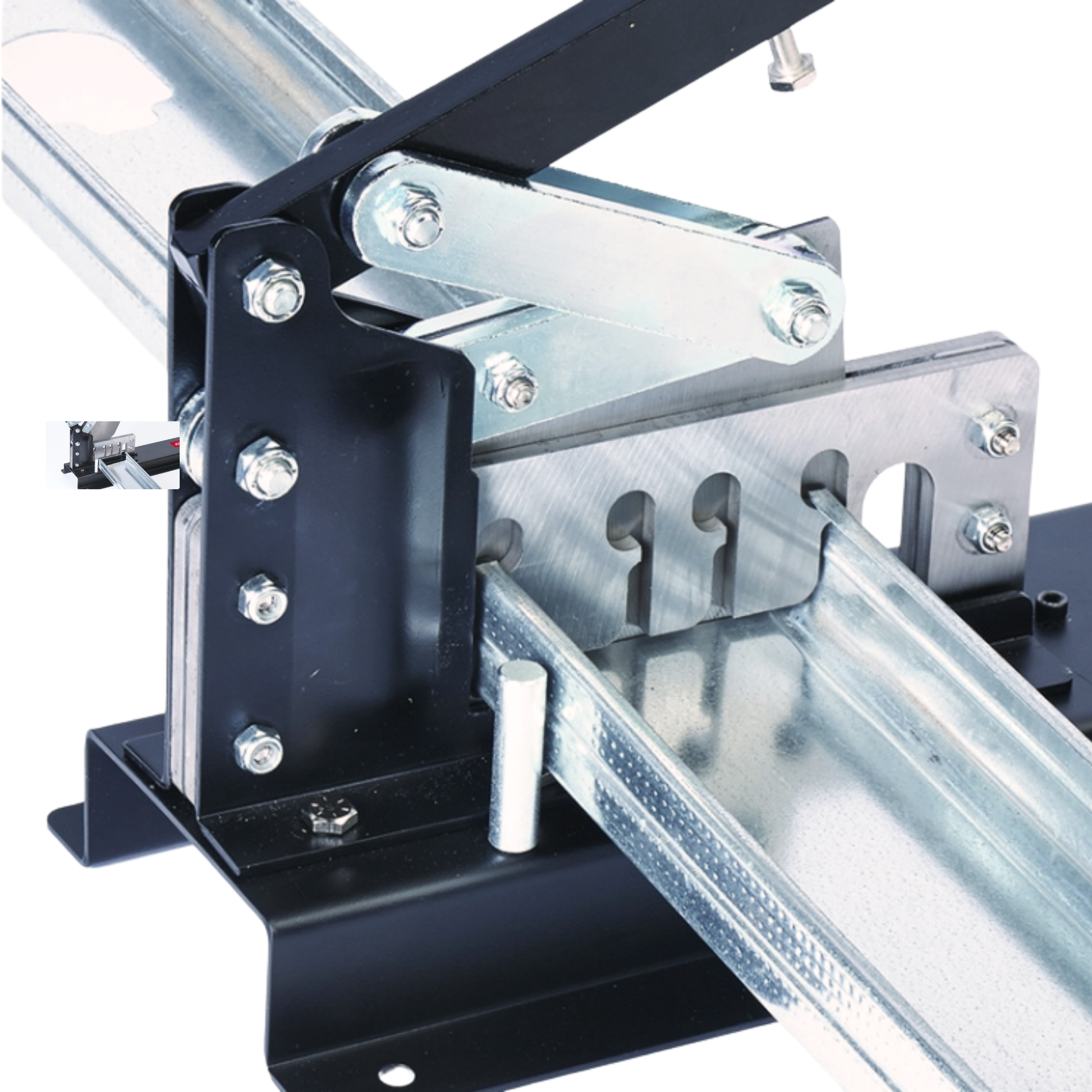

• Precision die assembly ensures clean, square cuts
• Hollow-ground hardened steel blades are replaceable and resharpenable
• All-steel bolt construction for durability
• Comfortable vinyl handle grips
• Stable base for controlled cutting

Material Capacity

• Galvanized Steel: 20 gauge (.040″ / 1.02 mm)
• Galvanized Mild Steel: 20 gauge (.036″ / 0.91 mm)
