The Malco FS2DL Large 2-Station Disc Bender is designed for forming precise 90°–180° straight bends in metal panels directly on the jobsite. With an expanded bend depth range of 5/16″ to 1-3/4″ (8–45 mm), this model provides the added capacity needed for deeper hems and larger interlocking panel details.

If you're forming continuous hems over 10 feet long, a 2-station tool delivers noticeable advantages. The second station applies pressure across more of the panel, while the wider base improves straight tracking and consistency over long runs.

Seven sets of bearing guides glide smoothly along the material, following the initial bend and ensuring controlled, uniform forming across a wide range of metals. The removable discs allow for quick disassembly and mid-panel tool removal when necessary.

Roofing contractors can create open hems for fascia, ridge caps, and interlocking features without returning panels to the shop. HVAC professionals can field-form ductwork and create open hems for drive connections.

Built with premium CNC aluminum and stainless-steel components, the FS2DL offers durability, corrosion resistance, and repeatable precision in a portable jobsite-ready design.

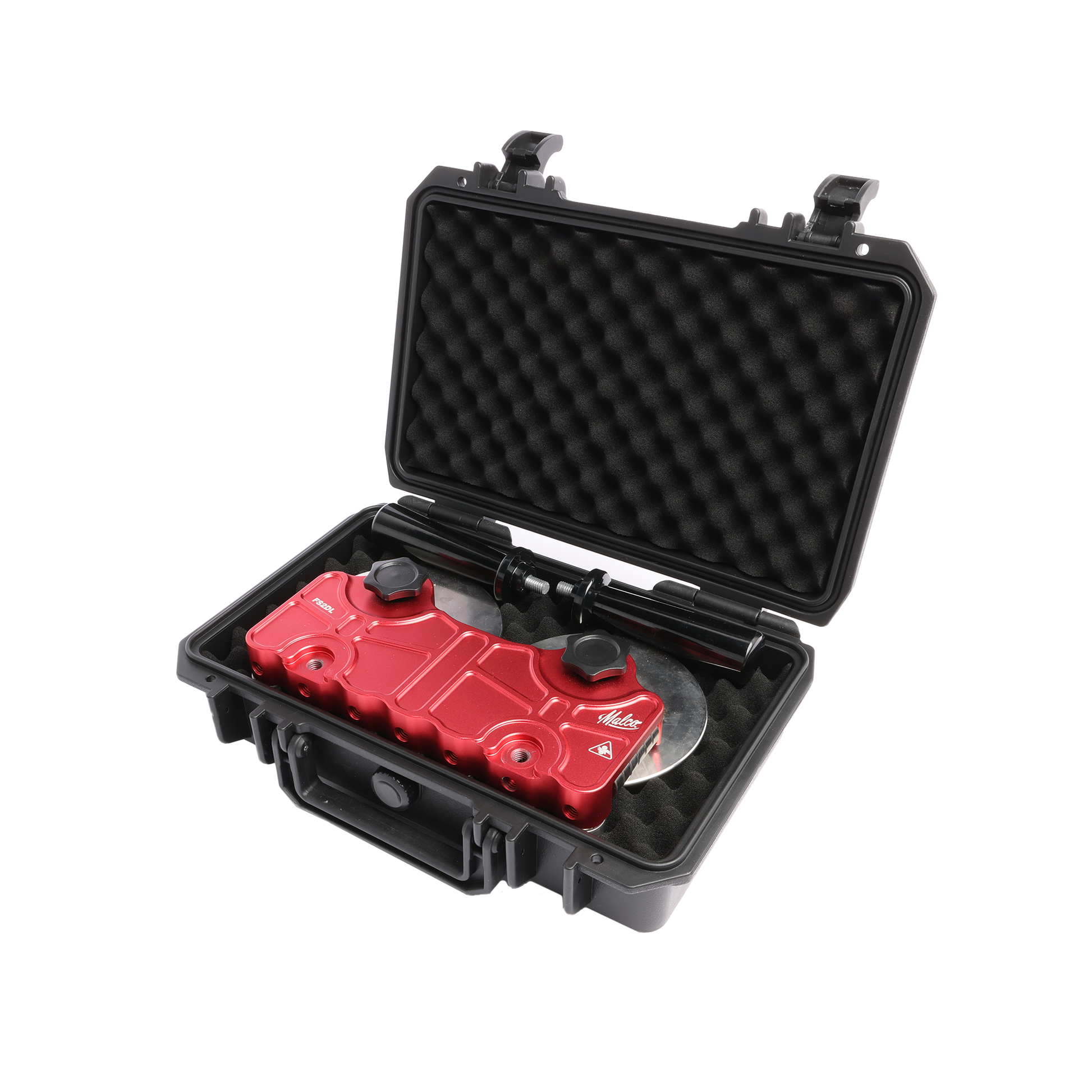

Each unit ships in a rugged IP67-rated waterproof hard case for protection during transport and storage.

Key Features

• Forms 90°–180° straight bends in metal panels
• Bend depth range: 5/16″–1-3/4″ (8–45 mm)
• 2-station design improves straight tracking on long panel runs
• Ideal for continuous hems over 10′
• Material capacity: 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, 1 mm zinc
• Bend radius: .059″ (1.5 mm)
• Seven sets of bearing guides glide smoothly along material
• Removable discs allow for mid-panel tool removal
• Premium CNC aluminum and stainless-steel construction
• Includes IP67-rated waterproof hard case for protection and transport
