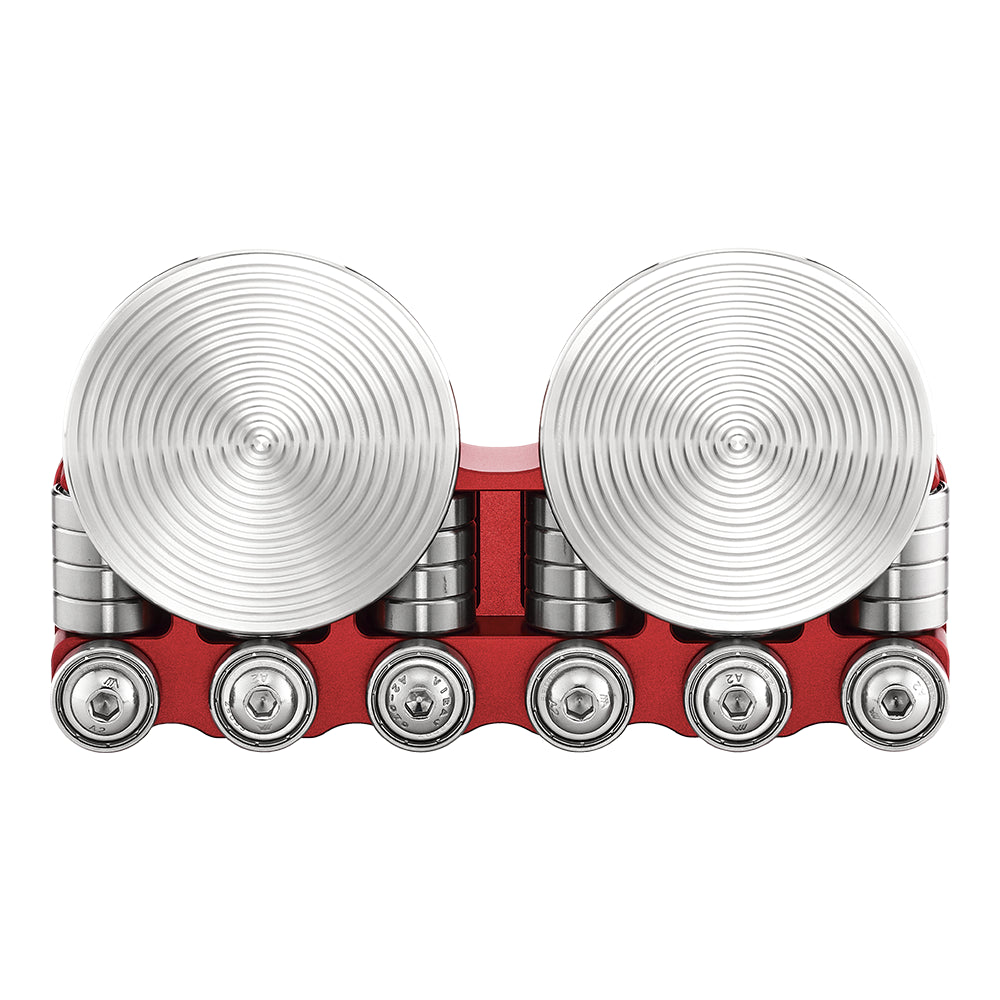

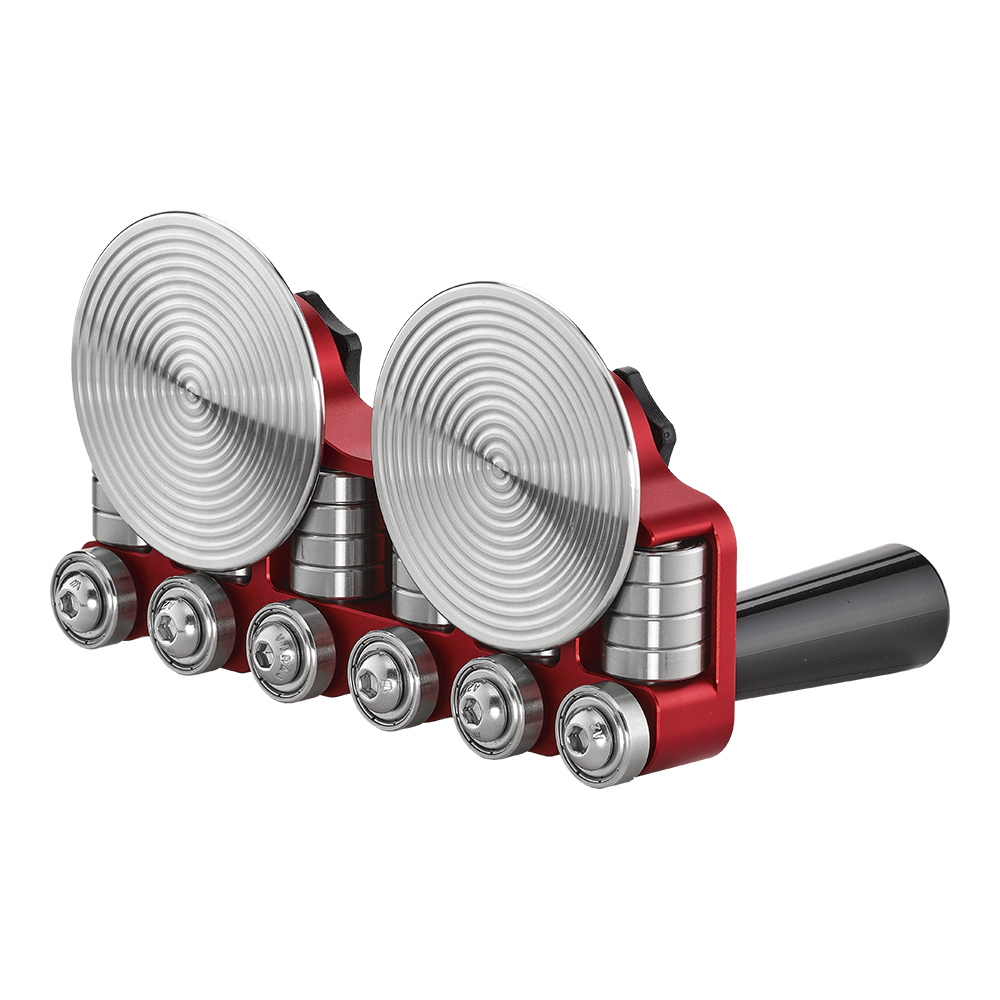

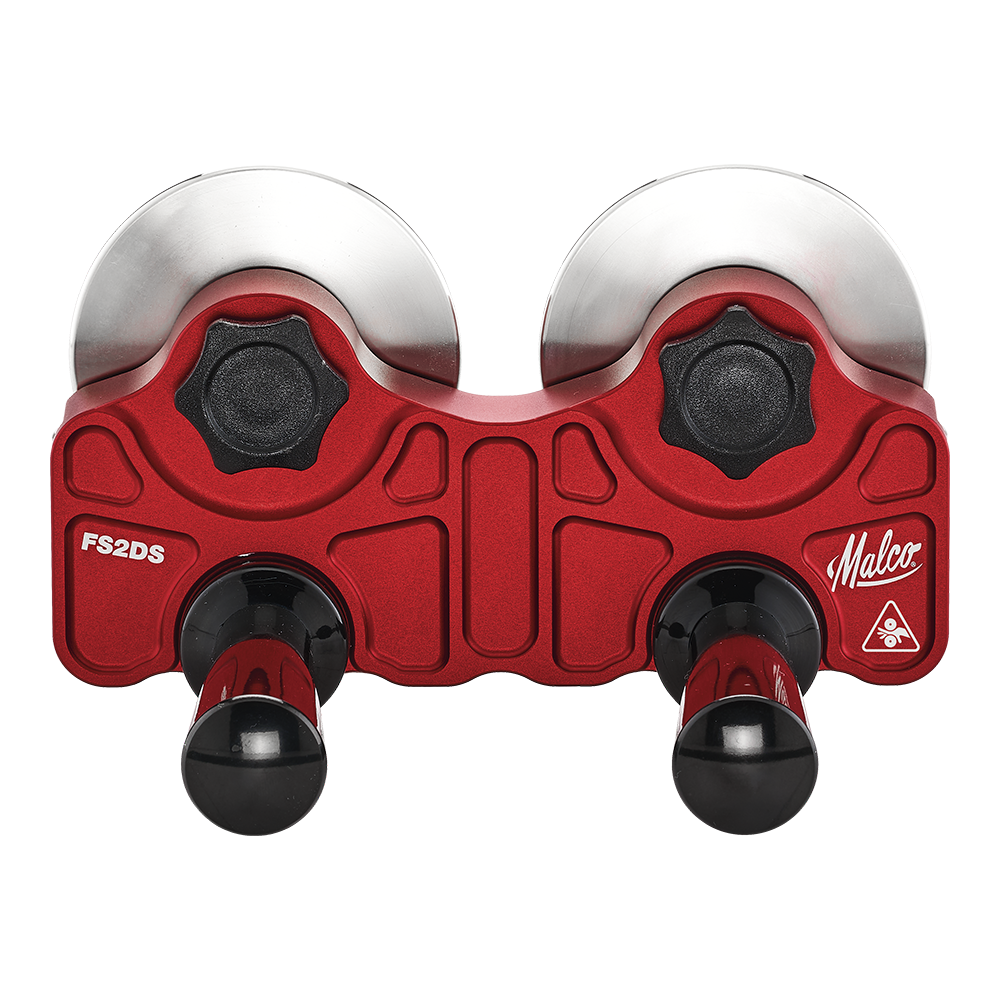

The Malco FS2DS Small 2-Station Disc Bender is designed for forming precise 90°–180° straight bends in metal panels directly on the jobsite. With a bend depth range of 5/16″ to 1-1/8″ (8–30 mm), this model is ideal for continuous hems and straight finishing details across long panel runs.

If you’re forming hems over 10 feet in length, a 2-station tool makes a noticeable difference. The second station applies pressure across more of the panel while the wider base improves straight tracking, helping you maintain consistent, uniform bends across extended runs.

Seven sets of bearing guides glide smoothly along the material, following the initial bend and delivering controlled forming across a wide range of metals. The removable discs allow quick disassembly and mid-panel tool removal when needed.

Roofing professionals can form open hems for fascia details, ridge caps, and interlocking features without returning panels to the shop. HVAC contractors can field-form ductwork and create open hems for drive connections.

Built from premium CNC aluminum and stainless-steel components, the FS2DS provides stability, corrosion resistance, and repeatable precision in a lightweight, portable design.

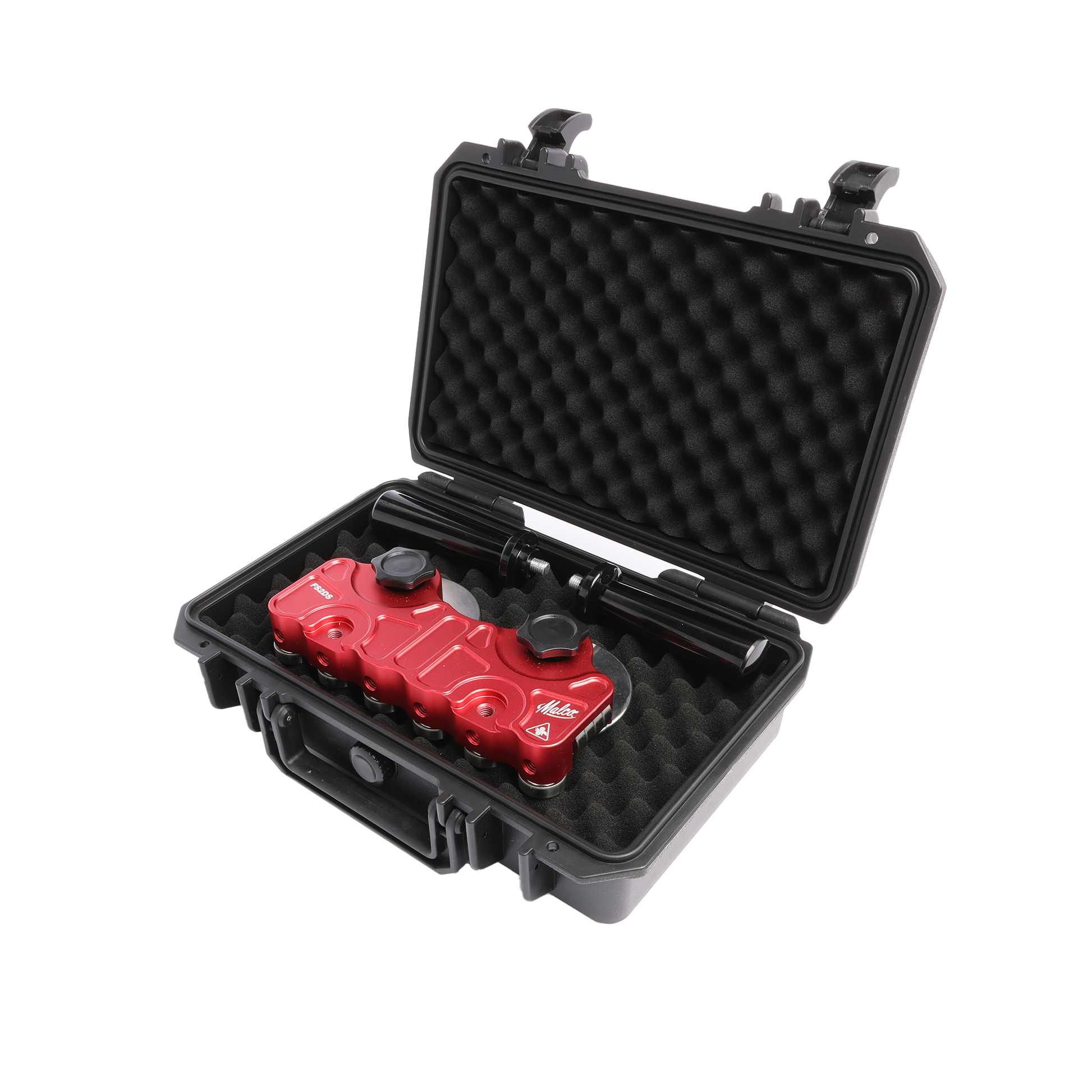

Each unit ships in a rugged IP67-rated waterproof hard case for jobsite protection and transport.

Key Features

• Forms 90°–180° straight bends in metal panels
• Bend depth range: 5/16″–1-1/8″ (8–30 mm)
• 2-station design improves straight tracking on long panel runs
• Ideal for continuous hems over 10′
• Material capacity: 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, 1 mm zinc
• Bend radius: .059″ (1.5 mm)
• Seven sets of bearing guides glide smoothly along material
• Removable discs allow for mid-panel tool removal
• Premium CNC aluminum and stainless-steel construction
• Includes IP67-rated waterproof hard case for protection and transport
