The 4" 85° Downspout Elbow is designed to create a smooth, precise directional change in round downspout systems while maintaining unrestricted water flow. Its conical, welded construction ensures a perfect fit and consistent appearance throughout the system.

This 85-degree elbow is especially useful for longer roof overhangs, allowing the downspout to return cleanly back to the wall or vertical surface before continuing downward. When two 85° elbows are used together, they create approximately a 12" horizontal offset, eliminating the need for custom fabrication.

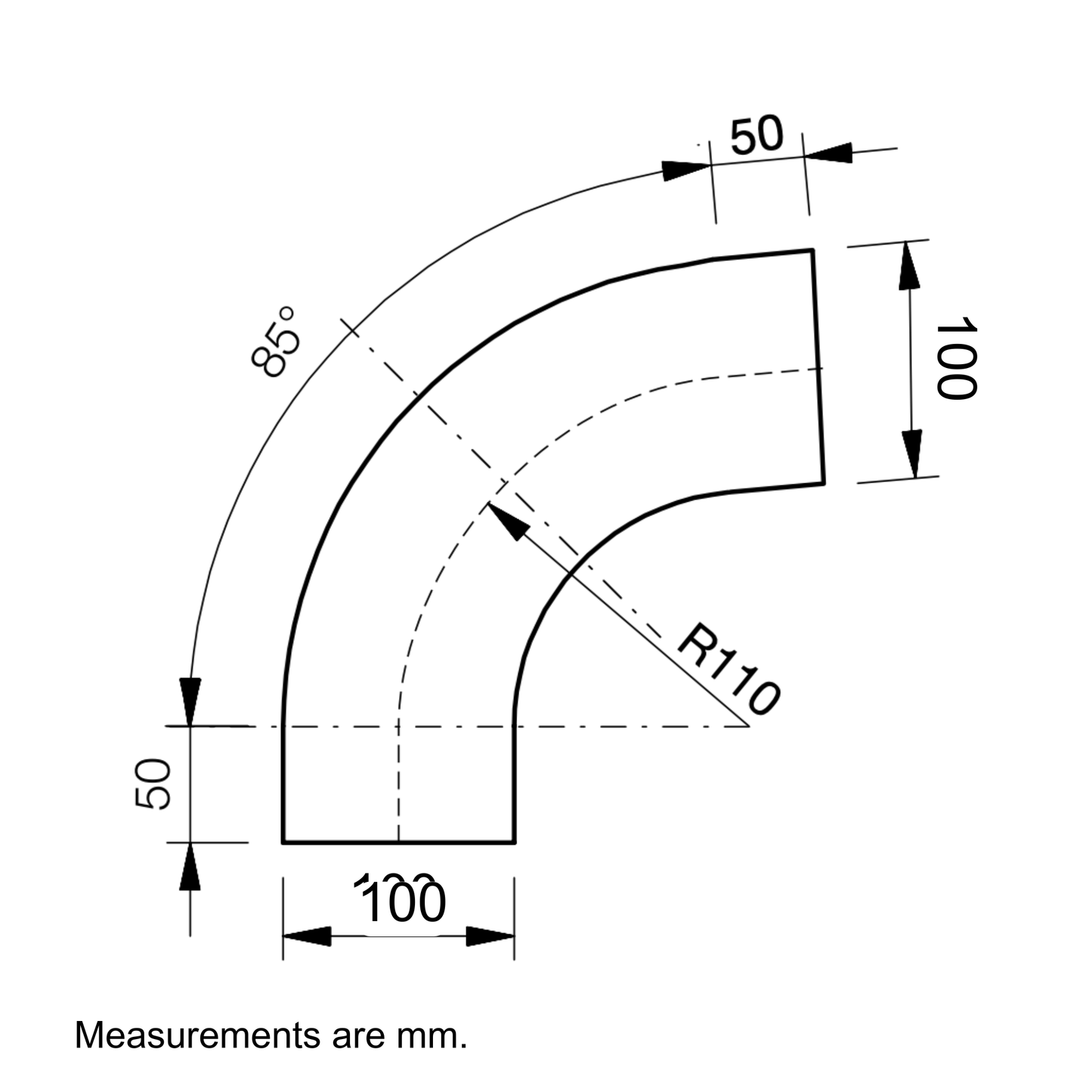

The elbow features a conical design with one large and one small end, with approximately 50 mm of straight pipe at each end to ensure a tight, secure connection to both the gutter outlet and the next downspout section. The labeled end is always the smaller end, designed to insert into the next component in the system. The label is concealed after installation for a clean finish.

No caulking, rivets, or screws are required. The engineered overlap and snap-fit logic prevent separation while keeping fasteners out of the water path—reducing the risk of clogs and leaks common in traditional systems.

Key Features

• 85° Downspout Elbow – Ideal for tight transitions and long overhangs
• Conical, Welded Construction – Ensures precise fit and consistent appearance
• Snap-Fit Installation – No caulk, rivets, or screws required
• 12" Offset Capability – Two 85° elbows create approx. 12" horizontal offset
• Directional Logic Design – Labeled end indicates insertion direction
• Hidden Label – Concealed after installation for a clean look
