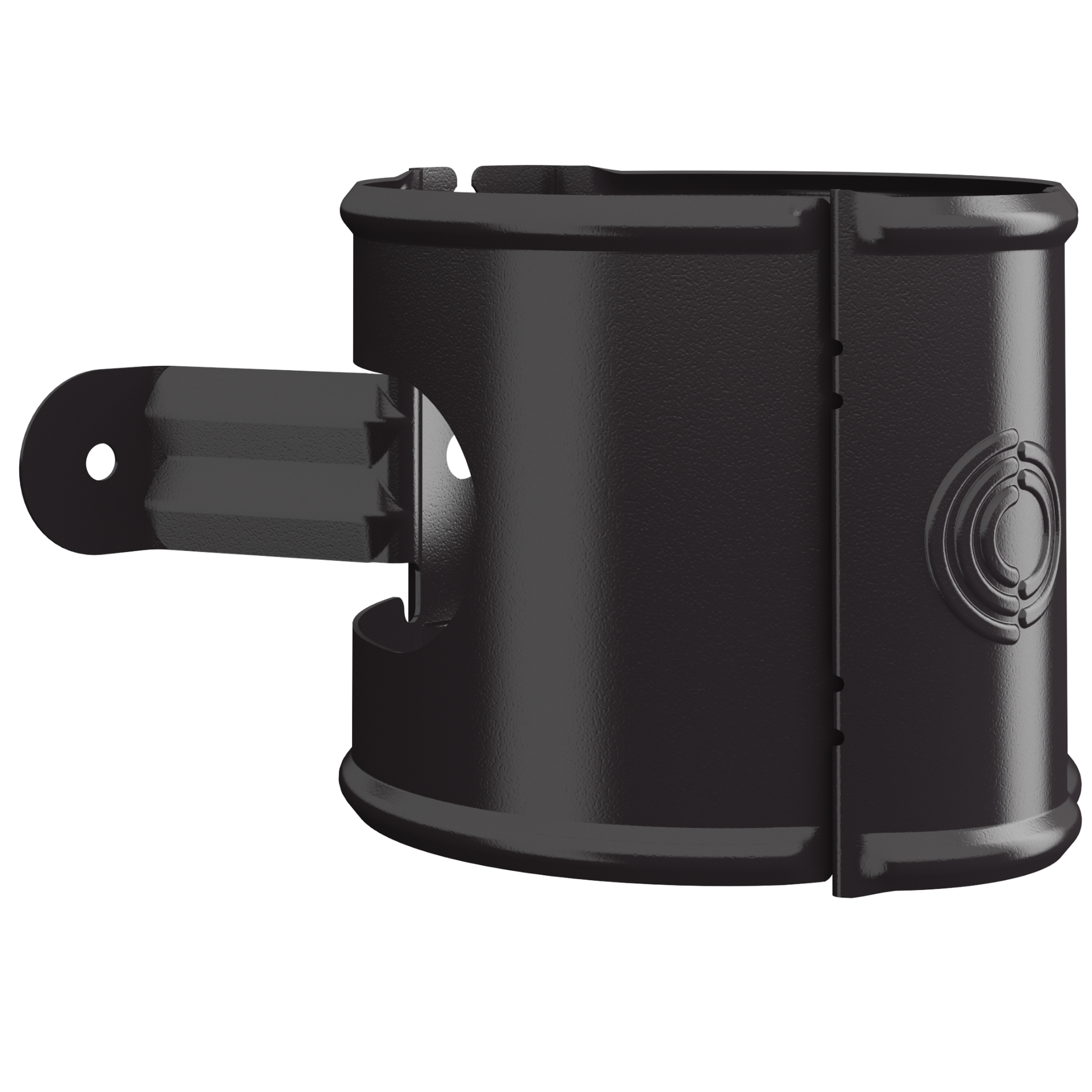

The DSBW Downspout Bracket Wide is a self-locking downspout bracket designed to securely fasten round downspouts while allowing easy adjustment and future access. Made from a single piece of pre-coated galvanized steel, this bracket wraps fully around the downspout and features two locking positions—one for alignment and adjustment, and a second for tightening and locking the downspout firmly in place.

The wide, snap-lock design provides a clean, finished appearance and allows quick installation without loose accessories that can be lost on site. Built-in stand-off legs extend approximately 1 inch from the wall, ensuring airflow behind the downspout to protect siding and façades from moisture buildup. If a downspout is damaged, the bracket can be reopened using a flat-head screwdriver, allowing the pipe to be replaced without removing the entire bracket.

For standard installations, two brackets per 10-foot downspout length are recommended.

Key Features

• Self-Locking Downspout Bracket – Two locking positions allow adjustment, then secure clamping
• Wide Wrap-Around Design – Fully supports and stabilizes round downspouts
• Single-Piece Construction – No loose parts or accessories to lose during installation
• Snap-Lock Installation – Quick install with easy access to screw holes
• Serviceable Design – Bracket can be opened to replace a damaged downspout
• Built-In Stand-Off – 1" wall clearance allows airflow and protects siding
• Durable Steel Construction – Made from pre-coated galvanized steel
• 0.7 mm Thickness – Provides strength and long-term durability
• Recommended Spacing – 2 brackets per 10' downspout length
