• PVKIT 2.0 EdgeGrab Standard - S-5! Brand Metal Roof Solar Attachment
1 3

SKU: 54000125 |  S-5!

PVKIT 2.0 EdgeGrab Standard

PVKIT 2.0 EdgeGrab Standard

$8.20
$8.20
Sale Sold out
Shipping calculated at checkout.
QtyPrice
Buy 60$7.95 Each
Buy 180$7.36 Each

View full details
  • Same Day Shipping

    Same Day Shipping

    Order by 1PM ET

  • American Made

    American Made

    Built Right Here

  • S-5! Lifetime Warranty

    S-5! Lifetime Warranty

  • Description

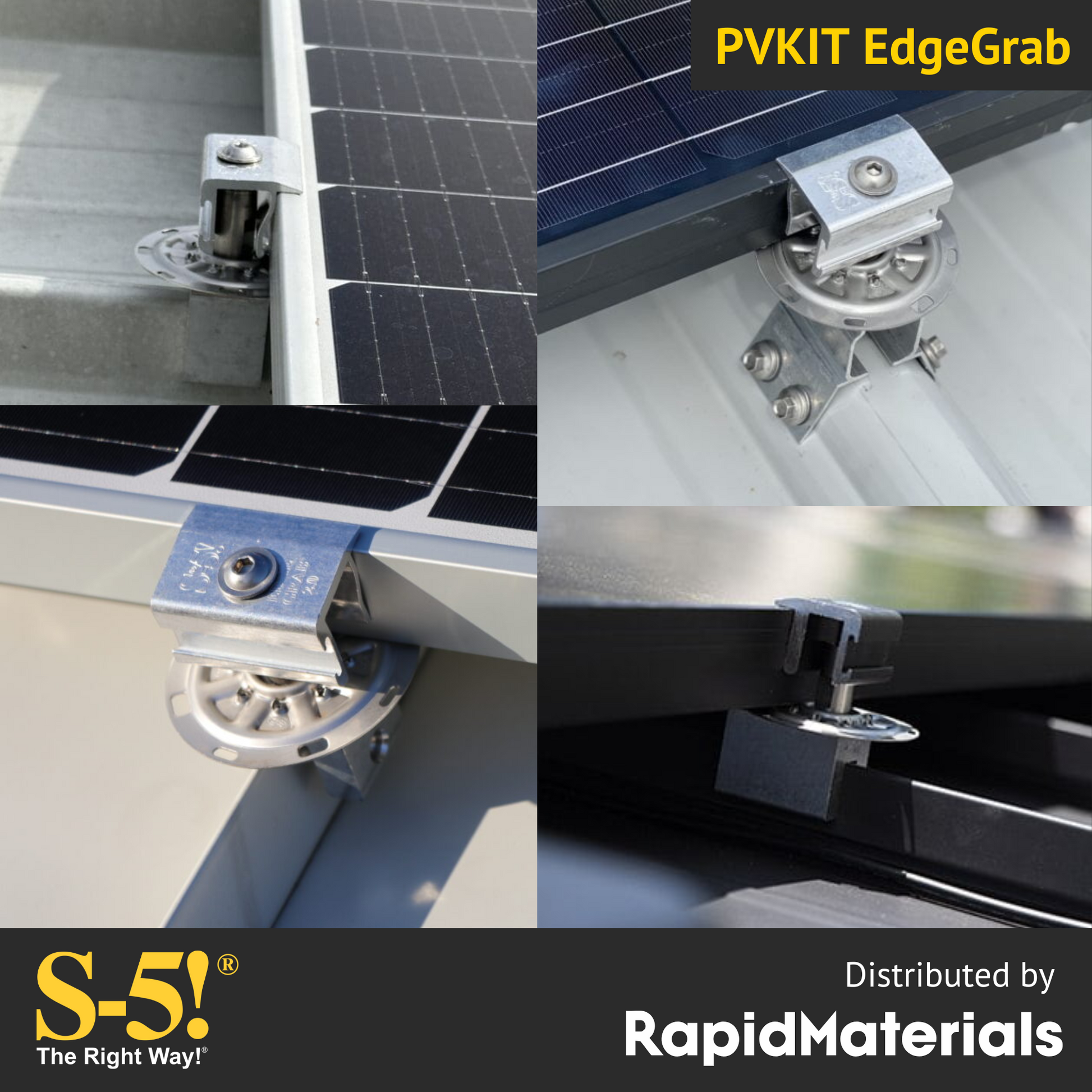

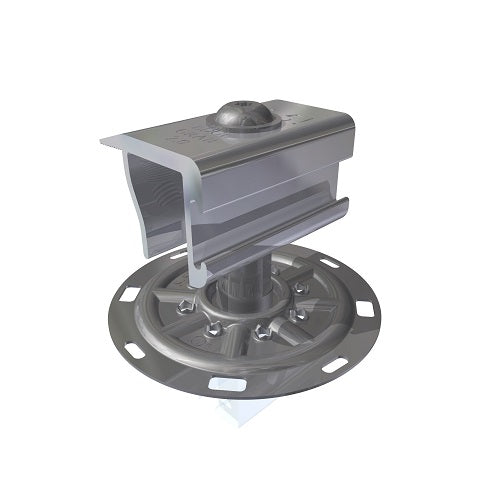

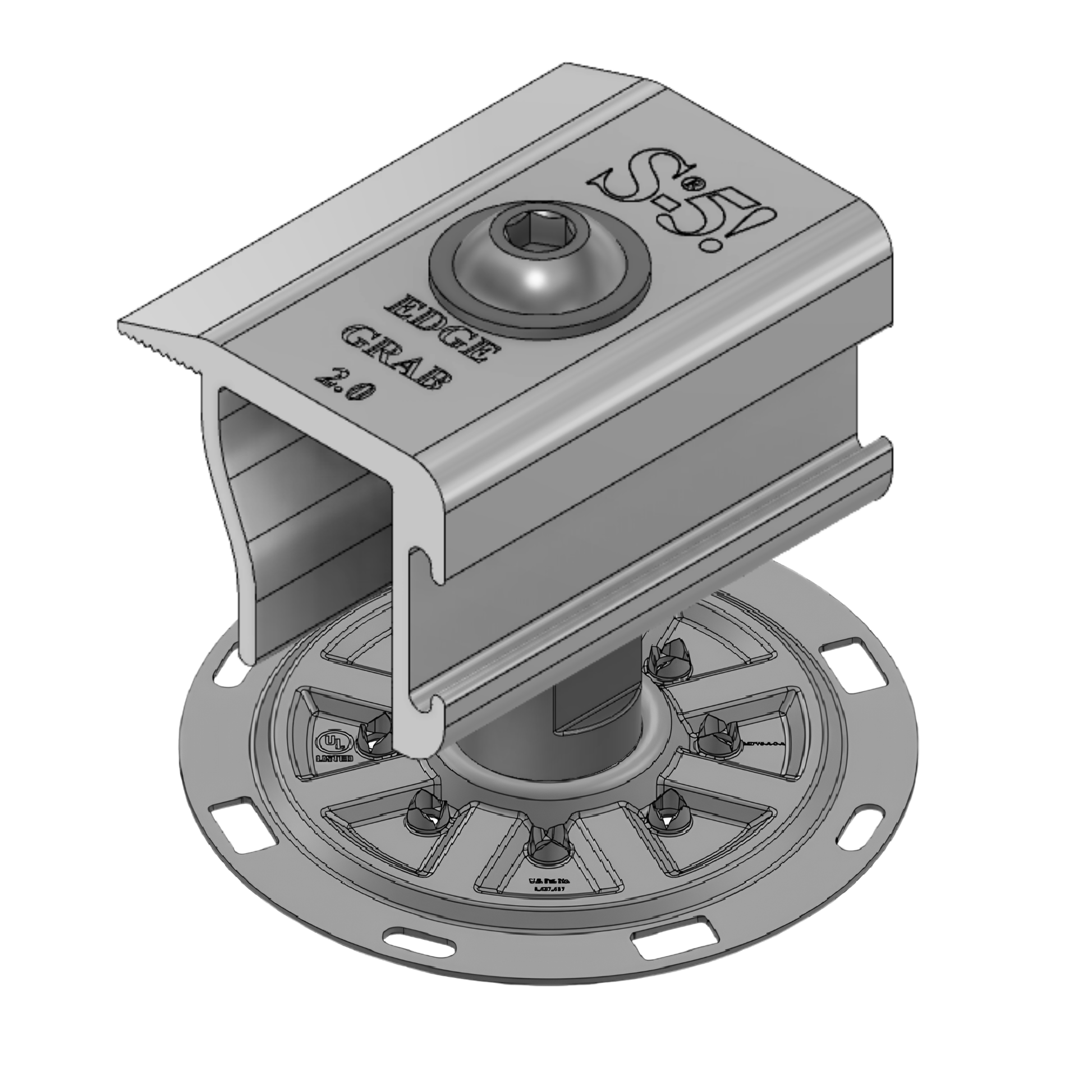

    The S-5! PVKIT 2.0 EdgeGrab is used at all perimeter locations. The Module Placement Bevel Guide makes the module placement easier. The mounting disk is multi-directional and rails are not required. The PV grab ears are broader for ease of installation and secure module engagement. For panel to panel connections, use the S-5! PVKIT 2.0 MidGrab.

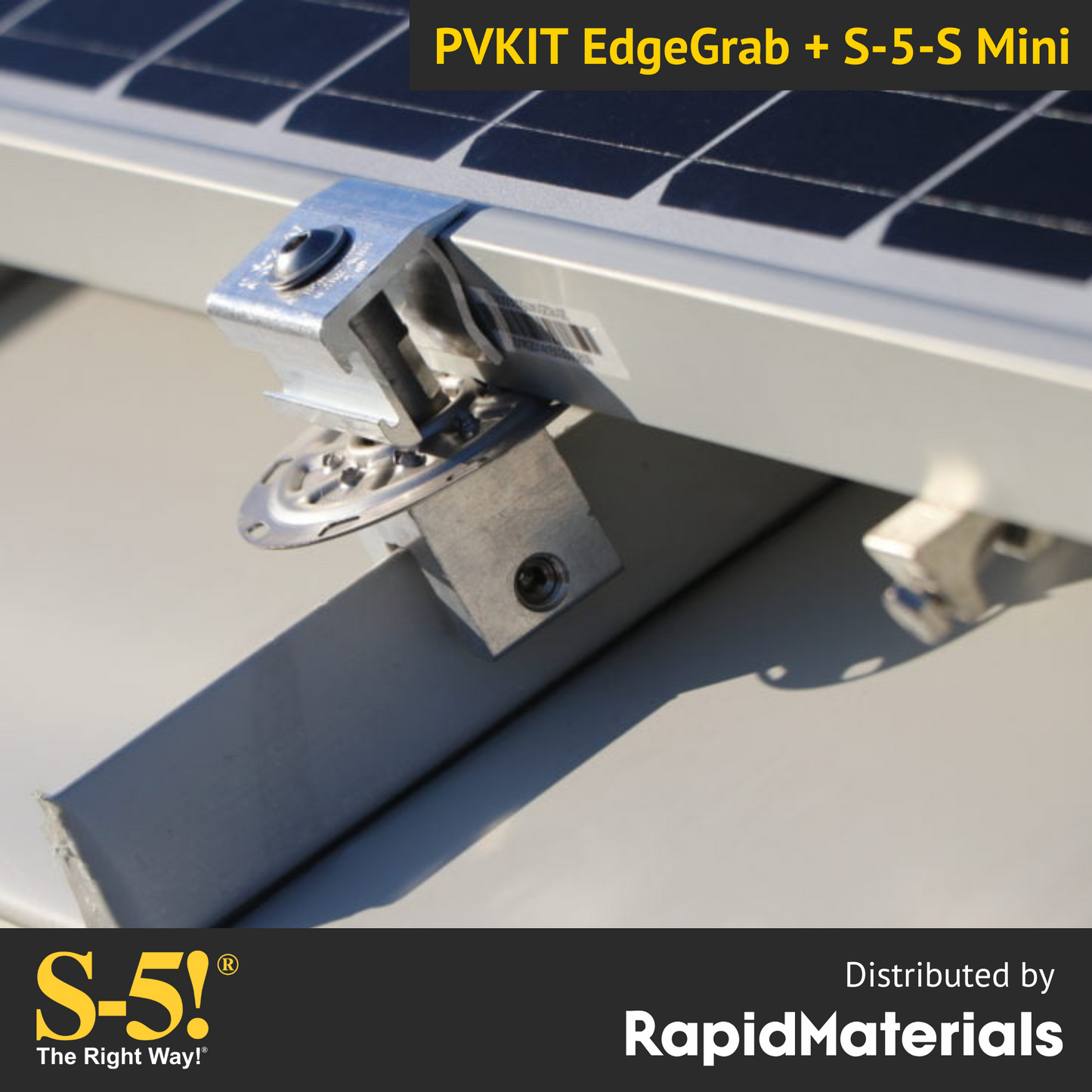

    PVKIT fits a wide array of module thicknesses. Use with S-5! mini clamps enables fitting to all standing seam metal roof profiles of any material. When paired with S-5! brackets, the PVKIT 2.0 also works on all trapezoidal ribbed and corrugated metal roofs. If desired, the PVKIT can also be used with regular S-5 clamps.

    • Modules can be easily installed from ridge-down or eave-up.
    • More slots for wire securement.

    If using with VersaBracket or ProteaBracket, you will need to purchase one (1) M8 Flanged Nut Per PVKIT.

  • Brand

    S-5!
    S-5! has led metal roof attachment since 1992, with zero-penetration clamps and brackets that preserve roof integrity and warranties.
    Shop more from S-5! →

    Specs

    • SKU: 54000125
    • UPC: 00810099470796

    Resources

PVKIT 2.0 EdgeGrab Standard

Frequently Asked Questions

What roof types and profiles is the PVKIT 2.0 EdgeGrab Standard compatible with?

The EdgeGrab Standard works with exposed fastened, standing seam, and corrugated metal roofs. It pairs with the appropriate S5! clamp or bracket, for example, Mini Clamps on standing seam profiles or Protea Brackets on exposed fastened metal rooftops.

What module frame sizes can the PVKIT 2.0 EdgeGrab Standard accommodate?

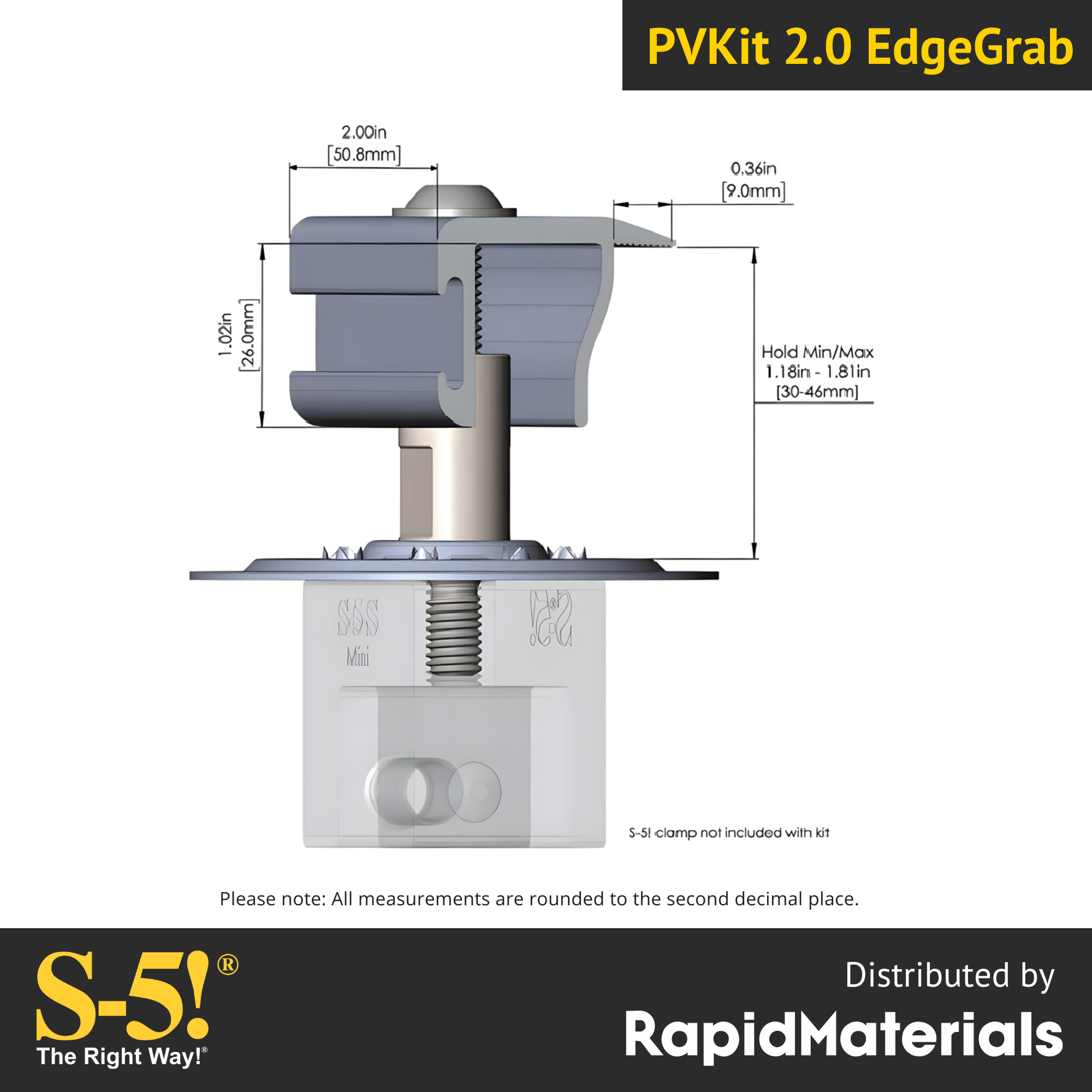

One kit fits a broad range of solar panel frame heights, specifically 30 mm to 46 mm. That includes most standard residential and commercial solar modules.

Does PVKIT 2.0 provide grounding or bonding for PV arrays?

Yes. Each EdgeGrab includes a PV Disk with bonding teeth that scrub the anodized aluminum frame, creating a continuous UL 2703 listed grounding path without extra hardware.

Can I use a PVKIT 2.0 MidGrab on the edge of a module?

Yes, you can use a MidGrab as an EdgeGrab in most cases. Both versions are UL 2703 listed and provide the same mechanical and electrical performance for clamping and bonding.

However, if you plan to use PVKONCEAL, you must use the EdgeGrab version. The EdgeGrab is designed with an additional slot to allow PVKONCEAL to fit onto the attachment. The MidGrab does not provide this.

Do I still need rails to mount solar panels on a metal roof?

No, not if you’re using the S-5! PVKIT 2.0. Your metal roof already acts as the rail.

Traditional solar installs require long, bulky rails that add cost, weight, and labor. But with PVKIT 2.0, you mount directly to the roof using S-5! clamps or brackets. This rail-less system uses your metal roof's structural ribs for support, saving time, reducing parts, and eliminating the need to “pay twice” for something your roof already provides.

Key benefits of skipping rails:

  • Less material to buy and haul
  • Faster installation
  • Lower roof load
  • Clean, low-profile aesthetics

The result is a leaner, smarter, and more cost-effective solar install, especially on standing seam or exposed-fastened metal roofs.
