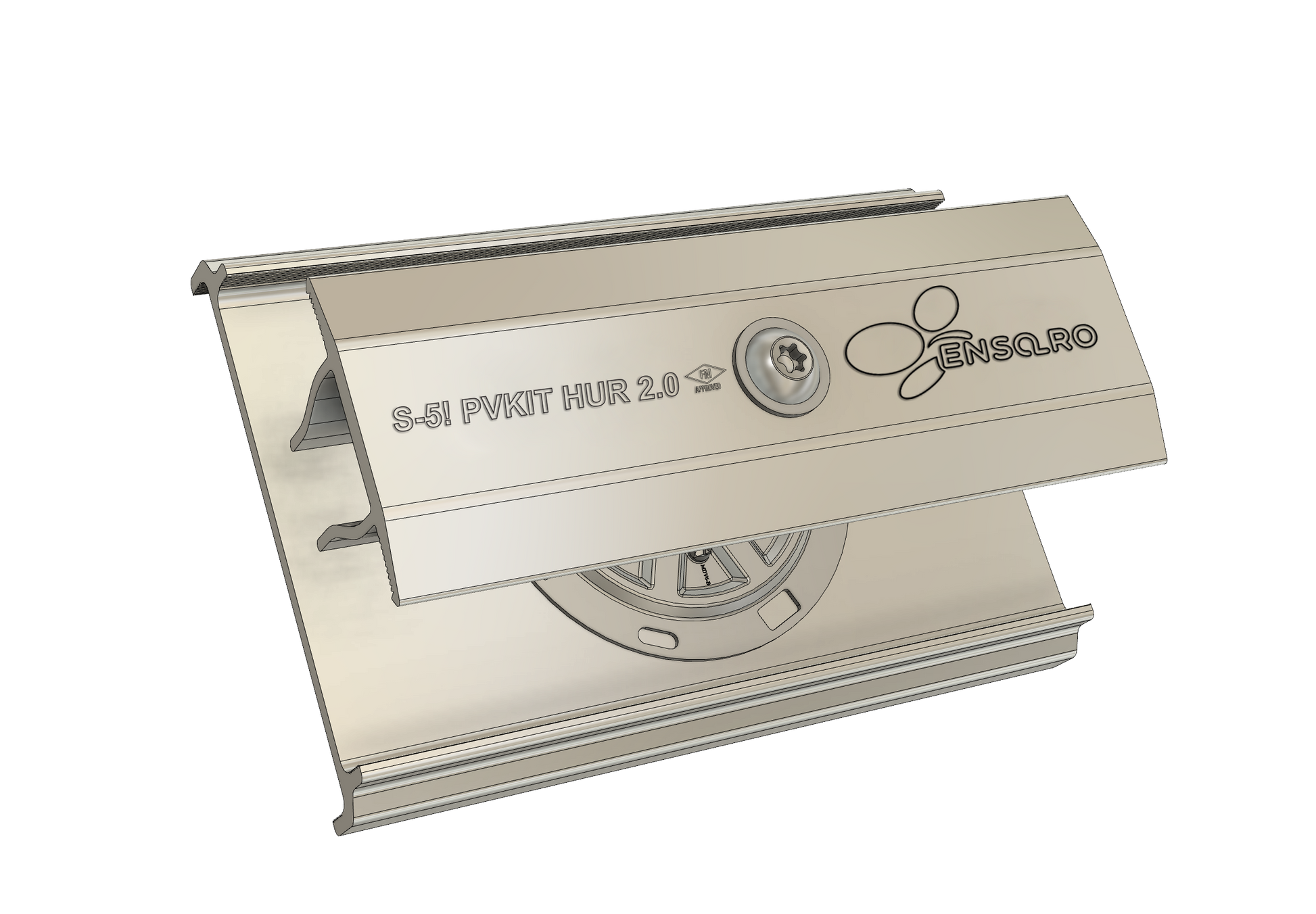

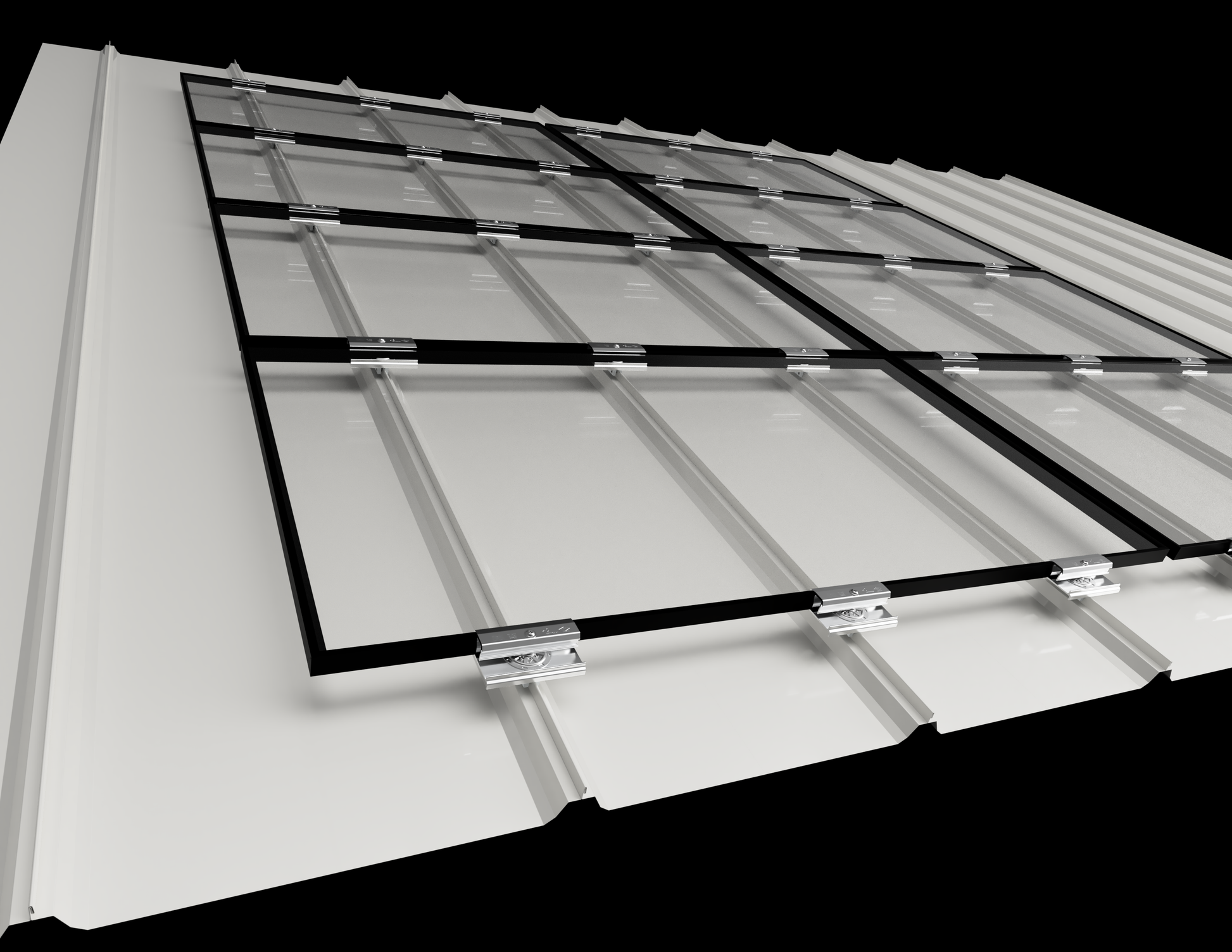

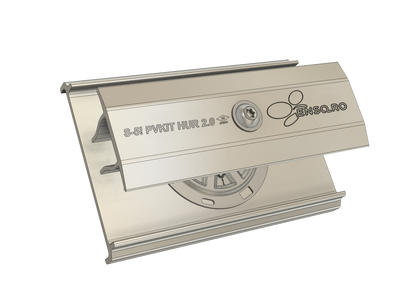

An enhanced version of the original PVKIT rail-less, solar mounting solution for metal roofs, S-5-PVKIT HUR 2.0 (High Uplift Resistance) is a first-of-its-kind PV mounting system specifically designed for high wind uplift performance of installed solar panels and is approved to FM 4478.

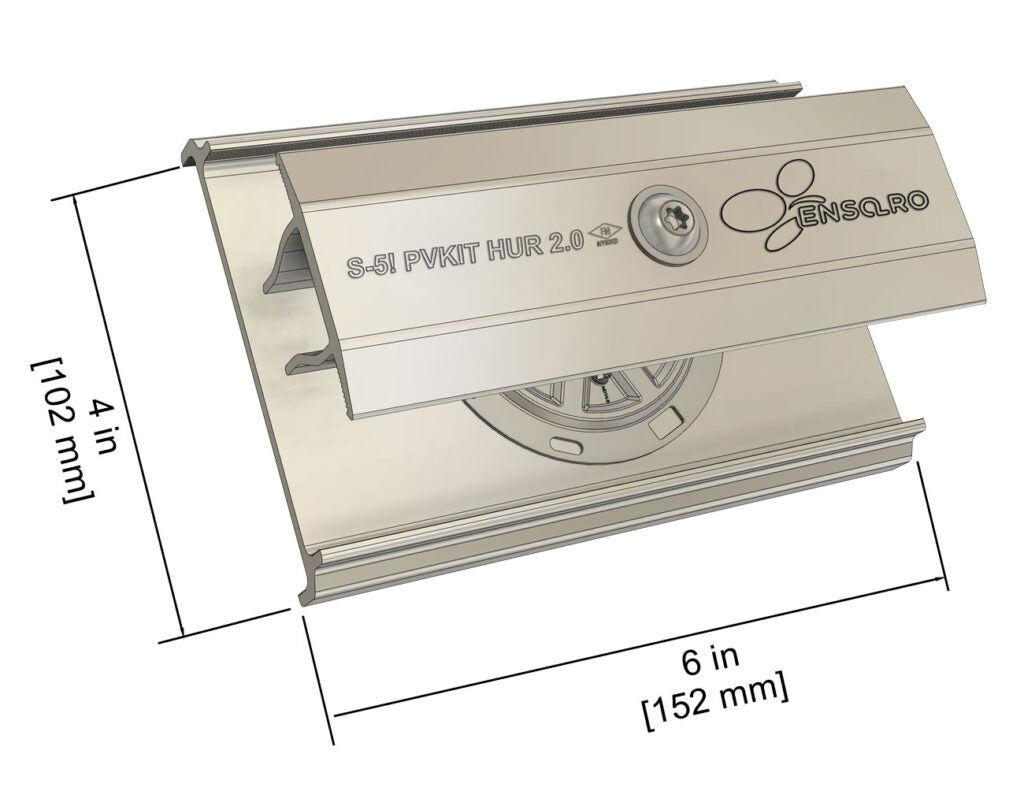

Designed to withstand extreme wind uplift forces such as hurricane forces, as well as heavy snow loads, the 6" (152 mm) length of the overhead grabs, providing a larger contact area with the top of the PV module’s frame. This prevents it from releasing as the module frame bows under extreme forces. A new contact surface design and angle also increases the grip on the frame. The new baseplate design further prevents the module from bending and disengaging under high wind uplift forces. Together, these features improve the structural integrity of the module-to-roof attachment.

These can ONLY be used on Butler MR24 panels when attaching a Centro plan panel to achieve wind loads in specific areas on this specific panel and solar panels.
