SKU: 70000448 |  Rau Tools

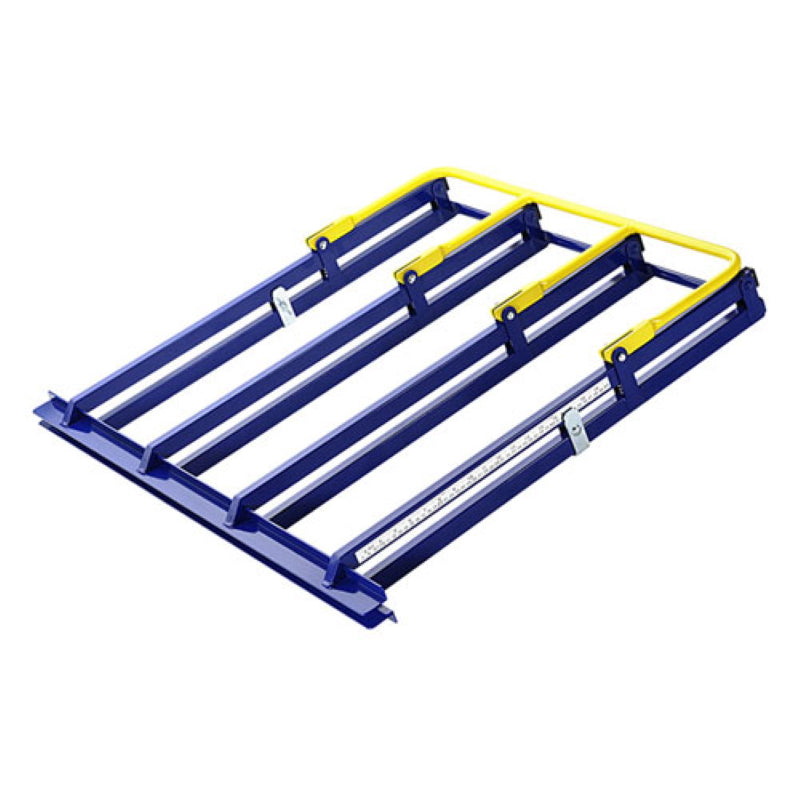

RAU 101 BG 1000 Sheet Metal Bending Jaw - 39.4" Width

$1,238.42
$1,238.42
Sale Sold out
Shipping calculated at checkout.

Earn 0 points on this purchase.

Learn more
View full details
  • Ships 1-2 Business Days

    Ships 1-2 Business Days

  • German Made

    German Made

    Trusted Craftsmanship

  • Built to Last

    Built to Last

    Heavy-Duty Construction

  • Description

    The Rau 101 BG 1000 Sheet Metal Bending Jaw is a heavy-duty manual sheet metal bending tool designed for quickly and accurately forming continuous bends directly at the jobsite. With a 1000 mm (39.4") working width and adjustable bending depth, the BG 1000 is ideal for fabricating seamless box gutters, valley gutters, high wall upstands, wall connections, edge trim and other architectural sheet metal components.

    Designed for two-person operation, the BG 1000 securely clamps sheet metal for controlled bending without the working-length limitations of a stationary bending brake. Its wide jaws allow contractors to bend up to 1 meter of sheet metal at a time, making it particularly useful for forming long, continuous profiles with fewer joints and seams.

    Key Features

    • Continuous-Length Bending: Forms bends along long sheets and coils without a fixed working-length limitation.
    • 1000 mm Working Width: Provides a wide gripping surface for bending up to 39.4" of sheet metal in a single operation.
    • Adjustable Bending Depth: Side-mounted stops allow consistent positioning for repeatable bends up to 500 mm deep.
    • Secure Clamping Mechanism: Yellow operating handle closes the jaws to hold sheet metal securely during bending.
    • Seamless Metal Fabrication: Create box gutters, valley gutters, wall upstands and edge trim from continuous lengths of sheet metal, minimizing joints and potential leak points.
    • Two-Person Operation: Designed to be operated by two workers for controlled bending across its full working width.
    • Manual Operation: No electrical power or stationary equipment required.
    • Durable Construction: Heavy-duty steel construction with a baked epoxy finish for demanding sheet metal applications.

  • Brand

    Rau Tools
    RAU GmbH is a German manufacturer of precision tools and measuring devices for roofing and plumbing pros, trusted since 1914.
    Shop more from Rau Tools →

    Specifications

    • SKU: 70000448
    • UPC: 4262453340003
    • Direction:
    • Finish:
    • Reflectivity:
    • Coverage:
    • Thickness:
    • Size:
    • Square Footage:
    • Warranty:
      • Manufacturer: Rau
      • Model: BG 1000
      • Article Number: 101
      • Working Width: 1000 mm (39.4")
      • Working Depth: Up to 500 mm (19.7")
      • Tool Depth: 110 mm (4.3")
      • Weight: 15.4 kg (34 lbs)
      • Operation: Manual, Two-Person
      • Construction: Steel
      • Finish: Baked Epoxy

    Resources

RAU 101 BG 1000 Sheet Metal Bending Jaw - 39.4" Width

Frequently Asked Questions

What is the difference between the RAU BG 1000 and BG 500?

The primary difference is the working width and operation. The RAU 101 BG 1000 has a 39.4" (1000 mm) working width and is designed for two-person operation. The RAU 102 BG 500 has a 19.7" (500 mm) working width and can be operated by one person. Both tools allow contractors to form continuous sheet metal profiles directly at the jobsite.

Can RAU bending jaws bend sheet metal longer than the tool's working width?

Yes. RAU bending jaws can be repositioned along the sheet metal to create continuous bends over longer lengths. This makes them useful for forming long gutters, flashing, and architectural metal profiles without the length limitations of a stationary bending brake.

What types of sheet metal profiles can these tools form?

RAU bending jaws can be used to fabricate box gutters, valley gutters, wall upstands, wall connections, edge trim, internal channels, and other custom sheet metal profiles. They are particularly useful for applications requiring long, continuous bends.

What is the maximum bending depth?

Both the RAU BG 1000 and BG 500 have a maximum working depth of approximately 19.7" (500 mm). Adjustable stops help position the sheet metal for consistent, repeatable bends.

What is the difference between a RAU bending jaw and a traditional sheet metal brake?

A traditional sheet metal brake typically bends material across a fixed machine width. RAU bending jaws are portable clamping and bending tools that can be repositioned along the material, allowing contractors to form bends in longer sheets without transporting them to a stationary brake.

Can this tool be used on a jobsite?

Yes. This tool is manually operated and requires no electricity, making it ideal for on-site sheet metal fabrication. Contractors can form custom bends and profiles directly at the jobsite without relying on stationary equipment.
