Rivet Gun Float Point Nosespieces for SSO & AP Rivets (2 Pack)

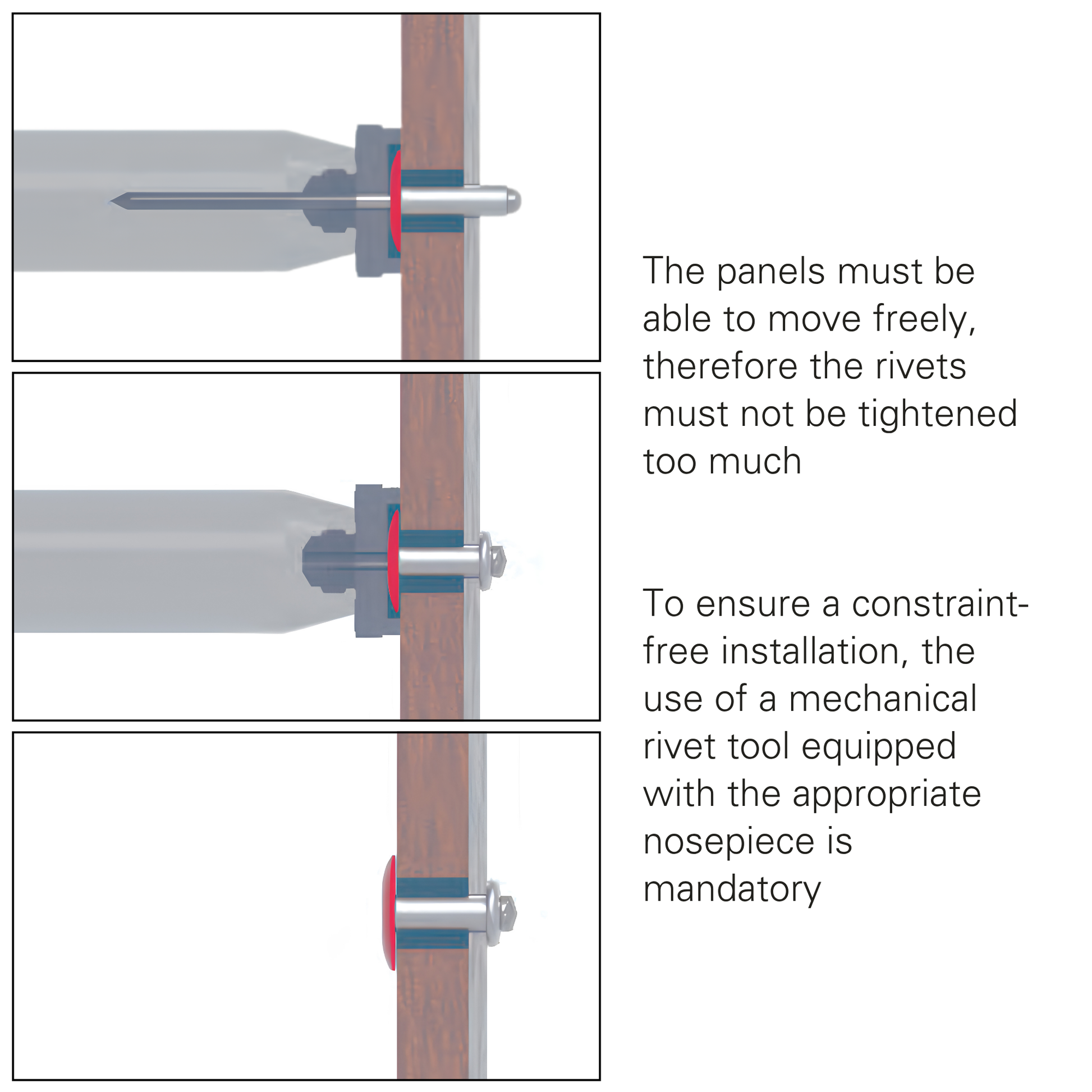

The GESIPA® Float Point Nosepiece is designed to create floating-point rivet installations for ventilated rainscreen facade systems using AP16 and SSO facade rivets. During installation, the nosepiece creates a controlled gap between the rivet head and the facade panel, allowing the panel to expand and contract naturally with temperature changes while preventing unwanted stresses on the panel surface.

Designed for use with GESIPA® AccuBird® and PowerBird® rivet tools, the float point nosepiece installs quickly in place of the standard nosepiece and provides consistent, repeatable floating-point installations. It is ideal for ACM, HPL, fiber cement, and other facade panel systems that require moving-point fasteners.

Key Features

• Creates floating-point rivet installations for ventilated rainscreen facade systems
• Maintains a controlled gap between the rivet head and facade panel
• Allows facade panels to expand and contract without binding
• Helps prevent stress, distortion, and damage caused by thermal movement
• Compatible with AP16 and SSO facade rivets
• Large outside diameter supports use with ACM and other facade panel systems
• Threads directly onto compatible GESIPA® rivet tools for quick installation
• Provides consistent, repeatable floating-point installations

Available Options

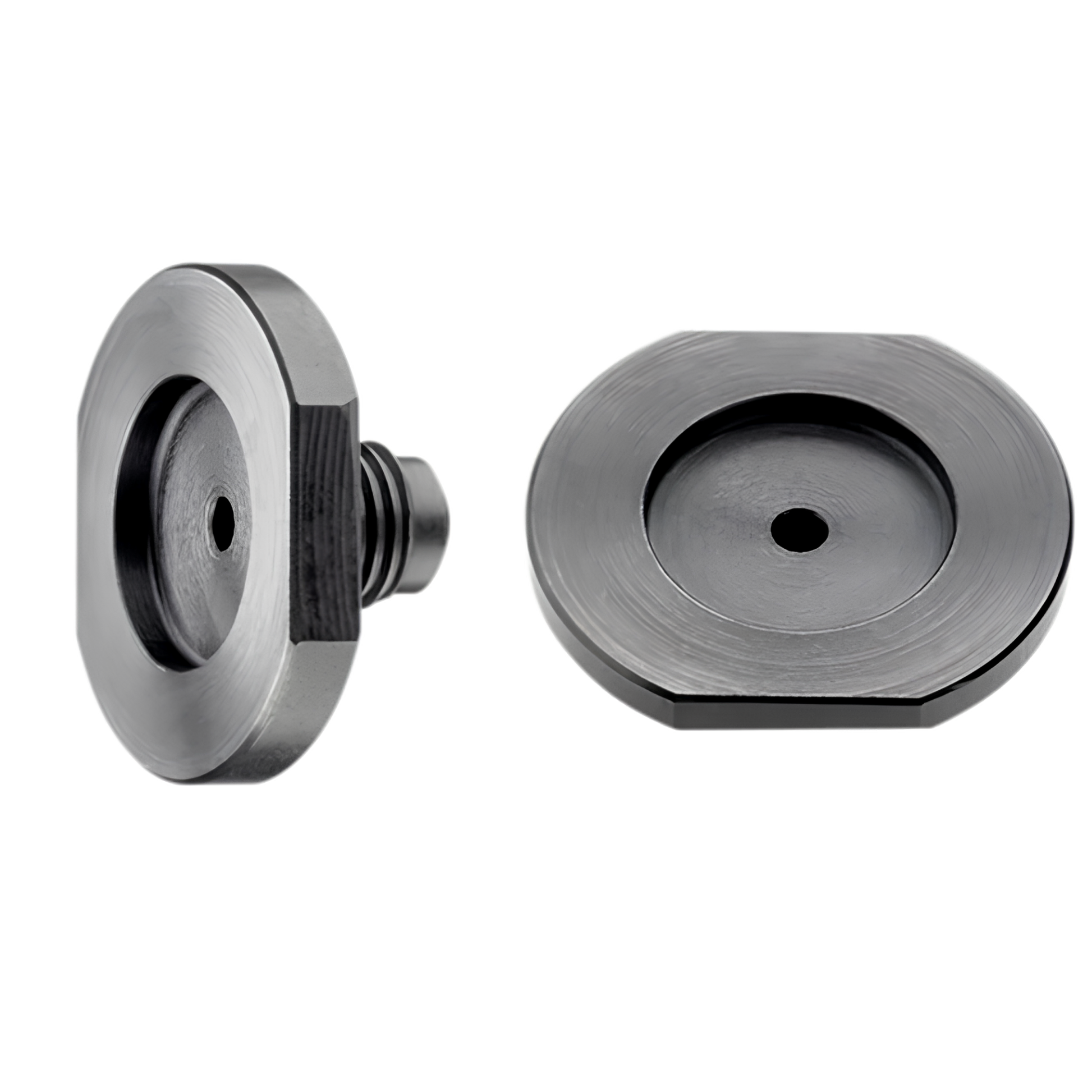

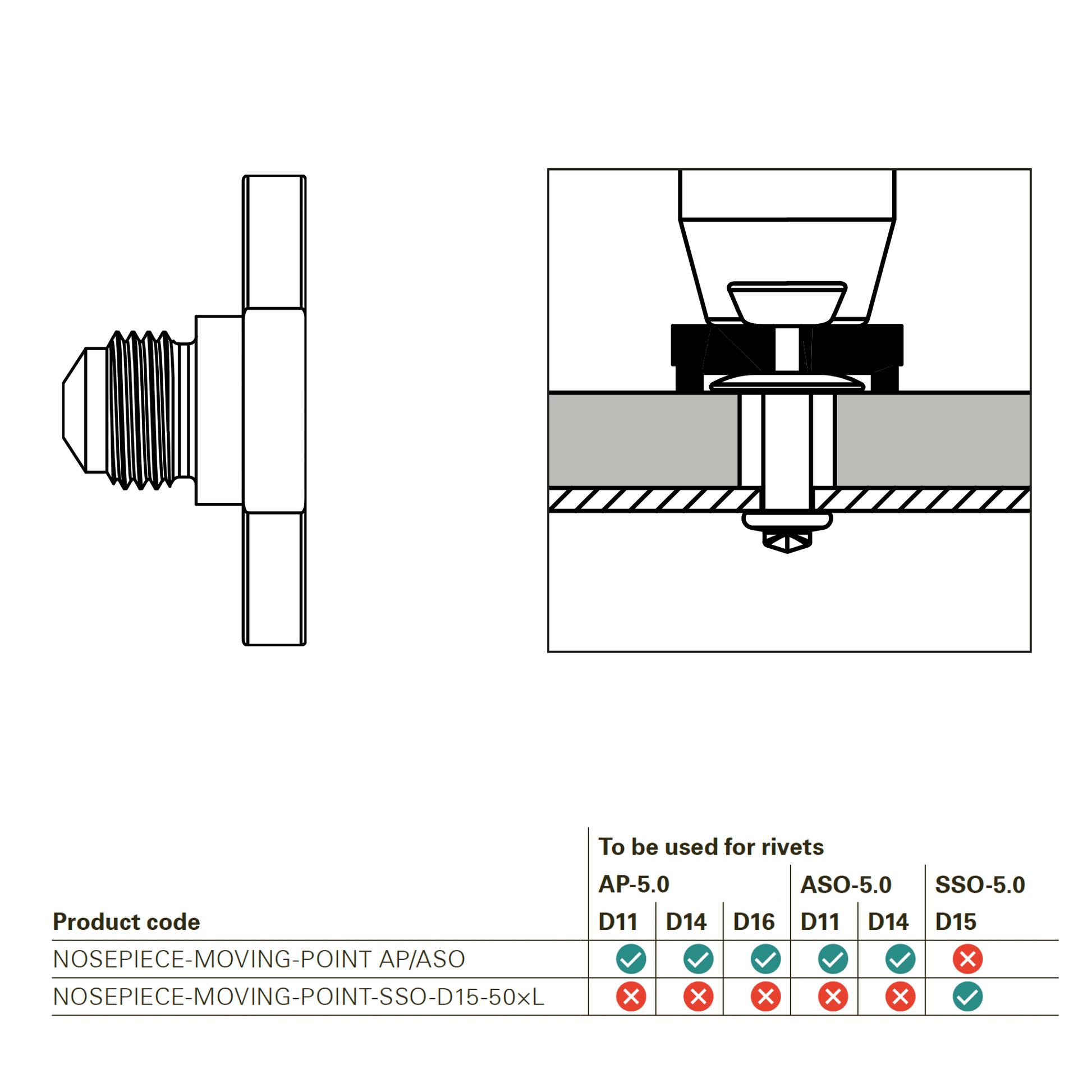

• AP16 Float Point Nosepiece (Part #974620) for use with AP rivets
• SSO Float Point Nosepiece (Part #1291200) for use with SSO rivets
