SKU: 54000001 | Brand: S-5!

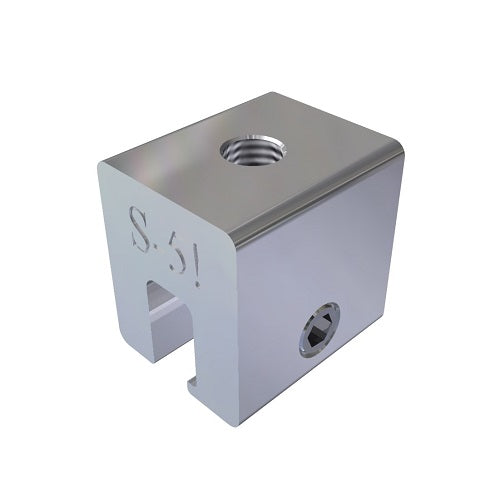

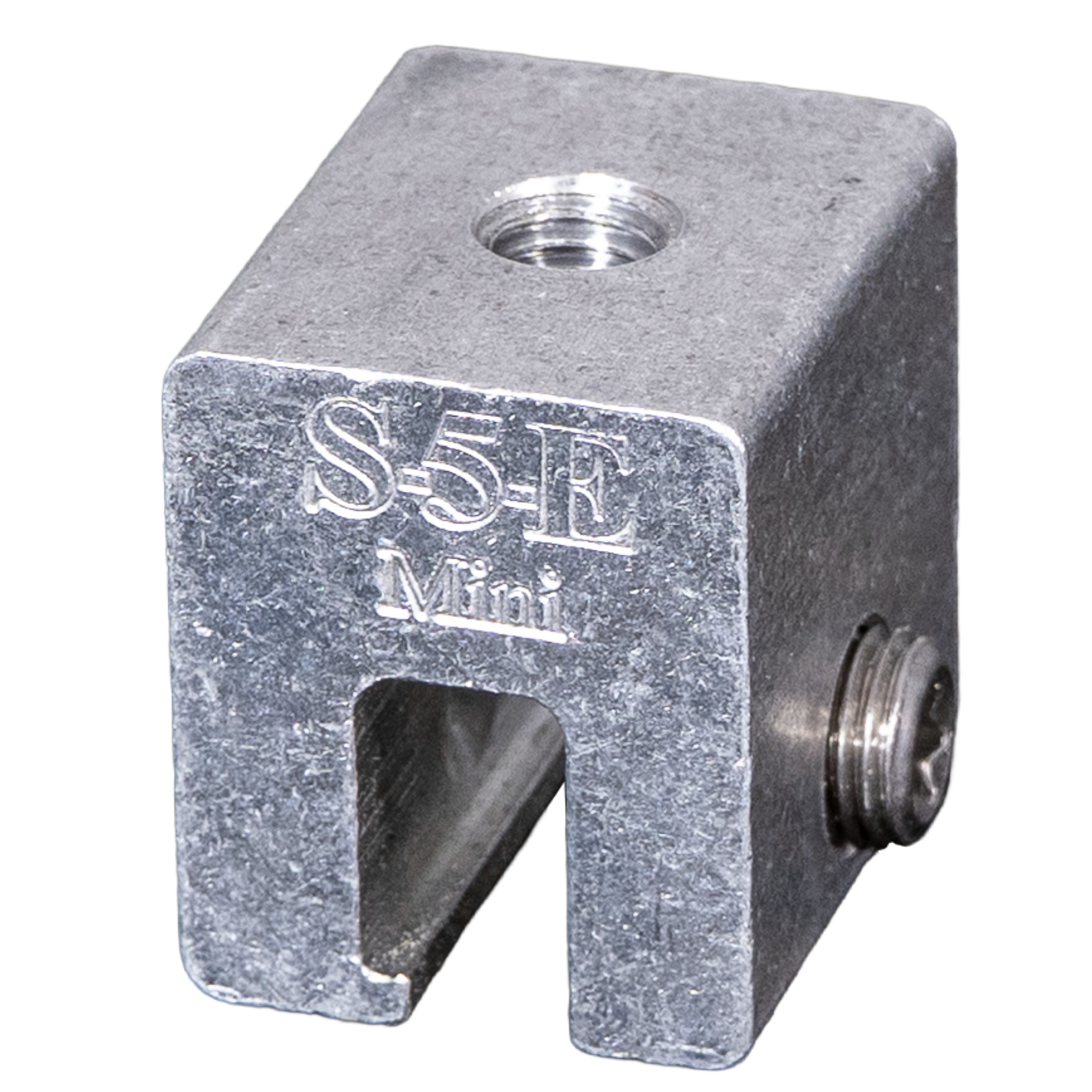

S-5-E Mini Seam Clamp
Couldn't load pickup availability
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Shipping Information
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Description
The S-5-E Mini clamp is specifically designed for use with double-folded standing seam metal roofs (SSMR) that have a traditional seam dimension of less than ½” (13 mm). It is compatible with SSMR systems popular in the United States, Europe, and other parts of the world, including Butler’s MR-24® system.

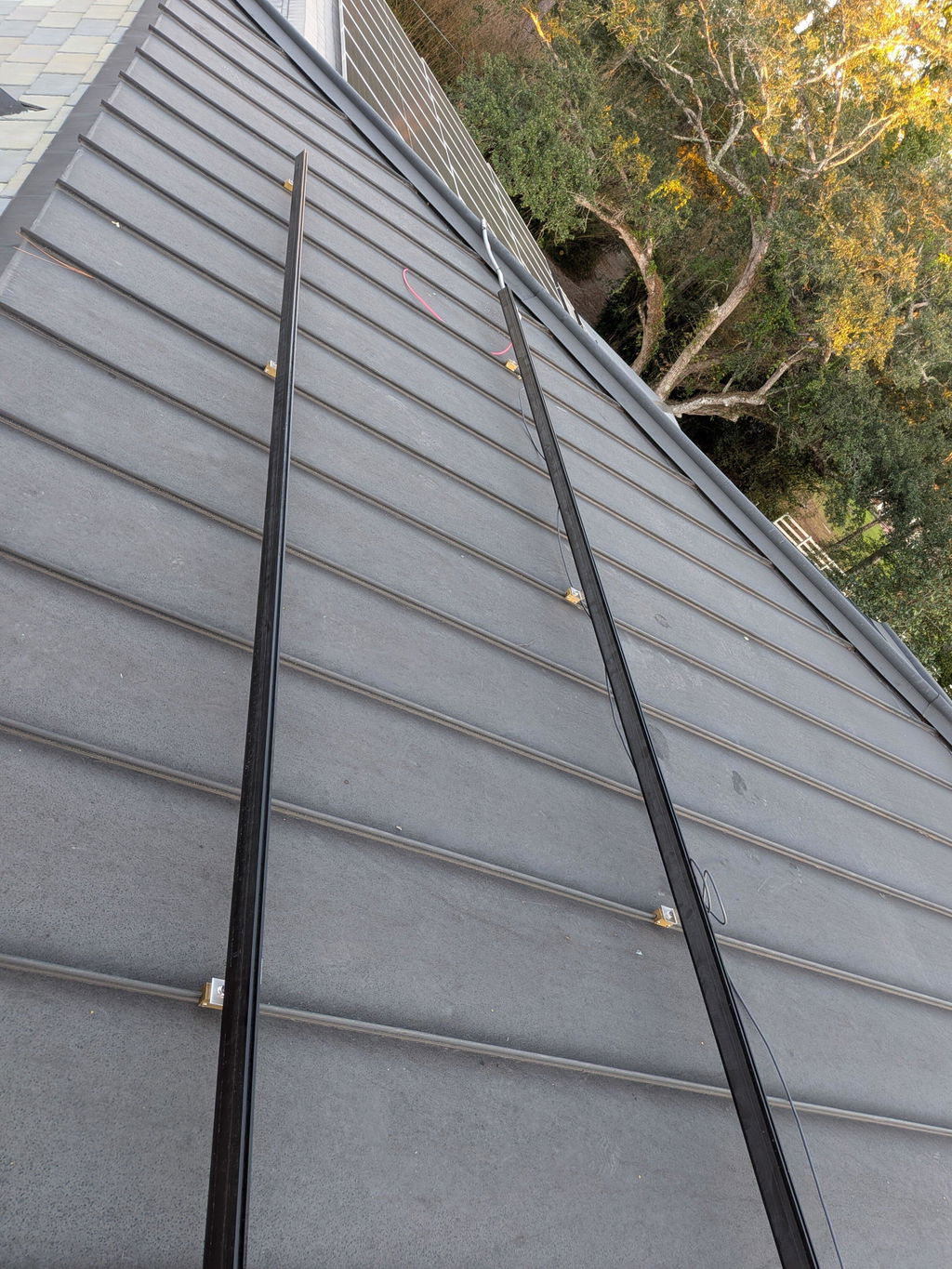

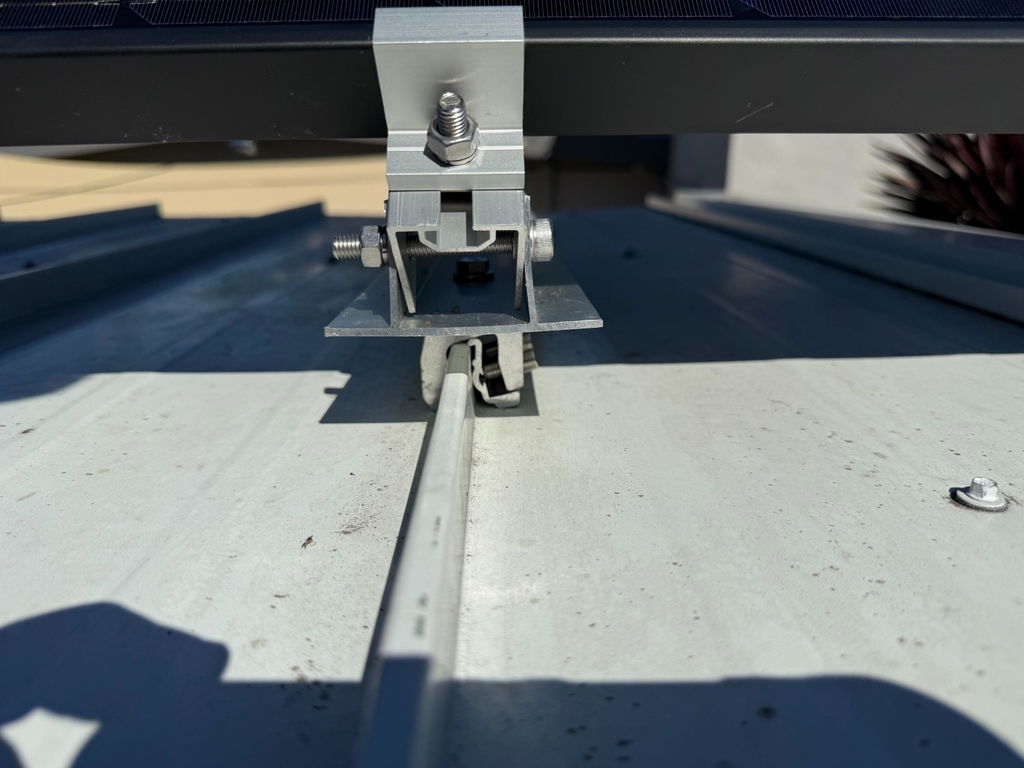

The E Mini clamp is a non-penetrating clamp, meaning it does not require any roof penetration for installation. It provides an economical solution for mounting various rooftop accessories and utilities on SSMR roofs. Some examples of the accessories that can be mounted using the E Mini clamp include signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, and mechanical equipment. Essentially, it can be used to attach almost anything to your SSMR roof.
To ensure the reliability and strength of the clamps, rigorous load testing is performed on both the standard and Mini versions. The Mini clamps undergo negative load testing normal to the seam (pull-up), while the standard clamps undergo parallel-to-seam testing (drag load) along the seam.
Overall, the S-5-E Mini clamp offers a versatile and cost-effective solution for attaching various rooftop accessories and utilities to double-folded standing seam metal roofs with traditional seam dimensioning.
*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail /SnoFence or ColorGard® snow retention systems.

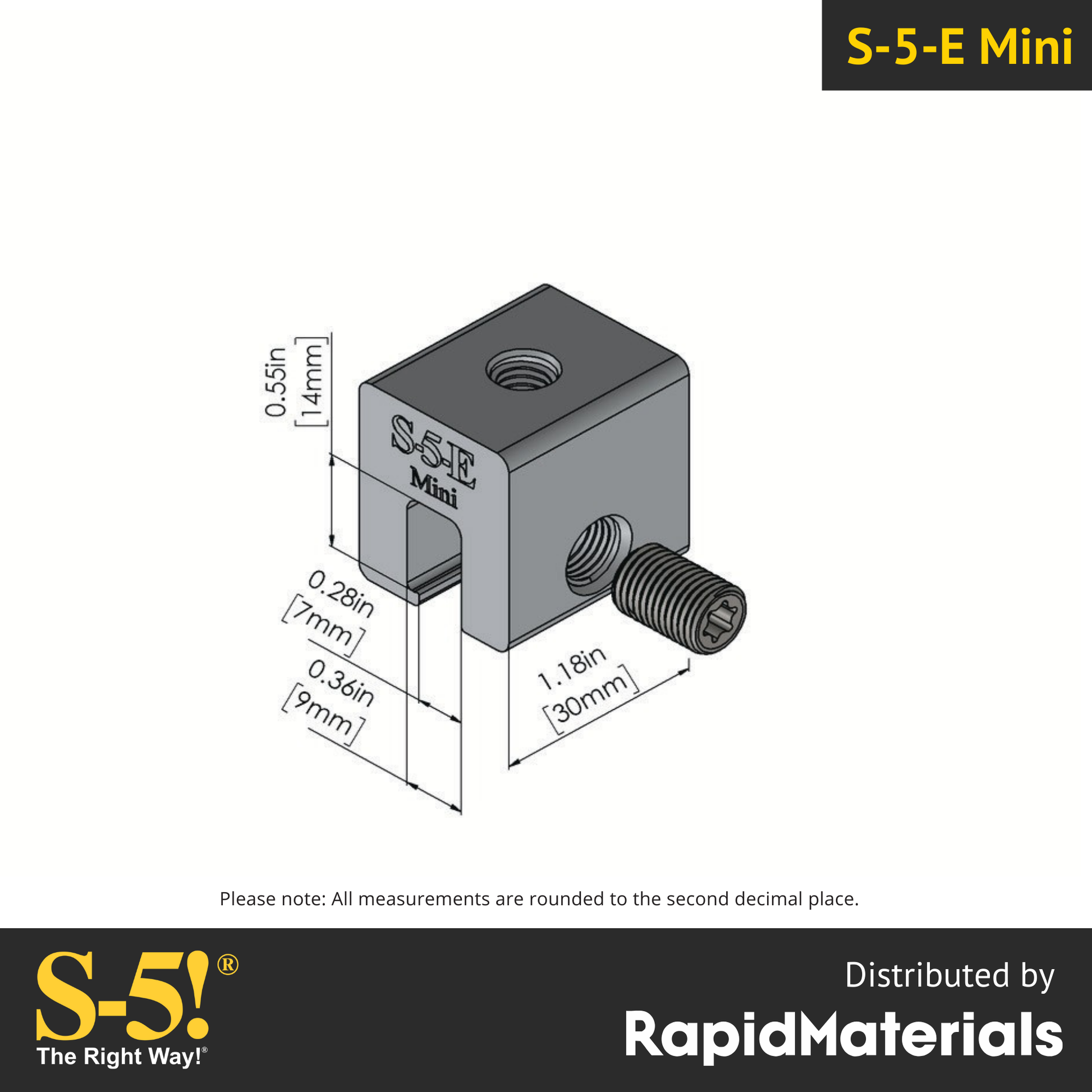

Product Specifications:
- Comparable strength to the S-5-U mini or S-5-V mini but at a lower cost
- Compatible with Butler MR-24 and other double folded, standing seam metal roof panels
- Snow retention and other heavy-duty applications
- One (1) T-30 Torx round-point setscrews included (Torx bit provided)
- Bolts are no longer provided with S-5! mini clamps, however you can add them to your purchase by selecting your bolt length option

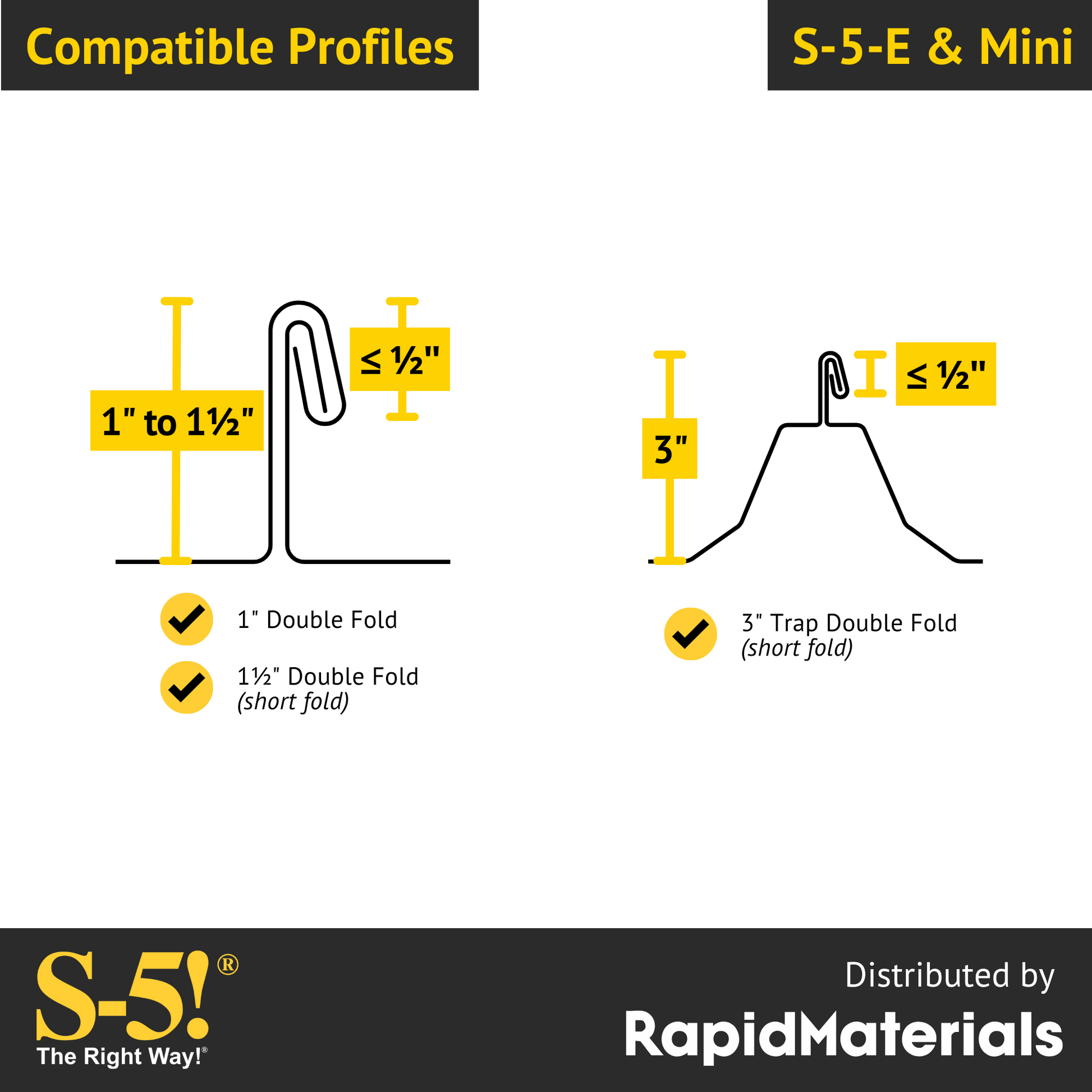

S-5-E fits panel profiles like these:
Includes one set screw. All hardware is stainless steel. The Hex bolt is no longer standard with S-5! mini clamps. Options are:
- No bolt
- 17mm (11/16″) M8-1.25 Flanged Bolt
- 20mm (7/8″) M8-1.25 Flanged Bolt
- 40mm (1-9/16″) M8-1.25 FlangedBolt

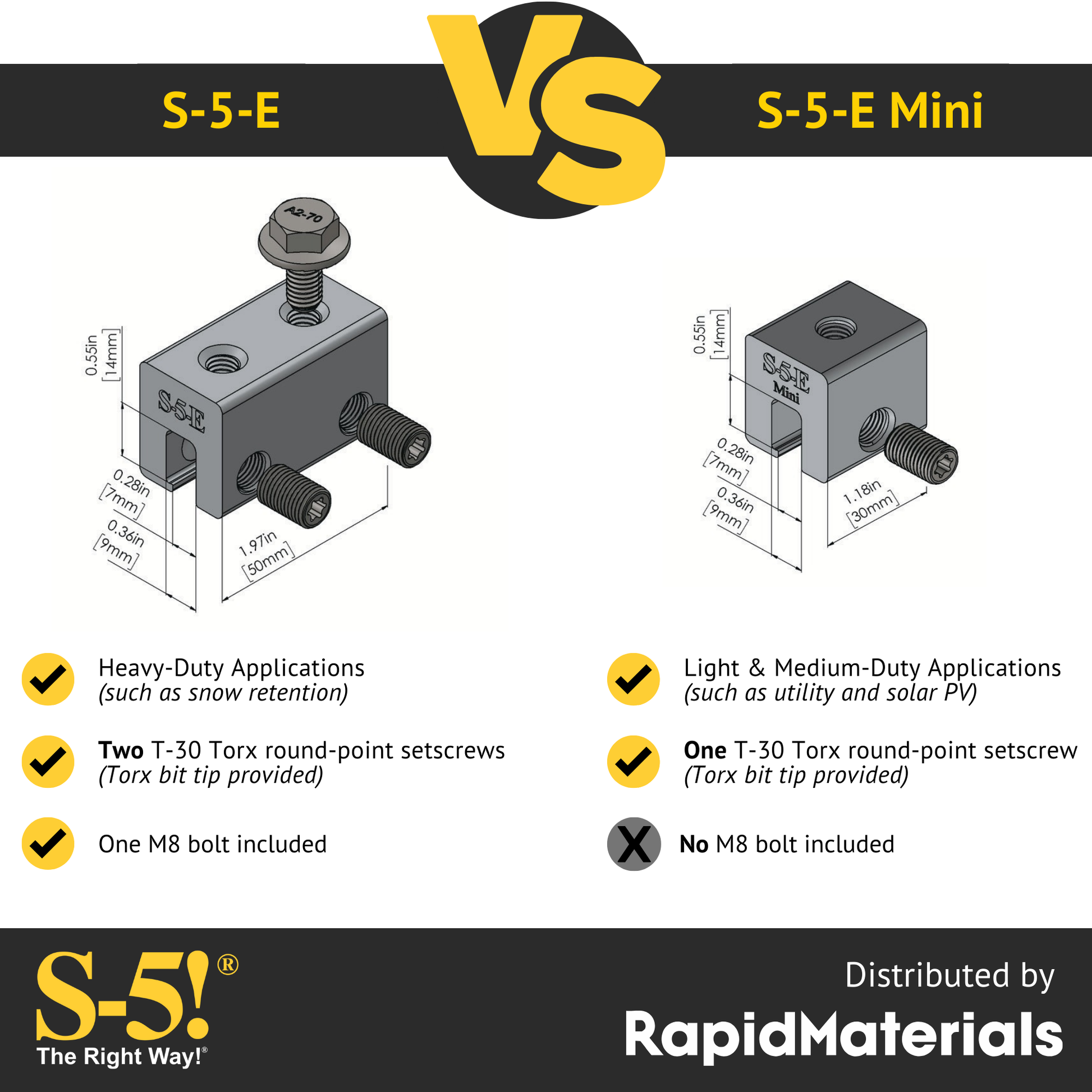

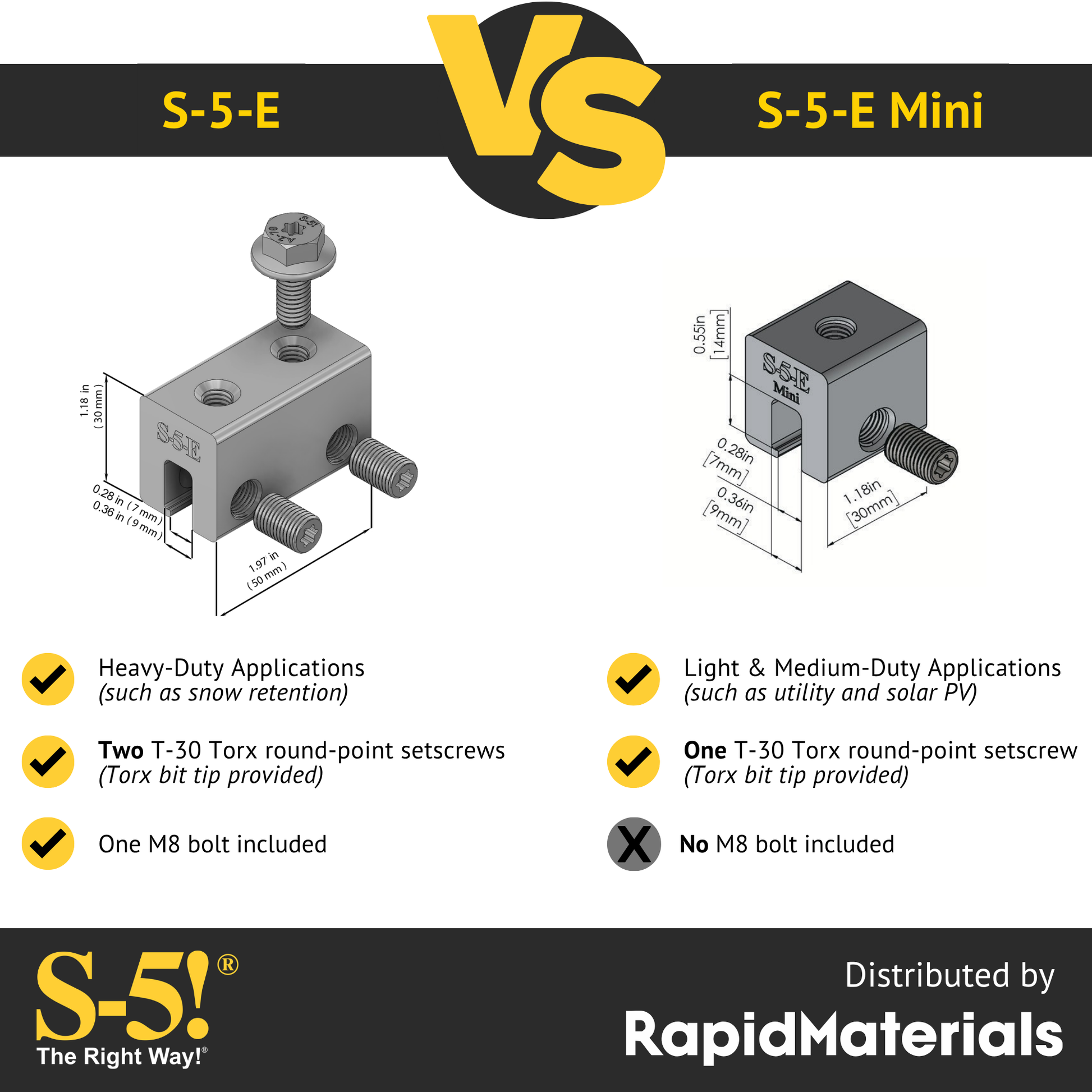

*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail /SnoFence or ColorGard® snow retention systems. Not what you are looking for? Here are more S-5! mini clamps you might consider. Installing ColorGard snow retention, or just need a stronger connection for things like rooftop HVAC? The regular S-5-E seam clamp may be your best choice.
