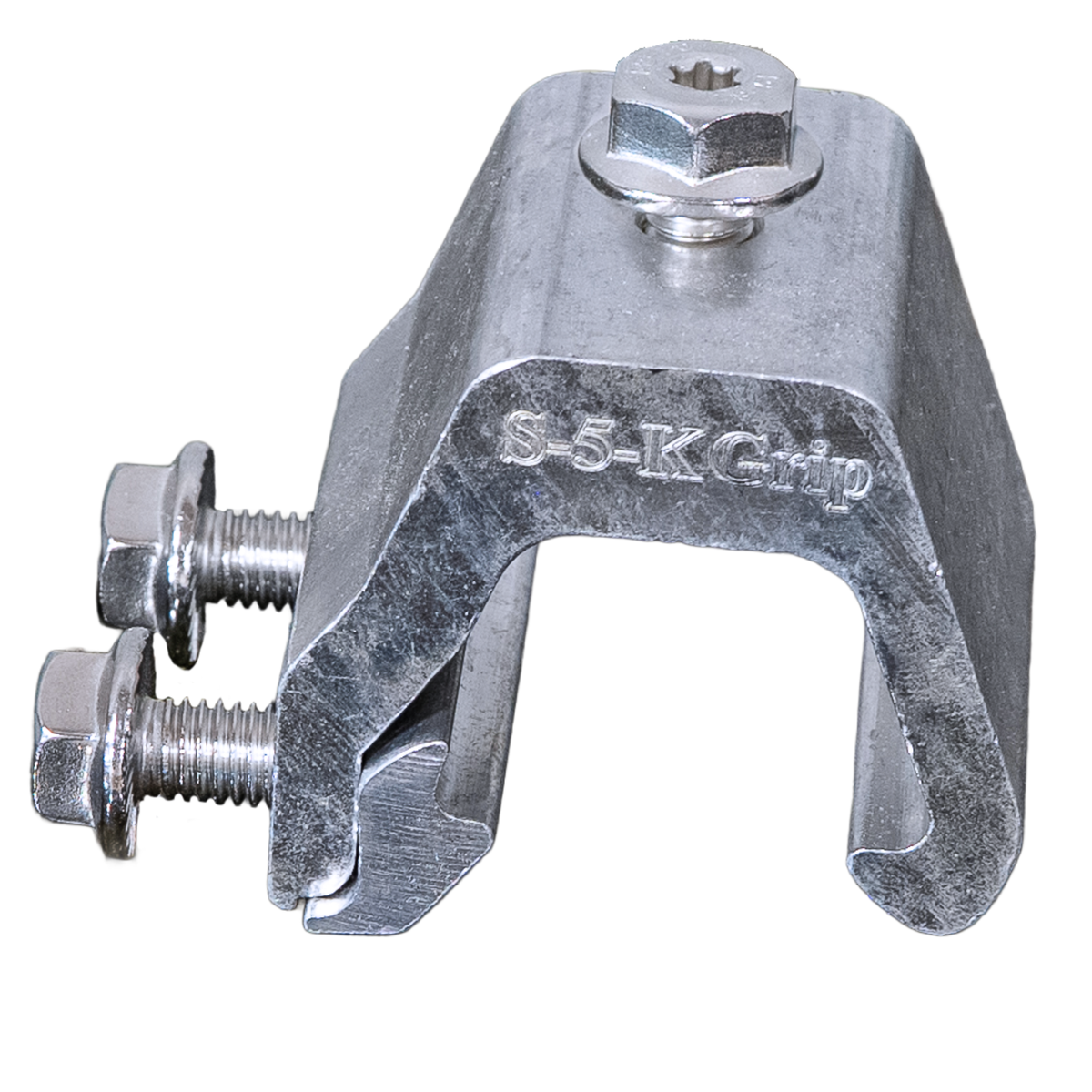

S-5-K Grip Seam Clamp
Couldn't load pickup availability
Earn 0 points on this purchase.
-
Same Day Shipping
Order by 1PM ET
-
American Made
Built Right Here
-
S-5! Lifetime Warranty
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Please note: Some products may require additional handling time and will take longer than 24 hours to ship. For specific shipping details or lead times, refer to the individual product page or contact us directly—we’re here to help.
-
Description

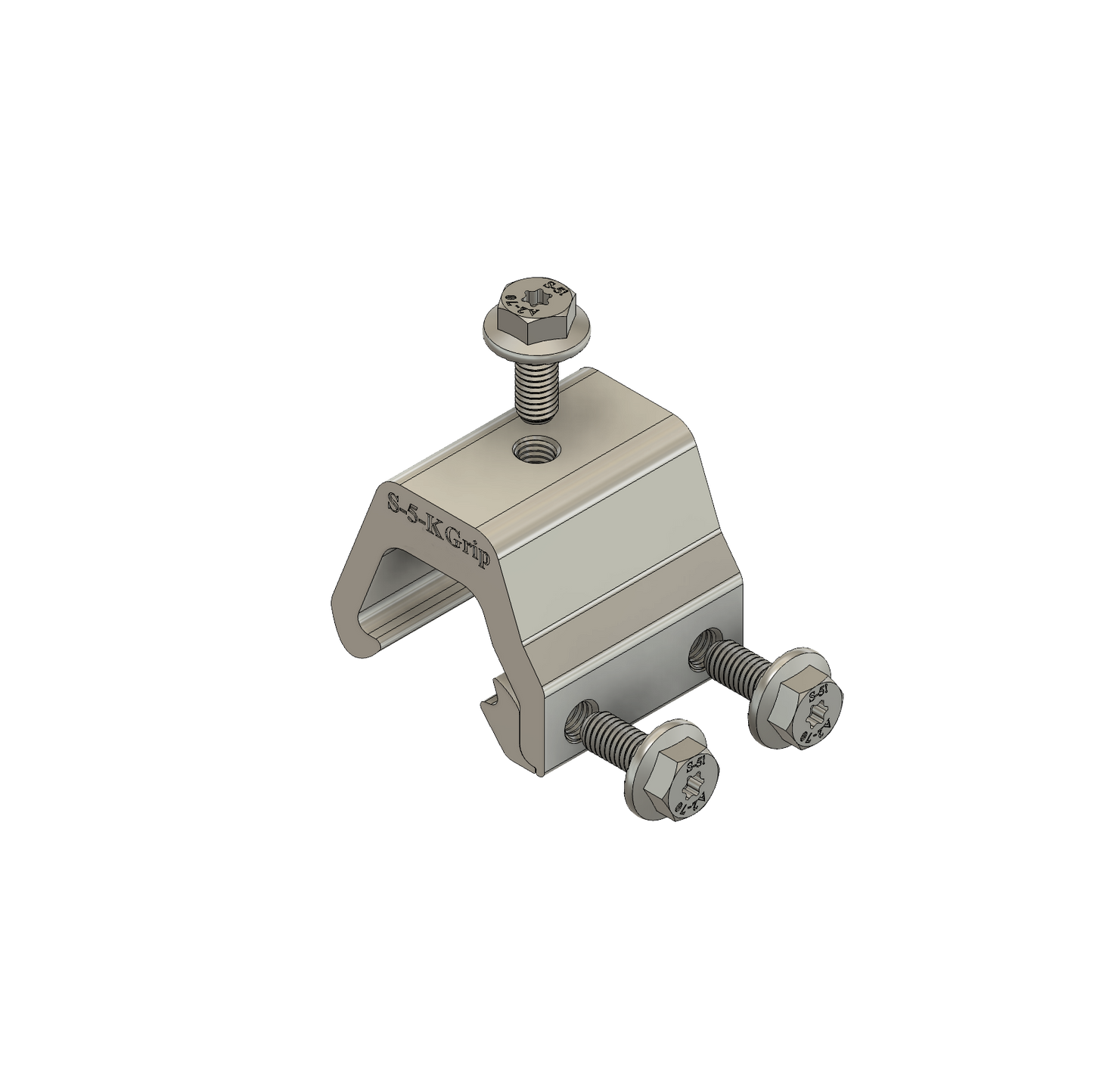

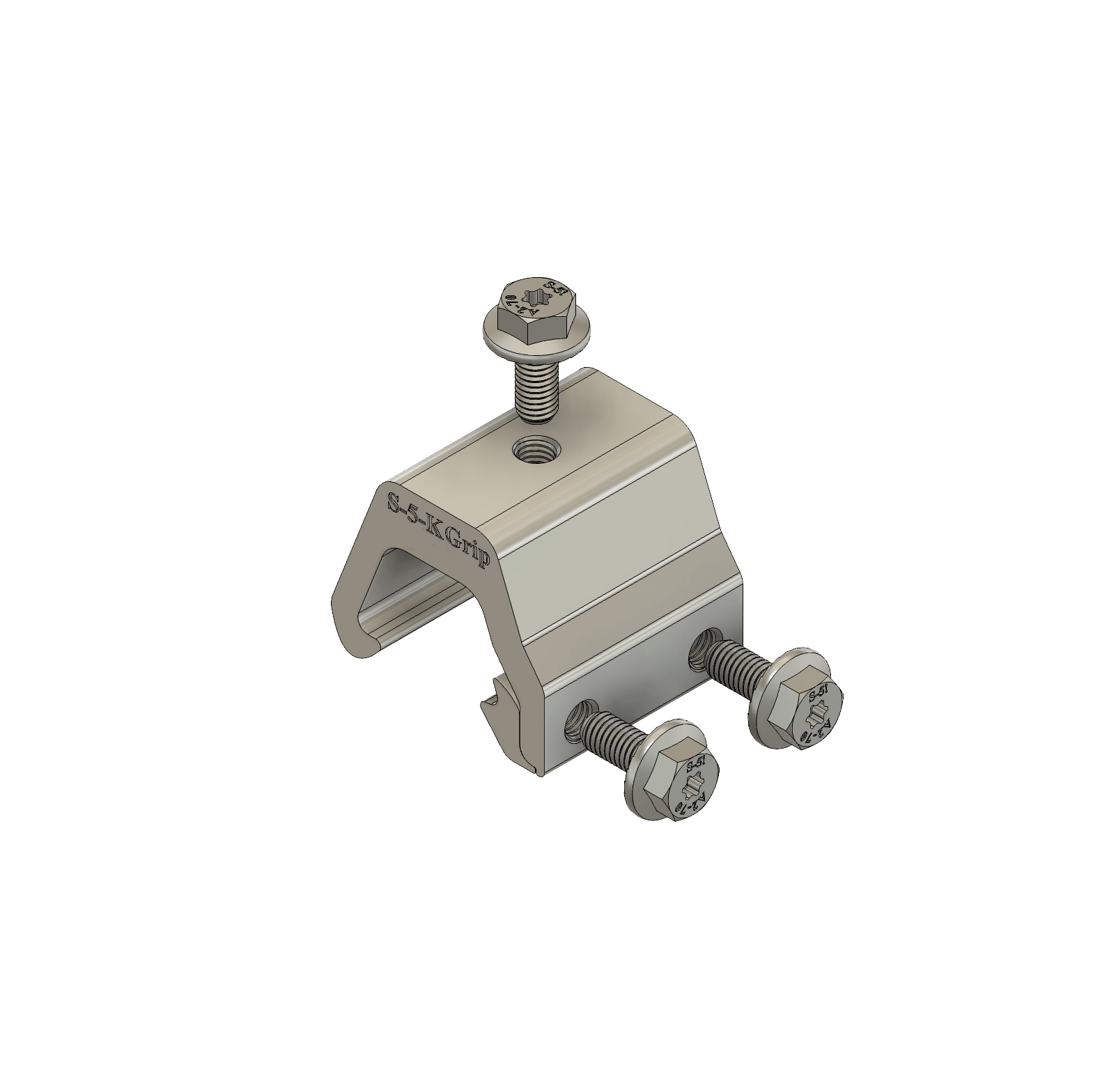

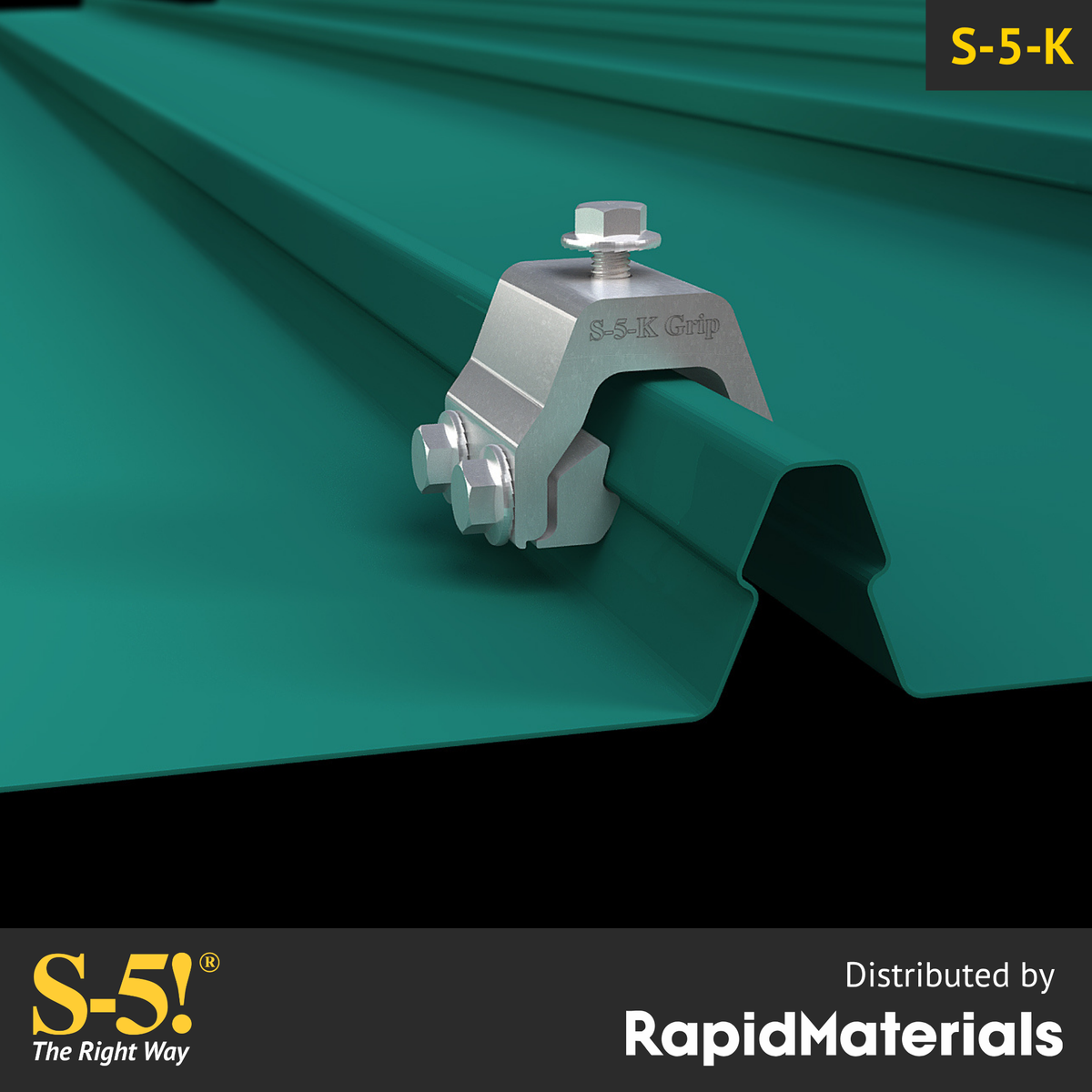

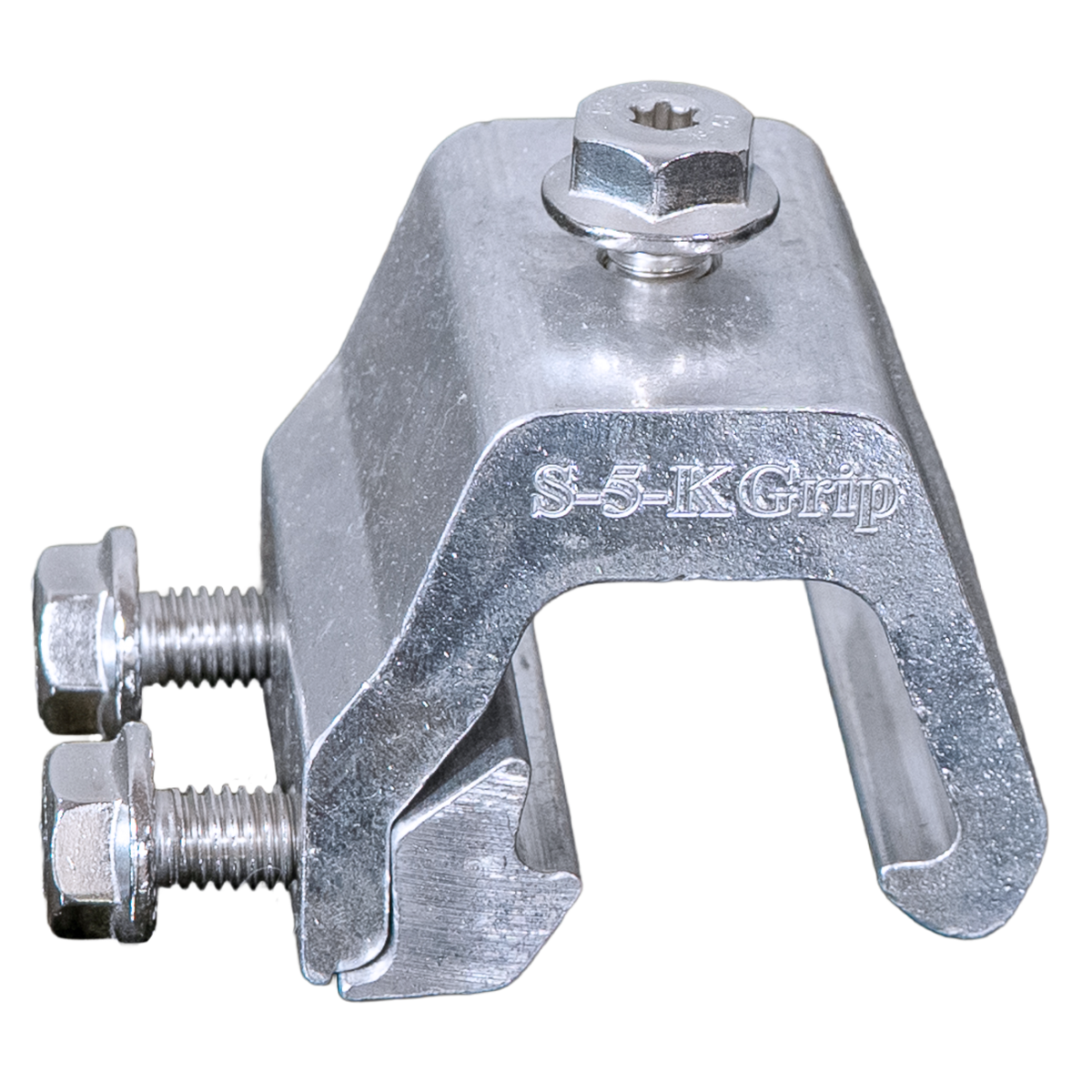

The S-5-K Grip, specifically designed for Klip-Lok® and similar metal roofs, offers increased holding strength for mounting various accessories. It addresses the unique challenges posed by these roof profiles.
The S-5-K Grip comes with two different inserts that compensate for the specific dimensions of the ribs on Klip-Lok® and similar profiles. This ensures a precise fit and secure attachment.
One advantage of the S-5-K Grip is that it eliminates the large moment arm that can be present in some other clamp designs. The mounting bolt of the S-5-K Grip sits concentrically on the seam, which helps to increase load resistance and overall stability.
Unlike some other S-5! clamps that use setscrews for attachment, the S-5-K Grip utilizes side-bolts. These flanged-head bolts serve multiple purposes. They prevent over-compression of the seam and eliminate the need for calibrated tensioning, simplifying the installation process.
It’s important to note that specific installation guidelines and load capacities may vary depending on the specific roof and application requirements. Always refer to the manufacturer’s documentation and guidelines to ensure proper and safe installation of the S-5-K Grip or any other S-5! products.
Are you installing solar, satellite dishes or other less demanding products? The S-5-K Grip mini clamp might be a better option.

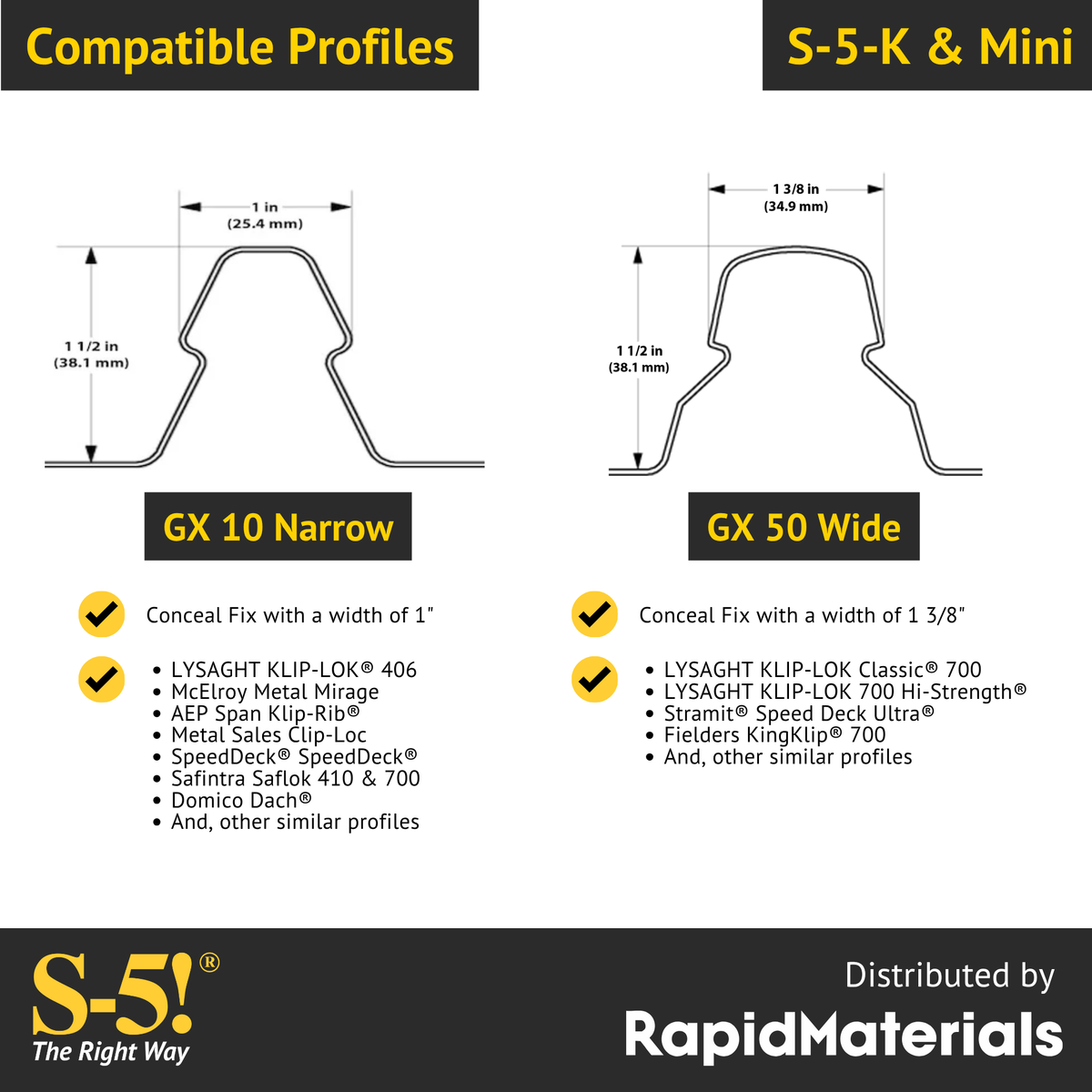

Which Insert do You Need?
S-5-GX10 fits Concealed Fix Narrow Seams (1″ width):
- Lysaght Klip-Lok® 406
- McElroy Metal Mirage
- AEP Span Klip-Rib®
- Metal Sales Clip-Loc
- SpeedDeck®
- Safintra Saflock 410 & 700
- Domico Dach®
- and similar profiles
S-5-GX50 fits Concealed Fix Wide Seams (1-3/8″ width):
- Lysaght Klip-Lok Classic® 700
- Lysaght Klip-Lok 700 Hi-Strength®
- Stramit® Speed Deck Ultra®
- Fielders KingKlip® 700
- and similar profiles

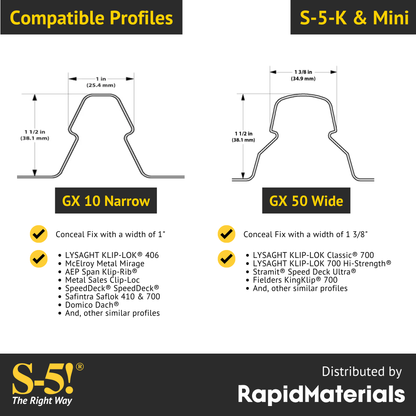

Panel Profiles the S-5-K Grip fits:

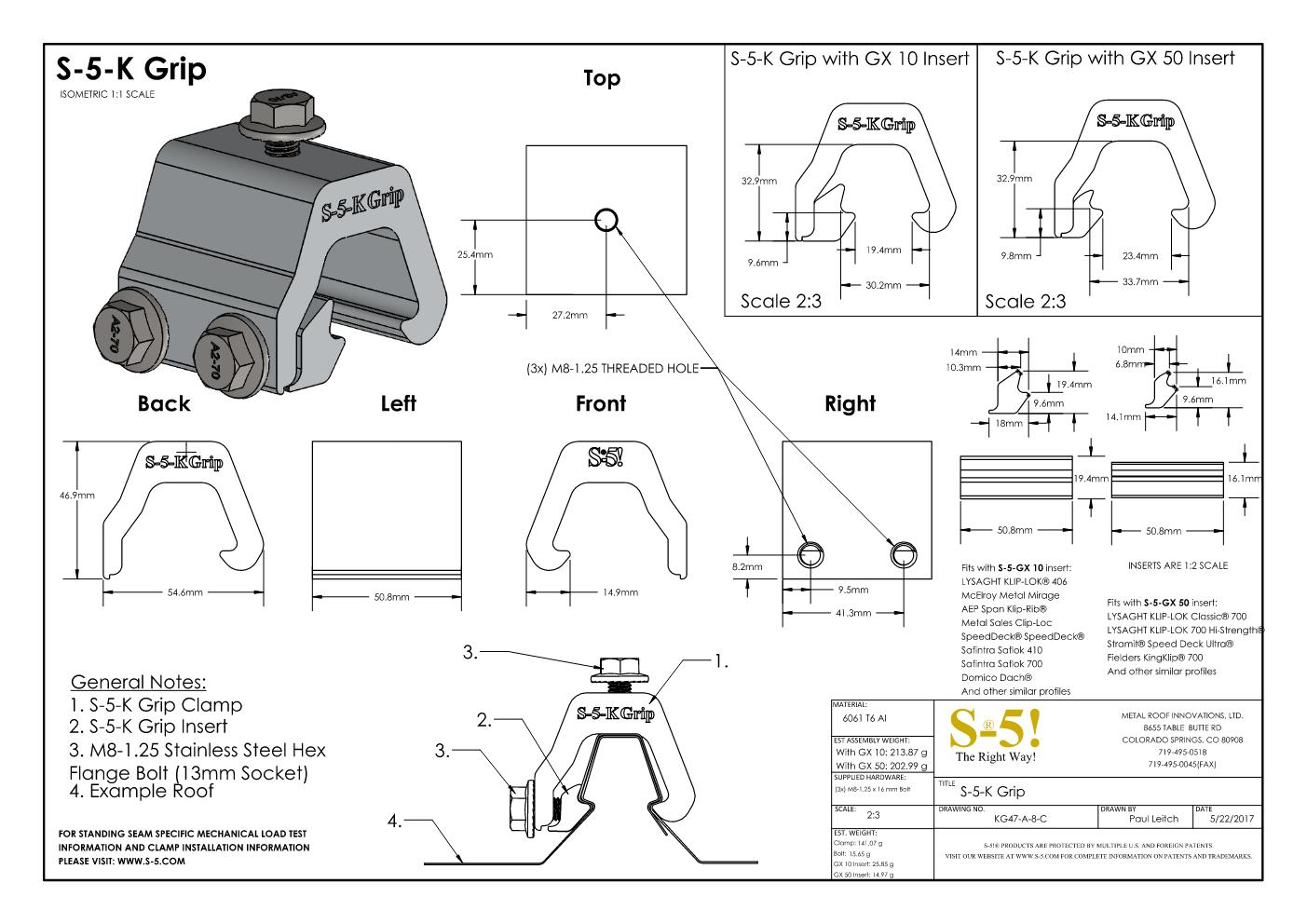

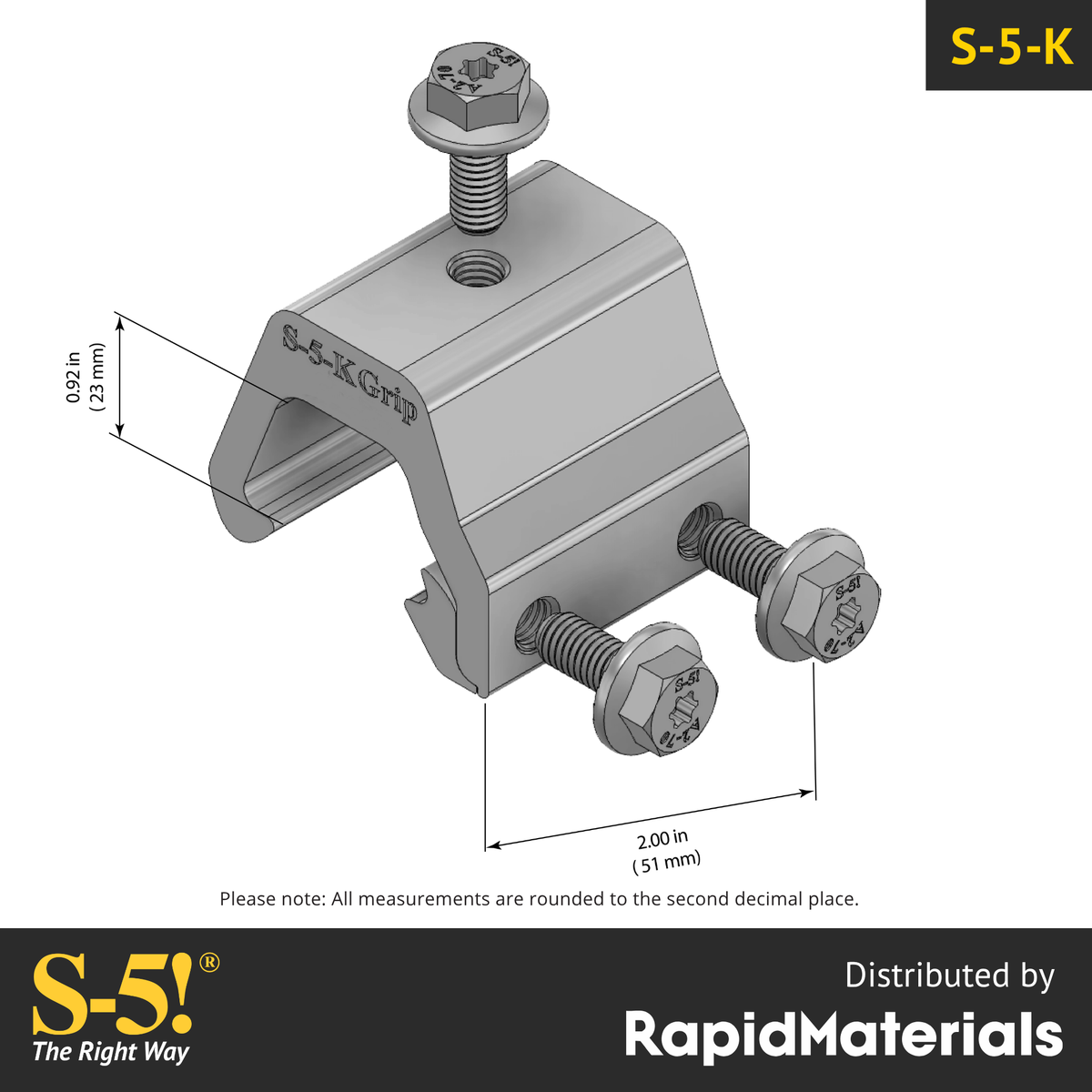

Product Specifications:
- Developed for best suitability to Klik-Rib®, Klip-Loc® and other concealed-fix, snap-together profiles
- Design utilizes multiple insert options to accommodate variation sin brand-specific rib dimensions
- Mounting bolt is directly at center of the clamp
- Two (2) Side Bolts and one (1) top bolt included
-
Brand
S-5!S-5! has led metal roof attachment since 1992, with zero-penetration clamps and brackets that preserve roof integrity and warranties.Shop more from S-5! →
Specifications
- SKU: 54000008-54000010
- UPC: 810099470932
- Direction:
- Finish:
- Reflectivity:
- Coverage:
- Thickness:
- Size:
- Warranty:
- Certifications:
- Compatible Roof Profiles: Conceal Fix Wide, Conceal Fix Narrow
UL2703
