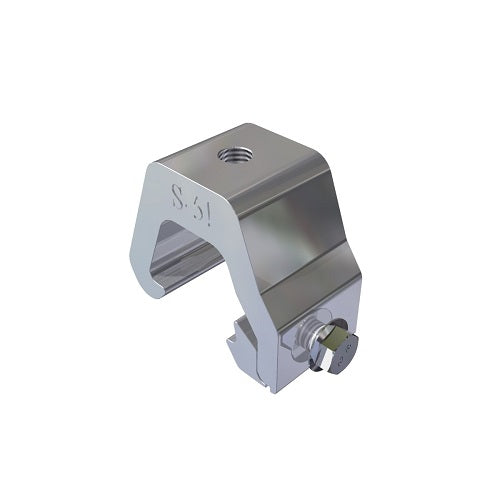

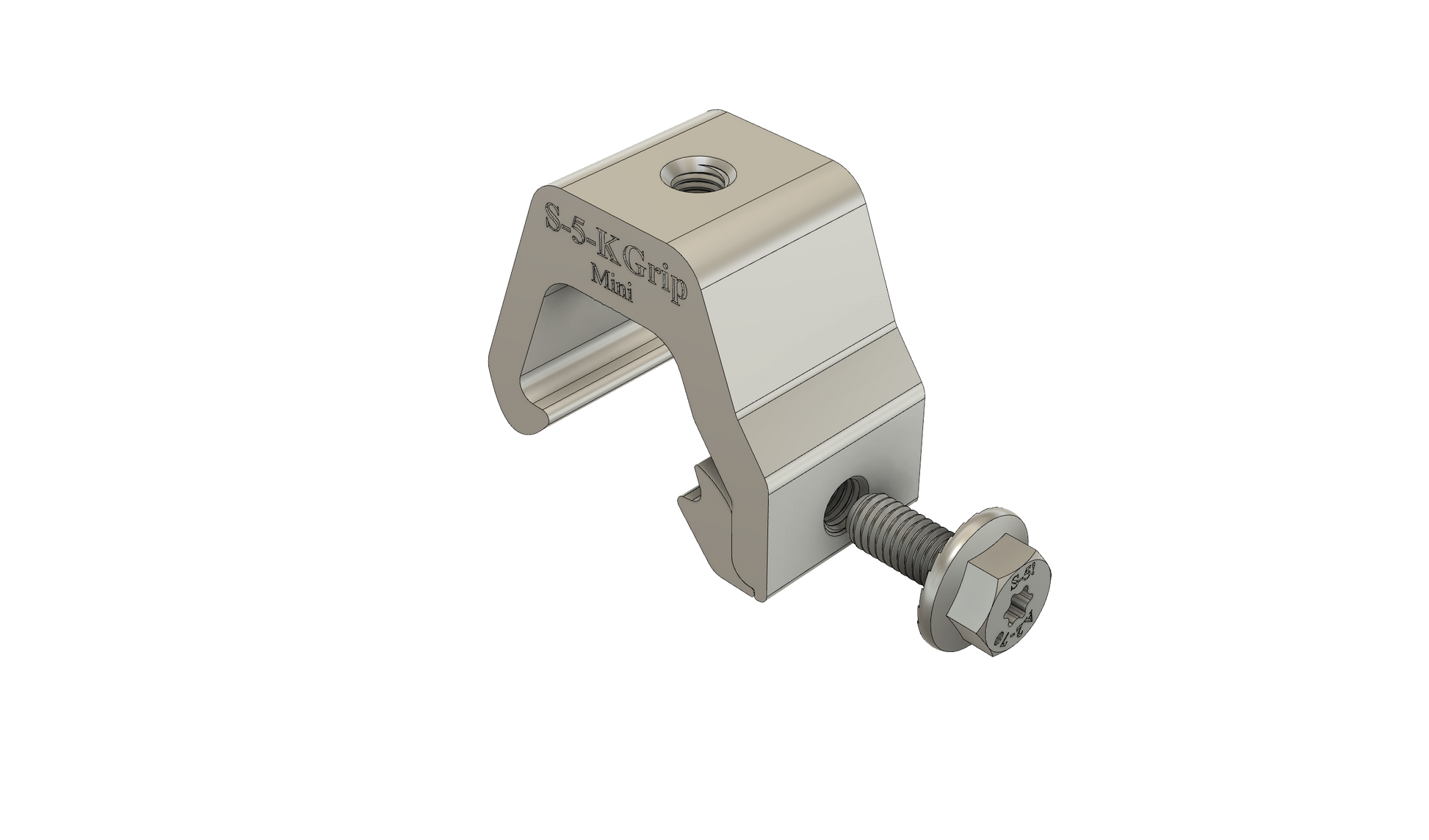

The S-5-K Grip mini clamp is a smaller version of the S-5-K Grip seam clamp. It is specifically developed to attach various products such as satellite dishes, pipes, mechanical devices, and solar panels to Klip-Rib and other bulb snap-together seams. The mini clamp utilizes multiple inserts (sold separately) to accommodate a variety of bulb snap-together profiles. Each insert is uniquely shaped to provide a tight fit and increased holding strength, offering a reliable attachment option for various applications.

*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail /SnoFence or ColorGard® snow retention systems. If you are installing ColorGard, use the larger S-5-K Grip. S-5 Mini clamps may be used with DualGard.

Top bolts are no longer standard with S-5- mini clamps, but may be added if needed. Available bolt sizes are:

• No bolt
• 17mm (11/16″) M8-1.25 Flanged Bolt
• 20mm (7/8″) M8-1.25 Flanged Bolt
• 40mm (1-9/16″) M8-1.25 Flanged Bolt

Which Insert do You Need?

S-5-GX10 fits Concealed Fix Narrow Seam Panels (1″ width):

• Lysaght Klip-Lok® 406
• McElroy Metal Mirage
• AEP Span Klip-Rib®
• Metal Sales Clip-Loc
• SpeedDeck®
• Safintra Saflock 410 & 700
• Domico Dach®
• and similar profiles

S-5-GX50 fits Concealed Fix Wide Seam Panels (1-3/8″ width):

• Lysaght Klip-Lok Classic® 700
• Lysaght Klip-Lok 700 Hi-Strength®
• Stramit® Speed Deck Ultra®
• Fielders KingKlip® 700
• and similar profiles

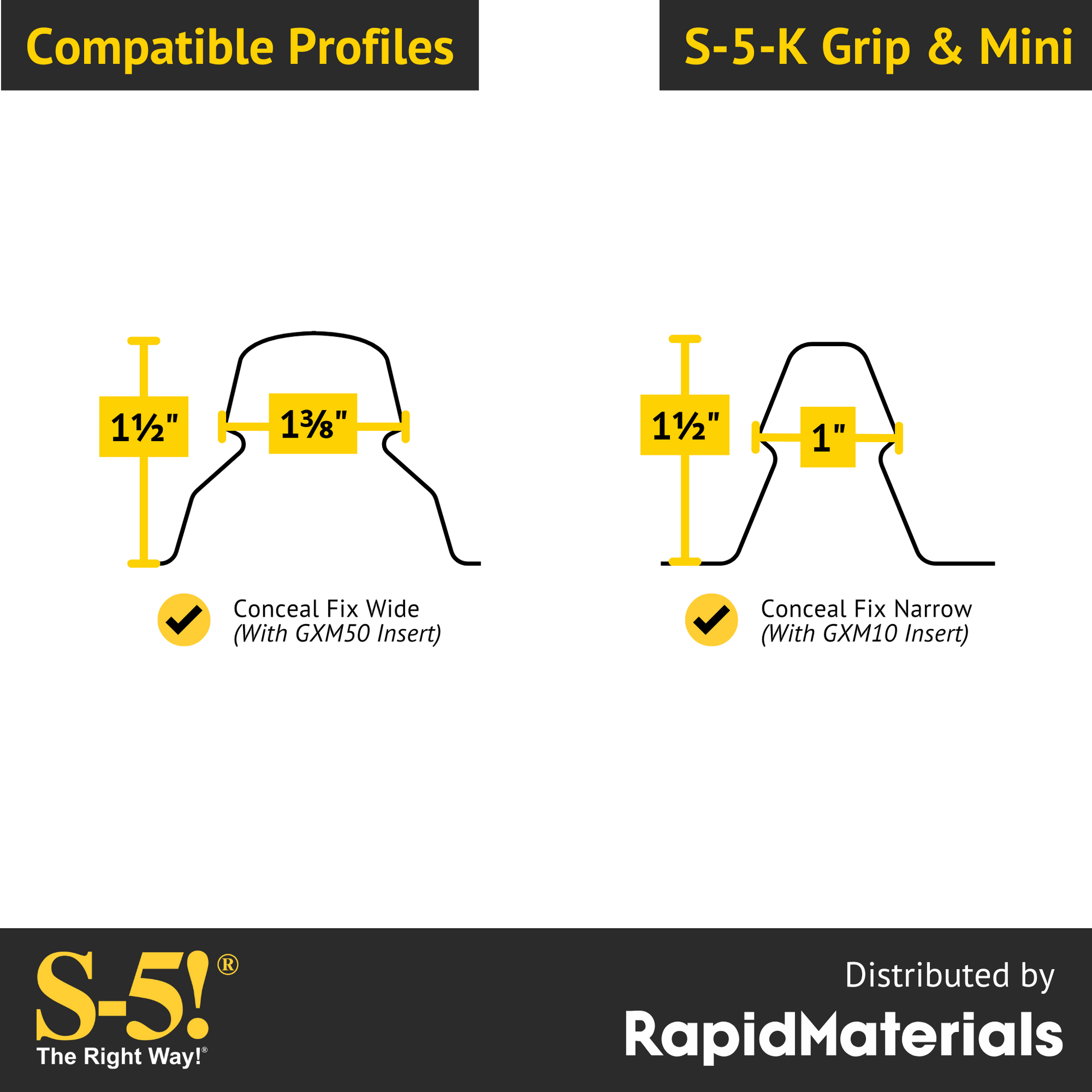

Panel Profiles the S-5-K Grip fits:

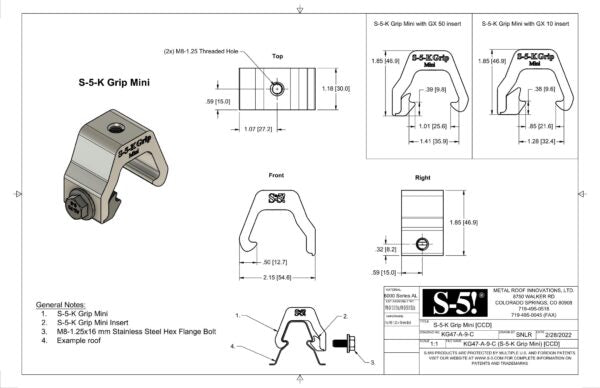

Product Specifications:

• Developed for best suitability to Klik-Rib®, Klip-Loc® and other concealed-fix, snap-together profiles
• Design utilizes multiple insert options to accommodate variation sin brand-specific rib dimensions
• Mounting bolt is directly at center of the clamp (S-5-K Grip) or offset for Color Gard applications (S-5-K Grip Snow)
• Two (2) Side Bolts and one (1) top bolt included
