S-5-N 1.5 Mini Seam Clamp
S-5-N 1.5 Mini Seam Clamp
Couldn't load pickup availability
View full details
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Shipping Information
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Find the Correct S-5! Clamp
Find the Right S-5! Clamp for Your Roof
Choosing the right S-5! clamp is essential for secure and reliable attachment to your metal roof. Whether you know your roof manufacturer and panel type or need to match a clamp to your seam profile, we’ve got you covered.
-
By Manufacturer & Panel Type
Search by ManufacturerIf you know your roof manufacturer and specific panel type, this option allows you to quickly find compatible clamps based on tested configurations.
-
By Seam Profile
Search by Seam ProfileNot sure of your roof manufacturer? No problem! Identify your roof’s seam profile and explore clamps designed for that seam profile.
Description

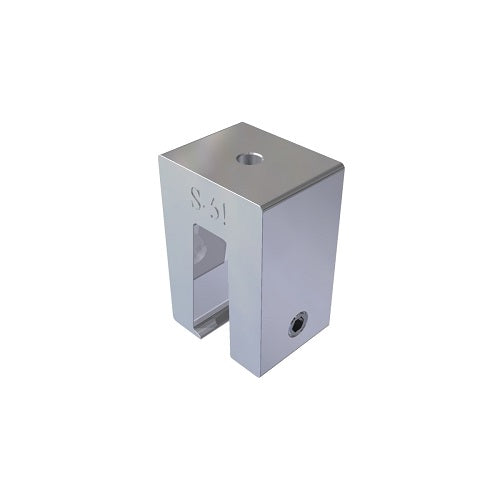

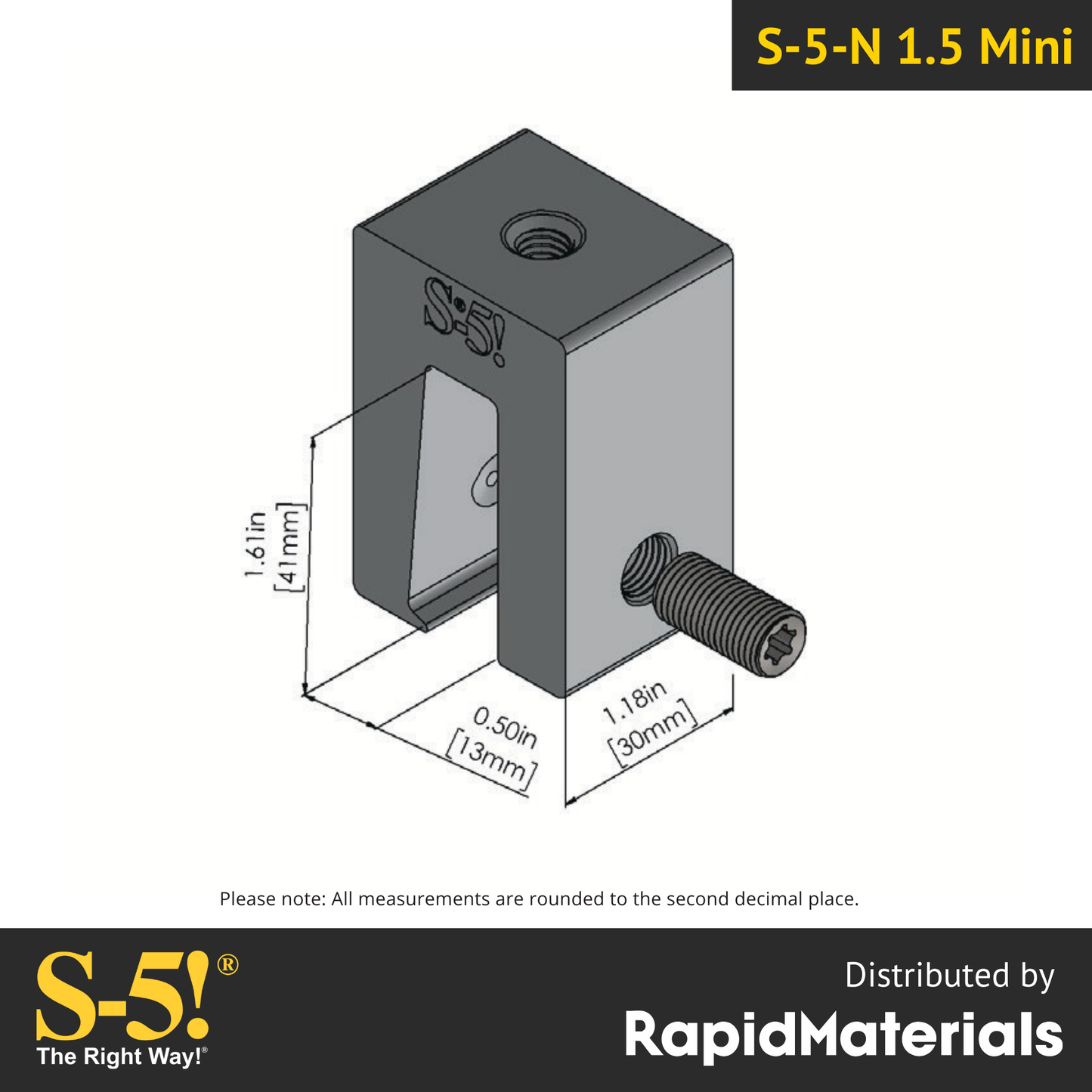

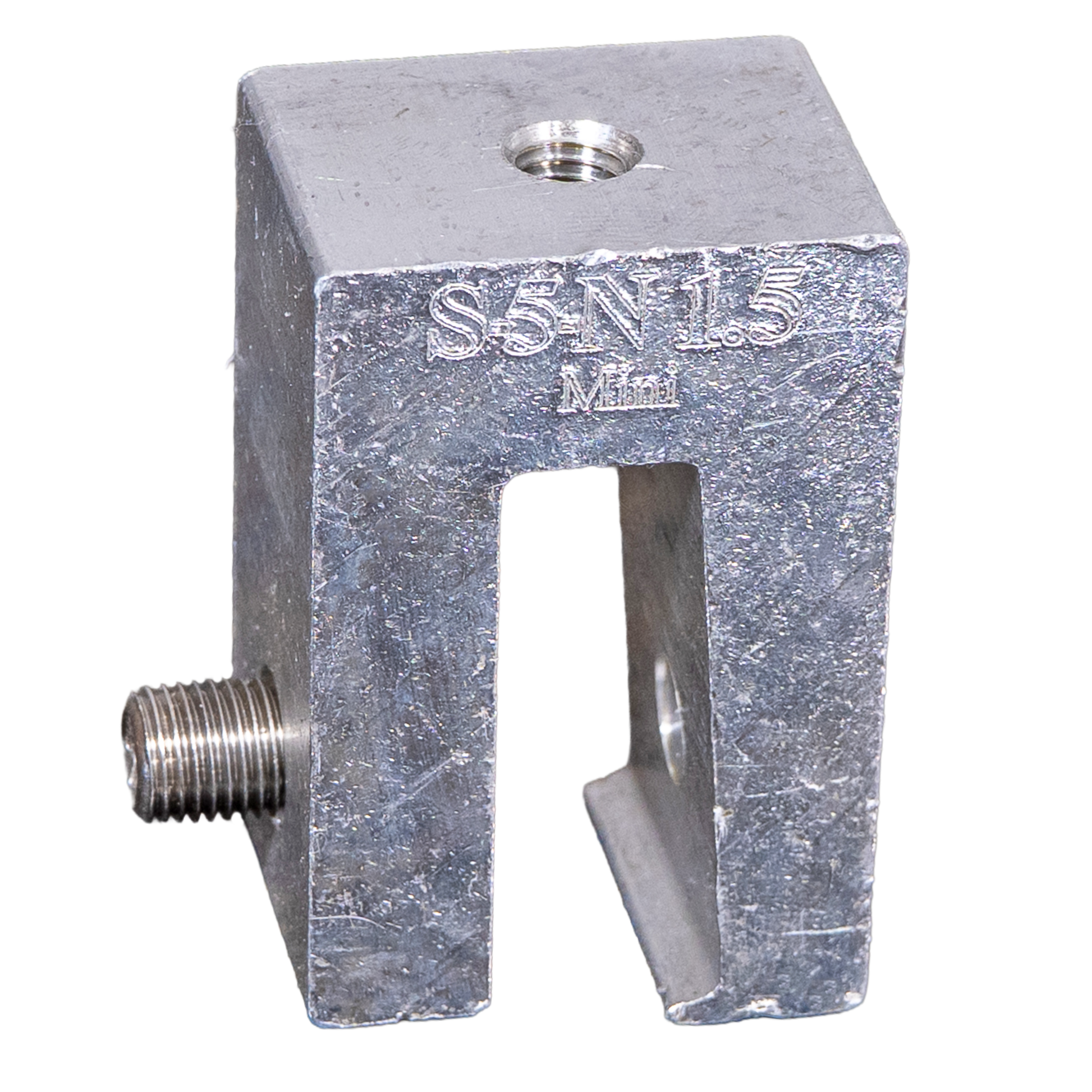

The S-5-N 1.5 mini clamp is designed for non-penetrating attachment of medium-duty products, such as solar panels, to standing seam metal roofs with a nail strip profile. It is specifically suitable for nail strips with a seam base dimension of up to 0.50 inches (12.7 mm).
The N 1.5 mini clamp is compatible with various 1.5-inch nail strip profiles, including Bridger Steel 1.5″ Tru Snap, Schlebach 1.5″ NailStrip, Sheet Metal Supply NS 1.5″, Sheffield Metals SMI 1.5″, and similar roofing types with comparable profiles. If you are working with a nail strip profile with a 1-inch seam height, you should use the S-5-N mini clamp instead.

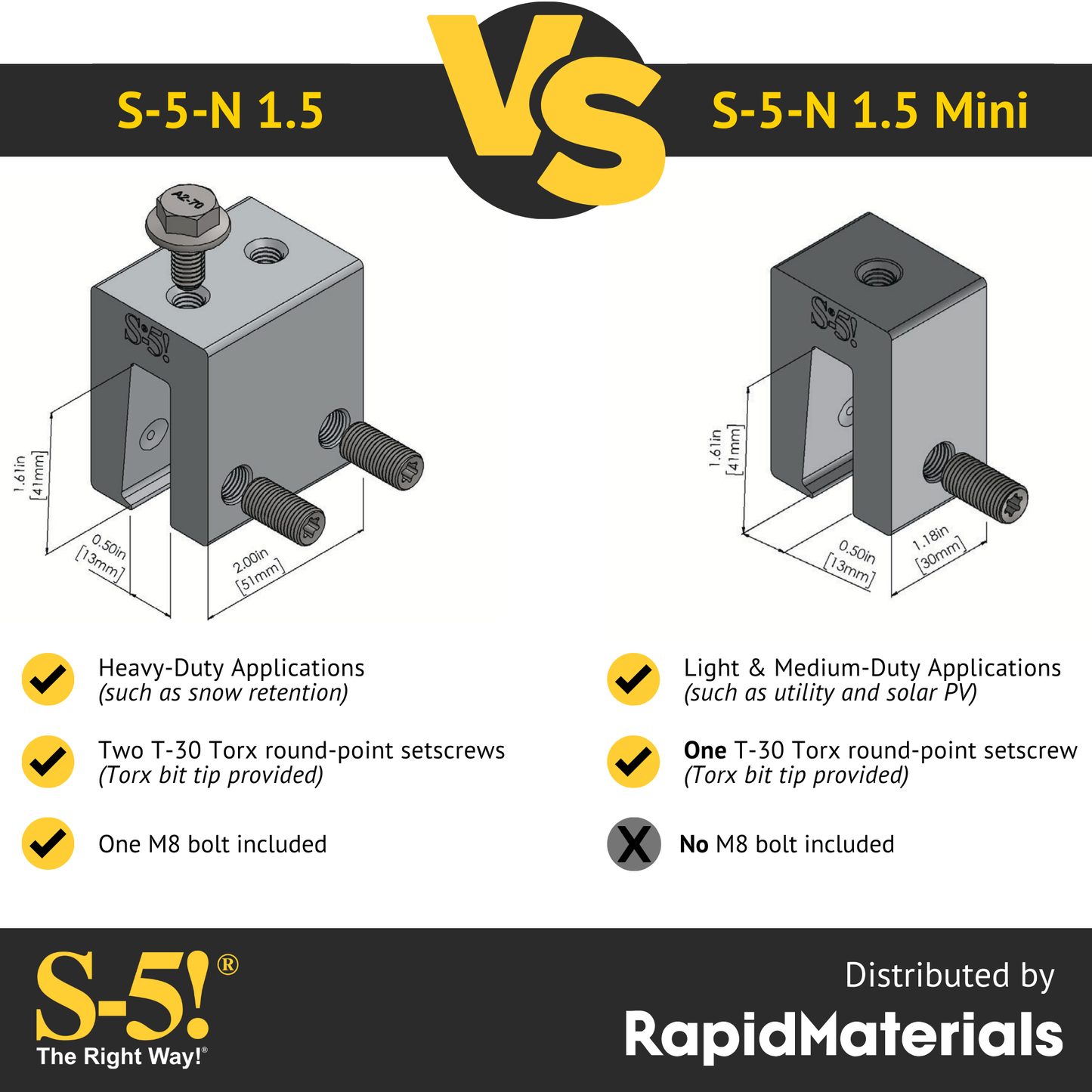

The N 1.5 mini clamp offers a more cost-effective solution for lighter-duty attachments where extremely high holding strength is not necessary. It undergoes rigorous load testing to ensure its performance. Negative load testing (pull-up) is conducted on all Mini clamps, while parallel-to-seam testing (drag load) is performed on all standard clamps.
If you are working with nail strip profiles outside the specified seam base dimension, such as those larger than 0.50 inches (12.7 mm), you may need to consider the “S-5-NH 1.5 mini” clamp instead.
*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail /SnoFence or ColorGard® snow retention systems. If you are installing ColorGard, use the S-5-N 1.5 seam clamp. Nail Strip Profiles just got a lot simpler! The S-5-N Mini clamp comes complete with one [1] 3/8″x 24 x 0.80″ round nose set screw. All hardware is stainless steel. S-5! mini clamps can be used with DualGard.

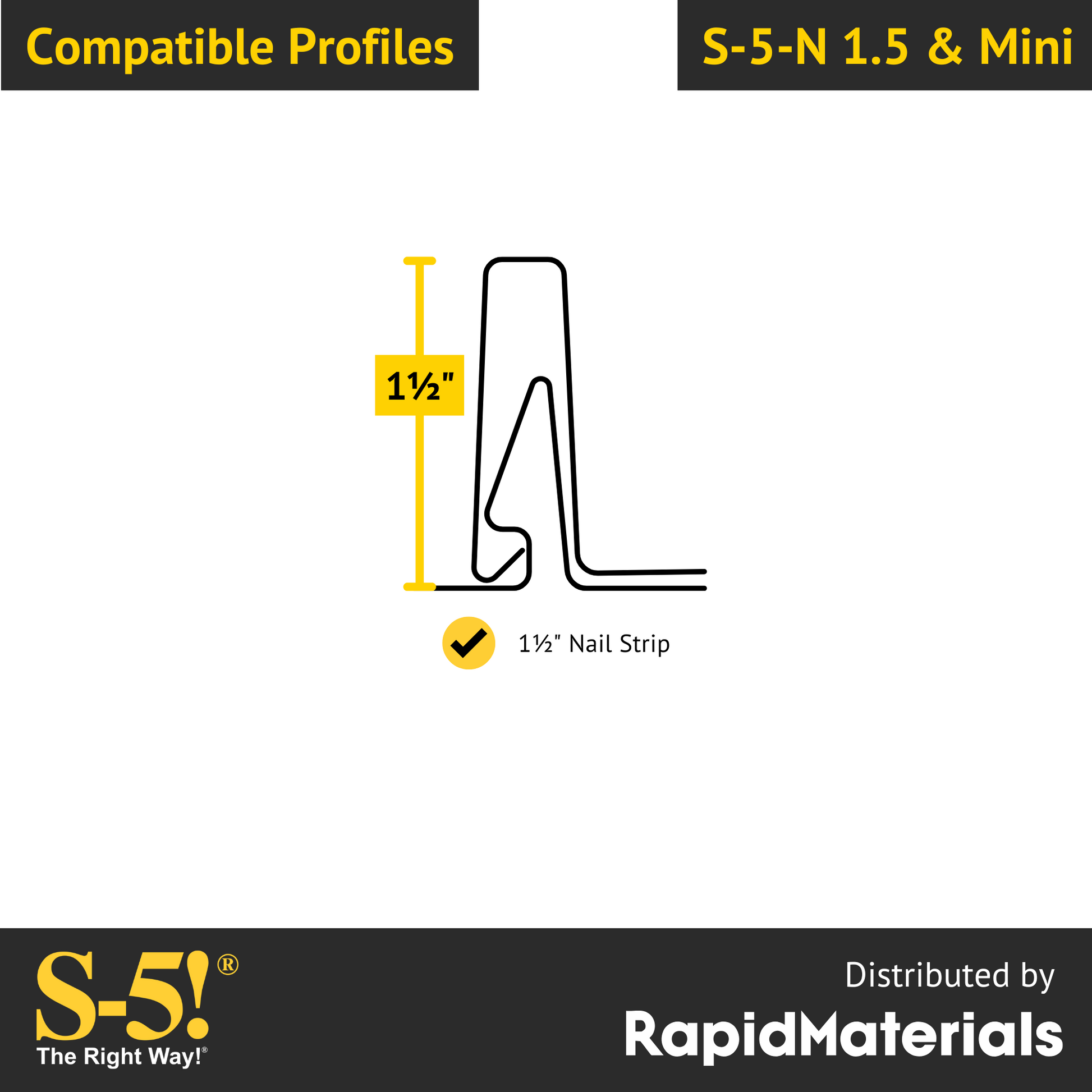

S-5-N 1.5 mini fits Panel Profiles Similar to These:
Product Specifications:
- Designed for use on 1.5″ [38mm] nail strip metal roof panels
- Angled wall with nose permits the clamp to fully engage the triangular-shaped profiles, providing the best holding strength possible
- Perfect for use with heavy-duty applications like snow retention
- One (1) T-30 Torx set screw (Torx bit provided)
The Hex bolt is no longer standard with S-5! mini clamps. Options are:
- No bolt
- 16mm (5/8″) M8-1.25 Flanged Bolt
- 20mm (7/8″) M8-1.25 Flanged Bolt
- 40mm (1-9/16″) M8-1.25 FlangedBolt
