S-5-N 1.5 Seam Clamp

S-5-N 1.5 Seam Clamp

$6.26
$6.26
Sale Sold out
Shipping calculated at checkout.
QtyPrice
Buy 24$6.16 Each
Buy 96$5.96 Each

View full details
  • Same Day Shipping

    Same Day Shipping

    Order by 1PM ET

  • American Made

    American Made

    Built Right Here

  • S-5! Lifetime Warranty

    S-5! Lifetime Warranty

  • Description

    Looking to install Snow Guard Systems and other Heavy Duty Applications on taller Nail-Flange Profiles?

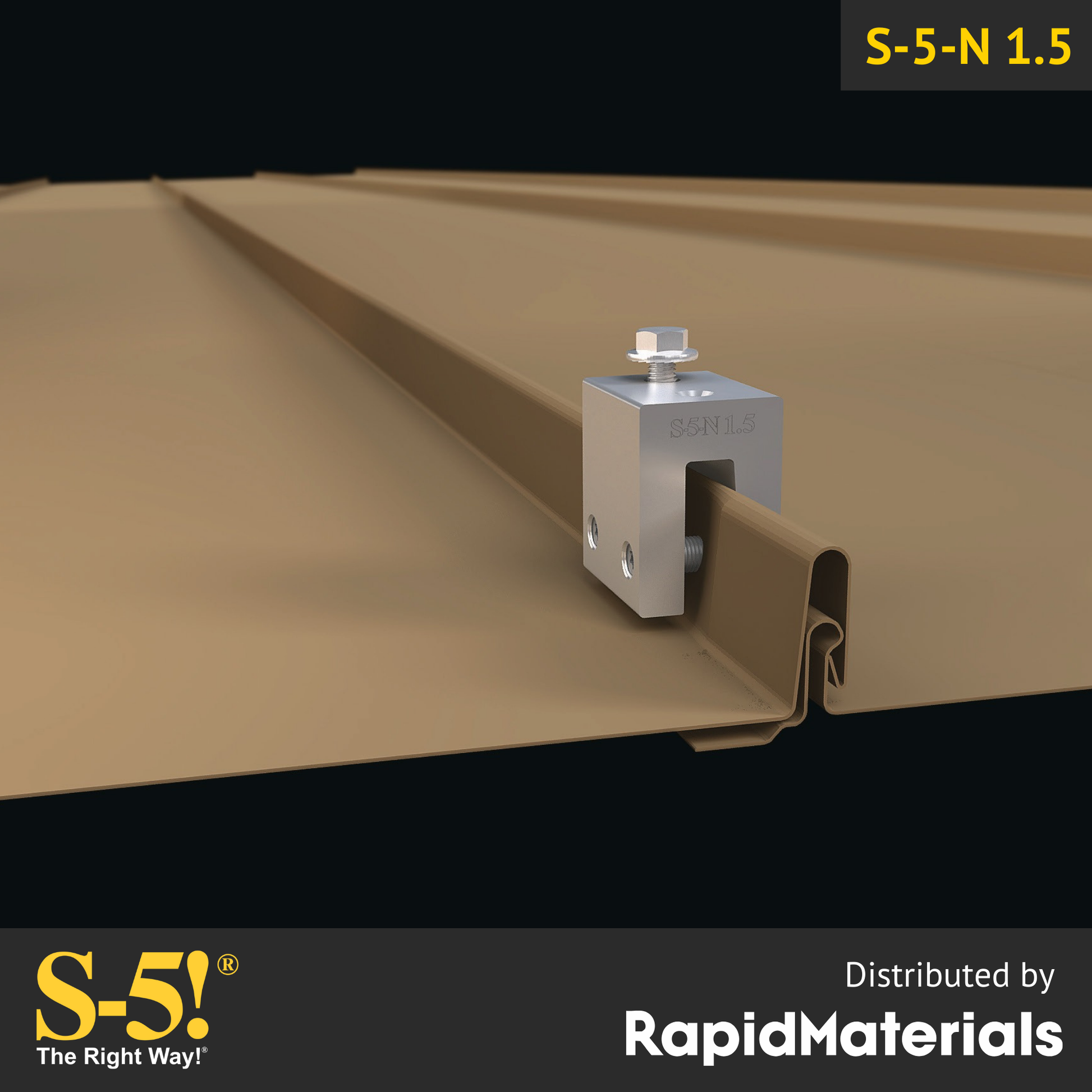

    Introducing the S-5-N 1.5 clamp, specifically designed for non-penetrating attachment to standing seam metal roofs (SSMR) with 1.5″ (38 mm) nail strip profiles. This clamp is the ideal choice for various profiles such as Bridger Steel 1.5″ Tru Snap, Schlebach 1.5″ NailStrip, Sheet Metal Supply NS 1.5″, Sheffield Metals SMI 1.5″, and similar roofing types.

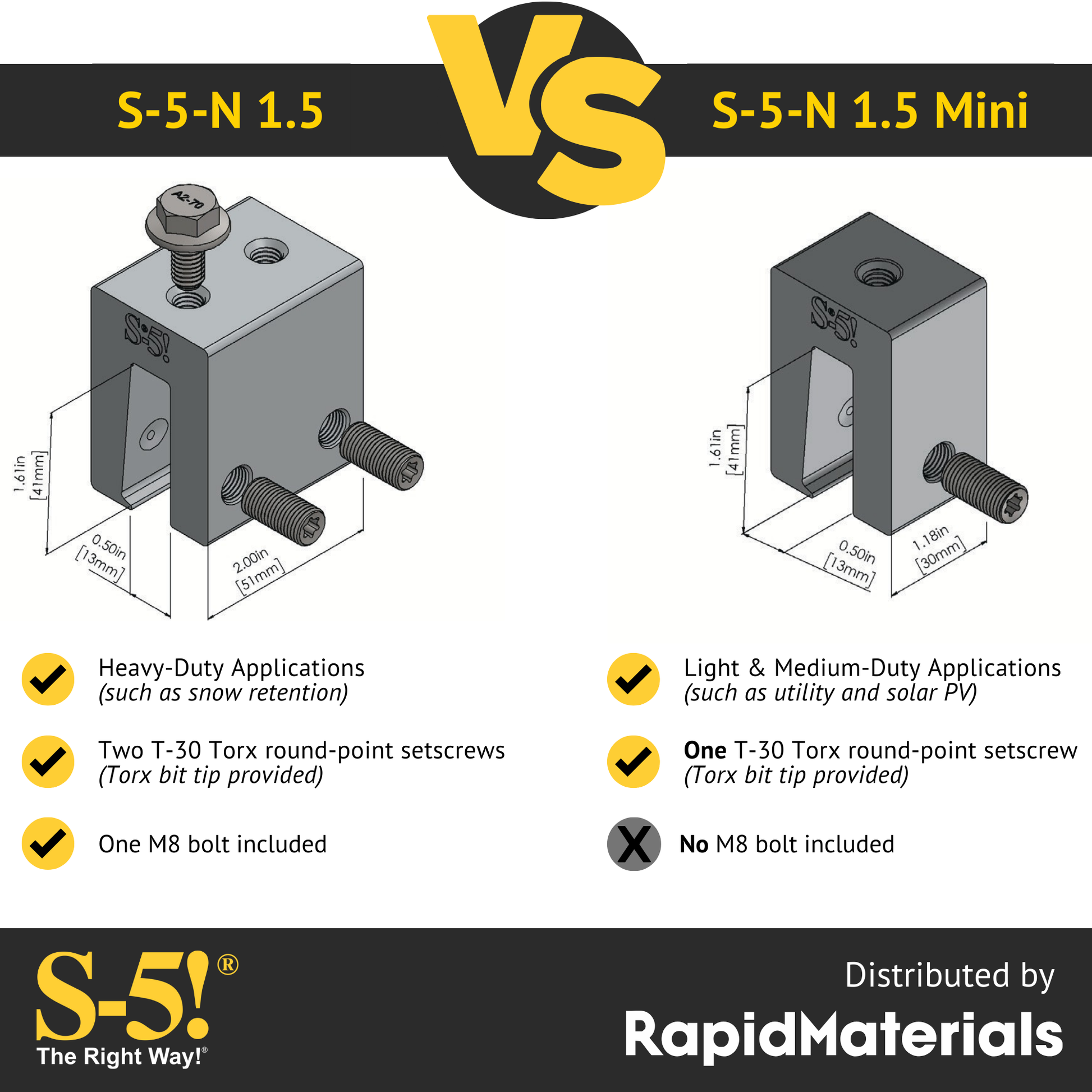

    If you’re working with nail strip profiles that have a 1″ seam height, please refer to the S-5-N clamp.

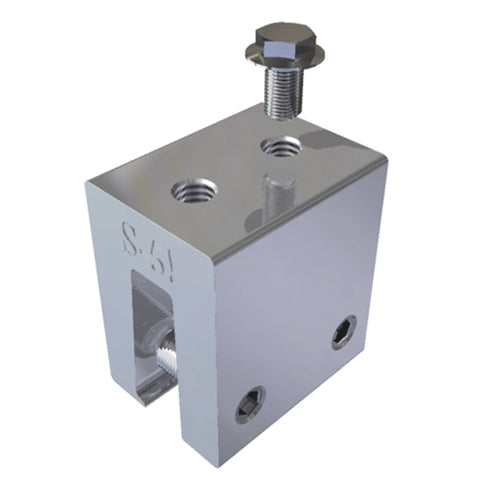

    The S-5-N clamp includes two (1) 3/8″x24 x 0.80″ round nose set screws and one (1) M8-1.25 x 16mm Hex Flange Bolt, all made of stainless steel. It has undergone rigorous load-to-failure testing by an independent laboratory and is compatible with various snow retention systems, including ColorGard.

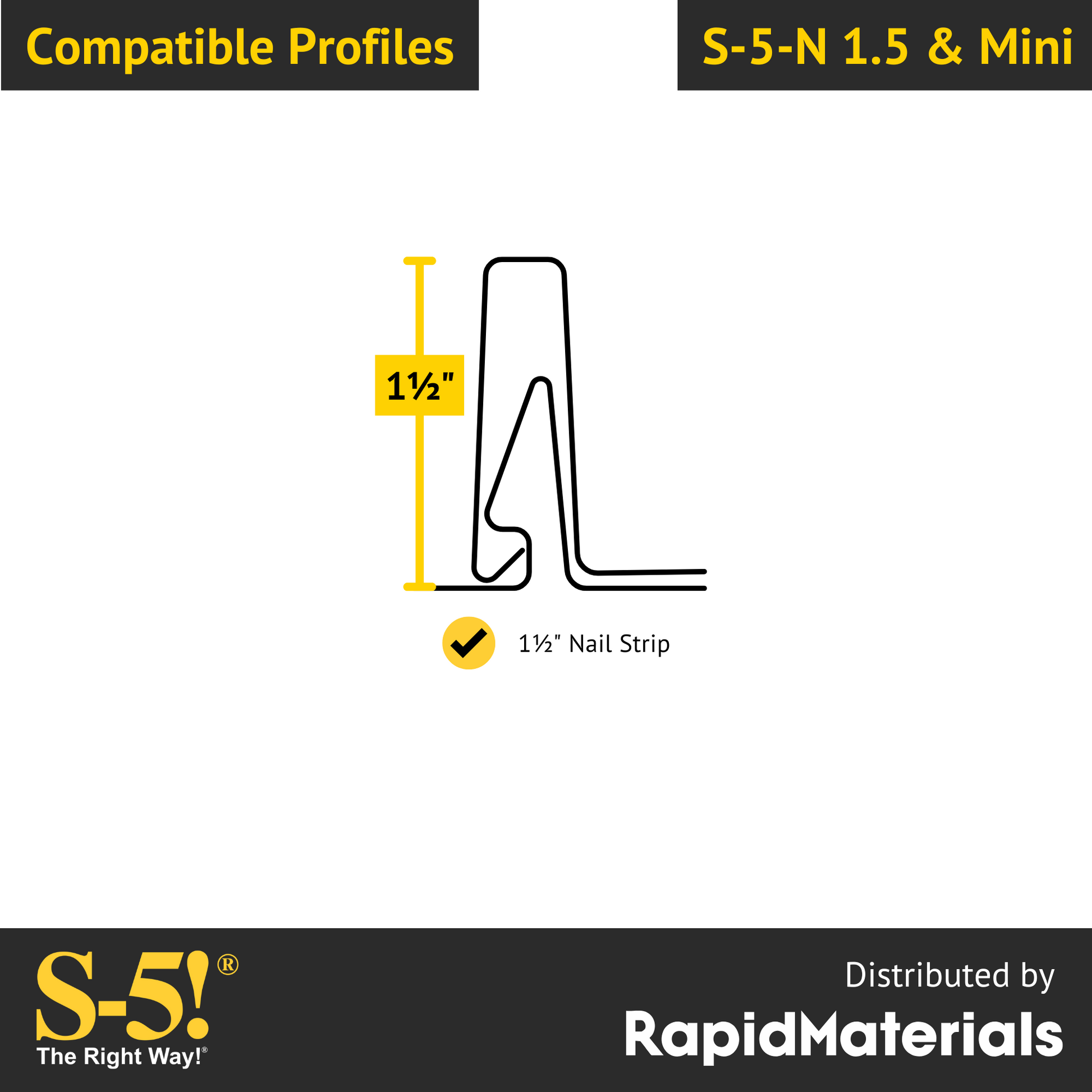

    S-5-N 1.5 fits Panel Profiles Similar to These:

    Product Specifications:

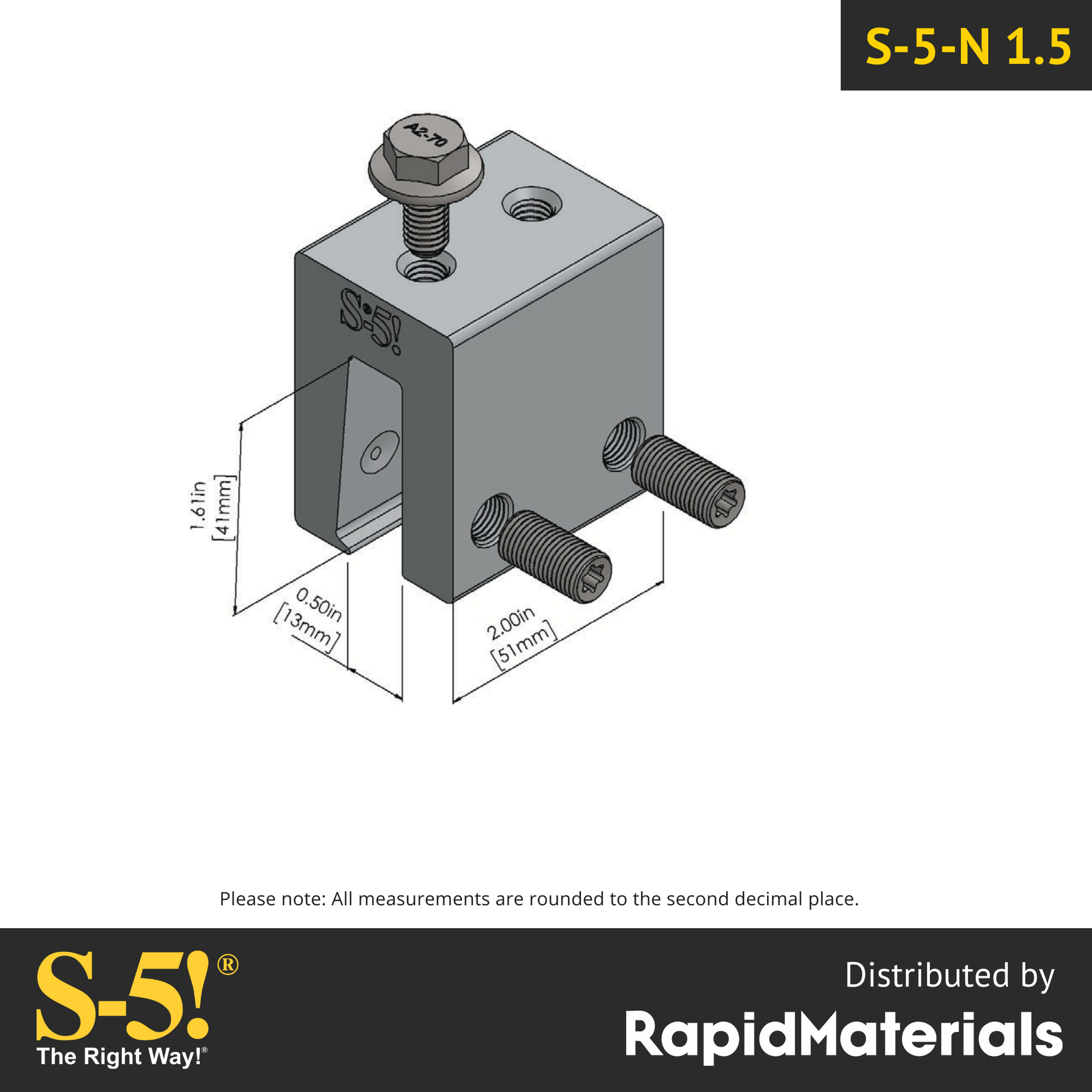

    • Designed for use on 1.5″ [38mm] nail strip metal roof panels
    • Angled wall with nose permits the clamp to fully engage the triangular-shaped profiles, providing the best holding strength possible
    • Perfect for use with heavy-duty applications like snow retention
    • Two (2) T-30 Torx set screws (Torx bit provided) and one (1) M8 top bolt included

  • Brand

    S-5!
    S-5! has led metal roof attachment since 1992, with zero-penetration clamps and brackets that preserve roof integrity and warranties.
    Shop more from S-5! →

    Specs

    • SKU: 54000017
    • Compatible Roof Profiles: Nail Strip
