SKU: 54000014 | Brand: S-5!

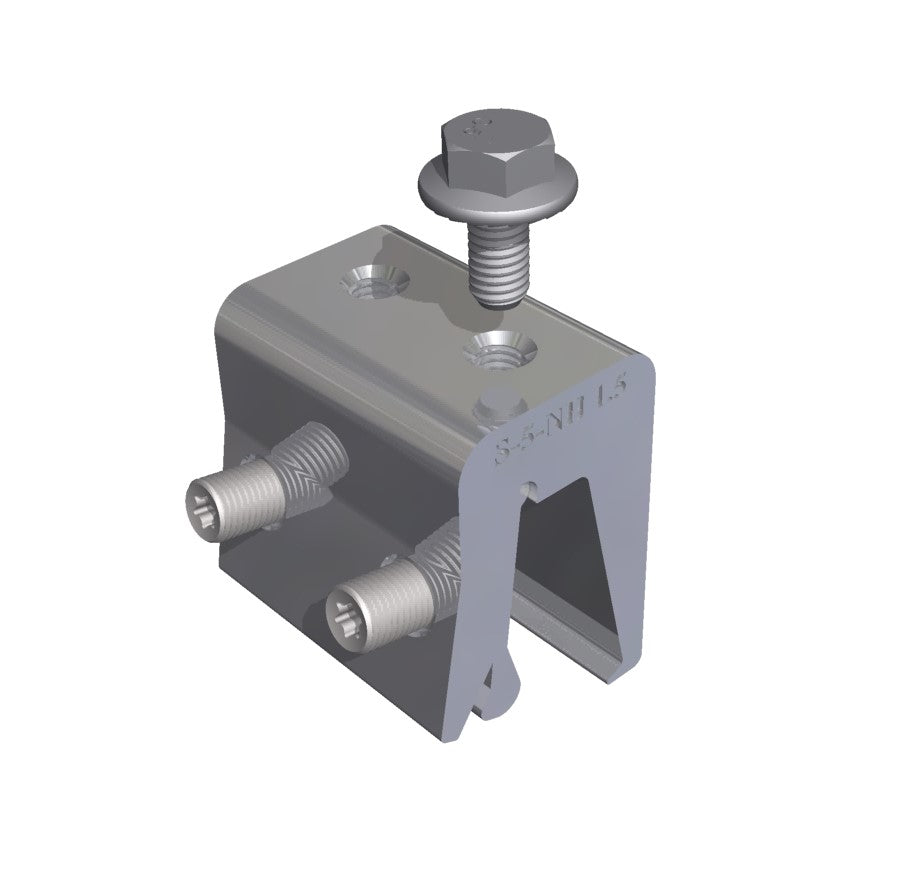

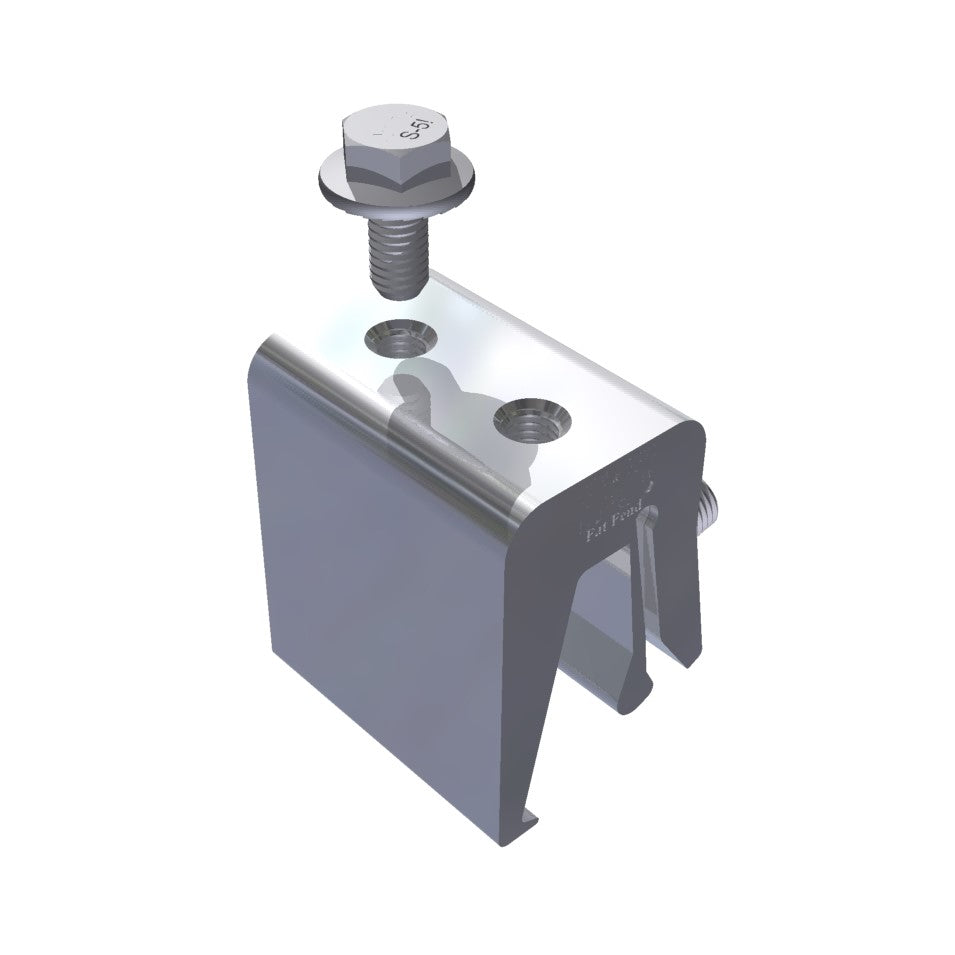

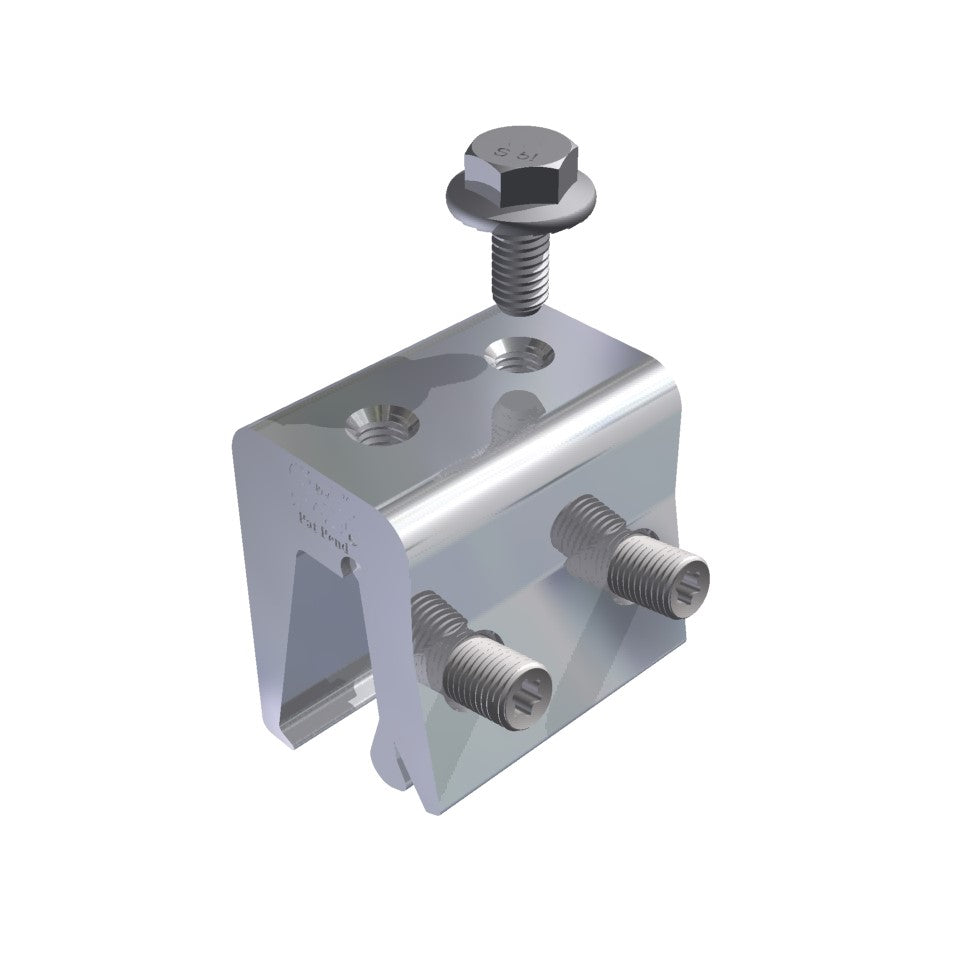

S-5-NH 1.5 Seam Clamp
Couldn't load pickup availability
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Shipping Information
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Description

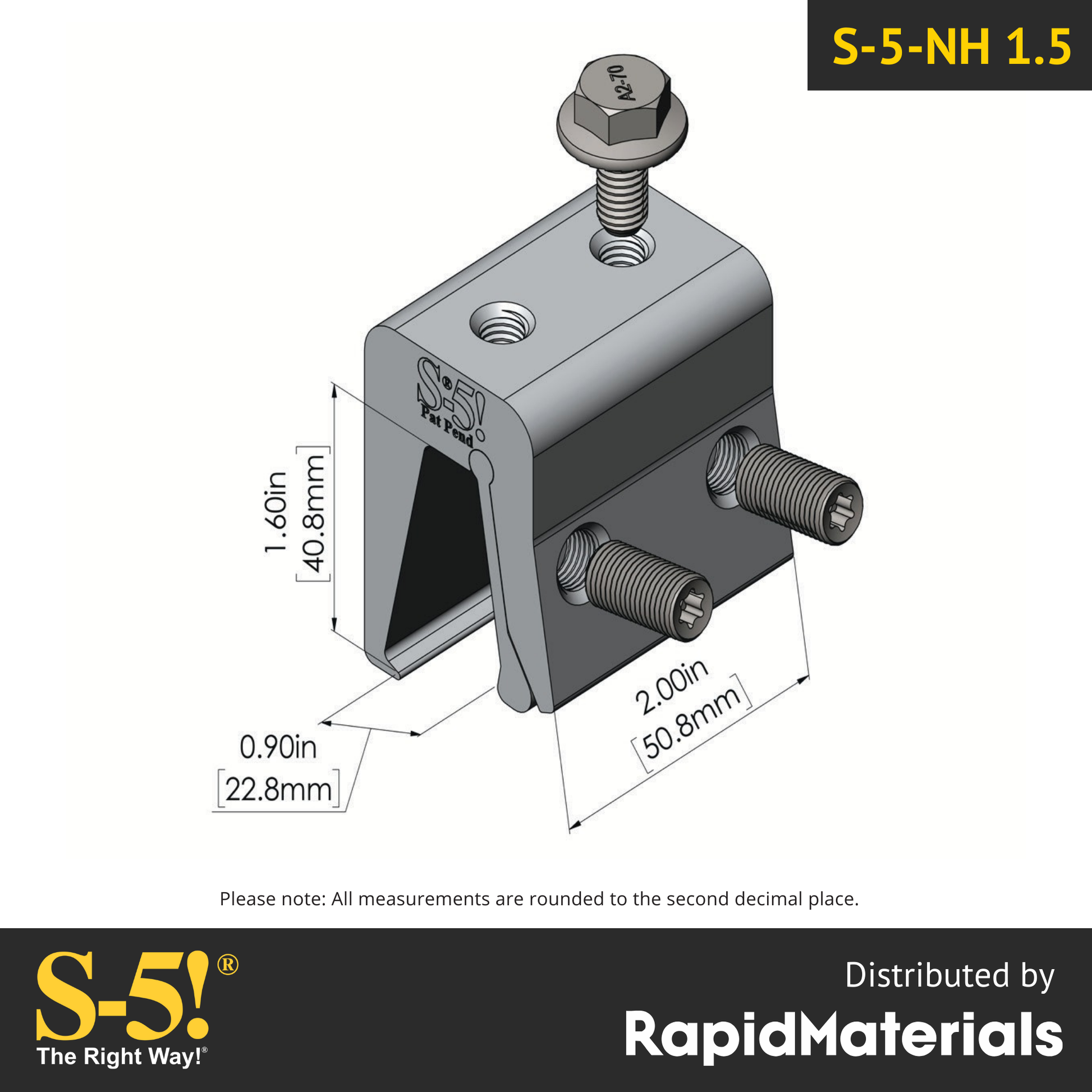

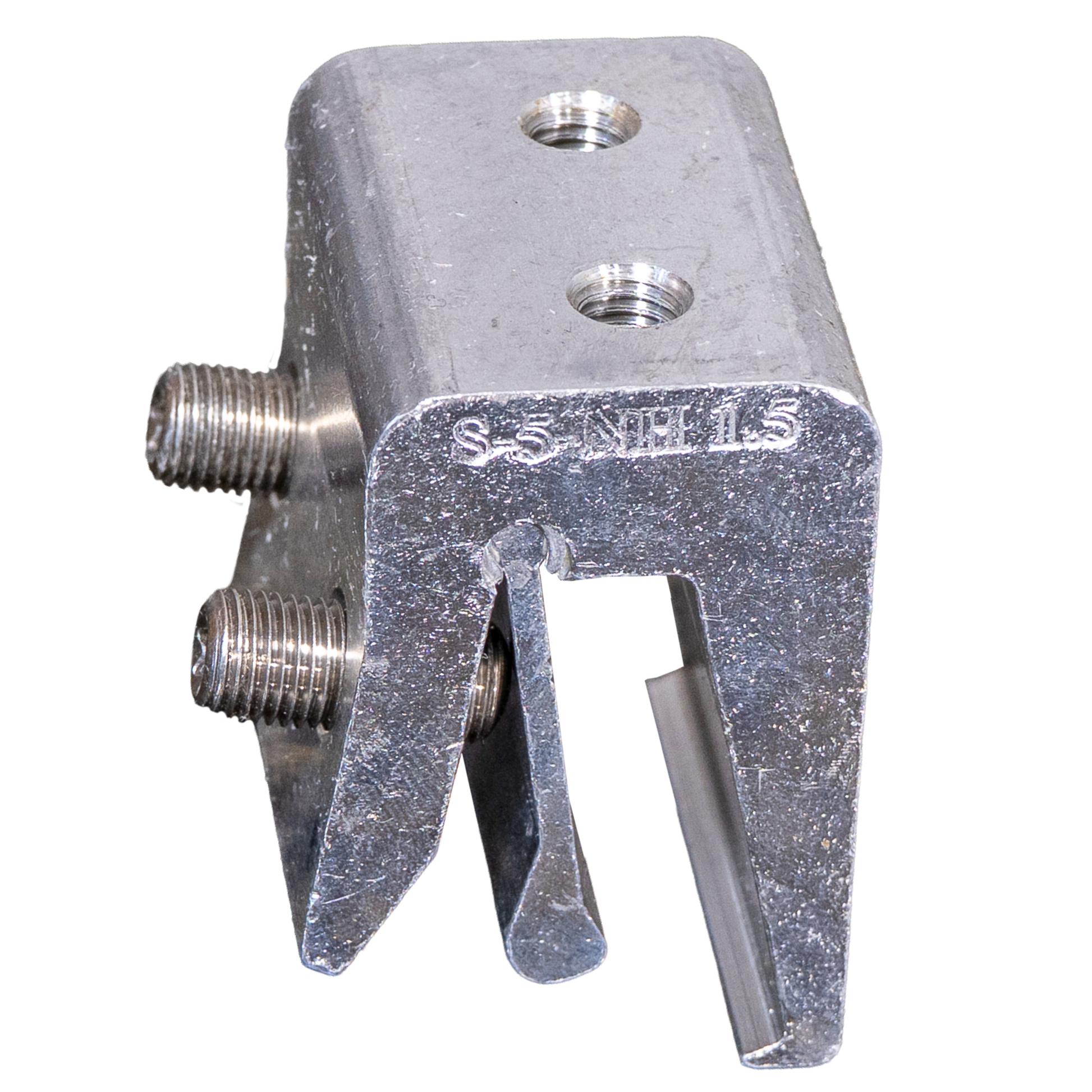

- The S-5-NH 1.5 clamp is designed for 1-1/2″ nail strip profiles with a wider horizontal dimension. It is typically used with profiles that have a width greater than 0.475″ (12mm) and less than or equal to 0.800″ (20.32mm).
- The S-5-NH 1.5 clamp is often used in conjunction with S-5! ColorGard snow retention systems and other heavy-duty applications.
- Its innovative insert features a “hinge” design with a toe that engages the female portion of the panel, allowing it to conform to the shape of the seam. This design helps prevent damage at the point of attachment while providing optimal holding strength.
- The clamp’s hinge insert is reversible, which means it can fit properly on both wide and medium-width profiles.
- The T-30 Torx setscrews on the clamp are angled upward, making it easier to insert the tool during installation.

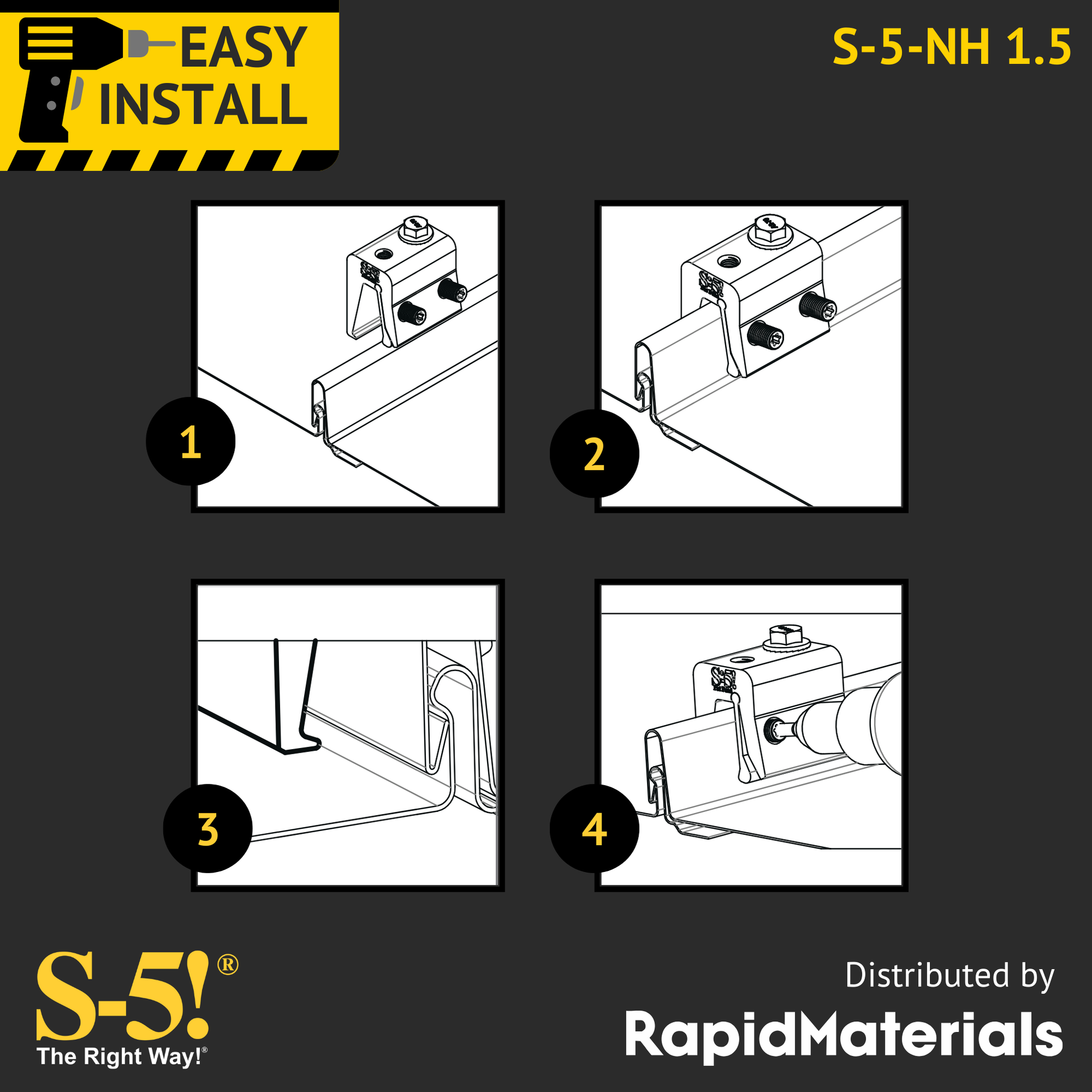

- Additionally, one end of the hinged insert is staked to aid in the installation process, ensuring a secure attachment.
Here are some additional features of the S-5-NH 1.5 clamp:
- Made from high-quality materials for durability and long-lasting performance.
- Easy to install and use.
- Provides a secure attachment for a variety of applications.
- Backed by a satisfaction guarantee.

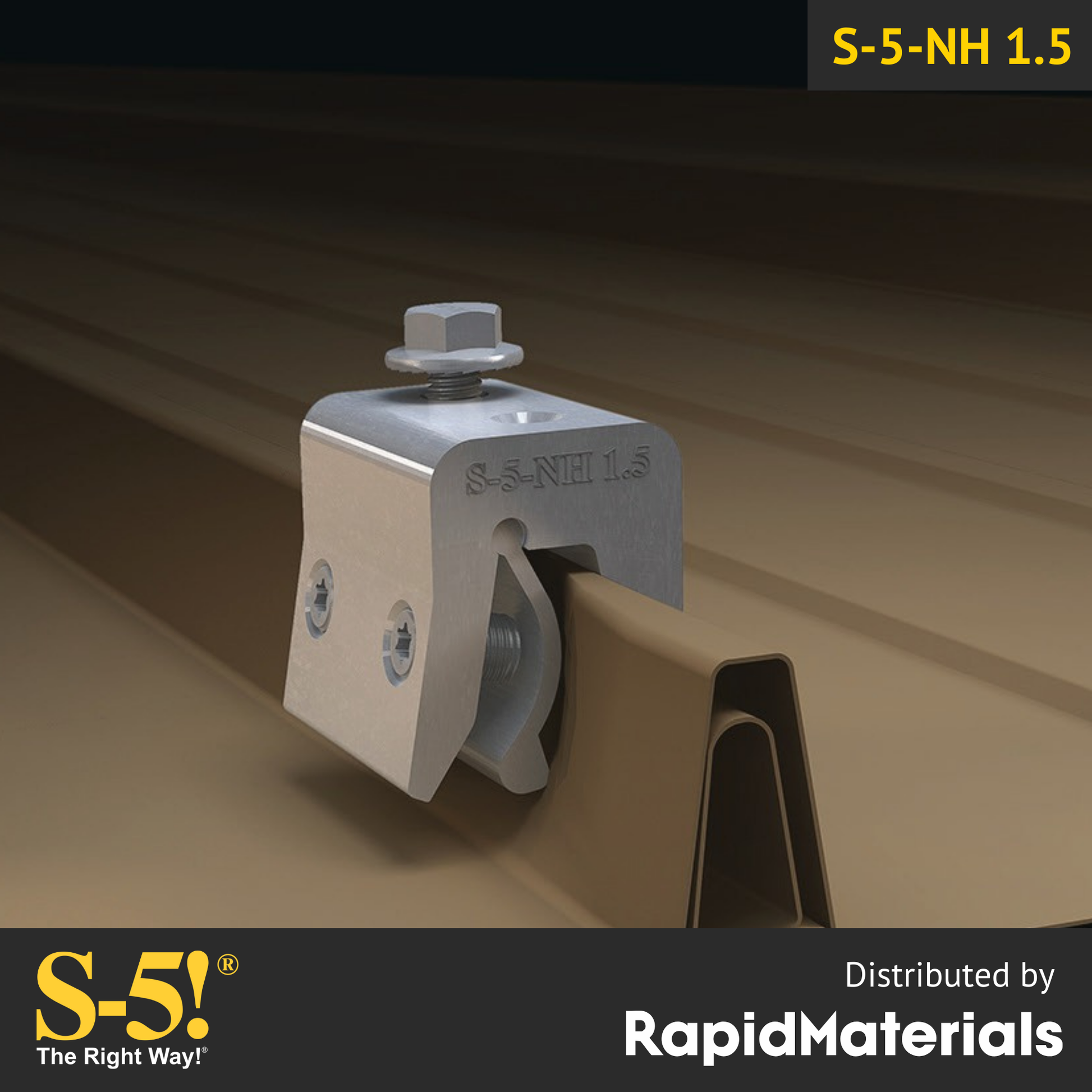

If you are looking for a high-quality, heavy-duty clamp for your metal roof, the S-5-NH 1.5 is a great option. It is easy to install, provides a secure attachment, and is backed by a satisfaction guarantee.

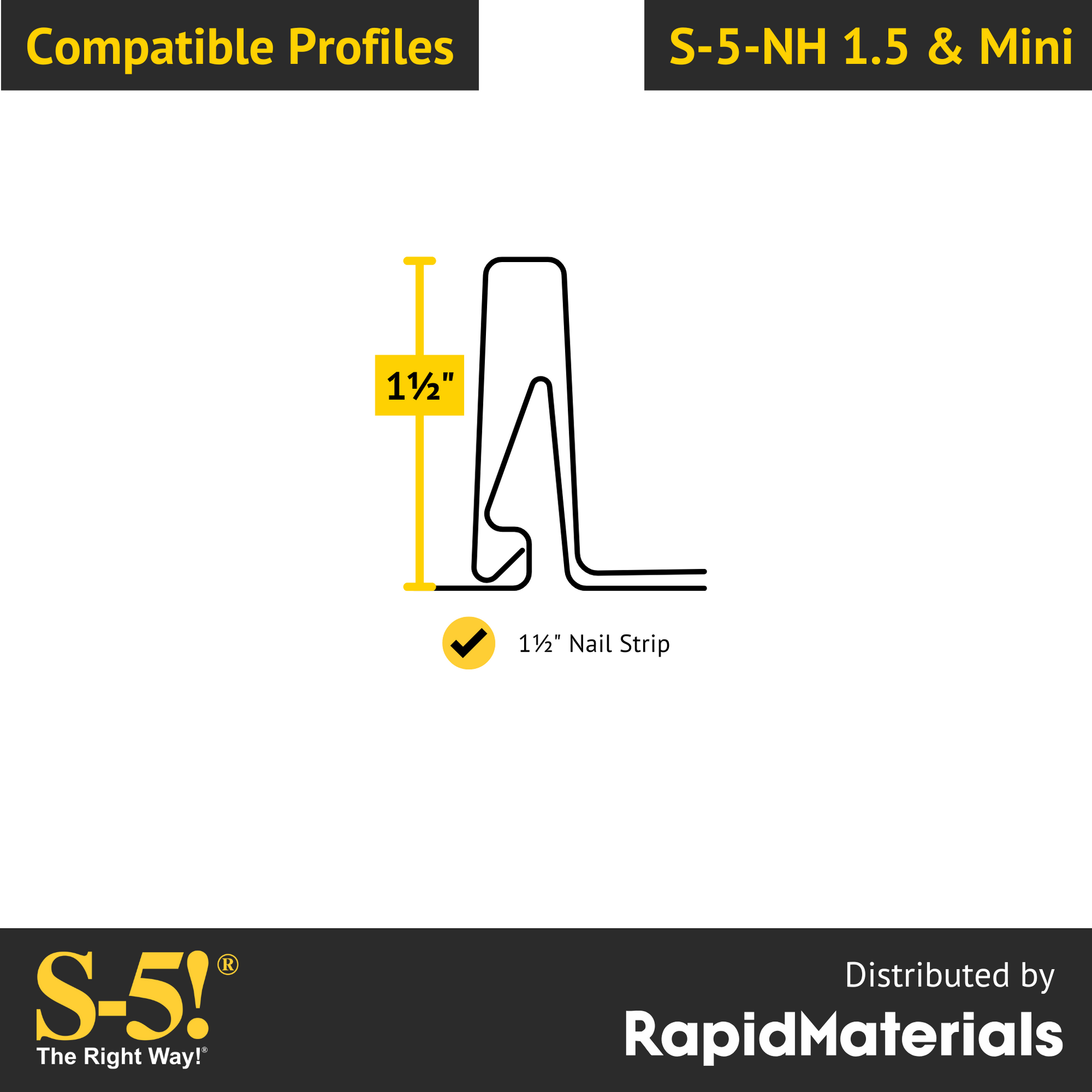

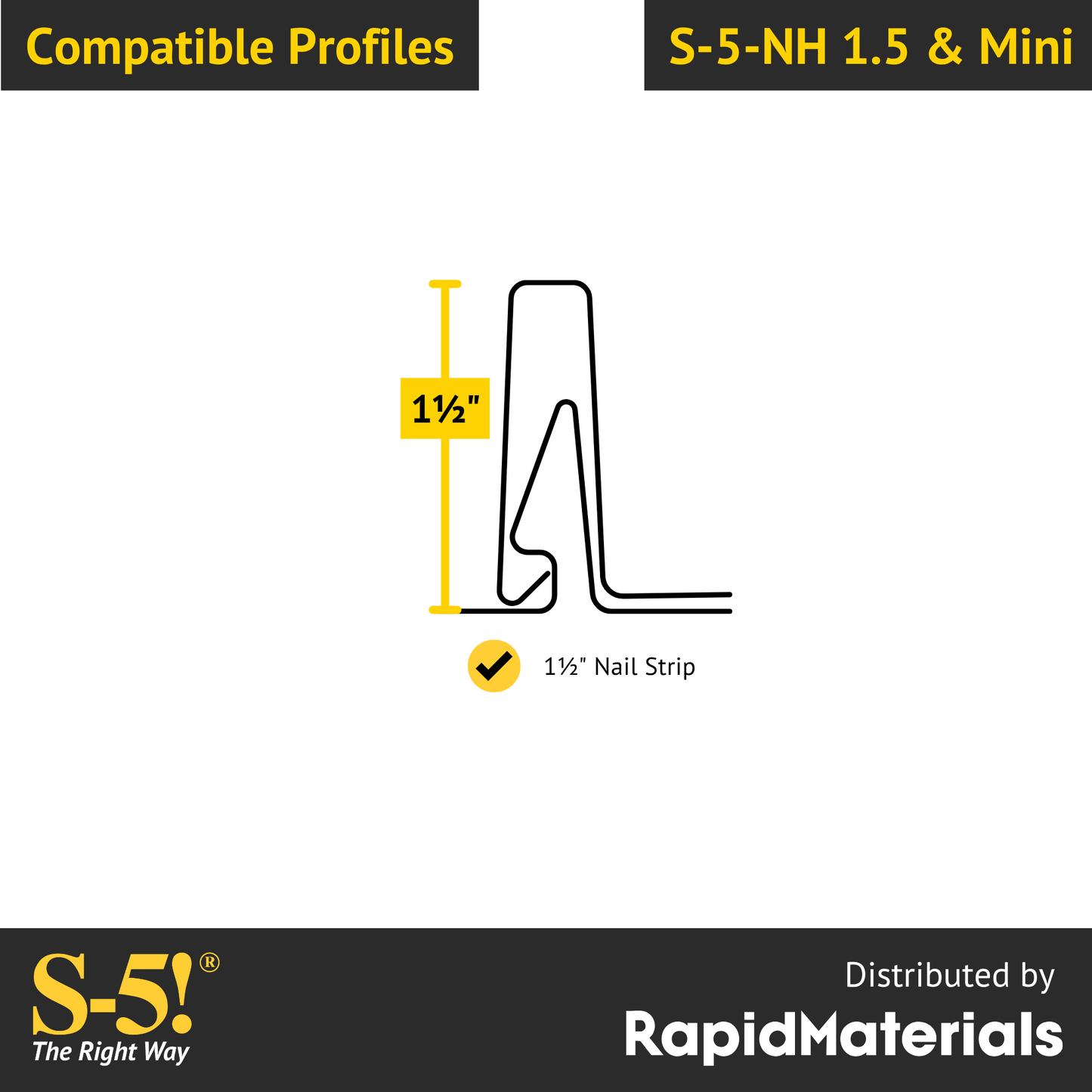

Profiles the S-5-NH 1.5 Clamp Fits:

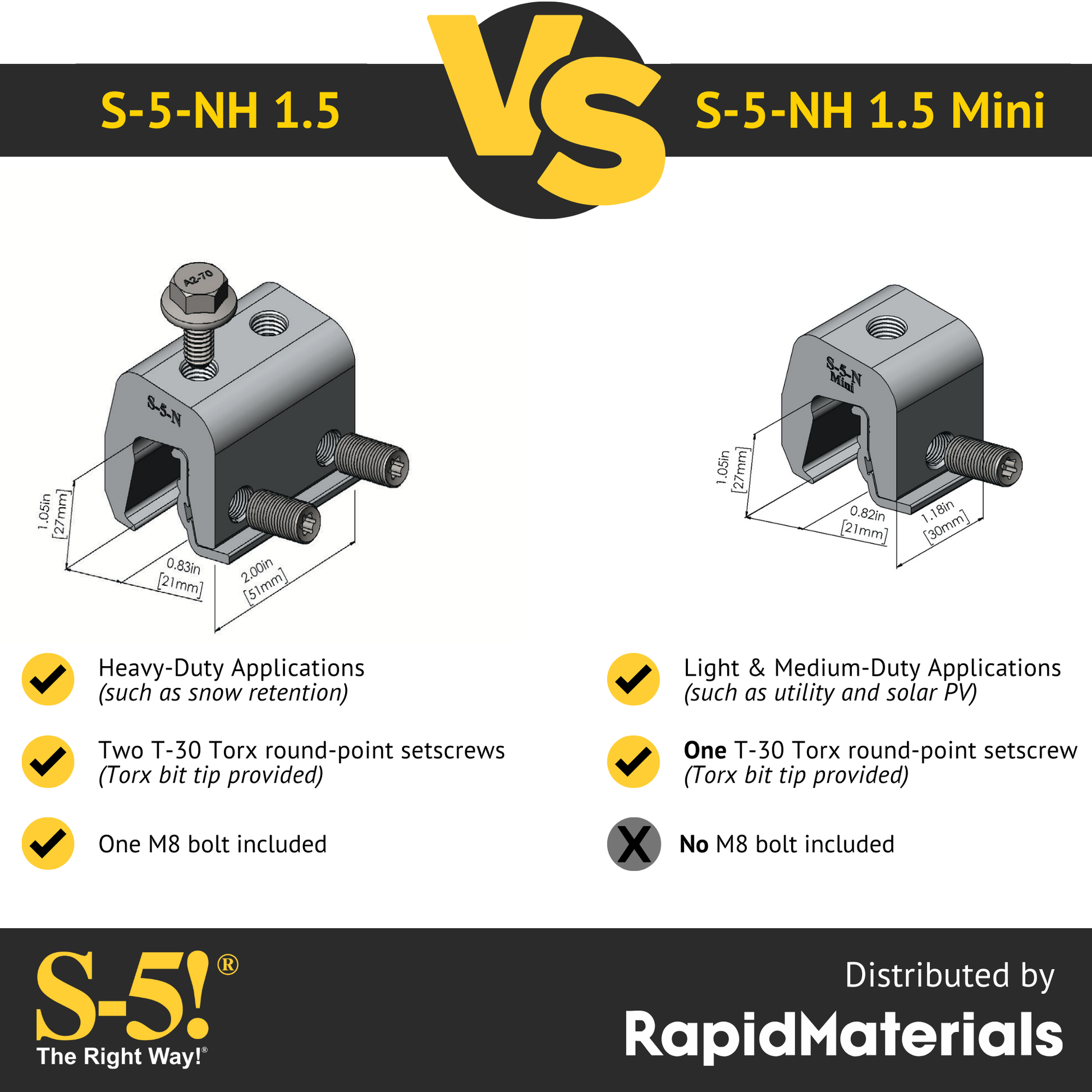

Installing medium duty products like Solar modules? Consider using the S-5-NH 1.5 mini clamp.
