SKU: 54000015 | S-5!

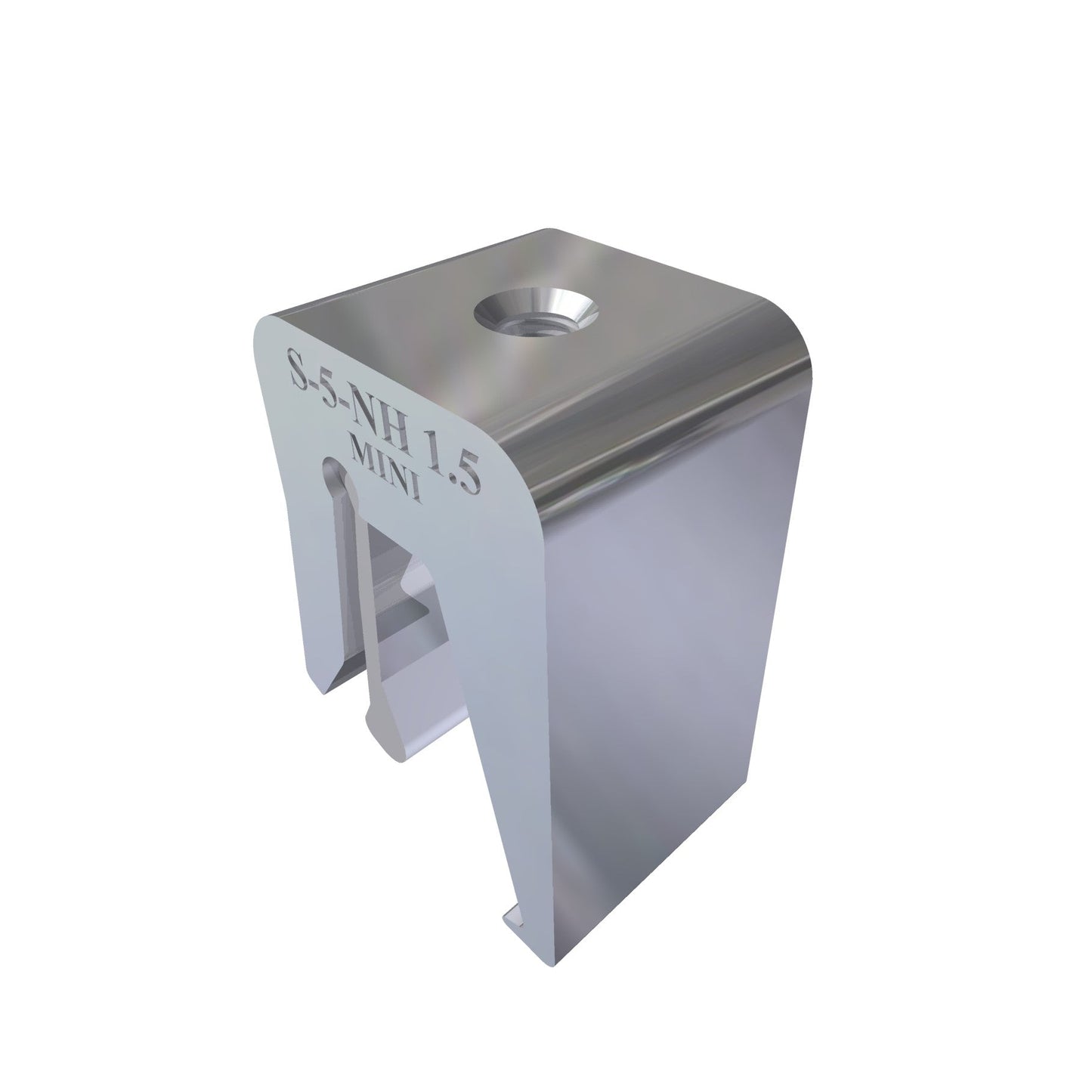

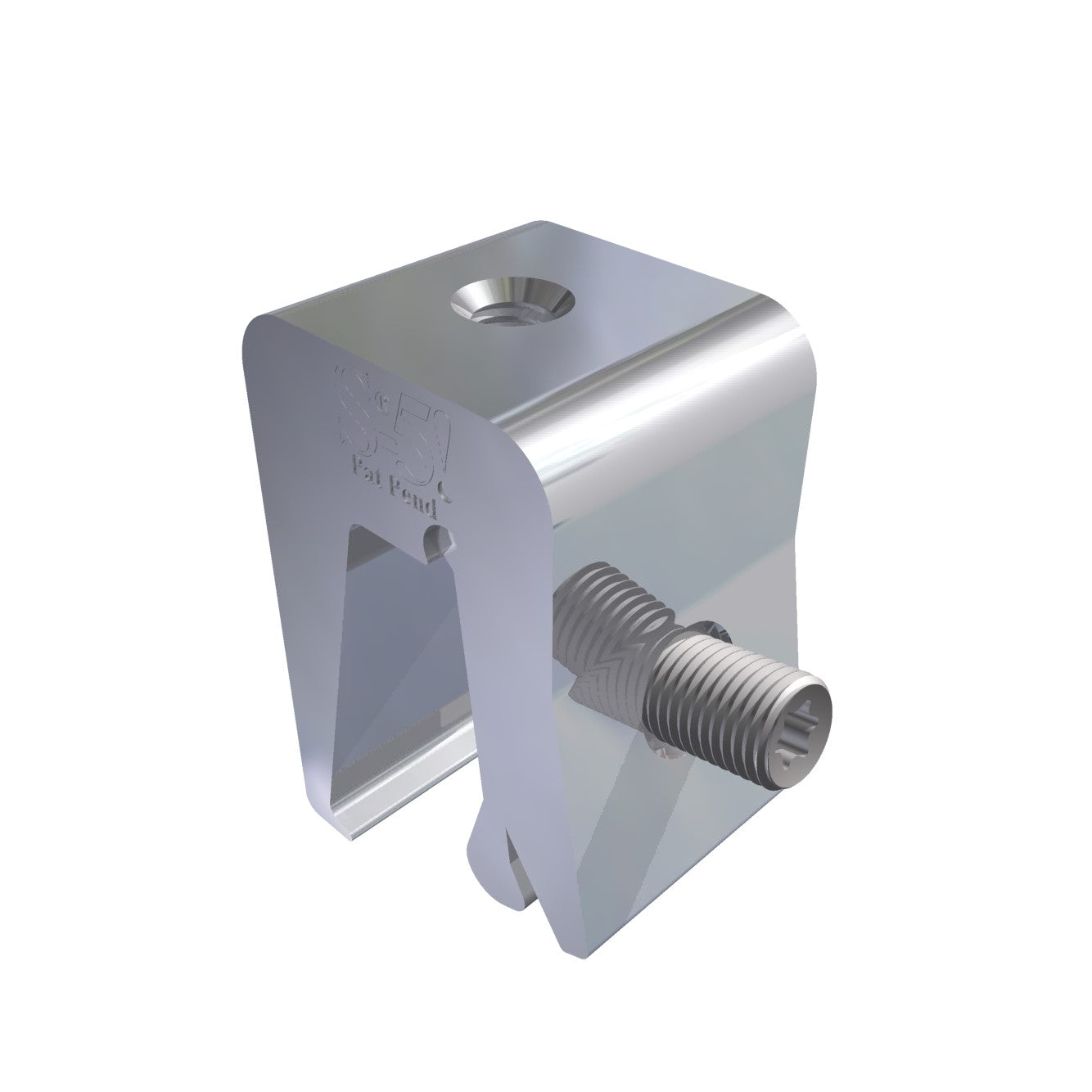

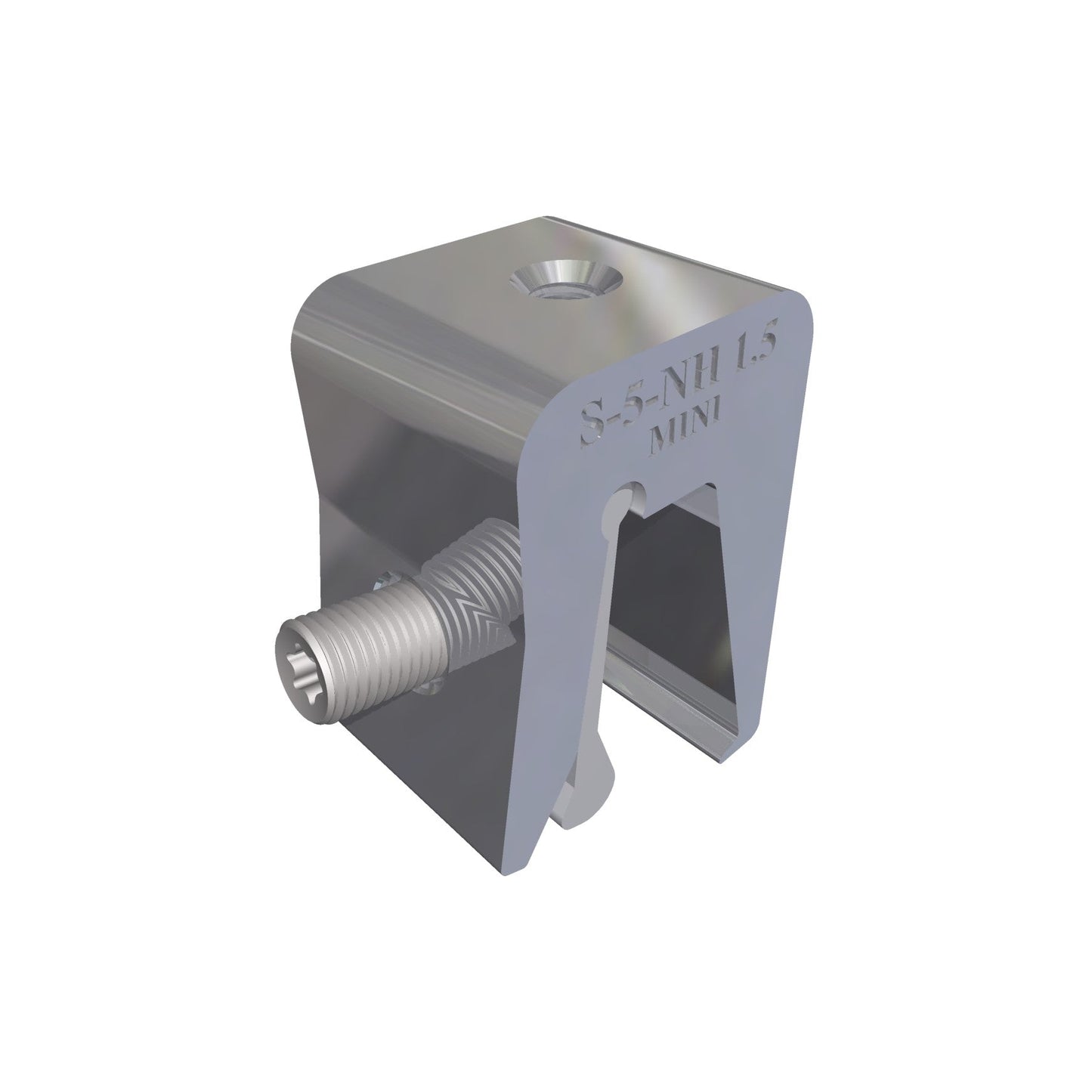

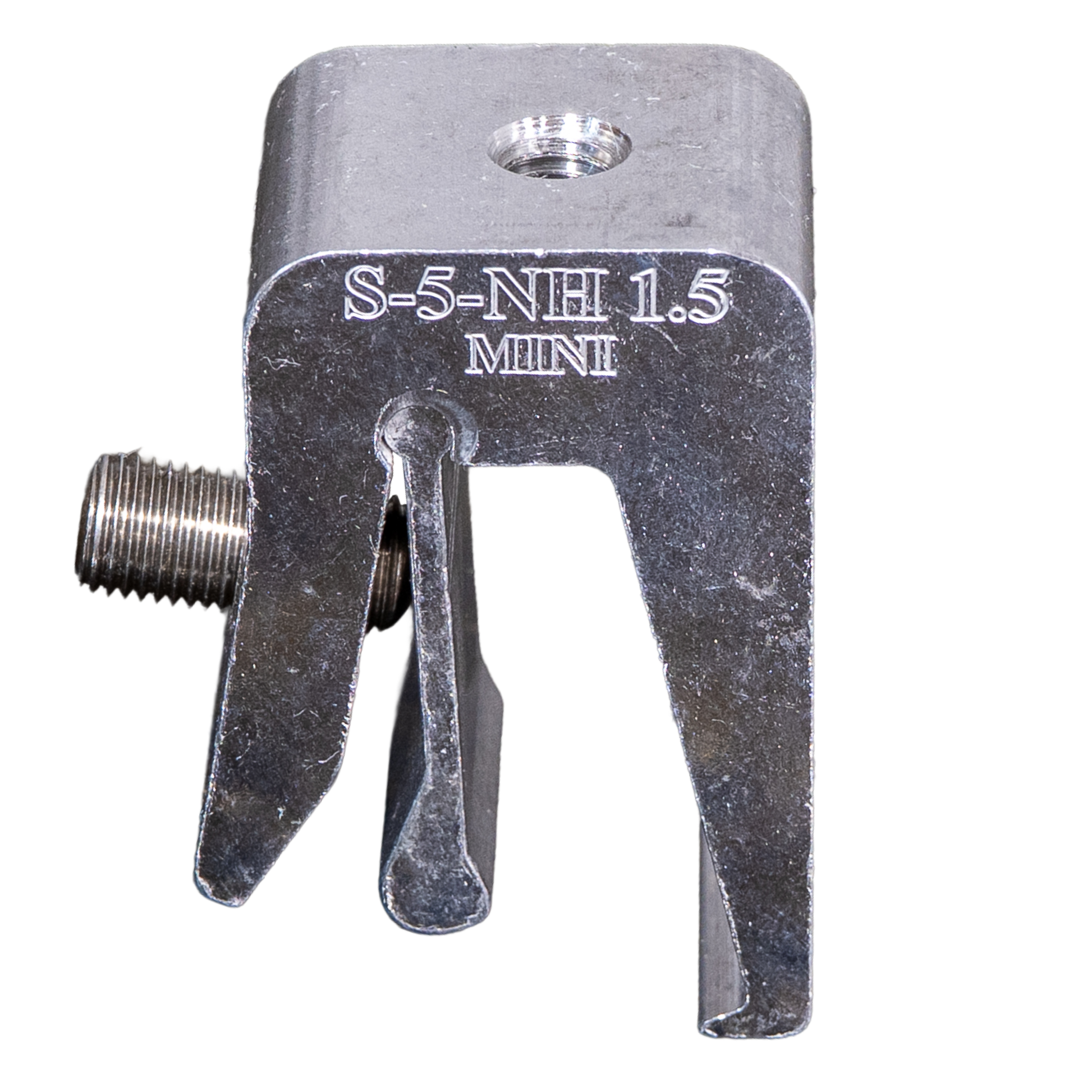

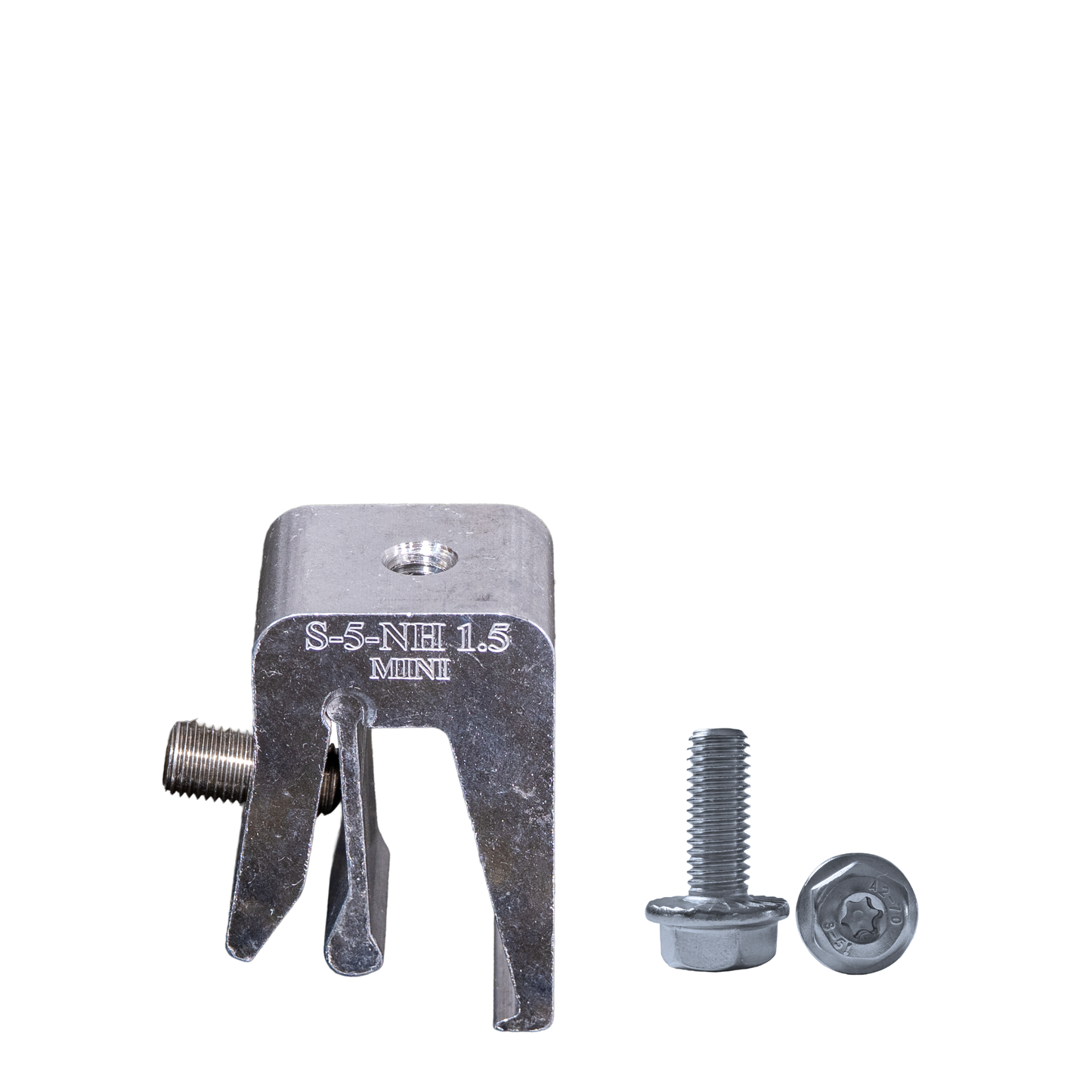

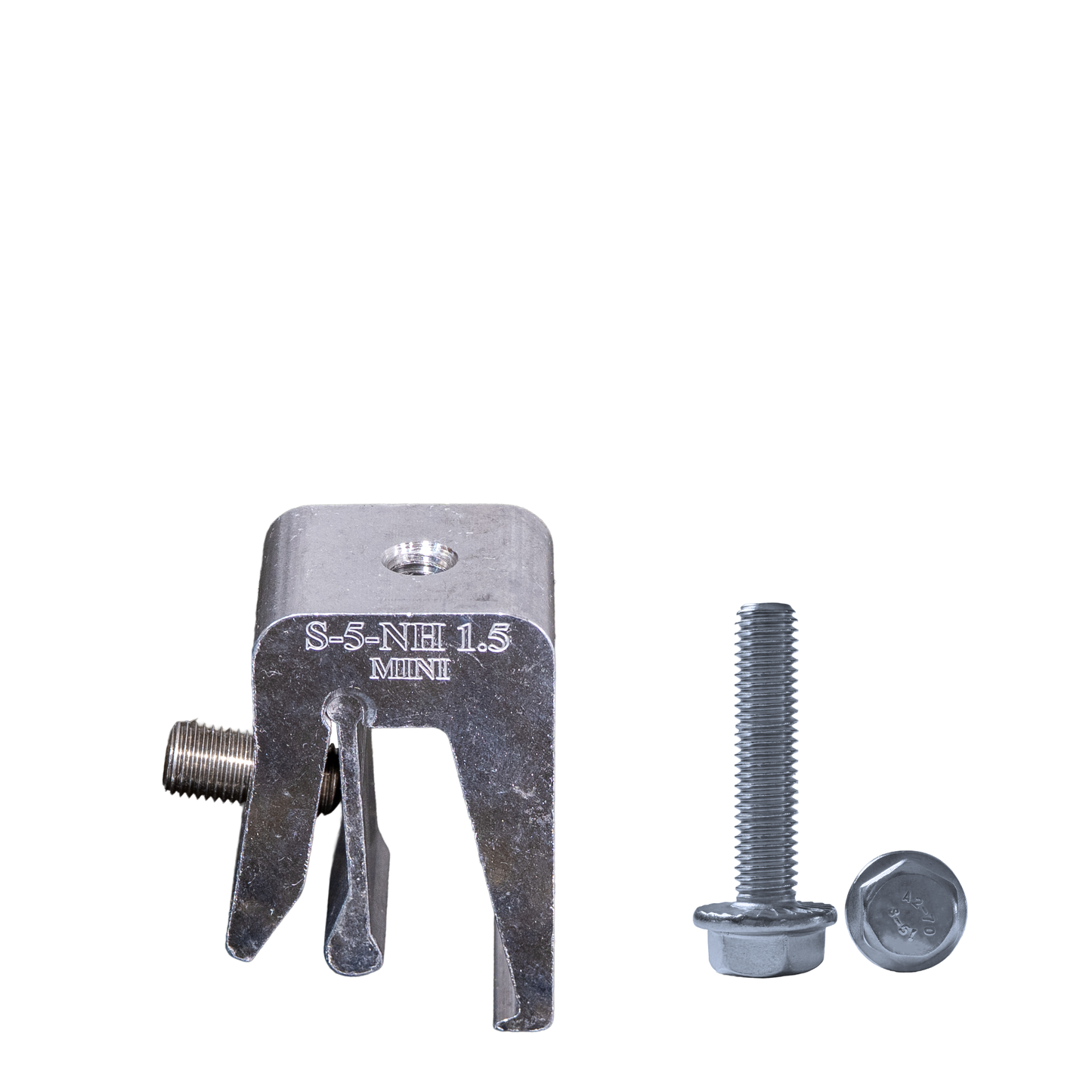

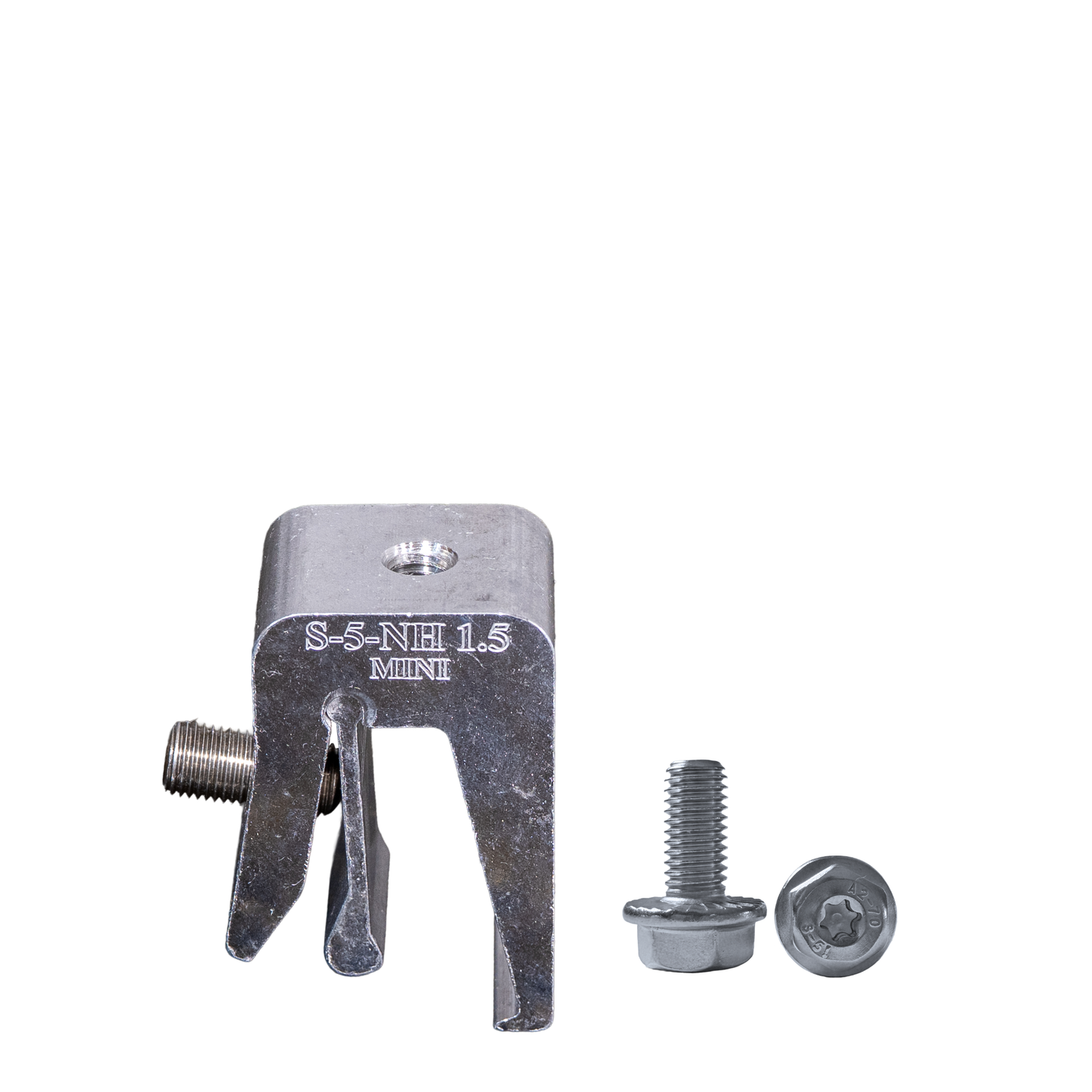

S-5-NH 1.5 Mini Seam Clamp
| Qty | Price |
|---|---|
| Buy 40 | $7.62 Each |
| Buy 160 | $7.43 Each |
| Qty | Price |
|---|---|
| Buy 40 | $8.34 Each |
| Buy 160 | $8.13 Each |
| Qty | Price |
|---|---|
| Buy 40 | $8.46 Each |
| Buy 160 | $8.25 Each |
| Qty | Price |
|---|---|
| Buy 40 | $8.63 Each |
| Buy 160 | $8.41 Each |
Couldn't load pickup availability
Earn 0 points on this purchase.
-
Same Day Shipping
Order by 1PM ET
-
American Made
Built Right Here
-
S-5! Lifetime Warranty
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Please note: Some products may require additional handling time and will take longer than 24 hours to ship. For specific shipping details or lead times, refer to the individual product page or contact us directly—we’re here to help.
-
Description

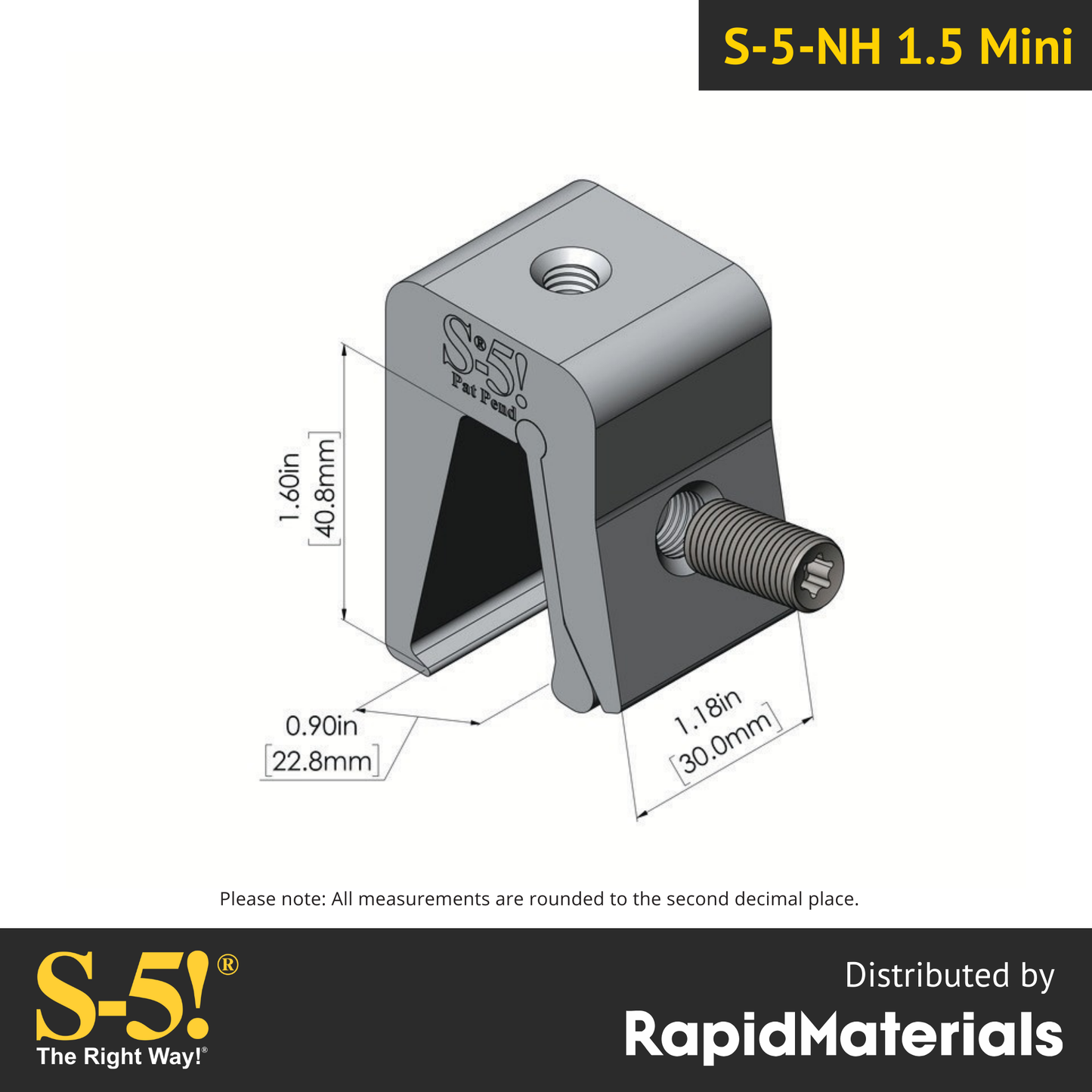

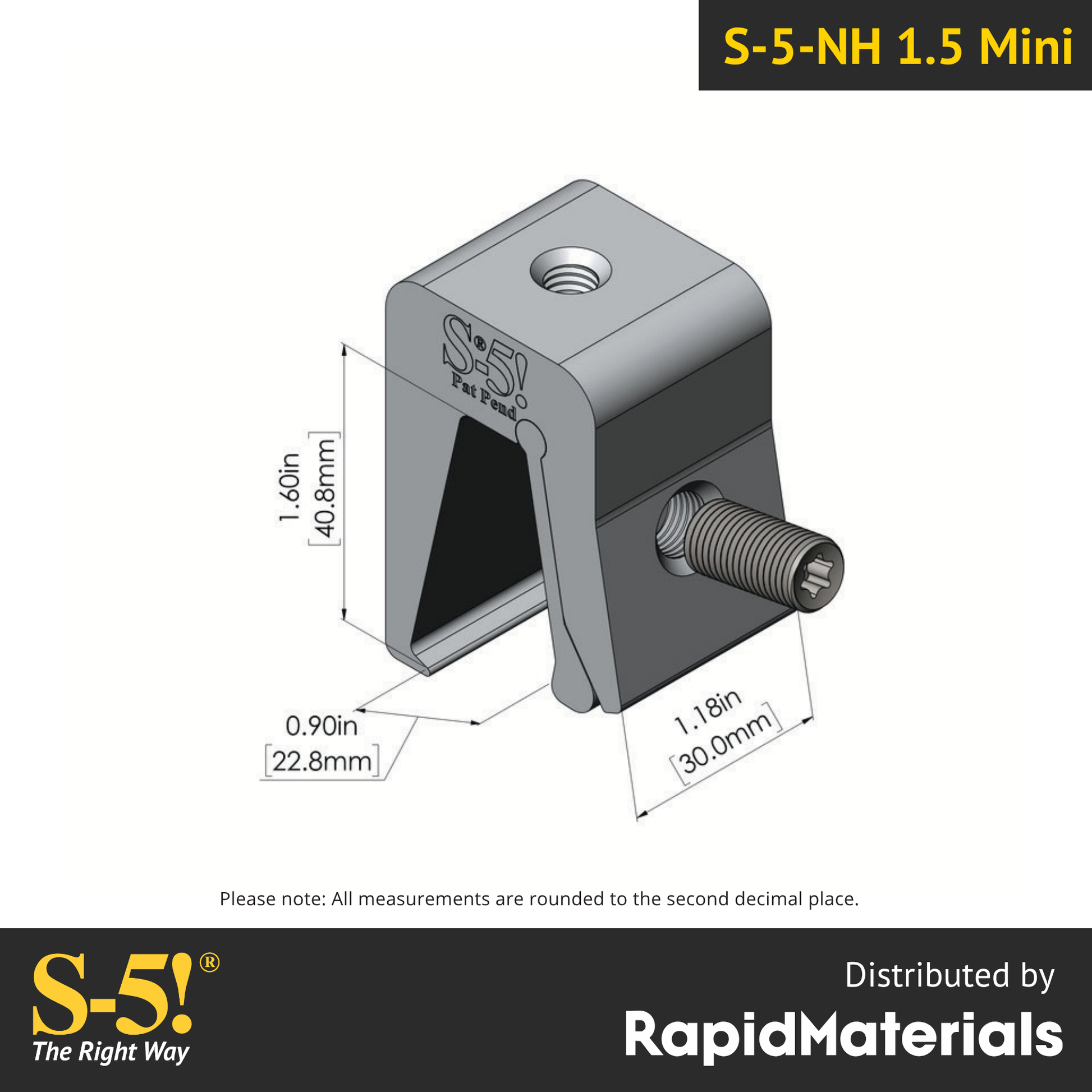

The S-5-NH 1.5 mini is specifically designed for use with 1.5″ (38 mm) nail strip profiles that have a wider horizontal dimension between 0.475″ and 0.800″. The “H” in the product name signifies its hinged design.
This particular product, the S-5-NH 1.5 mini, serves as an excellent mounting solution for certain profiles like VicWest Prestige, NewTech FF150, and similar profiles with comparable dimensions. It offers a secure and reliable method for attaching various accessories or equipment to these specific nail strip profiles.
When using the S-5-NH 1.5 mini, you can ensure proper attachment and stability while mounting items such as solar panels, HVAC equipment, snow retention systems, or other accessories onto the compatible nail strip profiles mentioned.
Please ensure that you follow the manufacturer’s guidelines and recommendations when selecting and installing any specific product to ensure proper compatibility and functionality
The S-5-NH 1.5 Mini is not compatible with and should never be used with ColorGard snow retention systems. The regular S-5-NH 1.5 should be used with ColorGard.

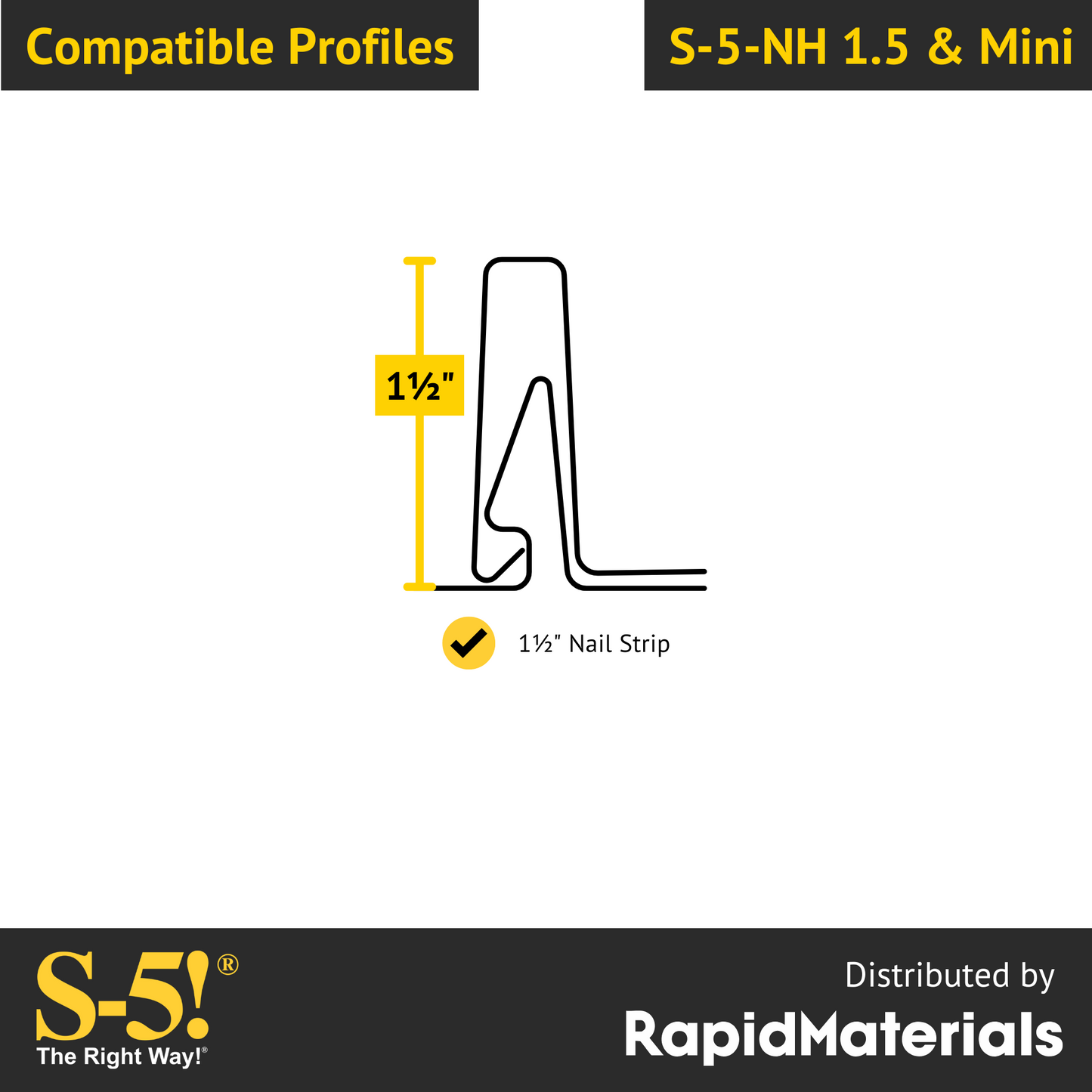

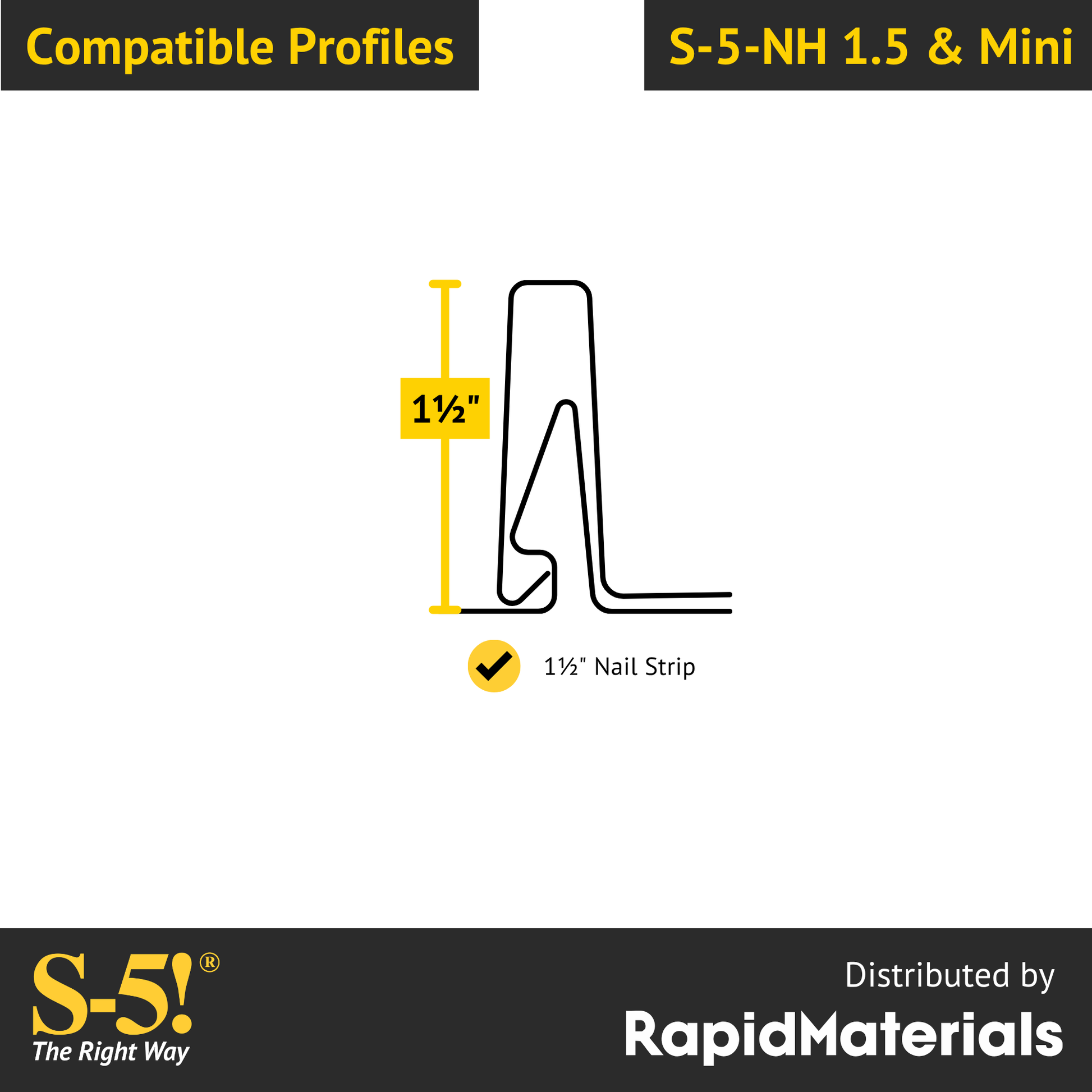

The S-5-NH mini fits 1-1/2″ Nail-Strip panel profiles that have a wider horizontal dimension from 0.475″ to 0.8″ in width.
Features:
- Reversible Hinge allows for fit on both wide and also medium width panel profiles
- Hinged Insert conforms to shape of seam, preventing damage or puncture at the point of attachment
- Optimal Holding Strength. The toe on the hinged portion of the clamp engages the female portion of the panel
- Staked Clamp Body prevents the insert from walking during installation and tightening of set screws
- Angled Setscrews make it easier to tighten with a screwgun
- T-30 Torx setscrews improve driver bit withdrawal after the screw has been tensioned

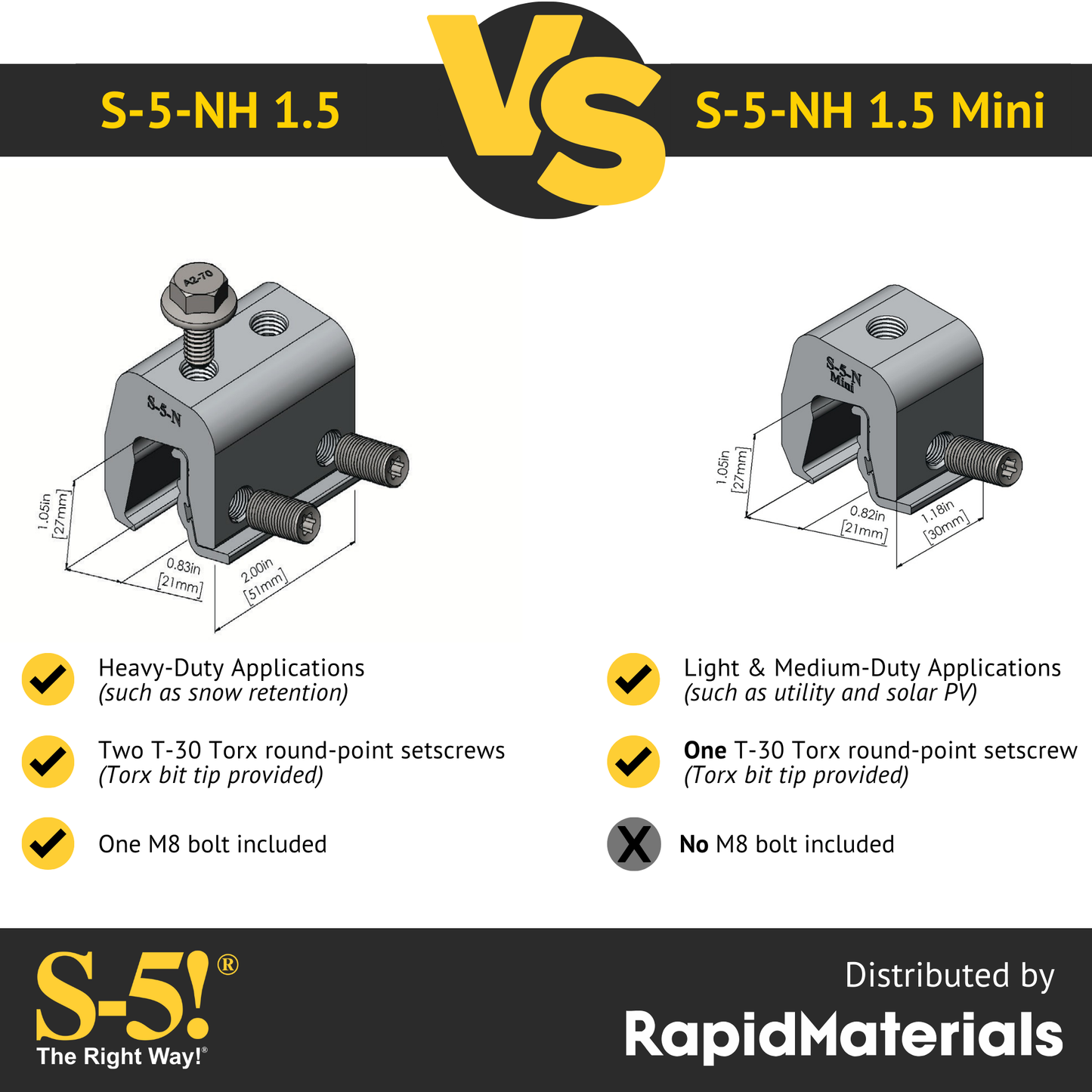

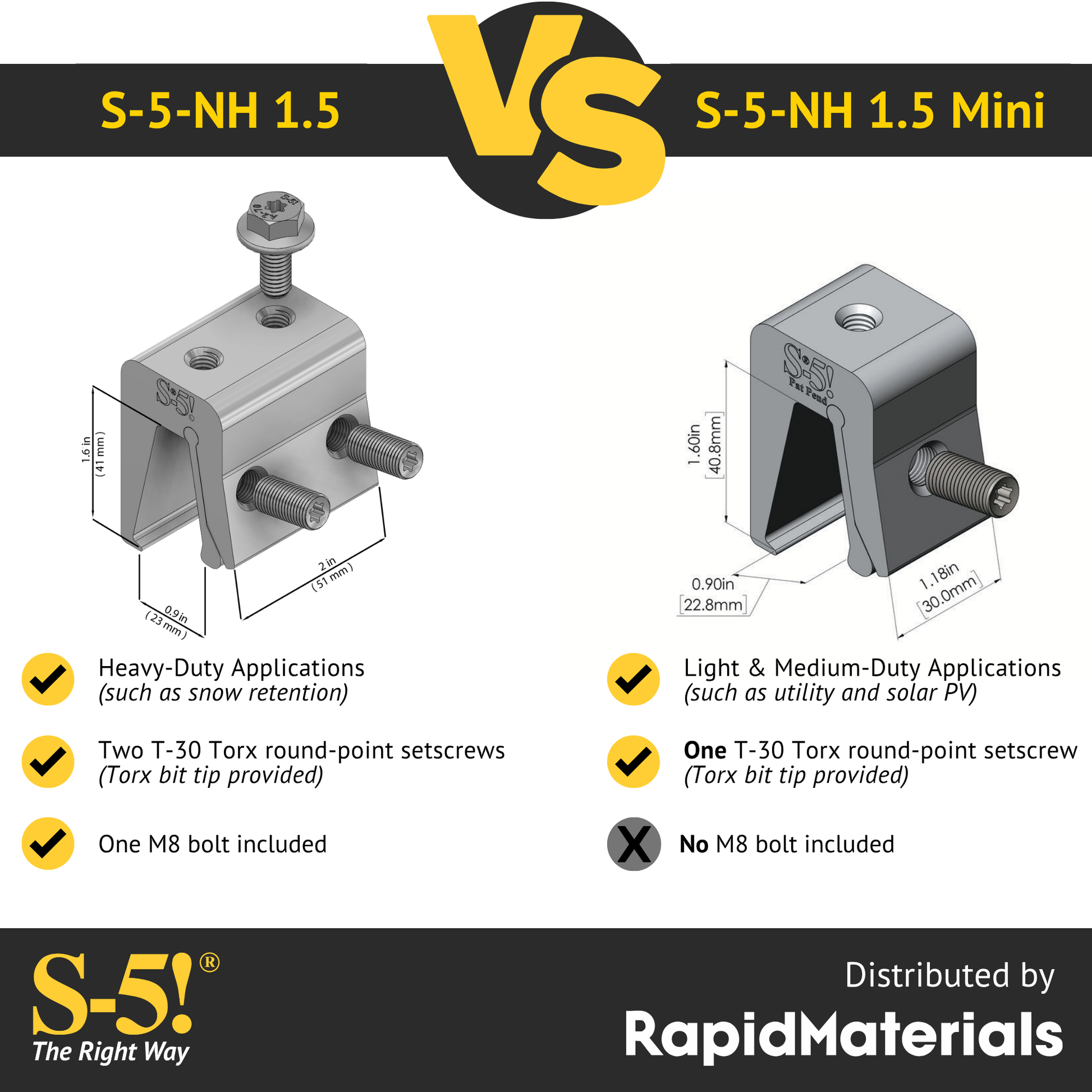

- Standard and Mini sizes available (mini clamps should never be used with ColorGard snow retention systems)
- 6000 Series aluminum body and insert
- 300 Series stainless steel hardware
-
Brand
S-5!S-5! has led metal roof attachment since 1992, with zero-penetration clamps and brackets that preserve roof integrity and warranties.Shop more from S-5! →
Specifications
- SKU: 54000015
- UPC: 810099471052
- Direction:
- Finish:
- Reflectivity:
- Coverage:
- Thickness:
- Size:
- Warranty:
- Compatible Roof Profiles: Nail Strip
