SKU: 54000026 | Brand: S-5!
S-5-T Mini Seam Clamp
S-5-T Mini Seam Clamp
Couldn't load pickup availability
View full details
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Shipping Information
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Find the Correct S-5! Clamp
Find the Right S-5! Clamp for Your Roof
Choosing the right S-5! clamp is essential for secure and reliable attachment to your metal roof. Whether you know your roof manufacturer and panel type or need to match a clamp to your seam profile, we’ve got you covered.
-
By Manufacturer & Panel Type
Search by ManufacturerIf you know your roof manufacturer and specific panel type, this option allows you to quickly find compatible clamps based on tested configurations.
-
By Seam Profile
Search by Seam ProfileNot sure of your roof manufacturer? No problem! Identify your roof’s seam profile and explore clamps designed for that seam profile.
Description

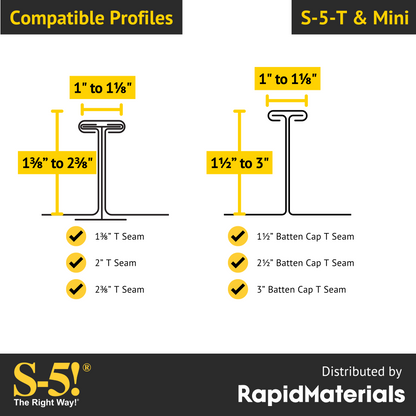

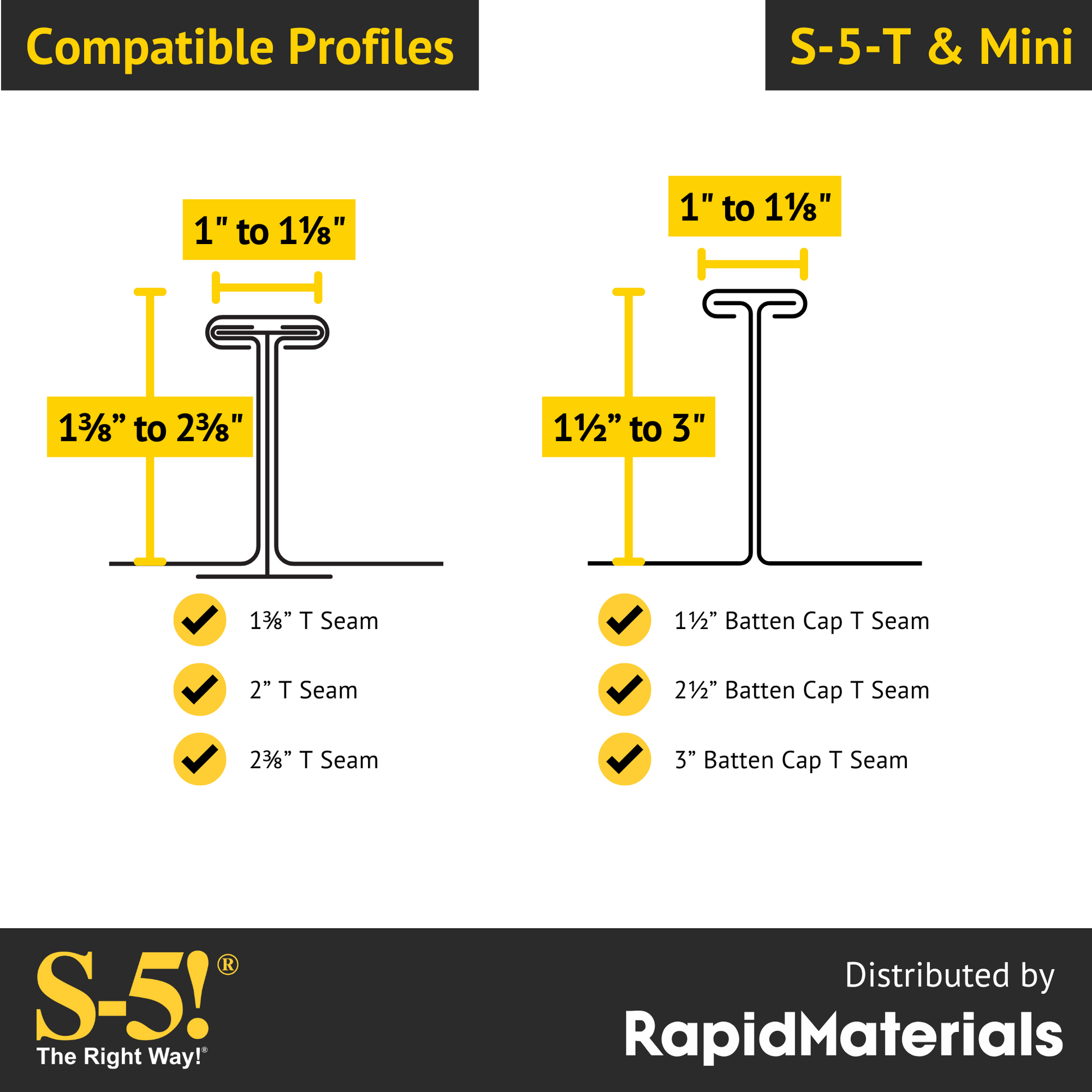

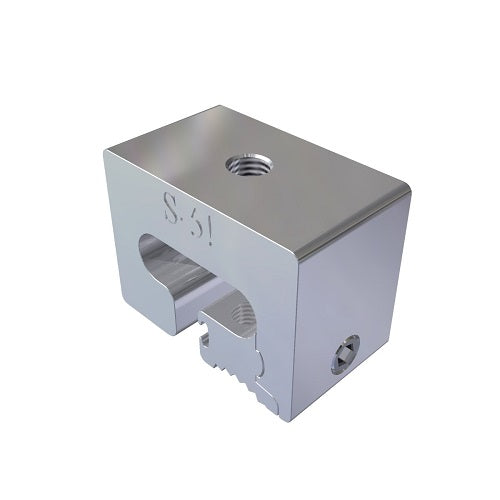

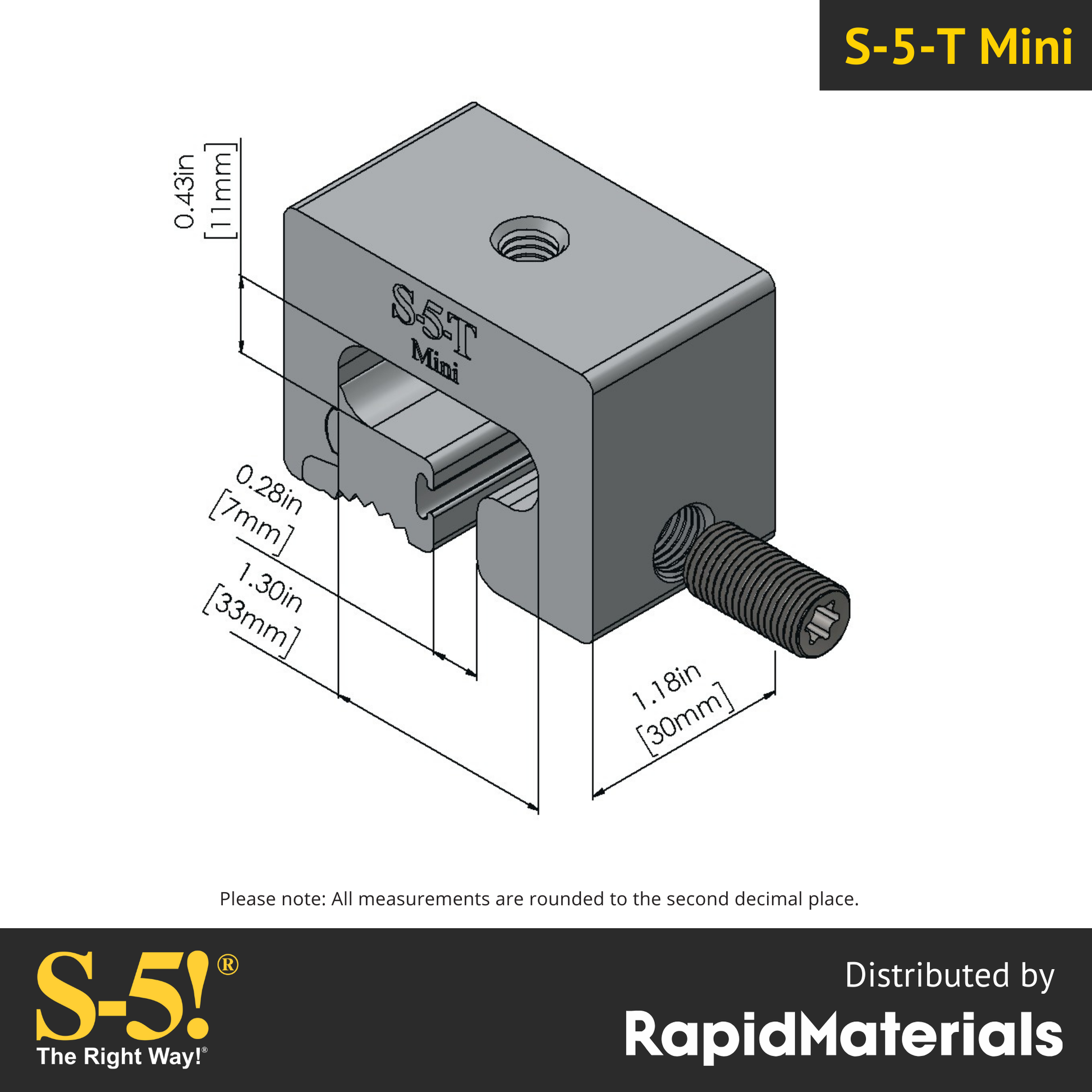

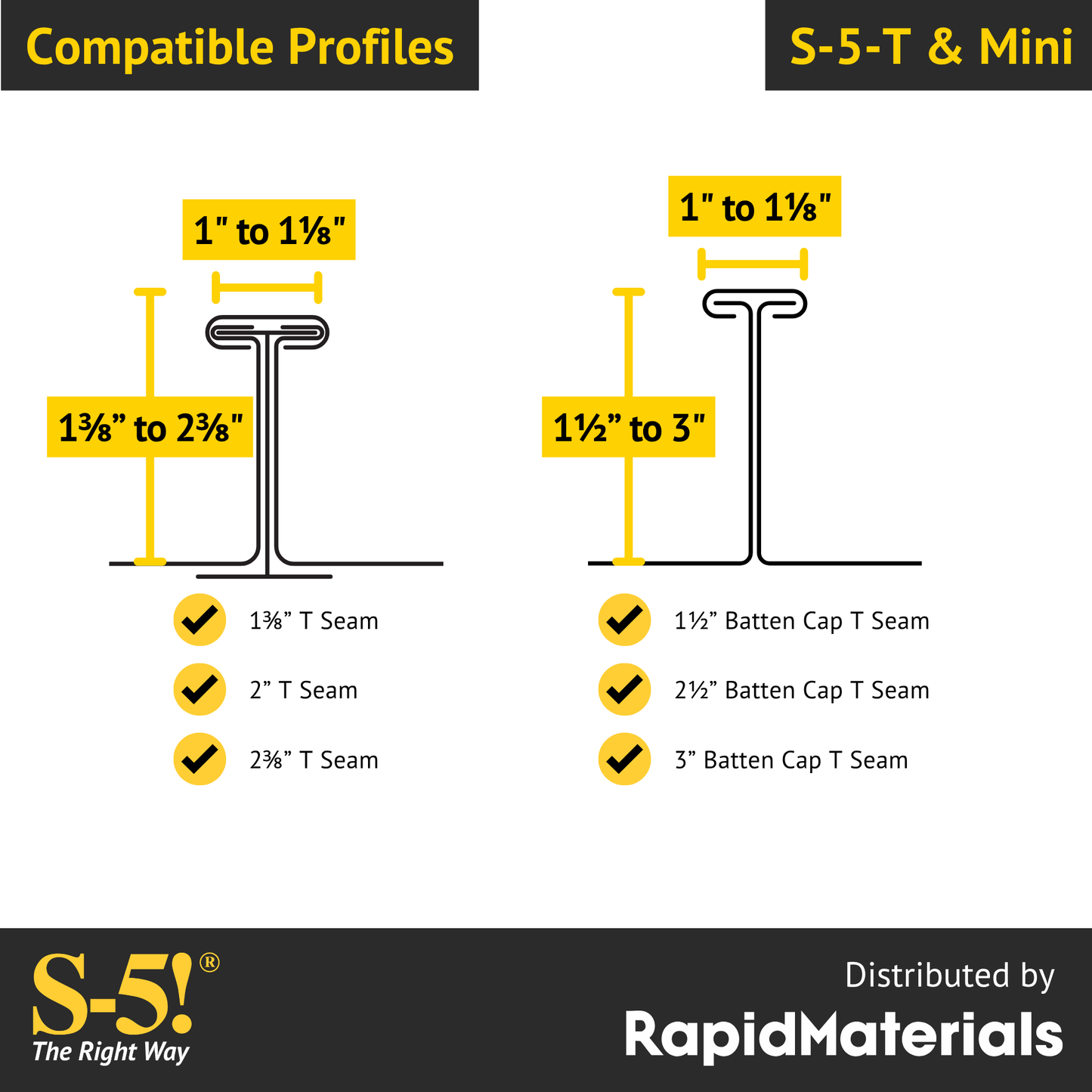

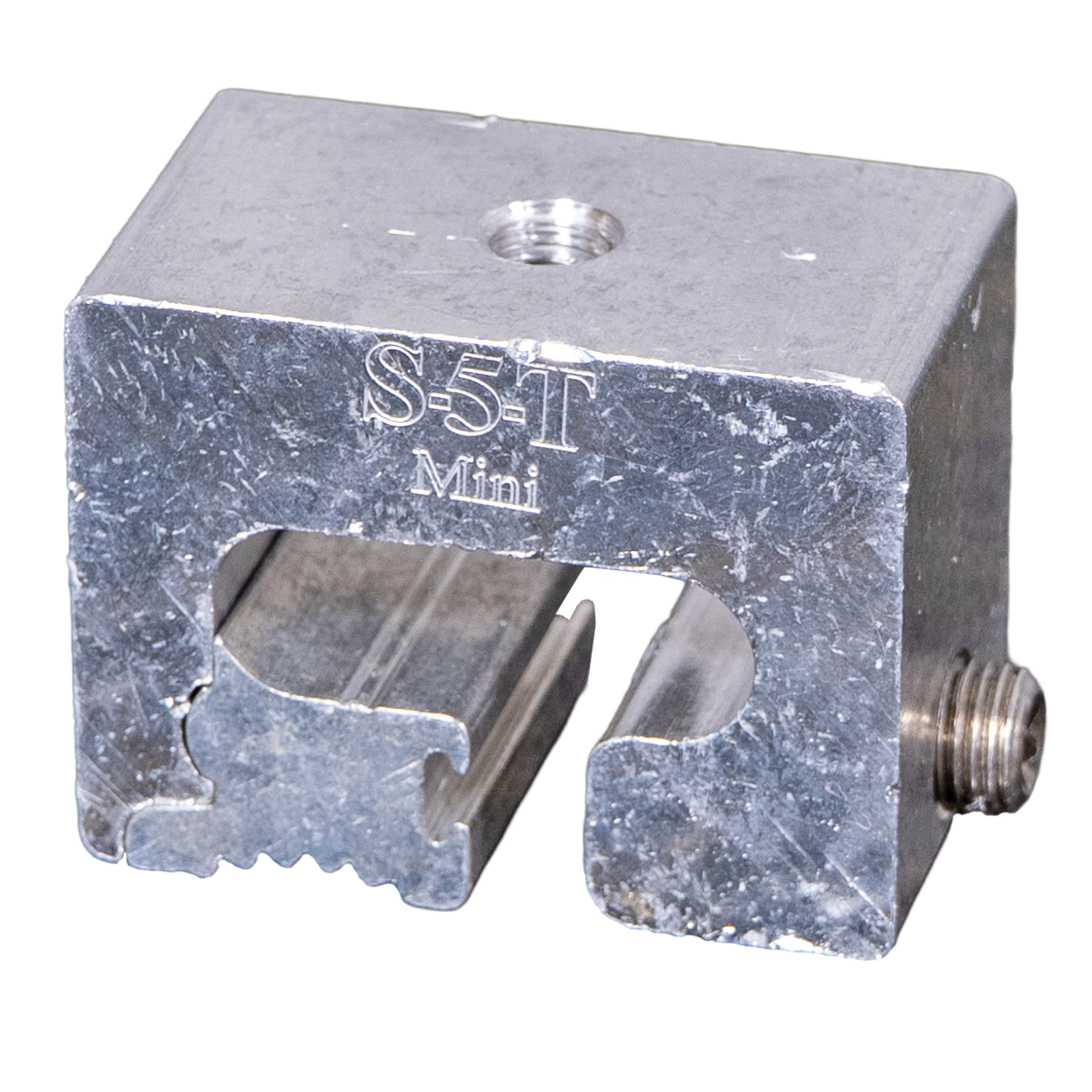

The S-5-T Mini clamp is a specially designed clamp that is shorter than the regular S-5-T clamp. It is specifically developed to fit profiles with a T-shaped seam configuration and can also be used on architectural single-fold or angle-seam profiles with a horizontal projection of 5/8 or less.

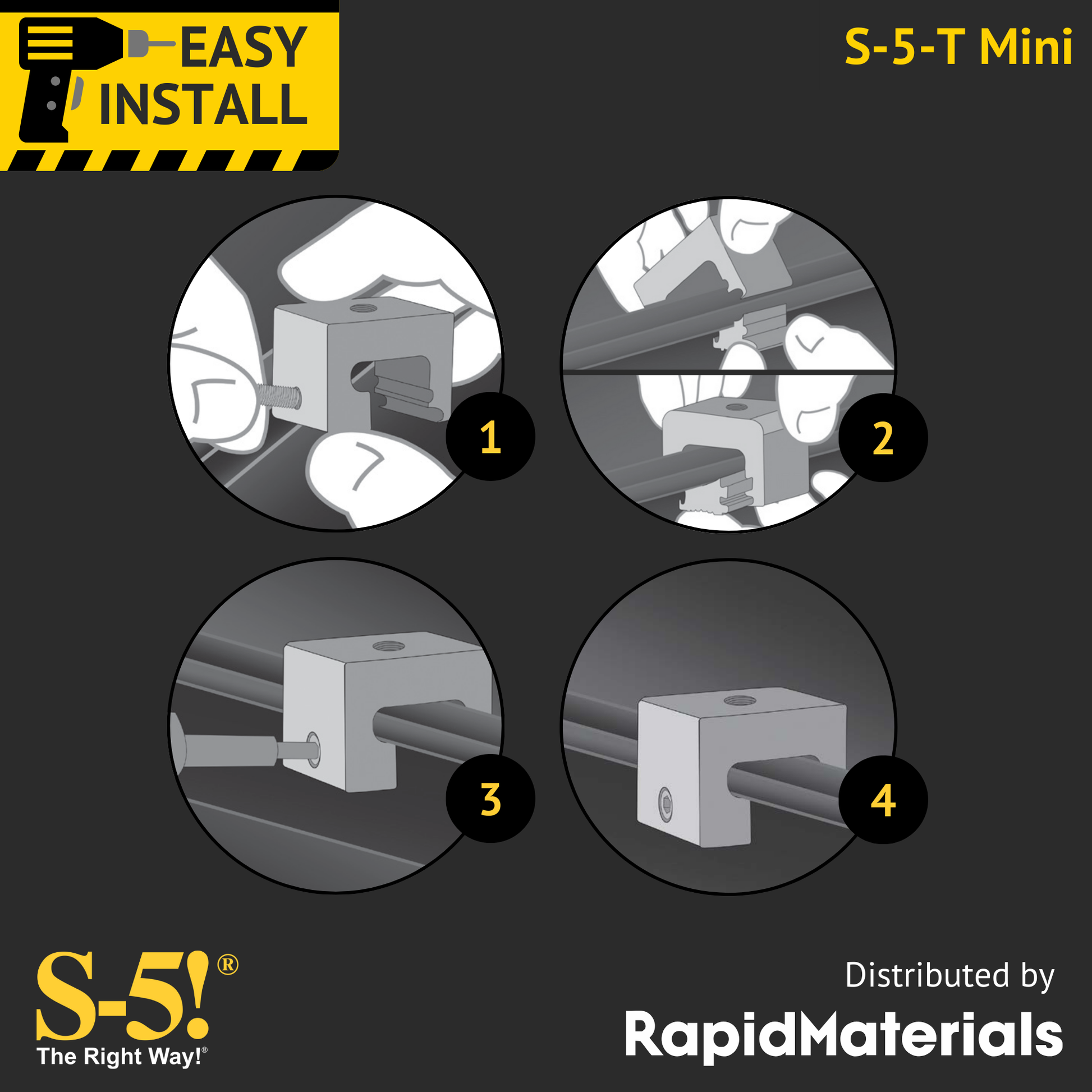

Like the S-5-T clamp, the S-5-T Mini clamp has a two-piece design that allows for easy installation anywhere along the length of the panel seam. It is a medium-duty clamp that does not require penetrating the roof surface.

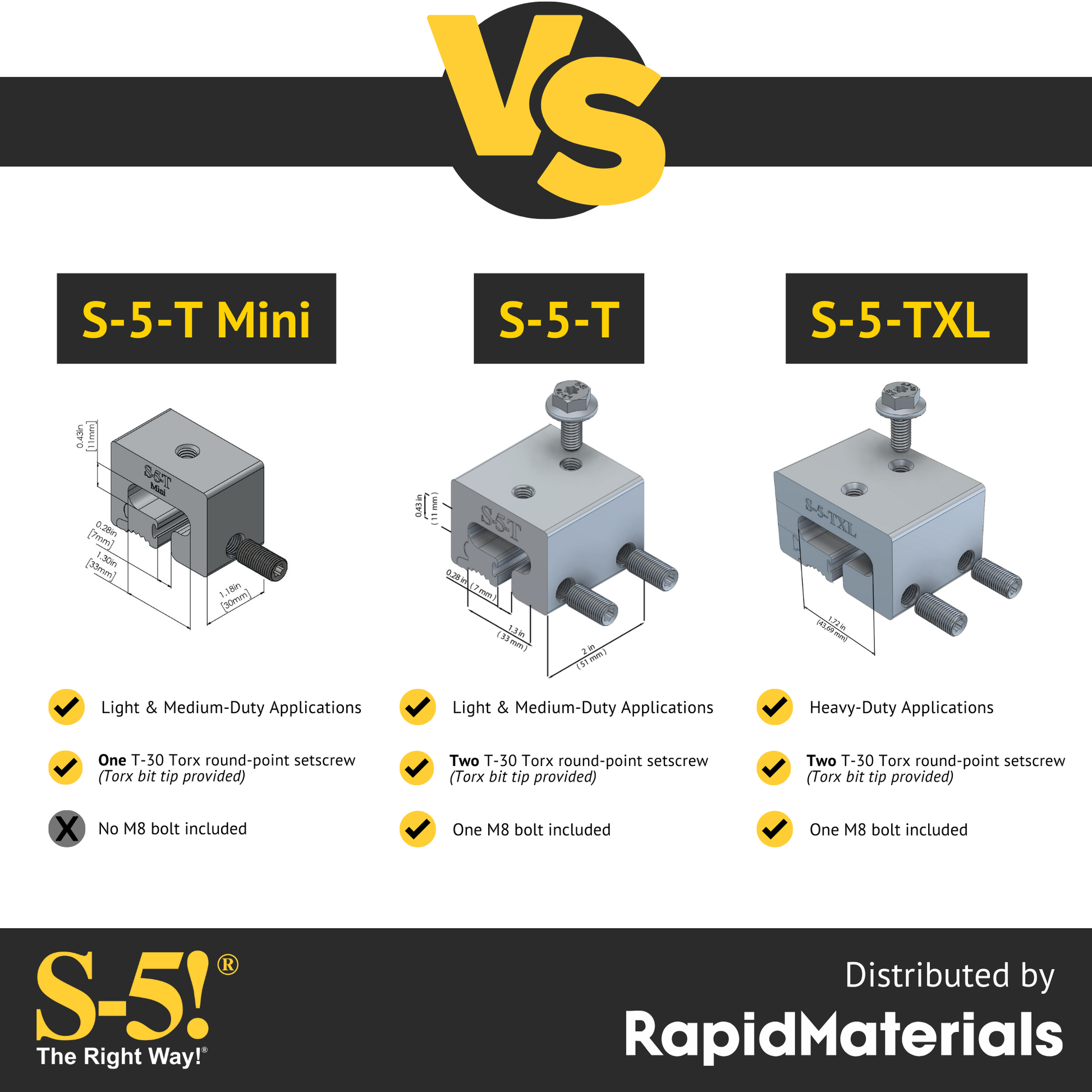

The S-5-T Mini clamp is equipped with one setscrew instead of two, making it slightly different from the S-5-T clamp. It is an ideal choice for attaching various rooftop accessories such as signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment, and much more.
In summary, the S-5-T Mini clamp is a versatile and reliable solution for securely attaching a wide range of rooftop accessories to T-shaped seam profiles or certain architectural profiles with a low horizontal projection.
*S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail /SnoFence or ColorGard® snow retention systems. If you are using the Colorgard snow retention system, make sure you use the S-5-T seam clamp. The S-5-T Mini clamp comes complete with one [1] 3/8″x 24 x 0.80″ round nose set screw. All hardware is stainless steel. The Hex bolt is no longer standard with S-5! mini clamps.
- No bolt
- 17mm (11/16″) M8-1.25 Flanged Bolt
- 20mm (7/8″) M8-1.25 Flanged Bolt
- 40mm (1-9/16″) M8-1.25 Flanged Bolt
