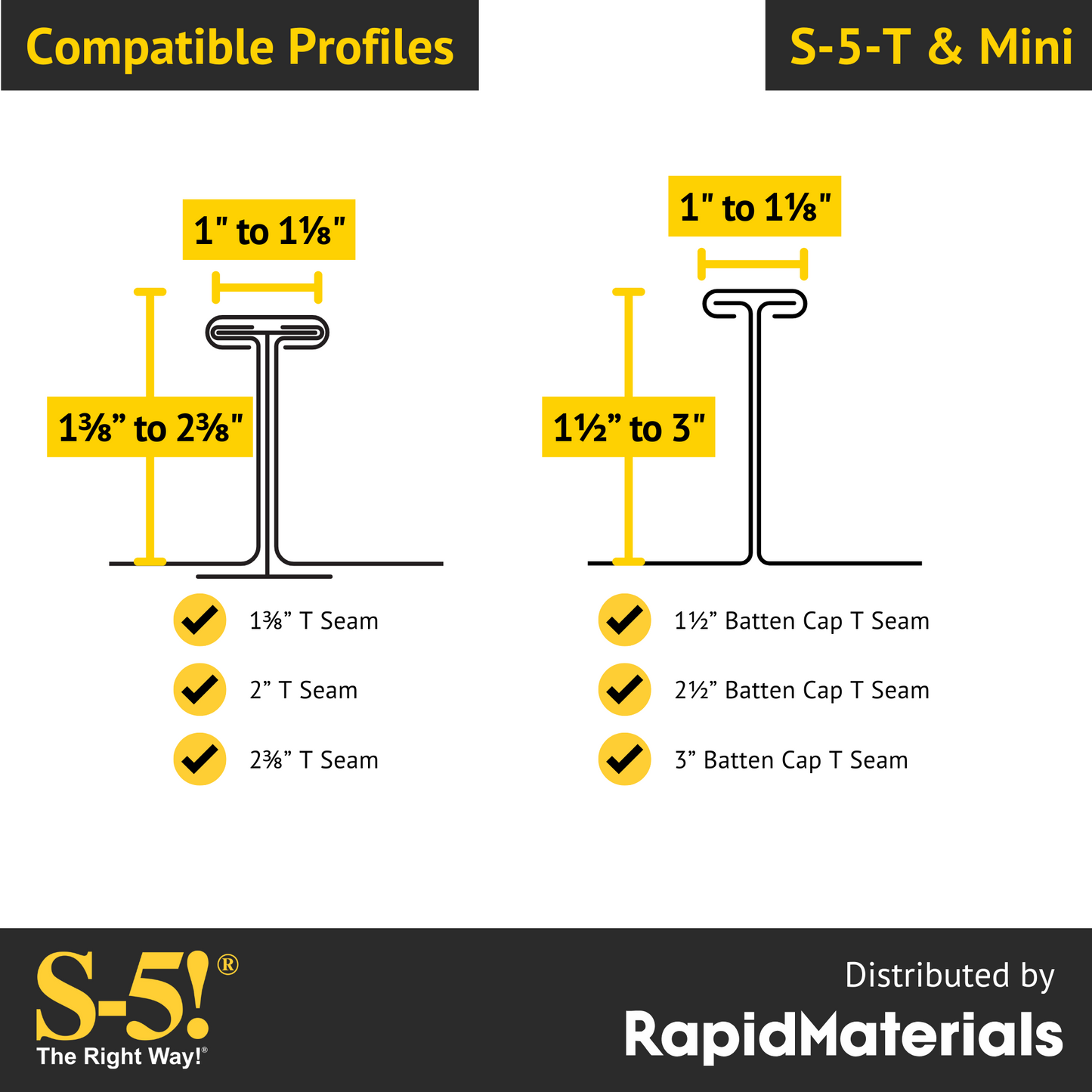

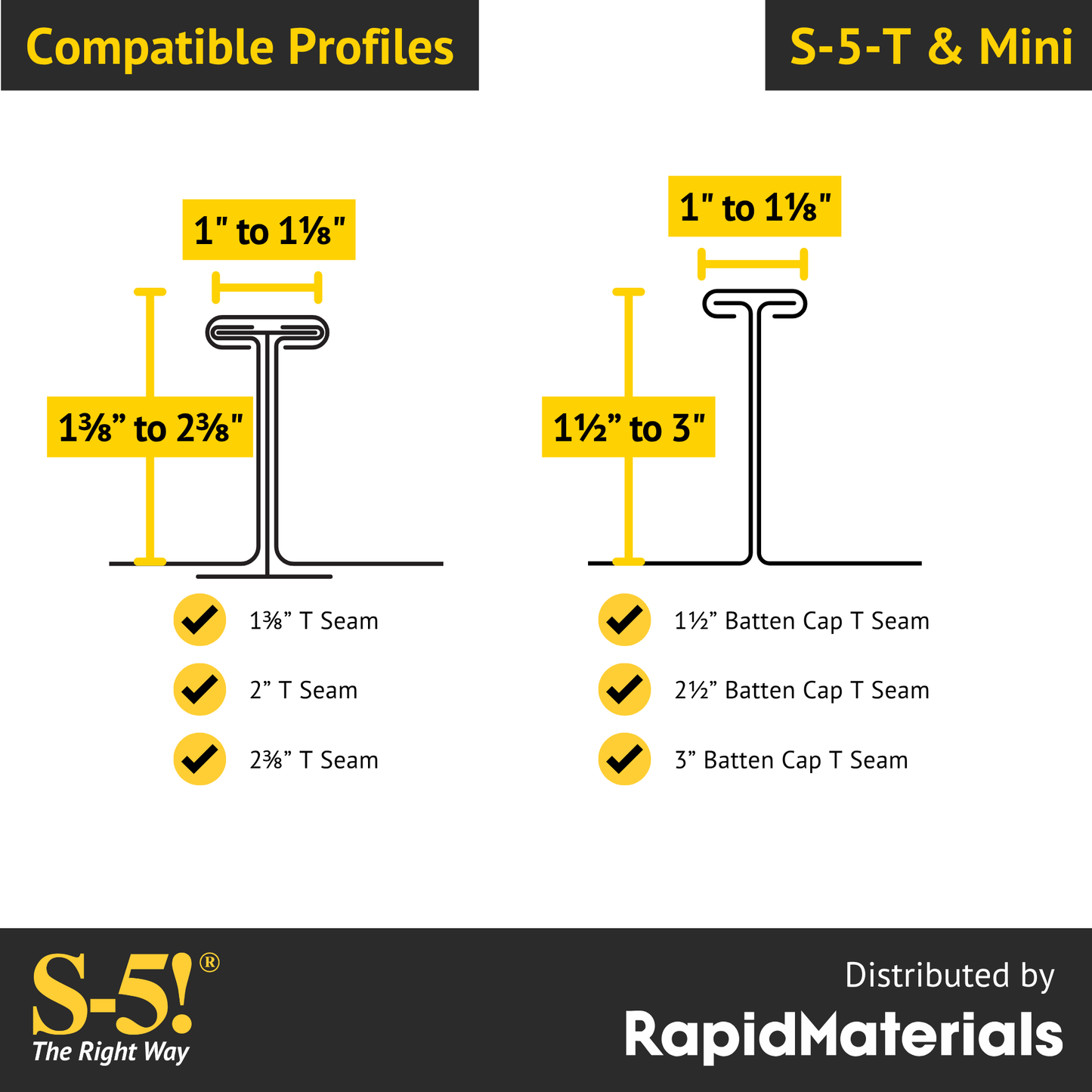

The S-5-T clamp is a specialized clamp designed to fit profiles with a T-shaped seam configuration. It is also compatible with architectural single-fold or angle-seam profiles that have a horizontal projection of 5/8 or less. This heavy-duty, non-penetrating seam clamp is specifically engineered for various rooftop installations, including HVAC systems, snow retention systems, and more.

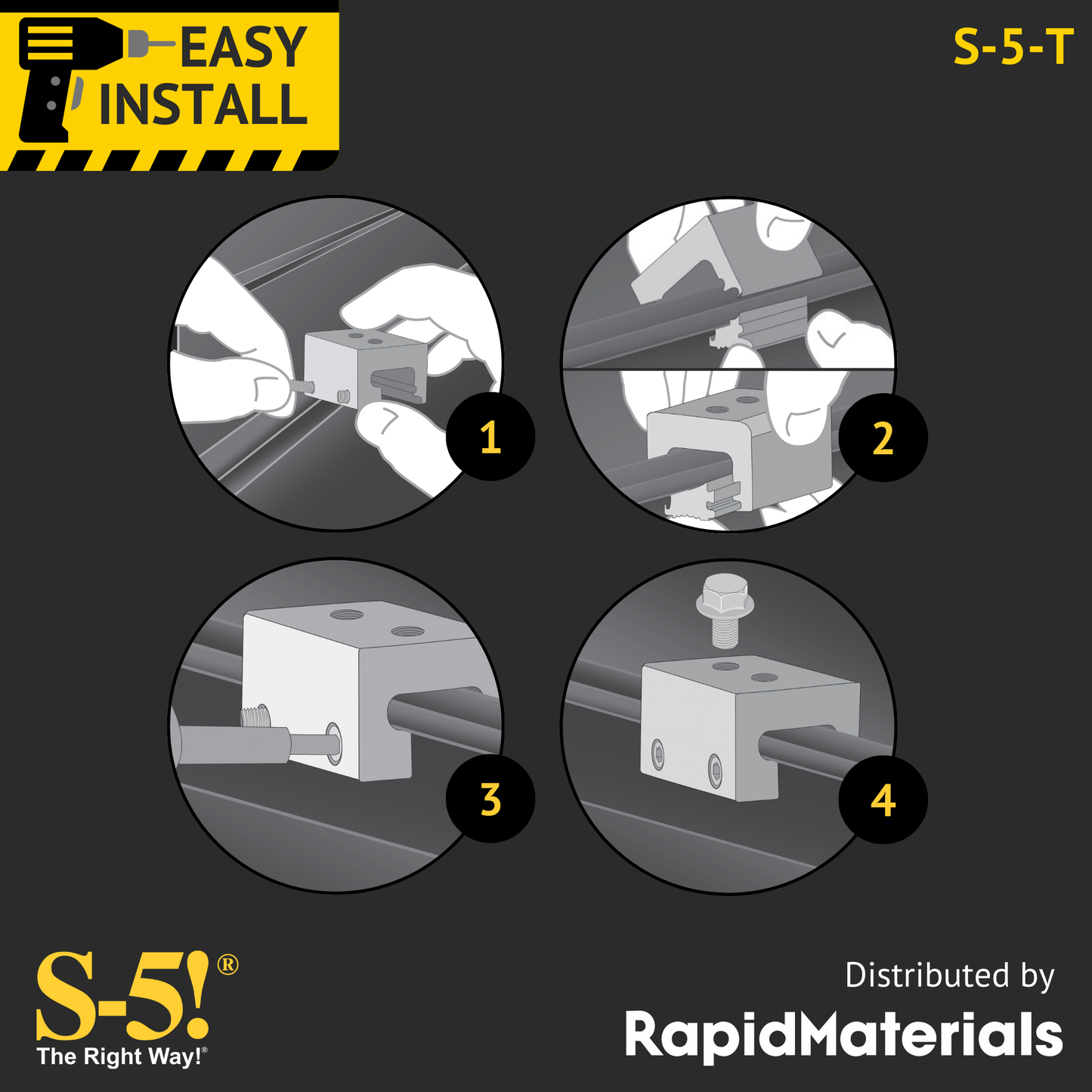

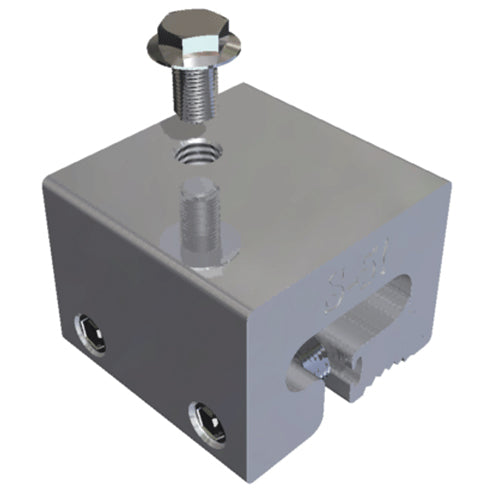

The S-5-T clamp features a two-piece design, which enables easy installation at any point along the panel seam. It comes equipped with two 3/8″x 24 x 0.80″ round nose set screws and one M8-1.25 x 16mm Hex Flange Bolt, all made of stainless steel. The use of stainless steel hardware ensures durability and resistance to corrosion.

To ensure its reliability, the S-5-T clamp has undergone load-to-failure testing conducted by an independent laboratory. It has been proven suitable for use with all snow retention systems, including ColorGard.

Overall, the S-5-T clamp provides a secure and effective solution for heavy-duty rooftop installations, offering versatility and compatibility with various profiles and systems.
