SKU: 54002019 | S-5!
S-5-TH Seam Clamp
S-5-TH Seam Clamp
| Qty | Price |
|---|---|
| Buy 30 | $6.10 Each |
| Buy 120 | $6.02 Each |
Couldn't load pickup availability
-
Same Day Shipping
Order by 1PM ET
-
American Made
Built Right Here
-
S-5! Lifetime Warranty
Shipping Details
At Rapid Materials, we prioritize quick and efficient order processing to meet your needs.
Our team is available Monday–Friday, 8 AM to 5 PM EST, ensuring your orders are handled promptly. We’re dedicated to delivering your materials as quickly as possible. Have questions? Don’t hesitate to reach out—we’re always happy to assist!
Standard Shipping
- Orders placed by 1 PM EST are processed within 24 business hours and typically ship the same day.
- Orders received after 1 PM will ship the next business day.
Expedited Shipping
- For expedited orders, we’ll do our best to ship them the same day—even if placed after 1 PM EST.
Holiday Shipping
- We do not process or ship orders on major holidays.
- Some locations close during the last two weeks of the year for inventory processing. Specific details will be noted on product pages.
Please note: Some products may require additional handling time and will take longer than 24 hours to ship. For specific shipping details or lead times, refer to the individual product page or contact us directly—we’re here to help.
-
Description

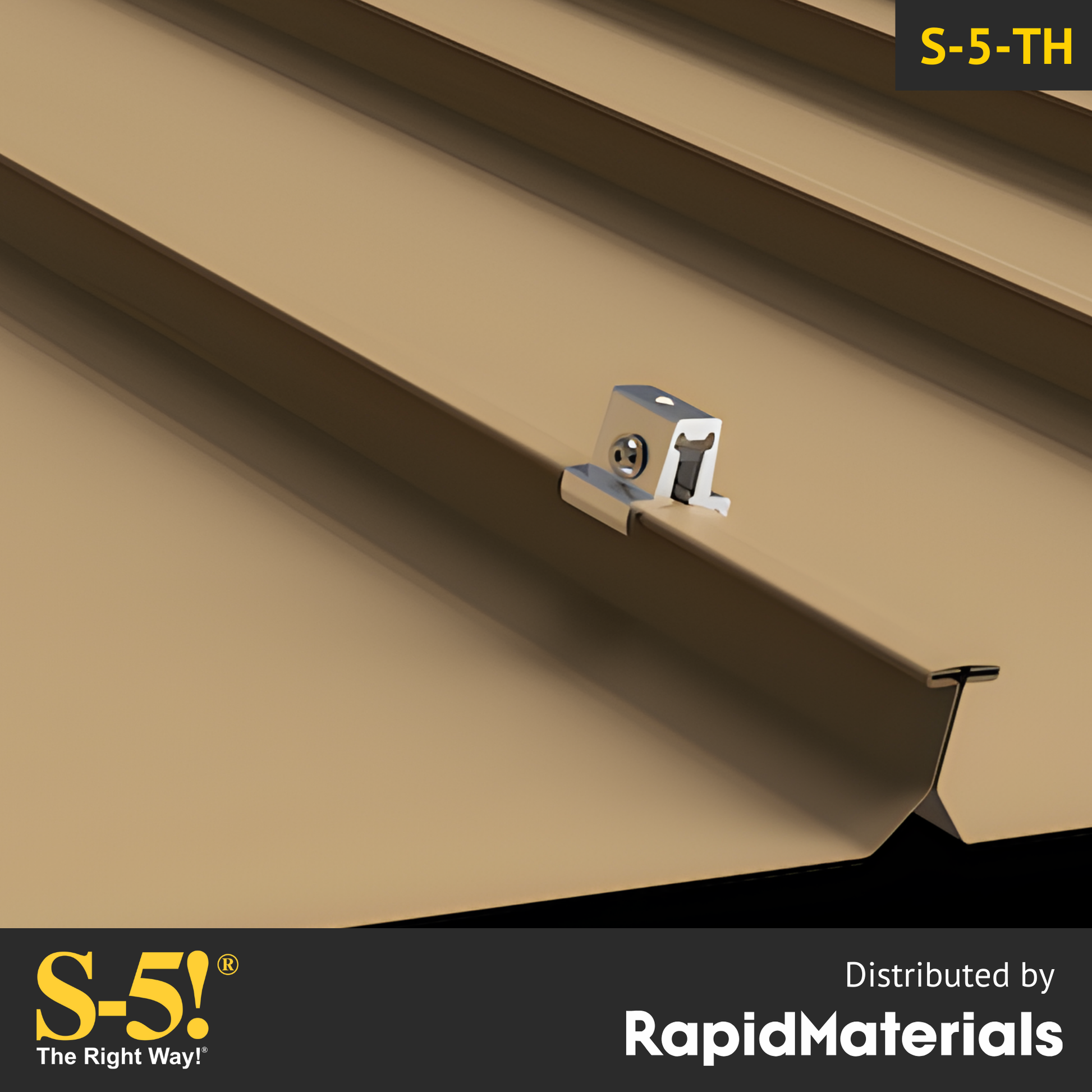

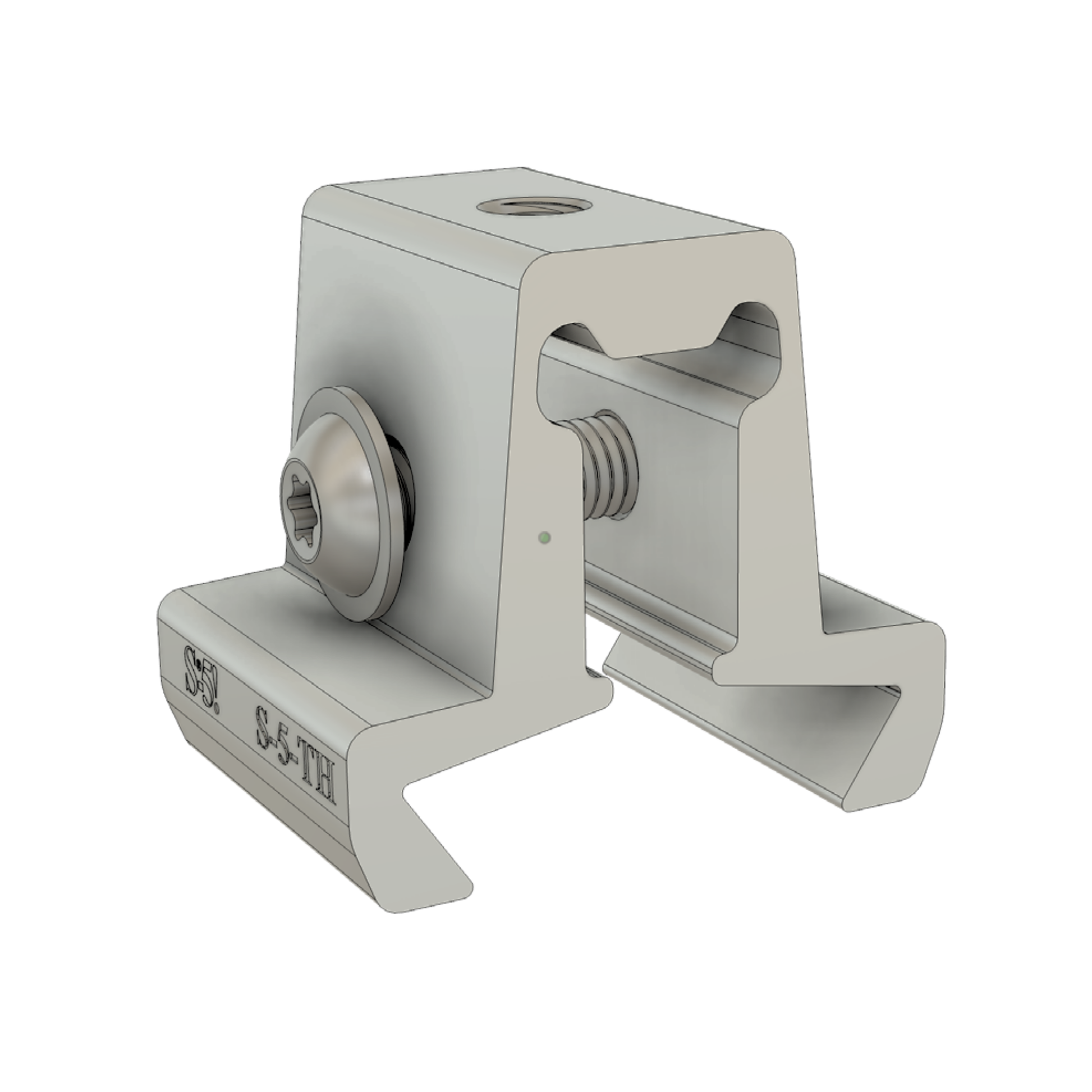

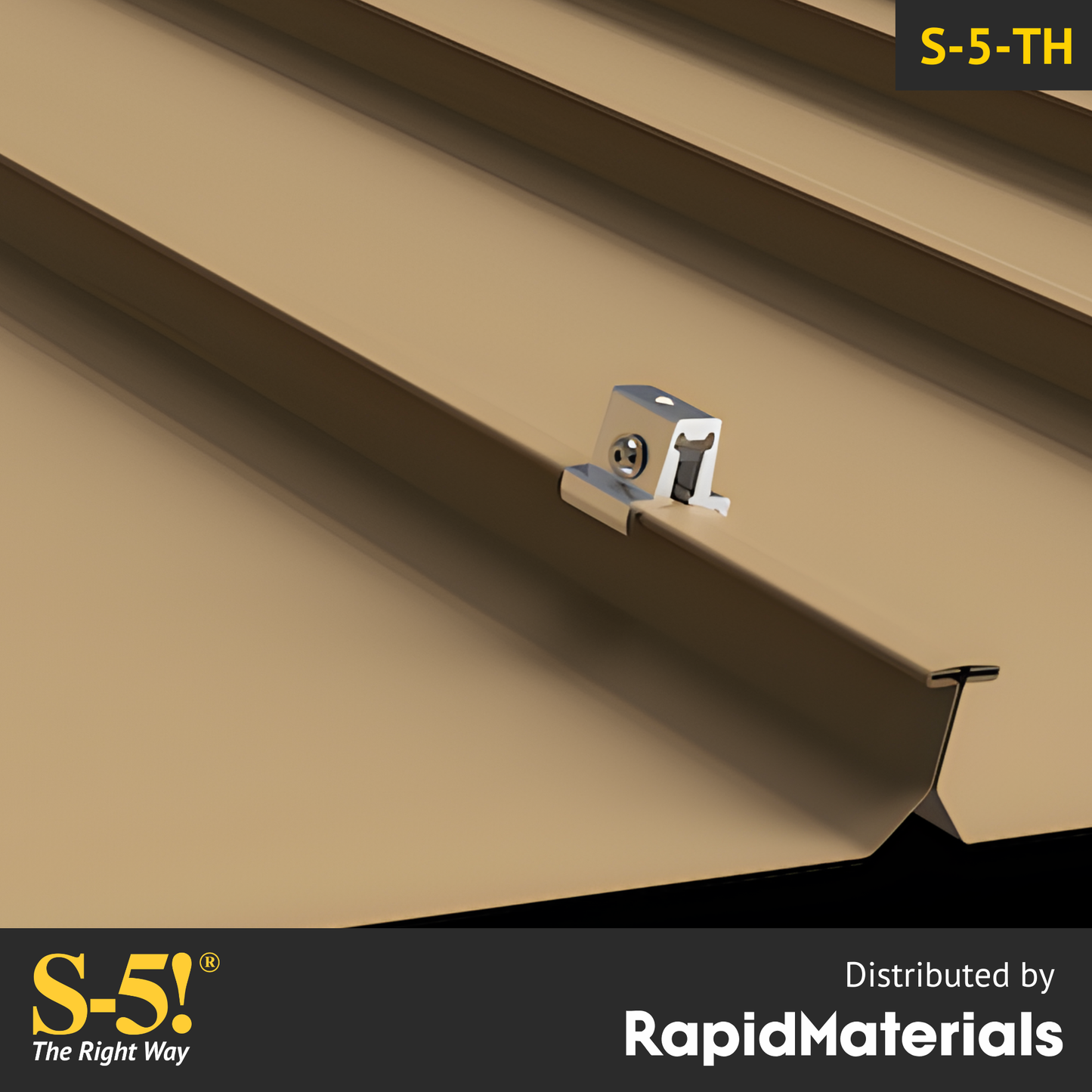

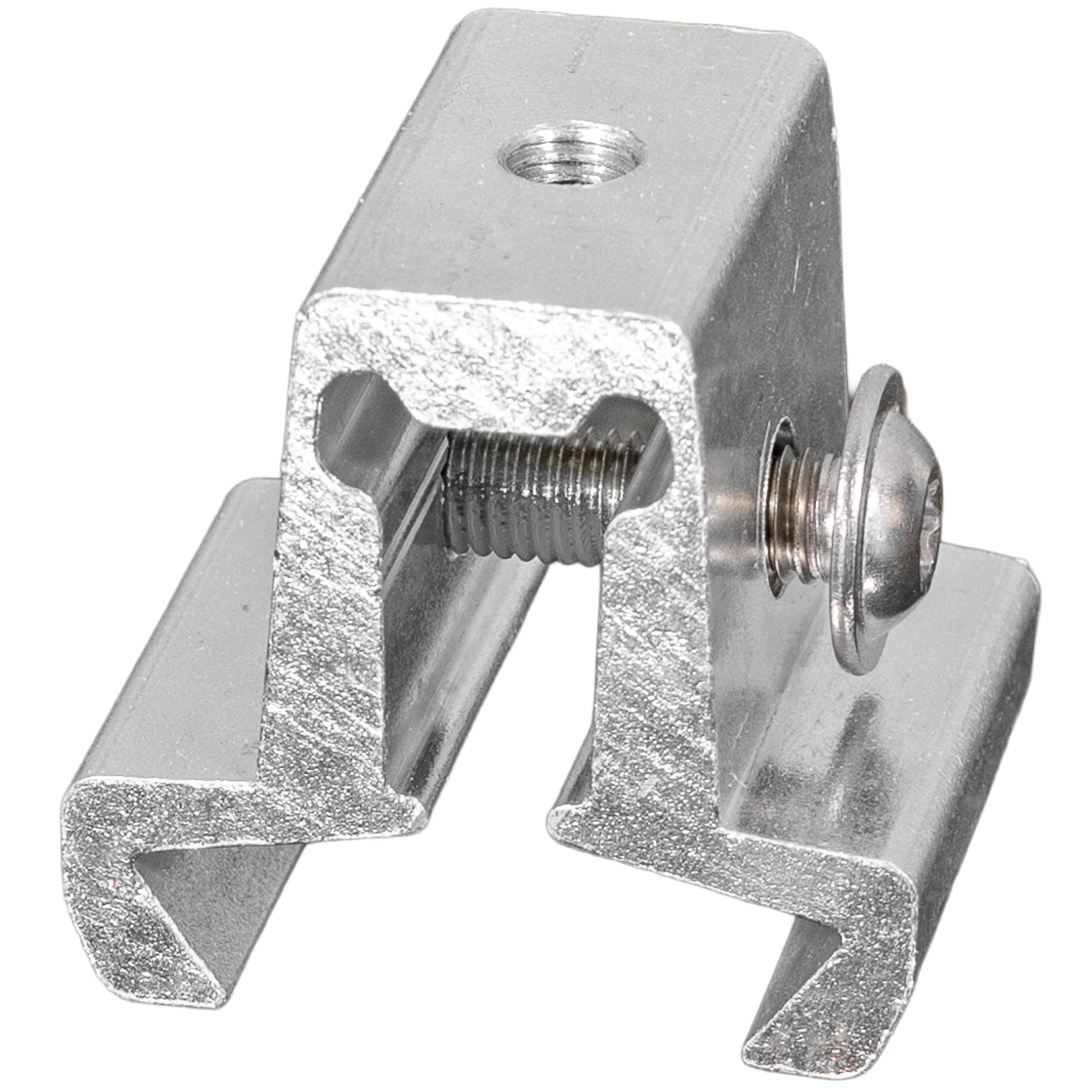

The S-5-TH, where “H” stands for Hinge, is an innovative, non-penetrating clamp specifically designed for solar PV installations and lighter-duty attachments on commercial T-shaped metal roof profiles.

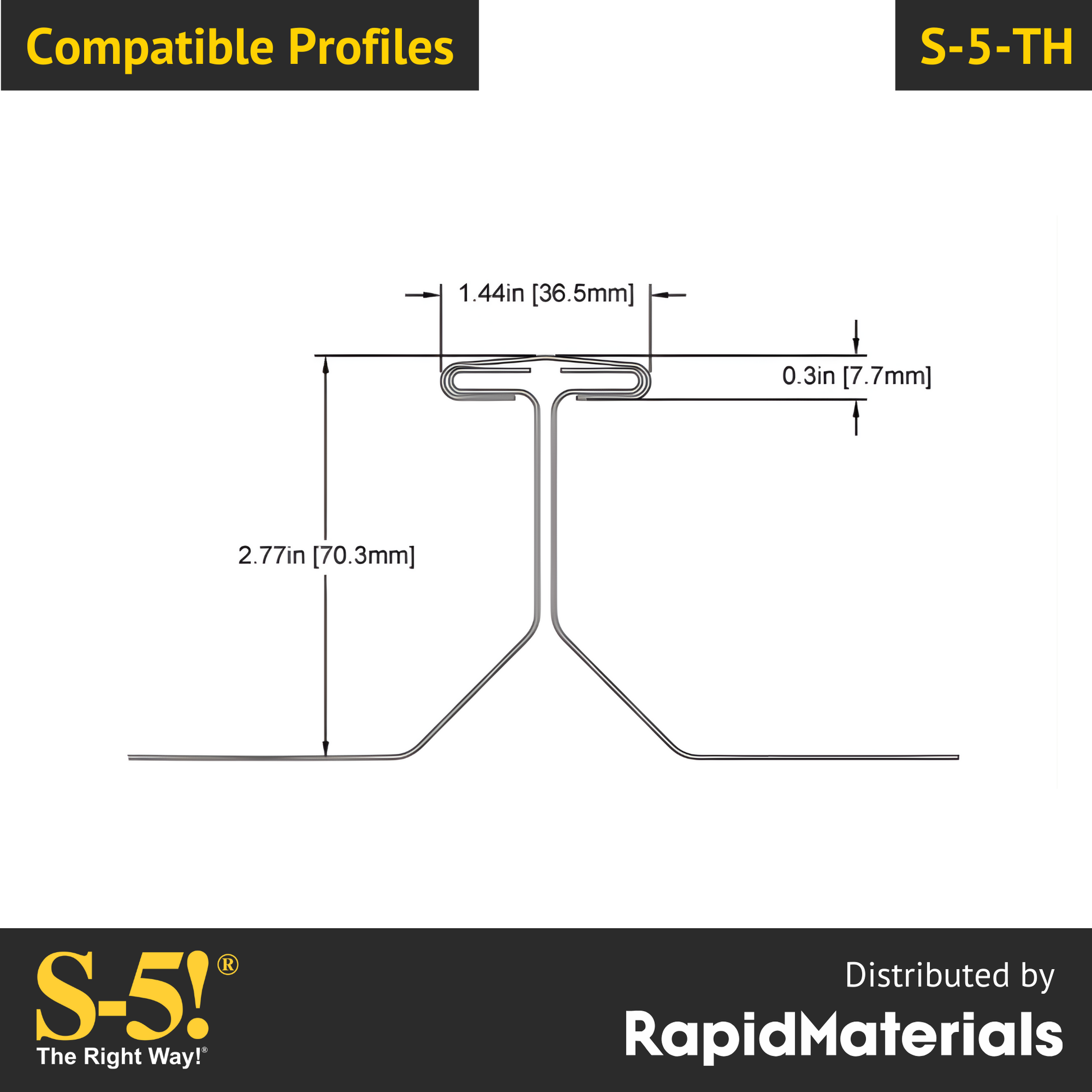

The S-5-TH is ideal for T-shaped standing seam profiles with a horizontal projection of up to 1.7" (43 mm).

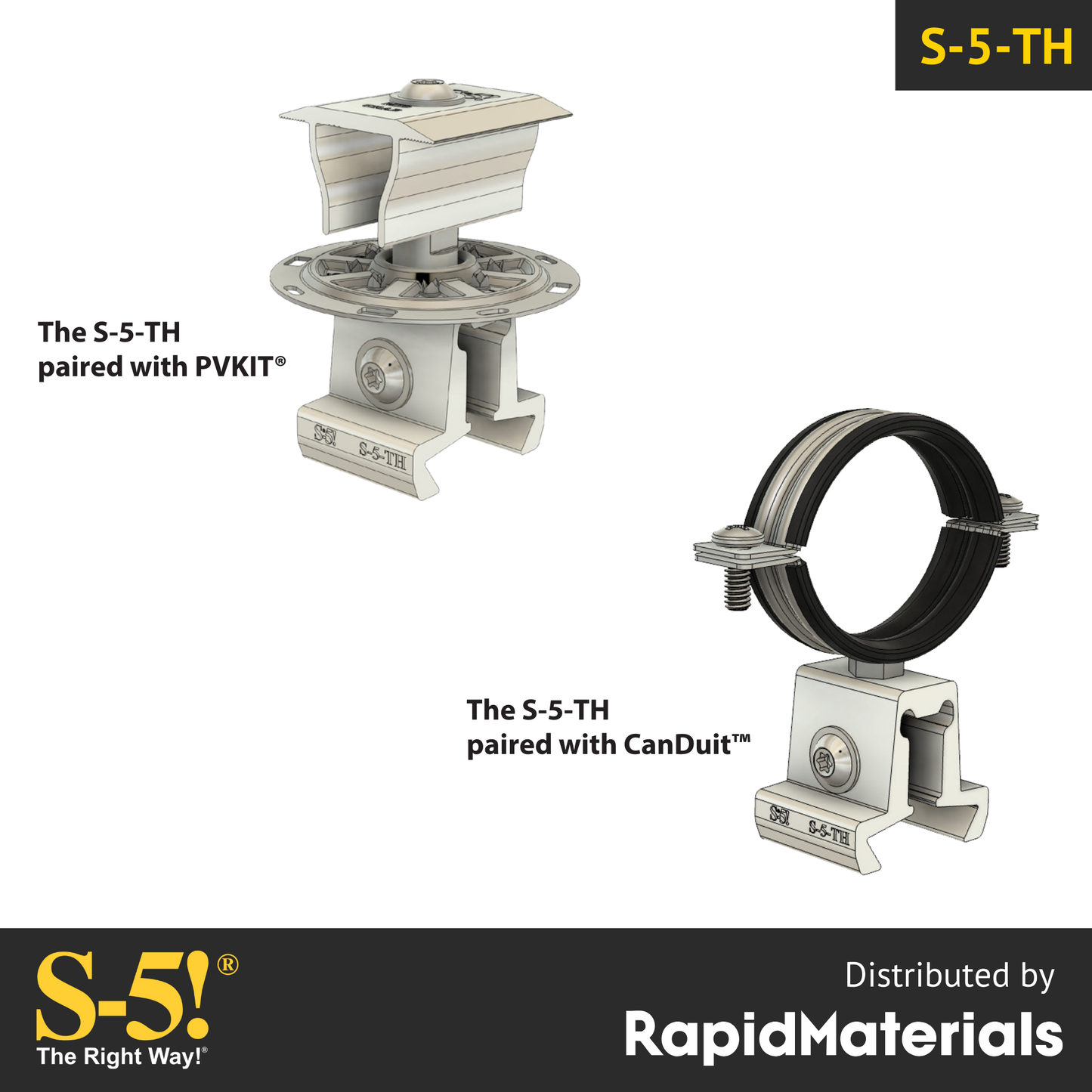

Pair the non-penetrating S-5-TH standing seam clamp with the PVKIT® rail-less solar mount for a lightweight, cost-saving installation of solar PV.
The S-5-TH is rigorously tested to meet the most stringent industry standards, ensuring a secure, long-lasting attachment warranted for the life of your roof. With the S-5-TH, you get a reliable connection while preserving the integrity of your roofing system.

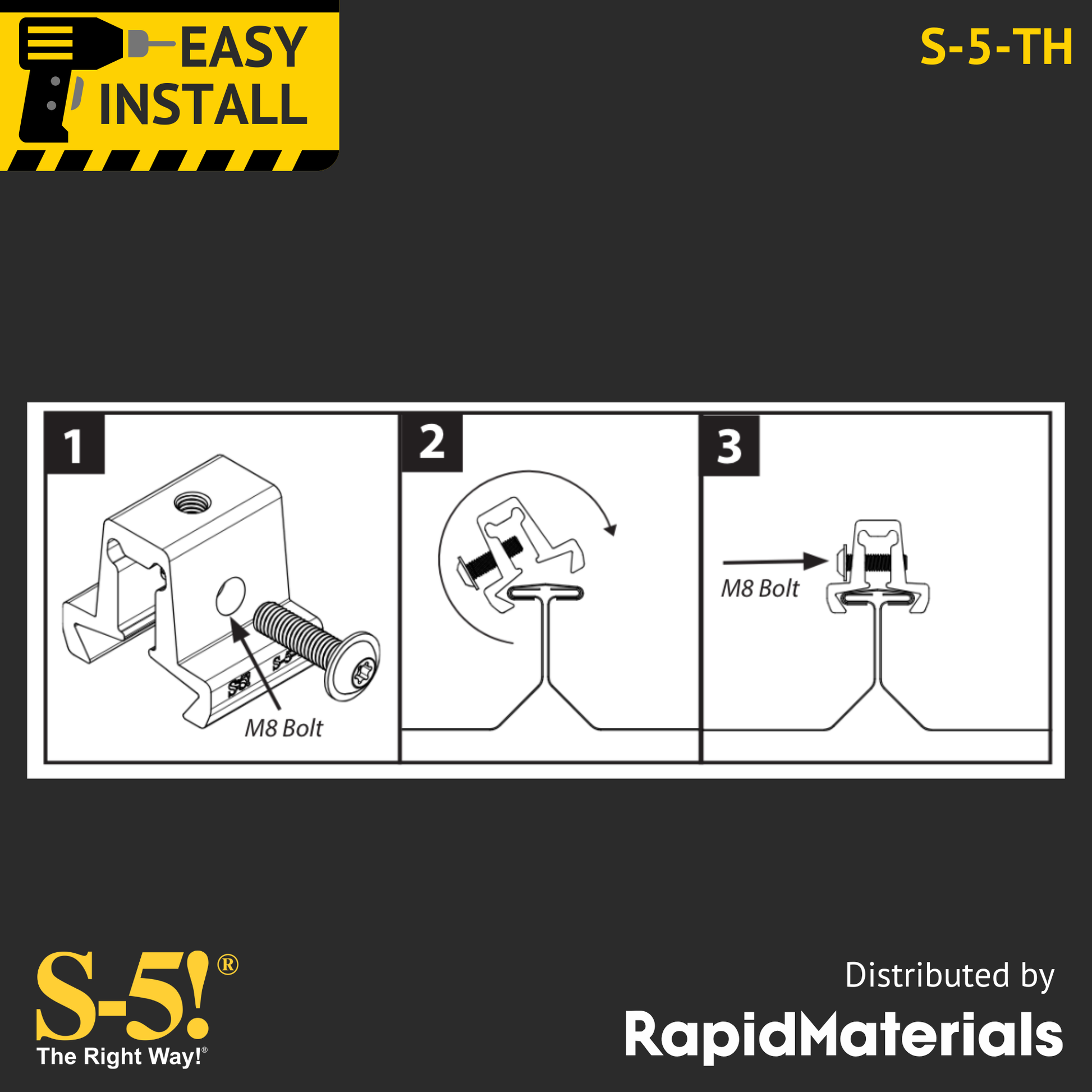

The S-5-TH clamp comes complete with two [2] 3/8″x 24 x 0.80″ round nose set screws and one [1] M8-1.25 x 16mm Hex Flange Bolt. All hardware is stainless steel.
-
Brand
S-5!S-5! has led metal roof attachment since 1992, with zero-penetration clamps and brackets that preserve roof integrity and warranties.Shop more from S-5! →
Specs
- SKU: 54002019
- Certifications:
- Compatible Roof Profiles: T Seam
ICC-ES
UL2703
