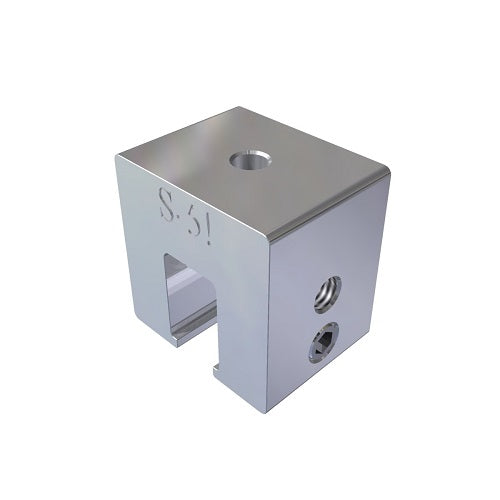

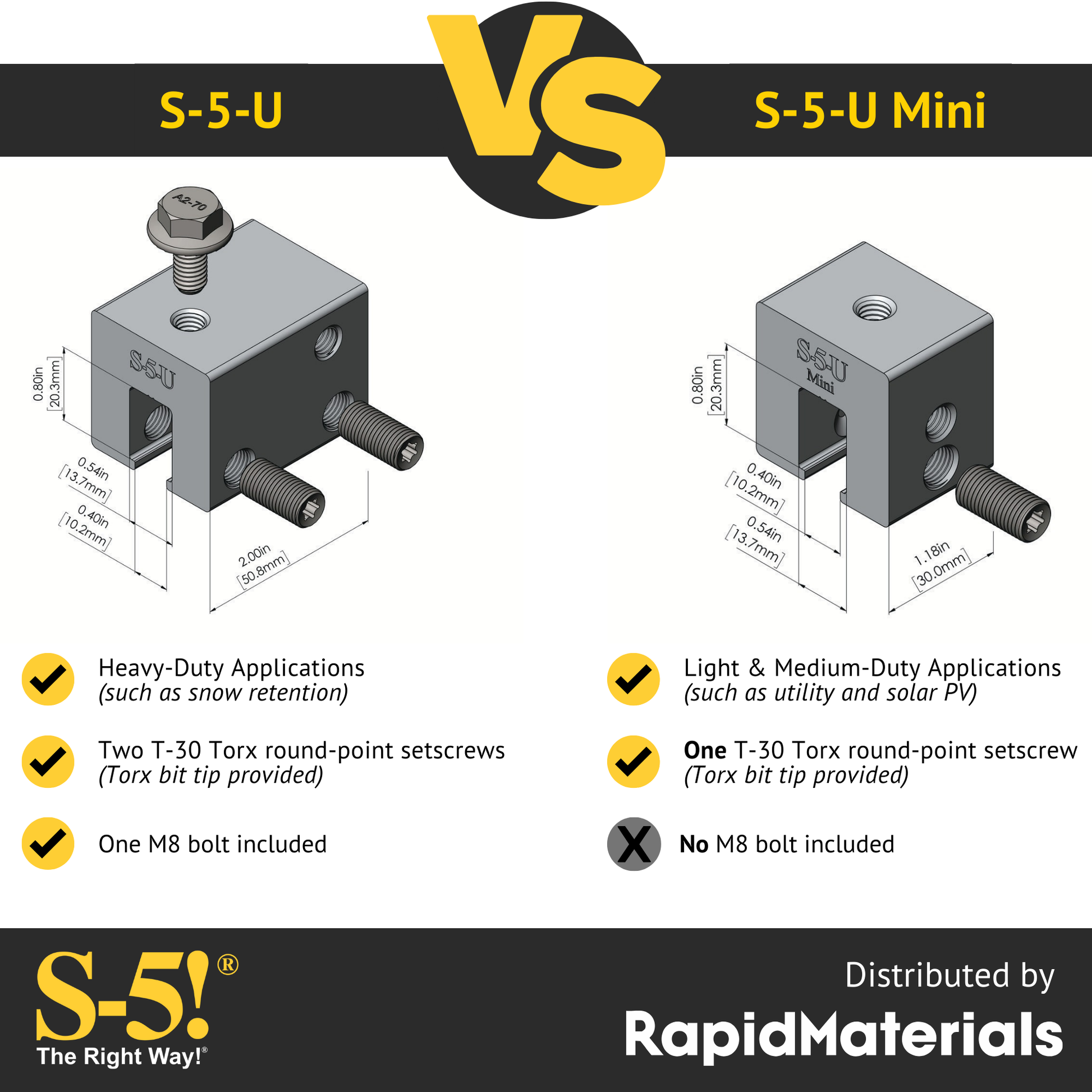

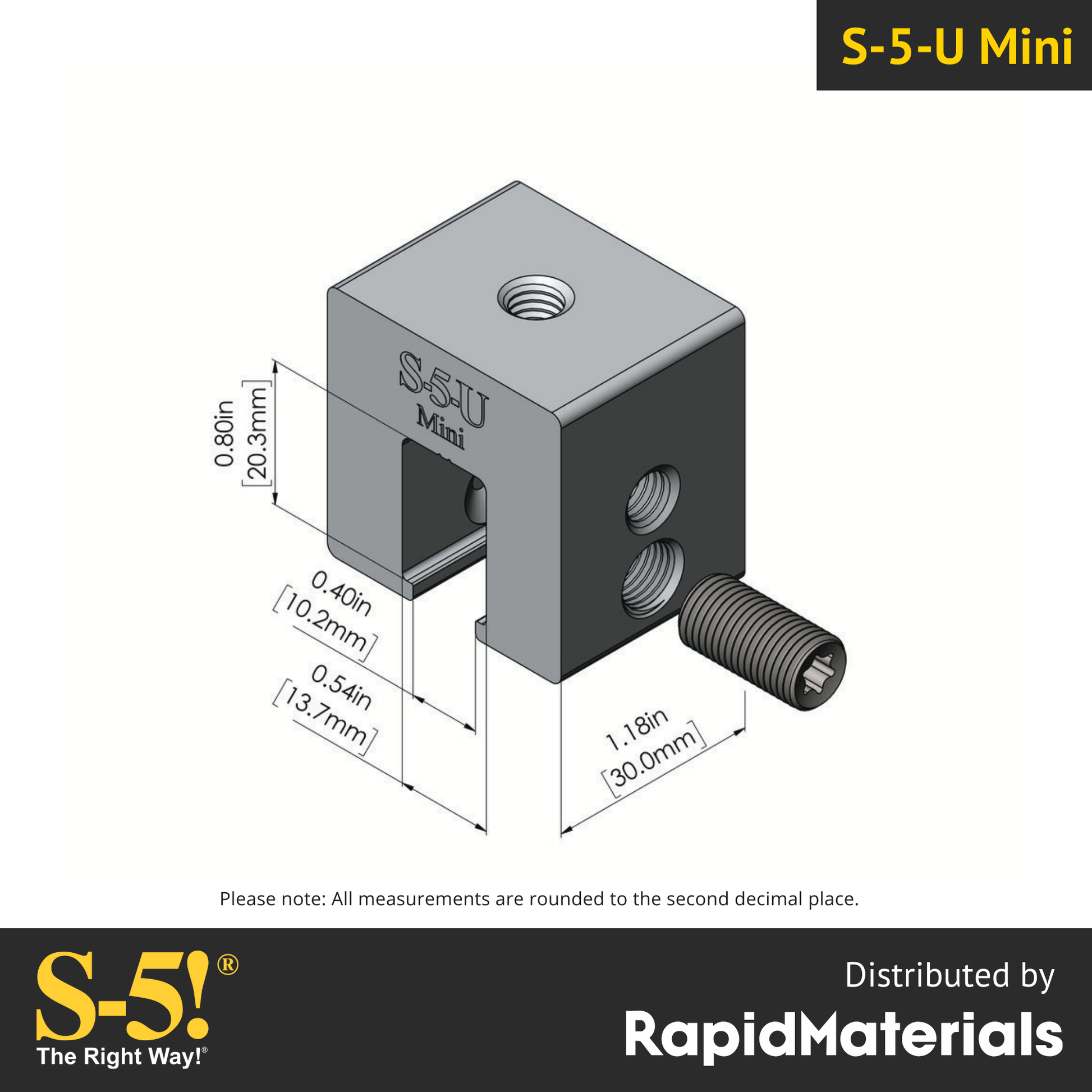

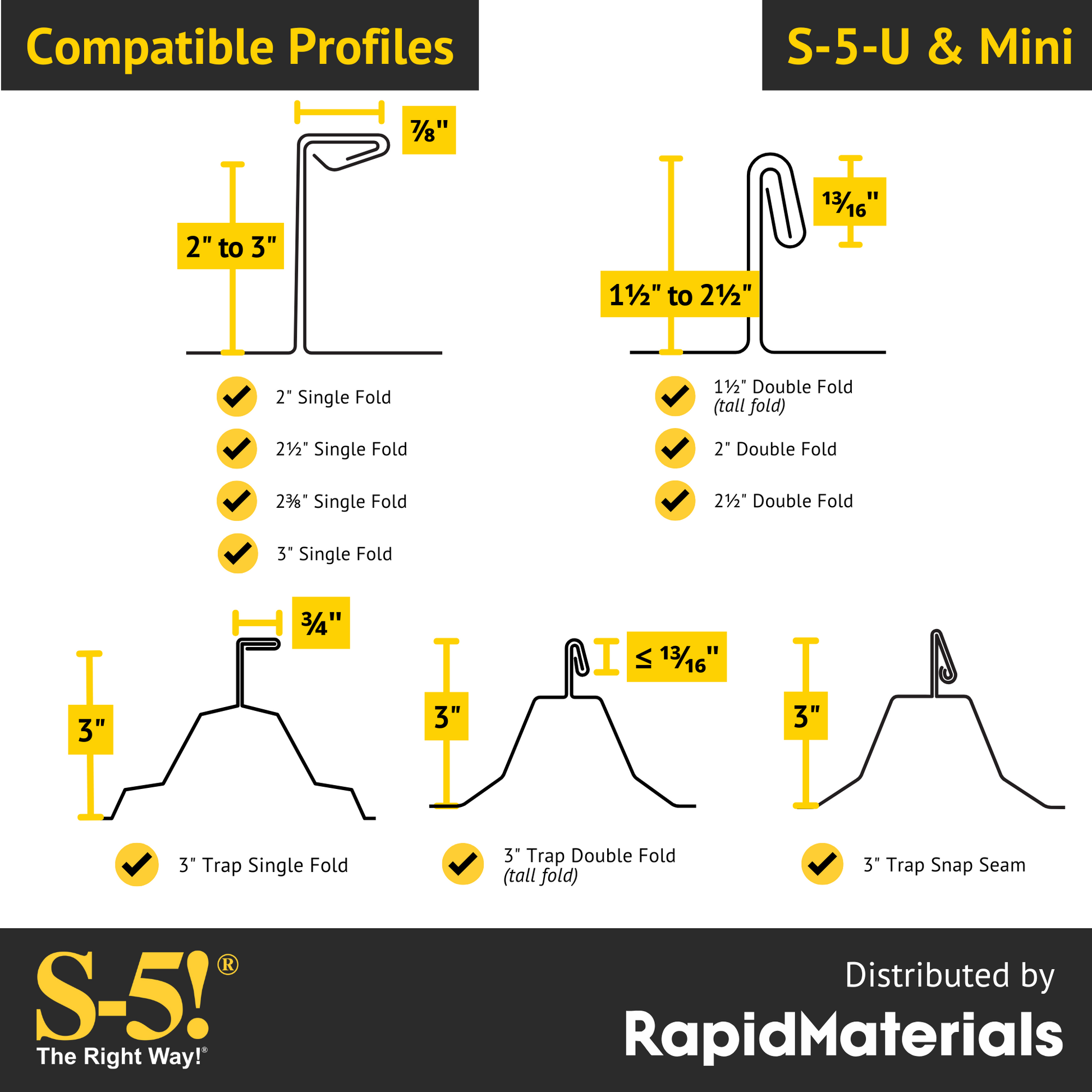

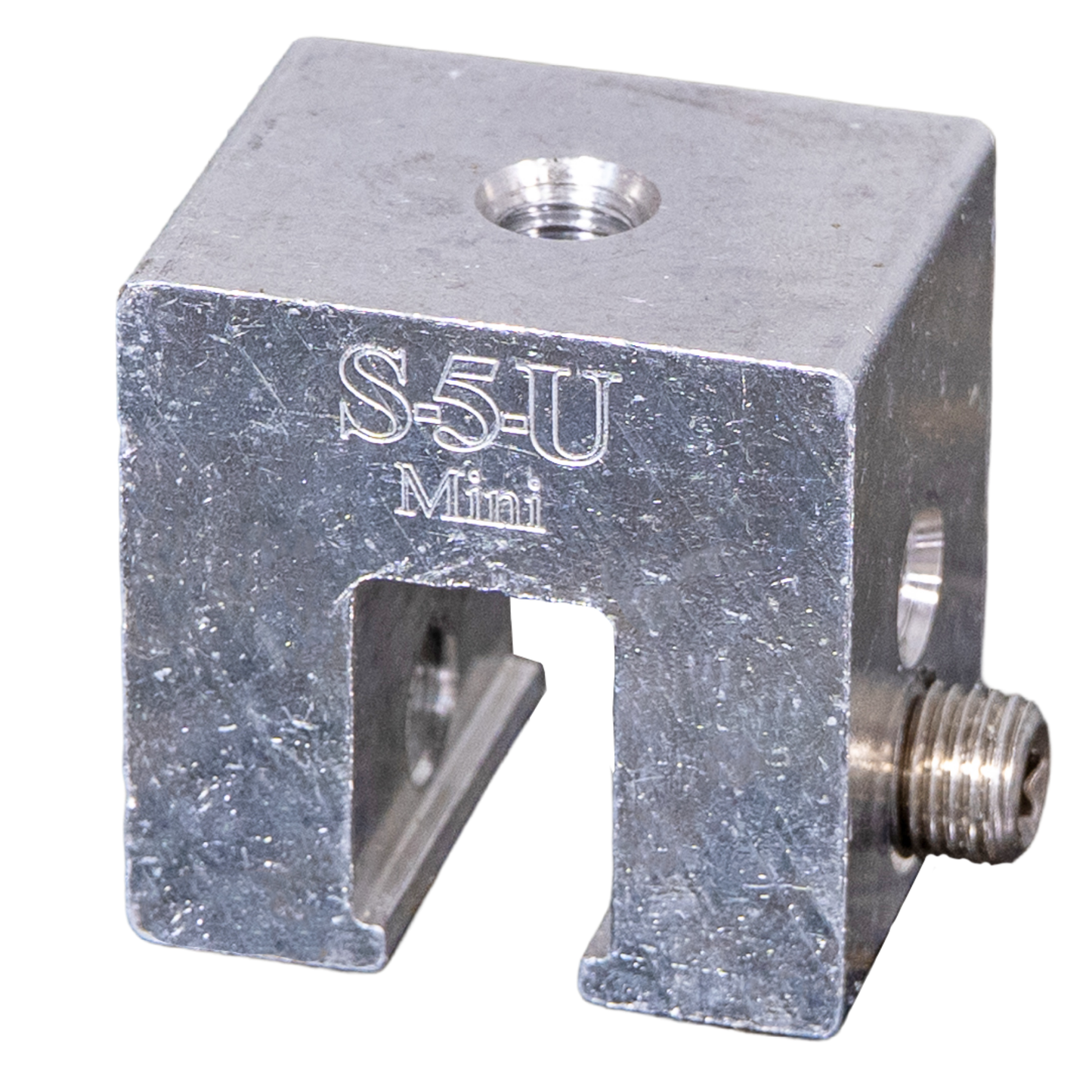

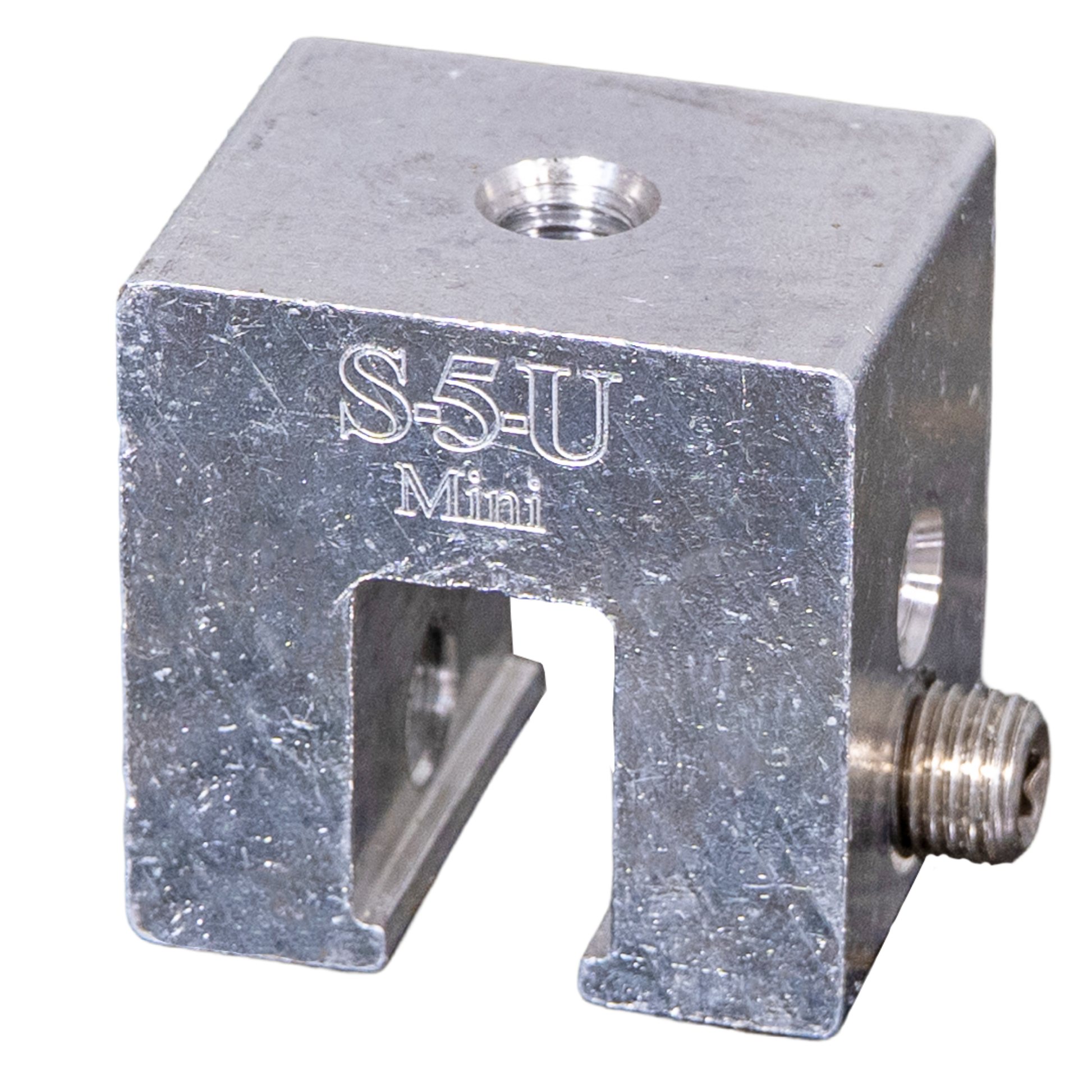

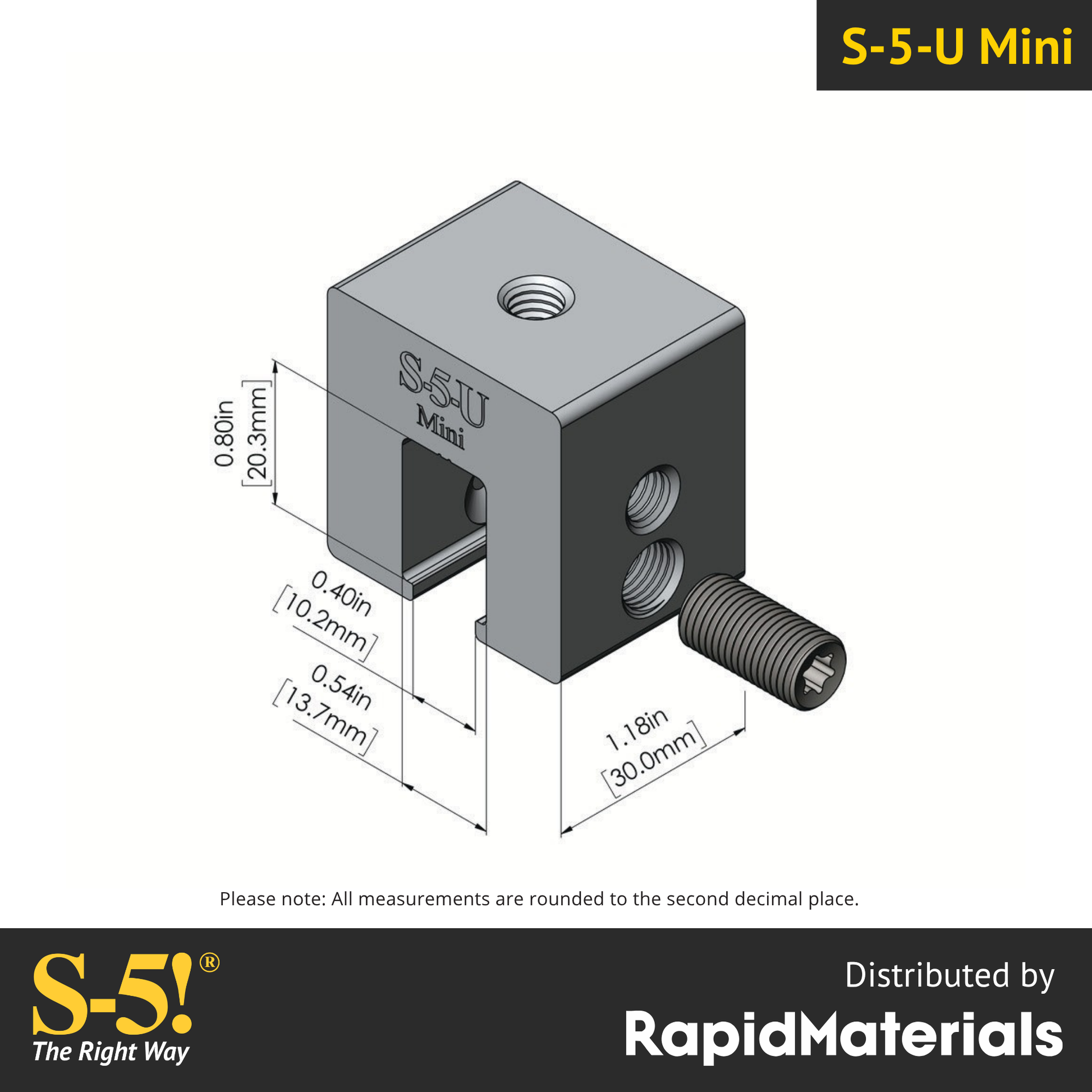

Shorter than the regular S-5-U, the S-5-U mini clamp is by far our most popular and most versatile mini clamp. It will fit about 85% of the standing seam profiles manufactured in North America including most structural and architectural profiles. It can be used on vertically oriented seams, and by rotating the clamp 90 degrees, it can also be used on most horizontal 2 seam profiles. Its simple design, generous dimensioning and multiple hole orientations are what make it so versatile for use with a variety of applications. *S-5!® Mini clamps are not compatible with, and should not be used with, S-5! SnoRail /SnoFence or ColorGard® snow retention systems. If you are using Colorgard, make sure to use the S-5-U seam clamp. Its simple design and ample size make it so strong and versatile it can be used with X-Gard and Versa-Gard S-5!® snow retention products and other heavy-duty applications. Not for use on horizontal seams with less than .65″ widths. The S-5-U mini clamp comes complete with one [2] 3/8″x 24 x 0.80″ round nose set screw. All hardware is stainless steel. The Hex bolt is no longer standard with S-5! mini clamps. Options are:

• No bolt
• 17mm (11/16″) M8-1.25 Flanged Bolt
• 20mm (7/8″) M8-1.25 Flanged Bolt
• 40mm (1-9/16″) M8-1.25 FlangedBolt
