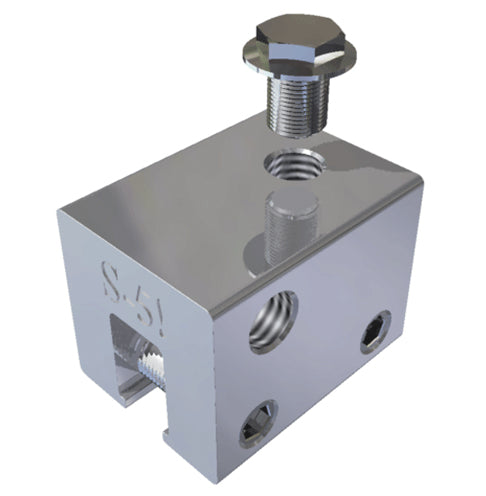

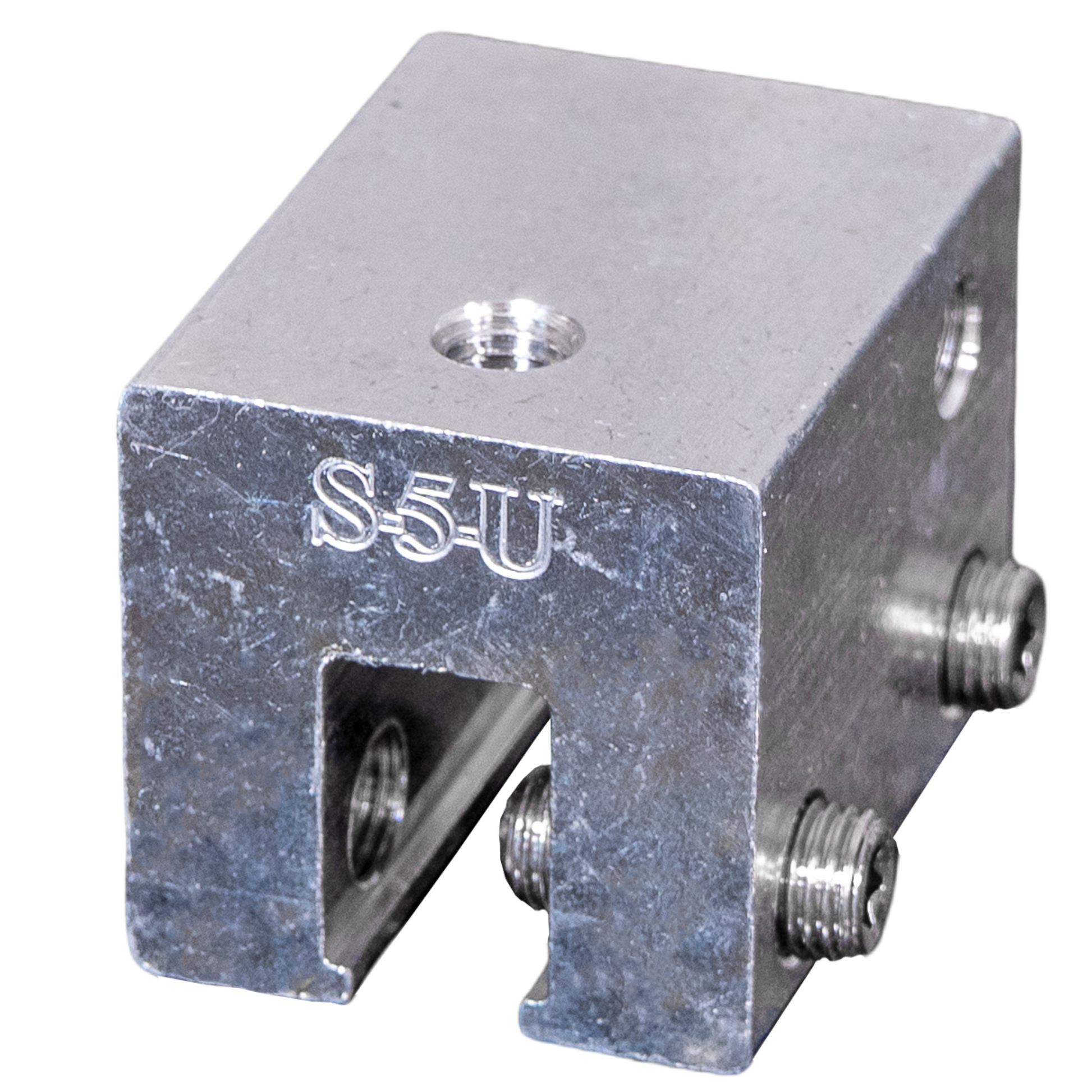

• S‑5‑U universal standing seam clamp metal roofing

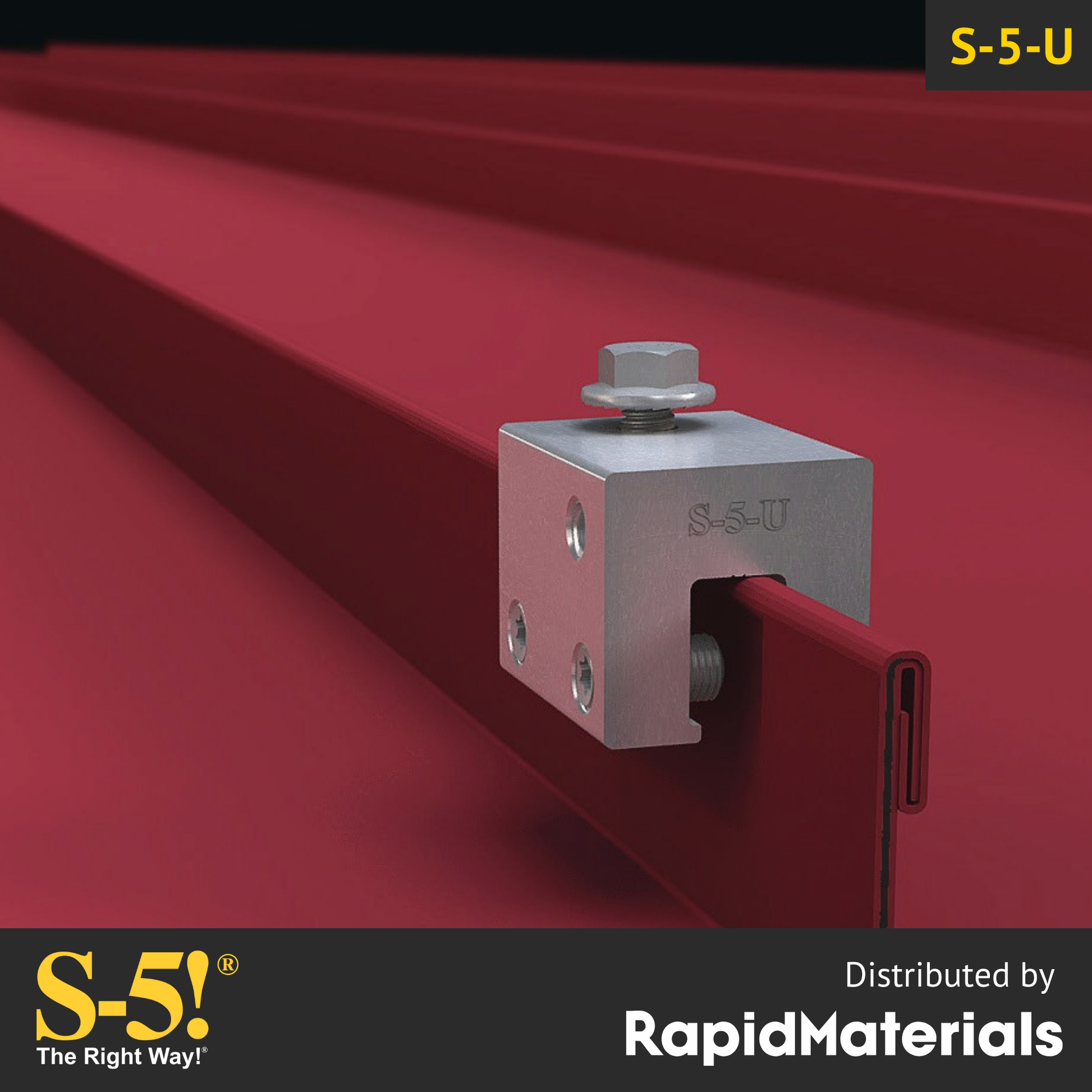

  • S-5-U Seam Clamp installed on Single Fold Standing Seam Metal Roof

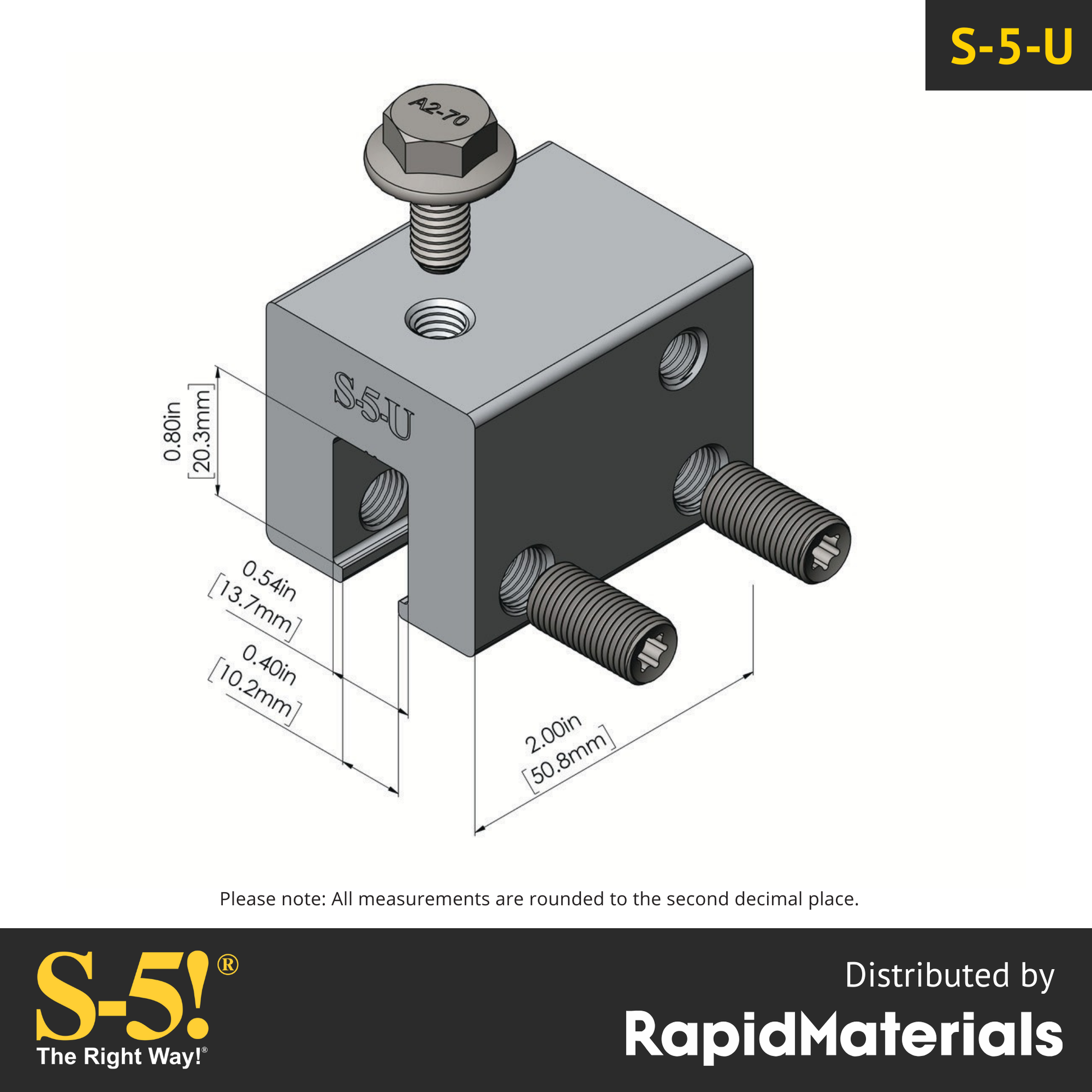

  • S-5-U Clamp Dimensions and Schema

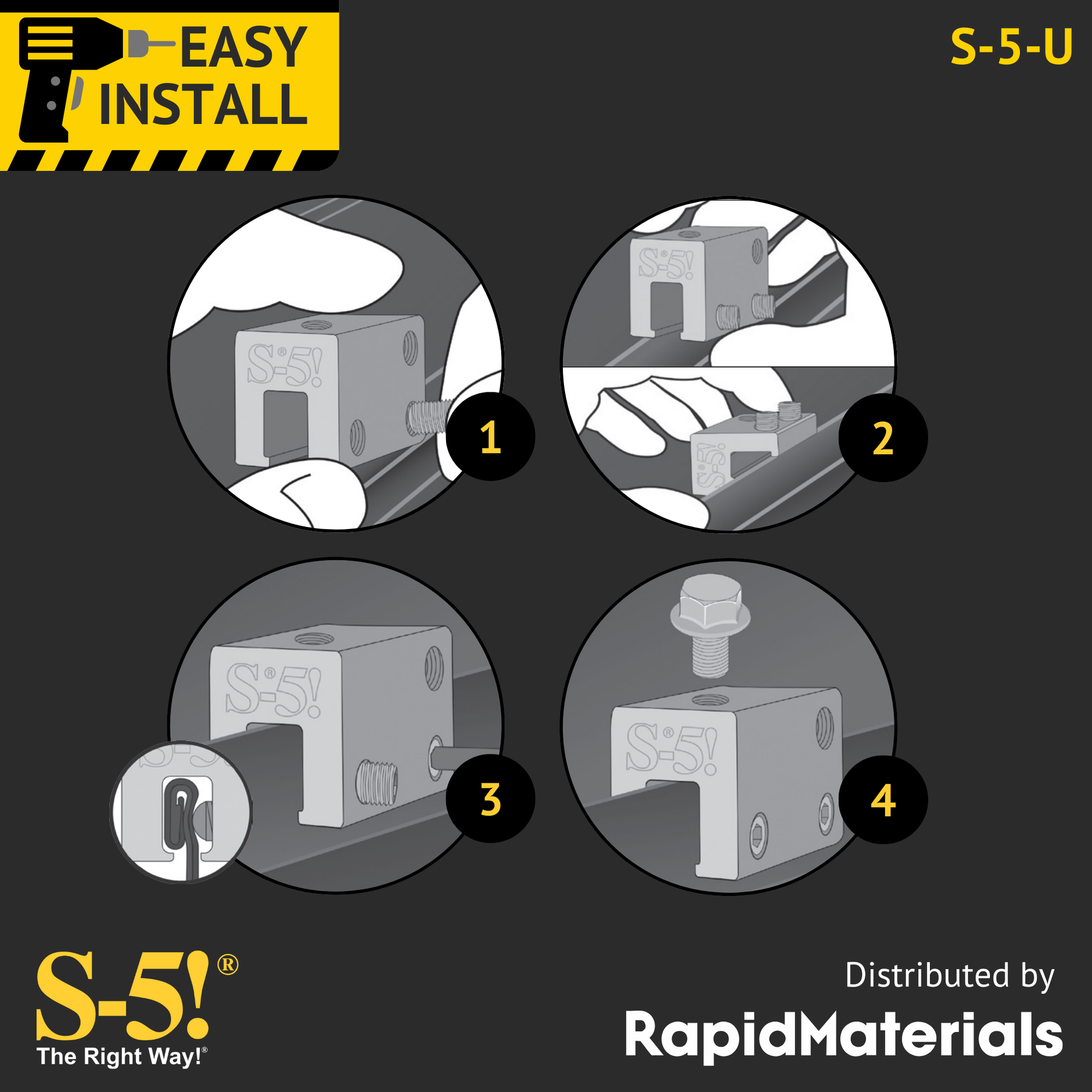

  • How to Install S-5-U universal metal roof clamp in 4 steps

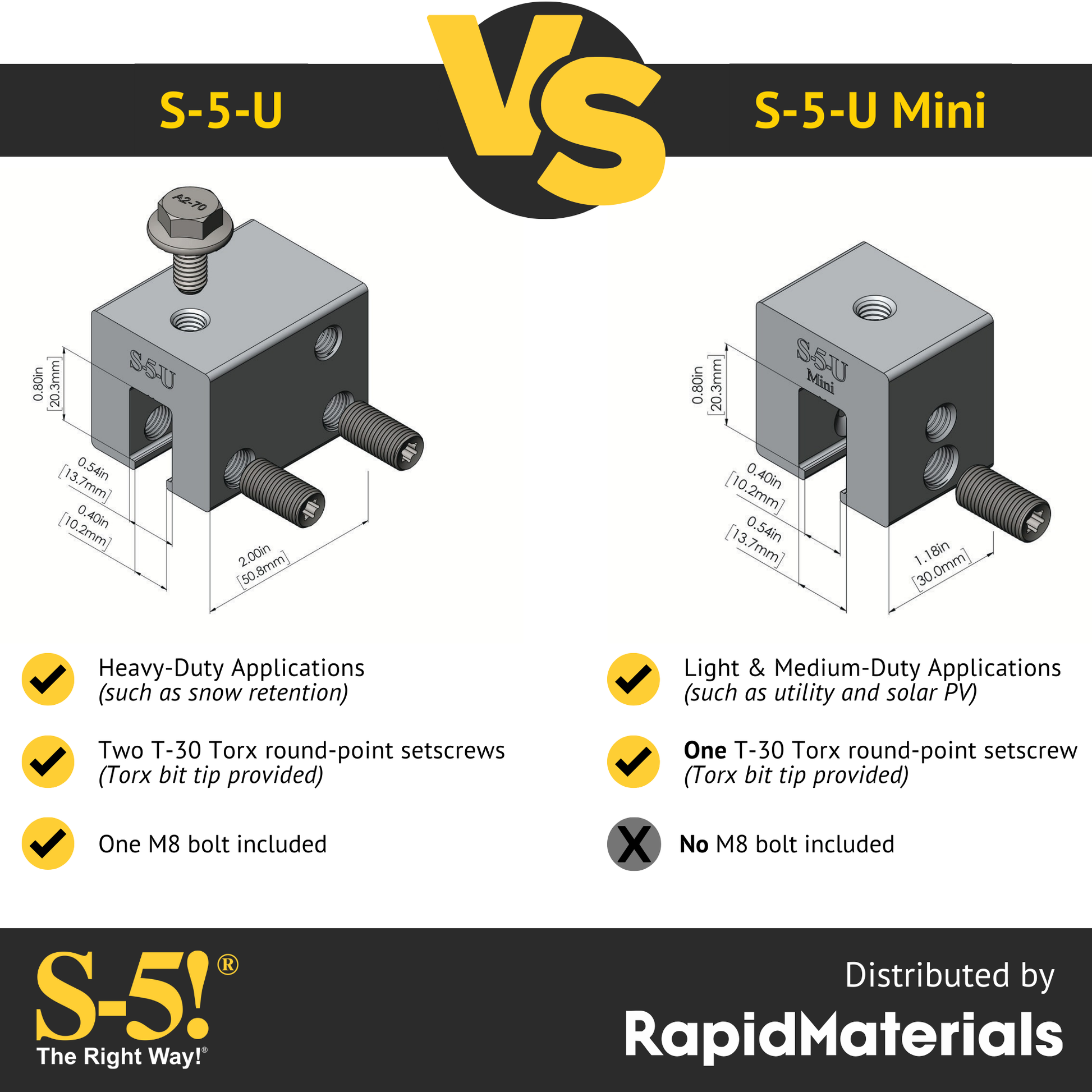

  • S-5-U Standard Seam Clamp vs S-5-U Mini Seam Clamp

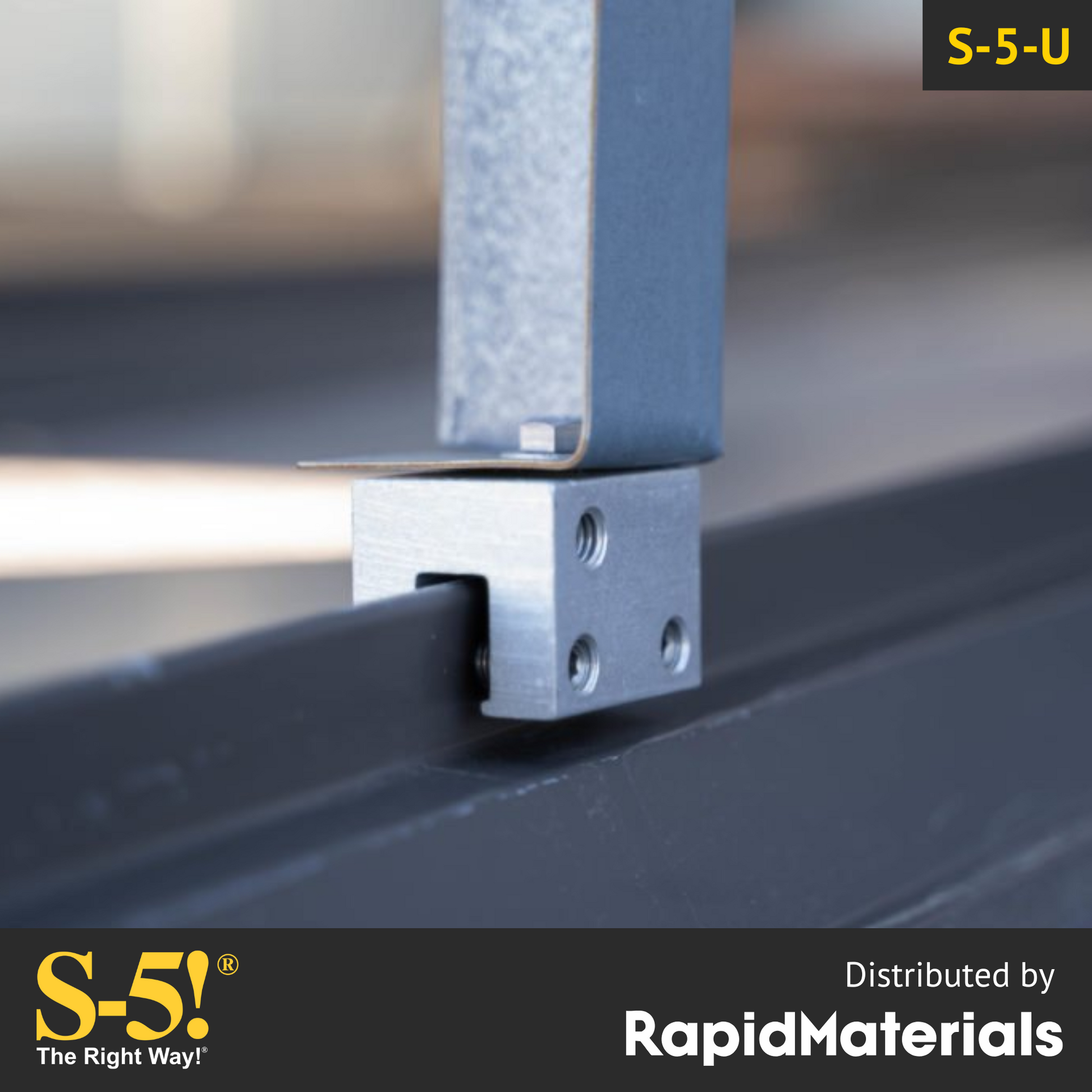

  • Example of the S-5-U Seam Clamp installed on a standing seam metal roof connected to the foot of a utility mount

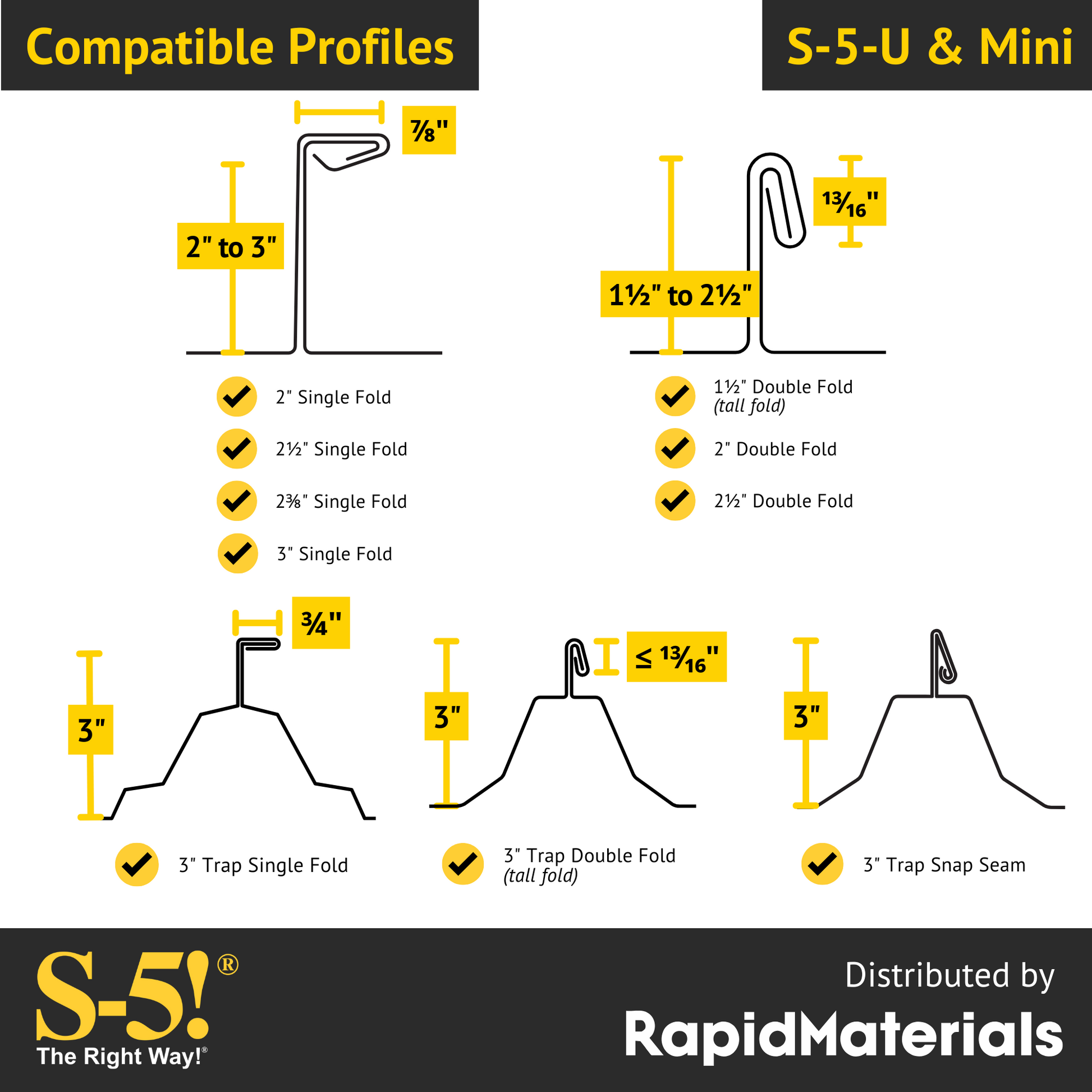

  • Compatible Roof Profiles for the S-5-U include many single and double fold seams
1 7

SKU: 54000027 |  S-5!

S-5-U Seam Clamp - Universal Standing Seam Metal Roof Attachment

S-5-U Seam Clamp - Universal Standing Seam Metal Roof Attachment

$9.17
$9.17
Sale Sold out
Shipping calculated at checkout.
QtyPrice
Buy 30$8.94 Each
Buy 120$8.72 Each

View full details
  • Same Day Shipping

    Same Day Shipping

    Order by 1PM ET

  • American Made

    American Made

    Built Right Here

  • S-5! Lifetime Warranty

    S-5! Lifetime Warranty

  • Description

    The S-5-U Seam Clamp (“U” stands for Universal) is the most versatile and widely used clamp in the S-5!® lineup, trusted by contractors across North and South America. Designed for compatibility with approximately 85% of standing seam metal roofing profiles, it’s ideal for heavy-duty applications like snow retention systems, solar panel attachment, and more.

    The S-5-U clamp works with vertical seams or horizontal seams with a projection of 0.65" or greater, the S-5-U is built to adapt, no roof penetration required.

    Key Features & Benefits:

    • Universal Fit: Works with most structural and architectural standing seam profiles
    • Rotatable Design: Use vertically or rotate 90° for horizontal seams
    • Heavy-Duty Holding Power: Ideal for solar, snow guards, walkways, and more
    • Easy Installation: Includes T-30 Torx setscrews (round-point, won’t penetrate panel) and M8 bolt
    • Ships Same Day from Rapid Materials (when ordered before cutoff)
    • Built to Last: Structural aluminum clamp + stainless steel hardware
    • Lab-Tested: Load-tested for pull-up and drag loads per S-5! standards
    • Certified: ICC-ES, UL2703, and LA County-approved (standard clamp only)

    What's Included:

    • (1) S-5-U Clamp
    • (2) T-30 Torx setscrews
    • (1) M8 bolt
    • (1) Torx bit tip

  • Brand

    S-5!
    S-5! has led metal roof attachment since 1992, with zero-penetration clamps and brackets that preserve roof integrity and warranties.
    Shop more from S-5! →

    Specs

    • SKU: 54000027
    • UPC: 810099470086
    • Certifications:
      ICC-ES IconICC-ES
      UL2703 IconUL2703
      LA County Bulletin
    • Compatible Roof Profiles: Trap Double Fold, Double Fold, Single Fold, Trap Single Fold

    Resources

S-5-U Seam Clamp - Universal Standing Seam Metal Roof Attachment

Frequently Asked Questions

What makes the S-5-U Clamp “universal”?

The S-5-U fits approximately 85% of standing seam profiles used in North and South America. It works with most structural and architectural roof systems, both vertical and horizontal (≥ 0.65” projection), making it one of the most adaptable clamps in the S-5!® lineup.

How do I install the S-5-U Clamp?

Installation is simple:

  1. Place the clamp on your roof seam (vertically or horizontally).
  2. Tighten the two T-30 Torx setscrews to the recommended torque.
  3. Use the included M8 bolt to secure your snow retention, solar panel bracket, or other accessory.

Always refer to the downloadable PDF for complete instructions and torque specifications.

Is the S-5-U clamp compatible with my roof?

The S-5-U works with many common standing seam profiles, including:

  • 3" trap double-fold
  • 2-1/2" and 1-1/2" double-fold
  • 2-3/8" and 2-1/2" single-fold

If your seam is horizontal, it must project at least 0.65” for a secure fit.

Still unsure? Contact our product support team — we’re happy to help you confirm.

What's the difference between the S-5-U and other clamps?

  • S-5-U: Most versatile, fits both vertical and many horizontal seams
  • S-5-V, S-5-E, S-5-S: Optimized for vertical seams
  • S-5-H and S-5-H90: Designed specifically for horizontal seams
  • S-5-U Mini: Lower-cost version for light-duty uses (doesn’t include M8 bolt)

Not sure which clamp to use? Check the Clamp Compatibility Tool or ask us, we’ll match you to the right fit.

Can I reuse an S-5! clamp after installation?

S-5! clamps are designed for a secure, long-term attachment. Once installed, the setscrews create a dimple in the seam and natural oxidation begins, effectively locking the clamp in place. Because of this, clamps that have been installed should not be reused or repositioned. Reinstallation may compromise holding strength and void any performance expectations.

If a clamp is accidentally misaligned during the initial install, it can usually be repositioned right away. But after the oxidation process begins, S-5! does not recommend removing and reinstalling the clamp.
