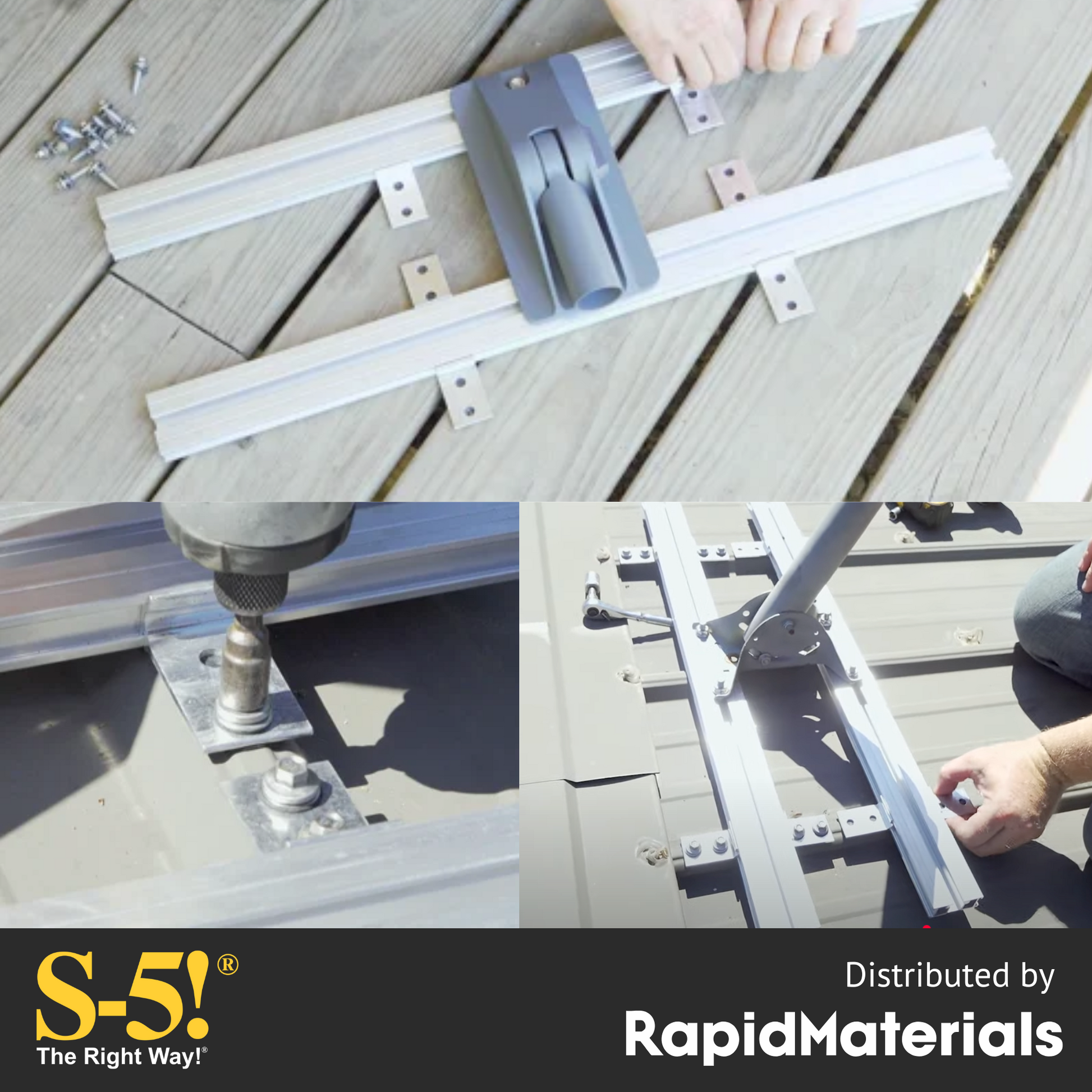

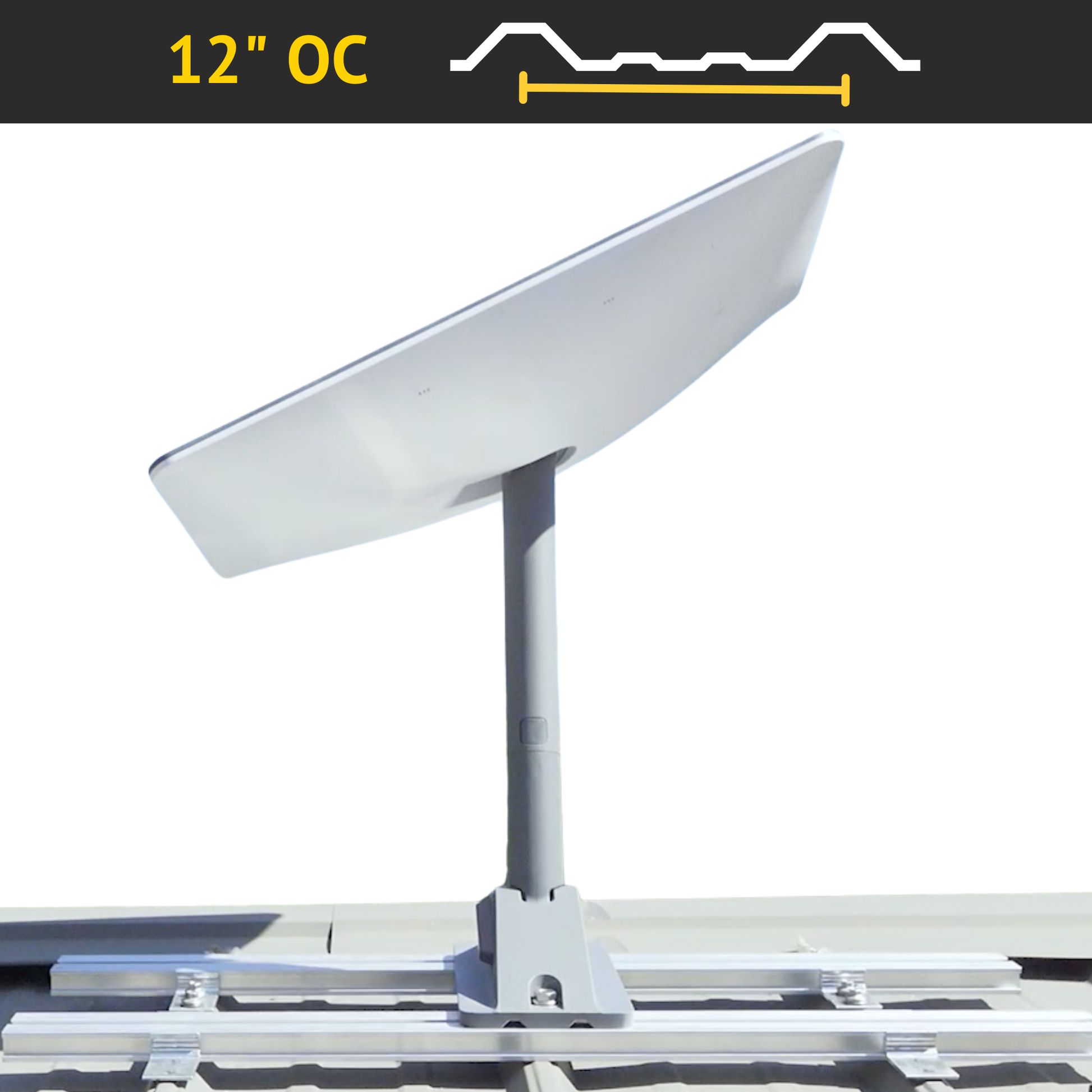

Our Satellite Mounting Dish Kit includes everything you need to install any standard* satellite dish on any “R” style or trapazoidal Panel exposed fastener panel. This dish kit can be installed in 15-20 minutes with only basic hand tools.

If you have a roof panel similar to one of these profiles, this kit has everything you need for a complete installation:

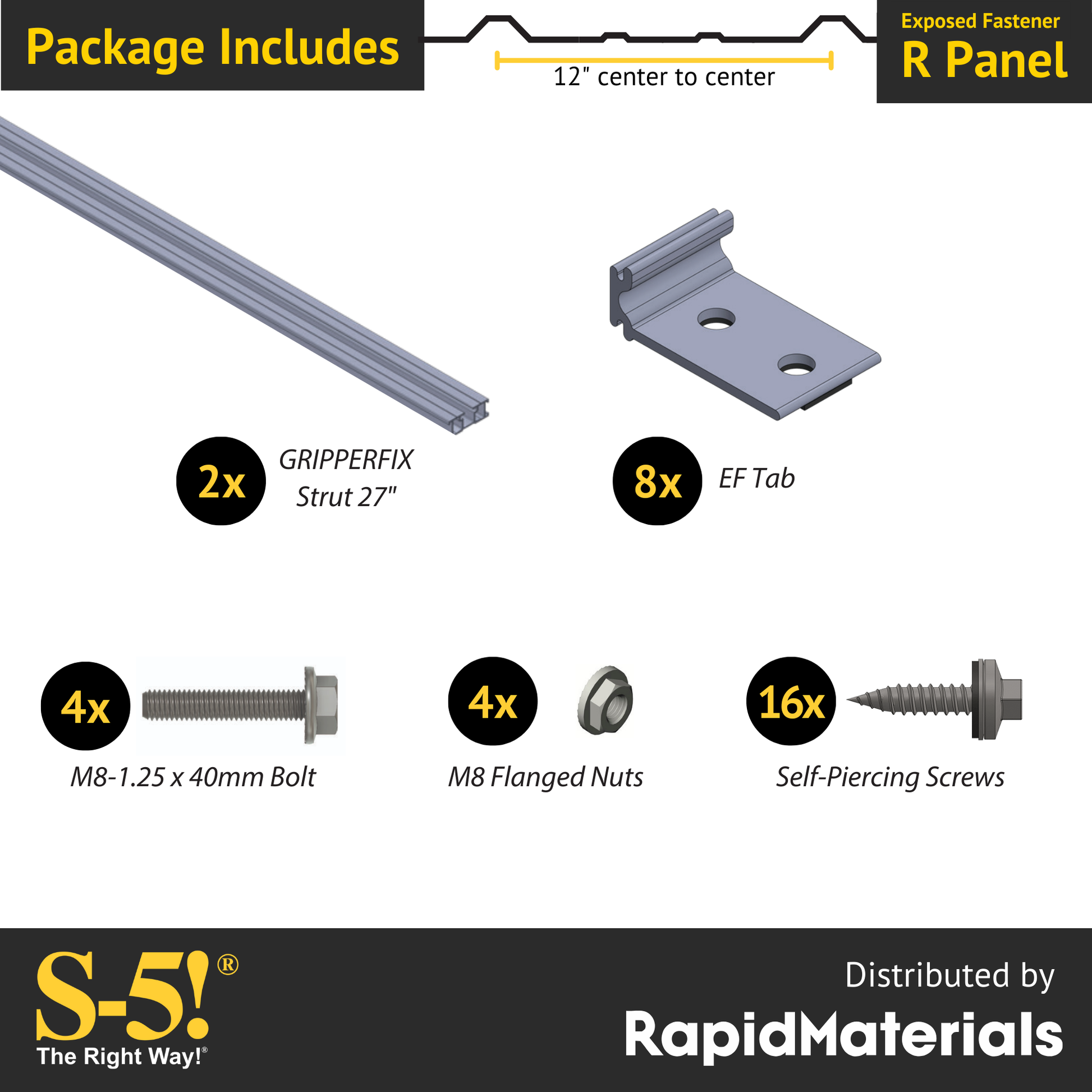

The Kit includes:

• 2 ea 26″ GripperFix Struts 54000140
• 8 ea GripperFix EF Tab 54000139
• 4 ea M8-1.25x40mm Flanged Bolts (Inserts into the GripperFix Strut. Satellite dish is mounted to these bolts) 54000145
• 4 ea M8 Flanged Nuts 54000111
• 16 ea 1/4-14×1″ Self-Piercing Screws w/ Stainless Steel Cap & EPDM Rubber Washer

Tools you will need for installation:

• Tape Measure
• Drill/Screw Gun (impact driver should not be used)
• 3/8″ Driver Bit for 1/4-14 screws
• 13mm socket wrench and 13mm open end/box wrench (or two of either)
• * Hacksaw or Sawzall with 14tpi minimum metal cutting blade (Recommended if you need to cut strut)

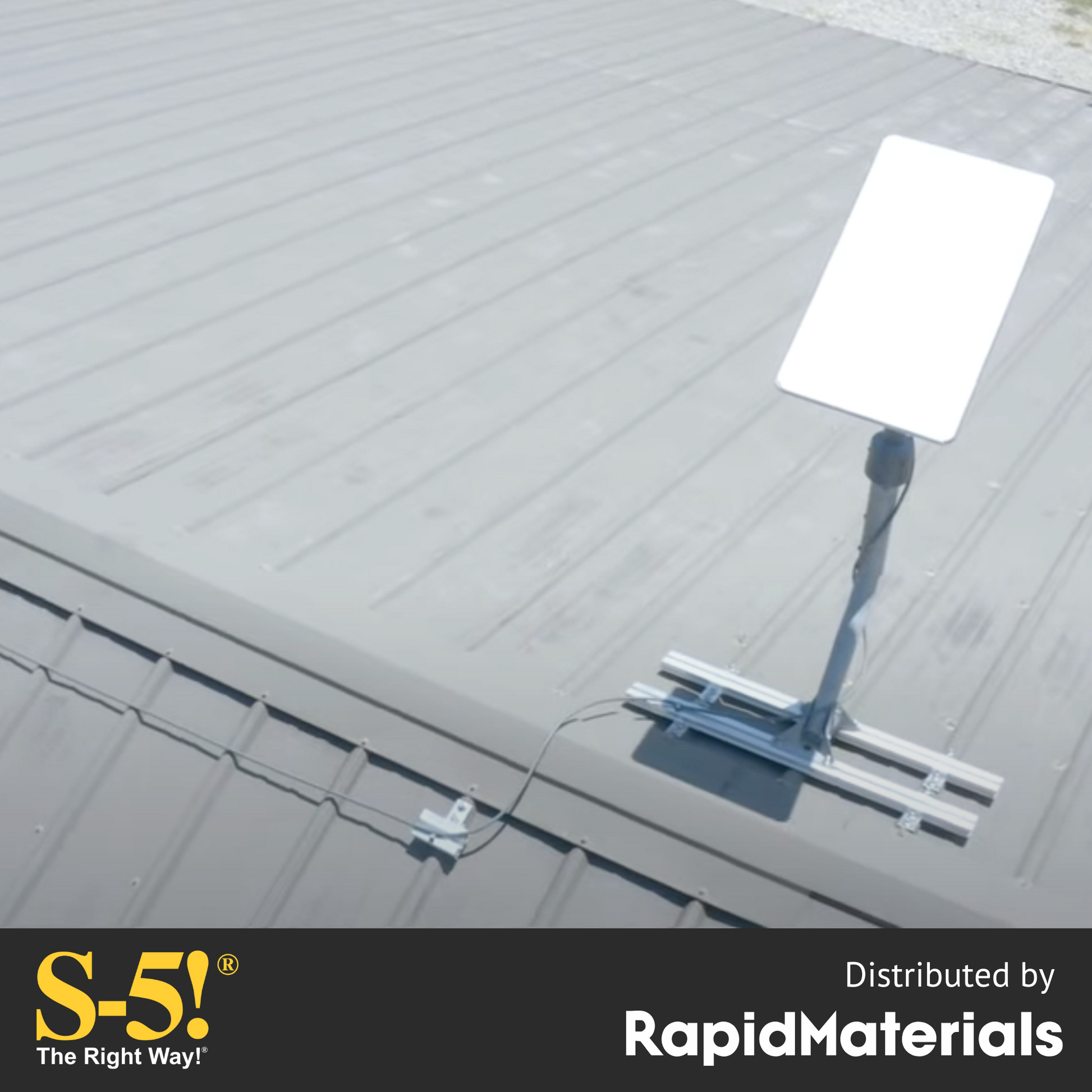

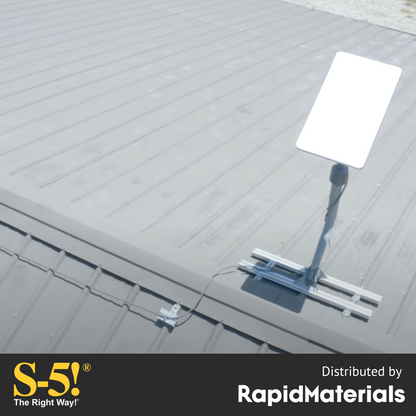

Starlink Base Compatibility Notes

Starlink® is a registered trademark of Space Exploration Technologies Corp (SpaceX).

We supply each kit with M8 x 40mm (1-9/16") bolts, which are compatible with some—but not all—Starlink base mounts. Please review the information below before installation:

	Standard Starlink Base This mount may not be compatible out of the box. The bolt holes may be too small for the 8mm bolts provided, and there may not be enough surrounding material to safely drill them out to 5/16" (8mm). Use caution and consult with Starlink support if unsure.
	Volcano Base (Recommended) This option is typically more compatible. However, you may still need to enlarge the mounting holes with a 5/16" drill bit to fit our bolts. Always verify your specific configuration.

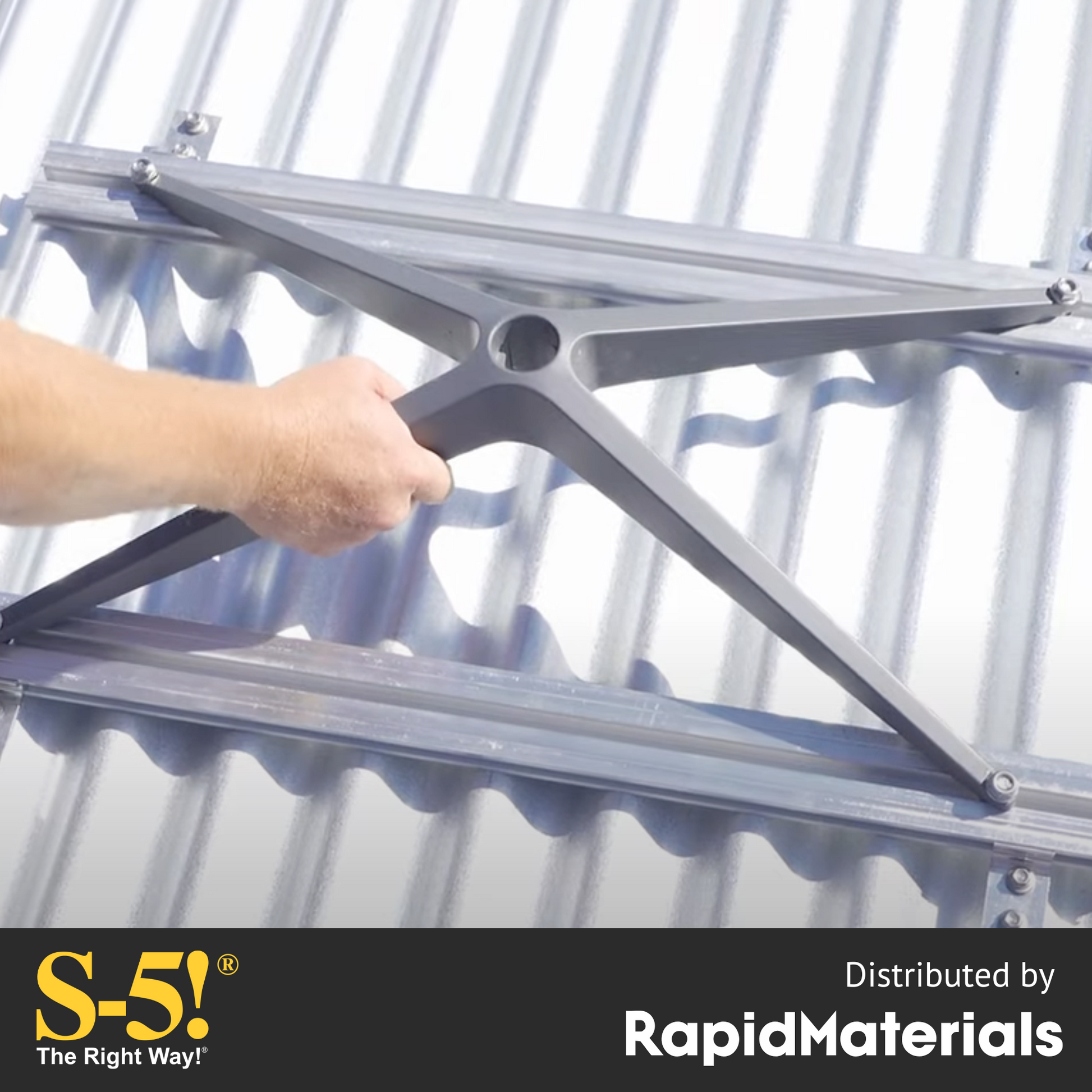

	Pivot Base (Recommended) Also generally well-suited for use with our kit. Like the Volcano base, some models may require enlarging the holes to fit the included M8 hardware.

Older Dishes May Require Longer Bolts

Some earlier Starlink dish models have a thicker base that our 40mm bolts may not accommodate. If your dish falls into this category, longer bolts will be required. We recommend preassembling your dish to a GripperFix rail to determine the correct length, then sourcing appropriate bolts locally.
