Description

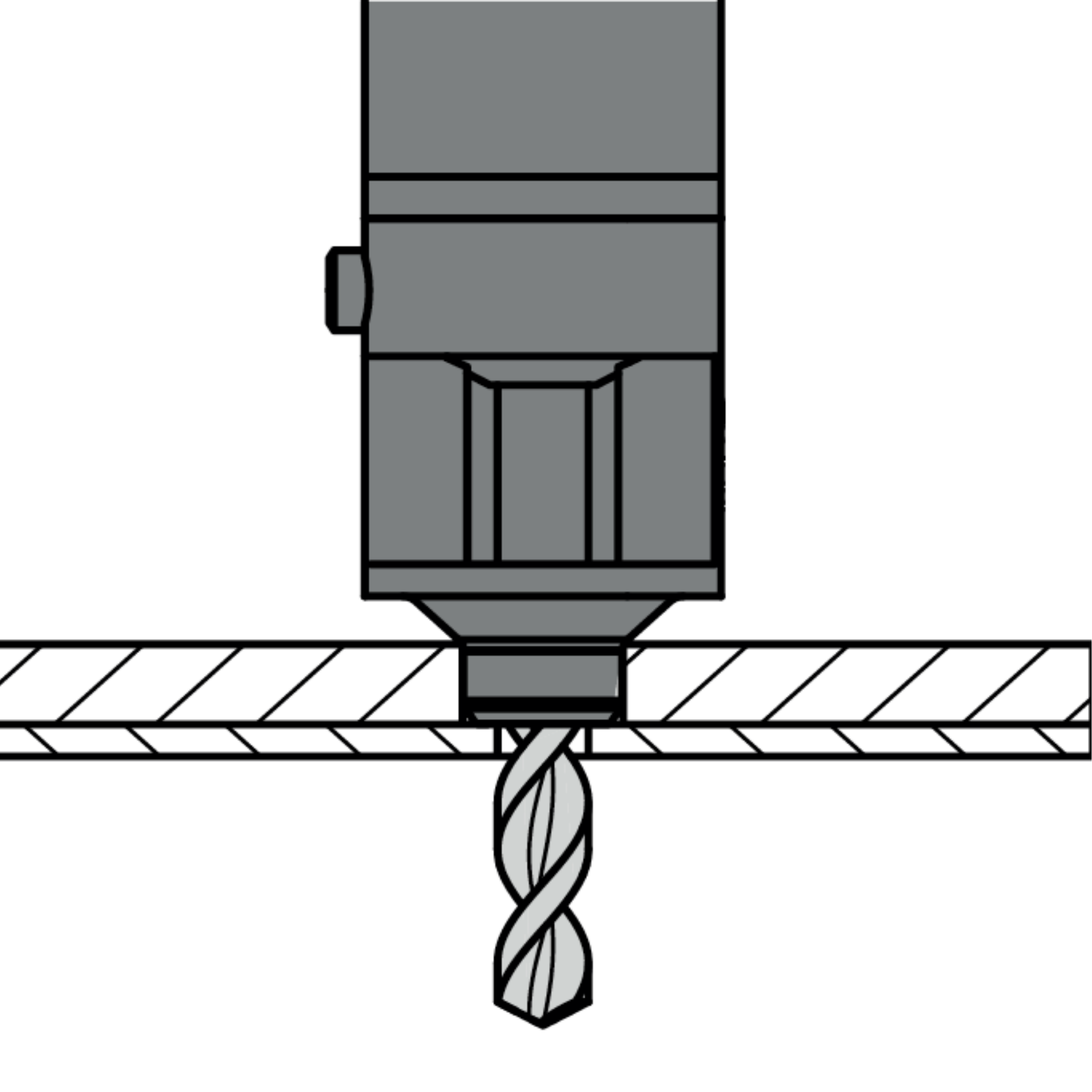

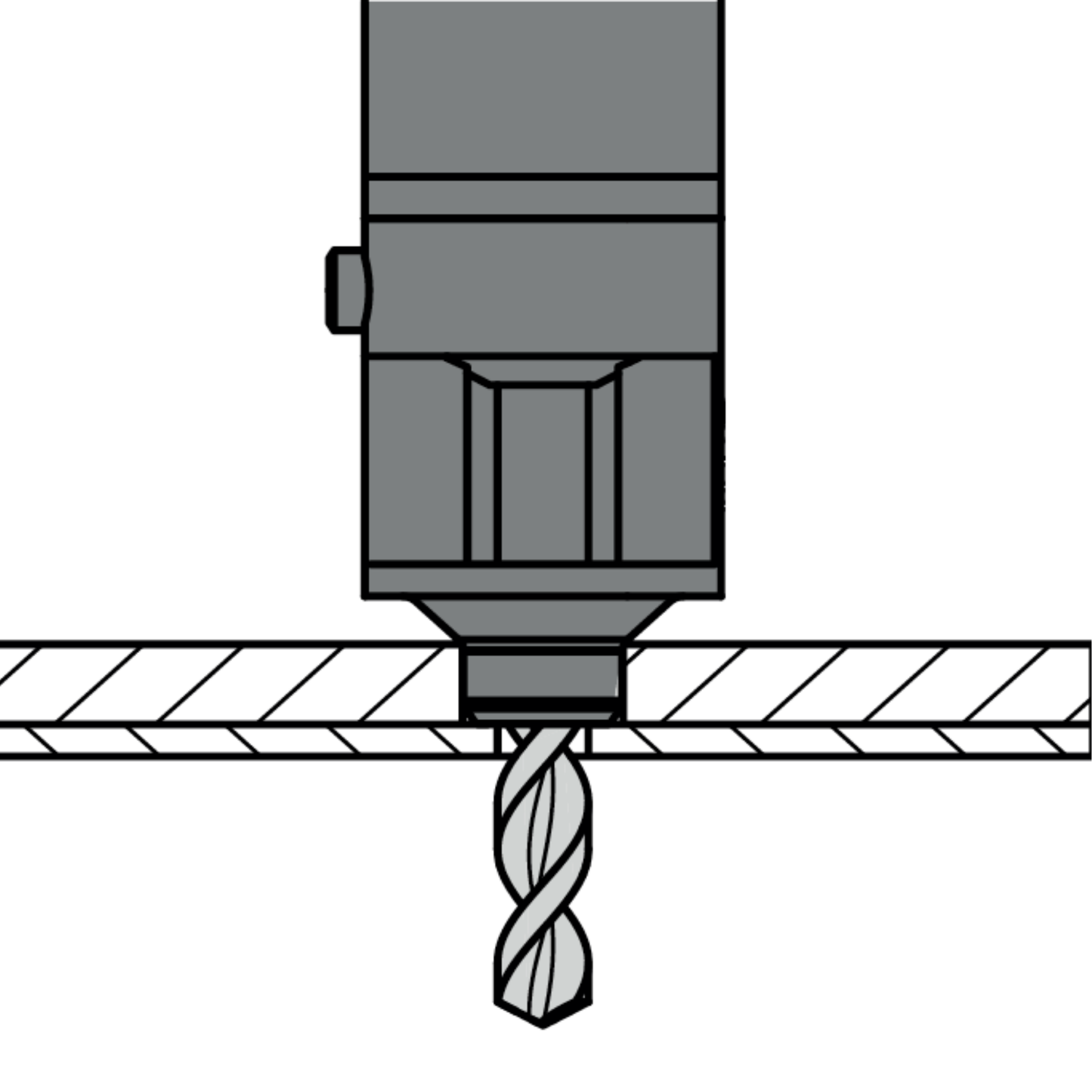

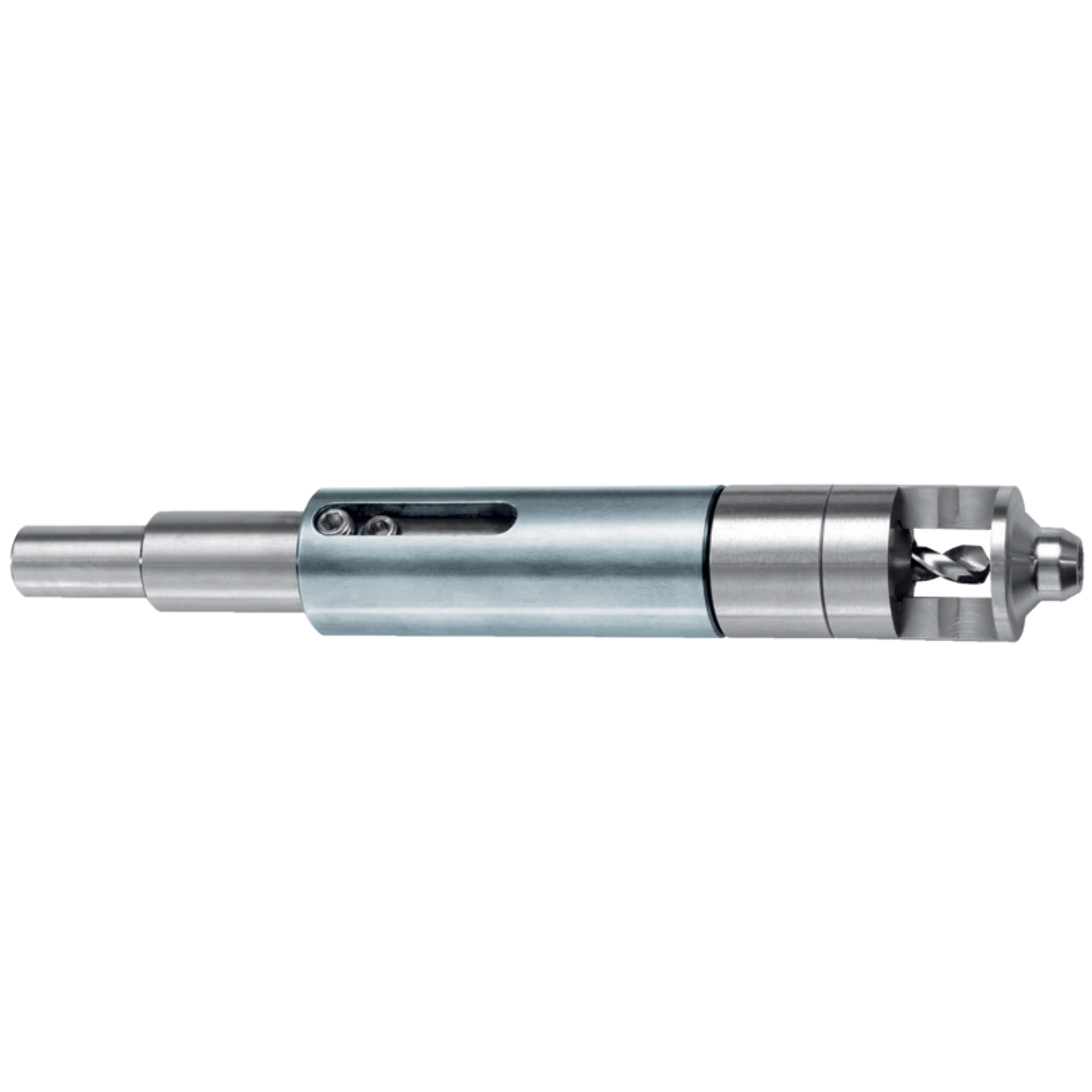

The SFS DG Drill Gauge is a precision drilling guide designed to create perfectly centered holes in aluminum and steel subframes using the pre-drilled cladding panel as a guide. It helps ensure accurate rivet placement for facade systems while improving installation speed and consistency.
Supplied with a 5.1 mm (#7) drill bit, the DG Drill Gauge is designed for use with SFS AP16 and SSO-D15 facade rivets. Four interchangeable nosepieces accommodate different pre-drilled float hole diameters in the facade panel, while the non-rotating nosepiece and single-handed operation make installation fast, easy, and precise.
Key Features

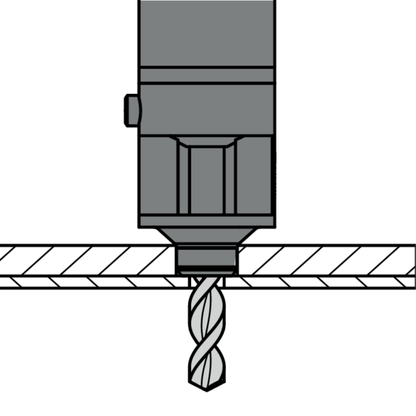

- Creates centered drill holes in the subframe using the pre-drilled cladding panel as a guide
- Includes a 5.1 mm (0.201") drill bit (#7)

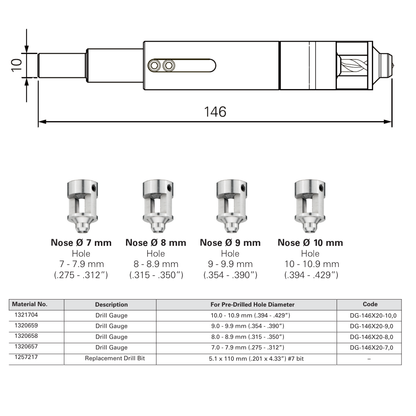

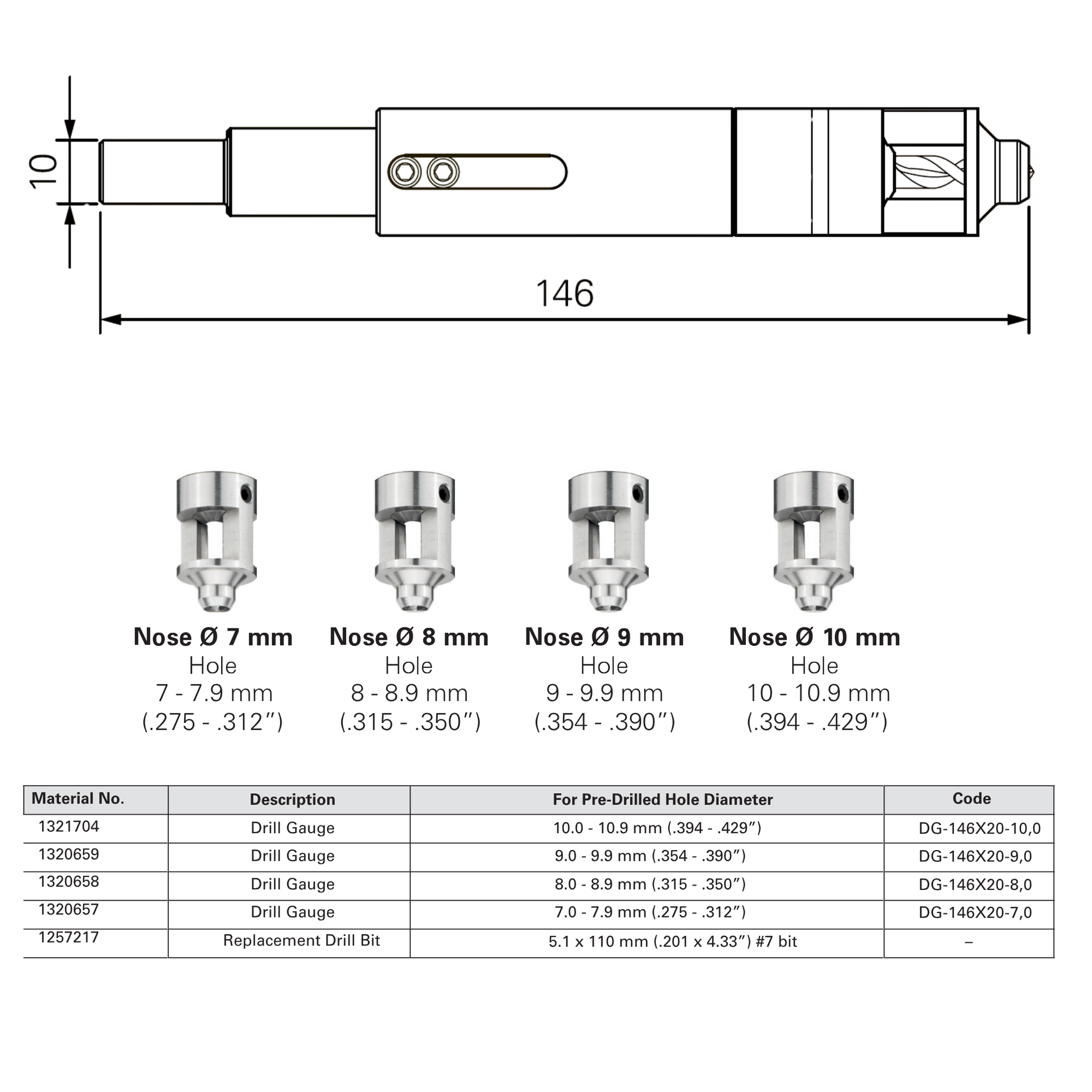

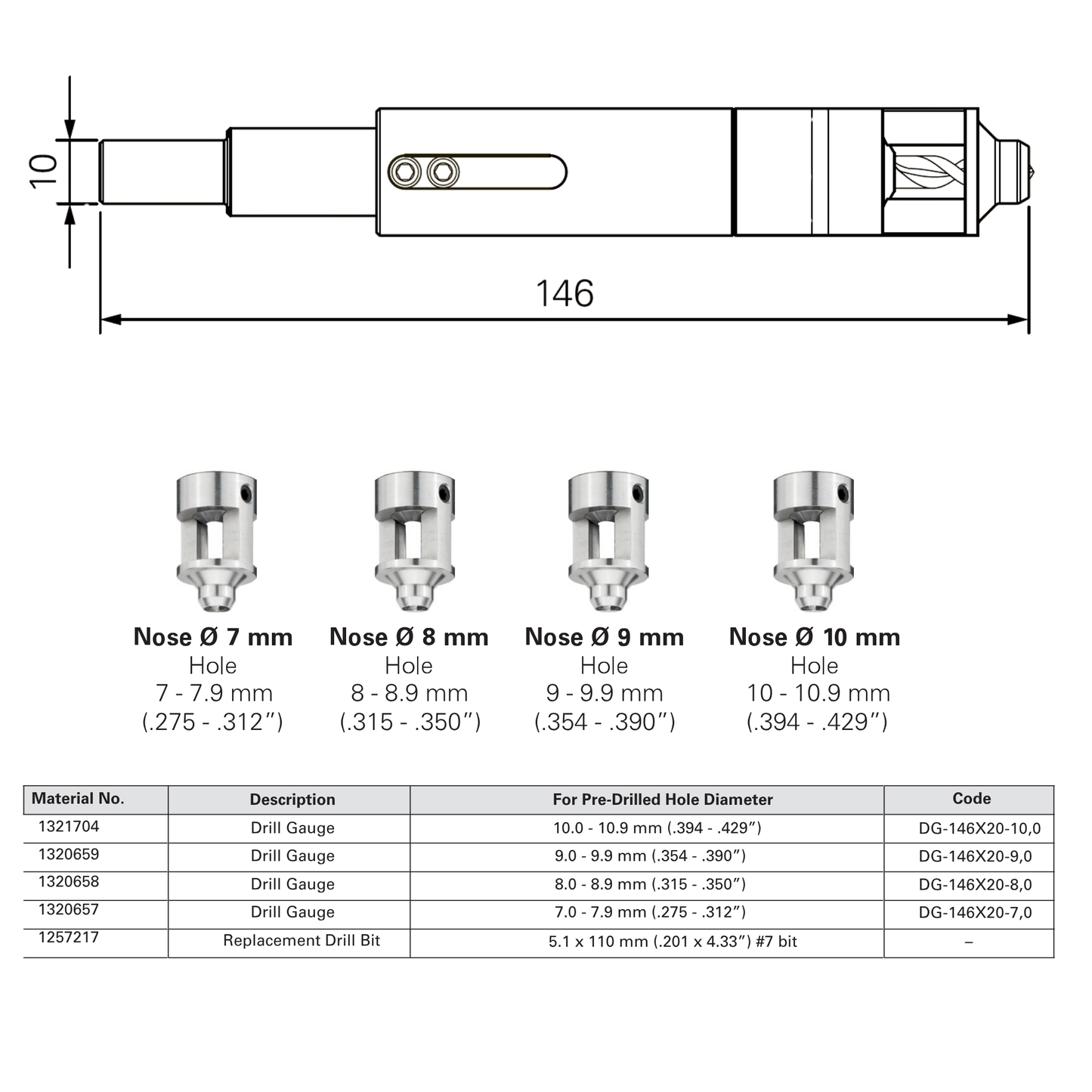

- Interchangeable nosepieces available in 7 mm, 8 mm, 9 mm, and 10 mm diameters
- Non-rotating nosepiece helps prevent damage to finished facade panels
- Single-handed operation improves installation efficiency

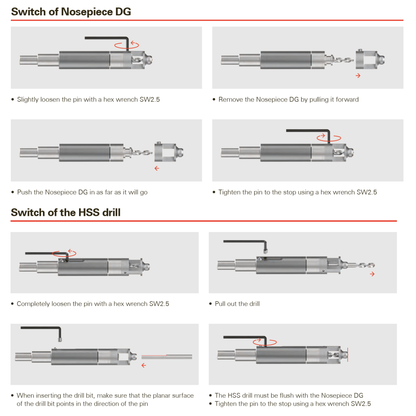

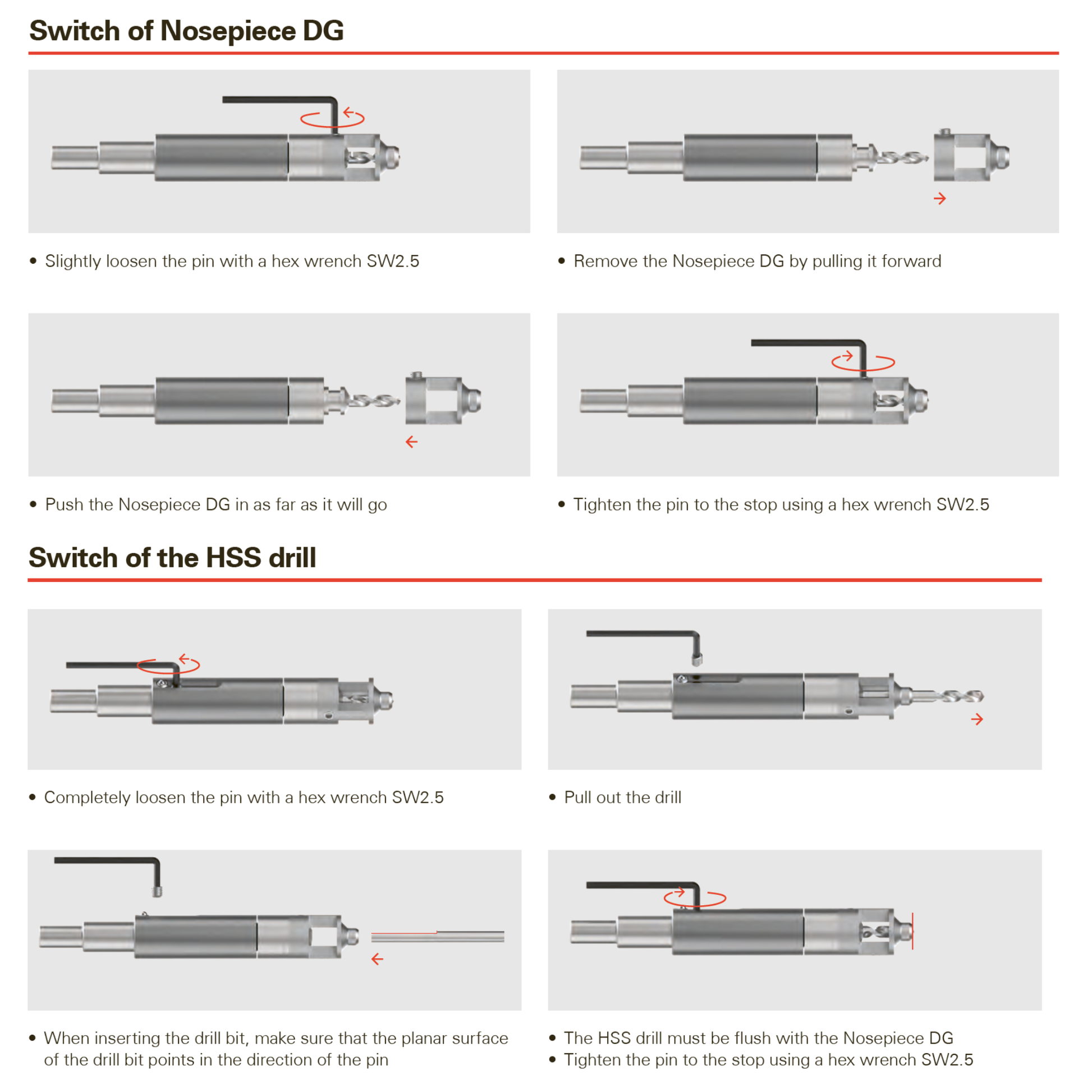

- Quick and easy nosepiece and drill bit changes
- Compatible with standard screwdrivers and drills equipped with a drill chuck
Applications
- Drilling centered subframe holes for facade rivet installation

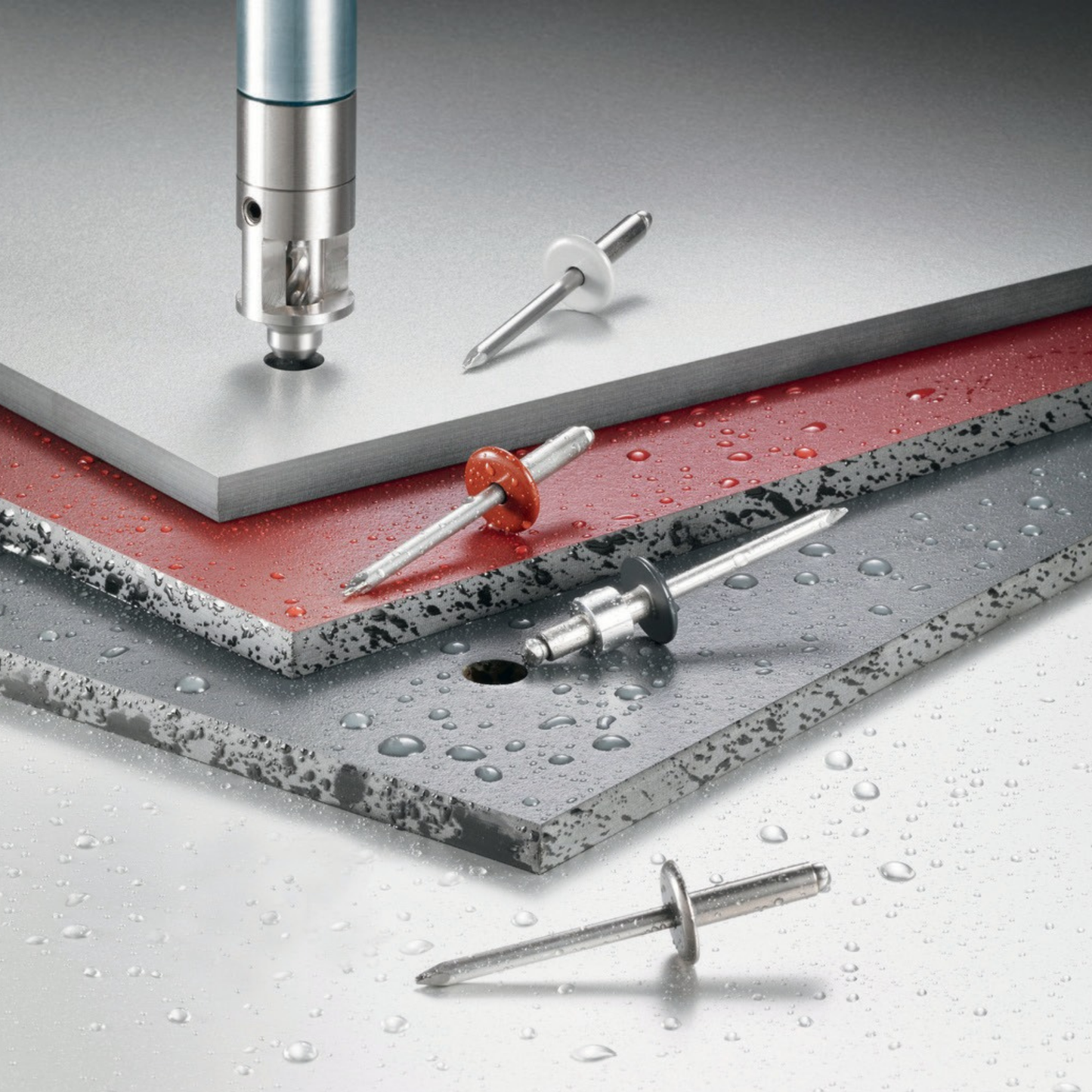

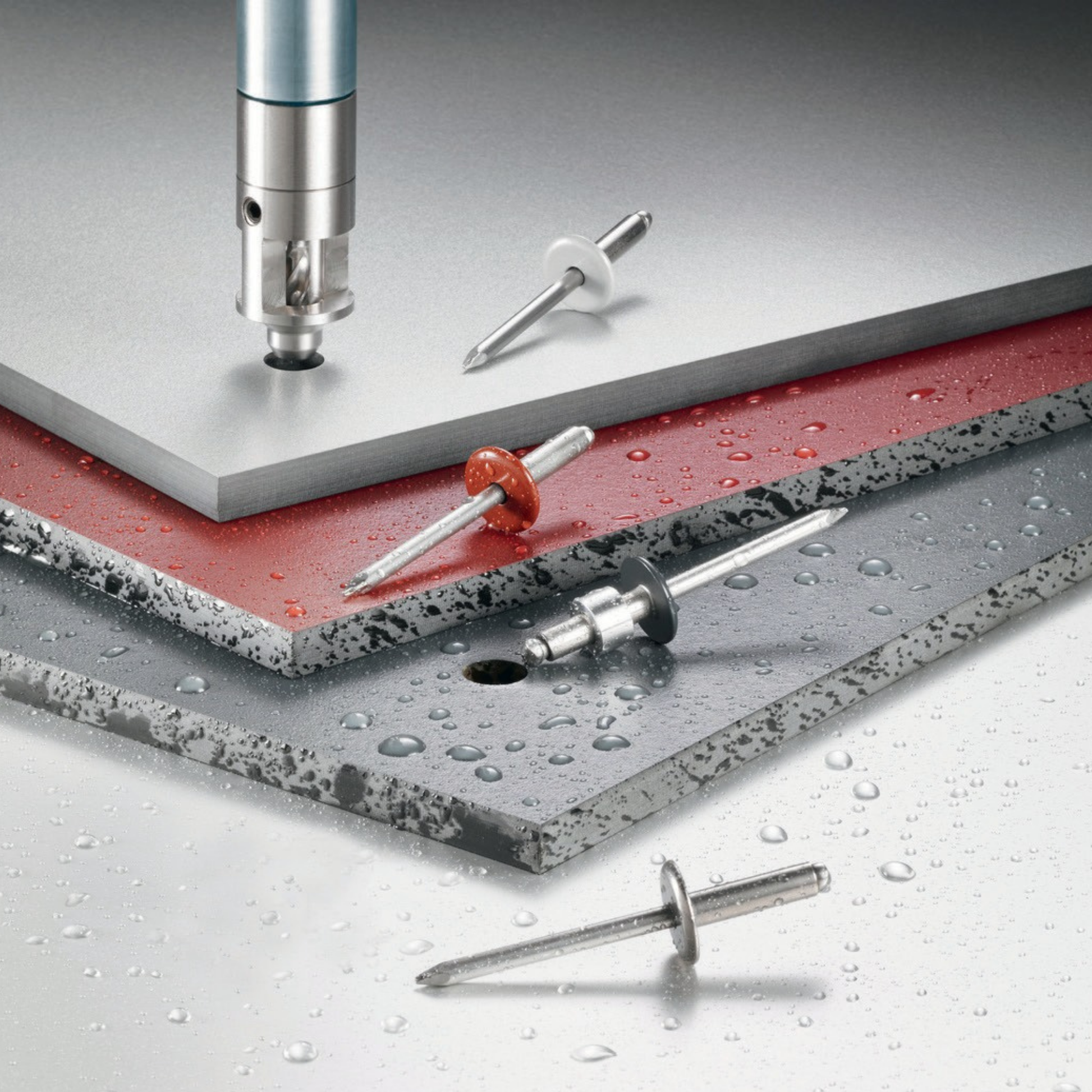

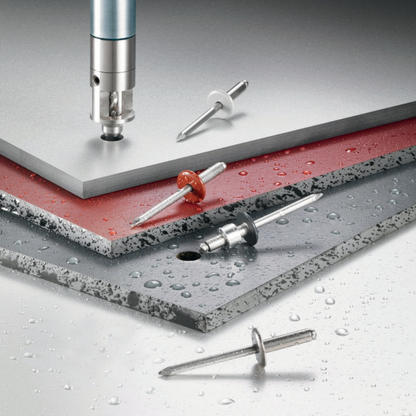

- ACM, fiber cement, HPL, terracotta, and other mechanically fastened rainscreen panels
- Installation of SFS AP16 aluminum rivets and SSO-D15 stainless steel rivets
Includes
- DG Drill Gauge
- 5.1 mm (0.201") drill bit (#7)
- Selected interchangeable nosepiece (7 mm, 8 mm, 9 mm, or 10 mm)
-
Brand
SFSSFS Group USA manufactures engineered fastening systems for construction and industry, delivering precision and performance backed by global expertise.Shop more from SFS →
Specifications
- SKU: 50000060
- UPC: 1320657
- Direction:
- Finish:
- Reflectivity:
- Coverage:
- Thickness:
- Size:
- Warranty:
