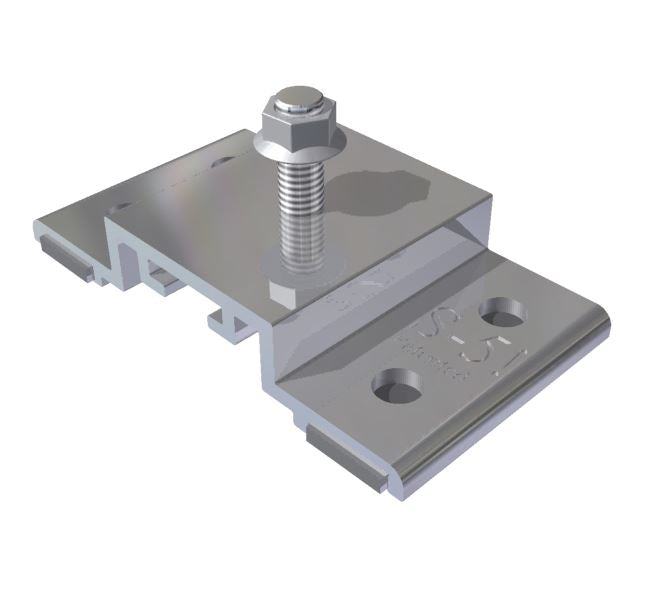

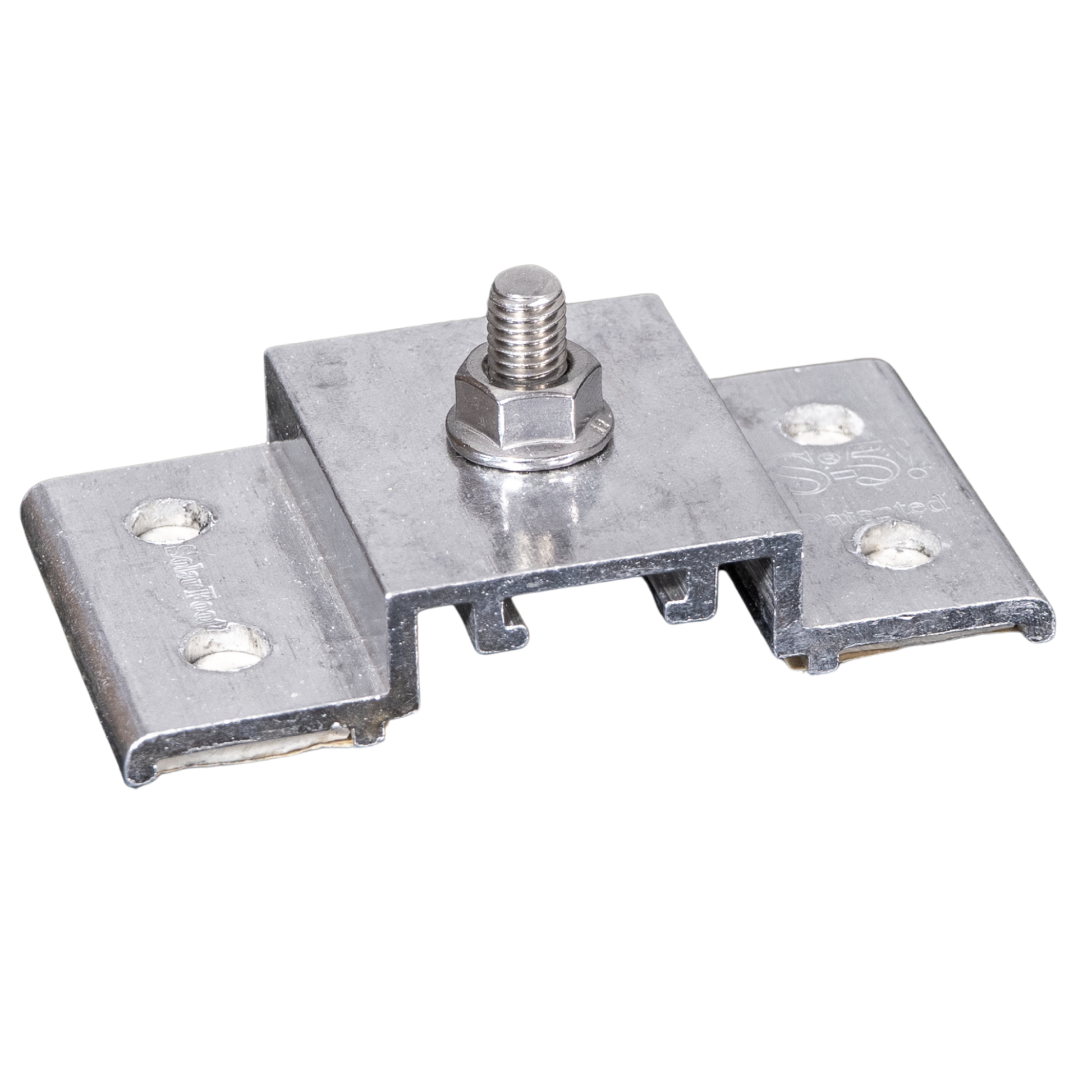

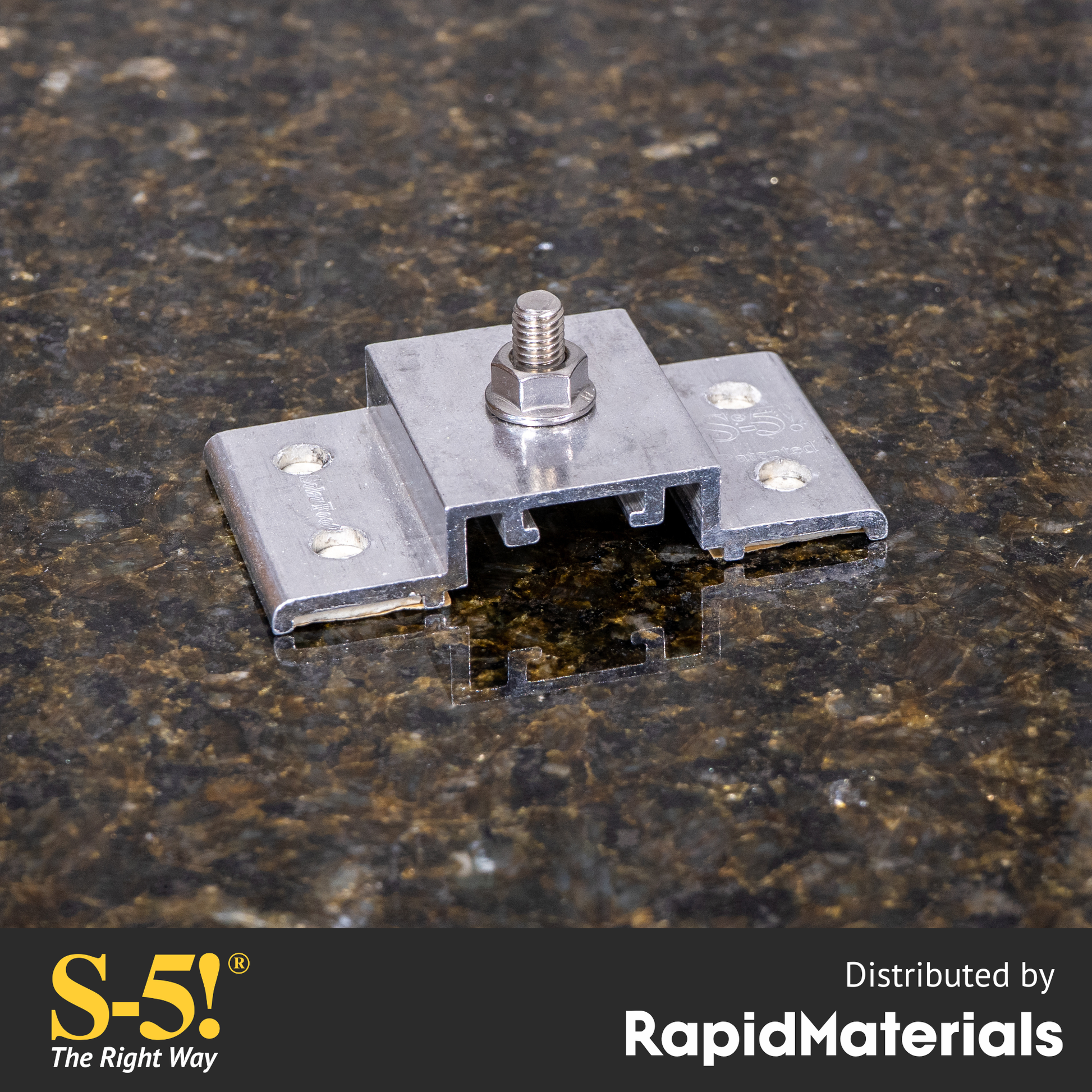

Introducing the new SolarFoot^™ for exposed fastener metal roofing with the strength, testing, quality, and time-proven integrity you expect from S-5!. The SolarFoot provides an ideal mounting platform to attach the L-Foot* of a rail-mounted PV system to the roof. This solution is The Right Way to secure rail-mounted solar systems to exposed fastener metal such as AG-Panel or R-Panel. *L-Foot and fasteners not included. SolarFoot includes pre-attached 8mm stud and one 8mm hex nut. Available fasteners for SolarFoot:

• 1/4-14×1.5″ Wood Screws
• 1/4-14×2.5″  Wood Screws
• 1/4-14×2″ Self-Drilling Screws

SolarFoot ­Features:

• Manufactured in the U.S.A. from certified raw material
• Fabricated in our own ISO 9001:2015 Certified factory
• All aluminum and stainless components
• 25yr limited warranty
• Compatible with all commercial L-Foot products on the market
• Factory applied 40-year isobutylene/isoprene crosslink polymer sealant for reliable weathertightness
• Sealant reservoir to prevent over-compression of sealant
• Load tested normal to seam
• Four points of attachment into structure or deck with tested holding strength for engineered applications

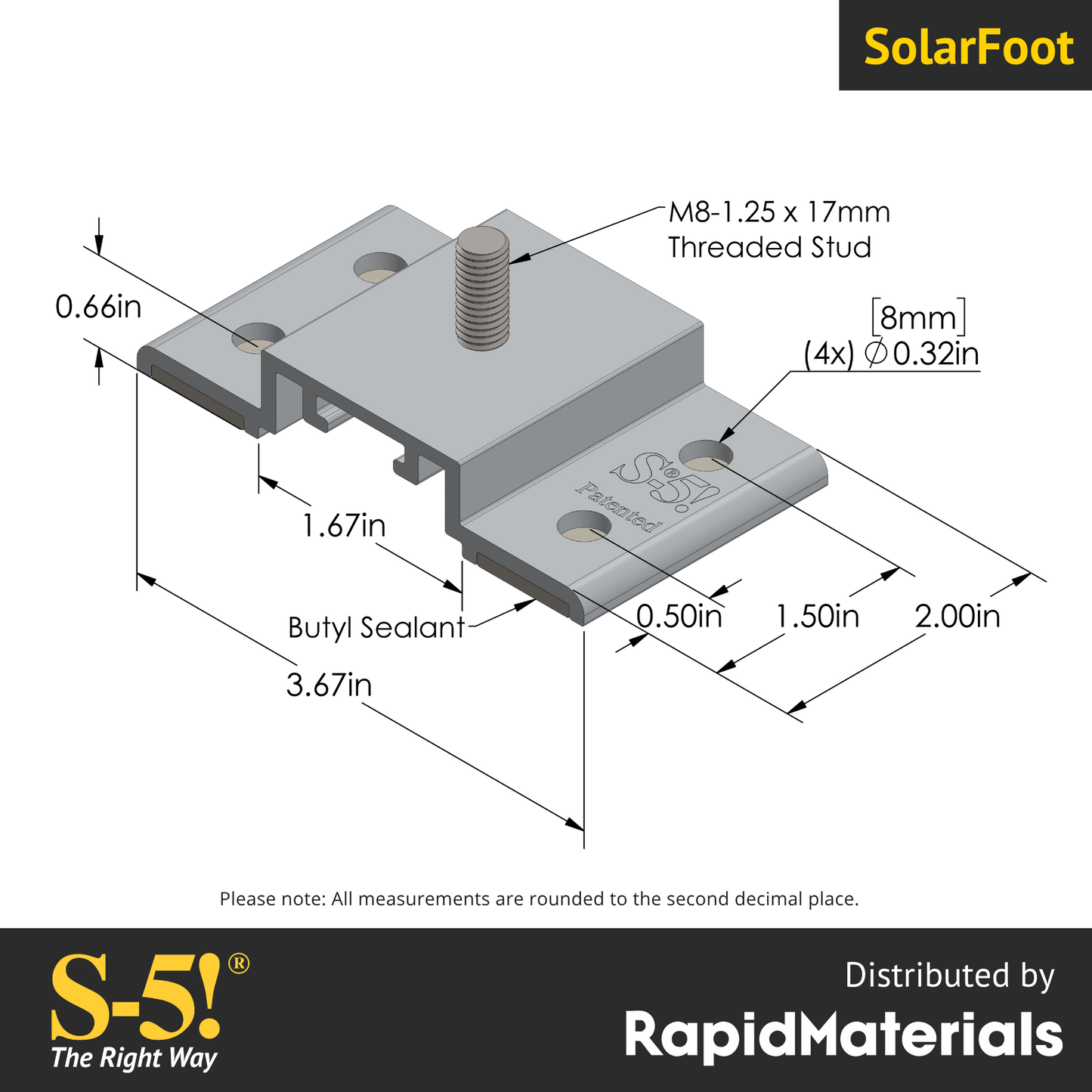

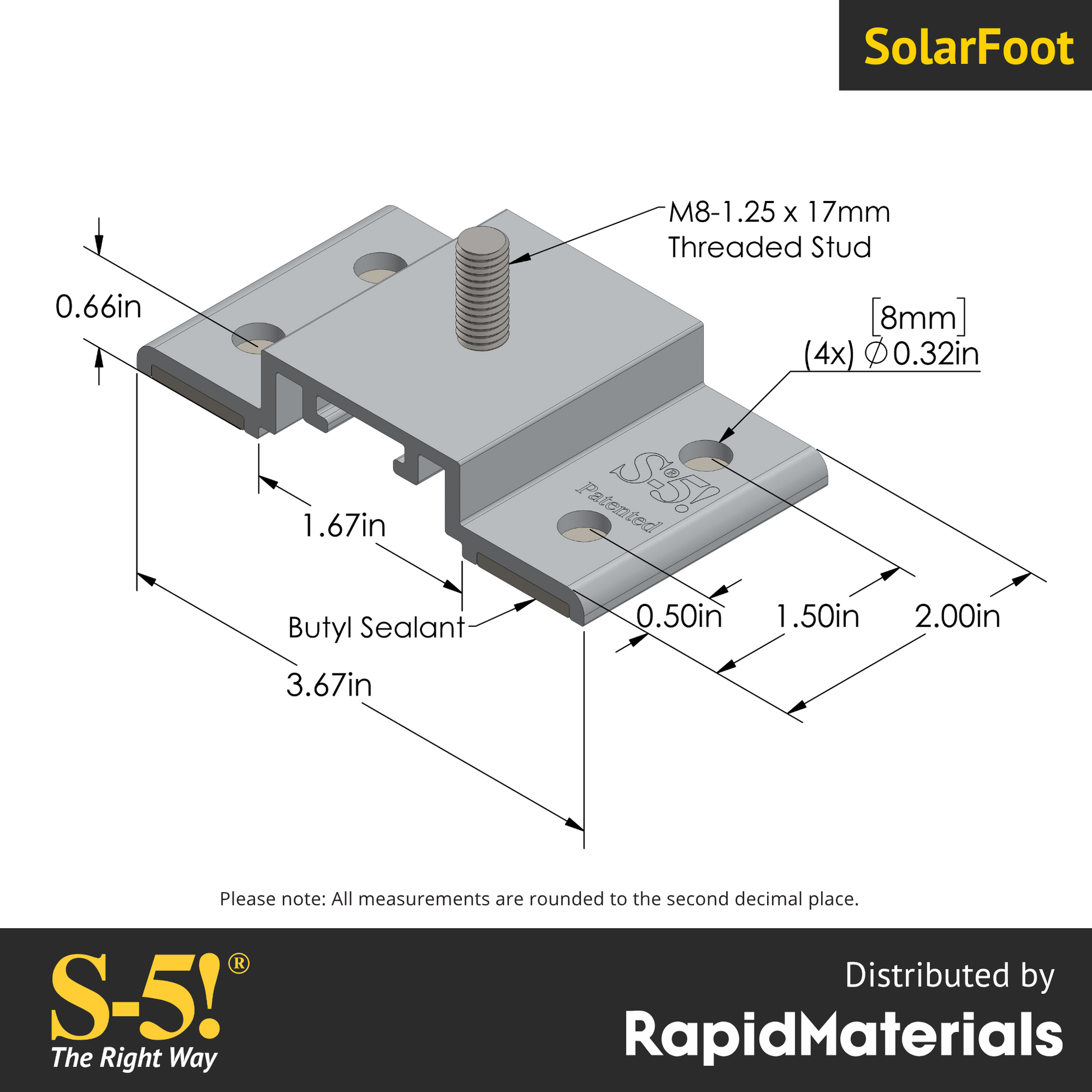

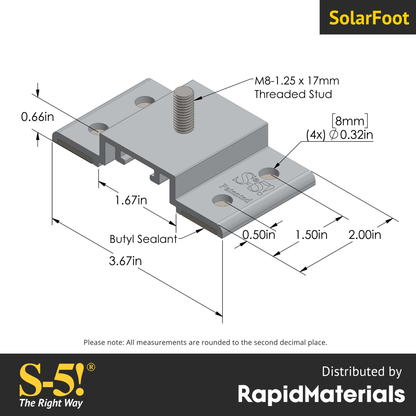

• Integrated with M8-1.25x17mm stud and M8-1.25 stainless steel hex flange nut included

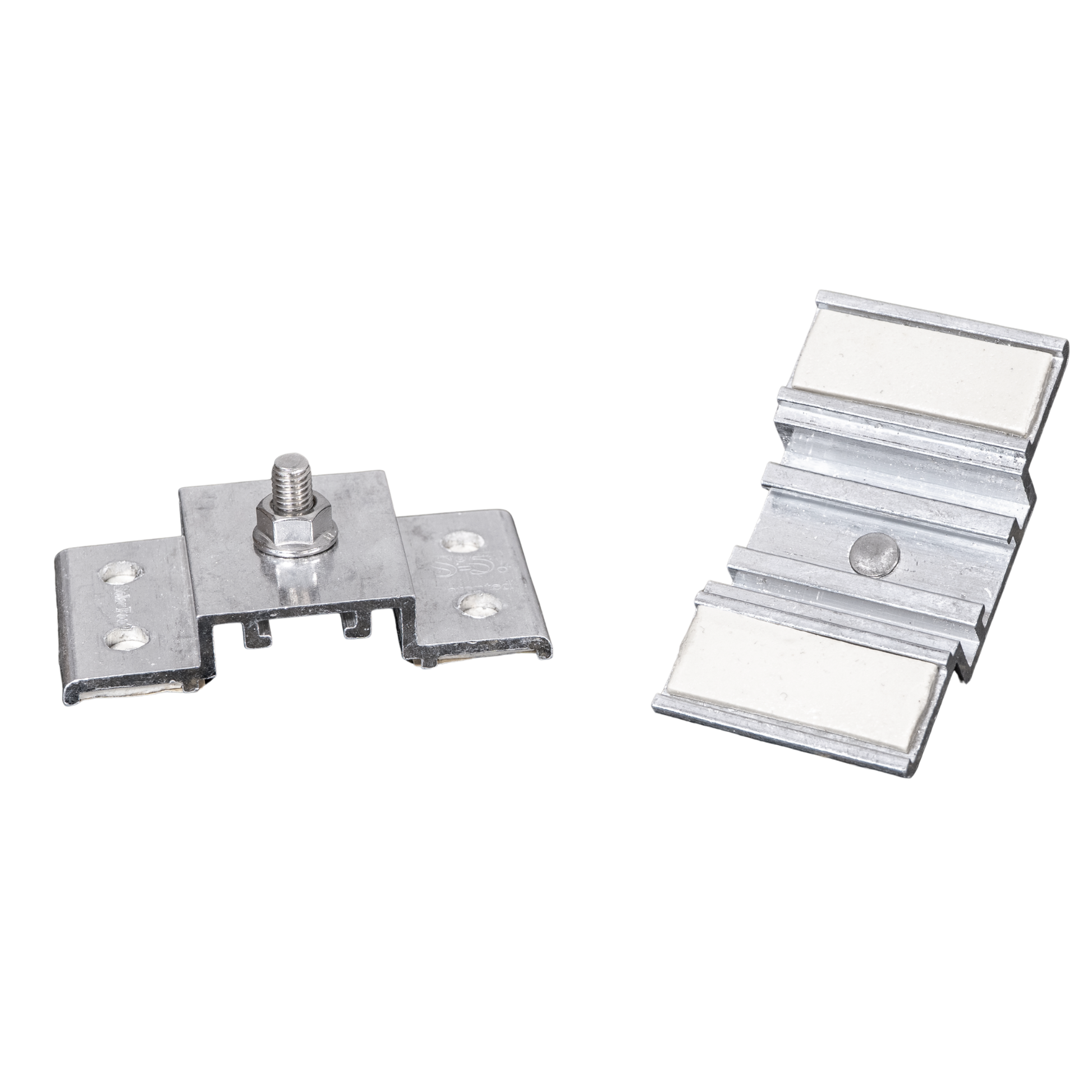

The SolarFoot is a simple, cost-effective pedestal for L-Foot (not included) attachment of rail-mounted solar PV. The unique design is compatible with all rail producer L-Foot components. The new SolarFoot assembly ensures a durable weathertight solution for the life of the roof. Special factory applied butyl co-polymeric sealant contained in a reservoir is The Right Way, allowing a water-tested seal. Stainless integrated stud and hex flange lock-nut secure the L-Foot into position. A low center of gravity reduces the moment arm commonly associated with L-Foot attachments. Direct attachment of the SolarFoot to the structural member or deck provides unparalleled holding strength.

Solar Foot Advantages:

• Exposed faster mounting platform for solar arrays attached via L-Foot and Rails
• Weatherproof attachment to exposed fastener roofing
• Butyl sealant reservoir provides long-term waterproof seal
• M8-1.25x17mm stud with M8 hex flange nut for attachment of all popular L-Foot/rail combinations
• Tool: 13 mm Hex Socket or ½” Hex Socket
• Tool Required: Electric screw gun with hex drive socket for self tapping screws
• Low Center of Gravity reduces moment arm commonly associated with L-Foot/Rail solar mounting scenarios

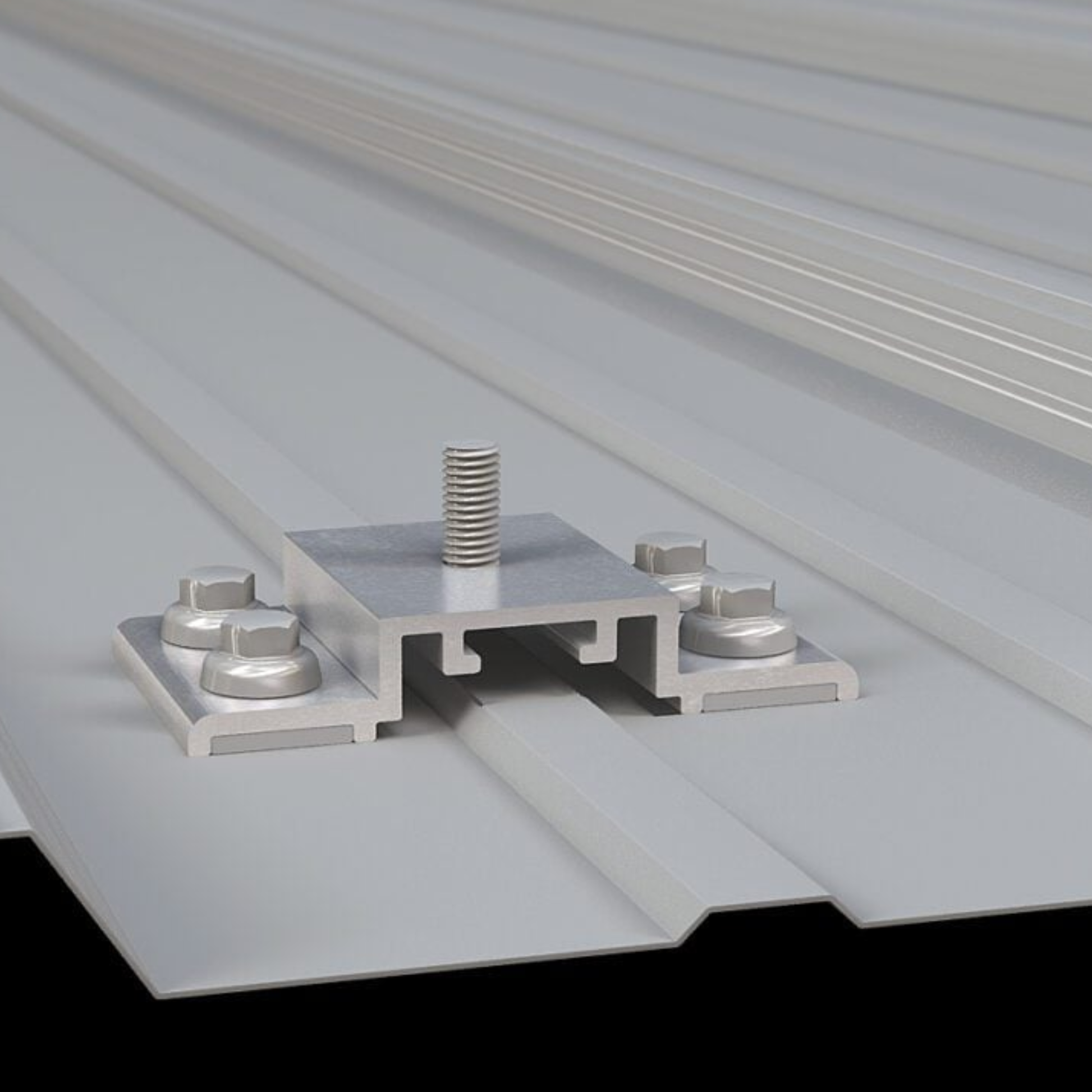

• Attaches directly to structure or deck for optimal holding strength
• S-5! Recommended substrate specific e.g. steel purlin, wood 2×4, osb, etc fasteners provide excellent waterproofing and pull out strength
• Fastener through-hole locations comply with NDS (National Design Specification)

*Fasteners sold separately. Fastener type varies with substrate. L-Foot also sold separately. Available fasteners for SolarFoot:

• 1/4-14×1.5″ Wood Screws
• 1/4-14×2.5″  Wood Screws
• 1/4-14×2″ Self-Drilling Screws
