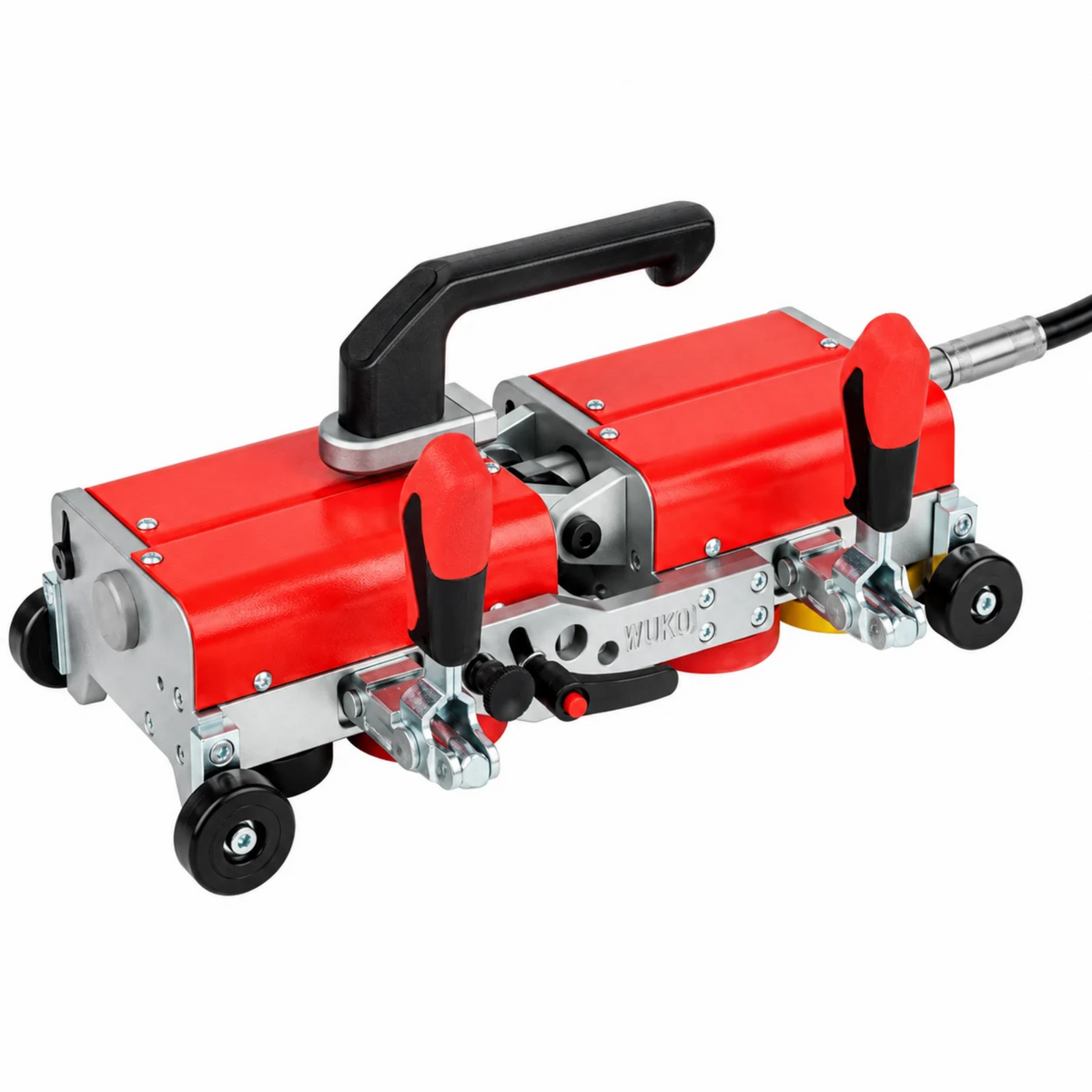

Wuko 0411 Sheet Metal Akku Lok'n'Bak Standing Seam Seamer

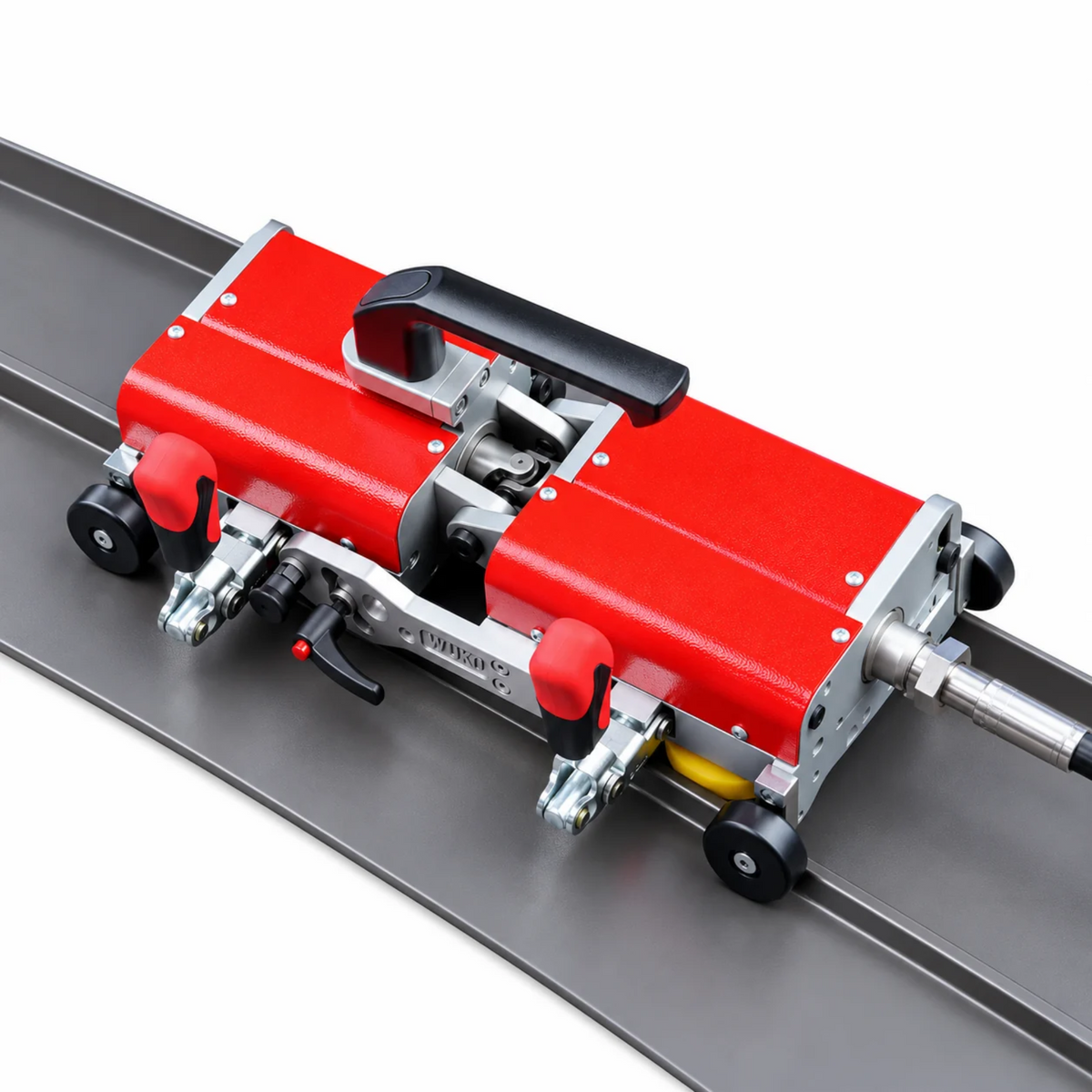

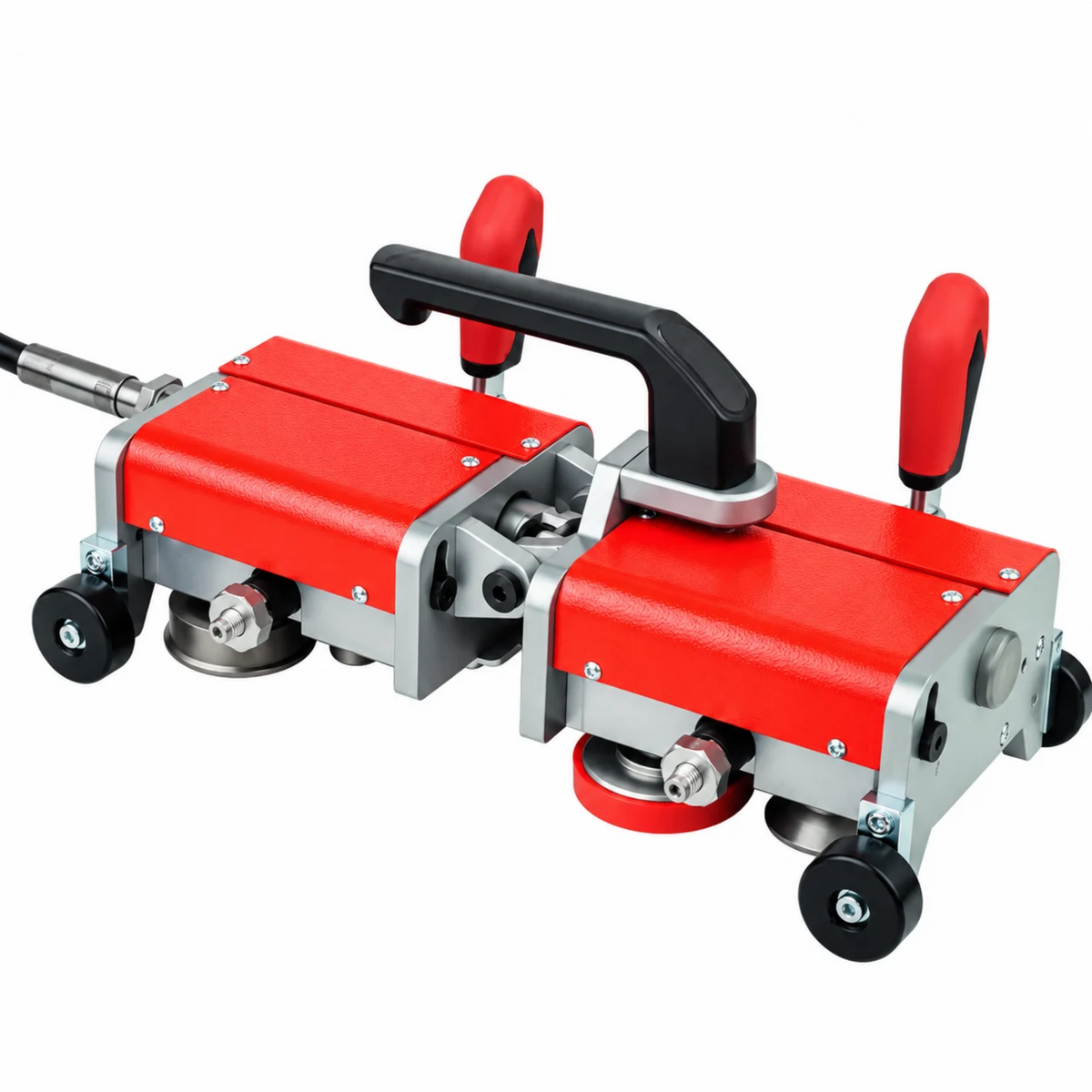

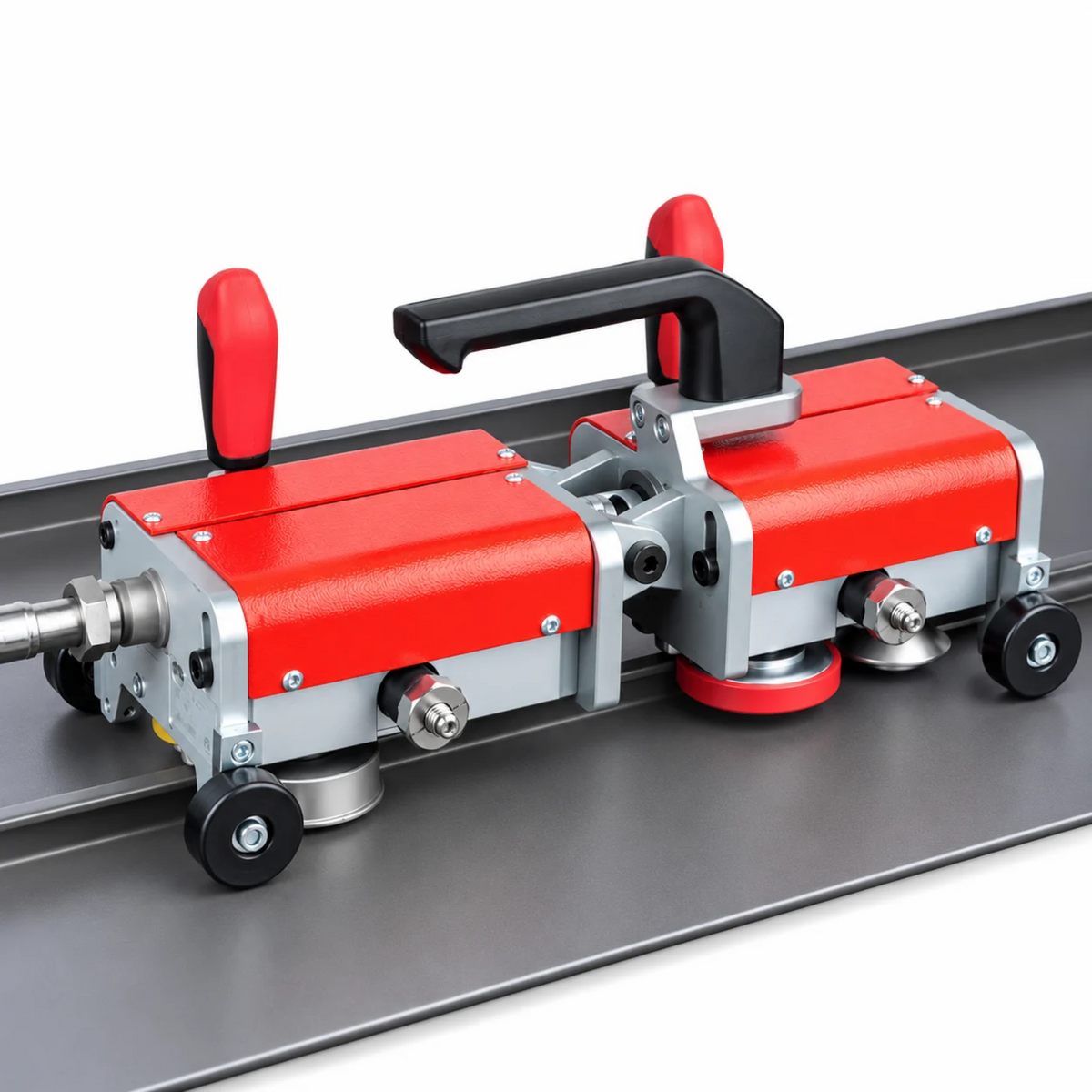

The WUKO 0411 Akku Lok'n'Bak Cordless Standing Seam Seamer, also known as "Walk the Dog!", is a professional, drill-powered sheet metal seaming machine designed for closing single-lock and double-lock standing seams. Built on the WUKO Lok'n'Bak platform, this compact seamer combines adjustable seaming pressure, curved roof compatibility, and reversible operation with the convenience of using a compatible cordless drill as its power source.

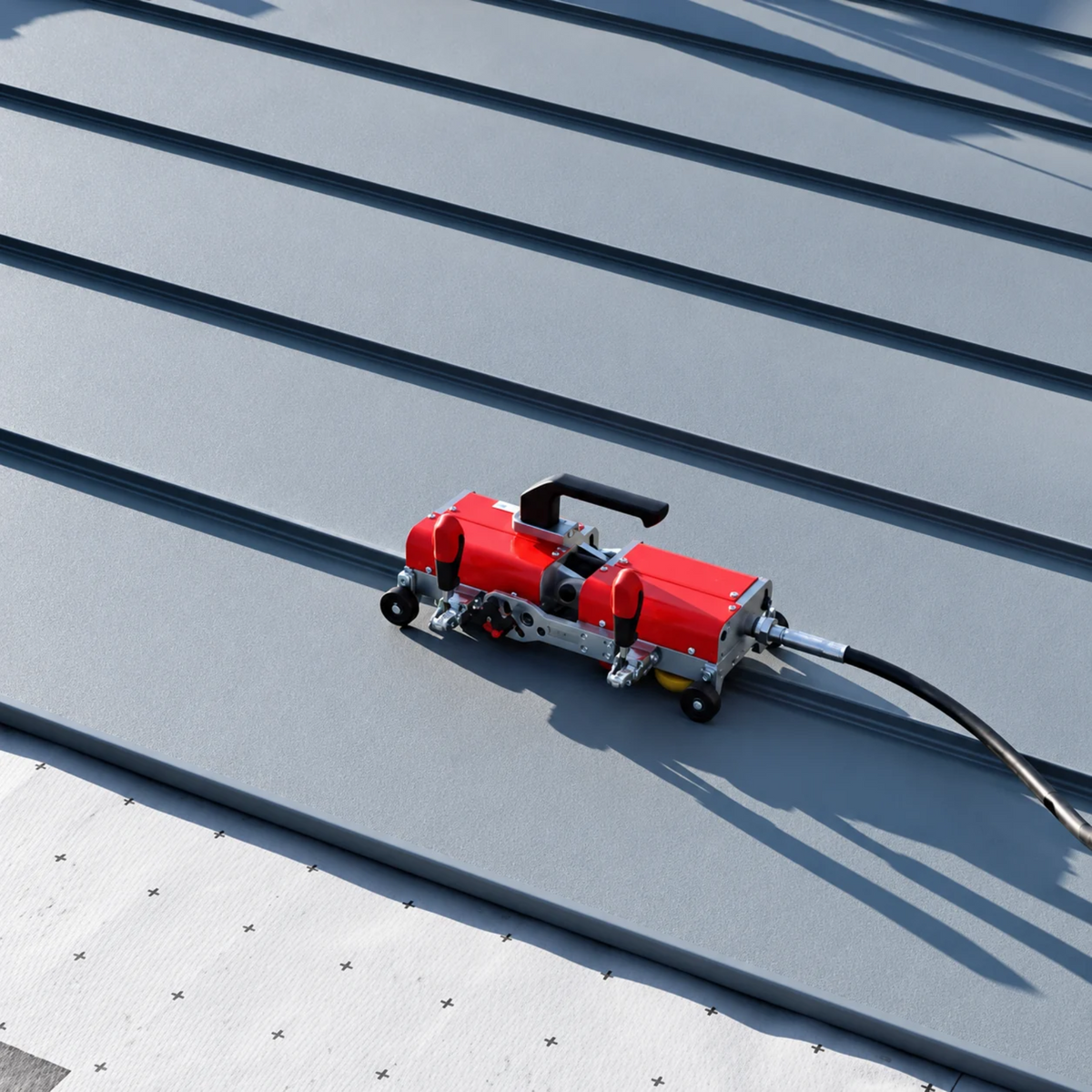

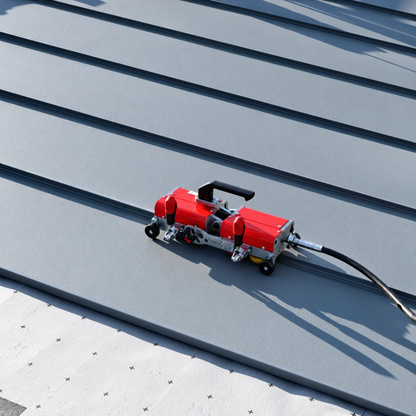

Unlike conventional electric seaming machines, the WUKO 0411 uses an included flexible drive shaft connected to a cordless drill. This allows operators to "walk the dog" along the standing seam from a more comfortable, upright working position. Weighing just 19.2 lbs without the flexible shaft, the Akku Lok'n'Bak is easy to handle and position on roofing projects.

The machine features adjustable guide wheels for 1", 1-1/4", and 1-1/2" standing seam heights, continuously adjustable seaming pressure, and a variable radius setting for working on convex and concave curved roofs. Switching between double-lock and single-lock operation is accomplished by opening a lever. At the end of the seam, operators can open the front lever and reverse the drill to return the machine toward its starting position.

Features & Benefits

• Cordless Drill-Powered Operation: Uses a compatible cordless drill and the included flexible drive shaft instead of an integrated electric motor.
• "Walk the Dog!" Operation: The flexible drive shaft allows operators to walk alongside the seamer in a more comfortable, upright position while the machine travels along the standing seam.

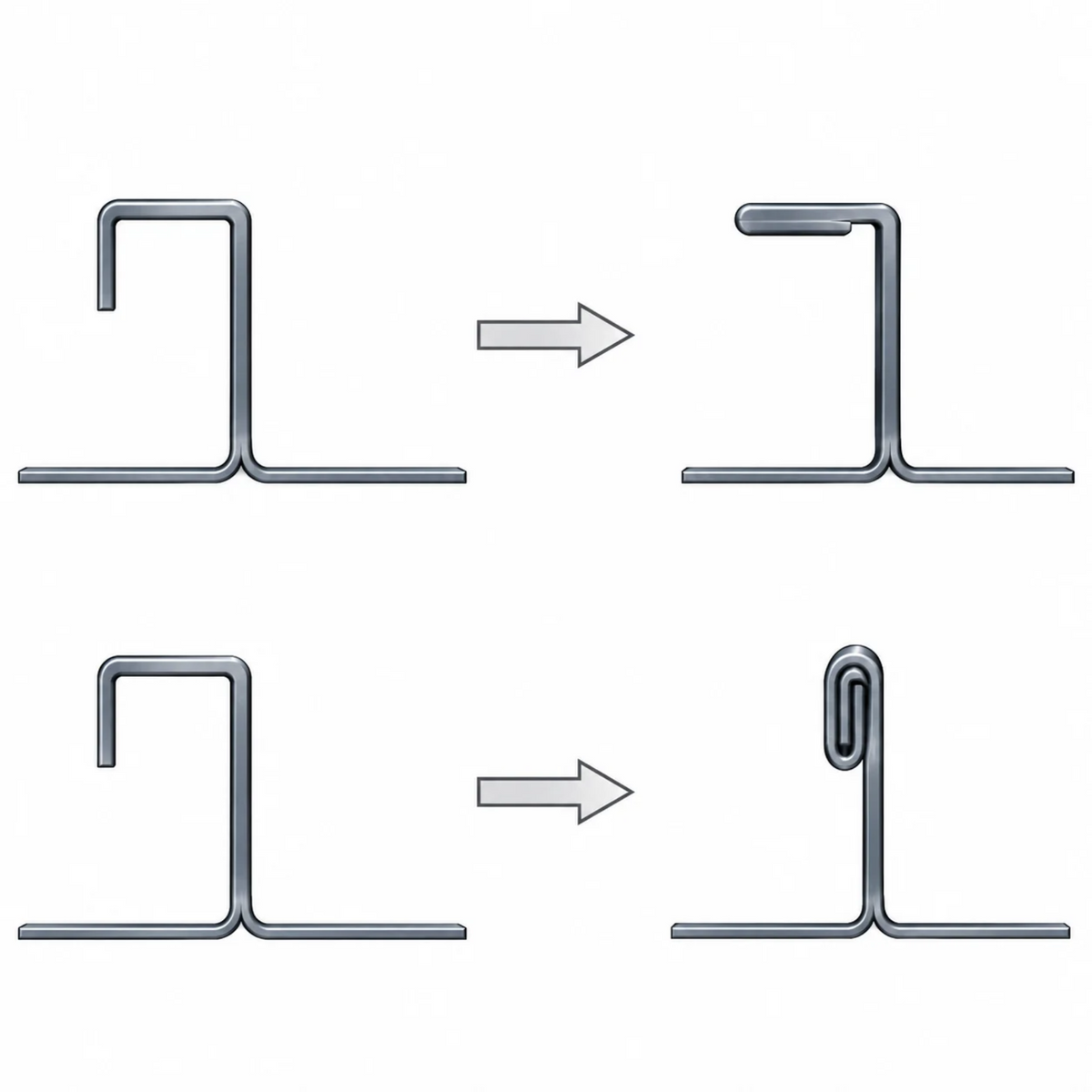

• Single-Lock & Double-Lock Seaming: Designed for closing compatible single-lock and double-lock standing seam roofing profiles.
• Lightweight Design: Weighs just 19.2 lbs without the flexible drive shaft for convenient handling and positioning.
• Ergonomic Operation: Flexible drive shaft allows the operator to power the machine without continually bending over the roofing panels.
• Adjustable Seam Heights: Guide wheels accommodate standing seam heights of 1", 1-1/4", and 1-1/2".
• Continuously Adjustable Seaming Pressure: Allows operators to fine-tune forming pressure to suit different sheet metal materials and profiles.
• Adjustable Radius Setting: Configure the machine for curved standing seam roof panels.
• Convex & Concave Roof Compatibility: Suitable for working along curved roof panels within the manufacturer's operating limits.
• Easy Lock Configuration: Switch from double-lock to single-lock seaming by opening the designated lever.
• Powered Reverse Travel: Open the front lever and reverse the cordless drill to return the machine toward the starting position.
• Compact Machine Design: Measures approximately 15-3/4" long, 9" wide, and 7-1/2" high, excluding the flexible shaft.
• Portable Jobsite Solution: Lightweight, drill-powered operation makes the machine convenient for professional metal roofing installations.
• Flexible Drive Shaft Included: Provides the connection between the machine and the operator's cordless drill.

Technical Specifications

• Machine Type: Cordless drill-powered standing seam seamer
• Also Known As: Walk the Dog!
• Seaming Applications: Single-lock and double-lock standing seams
• Power Source: Compatible cordless drill
• Drive Connection: Flexible drive shaft
• Standing Seam Heights: 1", 1-1/4", and 1-1/2"
• Seaming Pressure: Continuously adjustable
• Radius Adjustment: Continuously adjustable
• Curved Panel Compatibility: Convex and concave
• Travel Direction: Forward and reverse
• Lock Configuration: Single-lock or double-lock

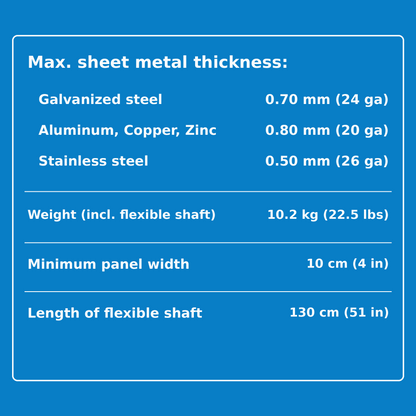

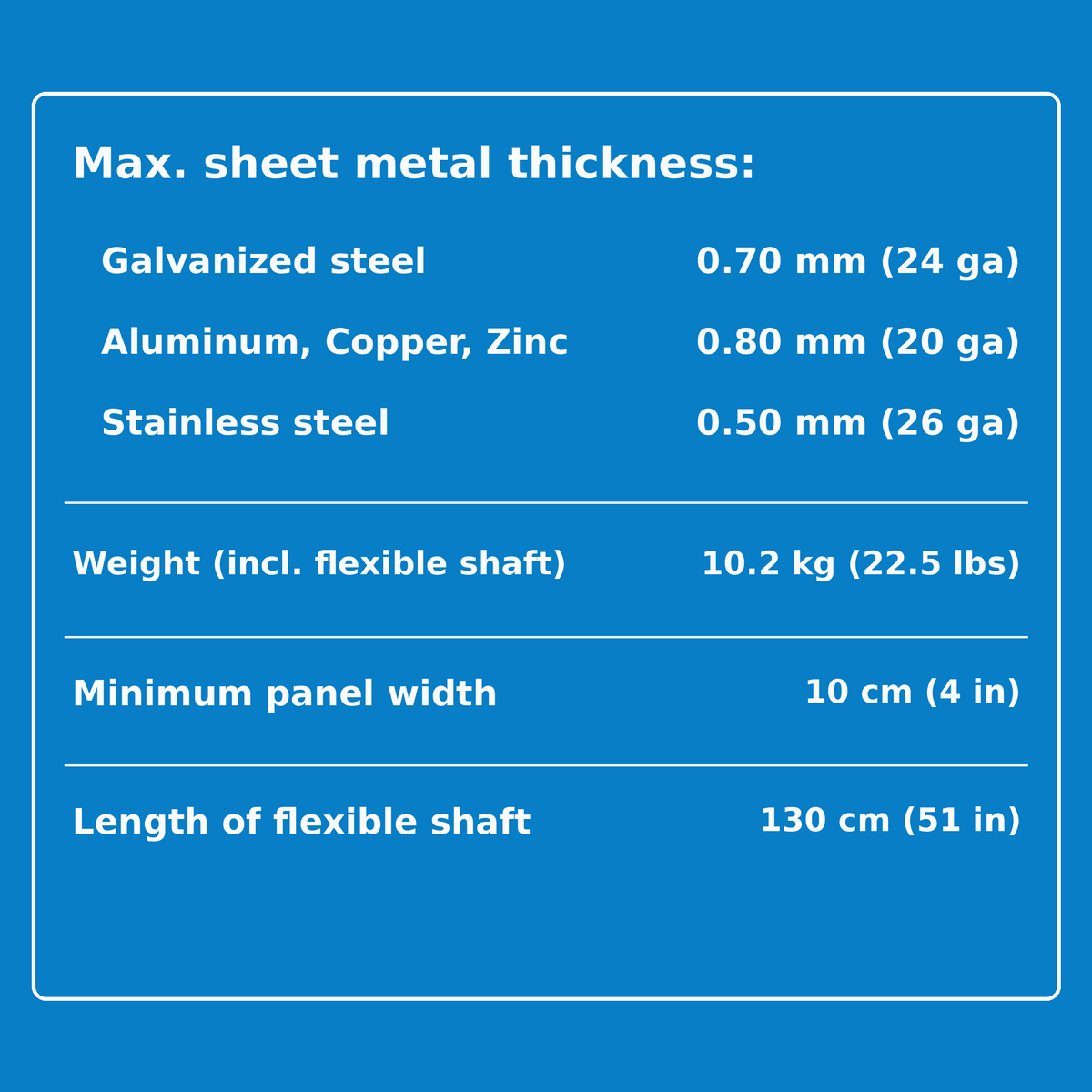

• Maximum Galvanized Steel Thickness: 0.028" (0.70 mm)
• Maximum Aluminum Thickness: 0.031" (0.80 mm)
• Maximum Copper Thickness: 0.031" (0.80 mm)
• Maximum Zinc Thickness: 0.031" (0.80 mm)
• Maximum Stainless Steel Thickness: 0.020" (0.50 mm)
• Minimum Panel Width: 4" (100 mm)
• Flexible Shaft Length: Approximately 51" (130 cm)
• Machine Weight: 19.2 lbs (without flexible shaft)
• Flexible Shaft Weight: 2.6 lbs
• Combined Machine & Shaft Weight: Approximately 21.8 lbs
• Machine Length: 15-3/4" (without flexible shaft)
• Machine Width: 9" (without flexible shaft)
• Machine Height: 7-1/2" (without flexible shaft)

What's Included

• WUKO 0411 Akku Lok'n'Bak Standing Seam Seamer: Lightweight, drill-powered seaming machine with adjustable guide wheels, seaming pressure, radius settings, and reversible operation.
• Flexible Drive Shaft: Connects the seaming machine to a compatible cordless drill and allows operation from a more comfortable working position.

Note: A cordless drill is required for operation and is not included. Confirm drill compatibility and power requirements before use.
