Wuko 1006 Sheet Metal Roof Seaming Machine

The WUKO 1006 Sheet Metal Roof Seaming Machine is a compact, electric-powered tool designed to close single-lock and double-lock standing seams in one working pass. Built for professional metal roofing contractors and sheet metal fabricators, this portable seaming machine is especially suited for small roof surfaces, curved and domed roofs, and complex architectural roofing details where larger seaming equipment may be impractical.

The WUKO 1006 features adjustable seaming heights starting at 1" (25 mm), allowing it to accommodate different standing seam profiles. Its narrow 6.7" (170 mm) design makes it suitable for working in confined spaces, including narrow roof panels, tapered sections, slanted surfaces, and offset roofing elements. The machine begins closing the seam directly from the start of the panel and can be removed from the seam at any point during operation.

Designed for demanding curved roof applications, the WUKO 1006 can close standing seams on domed roofing panels with radii as small as 8" (200 mm). Its lightweight 12 lb construction makes it convenient to position and operate on detailed roofing projects. Powered by a 500W electric motor, the machine is available in 120V and 230V configurations and includes a carrying case for transportation and storage.

Features & Benefits

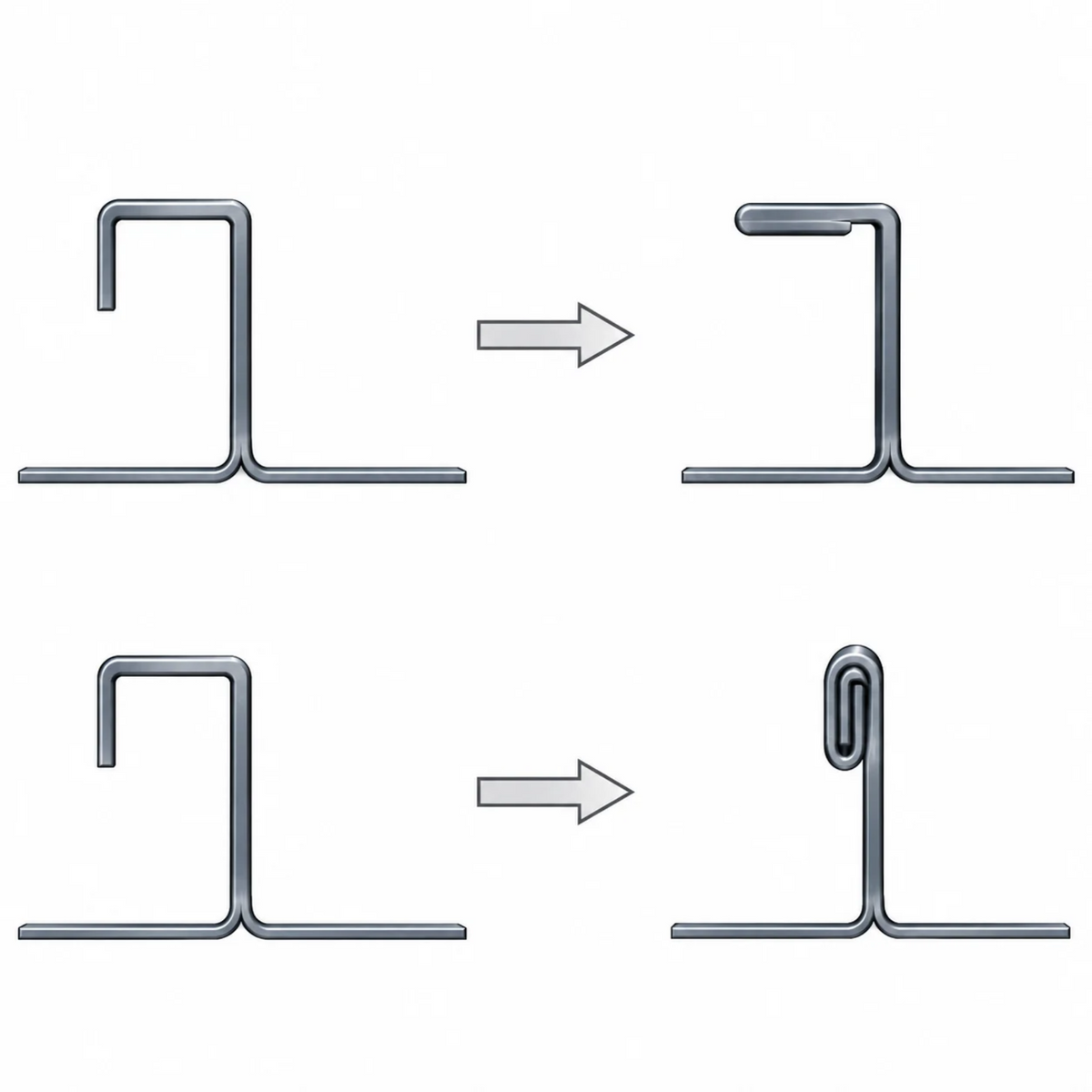

• Single-Lock & Double-Lock Seaming: Closes compatible single-lock and double-lock standing seams in one working cycle.
• Ideal for Small & Domed Roofs: Compact design allows seaming on small roof surfaces and detailed architectural roofing applications.
• Adjustable Seam Height: Accommodates different standing seam heights, starting at a minimum of 1" (25 mm).
• Single-Pass Seam Closure: Completes the selected standing seam closure in one working pass.
• Starts at the Panel Beginning: Allows seam closure directly from the start of the roofing panel without requiring an extended starting section.
• Curved Roof Compatibility: Designed for round and domed roof surfaces with minimum radii down to approximately 8" (200 mm).
• Narrow 6.7" Machine Width: Compact construction allows operation in confined areas and along narrow roofing panels.
• Complex Roof Geometry: Suitable for slanted, angled, tapered, and offset roofing elements.
• Removable at Any Point: Can be disengaged from the standing seam during operation without requiring the machine to travel to the panel end.
• Lightweight Construction: Weighs approximately 12 lbs for convenient handling and positioning.
• 500W Electric Motor: Provides powered seaming performance for professional metal roofing applications.
• Versatile Material Compatibility: Suitable for galvanized steel, aluminum, copper, and zinc within the manufacturer's rated material capacities.
• Workshop & Jobsite Applications: Compact design allows use in sheet metal fabrication shops and on roofing projects.
• Carrying Case Included: Protective case provides convenient transportation and storage.

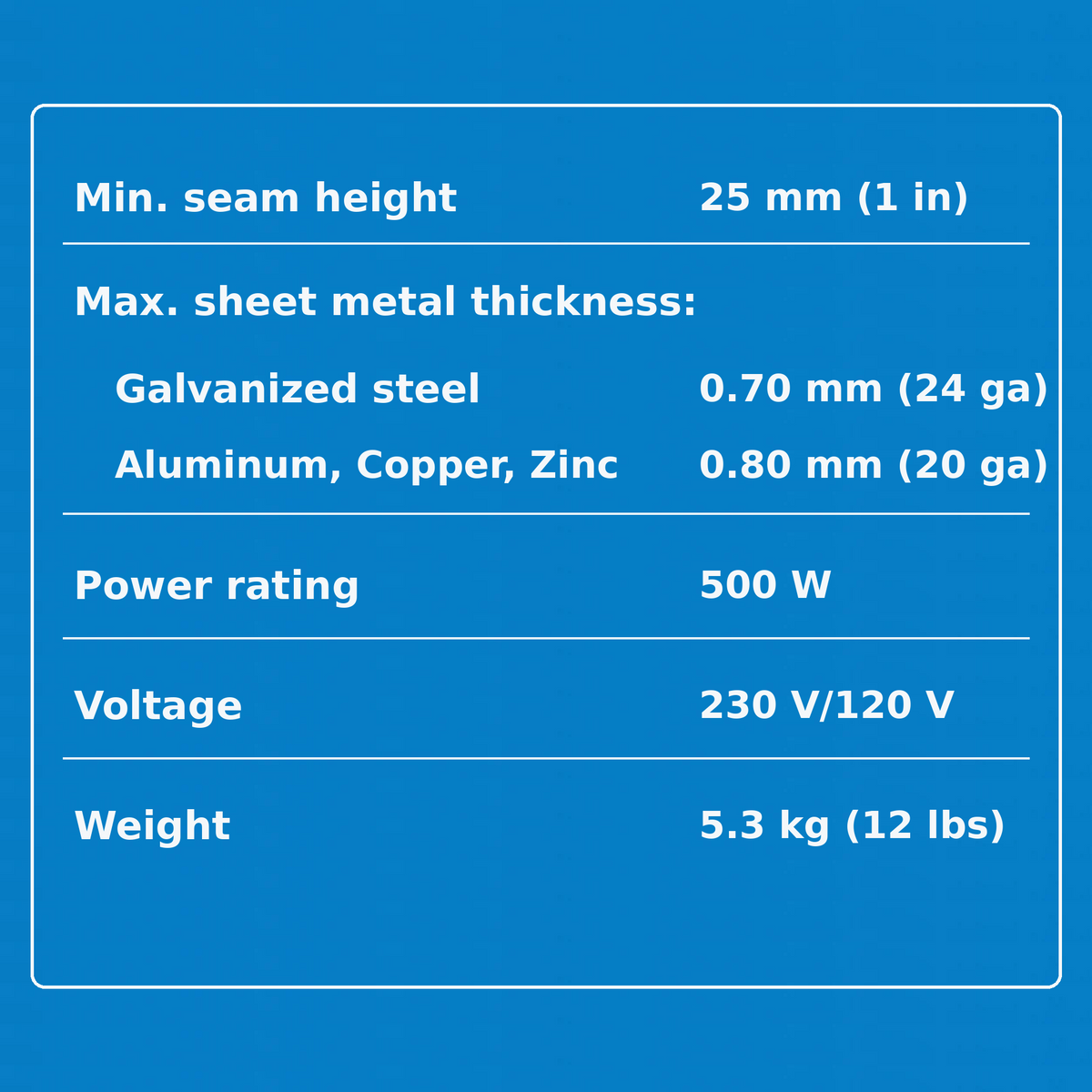

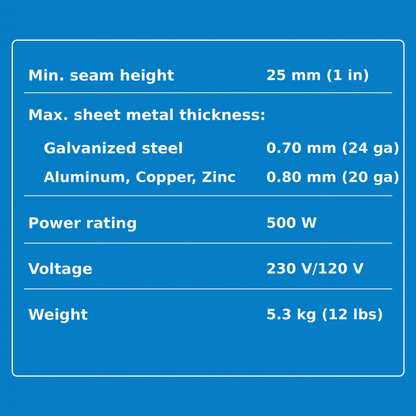

Technical Specifications

• Machine Type: Electric standing seam roof seaming machine
• Seaming Applications: Single-lock and double-lock standing seams
• Seaming Operation: Single-pass closure
• Minimum Standing Seam Height: 1" (25 mm)
• Seam Height Adjustment: Adjustable
• Minimum Curving Radius: Approximately 8" (200 mm)
• Machine Width: Approximately 6.7" (170 mm)
• Maximum Galvanized Steel Thickness: 0.029" (0.75 mm)
• Maximum Aluminum Thickness: 0.031" (0.8 mm)
• Maximum Copper Thickness: 0.031" (0.8 mm)
• Maximum Zinc Thickness: 0.031" (0.8 mm)
• Motor Power: 500W
• Operating Voltage: 120V
• Machine Weight: 12 lbs (5.3 kg)
• Panel Applications: Straight, curved, domed, tapered, slanted, and offset roofing panels
• Mid-Seam Removal: Yes
• Included Storage: Carrying case

What's Included

• WUKO 1006 Roof Seaming Machine: Compact electric-powered machine designed to close single-lock and double-lock standing seams on straight and curved roofing panels.
• Carrying Case: Protective case for convenient transportation and storage.
