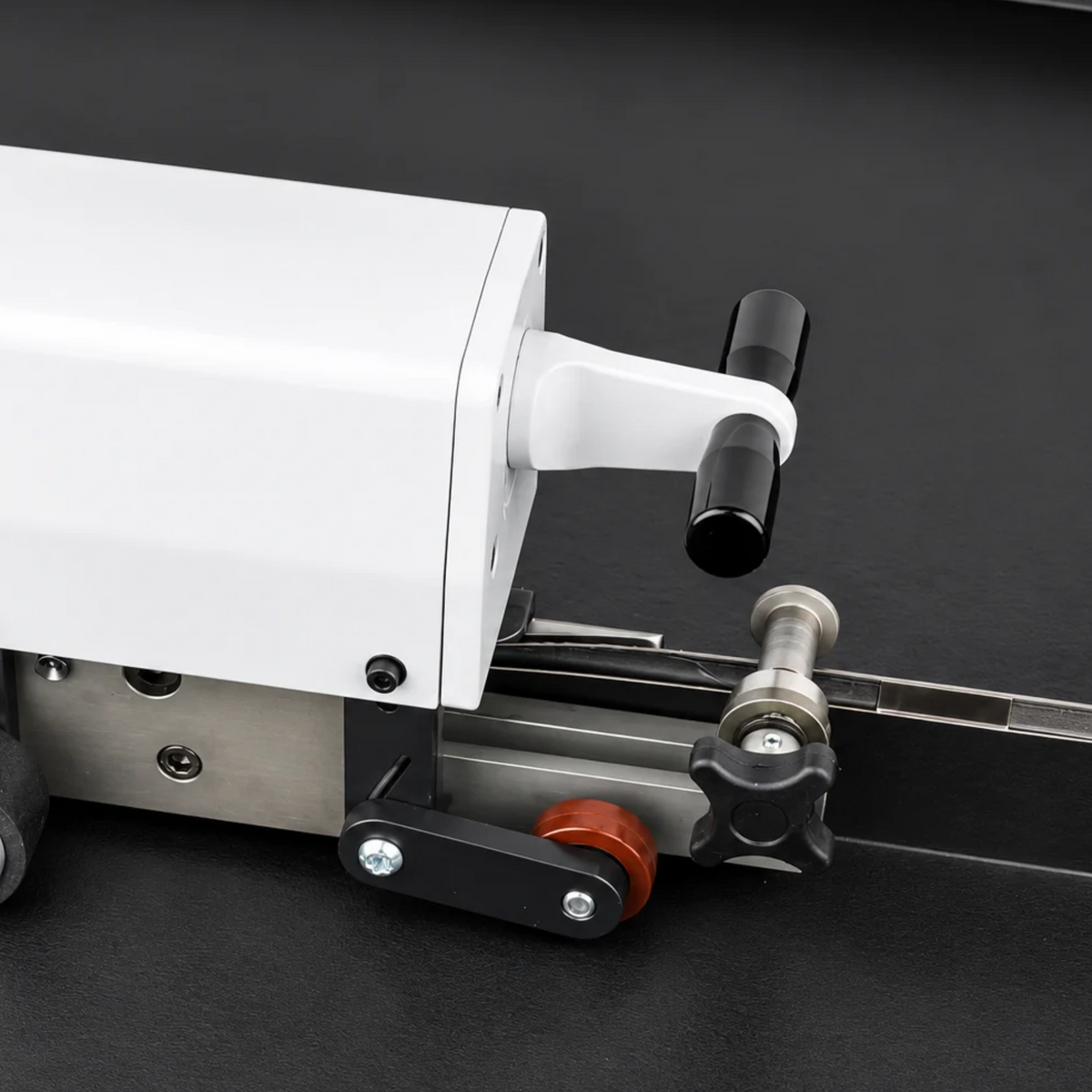

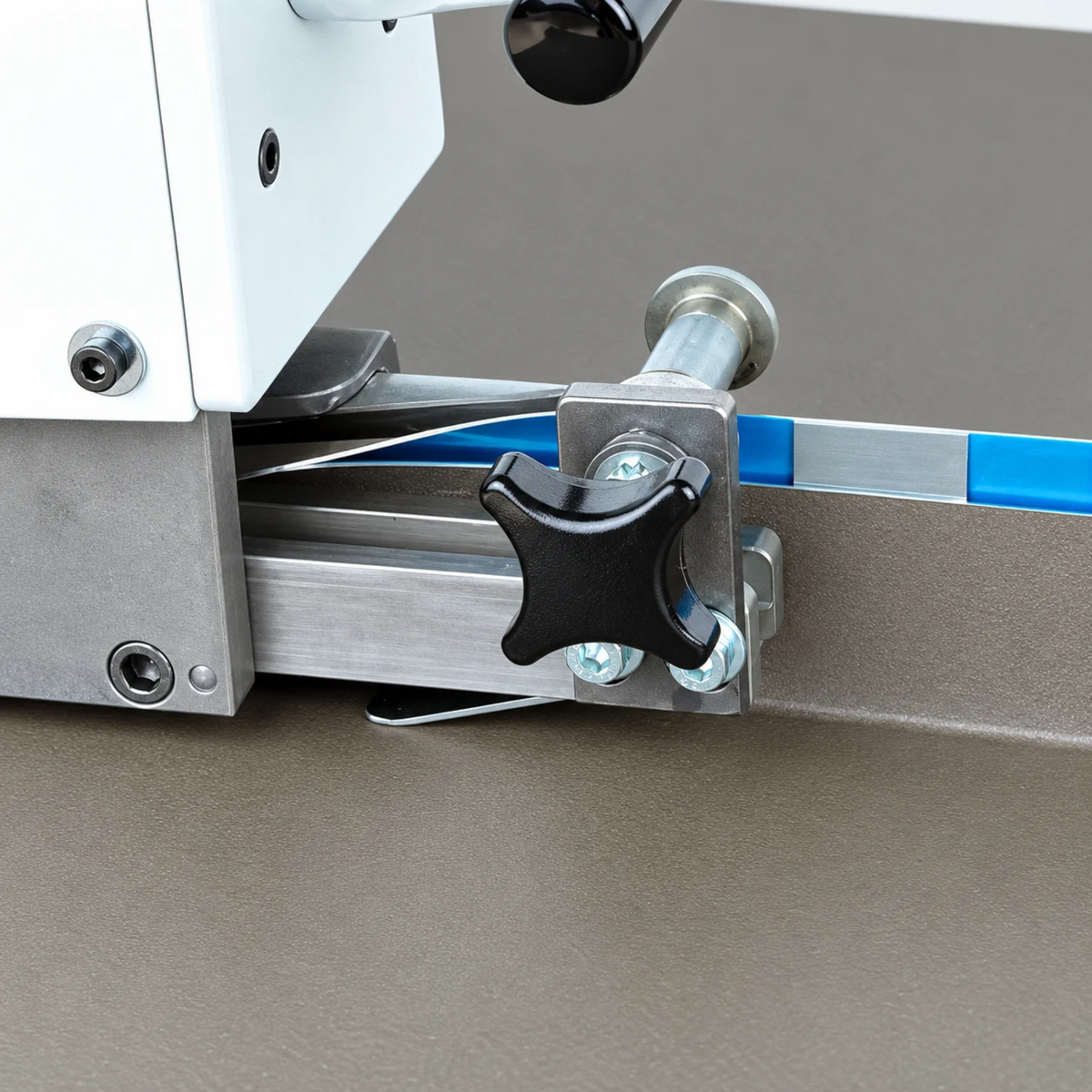

Wuko 1008 Sheet Metal Roof Profiling Machine

The WUKO 1008 Sheet Metal Roof Profiling Machine is a compact, electric-powered tool designed to form profiles for single-lock and double-lock standing seam metal roofing systems on pre-bent panels. Built for precision work on curved roofs, narrow panels, and complex architectural details, this portable machine allows contractors and sheet metal fabricators to produce consistent standing seam profiles in areas where larger profiling machines may be impractical.

The WUKO 1008 features adjustable profiling heights starting at 1" (25 mm) and can form profiles directly from the beginning of a panel. Its compact design accommodates minimum seam-to-seam spacing of approximately 3.2" (80 mm), making it especially useful for narrow roof bays, tapered panels, angled sections, and offset roof details. The machine also allows each side of a panel to be profiled separately for greater fabrication flexibility.

Designed for curved and domed roofing applications, the WUKO 1008 can profile panels with radii as small as 79" (2 m). When used with an optional round rail, the minimum radius can be reduced to approximately 32" (0.8 m). Powered by a 500W, 120V motor and weighing just 16.7 lbs, this versatile profiling machine is suitable for both workshop fabrication and on-site metal roofing installation.

Features & Benefits

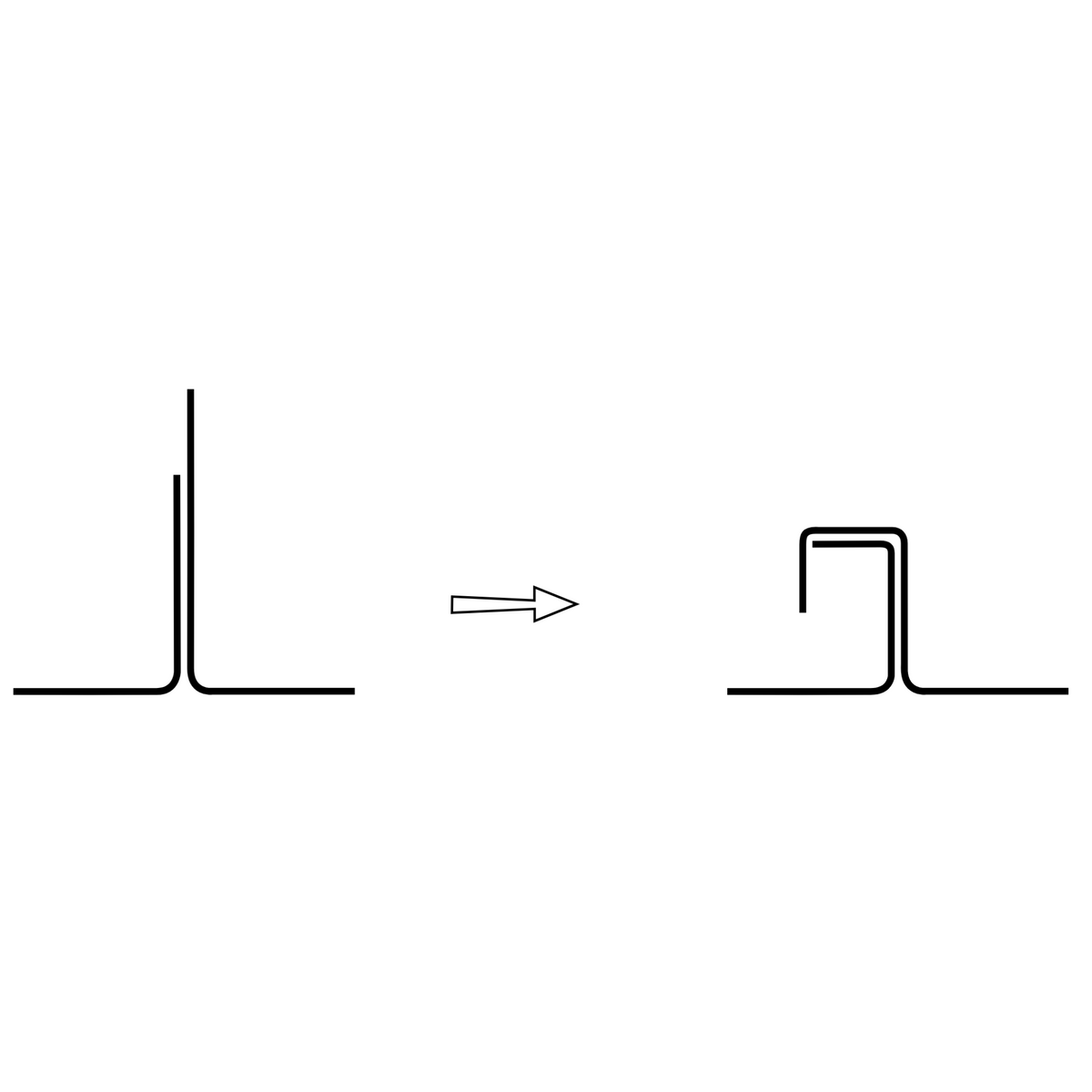

• Single-Lock & Double-Lock Profiling: Forms standing seam profiles designed for subsequent single-lock or double-lock closure.
• Compact Profiling Machine: Portable design allows profiling in confined areas and on complex roof surfaces.
• Adjustable Profile Height: Accommodates different standing seam edging heights with a minimum profile height of 1" (25 mm).
• Start-of-Panel Profiling: Forms profiles directly from the beginning of sheet metal strips and pre-bent panels.
• Narrow Panel Compatibility: Accommodates seam-to-seam distances as small as approximately 3.2" (80 mm).
• Independent Edge Profiling: Allows each side of a roofing panel to be profiled separately for specialized fabrication requirements.
• Curved Roof Applications: Designed for forming standing seam profiles on round and domed roofing surfaces.
• 79" Minimum Standard Radius: Supports curved roof panels with radii down to approximately 2 m (79").
• 32" Minimum Radius with Round Rail: An optional round rail allows profiling on tighter curves down to approximately 0.8 m (32").
• Complex Roof Geometry: Suitable for slanted, angular, tapered, and offset metal roofing elements.
• Small Roof Surface Applications: Compact design makes the machine useful for detailed roofing sections and smaller projects.
• Versatile Material Compatibility: Profiles galvanized steel, aluminum, copper, and zinc within the manufacturer's rated material capacities.
• 120V Electric Operation: Powered by a 500W motor for consistent profiling performance.
• Lightweight Construction: Weighs approximately 16.7 lbs for convenient handling and positioning.
• Workshop & Jobsite Use: Portable electric-powered design supports fabrication in the shop or directly at the installation site.

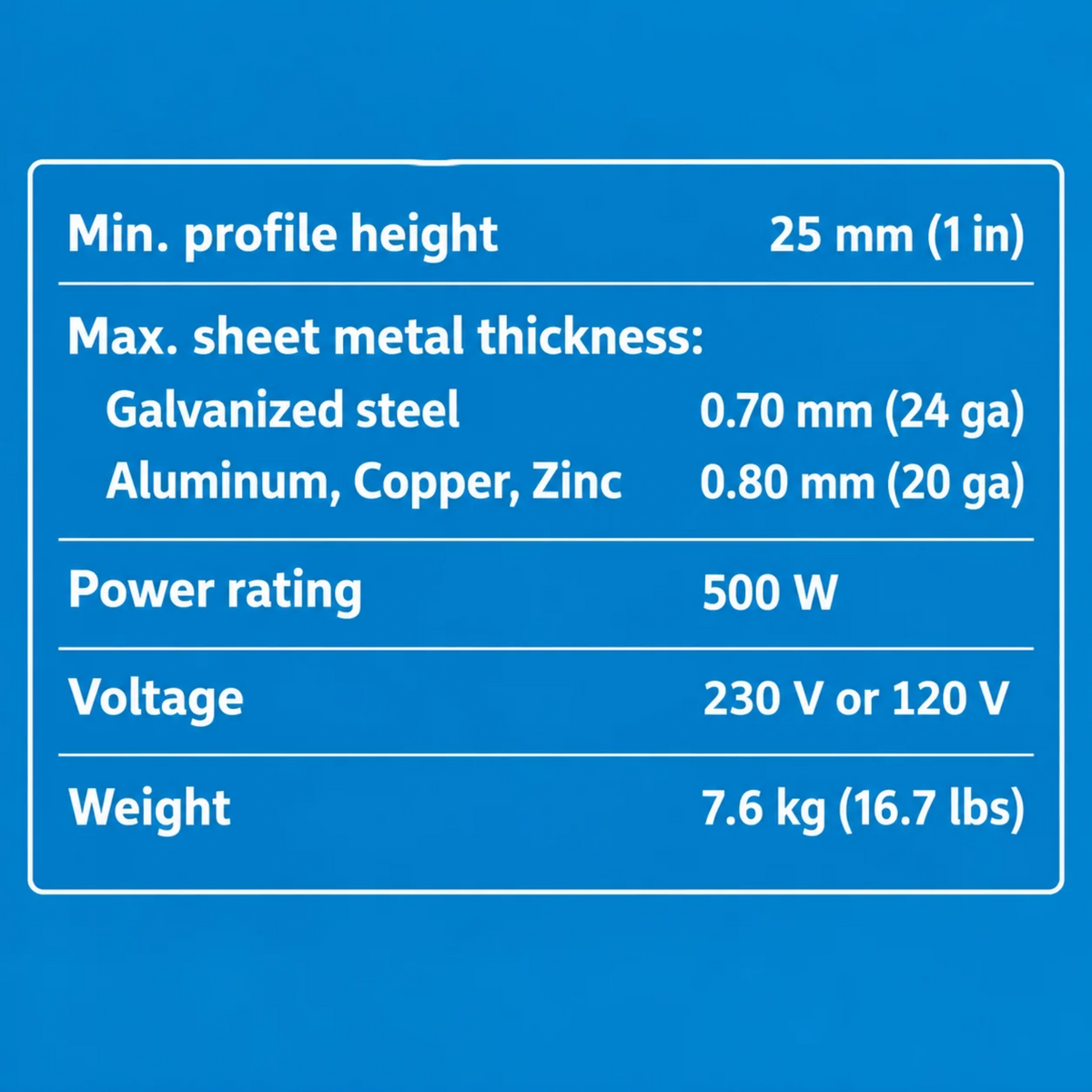

Technical Specifications

• Machine Type: Electric standing seam roof profiling machine
• Application: Forming profiles for single-lock and double-lock standing seams
• Panel Compatibility: Pre-bent sheet metal roof panels
• Minimum Profile Height: 1" (25 mm)
• Profile Height Adjustment: Adjustable
• Minimum Seam-to-Seam Distance: Approximately 3.2" (80 mm)
• Minimum Standard Curving Radius: Approximately 79" (2 m)
• Minimum Curving Radius with Optional Round Rail: Approximately 32" (0.8 m)
• Independent Edge Profiling: Yes
• Maximum Galvanized Steel Thickness: 0.029" (0.75 mm)
• Maximum Aluminum Thickness: 0.031" (0.8 mm)
• Maximum Copper Thickness: 0.031" (0.8 mm)
• Maximum Zinc Thickness: 0.031" (0.8 mm)
• Motor Power: 500W
• Operating Voltage: 120V
• Machine Weight: 16.7 lbs (7.6 kg)
• Operating Environment: Workshop and jobsite

What's Included

• WUKO 1008 Roof Profiling Machine: Electric-powered profiling tool designed for forming single-lock and double-lock standing seam profiles on pre-bent roof panels.
• Carrying Case: Protective case for convenient transportation and storage.

Note: The optional round rail required for profiling curves down to a 32" radius is sold separately unless otherwise specified.
