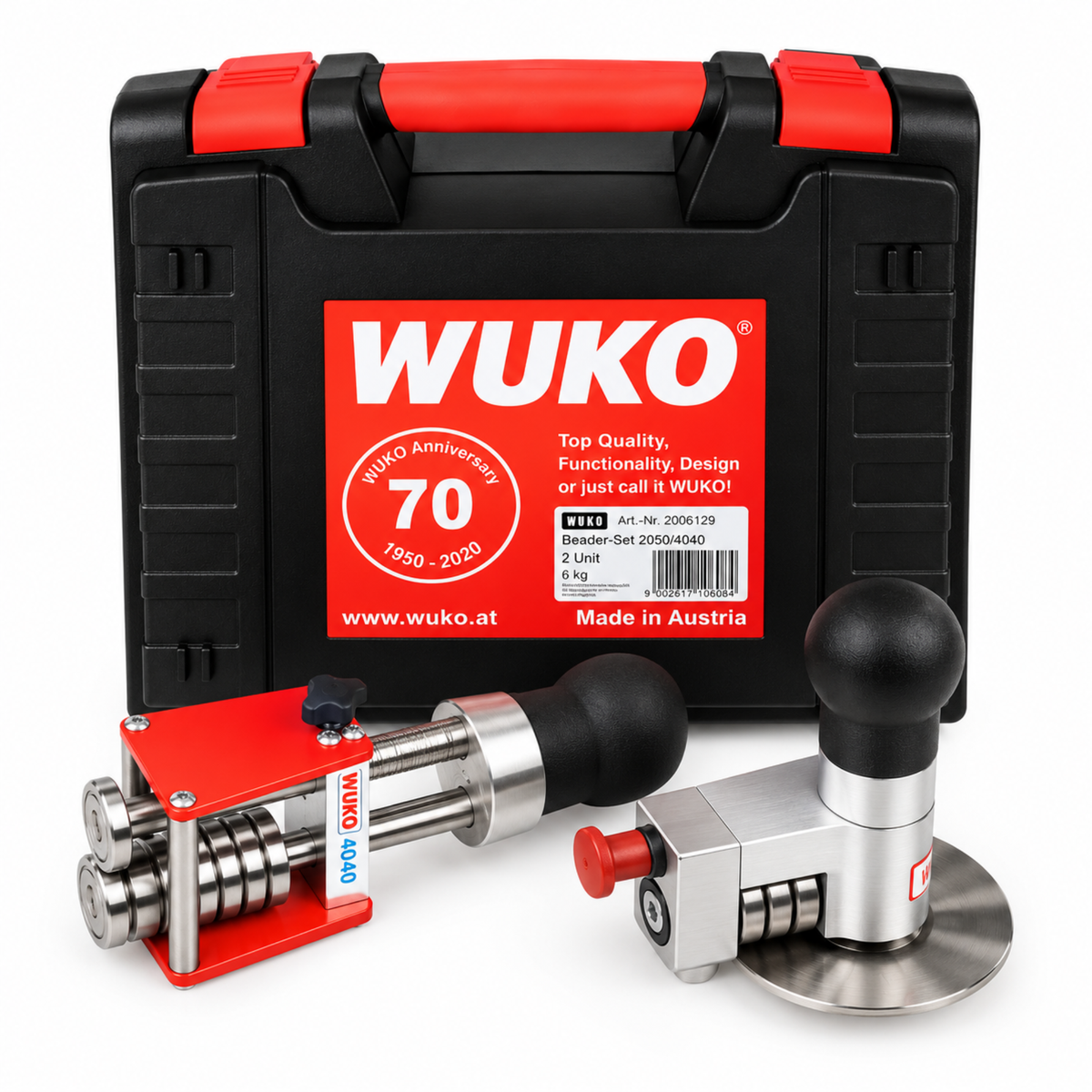

Wuko 2050/4040 Sheet Metal Bender Kit

The WUKO 2050/4040 Bender Kit combines two professional handheld sheet metal bending tools designed to create precise bends and finished hems from 0° to 180°. Featuring the WUKO 2050 Mini Bender and WUKO 4040 Disc-O-Bender Twist, this versatile kit provides a complete two-step solution for forming sheet metal edges along straight sections and small inside or outside radii.

The WUKO 2050 Mini Bender creates the initial bend from 0° to 90°, while the WUKO 4040 Disc-O-Bender Twist finishes the pre-bent edge from 90° to 180° to form a clean, consistent hem. The 4040 features a twist-away roller stop that allows the tool to be positioned or removed anywhere along an existing bend without requiring additional side clearance. With the Mini Bender's maximum bending height of 50 mm (2") and the Disc-O-Bender's hemming capacity up to 32 mm (1-1/4"), this kit is ideal for curved roof flashings, architectural sheet metal, and custom metal roofing fabrication.

Features & Benefits

• Complete Bending & Hemming Kit: Includes two complementary tools for creating bends and finished hems from 0° to 180°.
• Two-Step Hemming: Use the Mini Bender 2050 to form the initial 90° bend, then the Disc-O-Bender Twist 4040 to complete the 180° hem.
• Inside & Outside Radius Bending: Both tools are designed for working along curved sheet metal edges.
• Small Radius Capability: Compact tools provide excellent control when forming tight curves and detailed flashings.
• 2" Maximum Initial Bending Height: The WUKO 2050 accommodates initial bends up to 50 mm (2").
• 1-1/4" Maximum Hemming Height: The WUKO 4040 finishes pre-bent edges with heights up to 32 mm (1-1/4"), depending on material.
• Twist-Away Roller Stop: Allows the Disc-O-Bender to be installed or removed anywhere along an existing bend without requiring clearance at the panel ends.
• Precise Hem Formation: Rolling bending mechanisms produce clean, consistent bends without requiring large shop equipment.
• Versatile Applications: Ideal for curved roof flashings, standing seam roofing details, architectural sheet metal, and custom fabrication.
• Compact & Portable: Lightweight handheld tools are convenient for workshop and jobsite applications.
• Carrying Case Included: Provides organized storage and protection for both bending tools.
• Manual Operation: No electrical power required.

Technical Specifications

• Combined Bending Range: 0°–180° in two stages
• Maximum Material Thickness: 0.80 mm (22 ga) for common sheet metals
• WUKO 2050 Bending Angle: 0°–90°
• WUKO 2050 Bending Height: 5–50 mm (approximately 3/16"–2")
• WUKO 2050 Weight: 2.18 lbs (0.99 kg)
• WUKO 4040 Bending Angle: 90°–180°
• WUKO 4040 Bending Height: 8–32 mm (5/16"–1-1/4")
• WUKO 4040 Weight: 1.7 lbs (0.76 kg)
• Kit Weight Including Case: 6 lbs (2.73 kg)
• Bending Applications: Straight edges, inside radii, and outside radii
• Operation: Manual
• Included Storage: Carrying case

What's Included

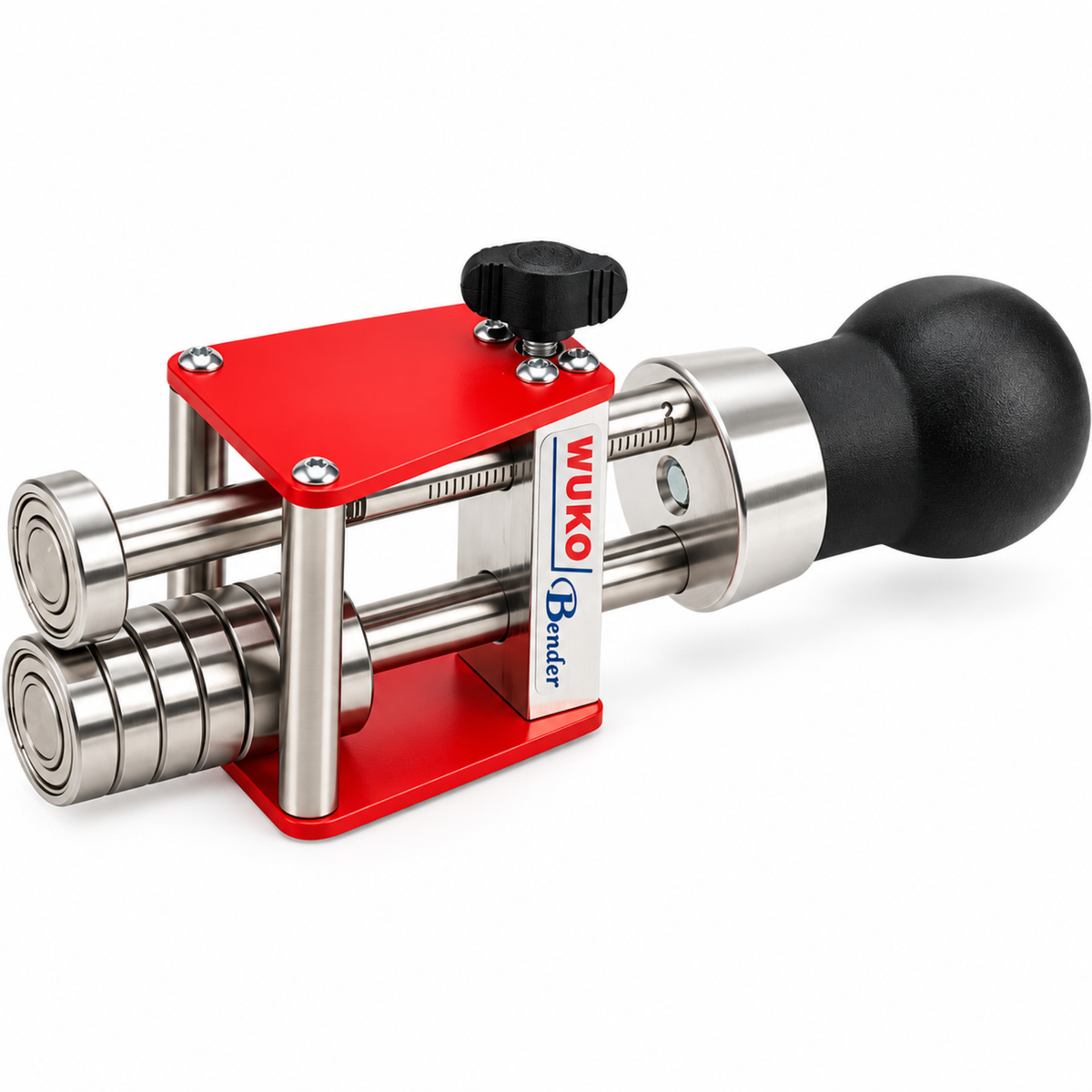

• WUKO 2050 Mini Bender: Compact radius bending tool designed to form sheet metal bends from 0° to 90° with adjustable bending heights from 5 mm to 50 mm.

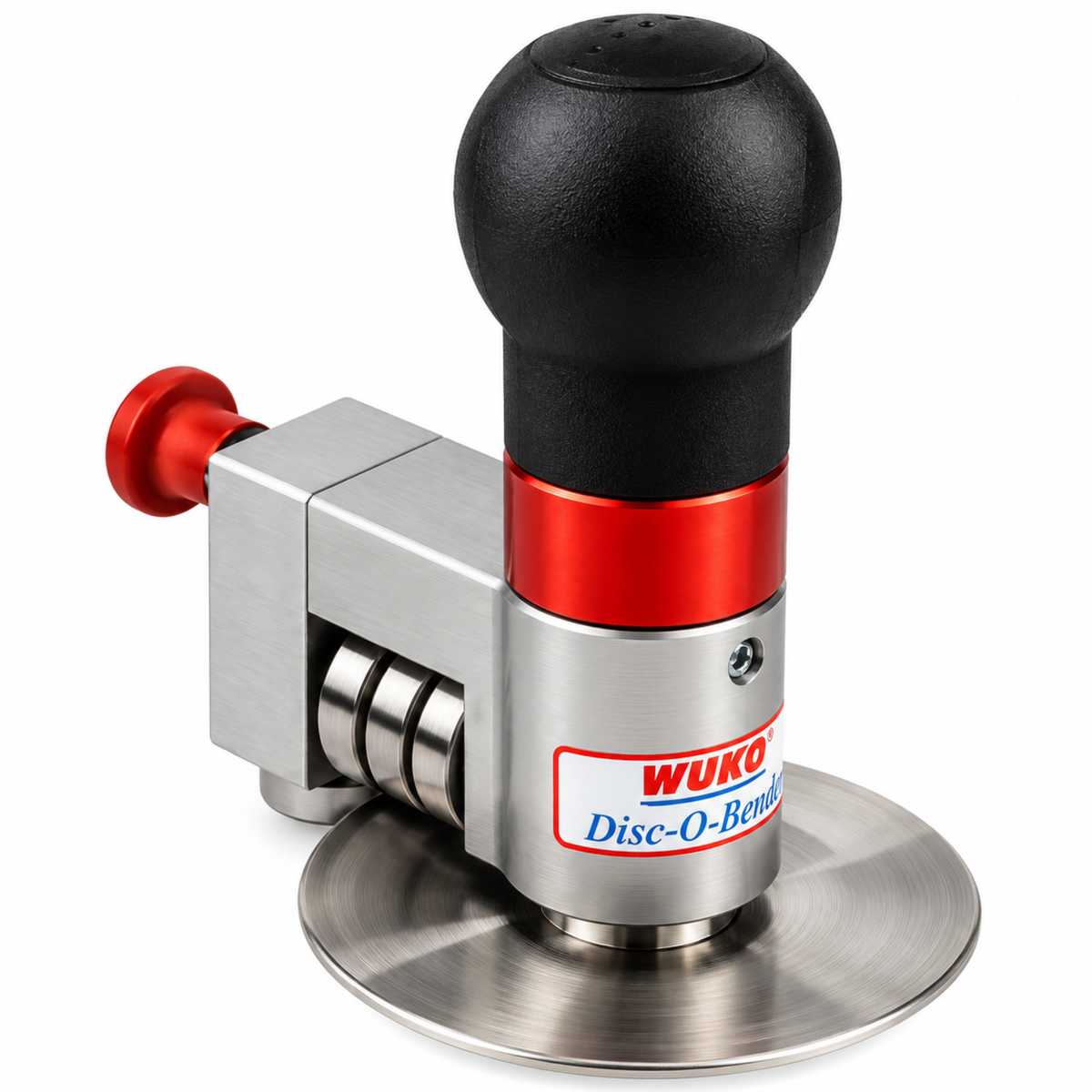

• WUKO 4040 Disc-O-Bender Twist: Hemming tool designed to finish pre-bent sheet metal edges from 90° to 180°. Features a twist-away roller stop for convenient placement and removal without requiring side clearance.
• Carrying Case: Durable case for organized storage and convenient transportation of both tools.
