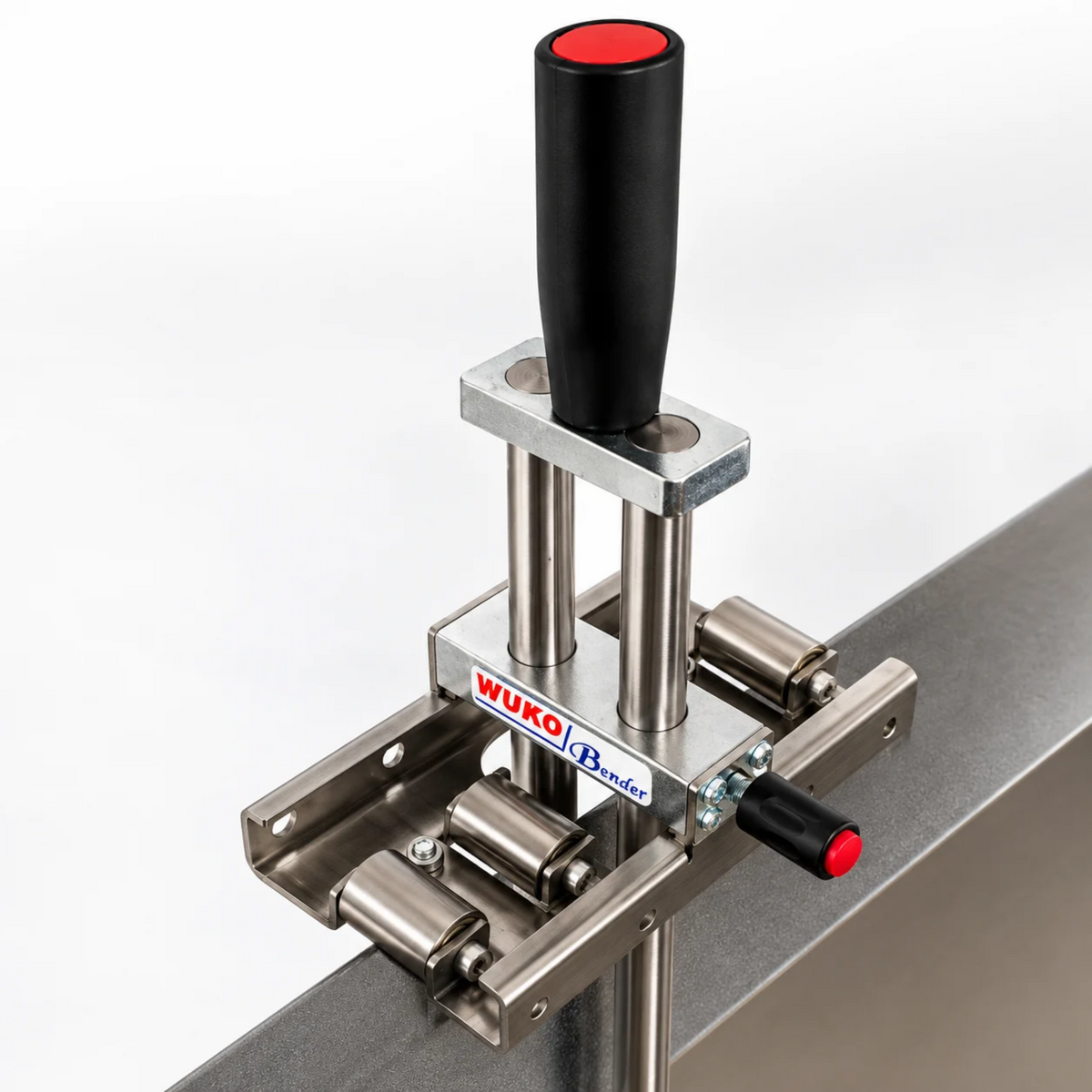

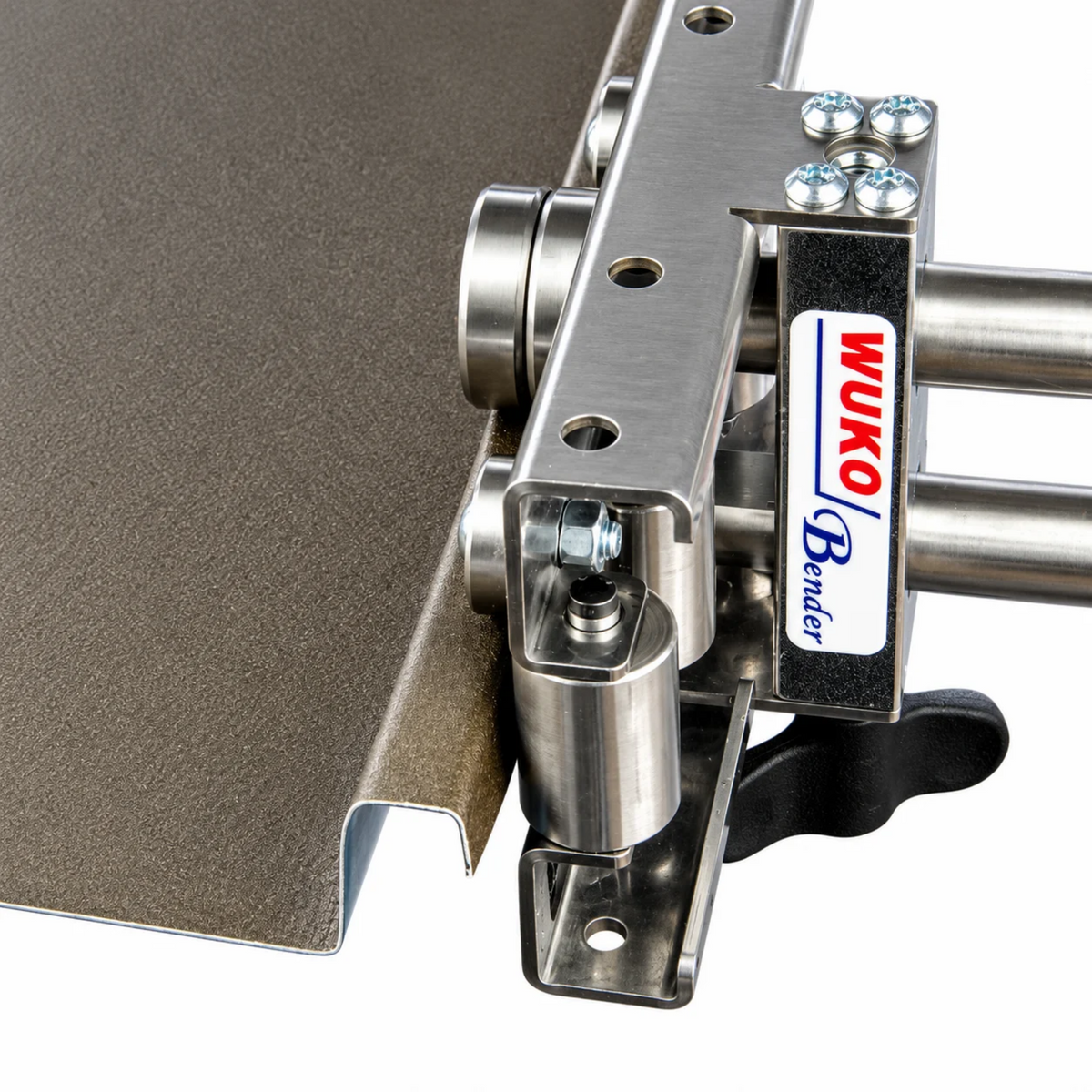

Wuko 2204 Sheet Metal Uni Bender

The WUKO 2204 Uni Bender is a versatile, handheld sheet metal bending tool designed for precise bends from 0° to 90° on both straight and curved sheet metal. Replacing the previous WUKO 2200 and 2202 models, the Uni Bender 2204 combines a compact design with four guiding rollers for improved stability, control, and bending performance.

With an adjustable bending height ranging from 5 mm (0.2") to 200 mm (8"), the WUKO 2204 is ideal for forming roof flashings, standing seam profiles, and architectural sheet metal components. Its narrow design allows for easier maneuverability, while the four roller stops provide better guidance, especially when working along outside radii. A removable screw-on handle provides additional leverage when forming taller bends.

Features & Benefits

• 90° Bending Capability: Forms precise bends from 0° to 90° on straight and curved sheet metal.
• Adjustable Bending Height: Accommodates bending heights from 5 mm (0.2") to 200 mm (8").

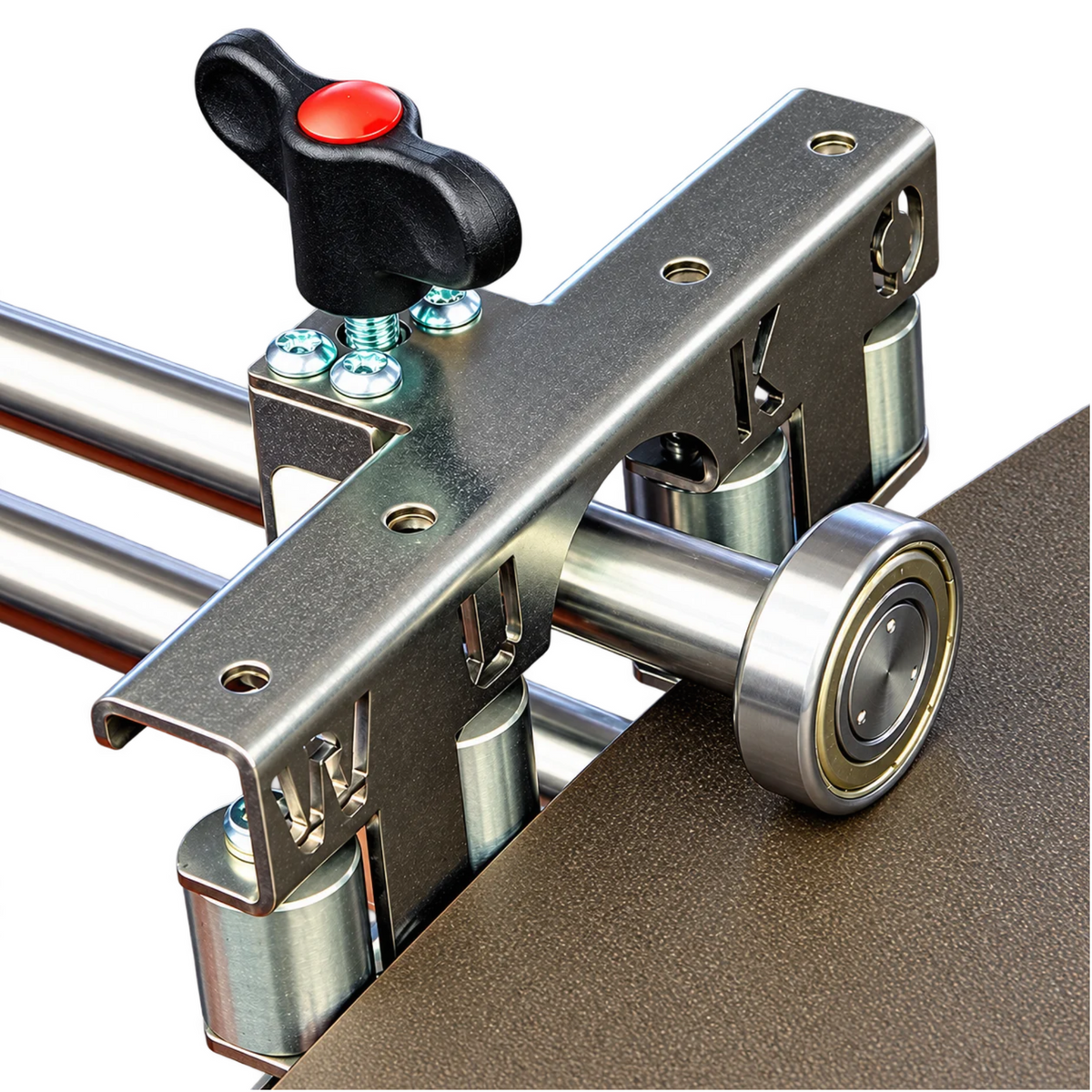

• Four Roller Stops: Provides improved stability and guidance, especially when forming outside radius bends.
• Compact Design: Narrower construction than the previous WUKO 2202 model for easier handling and maneuverability.
• Versatile Applications: Ideal for standing seam roofing profiles, custom flashings, and architectural sheet metal fabrication.
• Removable Handle: Includes a screw-on handle for improved control and leverage when working at maximum bending height.
• Lightweight Construction: Weighs just 3.28 lbs for comfortable handling and portability.

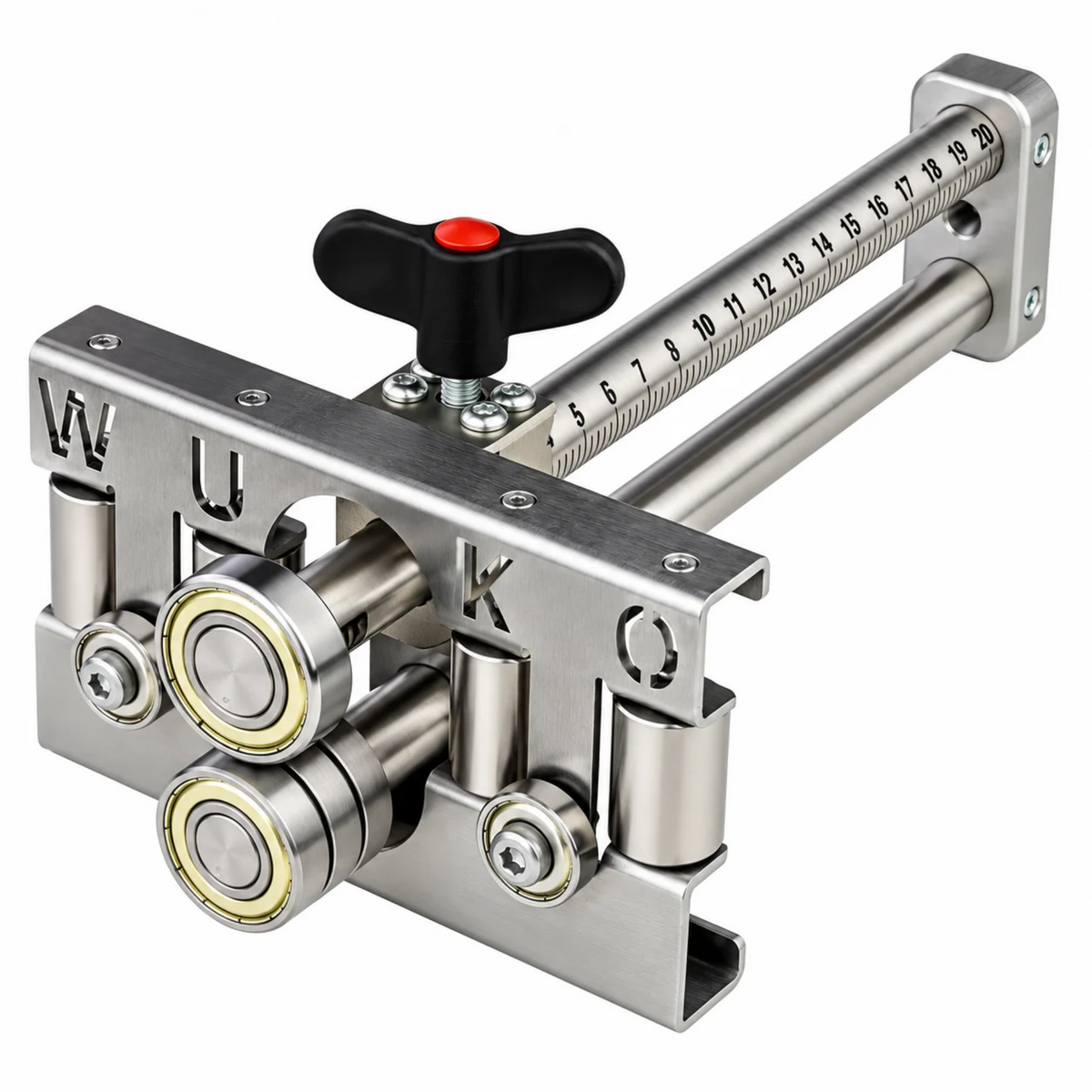

• Multiple Scale Options: Available with centimeter or inch measurement scales.
• Manual Operation: No electrical power required.
• Made in Austria: Manufactured for professional sheet metal applications.

Technical Specifications

• Bending Angle: 0°–90°
• Minimum Bending Height: 5 mm (0.2")
• Maximum Bending Height: 200 mm (8")
• Bending Capacity: 0.80 mm (0.031") for common sheet metals
• Weight: 3.28 lbs (1.49 kg)
• Roller Configuration: Four guiding rollers
• Measurement Scale: Centimeter or Inch
• Operation: Manual

WUKO 2204 vs. WUKO 2354 Uni Bender

Both tools feature four guiding rollers and are designed for precise sheet metal bending up to 90°. The primary difference is their maximum bending height.

• WUKO 2204 Uni Bender: Bending heights from 5 mm (3/16") to 200 mm (8"). Ideal for standard flashings and smaller bending applications.
• WUKO 2354 Uni Bender: Bending heights from 5 mm (3/16") to 350 mm (14"). Ideal for taller flashings and larger sheet metal profiles.
