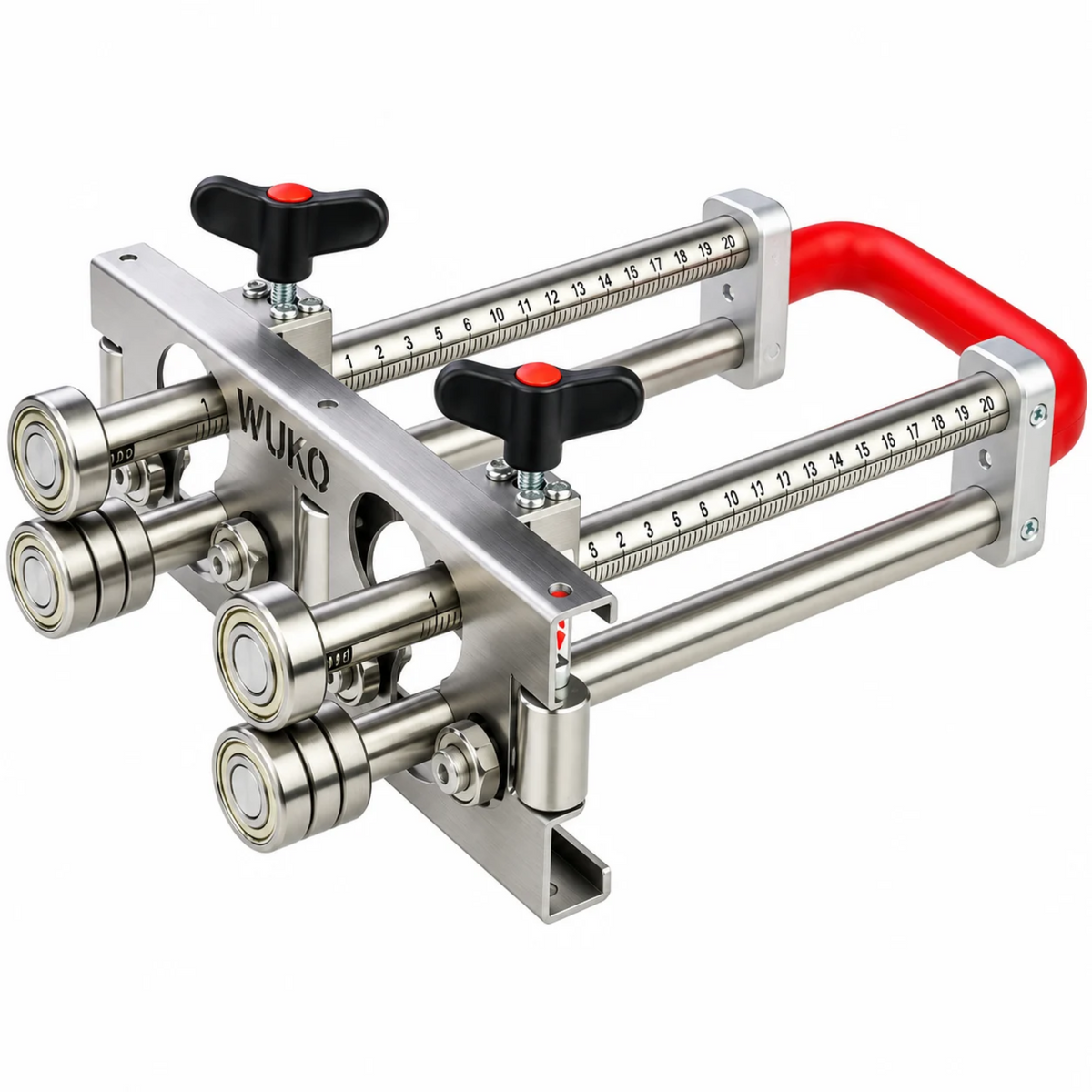

Wuko 3202 Sheet Metal Duo Bender

The WUKO 3202 Duo Bender (formerly 3200) is a professional handheld sheet metal bending tool specifically designed for quick, precise bending of long, straight sheet metal strips. Building on the functionality of the WUKO Uni Bender, the Duo Bender features a second pair of bending rollers and an additional handle for improved stability, control, and efficiency when forming long, consistent bends.

With an adjustable bending height ranging from 5 mm (3/16") to 200 mm (8"), the WUKO 3202 handles bends from 0° to 90° without requiring large shop equipment. Its dual-roller design makes it especially useful for standing seam roofing, long flashings, and architectural sheet metal fabrication. The tool is delivered in a carrying case for convenient storage and transportation.

Features & Benefits

• 90° Bending Capability: Forms precise bends from 0° to 90° on straight sheet metal.
• Adjustable Bending Height: Accommodates bending heights from 5 mm (3/16") to 200 mm (8").
• Dual-Roller Design: Two pairs of bending rollers provide consistent guidance and stability when forming long, straight bends.
• Dual Handles: Additional handle provides improved control and easier operation along extended sheet metal strips.
• Long Panel Bending: Especially designed for bending long, straight sheet metal panels and flashings.
• Versatile Applications: Ideal for standing seam roofing profiles, custom flashings, and architectural sheet metal fabrication.
• Lightweight Construction: Weighs approximately 5.9 lbs for convenient handling and portability.
• Duo Bender Plus Set Compatible: Optional accessories improve pressure distribution and help prevent marks on finished sheet metal.
• Carrying Case Included: Provides convenient storage and protection during transportation.
• Manual Operation: No electrical power required.
• Made in Austria: Manufactured for professional sheet metal applications.

Technical Specifications

• Model: WUKO 3202 (formerly 3200)
• Bending Angle: 0°–90°
• Minimum Bending Height: 5 mm (3/16")
• Maximum Bending Height: 200 mm (8")
• Bending Capacity: 0.80 mm (22 ga) for common sheet metals
• Weight: 5.9 lbs (2.68 kg)
• Roller Configuration: Two pairs of bending rollers
• Measurement Scale: Inch or centimeter
• Operation: Manual

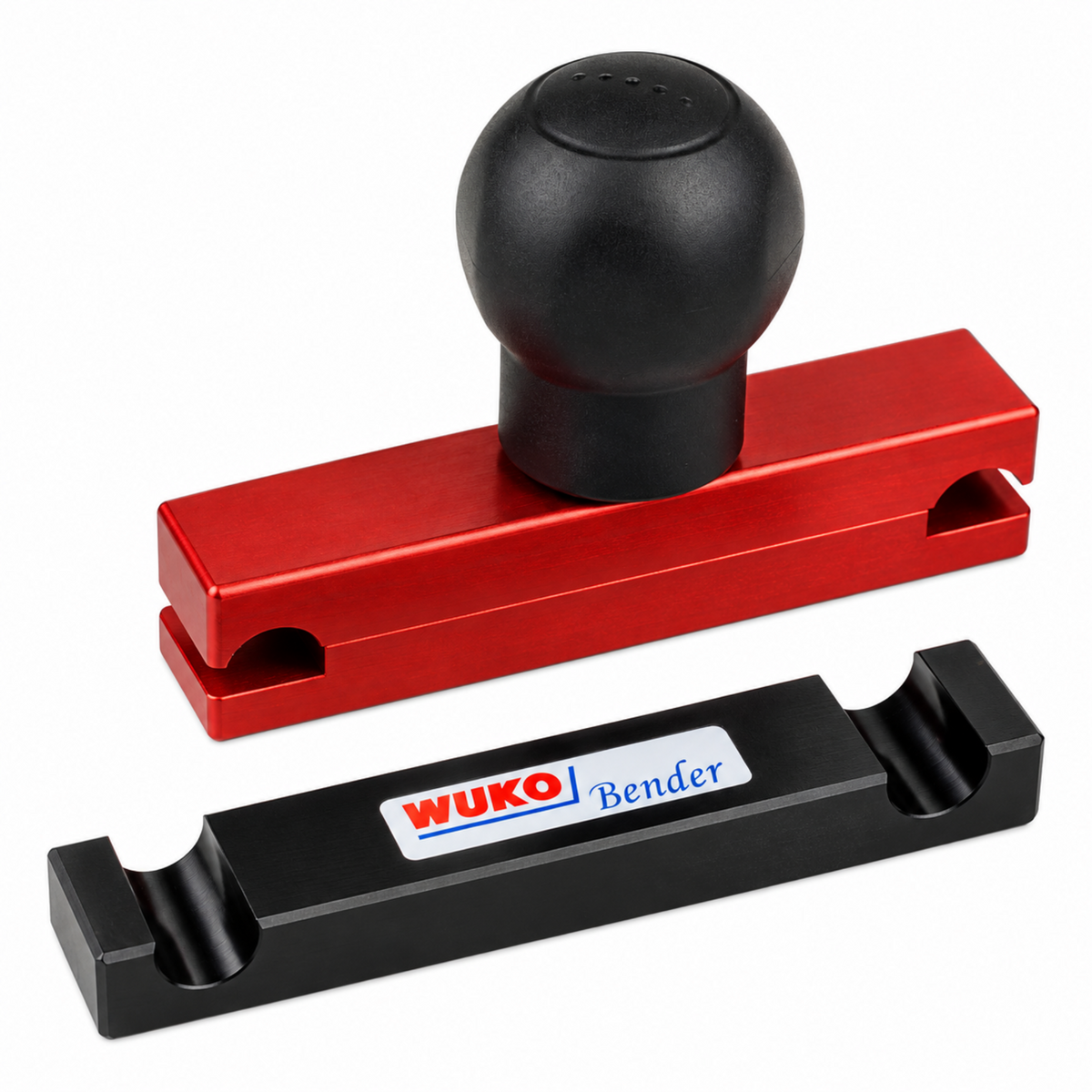

Optional Accessories

The WUKO Duo Bender Plus Set is designed to improve bending control and protect finished sheet metal surfaces. The set includes:

• Super Clamping Handle: Attaches quickly to the upper shafts of the Duo Bender, allowing pressure to be applied directly where needed for improved bending control.
• Quick Click Supporting Rail: Attaches to the lower shafts to help distribute pressure and prevent unwanted marks on the sheet metal surface.

WUKO 3202 vs. WUKO 3352 Duo Bender

Both Duo Benders feature the same dual-roller design and are intended for quick, consistent bending of long, straight sheet metal strips. The primary difference is their maximum bending height.

• WUKO 3202 Duo Bender: Bending heights from 5 mm (3/16") to 200 mm (8"). Ideal for standard flashings, standing seam profiles, and smaller bending applications. Available with centimeter or inch scale.
• WUKO 3352 Duo Bender: Bending heights from 5 mm (3/16") to 350 mm (14"). Ideal for taller flashings and larger sheet metal profiles. Available with centimeter or inch scale.
