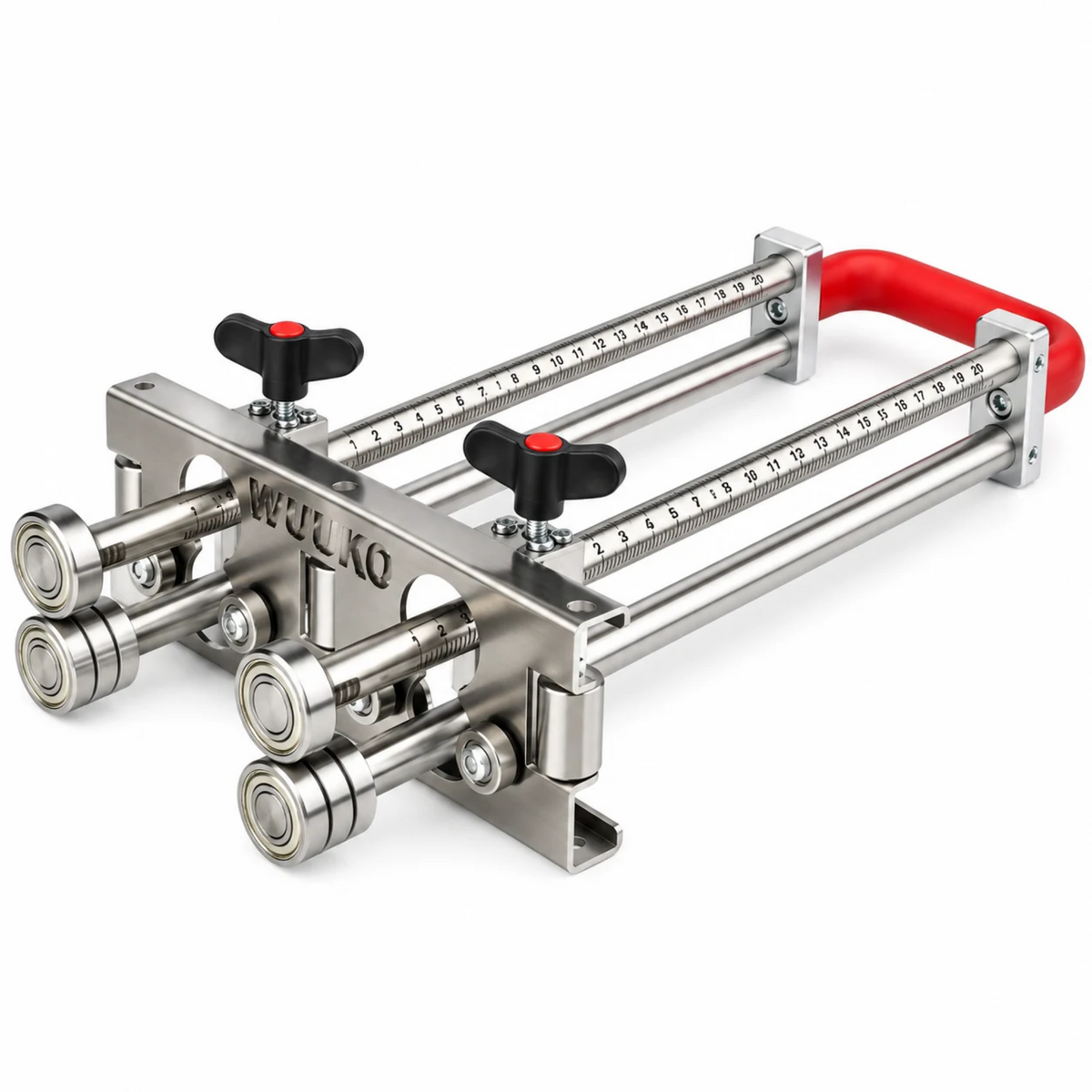

Wuko 3352 Sheet Metal Duo Bender

The WUKO 3352 Duo Bender (formerly 3350) is a professional handheld sheet metal bending tool designed for quick, precise bending of long, straight sheet metal strips. As the extended-length version of the WUKO 3202, the Duo Bender 3352 features two pairs of bending rollers and dual handles for improved stability, control, and efficiency when forming long, consistent bends.

With an adjustable bending height ranging from 5 mm (3/16") to 350 mm (14"), the WUKO 3352 forms bends from 0° to 90° without requiring large shop equipment. Its extended bending capacity makes it especially useful for taller roof flashings, standing seam profiles, and architectural sheet metal fabrication. The tool is delivered in a carrying case for convenient storage and transportation.

Features & Benefits

• 90° Bending Capability: Forms precise bends from 0° to 90° on straight sheet metal.
• Extended Bending Height: Accommodates bending heights from 5 mm (3/16") to 350 mm (14").
• Dual-Roller Design: Two pairs of bending rollers provide consistent guidance and stability when forming long, straight bends.
• Dual Handles: Additional handle improves control and handling along extended sheet metal strips.
• Long Panel Bending: Designed for forming consistent bends along long, straight sheet metal panels and flashings.
• Versatile Applications: Ideal for taller roof flashings, standing seam roofing profiles, and architectural sheet metal fabrication.
• Portable Construction: Weighs approximately 7.9 lbs for convenient handling and transportation.
• Duo Bender Plus Set Compatible: Optional accessories improve pressure application and help prevent marks on finished sheet metal.

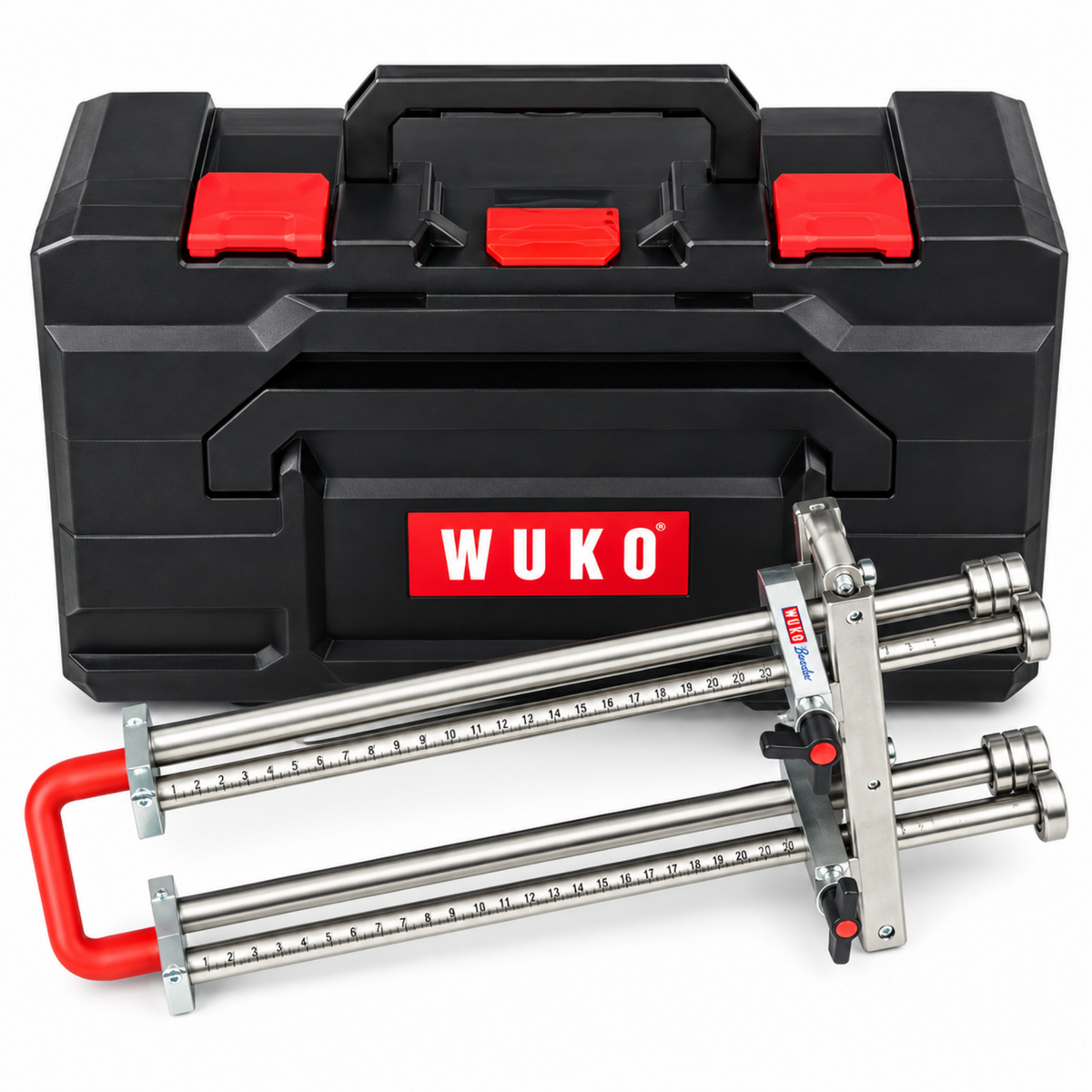

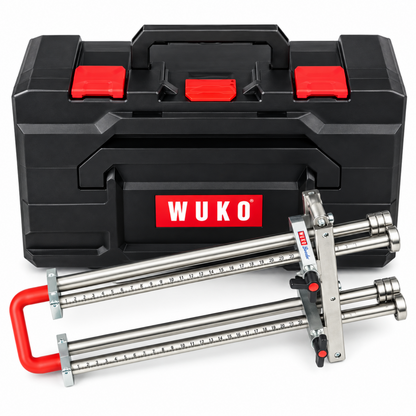

• Carrying Case Included: Provides convenient storage and protection during transportation.
• Manual Operation: No electrical power required.

Technical Specifications

• Model: WUKO 3352 (formerly 3350)
• Bending Angle: 0°–90°
• Minimum Bending Height: 5 mm (3/16")
• Maximum Bending Height: 350 mm (14")
• Bending Capacity: 0.80 mm (22 ga) for common sheet metals
• Weight: 7.9 lbs (3.6 kg)
• Roller Configuration: Two pairs of bending rollers
• Measurement Scale: Inch or centimeter
• Operation: Manual

Optional Accessories

The WUKO Duo Bender Plus Set is especially recommended for the longer WUKO 3352. Designed to improve bending control and protect finished sheet metal surfaces, the set includes:

• Super Clamping Handle: Quickly attaches to the upper shafts of the Duo Bender, allowing pressure to be applied directly where needed for improved bending control.
• Quick Click Supporting Rail: Attaches to the lower shafts to help distribute pressure and prevent unwanted marks on the sheet metal surface.

WUKO 3202 vs. WUKO 3352 Duo Bender

Both Duo Benders feature two pairs of bending rollers and are designed for quick, consistent bending of long, straight sheet metal strips. The primary difference is their maximum bending height.

• WUKO 3202 Duo Bender: Bending heights from 5 mm (3/16") to 200 mm (8"). Ideal for standard flashings, standing seam profiles, and smaller bending applications.
• WUKO 3352 Duo Bender: Bending heights from 5 mm (3/16") to 350 mm (14"). Ideal for taller flashings and larger sheet metal profiles.
