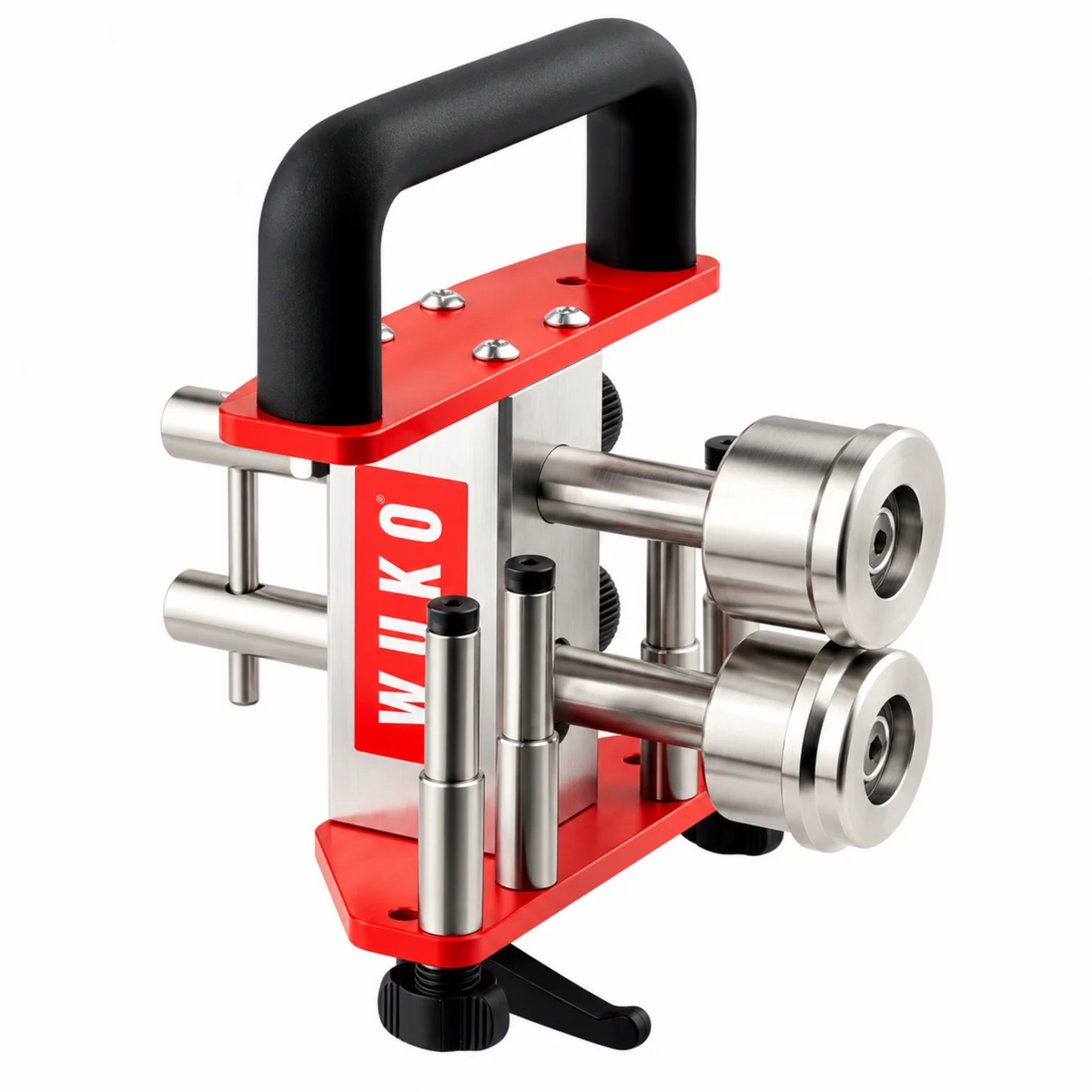

Wuko 5000 Sheet Metal Combo Bender

The WUKO 5000 Combo Bender is a versatile handheld sheet metal forming tool designed for beading, stiffening, and offsetting sheet metal. Featuring interchangeable forming roll sets and an adjustable throat depth, the WUKO 5000 allows contractors to create precise profiles along straight and curved sheet metal edges without requiring large shop equipment.

With an adjustable throat depth ranging from 0 to 65 mm (2-1/2"), the WUKO 5000 provides flexibility for a variety of sheet metal forming applications. Four roller stops provide stable guidance along straight edges, while two can be quickly removed when working on curves. Its radially adjustable lower shaft allows forming pressure to be increased gradually with each pass for controlled, consistent results. The interchangeable stainless steel roll sets feature long-life bearings, with additional roll profiles available for specialized applications.

Features & Benefits

• Multiple Forming Applications: Designed for beading, stiffening, and offsetting sheet metal.
• Adjustable Throat Depth: Accommodates forming depths from 0 to 65 mm (2-1/2").
• Interchangeable Roll Sets: Allows different forming profiles using compatible roller sets.
• Stainless Steel Forming Rolls: Durable roll sets equipped with long-life bearings for smooth operation.
• Four Roller Stops: Provides improved stability and guidance when forming straight sheet metal strips.
• Curved Edge Capability: Two roller stops can be quickly removed to accommodate curved sheet metal edges.
• Adjustable Forming Pressure: Radially adjustable lower shaft allows gradual increases in forming pressure for consistent results.
• Custom Roll Options: Additional and customized roll sets are available for specialized forming applications.
• Versatile Applications: Ideal for metal roofing, architectural sheet metal, HVAC ductwork, and custom fabrication.
• Compact & Portable: Weighs approximately 3.2 lbs for convenient handling and transportation.
• Manual Operation: No electrical power required.

Technical Specifications

• Maximum Sheet Metal Thickness: 0.80 mm (22 ga) for common sheet metals
• Minimum Throat Depth: 0 mm (0")
• Maximum Throat Depth: 65 mm (2-1/2")
• Weight: 3.2 lbs (1.5 kg)
• Forming Applications: Beading, stiffening, and offsetting
• Forming Rolls: Interchangeable stainless steel roll sets with long-life bearings
• Guide Configuration: Four roller stops, two removable for curved applications
• Pressure Adjustment: Radially adjustable lower shaft
• Operation: Manual

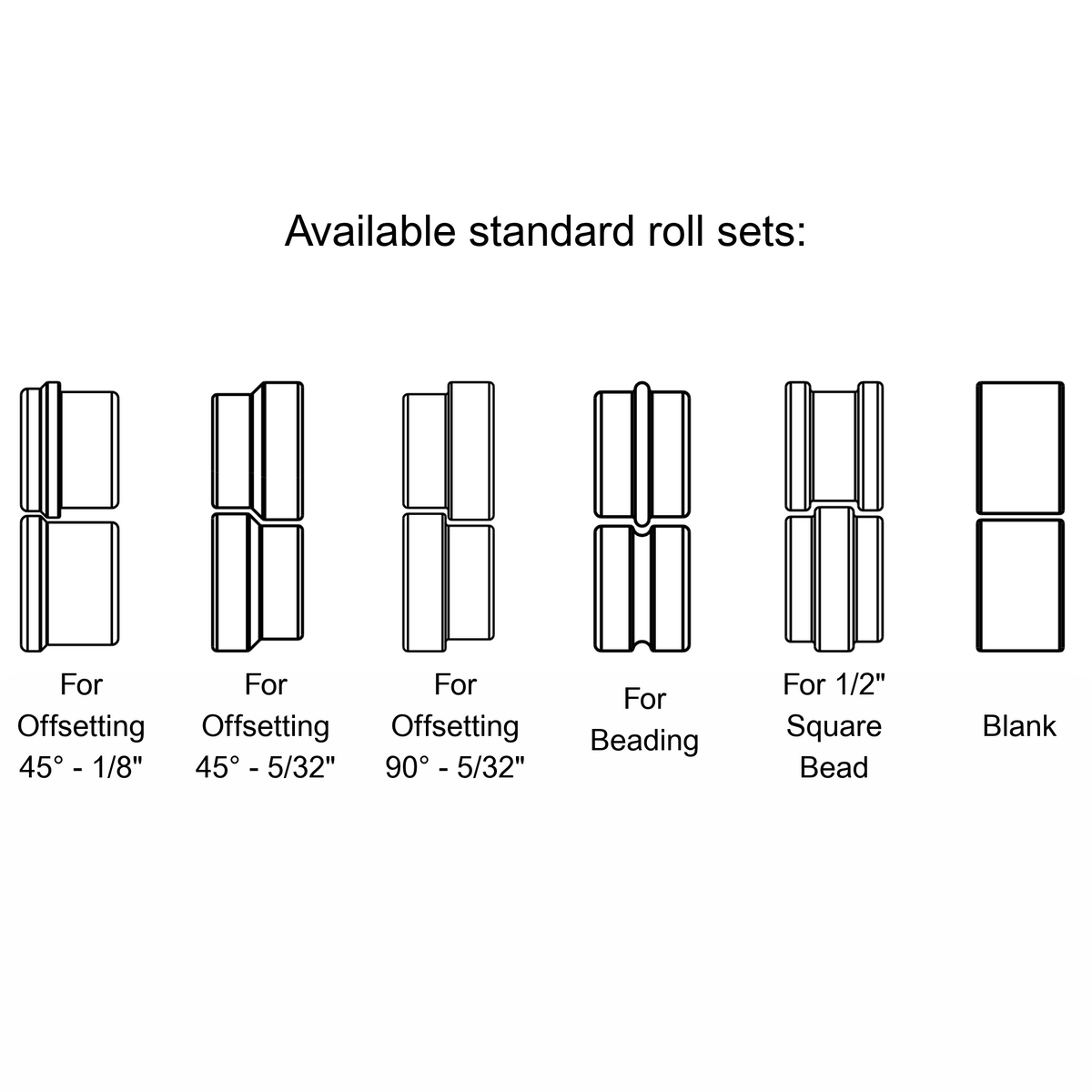

Interchangeable Roll Sets

The WUKO 5000 Combo Bender uses interchangeable forming rolls to create different sheet metal profiles. Roll sets can be changed to accommodate various beading, stiffening, and offsetting applications.

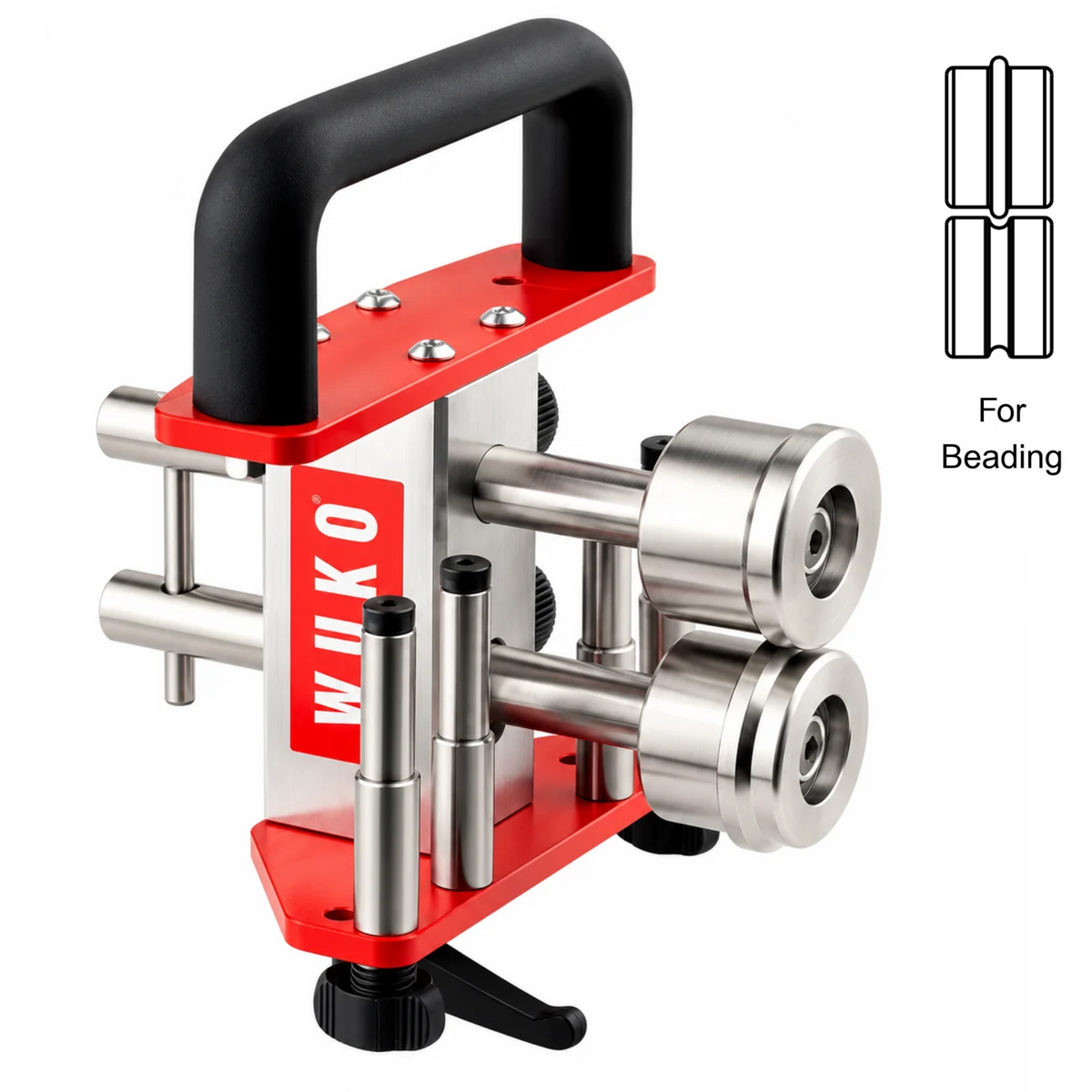

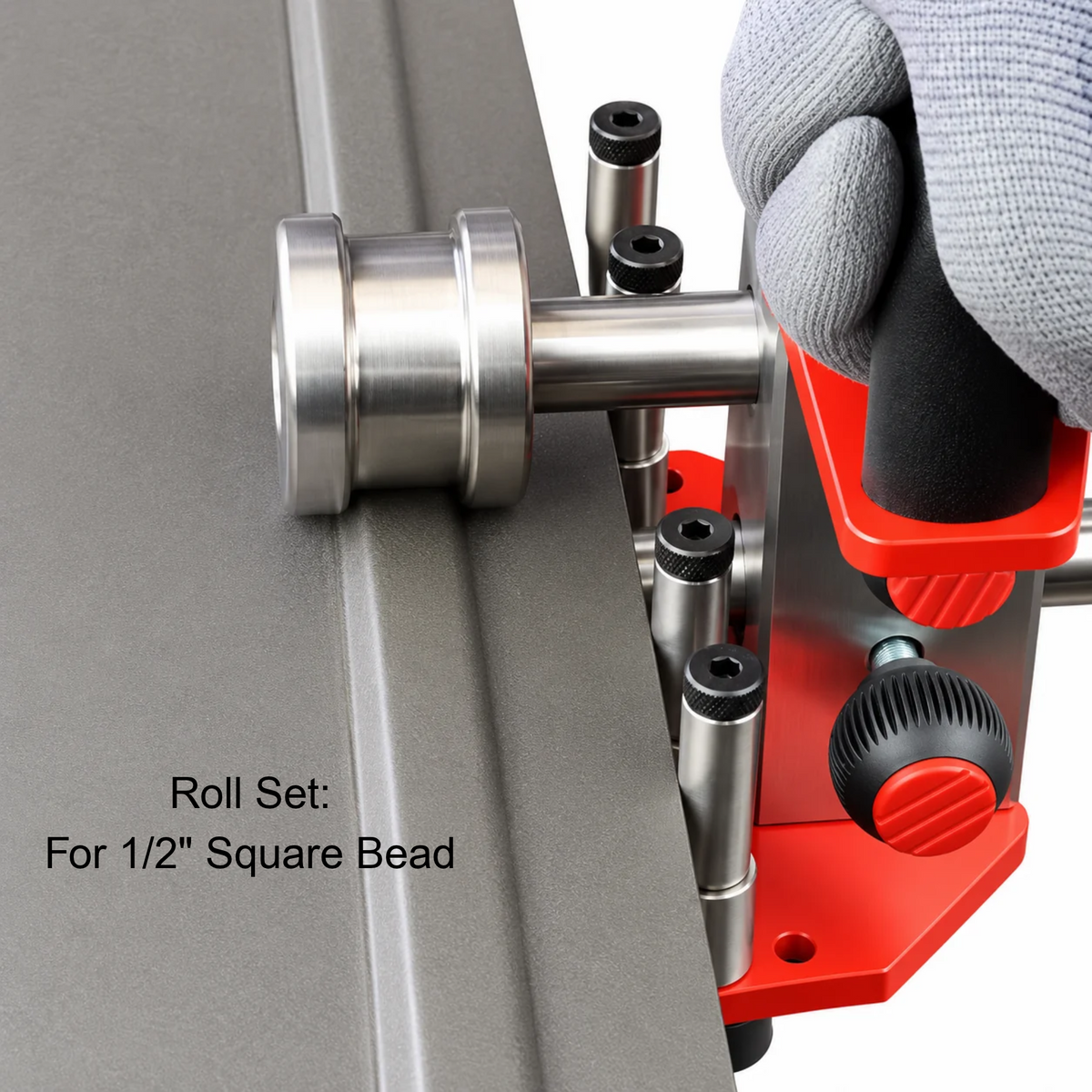

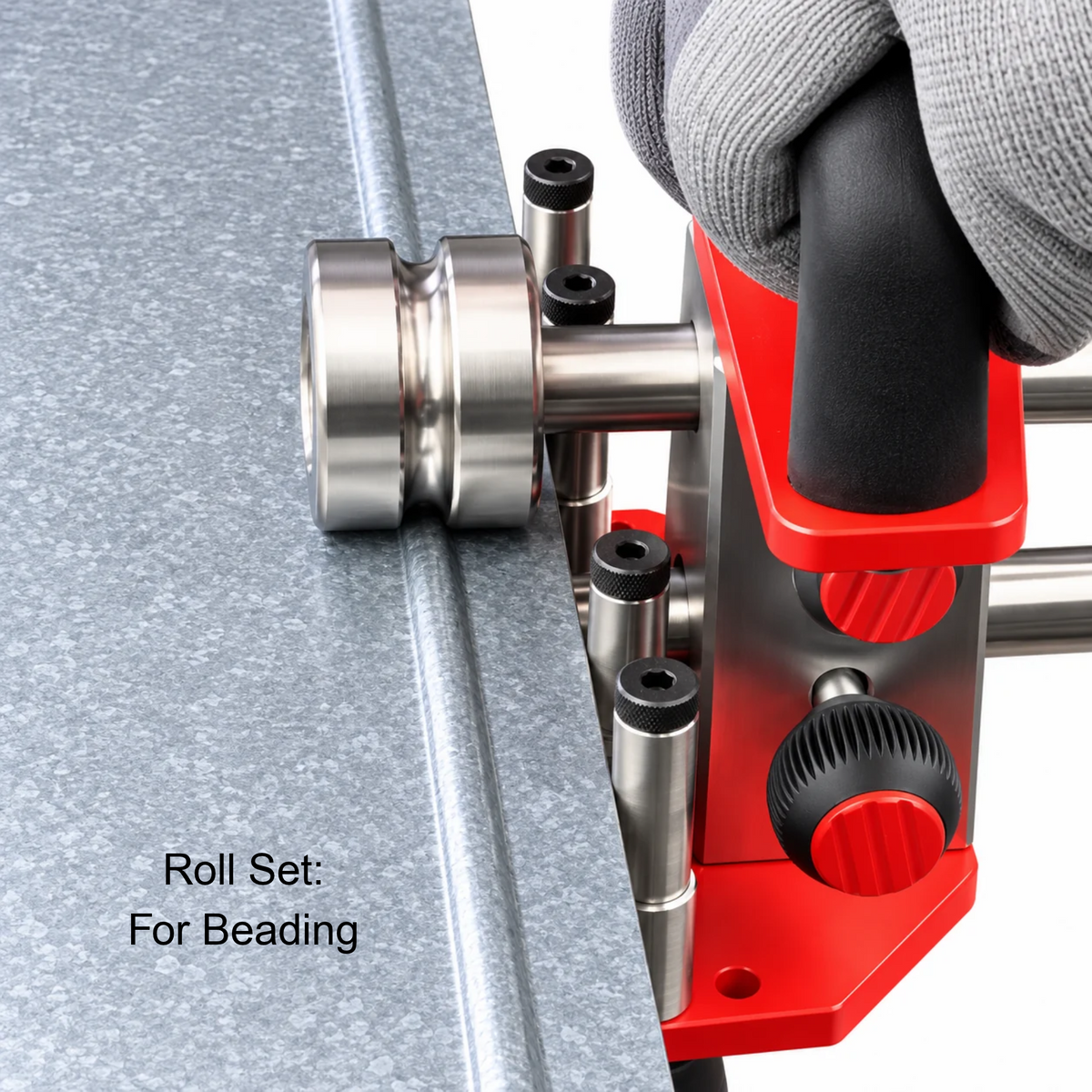

• Beading Rolls: Create raised beads or ribs to stiffen sheet metal panels and add formed details.

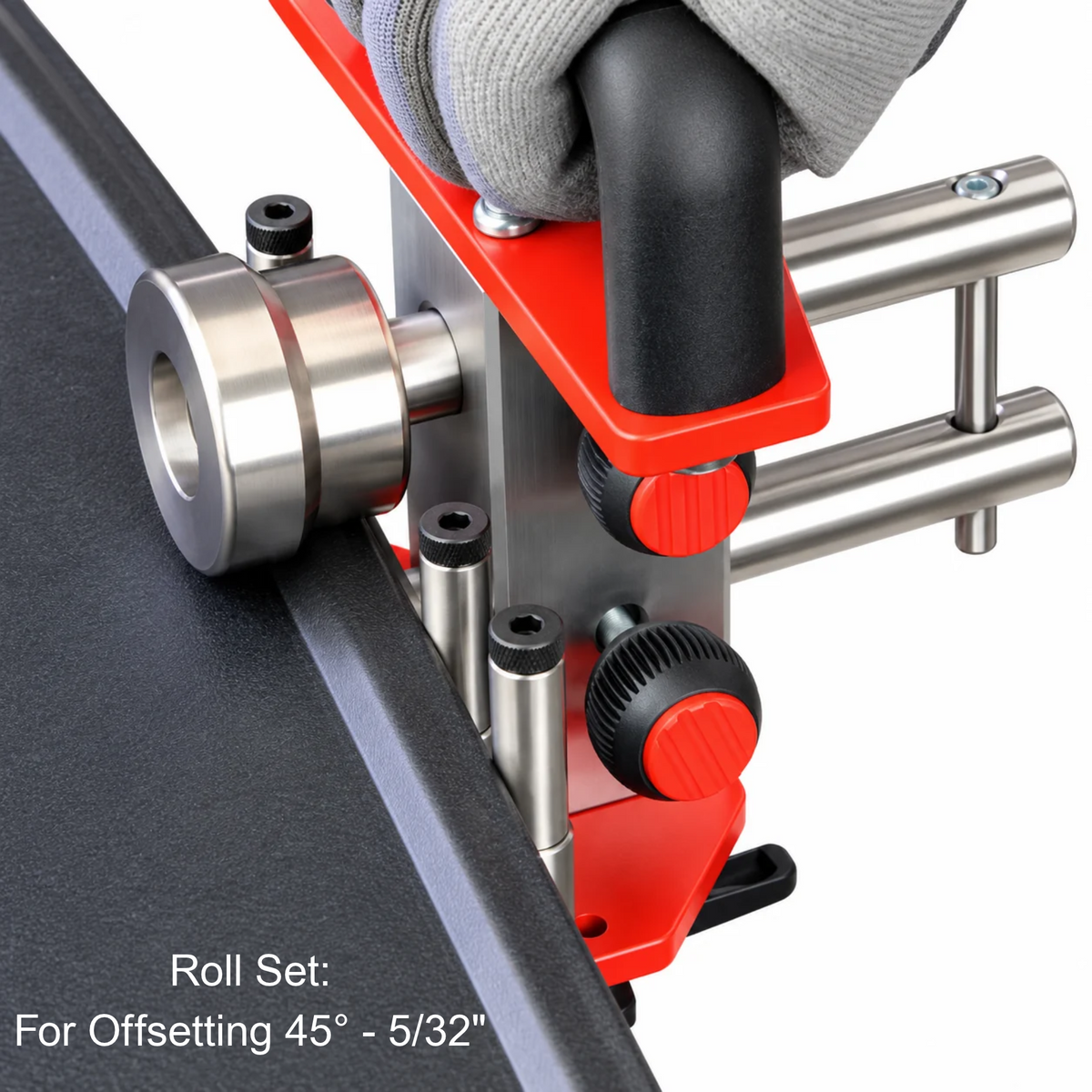

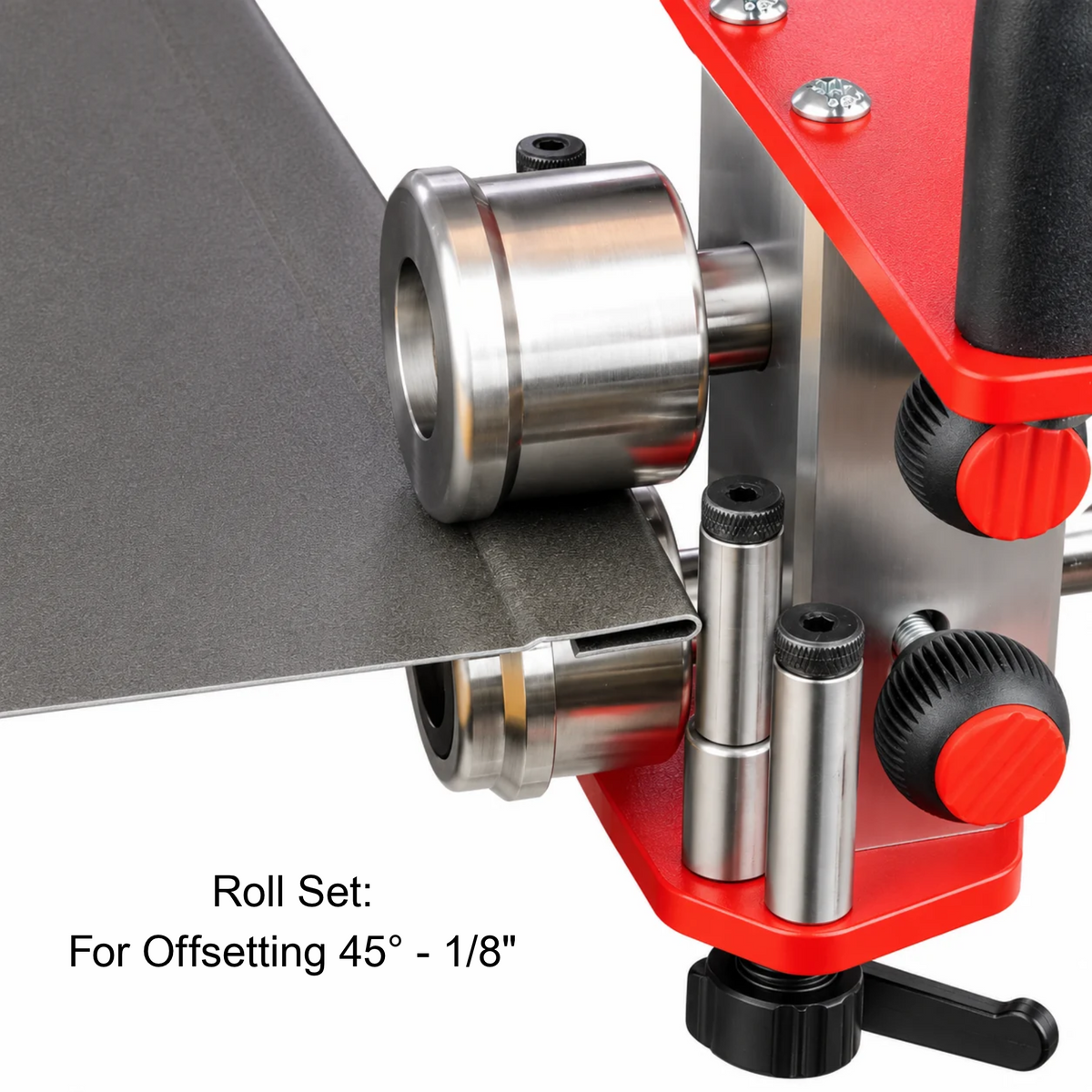

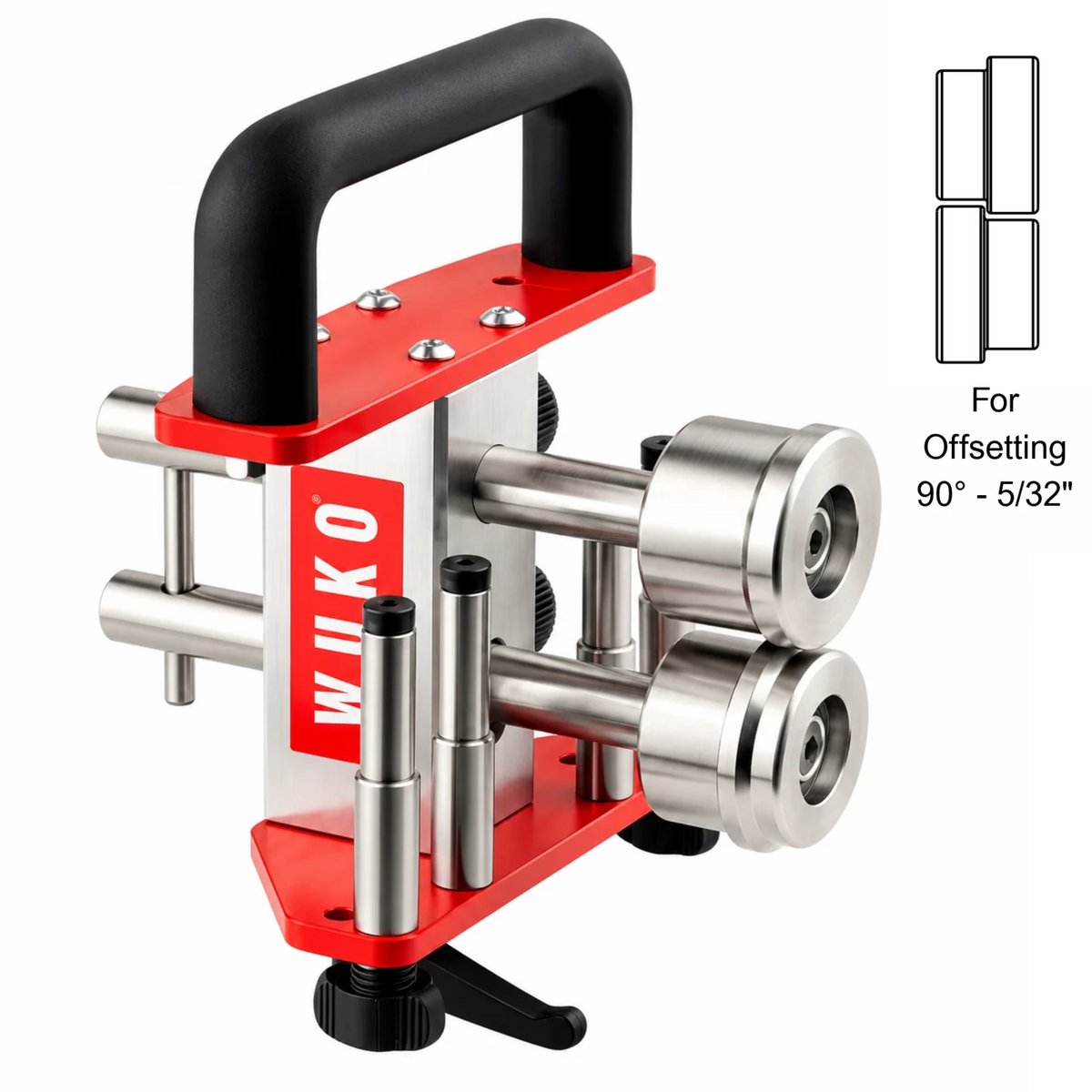

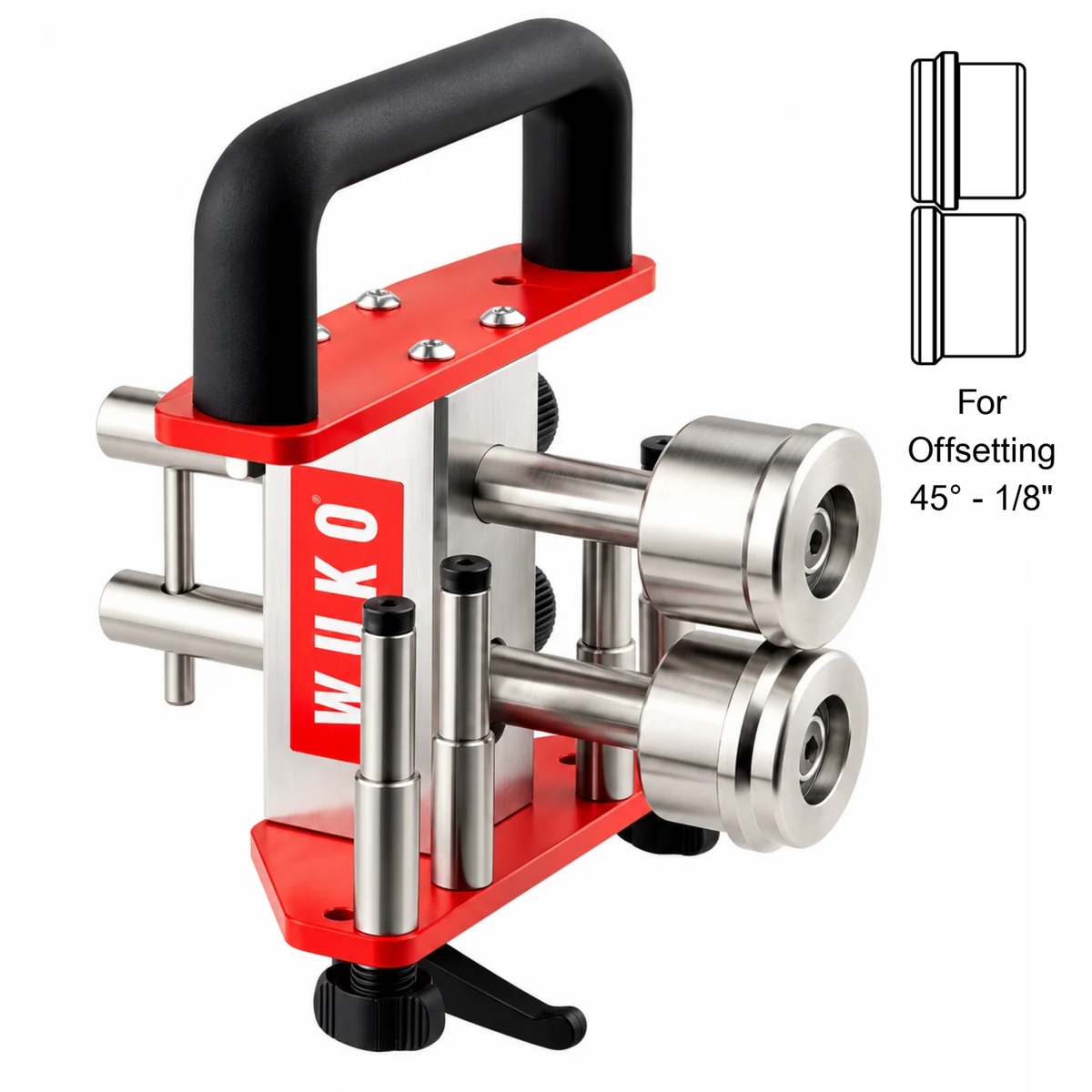

• Offsetting Rolls: Form offset profiles and stepped edges for sheet metal fabrication.
• Additional Forming Rolls: Compatible roll sets are available for specialized profiles and fabrication requirements.
