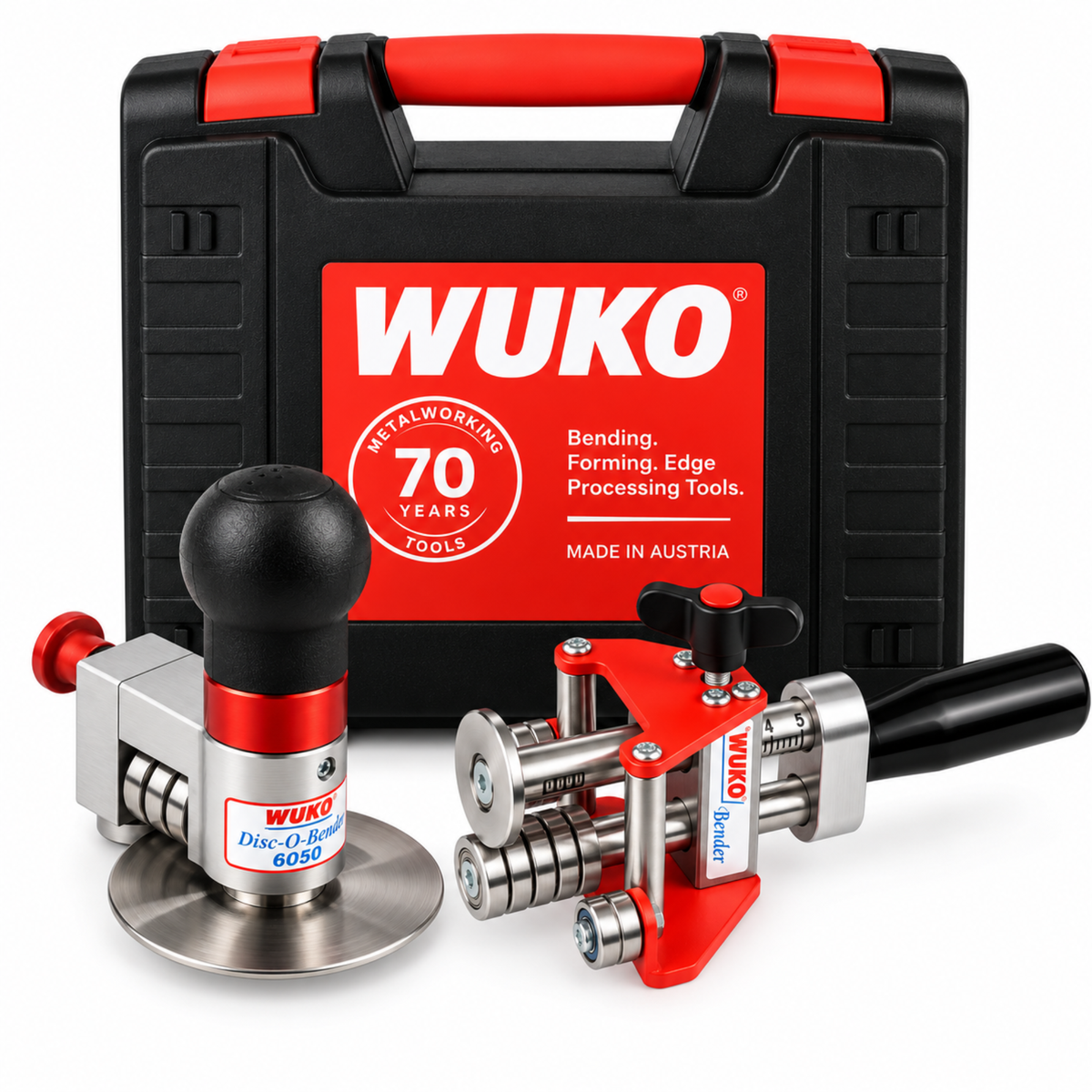

Wuko 6050/4040 Sheet Metal Bender Kit

The WUKO 6050/4040 Bender Kit combines two professional handheld sheet metal bending tools designed to create precise bends and finished hems from 0° to 180°. Featuring the WUKO 6050 Mini Uber Bender and WUKO 4040 Disc-O-Bender Twist, this compact kit provides a complete two-step solution for forming sheet metal edges along straight sections and small inside or outside radii.

The WUKO 6050 Mini Uber Bender creates the initial bend up to 100° using an angled bending disc that helps protect delicate or coated sheet metal surfaces and compensate for material spring-back. The WUKO 4040 Disc-O-Bender Twist then finishes the pre-bent edge from 90° to 180° to form a clean, consistent hem. Its twist-away roller stop allows the tool to be positioned or removed anywhere along an existing bend without requiring additional side clearance. The set includes a carrying case for convenient storage and transportation.

Features & Benefits

• Complete Bending & Hemming Kit: Includes two complementary tools for creating bends and finished hems from 0° to 180°.
• Two-Step Hemming: Use the Mini Uber Bender 6050 to form the initial bend, then the Disc-O-Bender Twist 4040 to complete the 180° hem.
• 100° Initial Bending Capability: The WUKO 6050 allows bending beyond 90° to help compensate for spring-back materials.
• Inside & Outside Radius Bending: Designed for forming bends and hems along small inside and outside radii.
• Angled Bending Disc: Helps protect delicate, painted, and coated sheet metal surfaces during initial bending.
• 2" Maximum Initial Bending Height: The WUKO 6050 accommodates bending heights up to 50 mm (2").
• 1-1/4" Maximum Hemming Height: The WUKO 4040 finishes pre-bent edges with heights up to 32 mm (1-1/4"), depending on material.
• Twist-Away Roller Stop: Allows the Disc-O-Bender to be installed or removed anywhere along an existing bend without requiring clearance at the panel ends.
• Precise Hem Formation: Rolling bending mechanisms produce clean, consistent bends without requiring large shop equipment.
• Versatile Applications: Ideal for curved roof flashings, architectural sheet metal details, standing seam roofing, and custom fabrication.
• Compact & Portable: Lightweight handheld tools are convenient for workshop and jobsite applications.
• Carrying Case Included: Provides organized storage and protection for both bending tools.
• Manual Operation: No electrical power required.

Technical Specifications

• Combined Bending Range: 0°–180° in two stages
• Maximum Material Thickness: 0.80 mm (22 ga) for common sheet metals
• WUKO 6050 Bending Angle: 0°–100°
• WUKO 6050 Bending Height: 5–50 mm (approximately 3/16"–2")
• WUKO 6050 Weight: 2 lbs (0.90 kg)
• WUKO 4040 Bending Angle: 90°–180°
• WUKO 4040 Bending Height: 8–32 mm (5/16"–1-1/4")
• WUKO 4040 Weight: 1.7 lbs (0.76 kg)
• Kit Weight Including Case: 5.9 lbs (2.7 kg)
• Bending Applications: Straight edges, inside radii, and outside radii
• Measurement Scale: Centimeter or Inch
• Operation: Manual
• Included Storage: Carrying case

What's Included

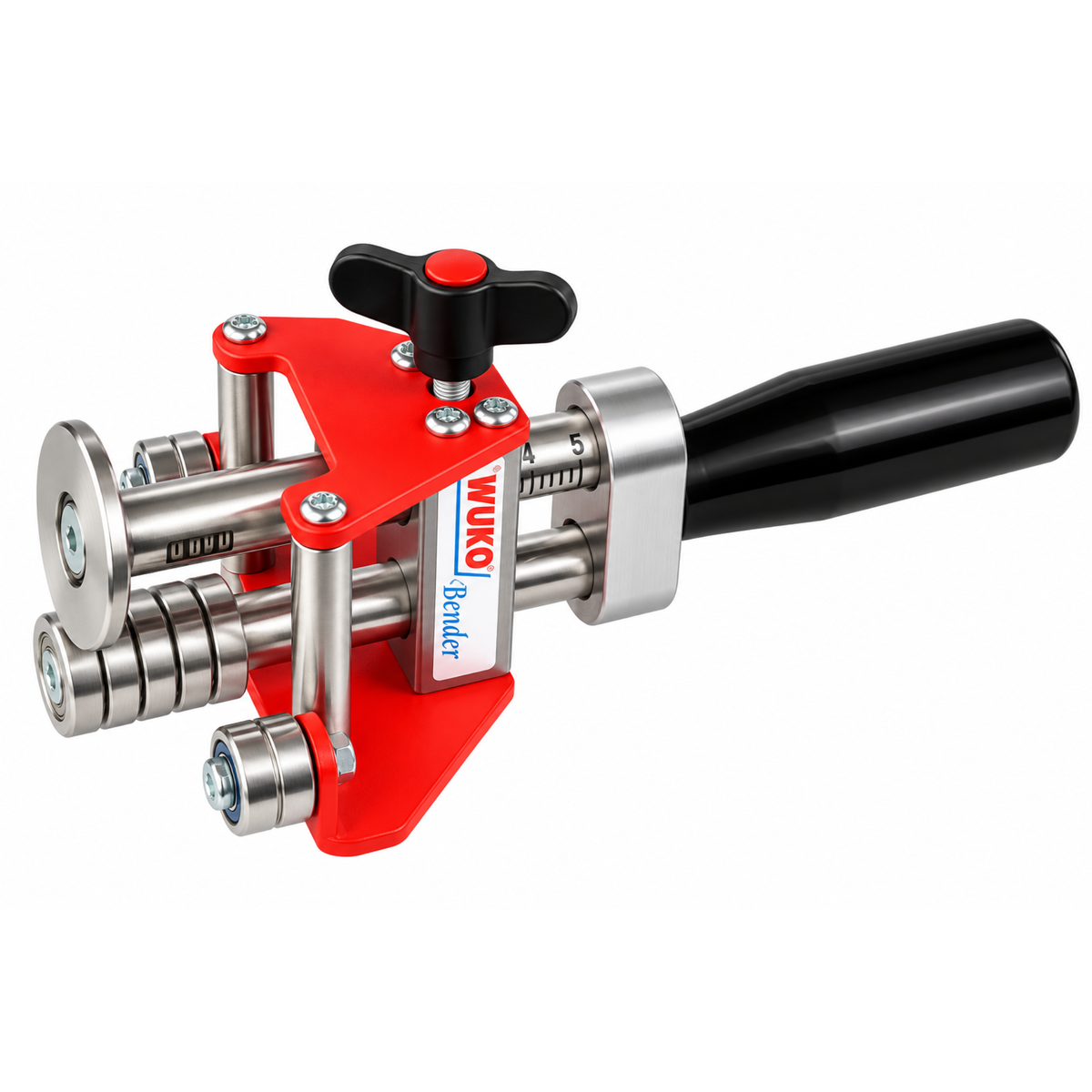

• WUKO 6050 Mini Uber Bender: Compact radius bending tool featuring an angled bending disc for forming sheet metal bends up to 100° with a maximum bending height of 50 mm (2").
• WUKO 4040 Disc-O-Bender Twist: Hemming tool designed to finish pre-bent sheet metal edges from 90° to 180°. Features a twist-away roller stop for convenient placement and removal without requiring side clearance.
• Carrying Case: Durable case for organized storage and convenient transportation of both tools.
